Özellikler

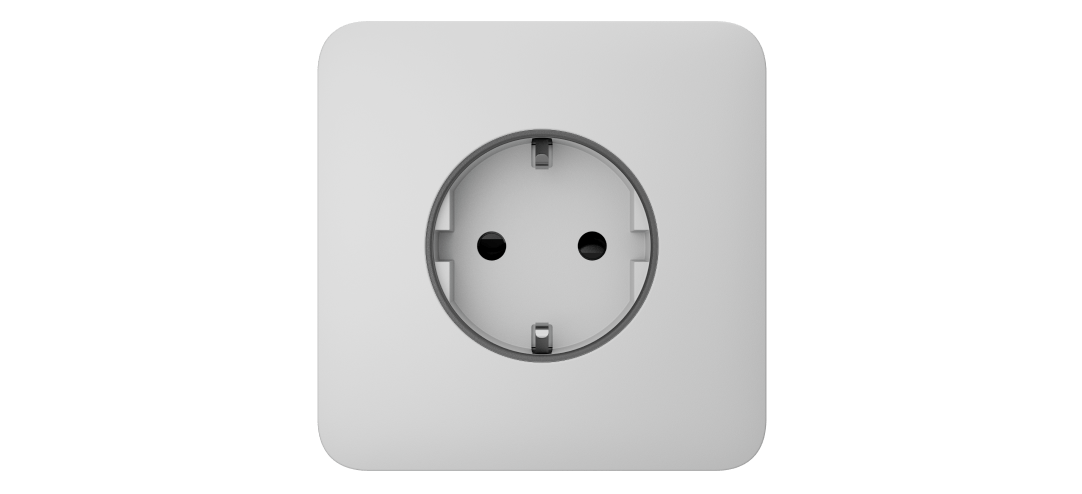

Outlet (basic) [type F]
Topraklamalı duvar prizi
![Outlet (basic) [type F]](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_md_a3792fcc62%402.png&1711710435)
Bileşenler
Göbek

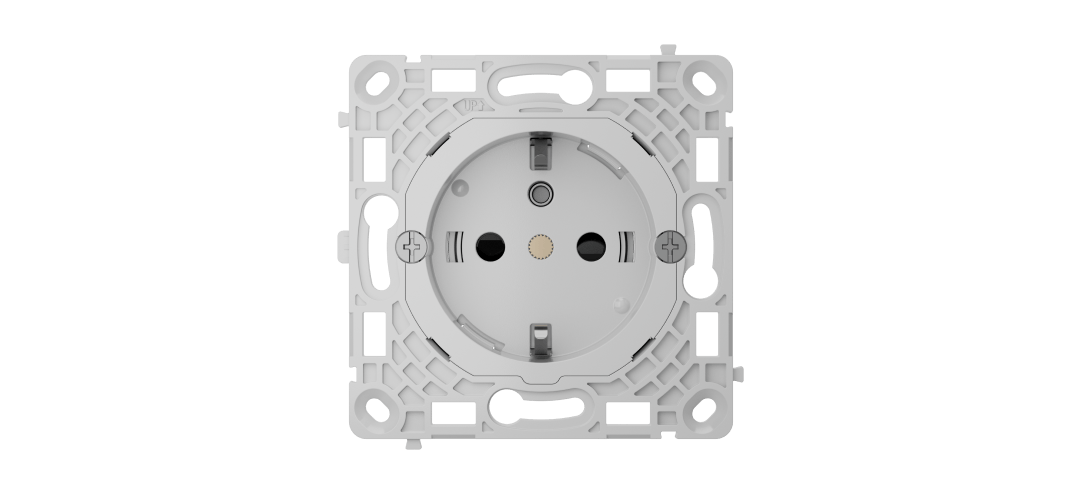

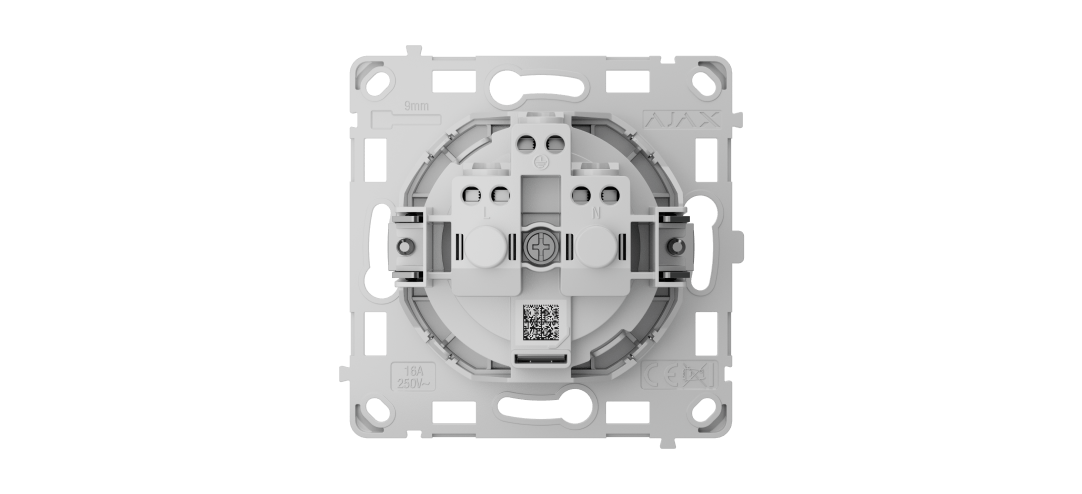

OutletCore (basic) [type F]
![](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_front_7d00e806a5%402.png&1711710580)

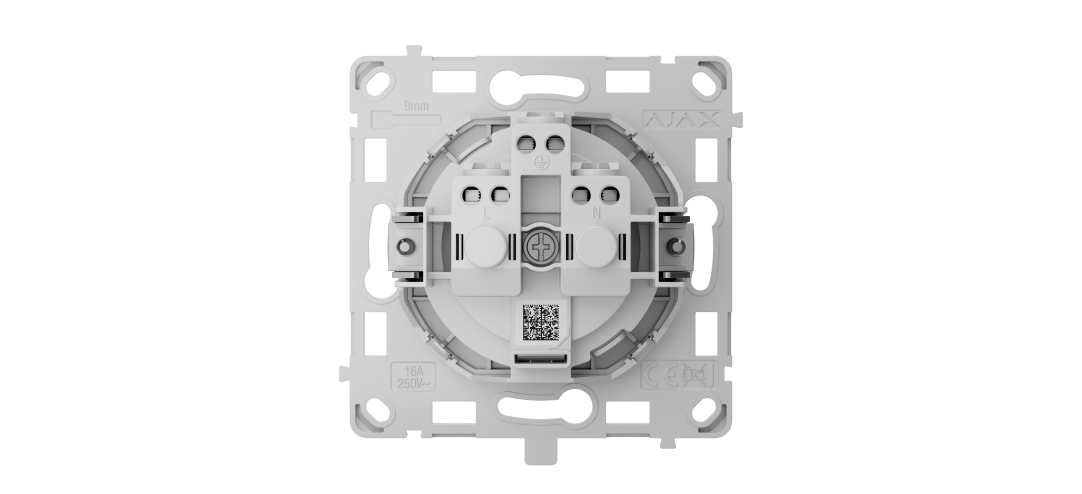

![](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_back_22234d9419%402.png&1711710580)

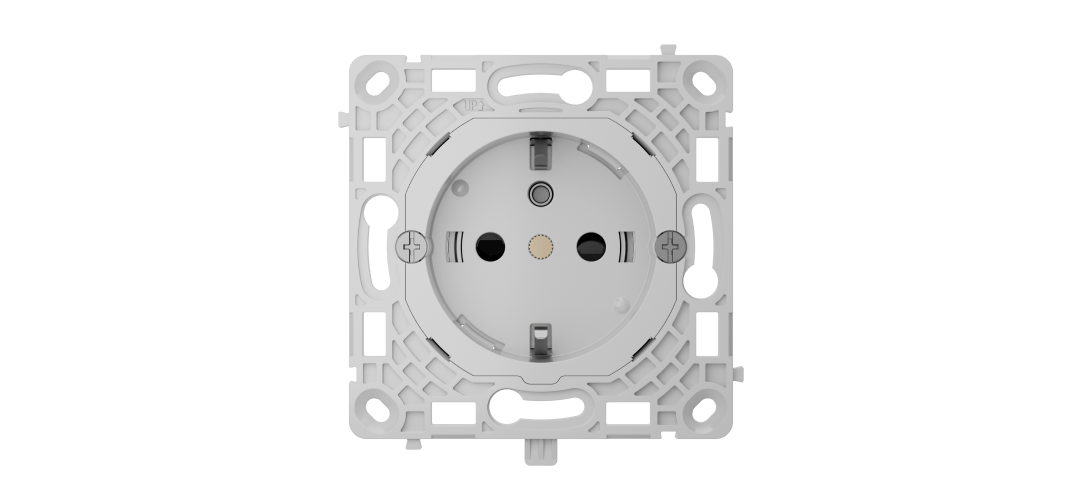

OutletCore (basic) vertical [type F]
![](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_front_d60ebc6f1d%402.png&1711710580)
![](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_back_098dfc53e6%402.png&1711710580)

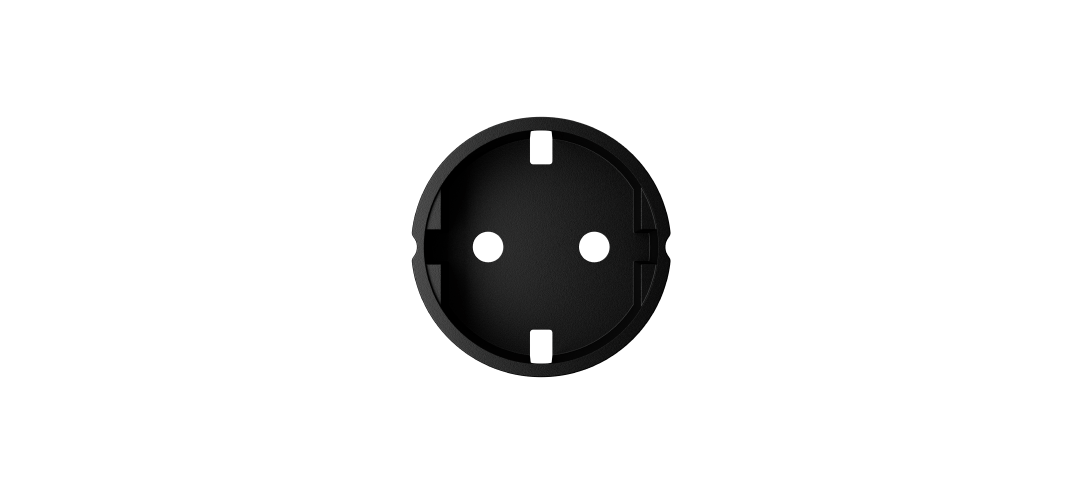

Kapaklar
Tüm kapaklar aynı renkte iki bileşenden oluşur: Ön panel ve hazne kapağı.
SoloCover (basic) [type F]
Priz ayrı bir cihaz olarak monte edildiğinde kullanılır.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_solo_663a327e9a%402.png&1711710505)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_9ed622b407%402.png&1711710622)
SideCover (basic) [type F]
Priz, cihaz setinin sağına veya soluna (üstüne veya altına) monte edildiğinde kullanılır.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_side_2a253e0f83%402.png&1711710505)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_9ed622b407%402.png&1711710622)
CenterCover (basic) [type F]
Priz cihaz setinin ortasına monte edildiğinde kullanılır.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_center_509c9d7f5a%402.png&1711710504)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_9ed622b407%402.png&1711710622)
Çerçeveler

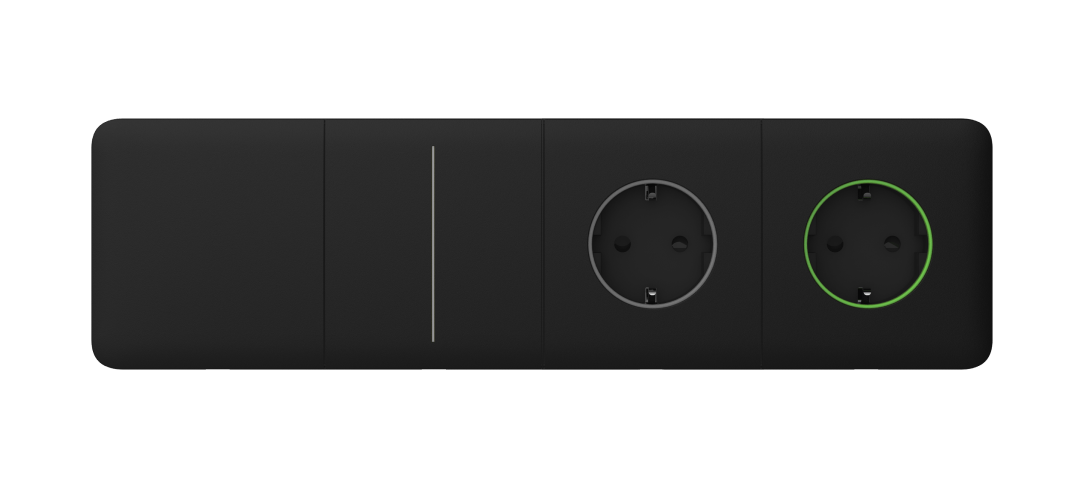

Herhangi bir kombinasyonda iki, üç, dört ve beş Ajax prizi ve anahtarı için çerçeveler*.
Frame (2 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_2_seats_1605ff0930%402.png&1722327655)
Frame (3 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_3_seats_0355b1ffe9%402.png&1722327654)
Frame (4 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_4_seats_2b4e999dc3%402.png&1722327655)
Frame (5 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_5_seats_f5a5e09937%402.png&1722327654)
Frame (2 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_2_seats_151bb4980b%402.png&1722327701)
Frame (3 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_3_seats_d792a6ec26%402.png&1722327753)
Frame (4 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_4_seats_64e98ce954%402.png&1722327752)
Frame (5 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_5_seats_a6644dfbdb%402.png&1722327755)
* Akıllı prizli kombinasyonlar yalnızca yatay konumlandırmada mevcuttur.
Konfigürasyon
Tekli priz

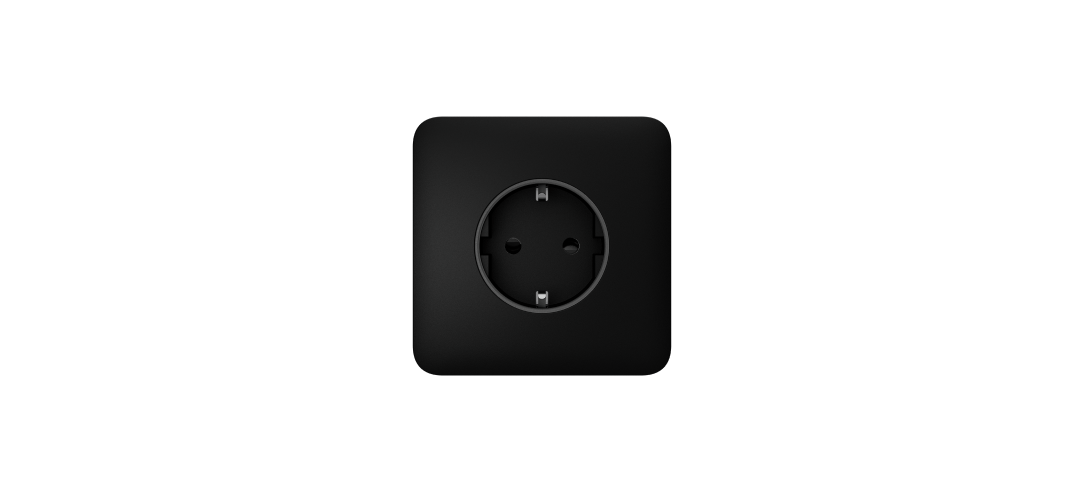

Outlet (basic) [ type F ] ayrı bir cihaz olarak kurulur.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_single_27fa551532%402.png&1711710840)
Çoklu priz

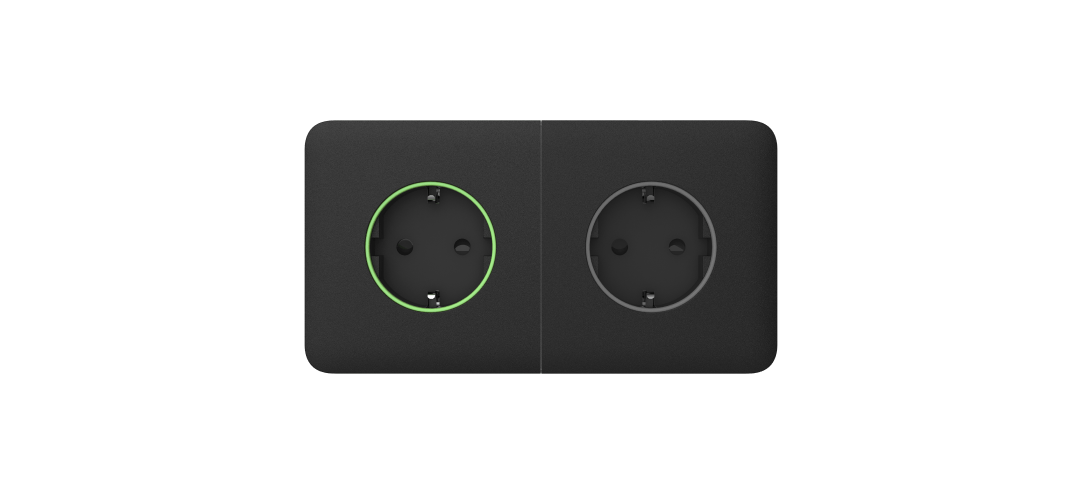

Outlet (basic) [ type F ] Ajax akıllı prizleriyle ve/veya LightSwitch anahtarıyla bir set olarak kombine edilir ve Frame'e yan yana monte edilir.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_config_2_seats_160cc18e38%402.png&1711710841)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_config_4_seats_5a9101bc43%402.png&1711710840)
Kapak renkleri

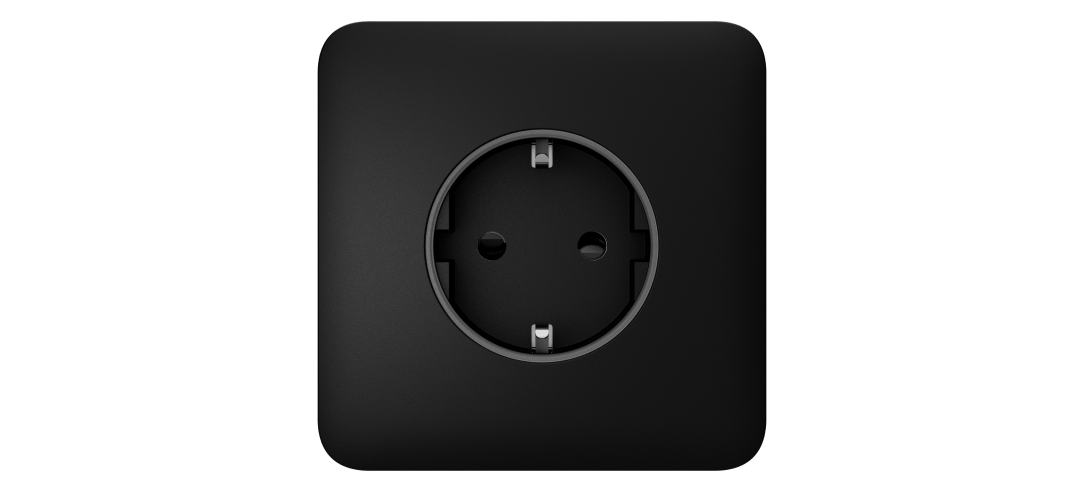

Siyah (Black)
RAL 9005
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_black_6087a529d2%402.png&1711710881)

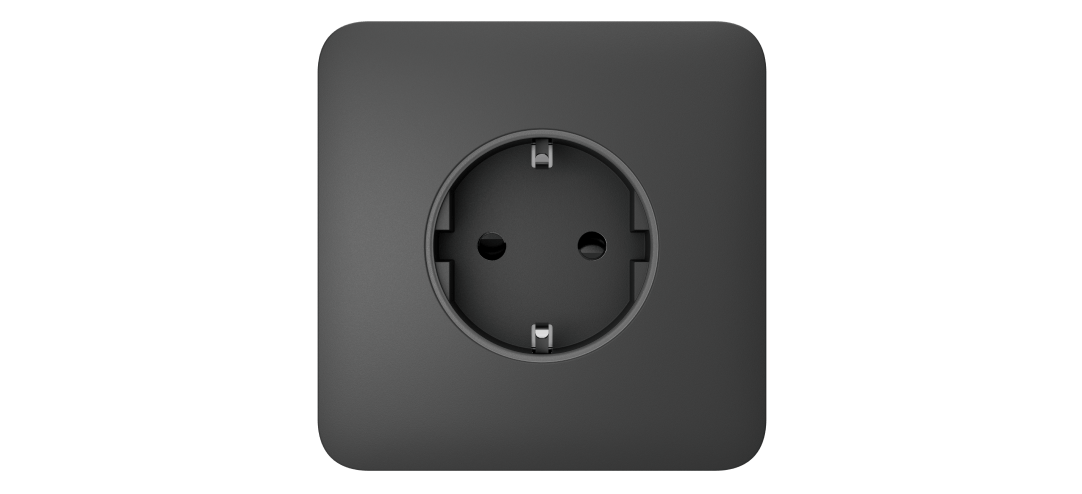

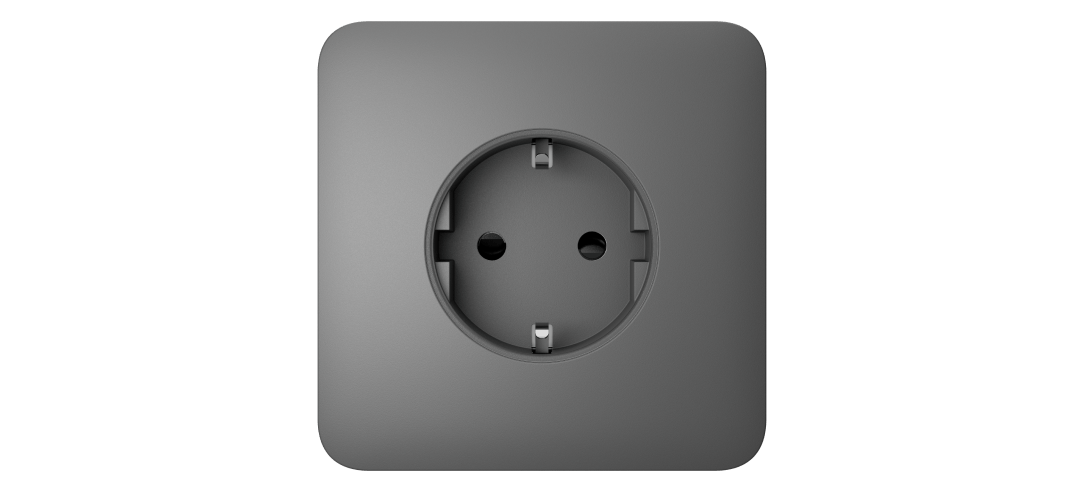

Grafit (Graphite)
RAL 7024
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_graphite_a751030d56%402.png&1711710881)
Beyaz (White)
RAL 9003
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_white_9395f91629%402.png&1711710881)
Fildişi (Ivory)
RAL 1013
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_ivory_d9cd5f236a%402.png&1711710881)

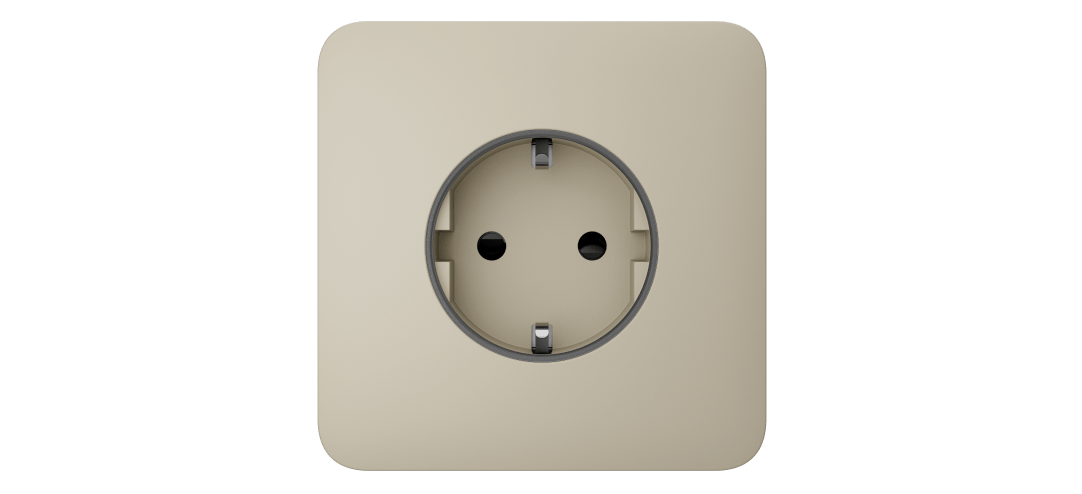

Duman (Fog)
RAL 7047
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_ff_fog_a510393d73%402.png&1711710881)
İstiridye (Oyster)
RAL 9002
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_oyster_0bedf6efe1%402.png&1711710881)

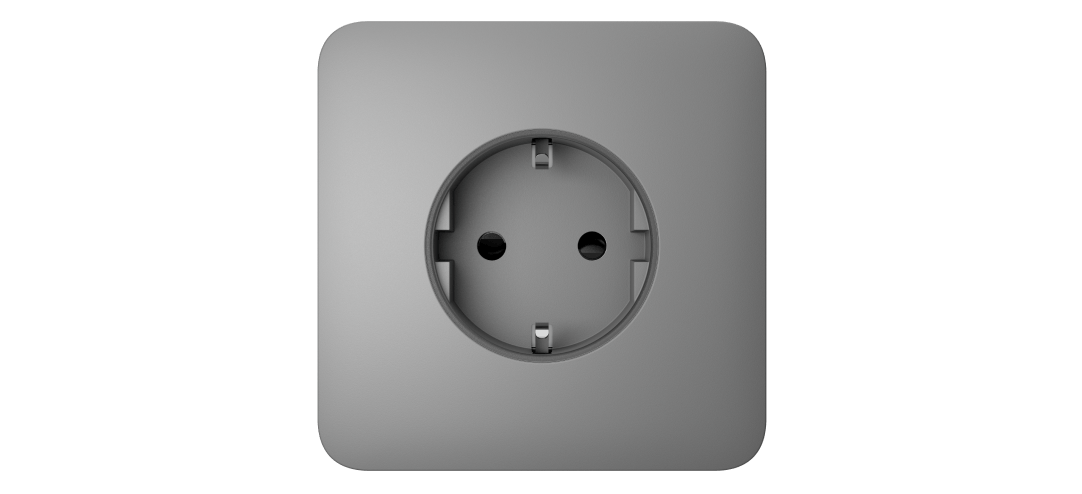

Gri (Grey)
RAL 7004
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_grey_31f788e94c%402.png&1711710881)

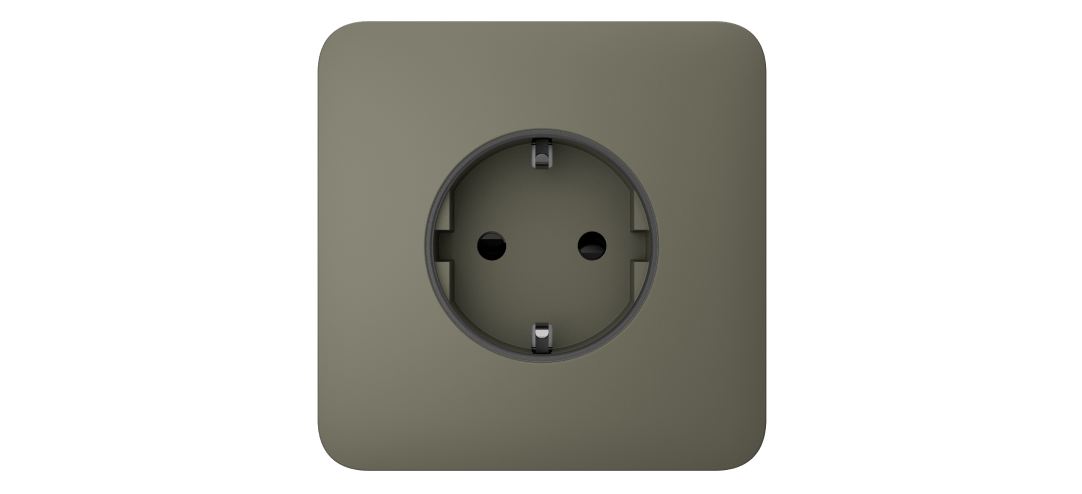

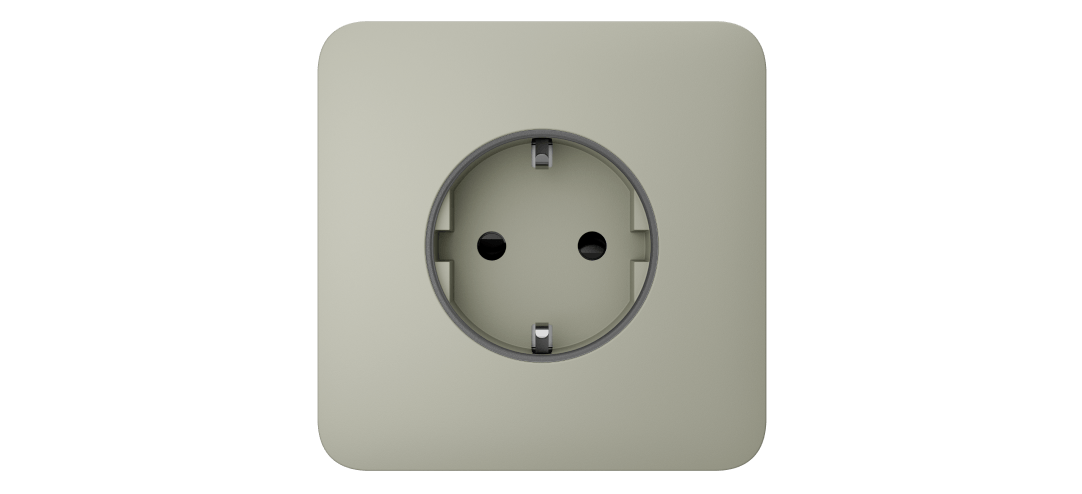

Zeytin (Olive)
RAL 7044
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_olive_6abec20bd6%402.png&1711710881)
Aşağıdaki RAL renkleri gerçek renklere olabildiğince yakındır. Ancak biraz farklılık gösterebilirler, dolayısıyla bunları renk seçerken sadece kılavuz olarak kullanınız.
Tavsiyeler
Cihaz, sadece iç mekanlarda kullanım için tasarlanmıştır.
Cihazı profesyonel bir elektrikçi kurmalıdır.
Güç kaynağı
Güç kaynağı voltajı
250 V~, 50/60 Hz
Maksimum yük akımı
16 A
Çıkış gücü
3.6 kW'a kadar (250 V~'ta direnç yükü)
Elektrik çarpması koruma sınıfı
Class I (topraklama terminaliyle birlikte)
Çalışma parametreleri
Çalışma sıcaklığı aralığı
–10 °C ila +40 °C
Çalışma nemi
yoğuşma olmadan %75'e kadar
Koruma sınıfı
IP20

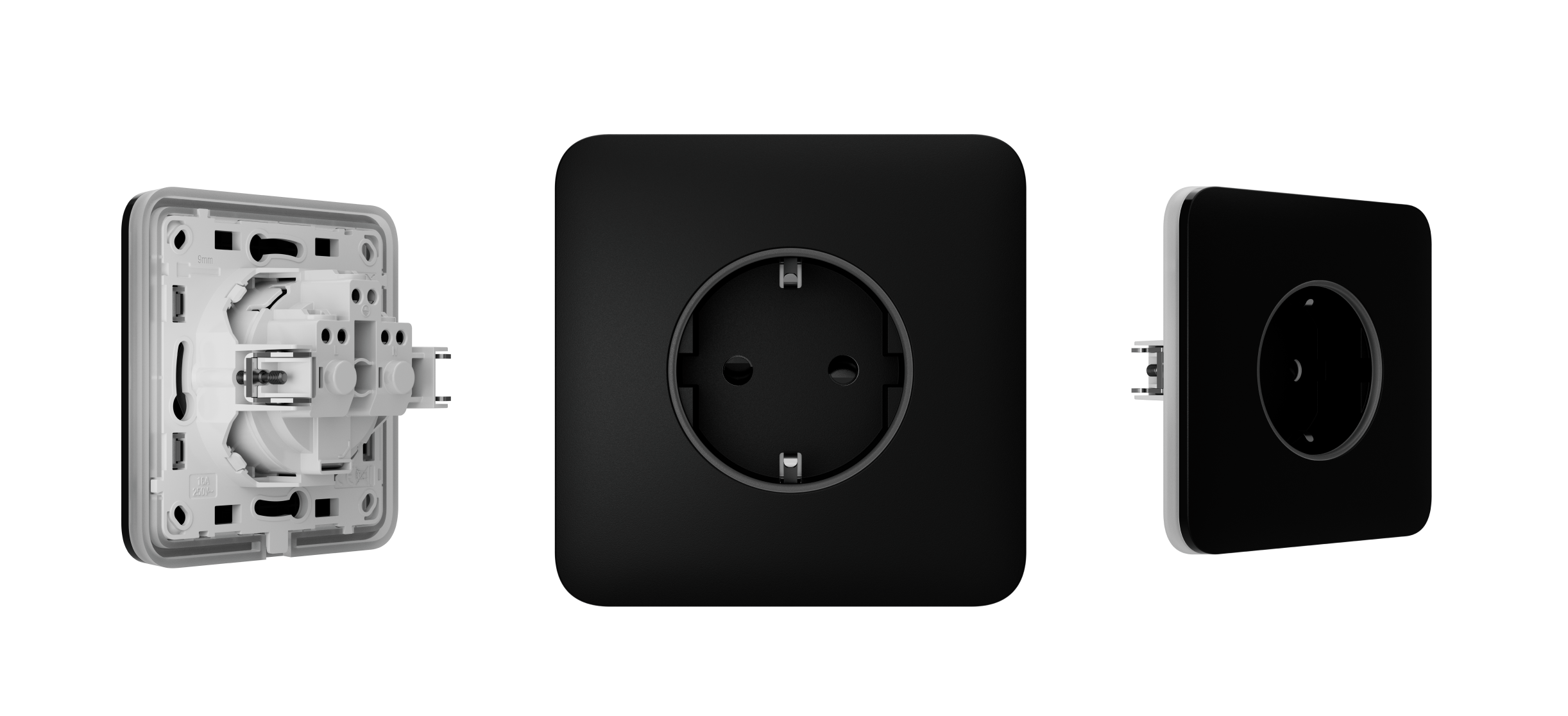

Boyutlar

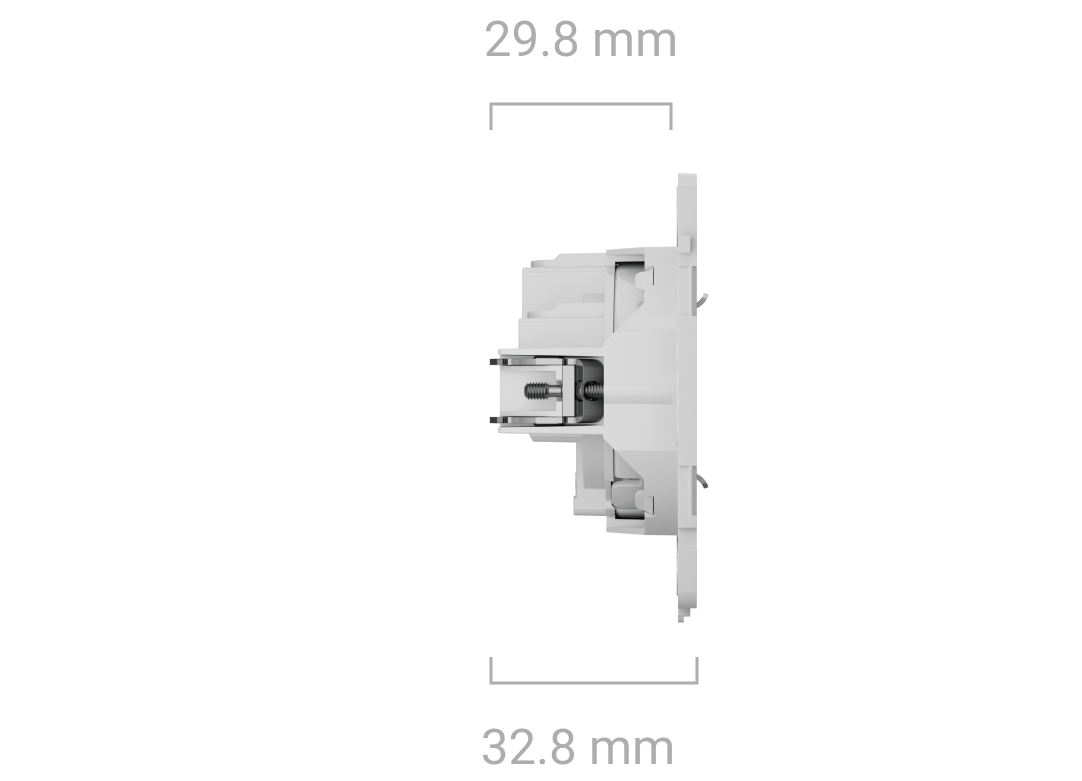

OutletCore (basic) [type F]

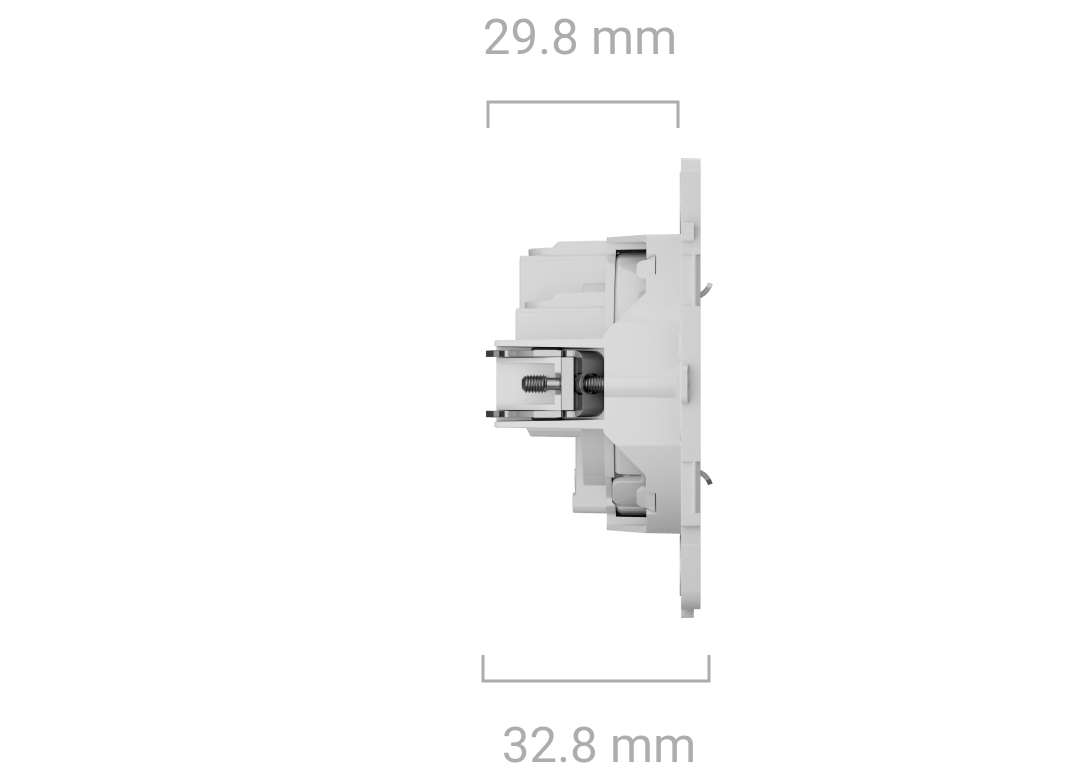

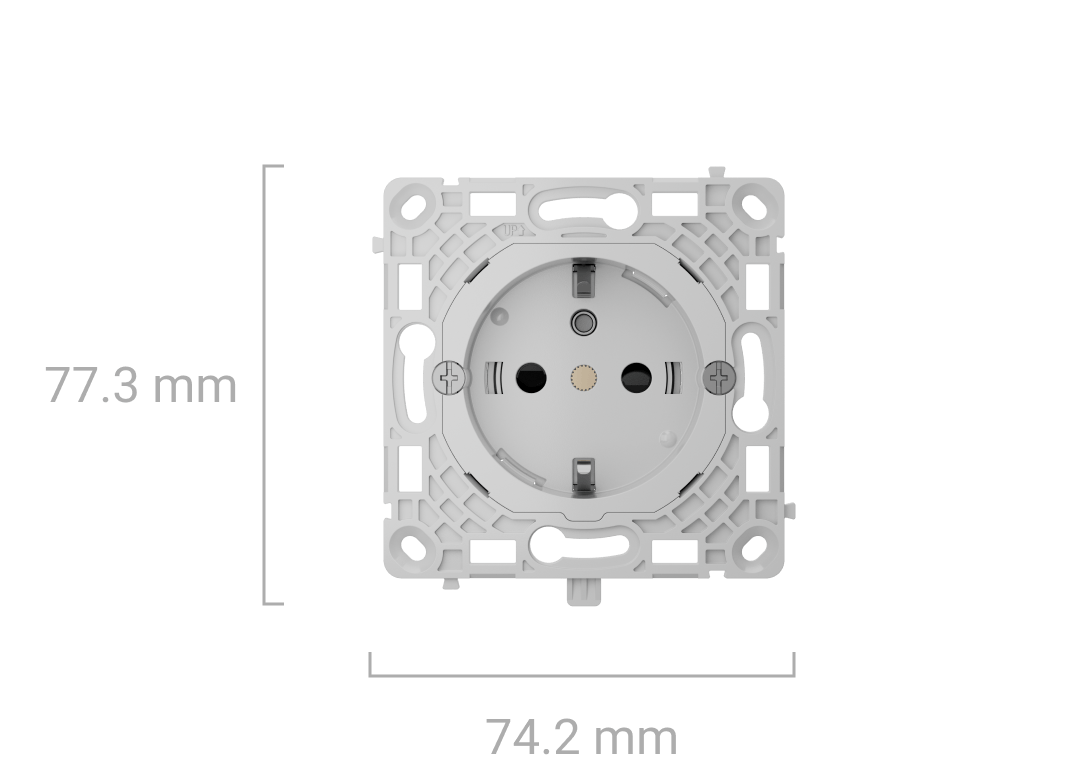

77.3 × 74.2 × 32.8 mm
![ttx](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_front_8cd1db7ce6%402.png&1711719542)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_side_394727f901%402.png&1711719539)
OutletCore (basic) vertical [type F]

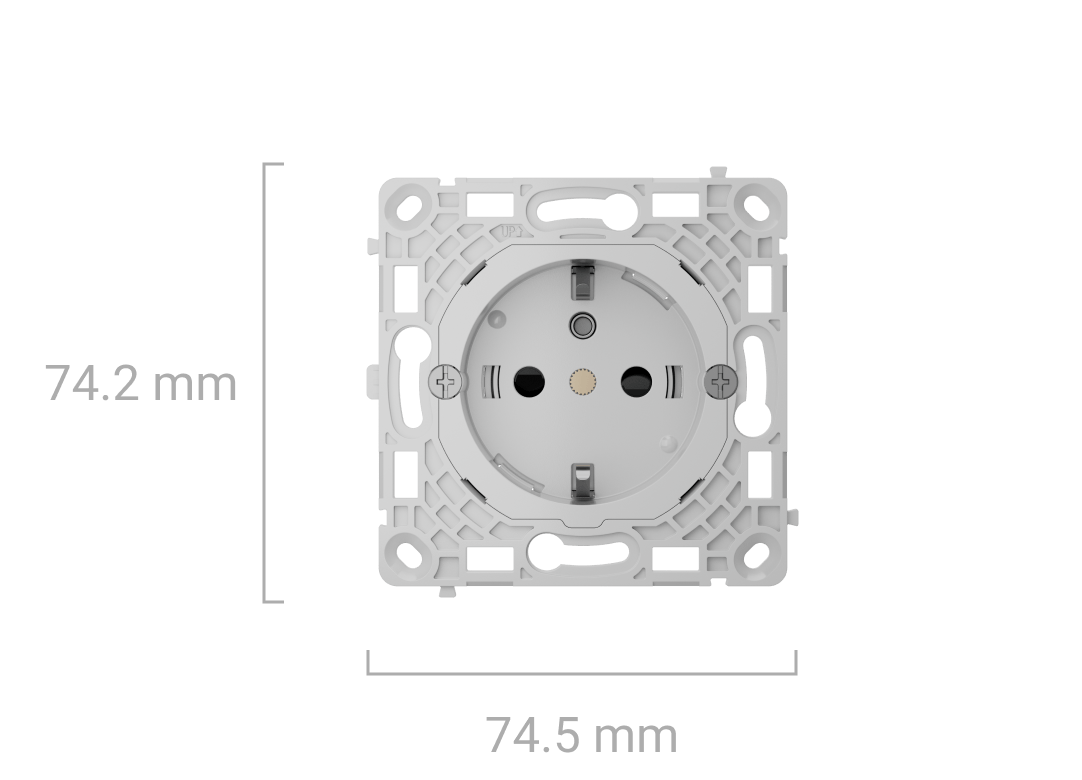

74.2 × 74.5 × 32.8 mm
![ttx](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_front_aae54a950e%402.png&1711720965)
![ttx](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_side_ec9c749ca2%402.png&1711715858)
SoloCover (basic) [type F]
ön panel — 82.3 × 82.3 × 9.2 mm

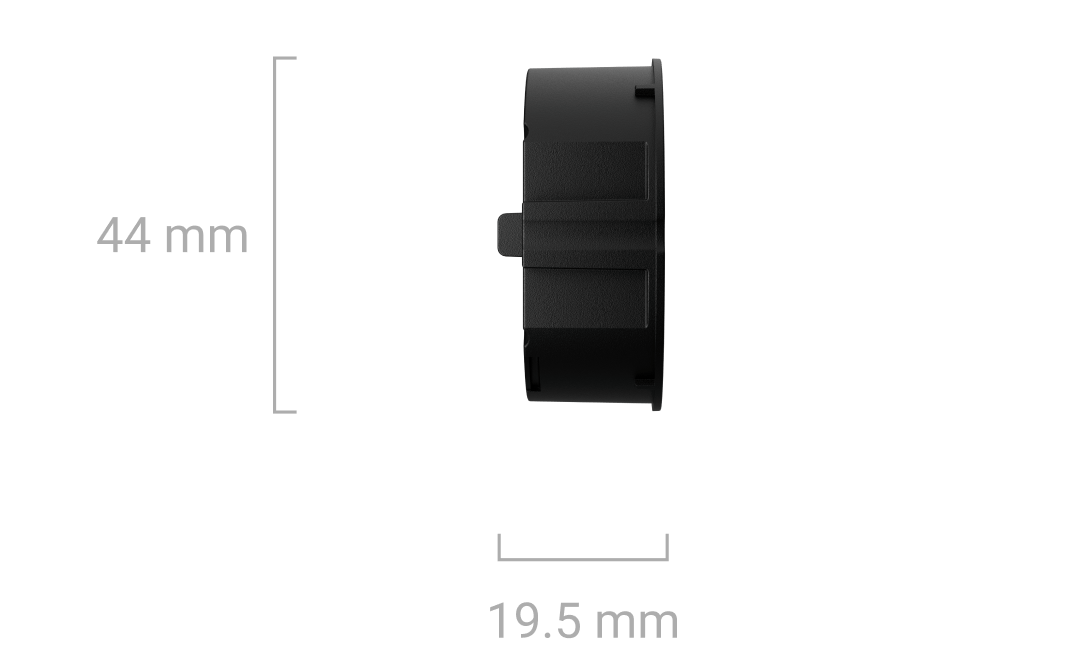

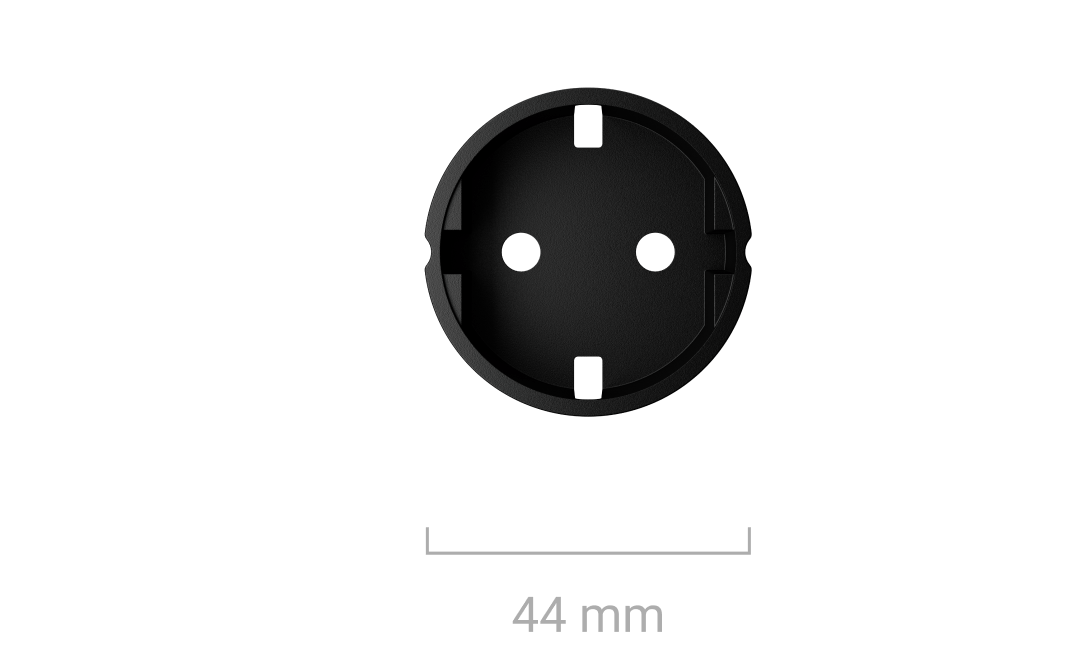

hazne kapağı — 44 × 19.5 mm
![ttx](/api/cdn-img/?img=%2Fupload%2Fsolocover_basic_f_front_e4e4a2eef7%402.png&1711722402)
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_basic_f_side_fcc10767ff%402.png&1711725308)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_b2b4e2abd3%402.png&1712760120)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_f_side_8a69e6a434%402.png&1714384006)
SideCover (basic) [type F]
ön panel — 82 × 76.2 × 9.2 mm
hazne kapağı — 41 × 19.5 mm
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_basic_f_front_45f6946a2a%402.png&1711726982)
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_basic_f_side_aab5db8f40%402.png&1711726979)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_b2b4e2abd3%402.png&1712760120)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_f_side_8a69e6a434%402.png&1714384006)
CenterCover (basic) [type F]
ön panel — 82 × 70.5 × 9.2 mm
hazne kapağı — 44 × 19.5 mm
![ttx](/api/cdn-img/?img=%2Fupload%2Fcentercover_basic_f_front_9d7b197270%402.png&1711727286)
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_f_side_22e2068357%402.png&1711727496)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_b2b4e2abd3%402.png&1712760120)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_f_side_8a69e6a434%402.png&1714384006)
Çerçeveler
Frame (2 seats) — 82.8 × 153.5 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_2_seats_front_09ae1ba788%402.png&1722327654)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_c96737a90b%402.png&1722327700)
Frame (3 seats) — 82.8 × 224.5 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_3_seats_front_07db2de62c%402.png&1722327655)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_c96737a90b%402.png&1722327700)
Frame (4 seats) — 82.8 × 295.5 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_4_seats_front_90821af6ad%402.png&1722327656)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_c96737a90b%402.png&1722327700)
Frame (5 seats) — 82.8 × 366.5 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_5_seats_front_3fe5503d6a%402.png&1722327657)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_c96737a90b%402.png&1722327700)
Frame (2 seats) vertical — 153.5 × 82.8 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_2_seats_front_1a567a8670%402.png&1722327700)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_2_seats_side_0b9ca89020%402.png&1722327699)
Frame (3 seats) vertical — 224.5 × 82.8 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_3_seats_front_8c3838e6d6%402.png&1722327701)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_3_seats_side_87602252f7%402.png&1722327748)
Frame (4 seats) vertical — 295.5 × 82.8 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_4_seats_front_2f21a3a59d%402.png&1722327754)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_4_seats_side_dc2b24369c%402.png&1722327753)
Frame (5 seats) vertical — 366.5 × 82.8 × 6.3 mm
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_5_seats_front_a59e18e78a%402.png&1722327753)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_5_seats_side_5fb16c79a3%402.png&1722327752)
Ağırlık
OutletCore (basic) [type F]
46 g
OutletCore (basic) vertical [type F]
46 g
SoloCover (basic) [type F]
ön panel — 12 g
hazne kapağı — 5 g
SideCover (basic) [type F]
ön panel — 12 g
hazne kapağı — 5 g
CenterCover (basic) [type F]
ön panel — 11 g
hazne kapağı — 5 g
Çerçeveler
Frame (2 seats) — 16 g
Frame (2 seats) vertical — 16 g
Frame (3 seats) — 22 g
Frame (3 seats) vertical — 22 g
Frame (4 seats) — 28 g
Frame (4 seats) vertical — 28 g
Frame (5 seats) — 34 g
Frame (5 seats) vertical — 34 g
Komple set
Outlet (basic) [type F] prefabrik bir cihazdır. Tüm parçalar ayrı ayrı satın alınır
