United StatesTech specs
Camera BatteryPack (20Ah)
Rechargeable Li-ion battery (3.65 V/20 Ah) to install into BatteryCam HL
Battery type
Battery
4 × INR21700
Rechargeable Li-ion battery cells.
Nominal voltage
3.65 V⎓
Capacity
20 Ah
Power supply
Maximum load current
2.5 A
End-of-life battery voltage
2.8 V⎓
Charging parameters
Connector type
USB Type-C
Power adapter output
5.0 V⎓, 3.0 A
9.0 V⎓, 2.0 A
12.0 V⎓, 1.5 A
Charging and discharging conditions
Charging temperature range
from 32 °F to 113 °F
Discharging temperature range
from −40 °F to 140 °F
Recommendations
Use the battery with compatible devices only.

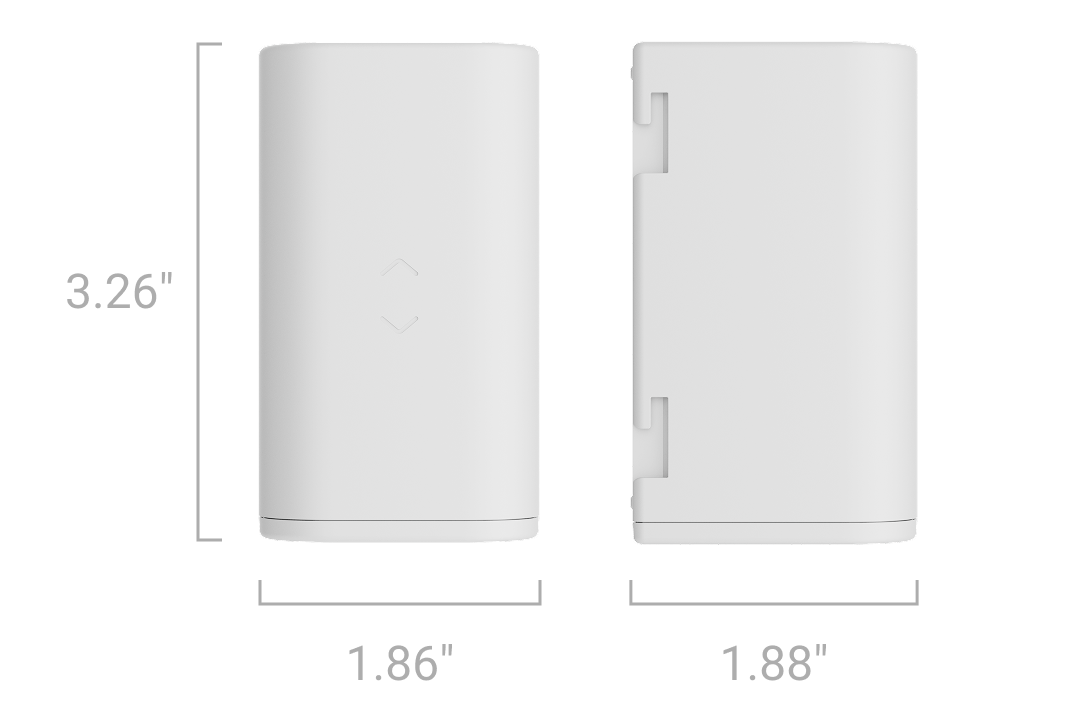

Enclosure
Dimensions
3.26" × 1.88" × 1.86"
Weight
11.78 oz
Operating temperature range
from −4 °F to 140 °F
Operating humidity
up to 75% non-condensing

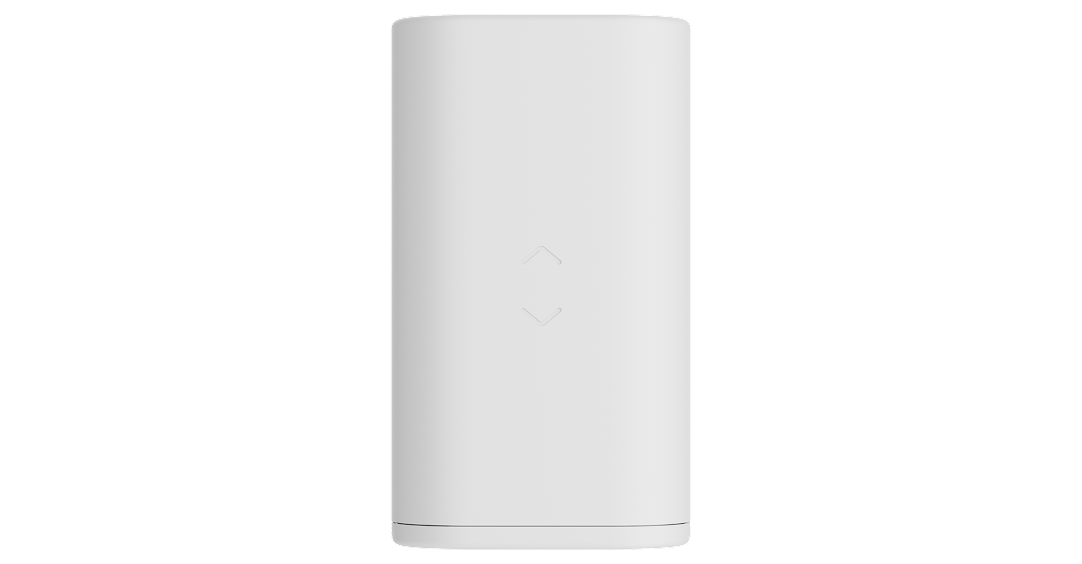

Color
White
Complete set
Camera BatteryPack (20Ah)
Quick start guide
