Connecting Ajax to monitoring software

Connecting Ajax to monitoring software

Use 100% of the system's capabilities and provide customers with the best security service

Monitoring security systems via third-party CMS software

Cloud signaling monitoring

PRO Desktop app has Cloud signaling monitoring function that converts hub's events right on Ajax Cloud and ensures that CMS engineers can easily configure Ajax system's events in the format supported by the company's CMS.

The function allows fast configuration of connection parameters between Ajax Cloud and monitoring software. There is also no need to install extra utility programs on company premises.

Cloud signaling monitoring is currently available, starting from PRO Desktop 3.8 and supports SIA DC-09 (ADM-CID). It allows receiving the system's events, photo verifications and coordinates of the user when pressing Ajax mobile app's panic button.

Connection via Translator

Translator is an intermediate app to connect security systems to monitoring station software. The app supports event codes modification and transmitting data to monitoring software via SurGard (Contact ID), SIA DC-09 (ADM-CID), ADEMCO 685 protocols. And with proprietary protocol integration, Translator also sends alarm photo verifications and coordinates of the user when pressing the Ajax mobile app's panic button.

Hubs (control panels) can communicate with Translator directly or through the Ajax Cloud server. With a test interval of 10 seconds, the server detects communication loss with the security system in just a minute. Regardless of the connection method, the transmitted data is encrypted.

Direct connection

A direct connection can be used as a backup or main channel for transmitting events from a security system's hub (control panel) to monitoring station software. The SIA DC-09 communication protocol is supported. Data encryption can be used. Only event codes are transmitted to CMS: photo verification and transmission of the in-app panic button coordinates are not supported.

Integrated app for the installation and monitoring business

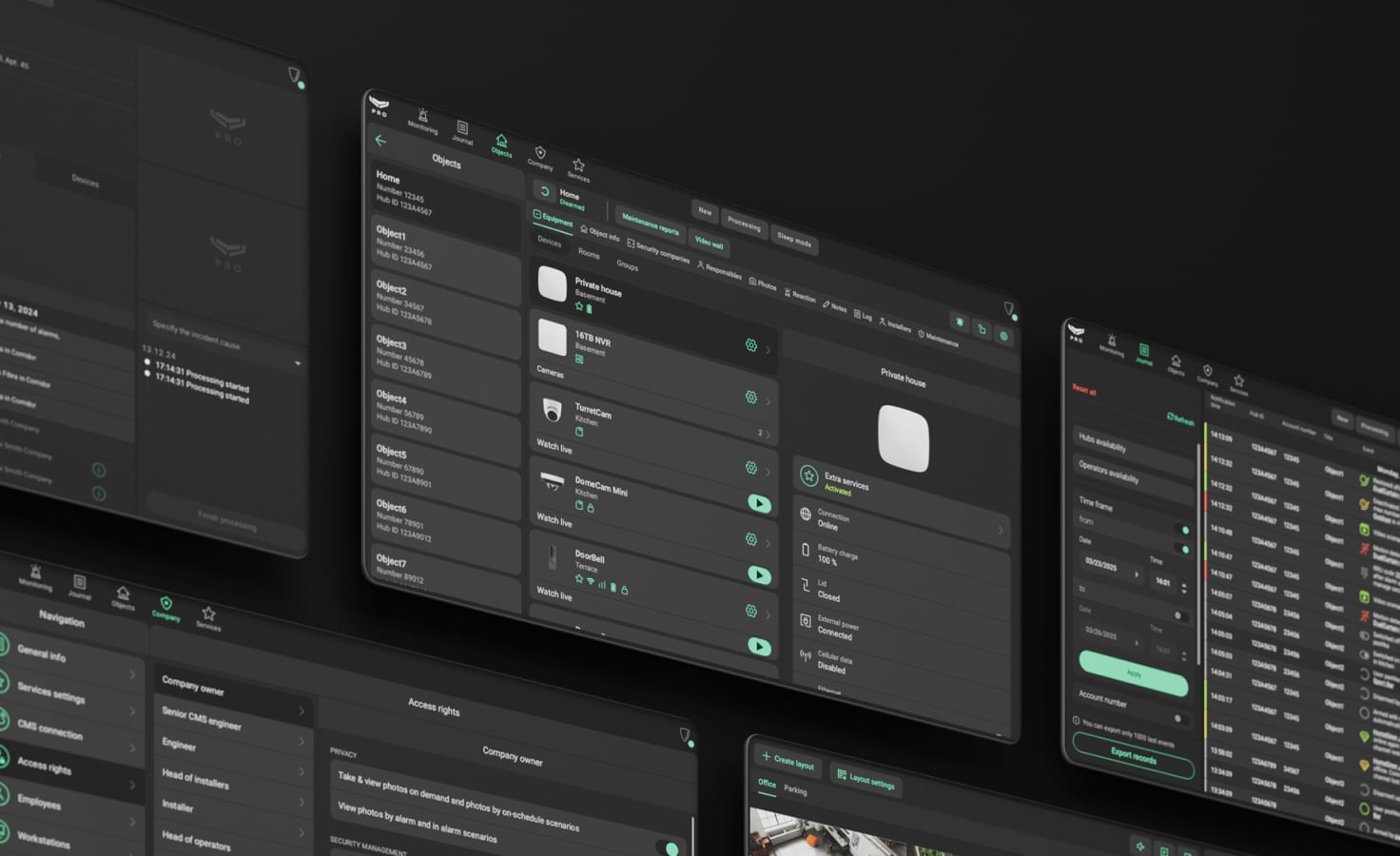

PRO Desktop meets the needs of every professional working with Ajax security systems. Facilities profiling and remote configuration, alarm monitoring and photo verification, staff administering and a detailed event log — all in one, intuitive interface.

Learn more
  • Out-of-the-box photo verifications

  • Cloud infrastructure

  • Bank-level communication reliability

  • Ready to scale along with business

CMS software with integrated Ajax features

  • Instant alarms

  • Photo verification

  • Mobile panic button

 MASterMind

MASterMind

by MAS

Ajax security systems connect to MASterMind classic  app (version 6.42 and higher) through the Translator software communicator. It ensures transmission of system events to the monitoring station via the MASXML proprietary protocol.

ABsistemDC(NG)v2

ABsistemDC(NG)v2

by Alarm Automatika

Ajax security systems connect to the ABsistemDC(NG)v2 app through the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary protocol.

AM/Win system

AM/Win system

by INSOCAM

Ajax security systems connect to the AM/Win system apps via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA (DC-09) protocol in the ADM-CID format.

AM/Win software

Ajax security systems connect to the Bykom app via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA DC-09 protocol in the ADM-CID format.

Ajax security systems connect to the CAMS monitoring platform via the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary SIA (DC-09) protocol in the ADM-CID.

Ajax security systems connect to the eLipse apps via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA-DC09 protocol in the ADM-CID format.

evalink talos

evalink talos

by Sitasys

Ajax security systems transmit alarms and events to evalink talos applications via a direct connection. The direct connection provides transmission of system events to the CMS via the SIA (DC-09) protocol in the SIA-DCS format.

For remote control of the object security mode, Sitasys has implemented an advanced integration with the monitoring application using the Enterprise API.

FullCenter and FullArm

FullCenter and FullArm

by FullTime

Ajax security systems connect to the FullCenter, an alarm monitoring software, via Enterprise API. The software ensures transmission of system events to the monitoring station directly from FullCenter, without any external receivers.

And the Ajax detectors are now also integrated with the FullArm app, designed explicitly for end users. With FullArm, users can monitor, arm, and disarm the Ajax detector, inhibit specific zones, access home automation, and view live cameras with cloud storage.

FullTime software

Ajax security systems connect to the Horus app via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA-DC09 protocol in the ADM-CID format.

Ajax security systems connect to the Kronos app through the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary protocol.

Kronos software

Ajax security systems connect to the LISA app via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA DC-09 protocol in the ADM-CID format.

Pfau software

Listener

Listener

by ORYX

Ajax security systems connect to the Listener app via the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary protocol.

Listener software

Ajax security systems connect to the Manitou app through the Translator software communicator. It ensures transmission of system events to the monitoring station via the Manitou protocol.

Manitou software

Ajax security systems connect to the Moniplus app via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA-DC09 protocol in the ADM-CID format.

Ajax security systems connect to the Patriot app through the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary protocol.

Patriot software

Ajax security systems connect to the SBN app through the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary protocol.

Manitou software

Ajax security systems connect to the Sentinel app via the Translator software communicator. It ensures transmission of system events to the monitoring station via a proprietary protocol.

Sentinel software

Ajax security systems connect to the Manitou app through the Translator software communicator. It ensures transmission of system events to the monitoring station via the Manitou protocol.

Softguard software

Ajax security systems connect to the Stages app via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA-DC09 protocol in the ADM-CID format.

V1 and F1

V1 and F1

by ESI

Ajax security systems connect to the V1 and F1 apps via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA-DC09 protocol in the ADM-CID format.

ESI software

Ajax security systems connect to the WBB app via the Translator software communicator. It ensures transmission of system events to the monitoring station using the SIA-DC09 protocol in the ADM-CID format.
