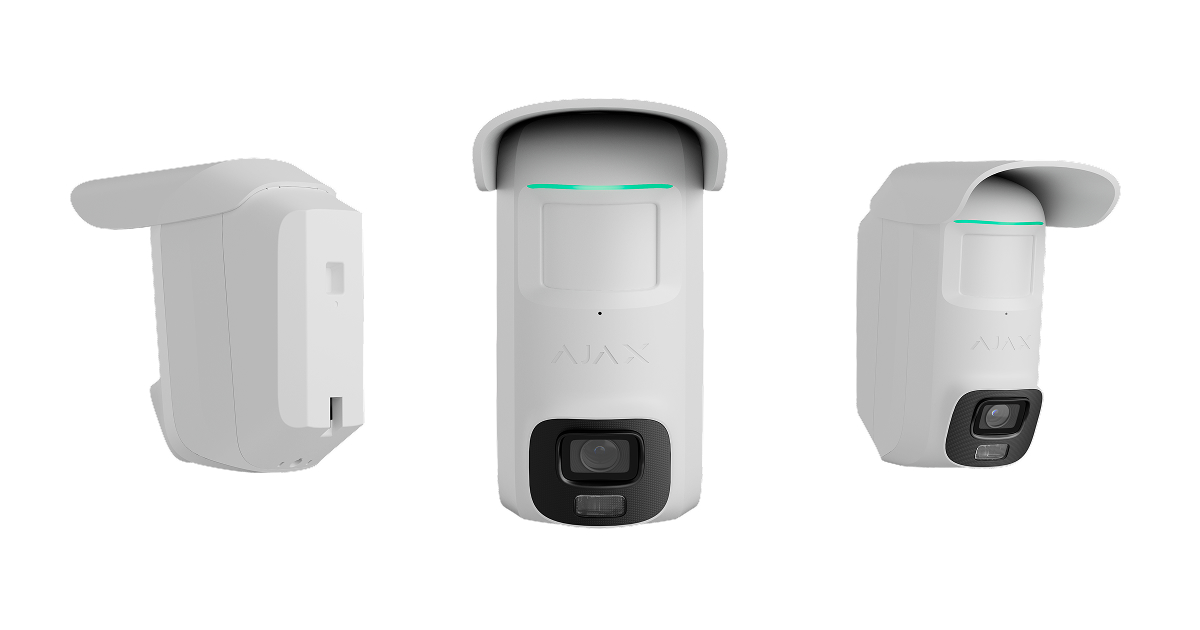

BatteryCam HL

Image sensor

5 MP CMOS, 1/2.7" type

Lens focal length

2.8 mm

Maximum aperture

f/1.6

Lens iris type

fixed

Lens focal type

fixed

Field of view

horizontal: 110°

vertical: 58°

diagonal: 131°

Maximum illumination distance

• white LED: up to 33 ft
• IR LED: up to 49 ft

Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances, both near and far, in low-light conditions.

Minimum illumination

color: 0.005 lx

B/W: 0 lx

Signal-to-noise ratio (SNR)

more than 52 dB

Resolution

• 5 MP (2880 × 1620)
• 5 MP (2688 × 1512)
• 4 MP (2560 × 1440)
• 3 MP (2304 × 1296)
• 2 MP (1920 × 1080)
• 0.6 MP (1024 × 576)

Frame rate

up to 25 fps

Image rotation

0°, 180°

Video codec

H.265, H.264

Dynamic range

120 dB (True WDR)

Storage

microSD

Ajax NVR (coming soon)

Ajax Cloud Storage

The camera supports microSD cards up to 256 GB. The memory card must be Class V30 or faster. The card is not included in the complete set.

Built-in microphone

1

With the corresponding settings applied, the camera can record audio at the scene.

Audio codec

G.711 µ-law, G.711 A-law, G.726, G.722

Built-in speaker

The camera supports two-way audio.

Output speaker power

2 W

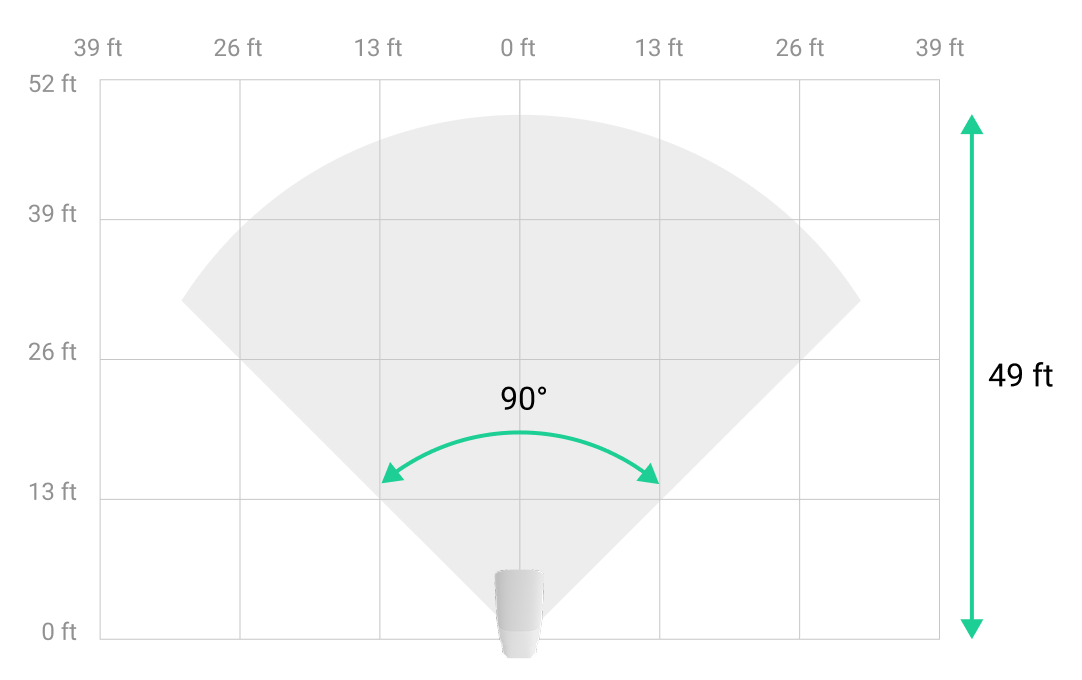

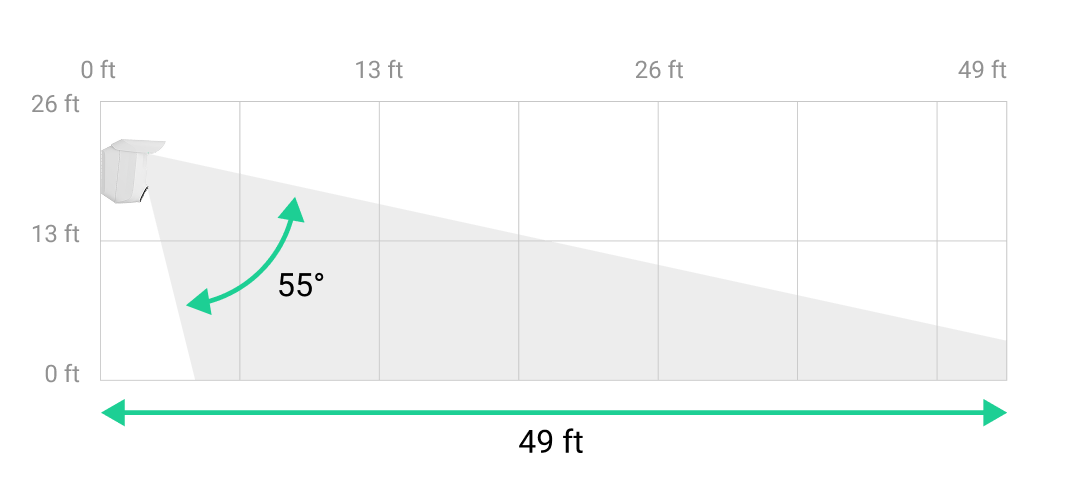

Motion detection

The camera detects motion using software-based image frame analysis.

AI object detection

People

Pets

Vehicles

Wi-Fi

802.11 b/g/n/ac/ax module

2.4 GHz and 5 GHz.

Protocol

HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS

Interoperability

ONVIF (Profile S/G)

Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).

Video transmission

JetSparrow

Fast and encrypted peer-to-peer technology developed by Ajax Systems.

Jeweller and Wings communication technologies

Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications. They serve as a backup communication channel when the device is added to the hub.

Visual verification of system alarms

Ajax systems allow users to configure a scenario in which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop Ajax PRO app.

Privacy

Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators using Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, and device settings in accordance with the owner's preferences.

Tamper alarm

Notifications of attempts to remove the device from the mounting panel.

mTLS

Encrypted connection for data protection.

Authentication

via Ajax Cloud

Secure Boot

Protection against firmware spoofing.

OTA signature verification

Secure automatic firmware update.

Compatible batteries

Camera BatteryPack (10Ah)

Camera BatteryPack (20Ah)

The camera requires one battery to operate. The battery is not included in the complete set and must be purchased separately.

Battery life

up to 1 year with recommended settings

Battery life is approximate and depends on factors such as recording settings, frequency of motion detection events, LED activation, ambient temperature, etc.

External power connector type

screw terminal connector (2 pin)

To connect SolarPanel (5W) or an external power supply (not included in the camera complete set).

External power supply parameters

12 V⎓ ±10%, 2 А (required for 24/7)

12 V DC power consumption

• maximum: up to 12 W
• average: up to 10 W

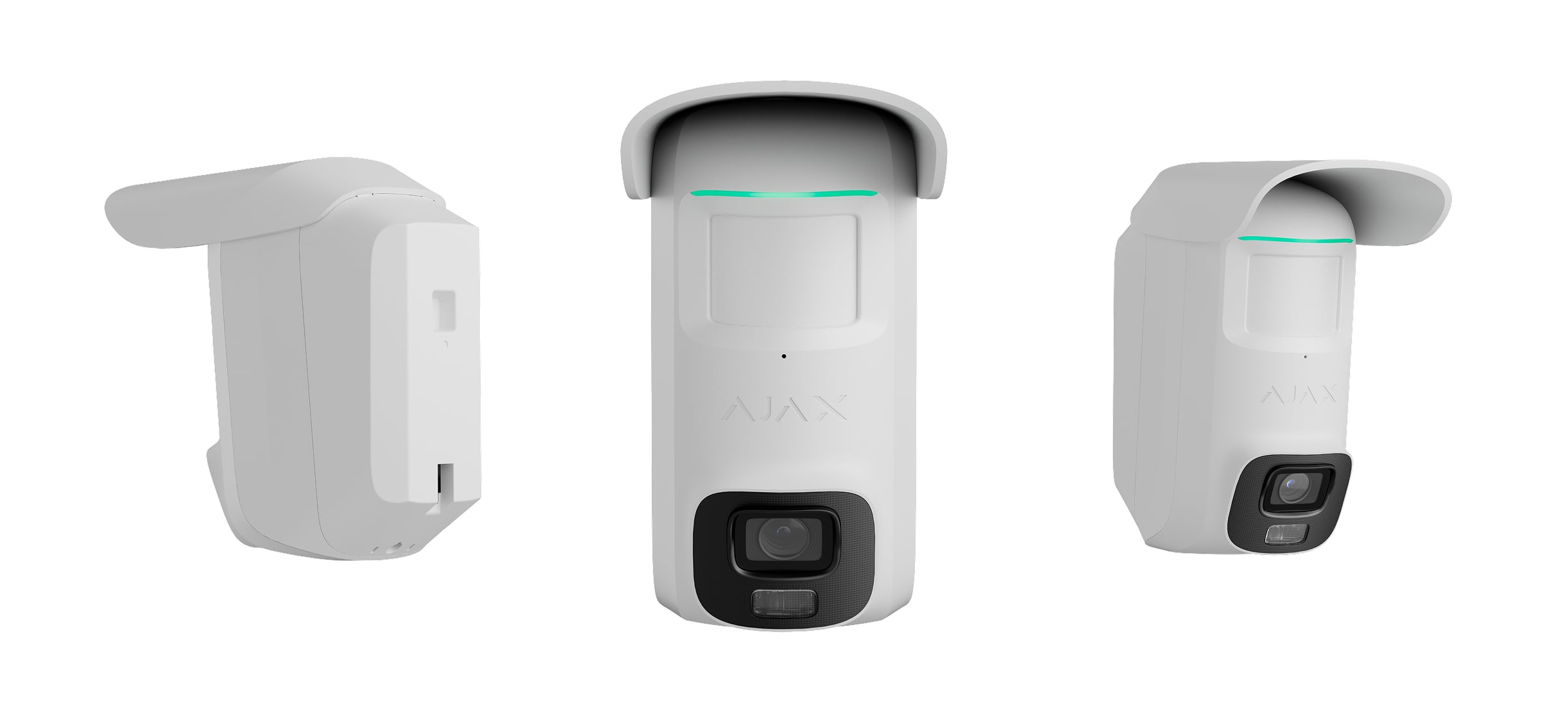

BatteryCam HL

SmartBracket mounting panel

Hood

Installation kit

Quick start guide
