Tech specs

KeyPad Jeweller

Wireless touch keypad

KeyPad Jeweller

Devices compatibility

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz*
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW
Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio signal range

up to 5,500 ft
Between the keypad and the hub or range extender in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Key features

Sensor type

capacitive

Malfunctions and security mode indication

When KeyPad is active, it notifies with LED indication of the security mode, problems with detectors, or communication loss with the hub.

Functional button

Operates in one of the modes.
alarm
The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system.
mute fire alarm
Mutes interconnected fire detectors alarms. Only FireProtect 2 RB (Heat/Smoke/CO) UL Jeweller and FireProtect 2 RB (Heat/Smoke) UL Jeweller detectors are certified according to UL/ULC standards.
off
The button is disabled.

Access codes

up to 200 personal codes
One code per each user. The number of personal access codes depends on the hub model.
1 keypad code
One code per KeyPad.

Duress codes

up to 200 personal codes
One code per each user. The number of personal duress codes depends on the hub model.
1 keypad code
One code per KeyPad.

Codes for unregistered people

up to 99 personal codes
For people who are not registered in the system. The number of such codes depends on the hub model.

Group security management

Enter the general keypad code and the group ID to manage group security.

ACE type

type B

Recommendations

The device is designed for indoor use only.

Sabotage protection

Protection against code guessing

KeyPad locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. PRO or user with admin rights can adjust the lock time in the Ajax app.

Tamper alarm

Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s
Depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

4 × AAA
Pre-installed.

Type

type C

Calculated battery life

up to 2 years

Keypad’s operating voltage range

1.9−3.3 V⎓

Keypad’s nominal operating voltage

3 V⎓

Quiescent keypad’s current consumption at nominal voltage

86.5 µA

Maximum keypad’s current consumption at nominal voltage

225 mA

Full battery capacity

2,000 mAh
Capacity of each battery is 1,000 mAh.

Low battery voltage

2.15 V⎓

Low battery recovery voltage

2.6 V⎓

End-of-life battery voltage

1.9 V⎓
Device is switched off.

End-of-life battery capacity

150 mAh

Manufacturer

Huiderui
UL listed.

Enclosure

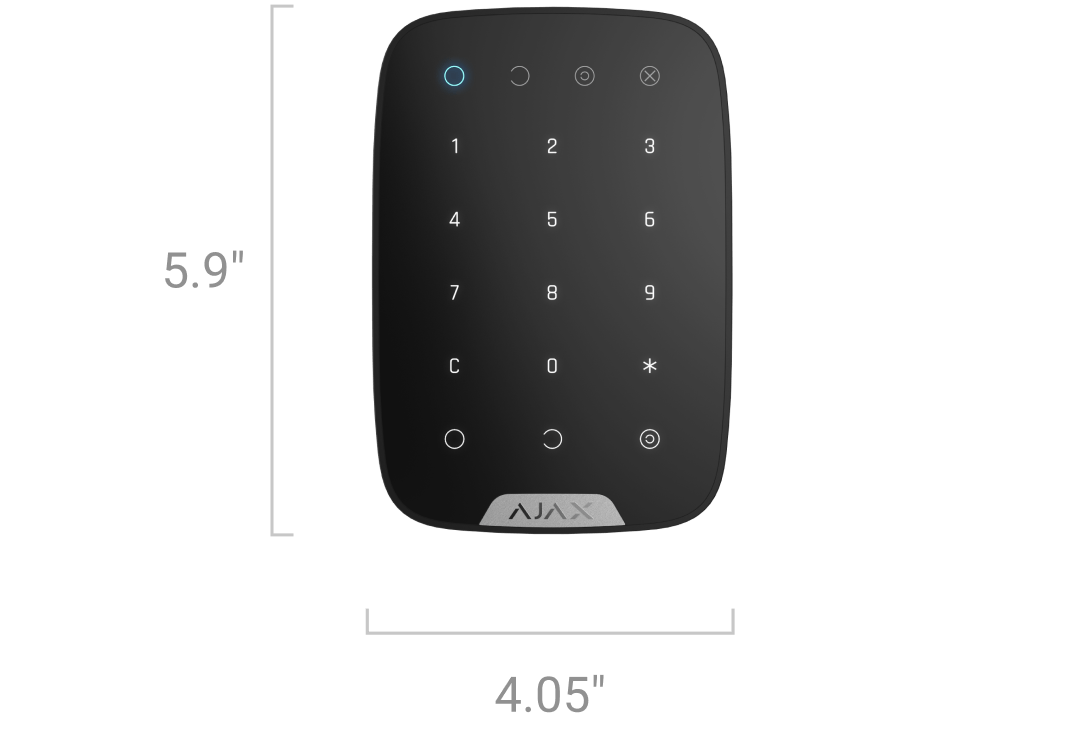

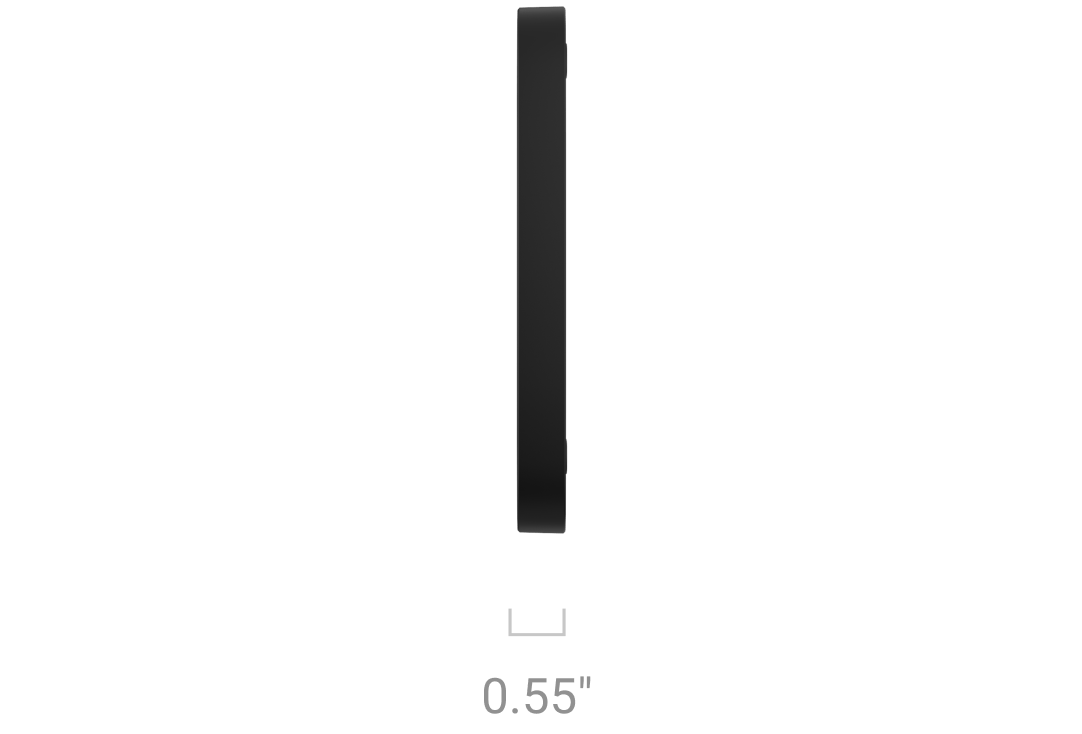

Dimensions

5.90″ × 4.05″ × 0.55″

Weight

6.95 oz

Operating temperature range

from 14℉ to 104℉
Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.

Operating humidity

up to 75%
Humidity of up to 93% is certified according to UL/ULC standards.

Colors

Black
White

Complete set

KeyPad Jeweller
SmartBracket mounting panel
4 × ААА battery (pre-installed)
Installation kit
Quick start guide

Additional information

Compliance with standards

Warranty

24 months
