Outlet (LAN)

Core

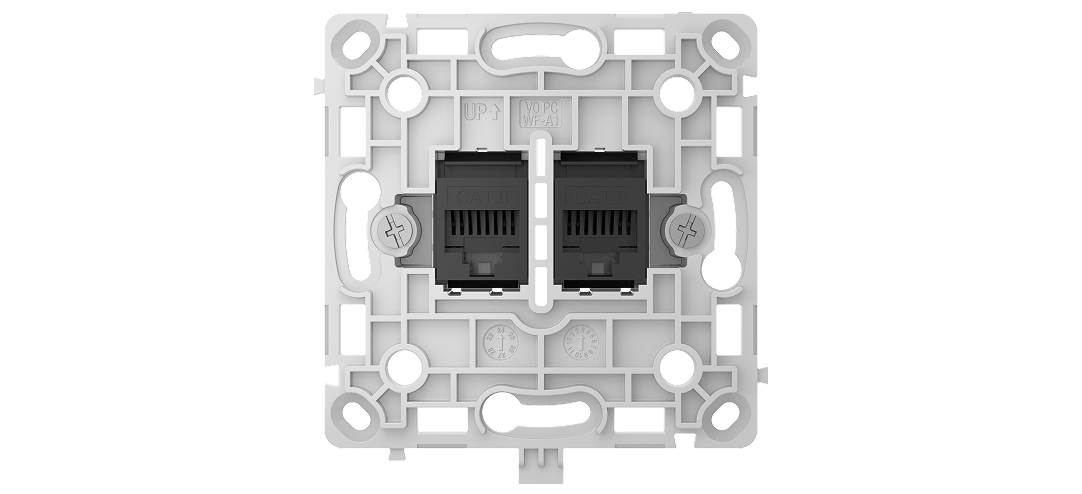

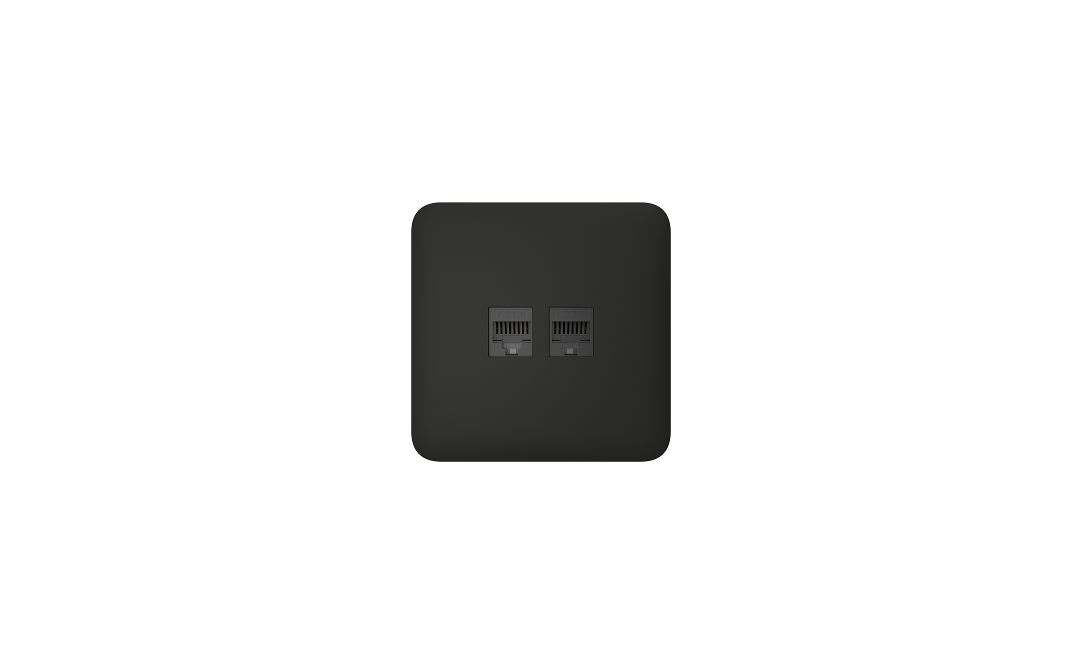

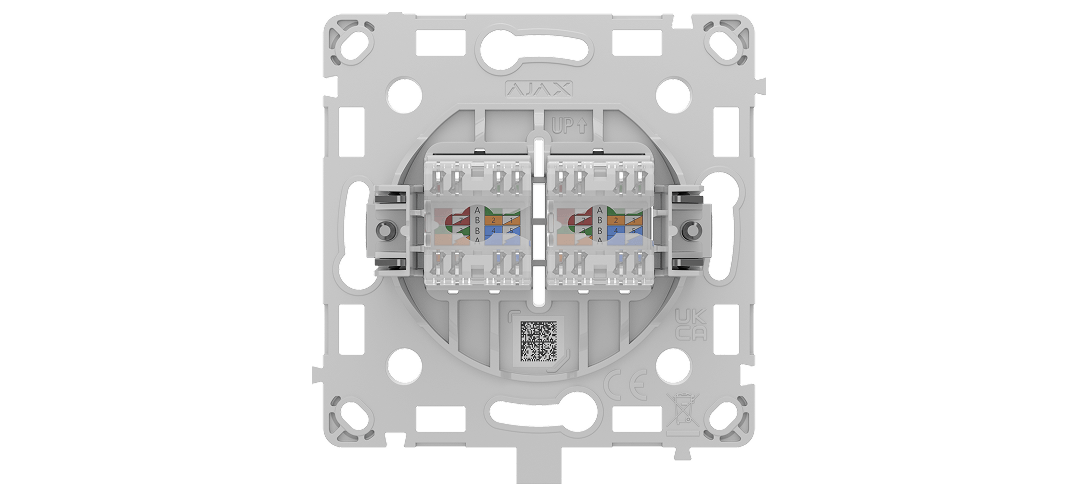

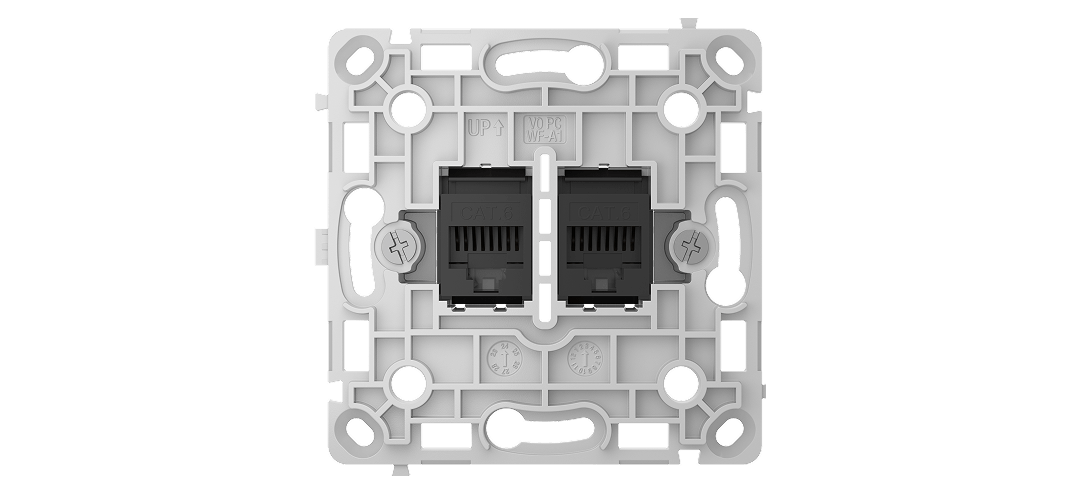

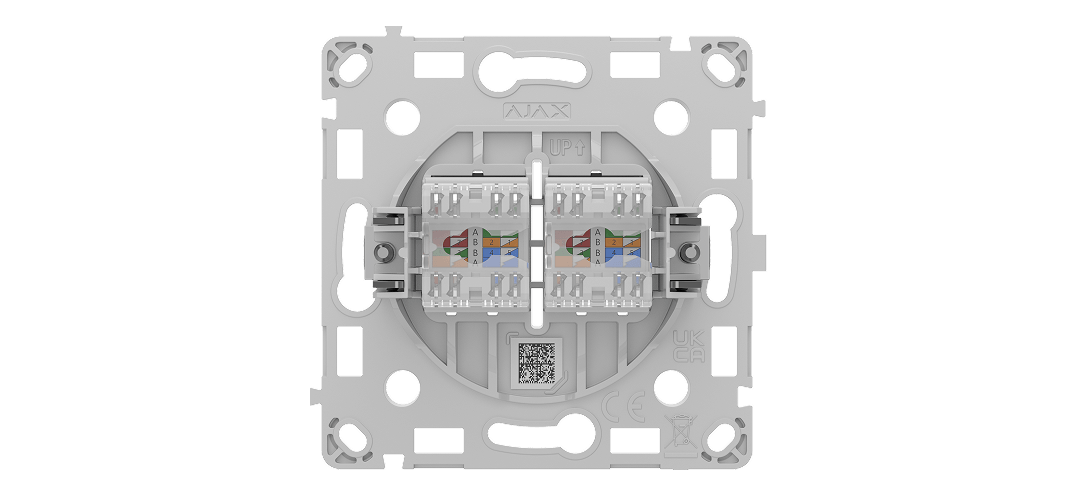

OutletCore (LAN) [55]

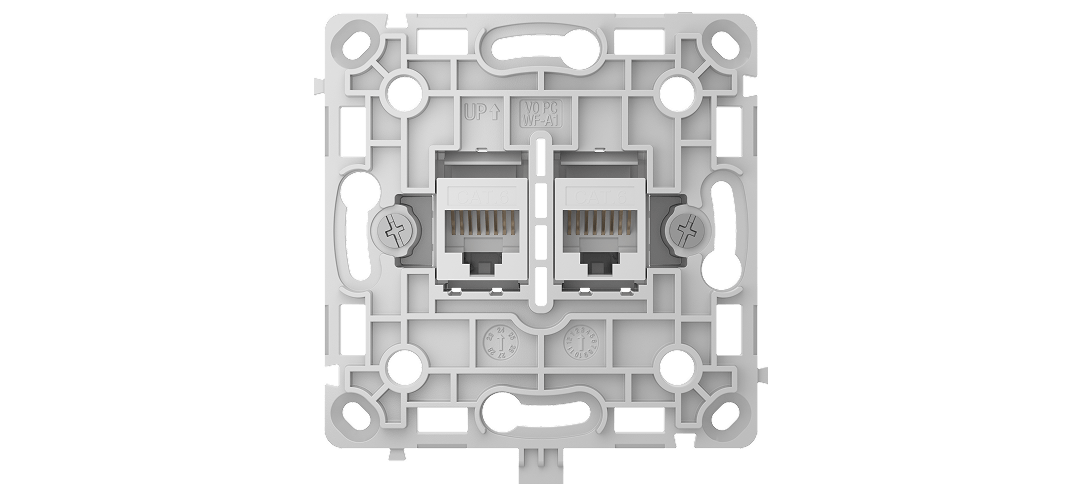

OutletCore (LAN) vertical [55]

Covers

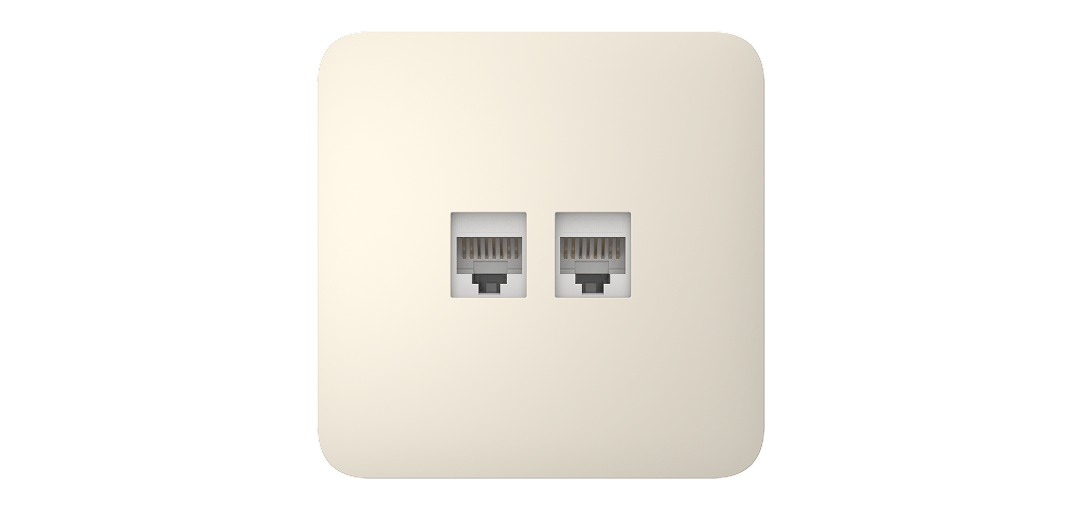

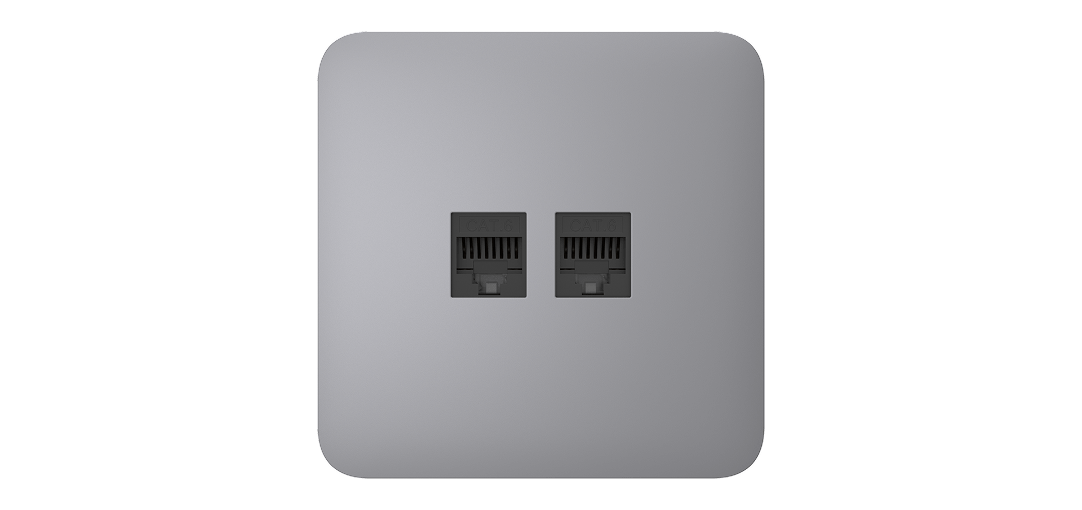

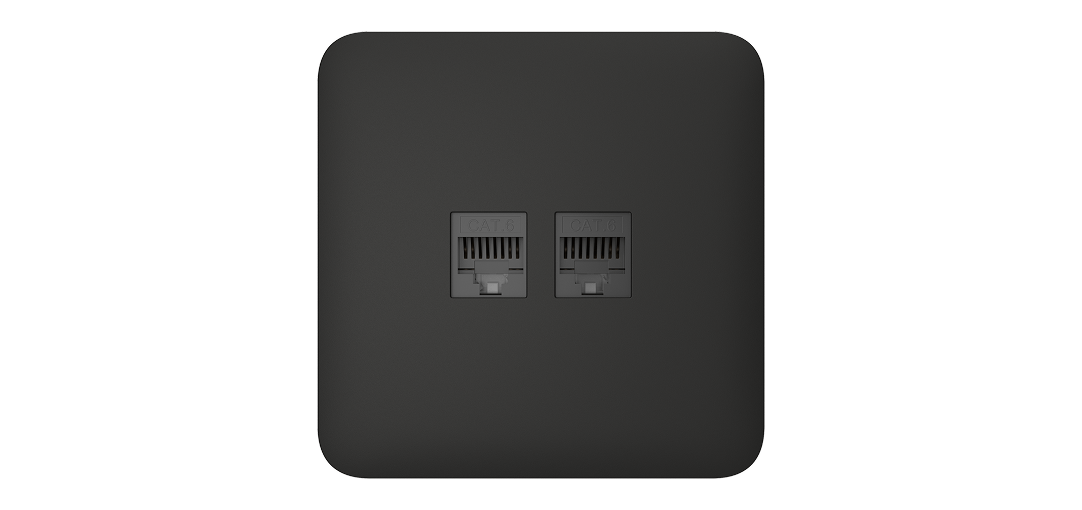

SoloCover (LAN)

Used when the outlet is installed as a separate device.

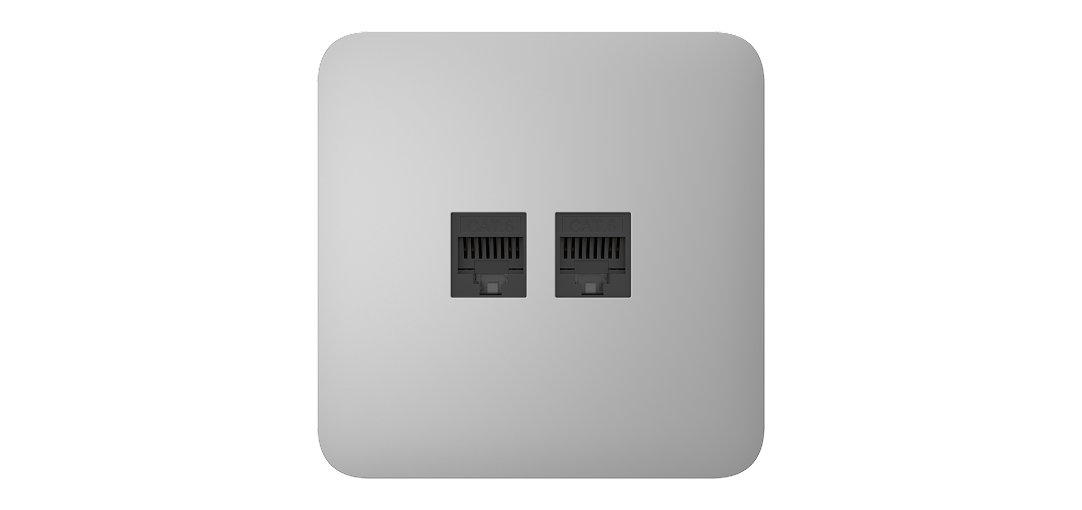

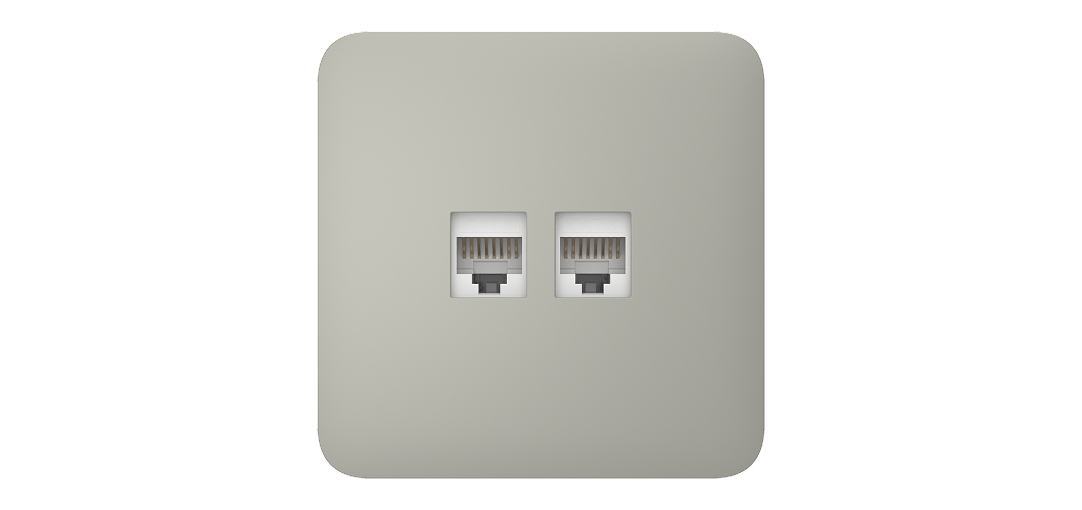

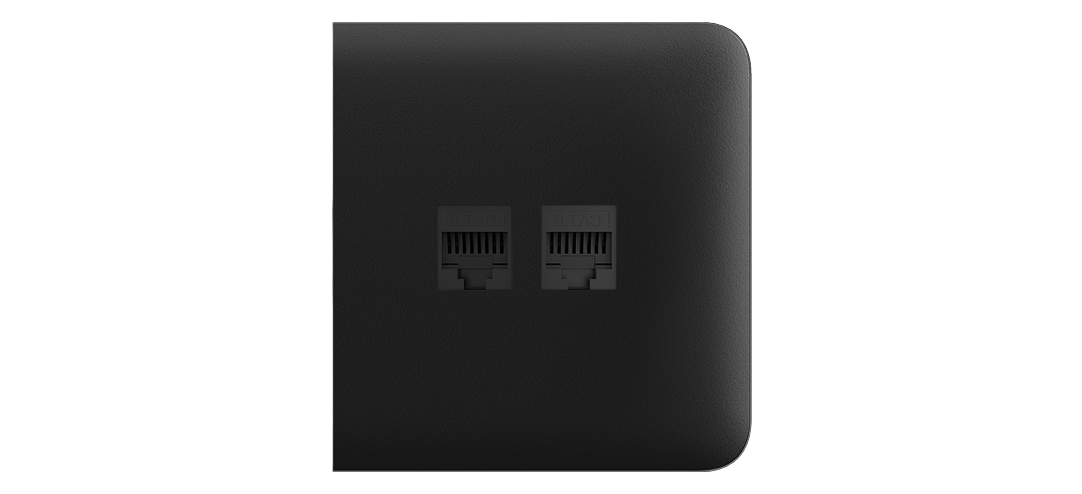

SideCover (LAN)

Used when the outlet is installed on the right or left side of a device set.

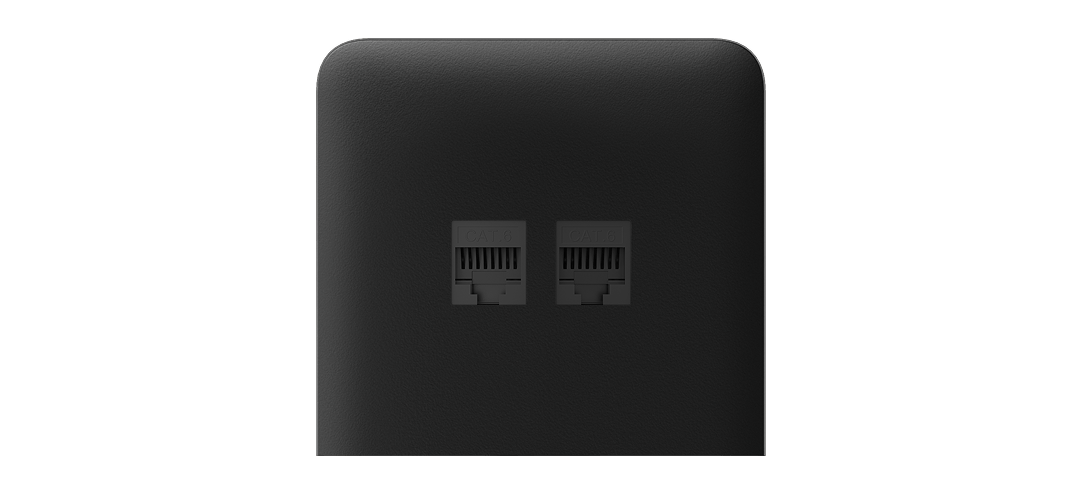

SideCover (LAN) vertical

Used when the outlet is installed on top or bottom of a device set.

CenterCover (LAN)

Used when the outlet is installed between devices in a set. For horizontal installation.

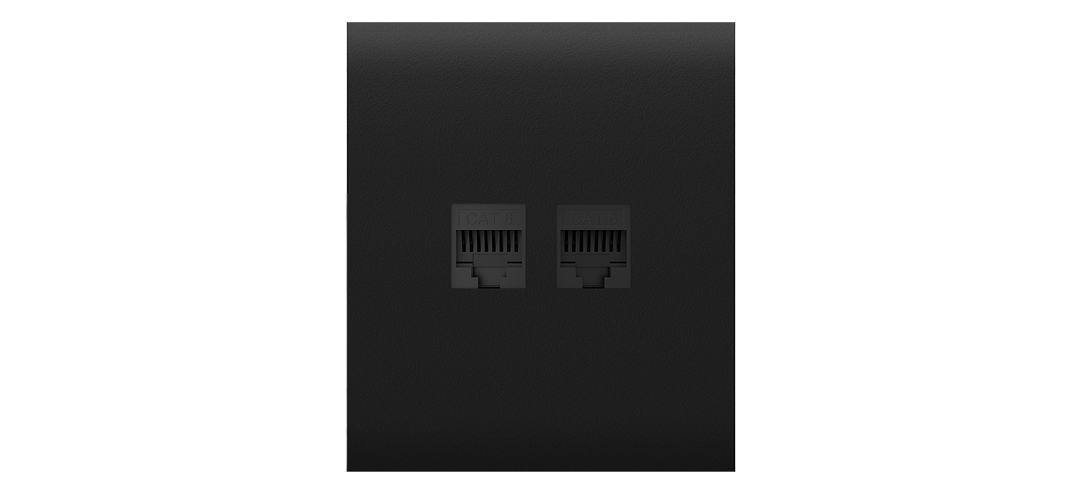

CenterCover (LAN) vertical

Used when the outlet is installed between devices in a set. For vertical installation.

Frames

Frames for two, three, four, and five Ajax outlets and switches in any combination*.

Frame (2 seats)

Frame (3 seats)

Frame (4 seats)

Frame (5 seats)

Frame (2 seats) vertical

Frame (3 seats) vertical

Frame (4 seats) vertical

Frame (5 seats) vertical

* Combinations that include smart outlets are available only in a horizontal orientation.

Single outlet

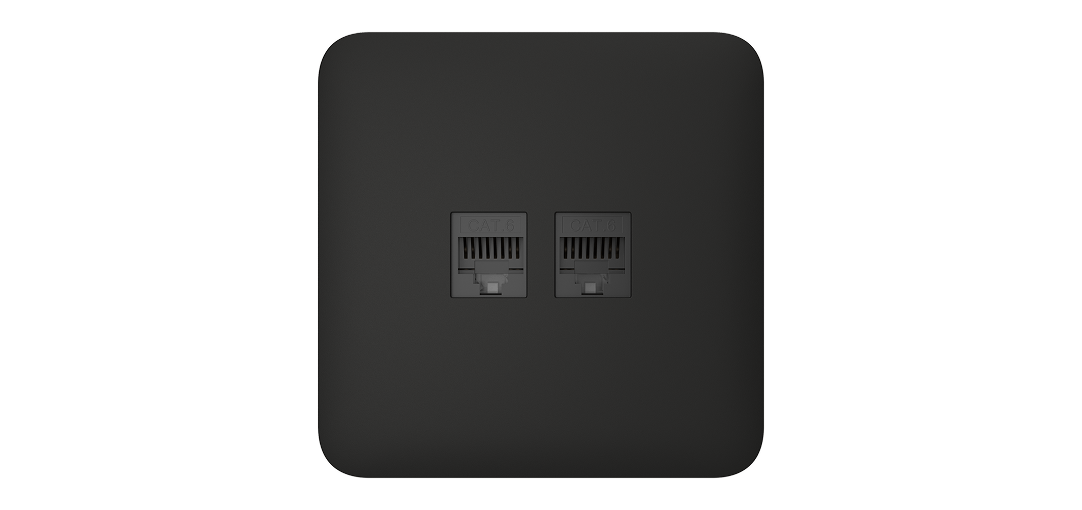

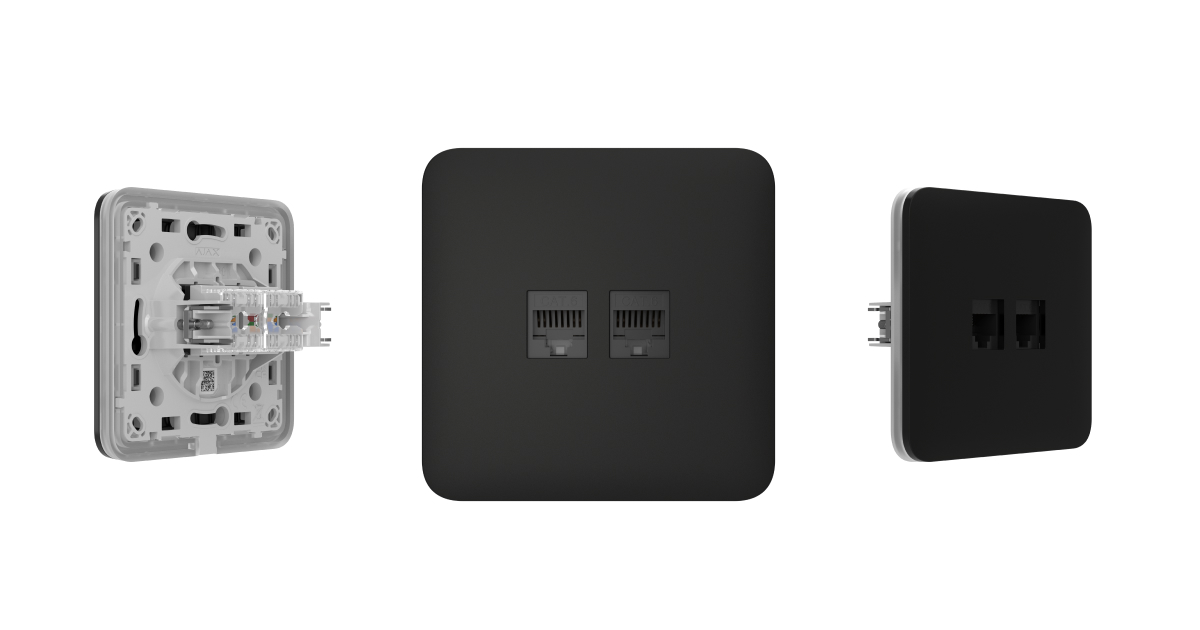

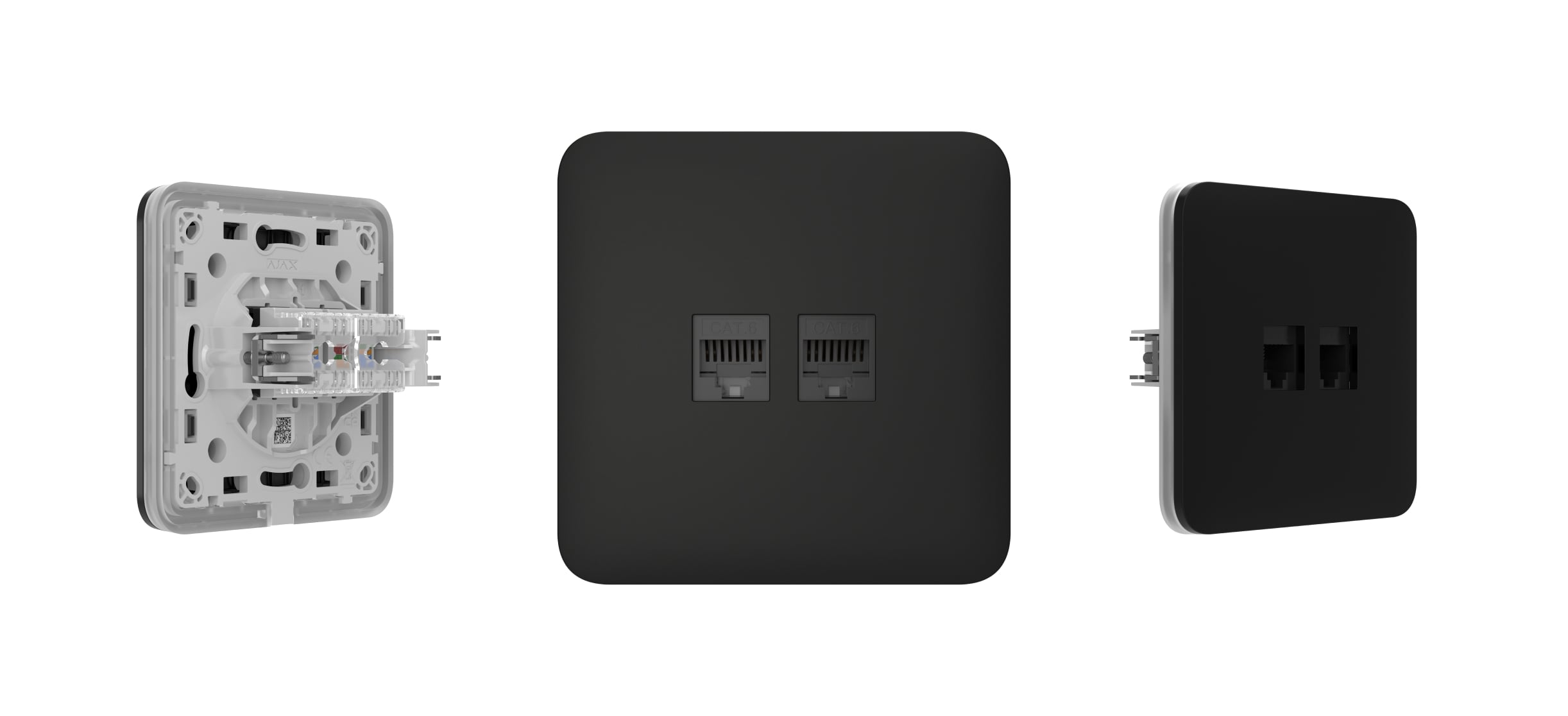

Outlet (LAN) is installed as a separate device.

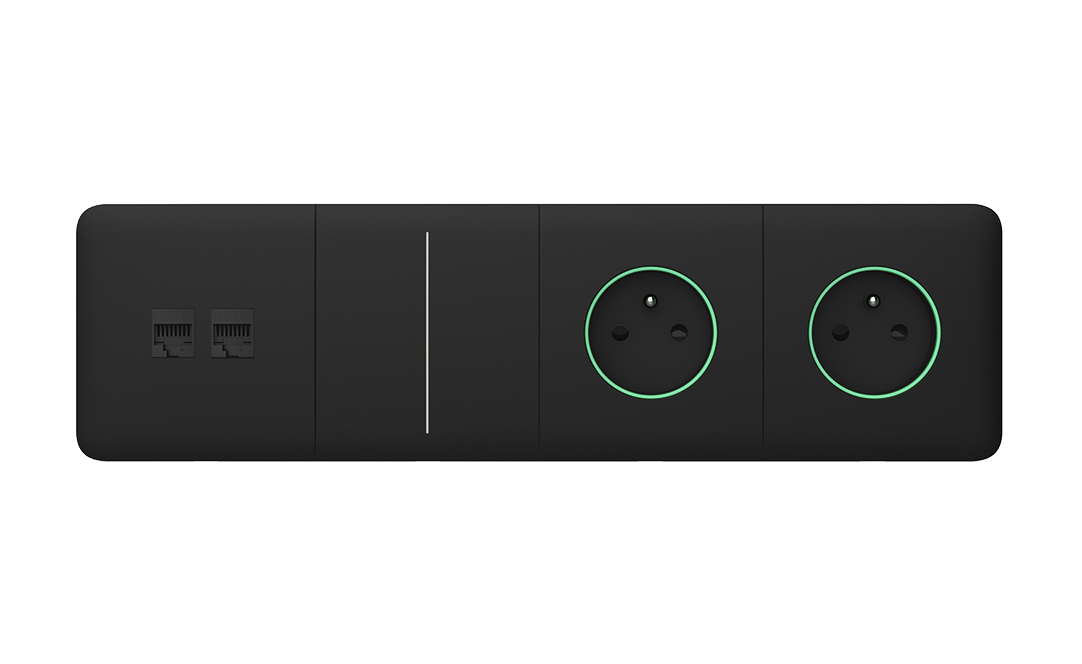

Combined outlet

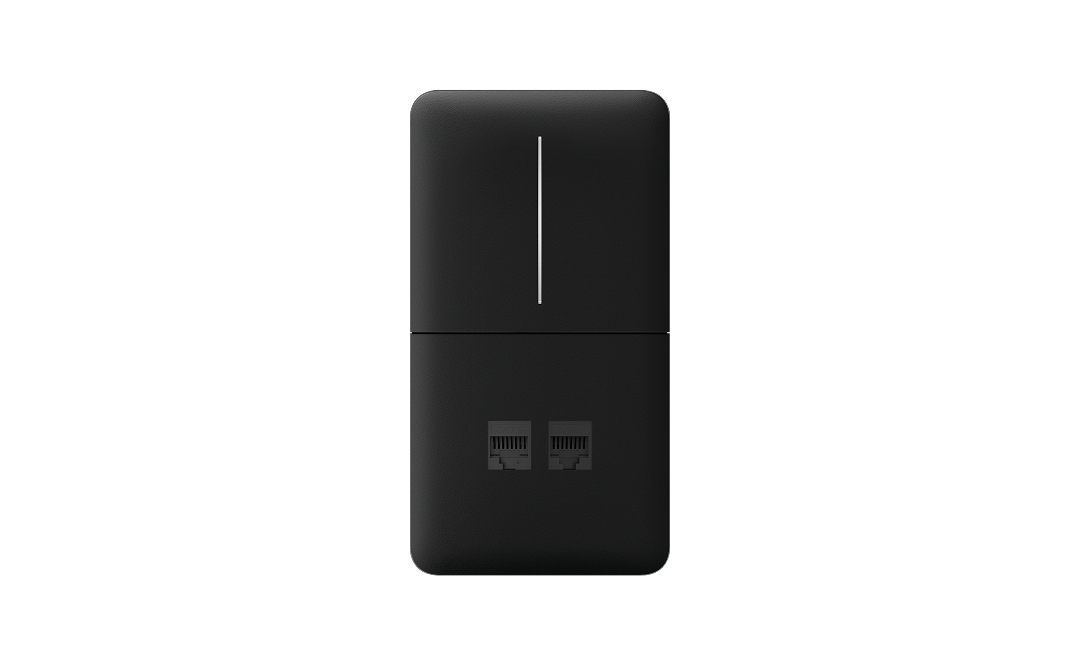

Outlet (LAN) is installed alongside Ajax outlets and/or LightSwitch switches within a Frame.

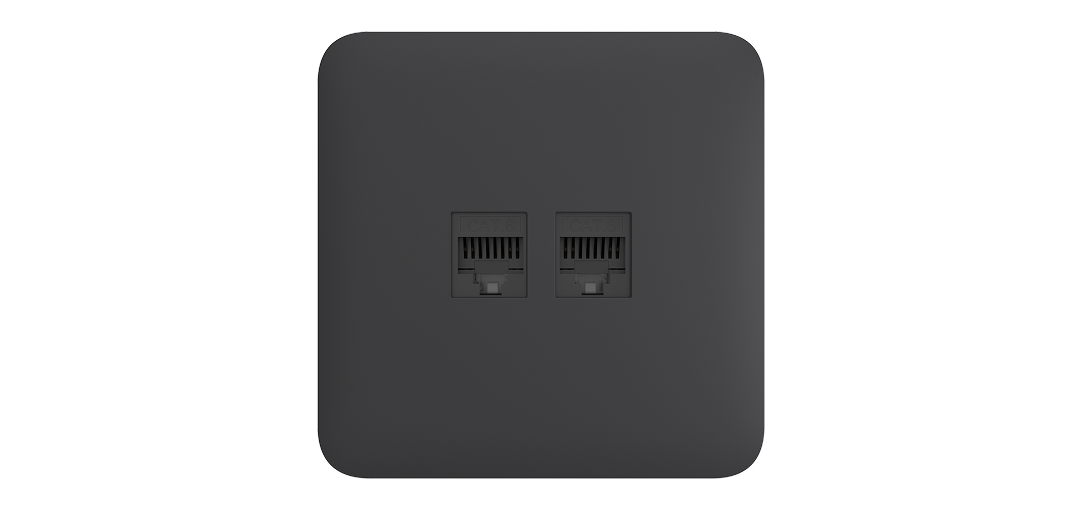

Black

RAL 9005

Graphite

RAL 7024

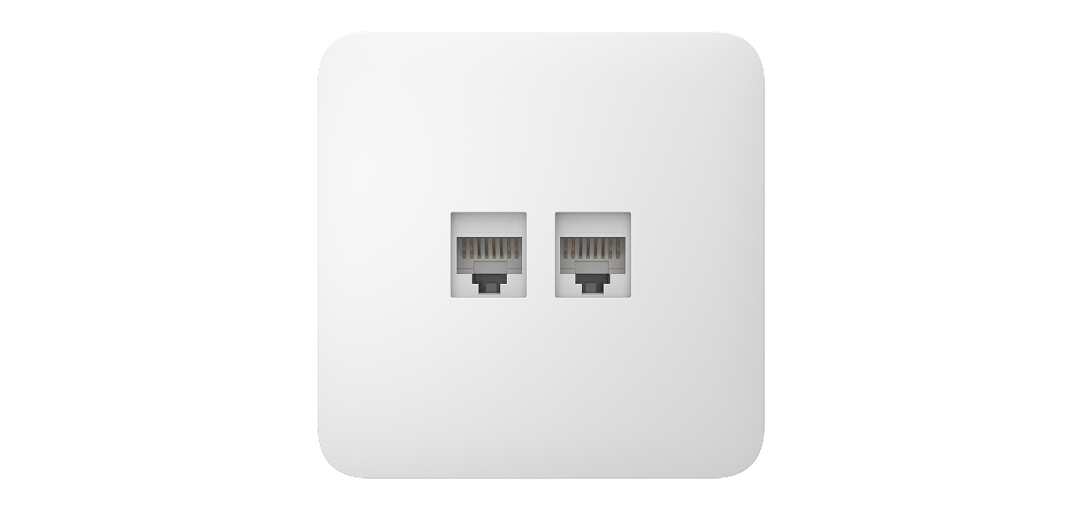

White

RAL 9003

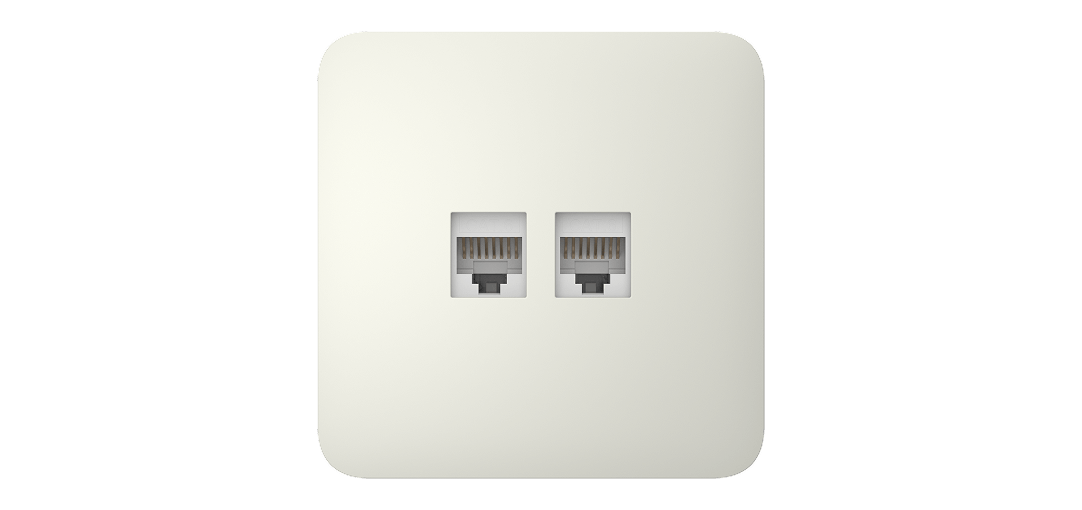

Ivory

RAL 1013

Fog

RAL 7047

Oyster

RAL 9002

Grey

RAL 7004

Olive

RAL 7044

The RAL colors provide an approximate representation of the actual color. Therefore, slight variations may occur. Please use them only as a reference when selecting a color.

Ports

2 × CAT.6 Ethernet ports

Support for data transfer speeds up to 1 Gbit/s over a maximum distance of 328 ft.

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75% with no condensation

Protection class

IP20

OutletCore (LAN) [55]

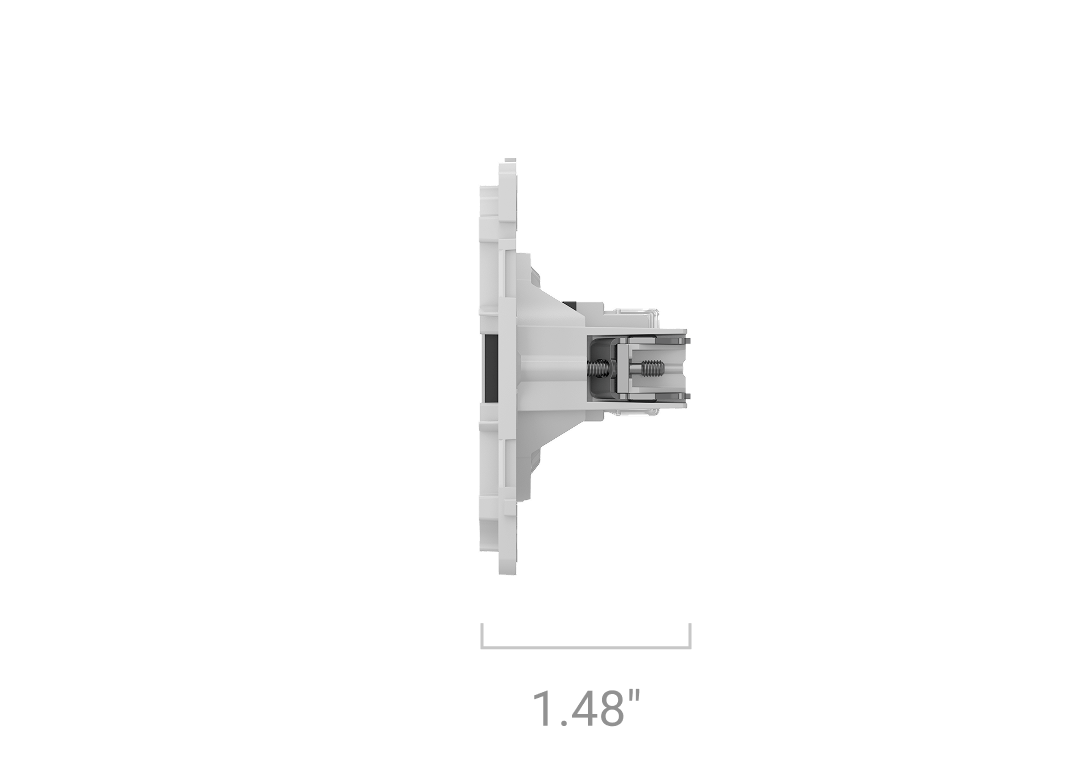

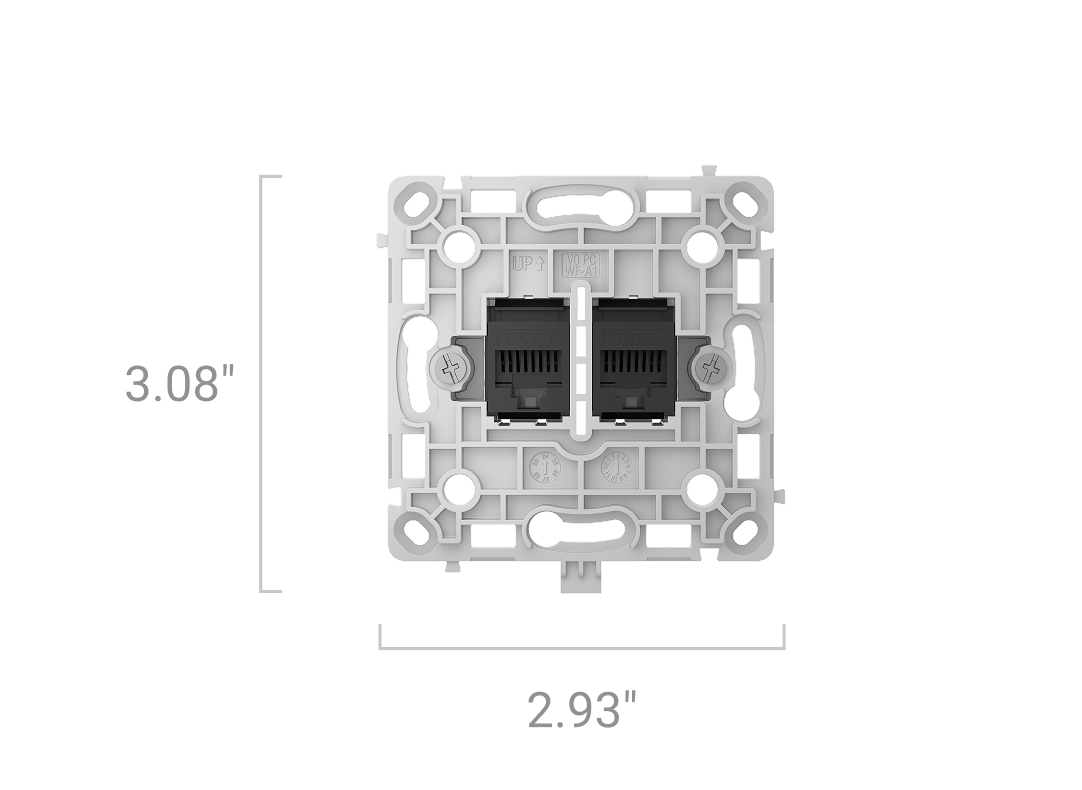

3.08" × 2.93" × 1.48"

OutletCore (LAN) vertical [55]

2.93" × 2.97" × 1.48"

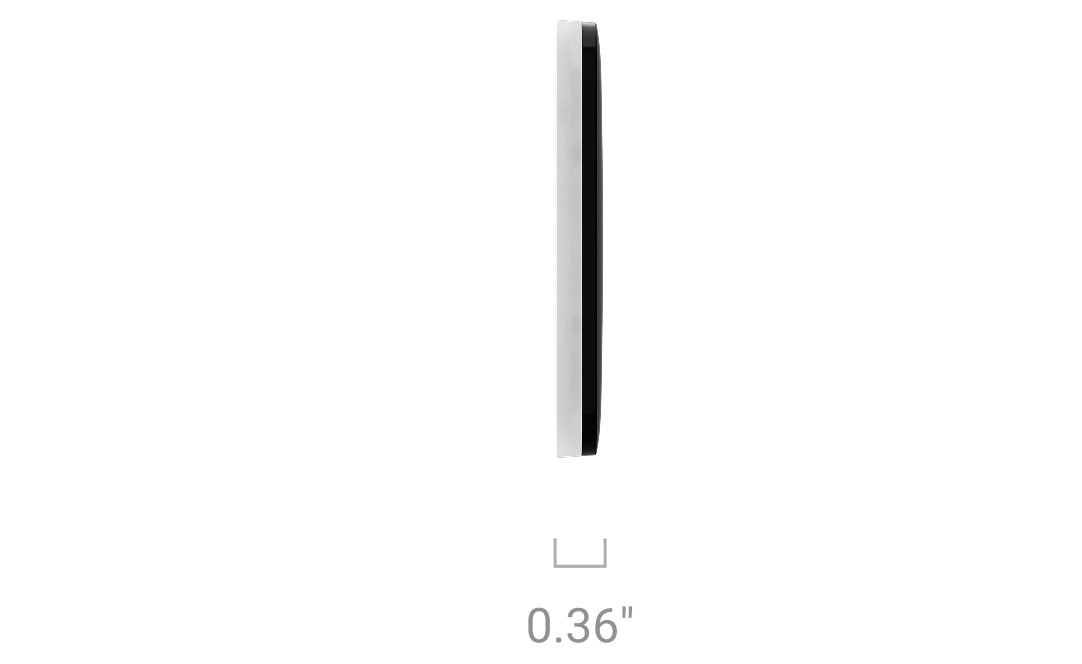

SoloCover (LAN)

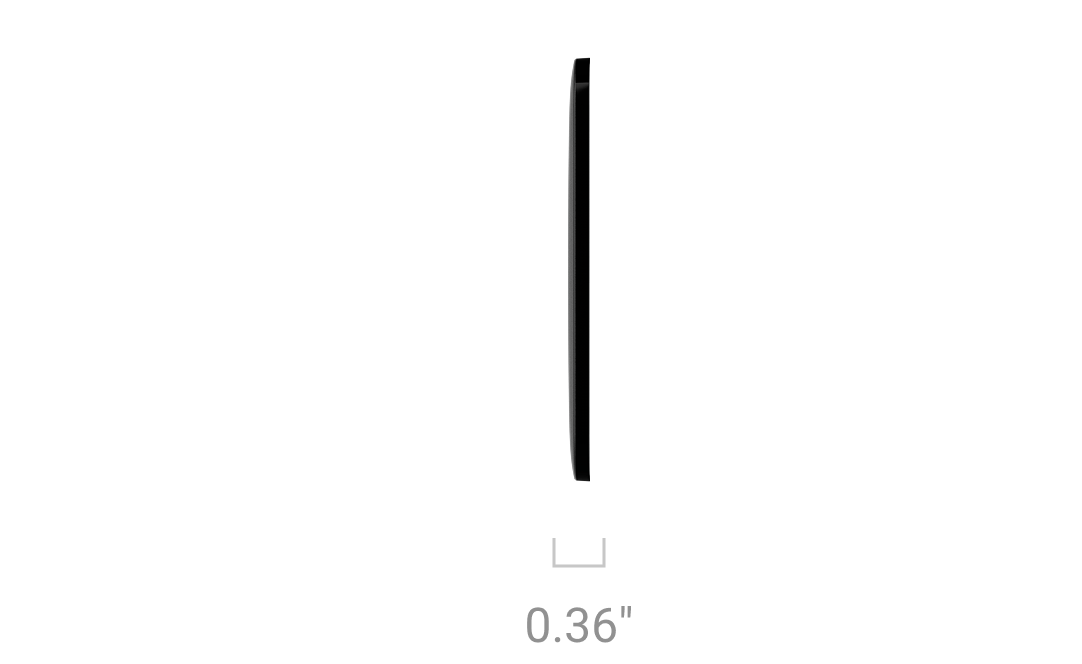

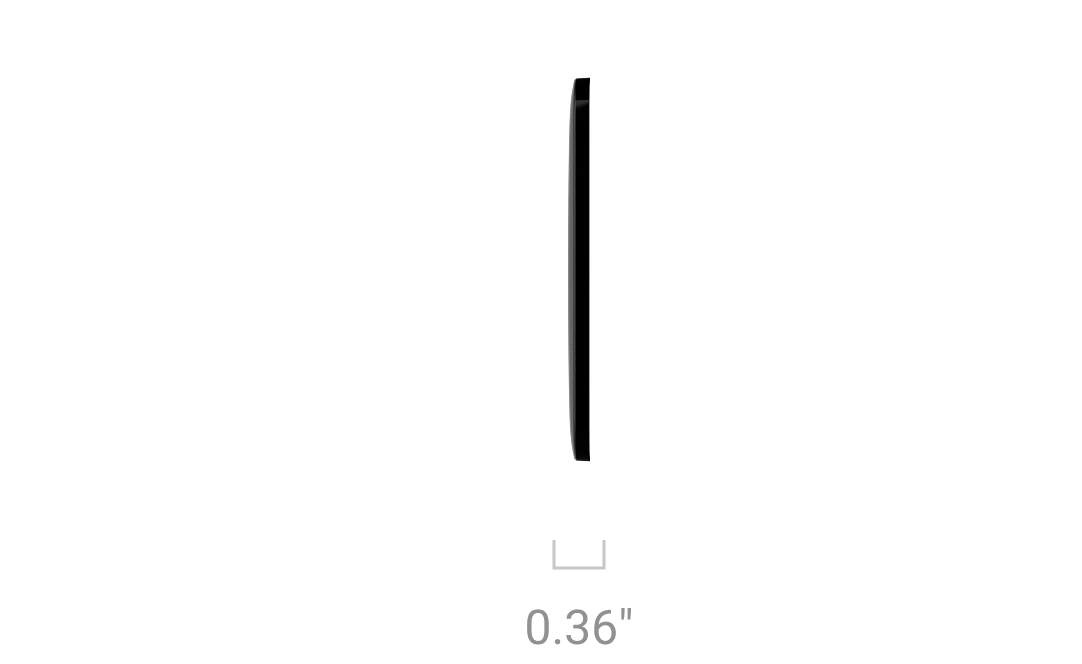

3.23" × 3.23" × 0.36"

SideCover (LAN)

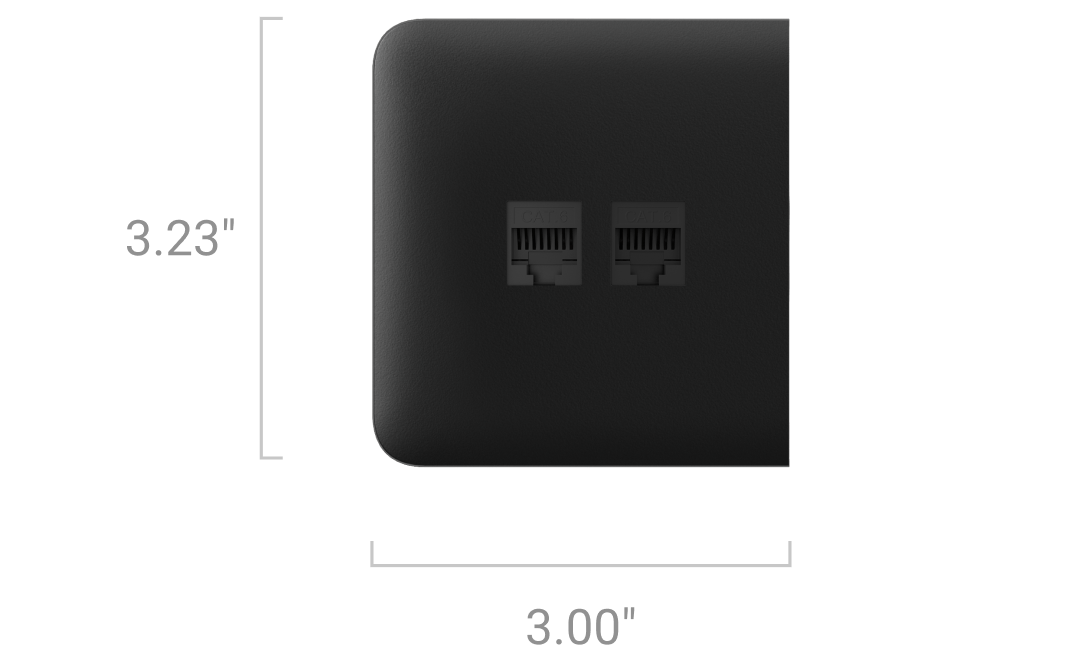

3.23" × 3.00" × 0.36"

SideCover (LAN) vertical

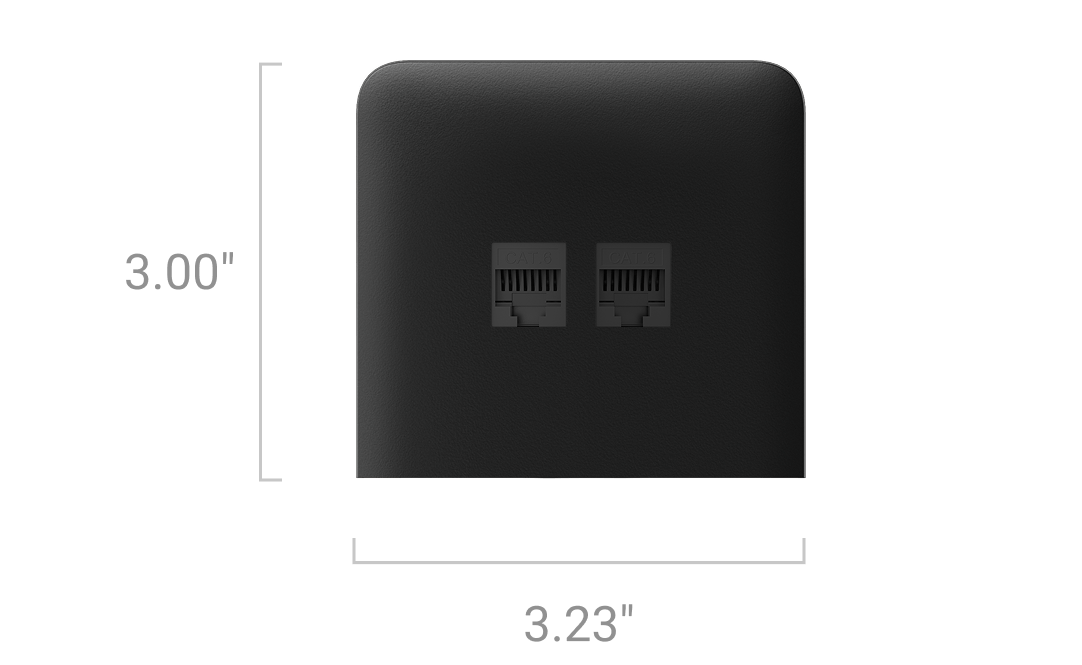

3.00" × 3.23" × 0.36"

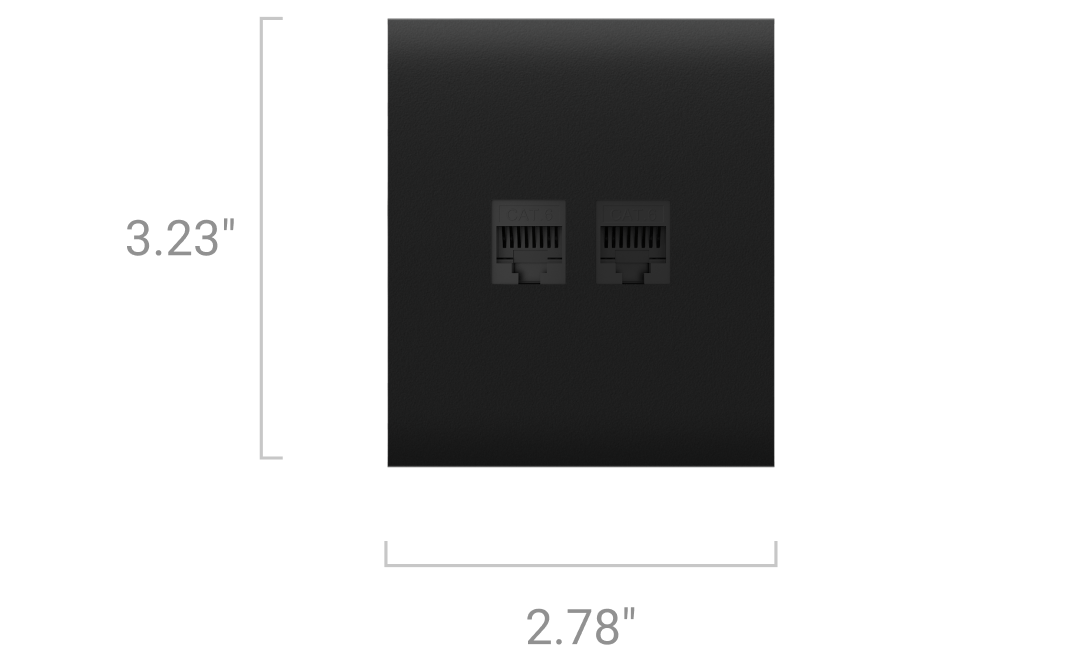

CenterCover (LAN)

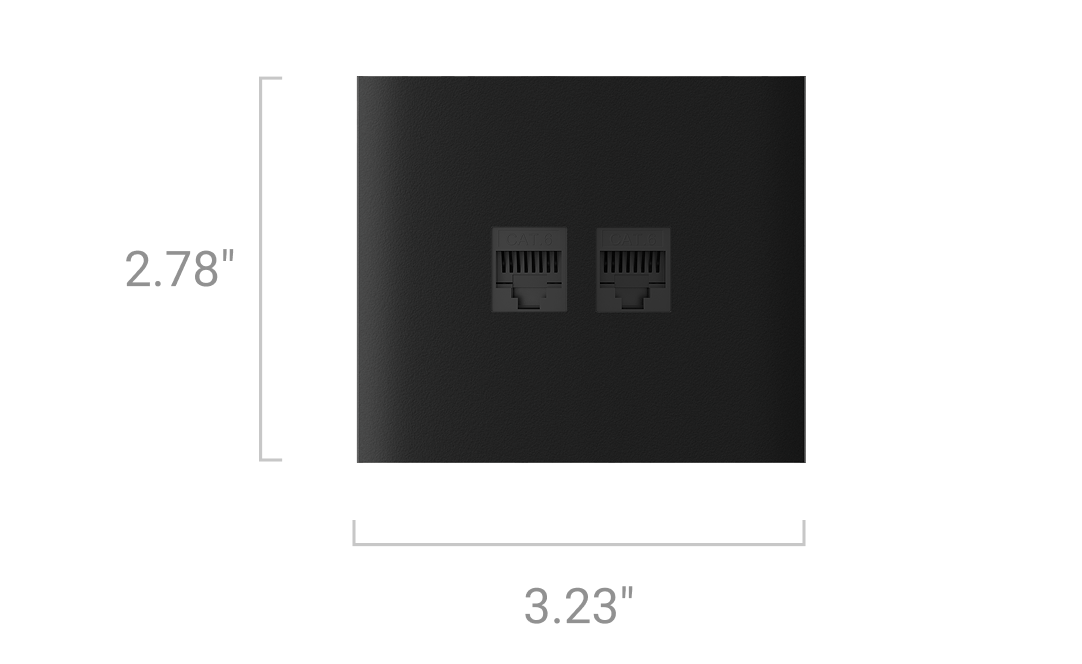

3.23" × 2.78" × 0.36"

CenterCover (LAN) vertical

2.78" × 3.23" × 0.36"

Frames

Frame (2 seats) — 3.26" × 6.04" × 0.25"

Frame (3 seats) — 3.26" × 8.84" × 0.25"

Frame (4 seats) — 3.26" × 11.63" × 0.25"

Frame (5 seats) — 3.26" × 14.43" × 0.25"

Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"

Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"

Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"

Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"

OutletCore (LAN) [55]

1.41 oz

OutletCore (LAN) vertical [55]

1.42 oz

SoloCover (LAN)

0.5 oz

SideCover (LAN)

0.44 oz

SideCover (LAN) vertical

0.42 oz

CenterCover (LAN)

0.42 oz

CenterCover (LAN) vertical

0.41 oz

Frames

Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz

Outlet (LAN) is a prefabricated device. All parts are purchased separately.
