Superior MotionProtect Plus G3 Jeweller
Wireless PIR motion detector with an additional K-band microwave sensor and anti-masking system
Device compatibility
CheckCommunication
Superior Jeweller data transfer protocol
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131).
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Enhanced block encryption with a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
865.0–868.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
869.4–869.65 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 9,800 ft (TBC)
Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology for uploading firmware updates.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Data packet reload in case of transmission errors.
- Data packets delivery check.
Frequency bands
865.0–868.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
869.4–869.65 MHz
Radio communication range
up to 9,800 ft
Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Detection
Sensitive element
PIR sensor
microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operation frequency: TBC.

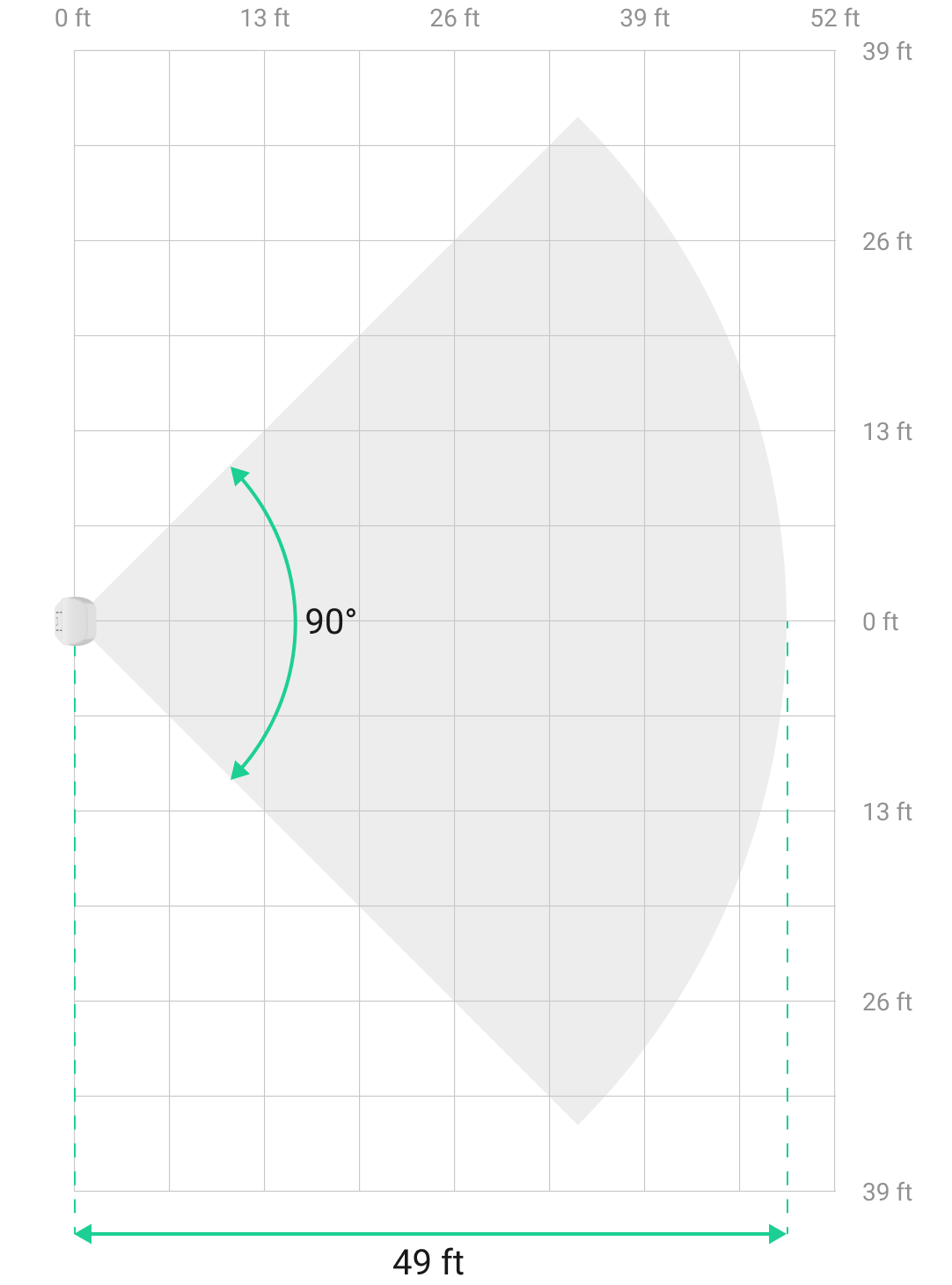

Motion detection distance
up to 49 ft
When installed at a height of 7.9 ft.
Reduced blind zone
up to 11.8"
Detects a crawling person at a distance of 11.8" from the detector.
Motion detection angles
horizontal — 90°
vertical — 71°
Motion detection speed
TBC
The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in the Ajax app
False alarm prevention
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from 14 °F to 104 °F.
Recommendations
It is recommended to install the detector at a height of 7.9 ft.
The pet immunity feature is not available for this device.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm
3 tampers
Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel.
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Lock for SmartBracket
To secure the detector on SmartBracket.
Communication loss detection
after 36 s
Detection time depends on the Jeweller/Fibra settings.
Power supply
Batteries
4 × CR123A 3 V⎓ lithium battery
Pre-installed.
Type
Type C
Detector’s operating voltage range
3.6−6.0 V⎓
Detector’s nominal operating voltage
6 V⎓
Quiescent detector’s current consumption at nominal voltage
40 μA
Maximum detector’s current consumption at nominal voltage
96 mA
Full battery capacity
3,100 mAh
Low battery voltage
5.2 V⎓
Low battery recovery voltage
5.4 V⎓
End-of-life battery voltage
3.6 V⎓
The device is switched off.
End-of-life battery capacity
200 mAh
Calculated battery life
up to 4 years
Manufacturer
Panasonic
Enclosure

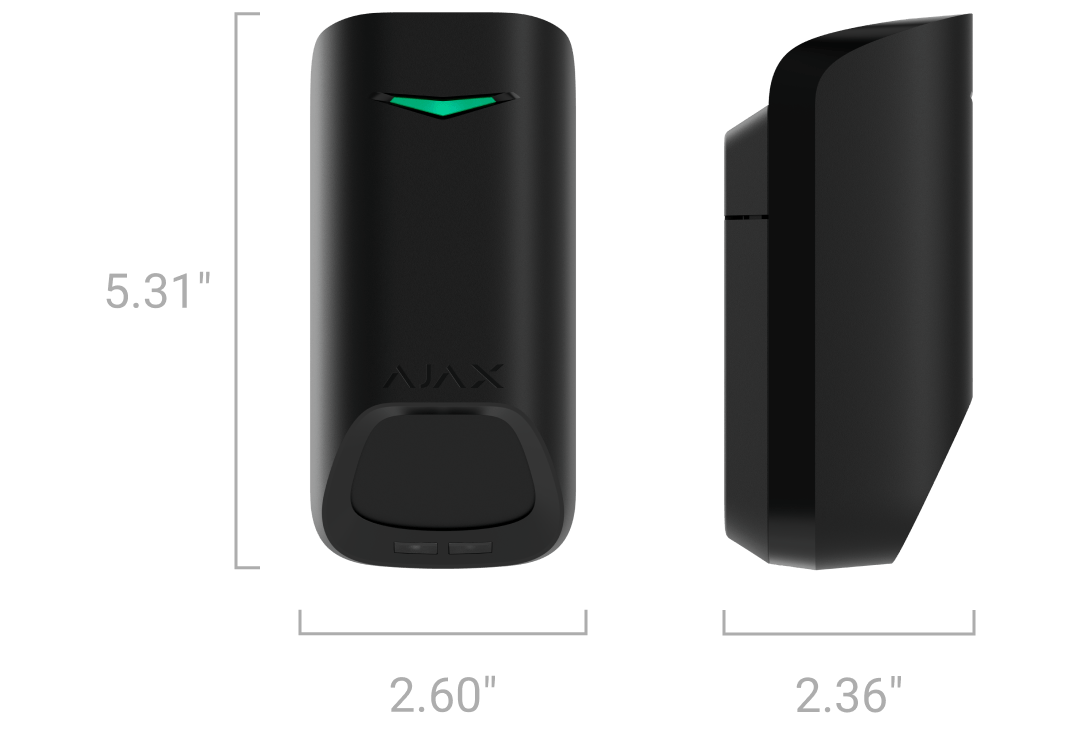

Dimensions
5.31" × 2.60" × 2.36"
Weight of the white device
11.11 oz
Weight of the black device
10.93 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30
Colors
Black
White
Complete set
Superior MotionProtect Plus G3 Jeweller
SmartBracket mounting panel
4 × CR123A battery (pre-installed)
Installation kit
Quick start guide
