Superior ReX G3 Jeweller

Number of Superior ReX G3 Jeweller connected to the hub

up to 5

For all compatible hub models.

Number of devices connected to Superior ReX G3 Jeweller

up to 249

Depends on the hub model.

Data transfer protocols

Superior Jeweller

To transmit commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweller protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled.

Jeweller

To transmit commands, alarms, and events from devices without Superior Jeweller support.

Wings

To transmit large data packets, such as firmware updates, and photos.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Radio communication range

up to 11,450 ft

Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device and the hub model.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Advanced encrypted communication

The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity.

Enhanced frequency hopping

To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies.

Alarm delivery time to the hub

0.3 s

Photo delivery time to the hub

18 s

Via Superior ReX G3 Jeweller using the Wings channel. Delivery time depends on the settings.

10 s

Via Superior ReX G3 Jeweller using the Ethernet channel. Delivery time depends on the settings.

Tamper alarm

The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Frequency hopping

The system sends notifications to all users and the security company of jamming or losing connection with the devices.

Jamming alert

Superior ReX G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.

Communication loss detection

after 36 s

Detection time depends on the Jeweller/Fibra settings.

Main power supply type

Type A.

Device operating AC voltage range

110–240 V, 50/60 Hz

From the main power supply. Up to 15 W of mains power consumption.

Device operating DC voltage range

6.0–8.2 V⎓

Low battery voltage

7.0 V⎓

Low battery recovery voltage

8.135 V⎓

End-of-life battery voltage

6.0 V⎓

Superior ReX G3 Jeweller is switched off.

Minimum backup battery energy level in the charged state

100%

On Superior Internal Battery (16h)

up to 16 hours

When Ethernet is enabled. Superior Internal Battery (16h) is not included in the complete set.

On Superior Internal Battery (60h)

up to 60 hours

When Ethernet is enabled. Superior Internal Battery (60h) is not included in the complete set.

Maximum at nominal voltage

87 mA

Quiescent at nominal voltage*

up to 87 mA

When Ethernet is enabled.

up to 29 mA

When Ethernet is disabled.

* From the backup battery after the loss of the main power supply.

Superior ReX G3 Jeweller

SmartBracket mounting panel

Power cable

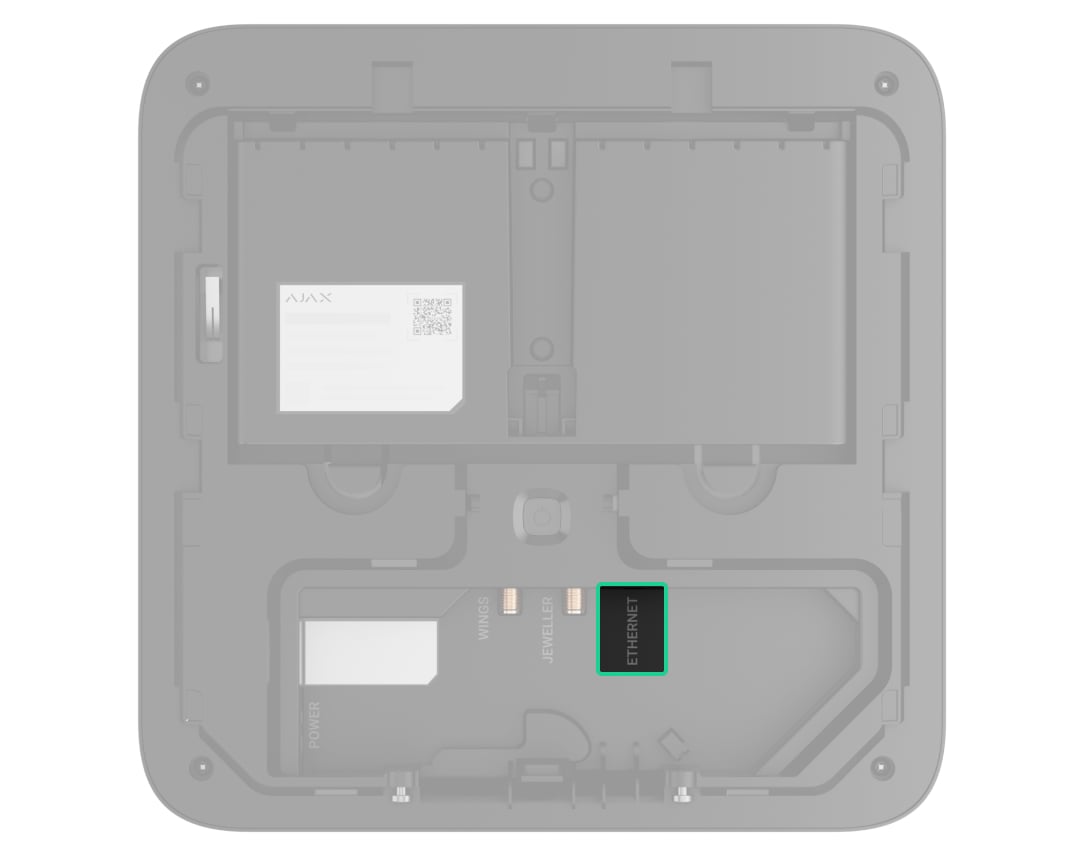

Ethernet cable

Installation kit

Quick start guide
