Tech specs

Button Jeweller

Wireless panic button / smart button

Button Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 4,200 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Key features

Number of buttons

1

Adjustable event types

  • Intrusion
  • Fire
  • Auxiliary alarm
  • Panic button
  • Gas alarm
  • Malfunction
  • Leakage
  • Custom

If the Custom event type is selected, event notifications will not be sent to the security company monitoring station, and system users will not receive an SMS.

LED backlight indicating command delivery

The LED brightness is adjusted in Ajax apps.

Protection against accidental pressing

long or double press

Supervising feature

Button will update the status of its battery every day. This feature is available with OS Malevich 2.16 and higher.

Recommendations

Use Holder to fix Button Jeweller on surfaces.

Sabotage protection

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

1 × CR2032

Pre-installed.

Type

type C

Calculated battery life

up to 5 years

Button’s operating voltage range

1.8−3.3 V⎓

Button’s nominal operating voltage

3 V⎓

Quiescent button’s current consumption at nominal voltage

0.5 μA

When the Battery charge auto-check toggle is disabled.

2.02 μA

When the Battery charge auto-check toggle is enabled.

Maximum button’s current consumption at nominal voltage

27.8 mA

Full battery capacity

235 mAh

Low battery voltage

2.2 V⎓

Low battery recovery voltage

2.3 V⎓

End-of-life battery voltage

1.8 V⎓

Device is switched off.

End-of-life battery capacity

40 mAh

Manufacturer

Panasonic or Renata

UL listed.

Enclosure

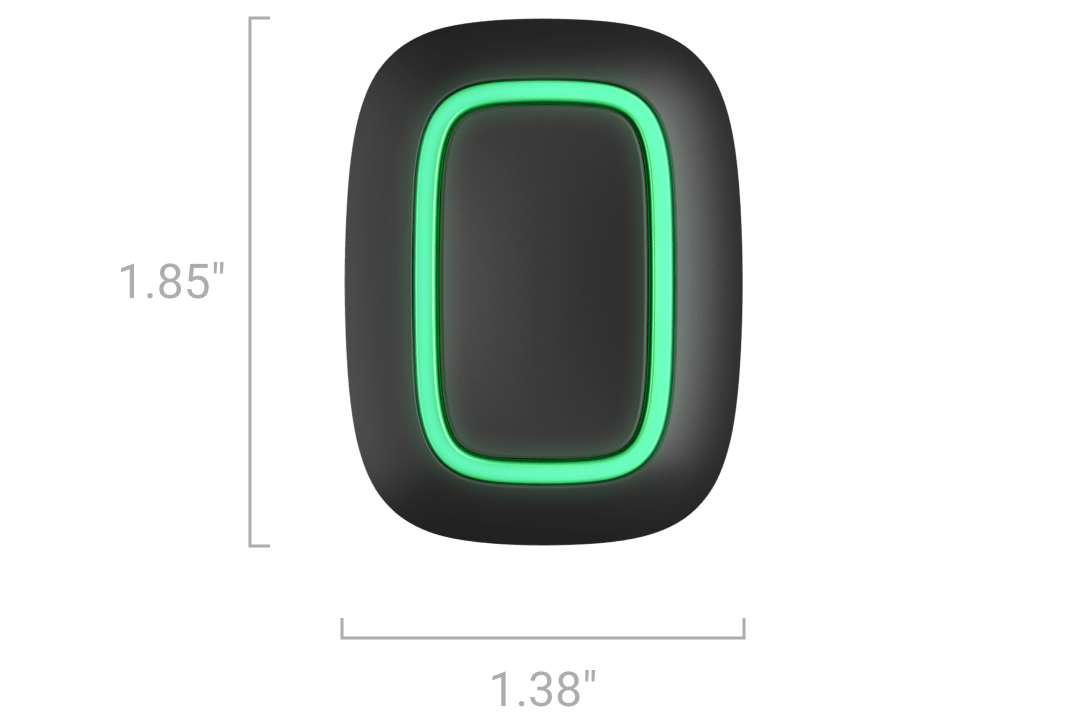

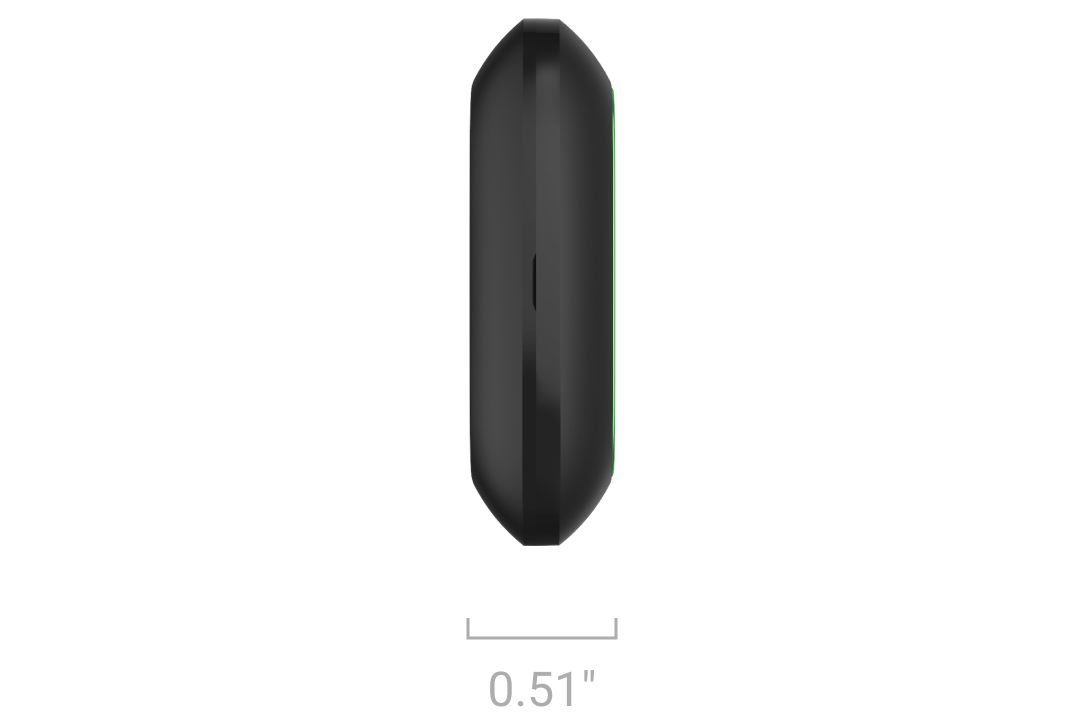

Dimensions

1.85″ × 1.38″ × 0.51″

Weight

0.56 oz

Operating temperature range

from 14 °F to 104 °F

Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.

Operating humidity

up to 75%

Humidity of up to 93% is certified according to UL/ULC standards.

Protection class

IP55

ttx
ttx

Colors

Black

White

Complete set

Button Jeweller

CR2032 battery (pre-installed)

Quick start guide

Certification and compliance with standards

Button Jeweller

Button Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017 / A3:2020

EN 50131-3:2009**

EN 50131-6:2017 / A1:2021

EN 50131-5-3:2017

EN 50134-2:2017

PD 6662:2017*

ANSI/SIA CP-01-2019

Security Grade (SG)

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

Environmental class according to EN 50131

|||

FCC ID

Certificate issued by MiCOM Labs

2AX5VBUTTON-NA

IC ID

Certificate issued by MiCOM Labs

26860-BUTTONNA

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

Household Fire Warning System Units

UL LLC

UL 985

Residential Fire Warning Alarm Systems Control Units

UL LLC

ULC 545

Standard for Holdup Alarm Units and Systems

UL LLC

UL 636

PSTI UK

Schedule 1


device
Holder

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Additional information

Compliance with standards

Learn more

Warranty

24 months
