Case A (106)
Casing for one Ajax device
Compatibility
Device installation
Number of devices
1
To install more devices, select a model with a different number of slots:
Plastic latches
to secure a device
Slide the latches to remove the device.
Cable fasteners
to hold the cables together with ties
Plastic stoppers
to protect the installed device
During drilling, the drill bit rests on the Case stoppers.
Bubble level
To check the inclination angle of the mount during installation.
Recesses for drilling
Ø16 mm or Ø20 mm
The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic.
Wider holes
To ensure that the casing is installed correctly, even if there are errors during installation.
Key features
Tamper board
Included in the Case complete set. The tamper board connects to the appropriate device connector and protects the installed device from sabotage.
Rotate the device
by 180°
The device is fixed in two positions. You can turn it 180°.
Holding screws
in the casing lid
Rotate the lid
by 180°
The lid of Case A (106) can be rotated by 180° during installation.
Latches
to secure the lid during installation
The latches prevent the lid from falling off Case until it is secured with screws.
Recommendations
The device is designed for indoor use only. Case is produced in several versions.
Product

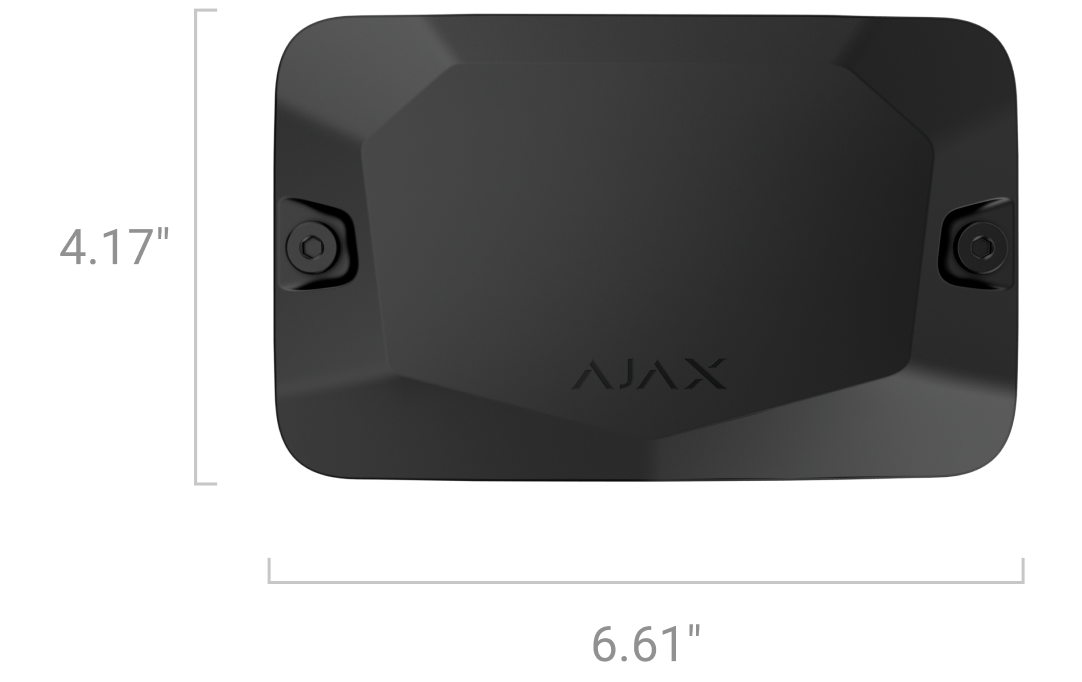

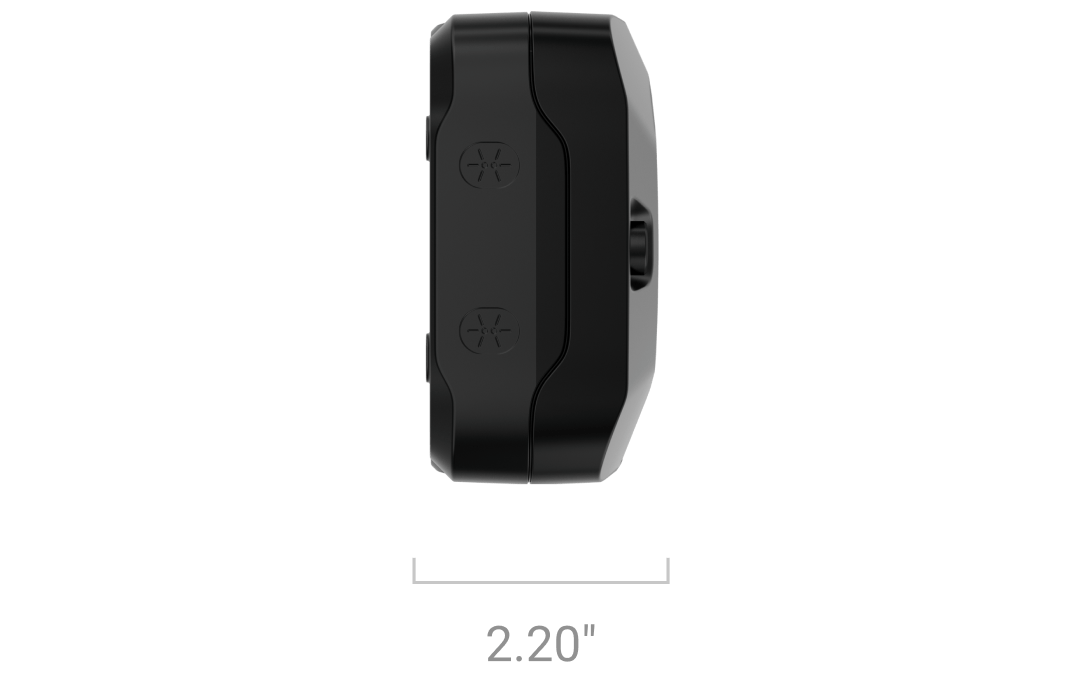

Dimensions
4,17″ × 6,61″ × 2,20″
Weight
6,56 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75%
Colors
Black
White
Complete set
Case A (106)
Tamper board
Installation kit
Quick start guide
