Tech specs

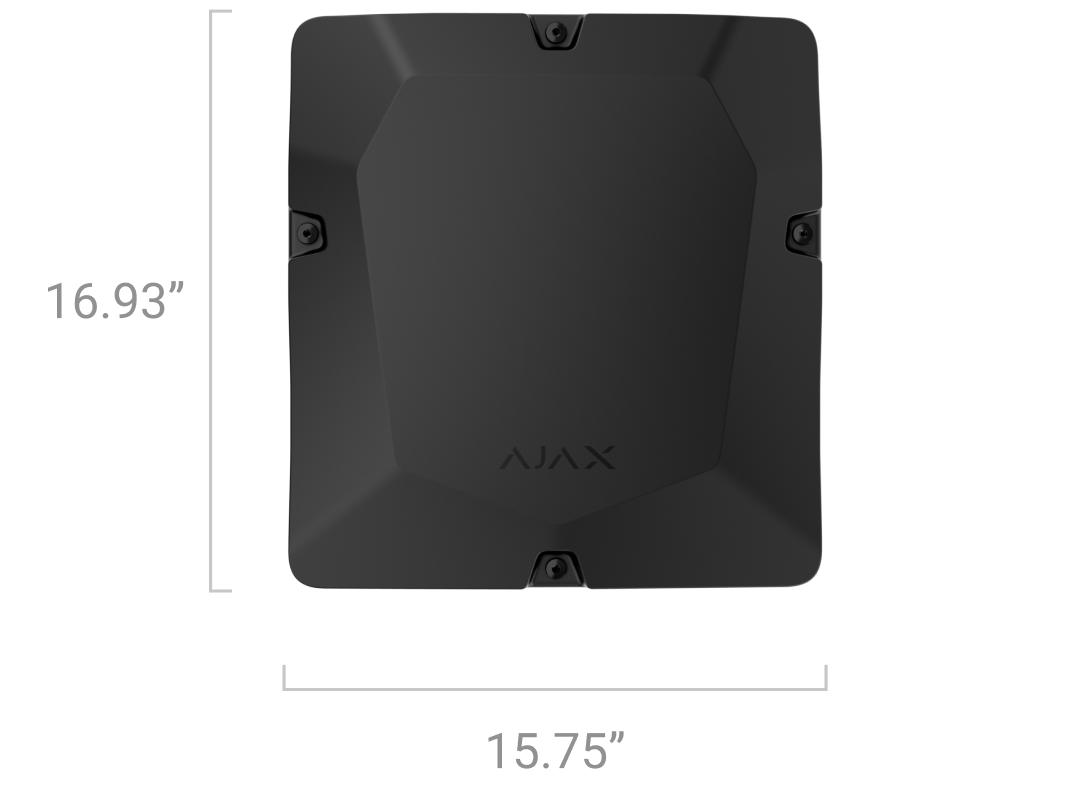

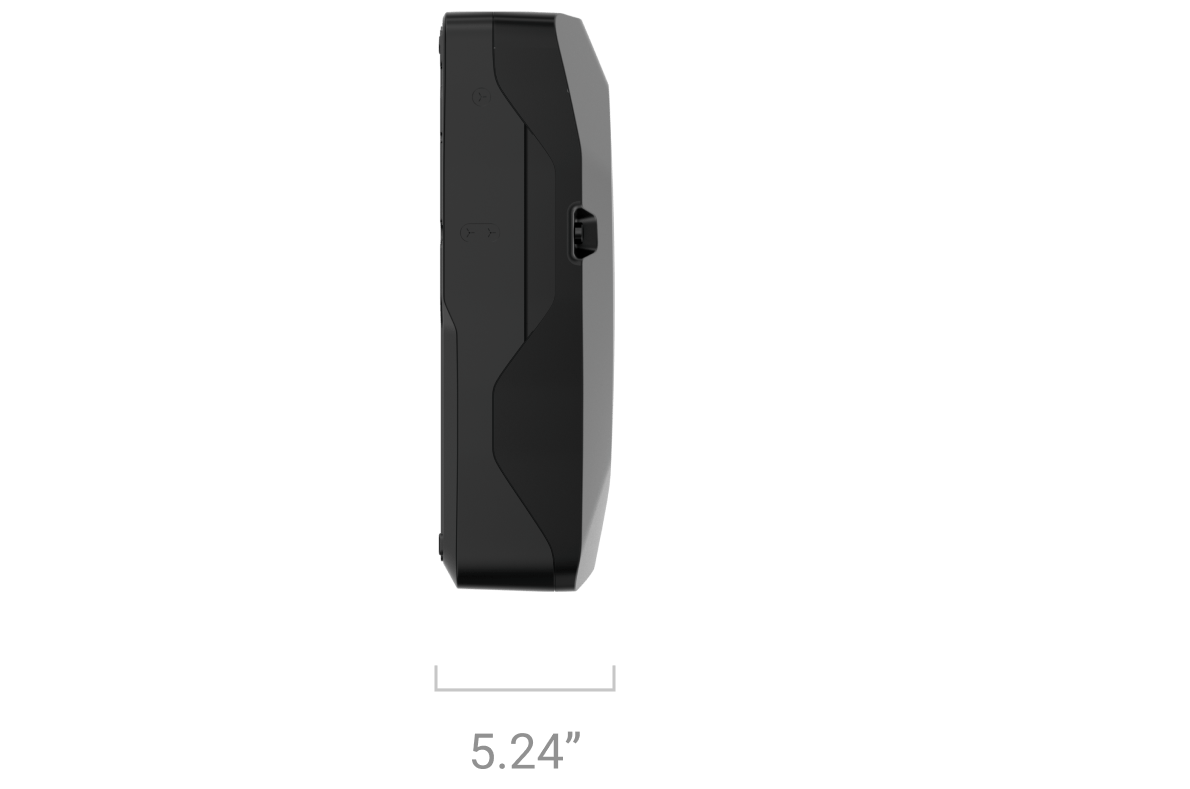

Case D (430)

Casing for up to eight Ajax devices and two 18 Ah batteries

Compatibility

With batteries up to 18 Ah

Hub Hybrid (2G)

Hub Hybrid (4G)

With battery up to 9 Ah. Installing the hub in Case D (430) does not meet the Grade (EN 50131) requirements. The compliant version will be available soon.

Devices installation

Number of devices

up to 8

To install a different number of devices, select a model with the appropriate number of slots:

Plastic holders

Module Holder (type A)

Place the required number of Module Holder (type A) into the casing to accommodate LineSplit Fibra, LineProtect Fibra, and MultiRelay Fibra modules. The Case D (430) complete set includes a total of 4 holders. If you need more, additional holders can be purchased separately.

Buy Module Holder (type A)

Module Holder (type B)

Place two Module Holder (type B) into the casing to accommodate the Hub Hybrid board. Holders are sold separately.

Buy Module Holder (type B)

Plastic rails

to secure LineSupply Fibra

Slide LineSupply Fibra along the rails to remove it from the casing. No holders are required to secure the module.

Cable fasteners

to hold the cables together with ties

Bubble level

To check the inclination angle of the casing during installation.

Recesses for drilling

Ø32 mm, Ø40 mm, or Ø63 mm

Wider holes

To ensure that the casing is installed correctly, even if there are errors during installation.

Holders for batteries

up to 18 Ah

At the bottom of the casing.

Holding stripe

for the battery

To prevent accidental dislodgement of the battery.

Key features

Tamper board

Included in the Case complete set. The tamper board connects to the appropriate connector of one of the devices and protects the installed devices from sabotage.

What is tamper
