Tech specs

Transmitter Jeweller

Wireless module to integrate one third-party device into the Ajax system

Transmitter Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 5,200 ft

Between the integration module and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wired devices connection

Supported configurations

Transmitter Jeweller has two pairs of terminal inputs for tamper and alarm sensor connection. Alarm and tamper inputs can be used to connect a wired device using the AATT (Alarm Alarm Tamper Tamper) scheme.

Terminals for wired device connection

  • + –” — 3.3 V⎓ power supply output for connecting a wired device.
  • ALARM — inputs for connecting a wired device.
  • TAMP — inputs for connecting a tamper of a wired device.

Third-party device contact states

NO, NC

Tamper contact states

NO, NC

Cable length

up to 425 ft

When using 24 AWG twisted pair cable.

Operating modes

pulse, bistable

Sensor modes

Notify of alarms, Switch arming modes

Event types

14 event types of wired devices

  • Intrusion
  • Fire
  • Auxiliary alarm
  • Panic button
  • Gas alarm
  • Malfunction
  • Leakage
  • Glass break
  • High temperature
  • Low temperature
  • Masking
  • Duress code (opening)
  • Vibration (seismic sensor)
  • Custom

Adjusted by a PRO or a user with admin rights in the Ajax app.

Recommendations

Transmitter Jeweller should be installed inside the wired detector enclosure. The module requires a minimum space with dimensions of 4.33″ × 1.61″ × 0.94″. If it is not possible to install Transmitter Jeweller within the detector’s enclosure, any available radiotransparent casing can be used.

Sabotage protection

Protection against spoofing

integration module authentication

Accelerometer

alert when the integration module is moved

Tamper alarm terminals

Terminals for connecting to a wired device tamper (if applicable).

Detection of communication loss with integration module

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

3 × CR123A

Pre-installed. Battery life depends on the power consumption of a connected wired device.

Output to the connected wired device

3.3 V⎓, up to 125 mA

One power supply line from Transmitter Jeweller.

Board

Dimensions

3.94″ × 1.54″ × 0.87″

Weight

2.61 oz

Operating temperature range

from −13 °F to 122 °F

Operating humidity

up to 75%

Electric shock protection

Class III

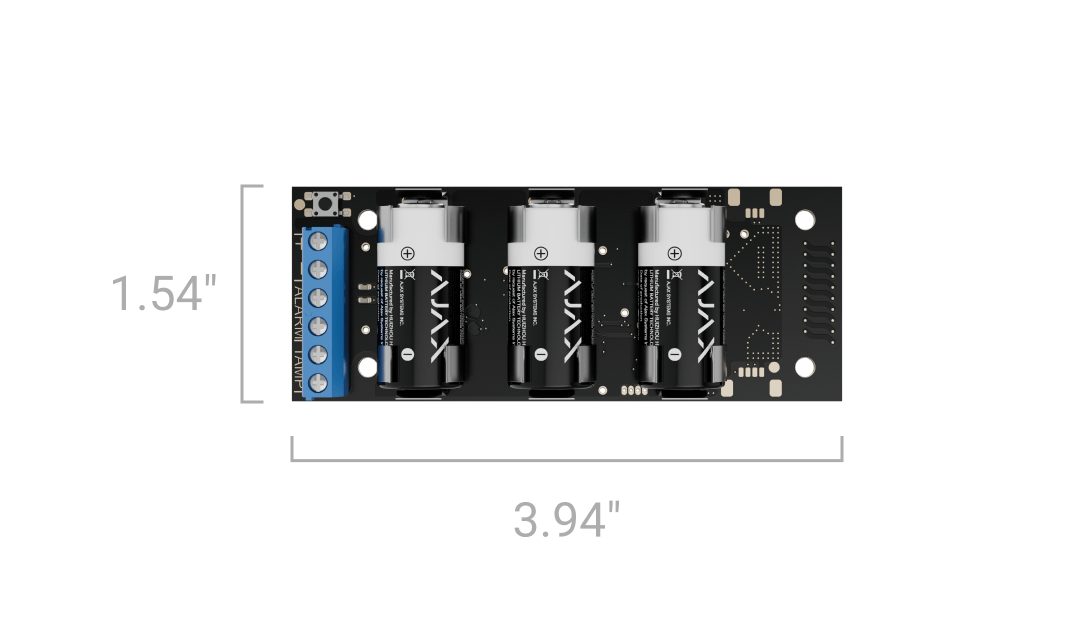

transmitter front

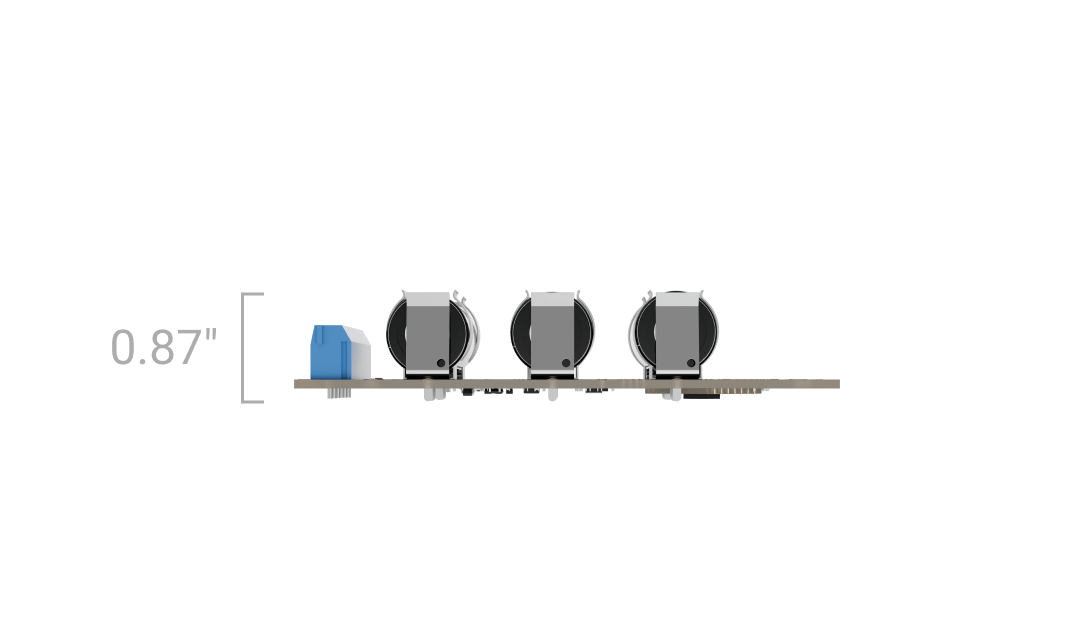

transmitter side

Complete set

Transmitter Jeweller

3 × CR123A battery (pre-installed)

Installation kit

Quick start guide

Certification and compliance with standards

Transmitter Jeweller

Transmitter Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-6:2017

EN 50131-3:2009

EN 50131-5-3:2017

PD 6662:2017*

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

FCC ID

Certificate issued by MiCOM Labs

2AX5VTRANSM-NA

IC ID

Certificate issued by MiCOM Labs

26860-TRANSMNA1

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

Household Fire Warning System Units

UL LLC

UL 985

Residential Fire Warning Alarm Systems Control Units

UL LLC

ULC 545

PSTI UK

Schedule 1

Additional information

Compliance with standards

Learn more

Warranty

24 months

Learn more

User manual

Learn more
