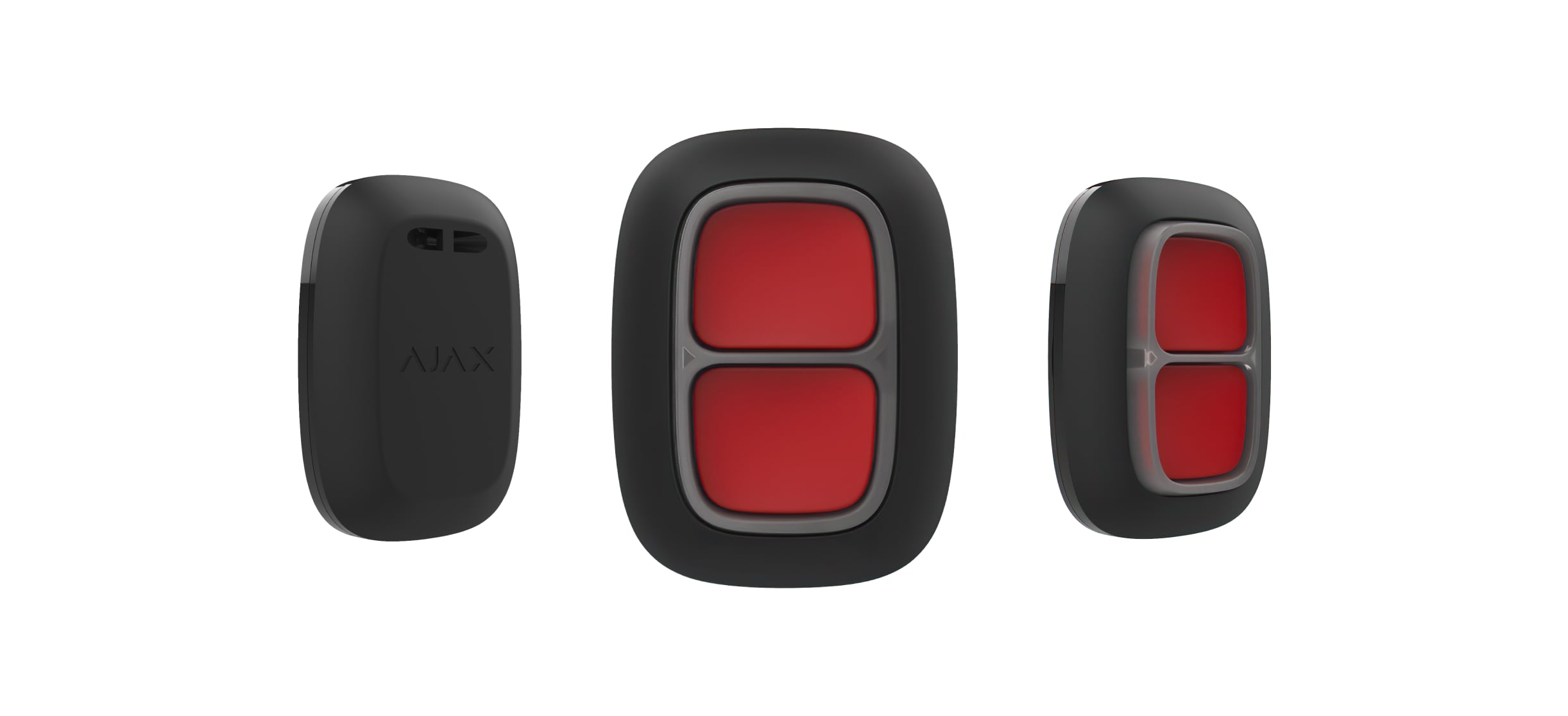

DoubleButton Jeweller

Wireless hold-up device

DoubleButton Jeweller

yA5lgs

9td1Wl

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio signal range

up to 1,000 ft

Between the panic button and control panel (or range extender) in an open space. Locate DoubleButton in a place with stable Jeweller signal strength (2-3 bars in the Ajax app).

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Number of buttons

2

Accidental press protection

both buttons pressing
protective plastic divider

Alarm confirmation

with one DoubleButton or several

To raise a confirmed alarm (hold-up event), you need to perform the selected action.

LED backlight indicating command delivery

The LED brightness is adjusted in Ajax apps.

Alarm scenario

by the DoubleButton pressing

The control mode for automation devices is not supported.

Recommendations

Use Holder to fix DoubleButton Jeweller on surfaces.

Sabotage protection

Protection against spoofing

device authentication

Power supply

Battery

1 × CR2032

Pre-installed.

Calculated battery life

up to 5 years

Device’s operating voltage range

1.8−3.3 V⎓

Device’s nominal operating voltage

3 V⎓

Quiescent device’s current consumption at nominal voltage

0.54 μA

Maximum device’s current consumption at nominal voltage

34.8 mA

Full battery capacity

235 mAh

Low battery voltage

2.2 V⎓

Low battery recovery voltage

2.3 V⎓

End-of-life battery voltage

1.8 V⎓

Device is switched off.

End-of-life battery capacity

40 mAh

Manufacturer

Panasonic

UL listed.

Enclosure

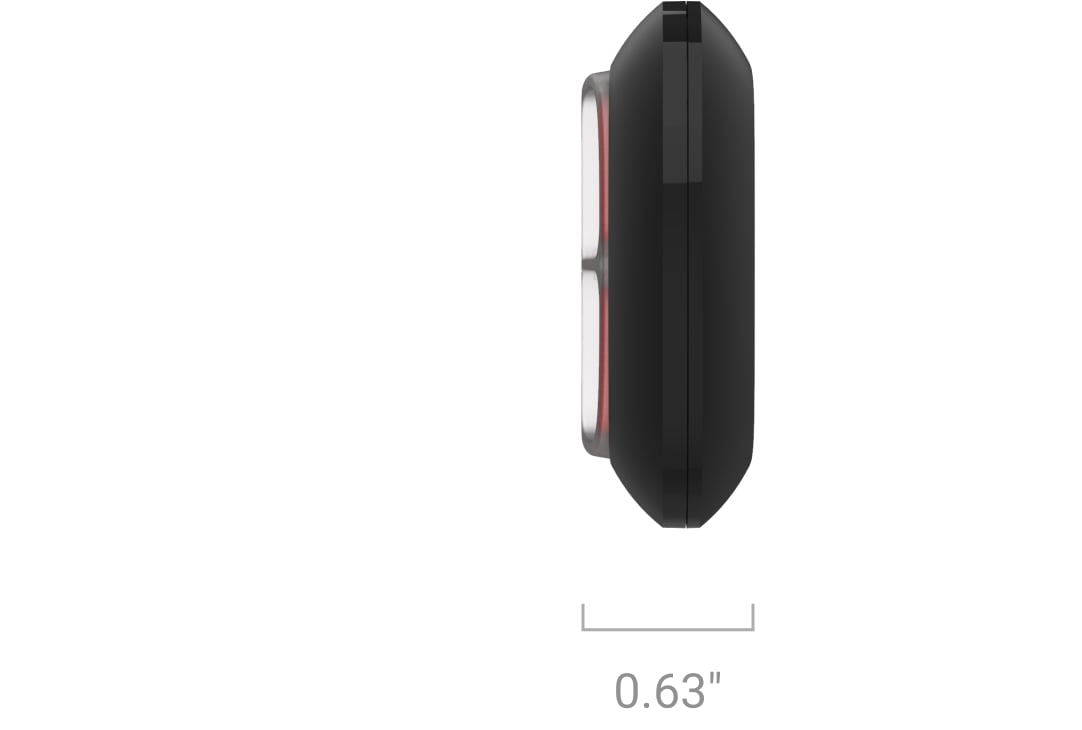

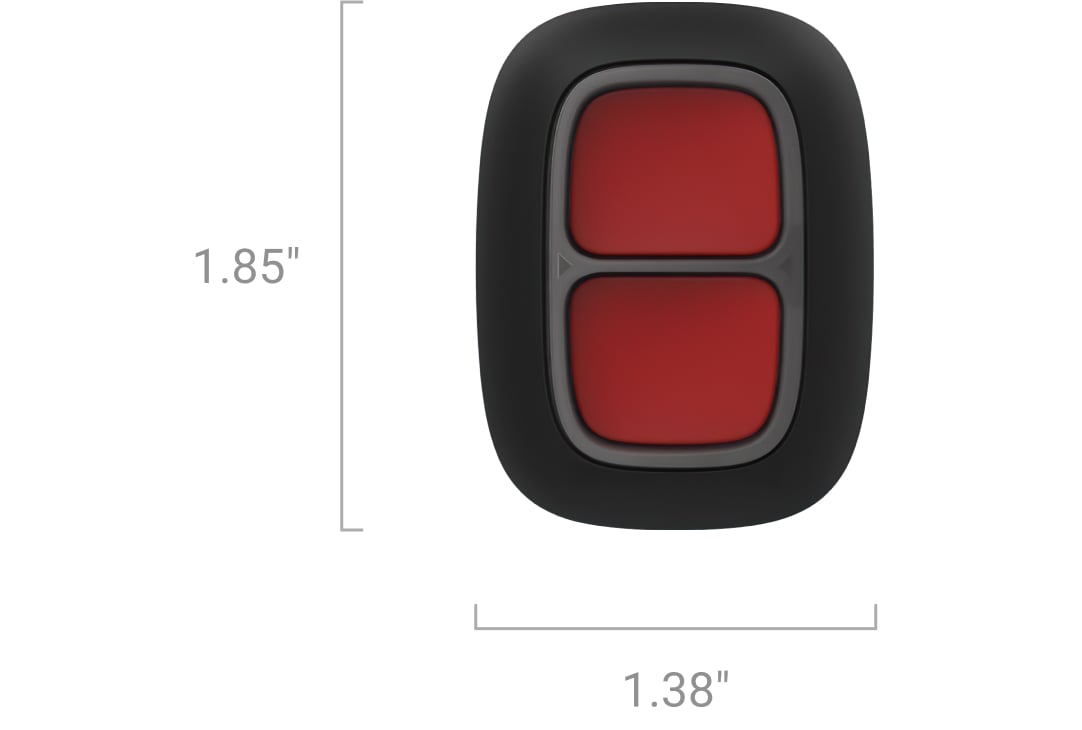

Dimensions

1.85″ × 1.38″ × 0.63″

Weight

0.60 oz

Operating temperature range

from 14 °F to 104 °F

Temperature range from 32 °F (0 °C) to 120 °F (49 °C) is certified according to UL/ULC standards.

Operating humidity

up to 75%

Humidity up to 85% is certified according to UL/ULC standards.

Protection class

IP55

ttx
ttx

Colors

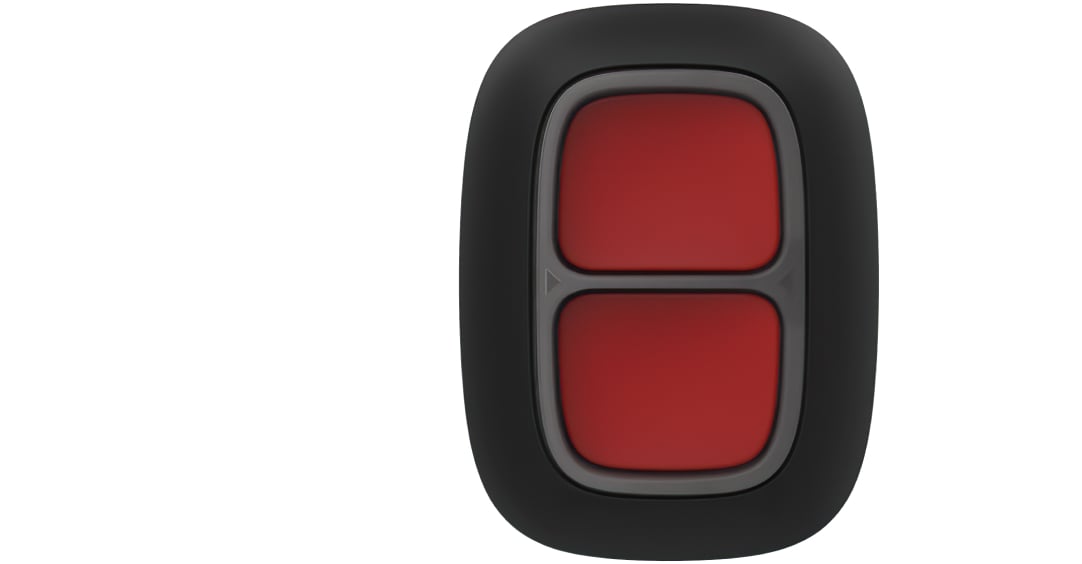

Black

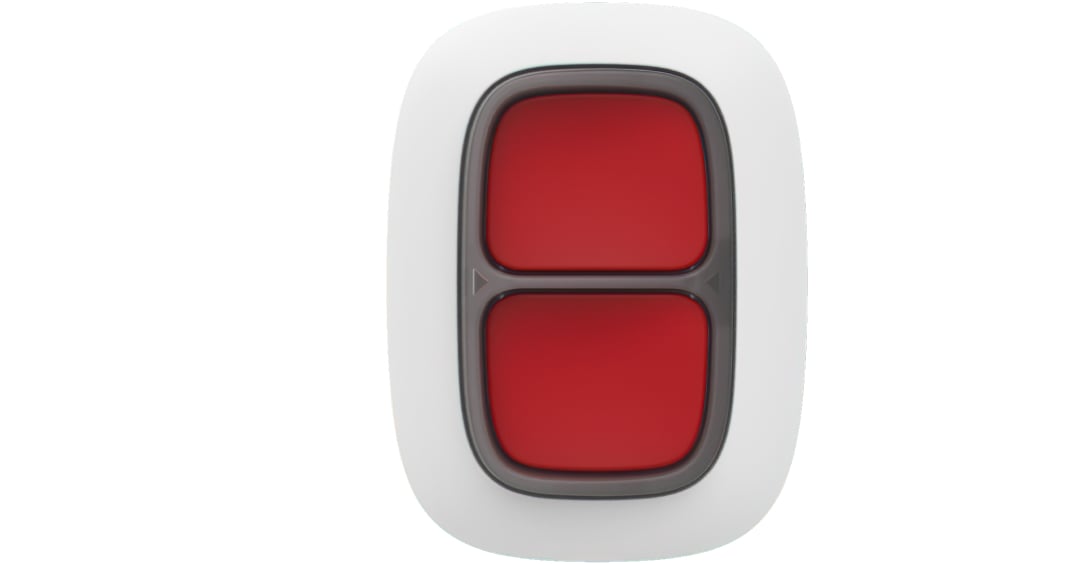

White

Complete set

DoubleButton Jeweller

CR2032 battery (pre-installed)

Quick start guide

hQt5e6

DoubleButton Jeweller

DoubleButton Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50134-2:2017

EN 50131-3:2009

EN 50131-5-3:2017

EN 50131-6:2017 / A1:2021

EN 50131-1:2006/A1:2009/A2:2017

PD 6662:2017*

ANSI/SIA CP-01-2019

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

FCC ID

Certificate issued by MiCOM Labs

2AX5VDOUBUT-NA

2AX5VDOUBUT2NA

IC ID

Certificate issued by MiCOM Labs

26860-DOUBUTNA1

26860-DOUBUTNA2

PSTI UK

Schedule 1


device
Holder

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018
