Tech specs

MotionProtect Outdoor Jeweller

Wireless IR motion detector for outdoor and indoor use

MotionProtect Outdoor Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 5,600 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Detection

Sensitive elements

2 × PIR sensor

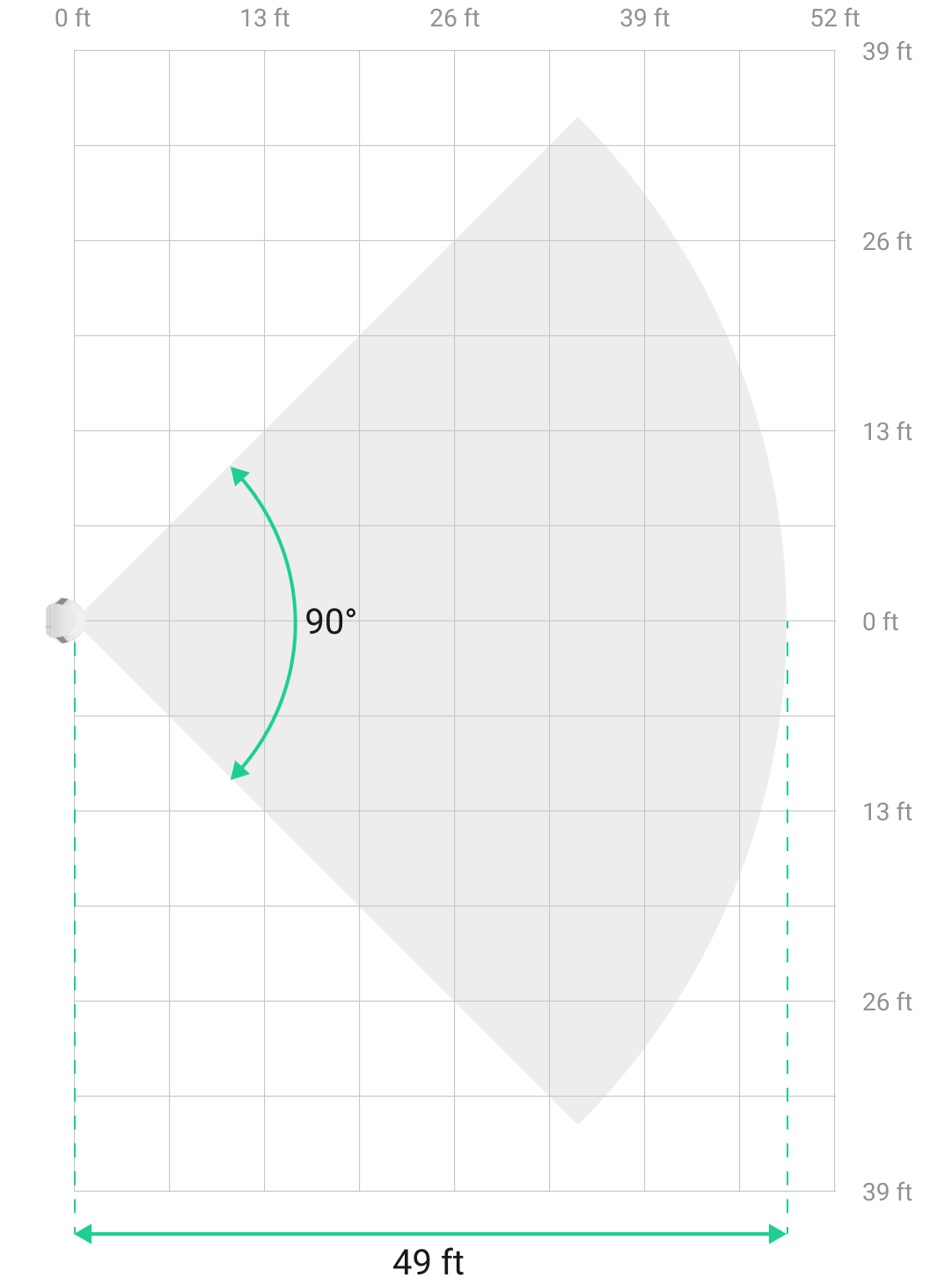

Motion detection distance

up to 10–49 ft

When installed at a height of 2.6–4.3 ft. Adjusted with a scrollbar on the device enclosure.

Motion detection angles

horizontal — 90°
vertical — N/A

Motion detection speed

from 1 to 6.6 ft/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by PRO or user with admin rights in the Ajax app.

Pet immunity

weight: not relevant
height: up to 2.6 ft

False alarm prevention

LISA
SmartDetect

Software algorithms.

Temperature compensation

Effective motion detection at temperatures from −13 °F to 140° F.

ttx

Recommendations

It is recommended to install the detector at a height of 2.6–4.3 ft. The device is designed for indoor and outdoor use.Install Hood to protect the detector’s anti-masking system from rain and snow.Hood

Sabotage protection

Tamper alarm

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Anti-masking system

detects attempts to block the detector view

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Main power supply

Battery

2 × CR123A

Pre-installed.

Type

type C

Calculated battery life

up to 5 years

Detector’s operating voltage range

2.1−3.3 V⎓

Detector’s nominal operating voltage

3 V⎓

Quiescent detector’s current consumption at nominal voltage

79 μA

Maximum detector’s current consumption at nominal voltage

58.8 mA

Full battery capacity

3,200 mAh

Capacity of each battery is 1,600 mAh.

Low battery voltage

2.5 V⎓

Low battery recovery voltage

2.7 V⎓

End-of-life battery voltage

2.1 V⎓

Device is switched off.

End-of-life battery capacity

480 mAh

Manufacturer

Huiderui

UL listed.

Optional power supply

External supply’s operating voltage

5−28 V⎓, from 200 mA

The batteries serve as a backup when external power supply is connected.

Enclosure

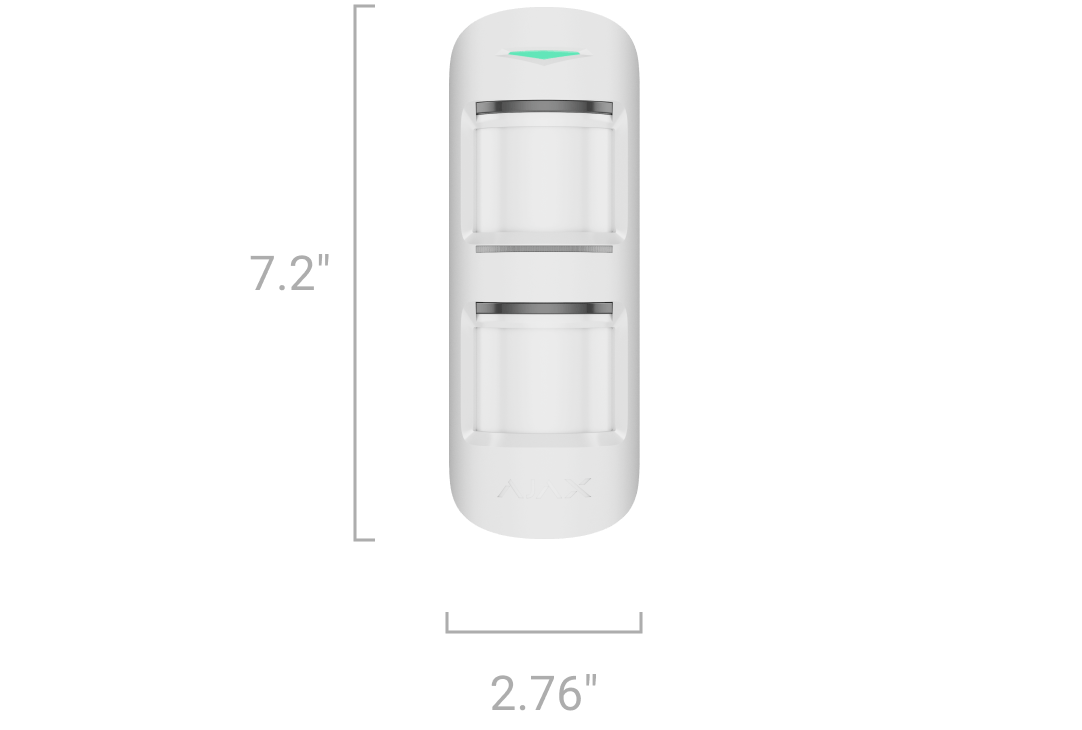

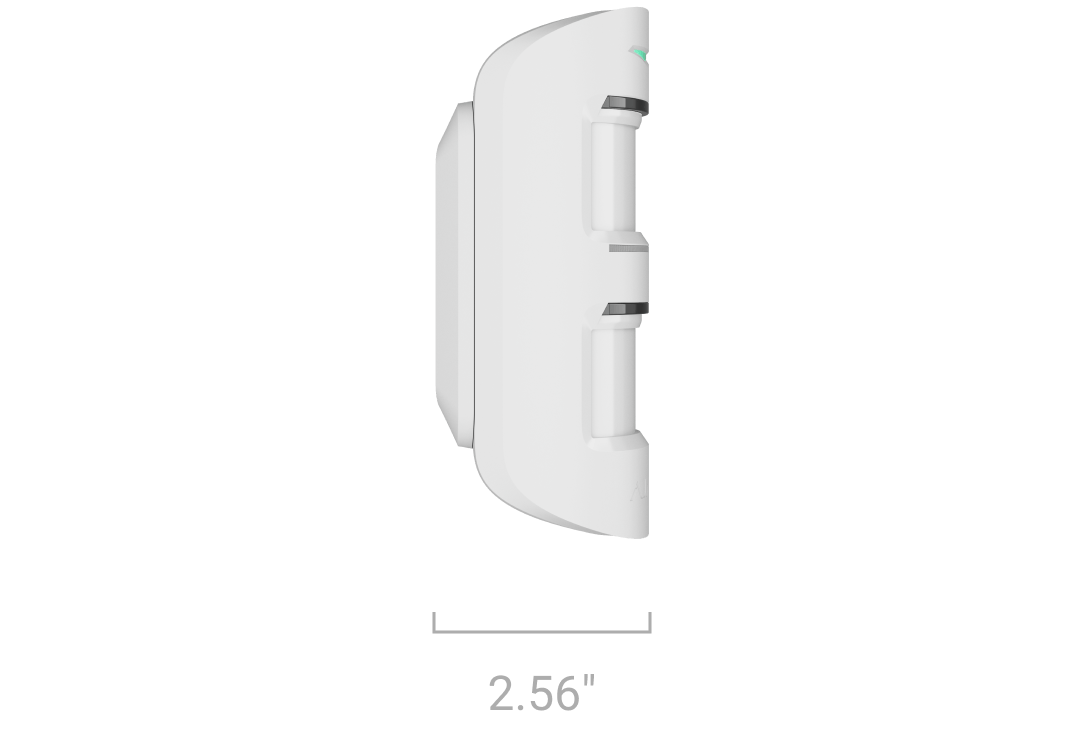

Dimensions

7.2″ × 2.76″ × 2.56″

Weight

11.36 oz

Operating temperature range

from -13 °F to 140 °F

Temperature range from -31 °F (-35 °C) to 150 °F (+66 °C) is certified according to UL standards, and from -40 °F (-40 °C) to 150 °F (+66 °C) — according to ULC standards.

Operating humidity

up to 95%

Humidity of up to 93% is certified according to UL/ULC standards.

Protection class

IP55

ttx
ttx

Colors

White

Complete set

MotionProtect Outdoor Jeweller

SmartBracket mounting panel

Installation kit

2 × CR123A battery (pre-installed)

Quick start guide

Certification and compliance with standards

MotionProtect Outdoor Jeweller

MotionProtect Outdoor Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-2-2:2017

EN 50131-6:2017**

EN 50131-5-3:2017

PD 6662:2017*

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

IV

FCC ID

Certificate issued by MiCOM Labs

2AX5VMOPROU-NA

IC ID

Certificate issued by MiCOM Labs

26860-MOPROUNA1

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Standard for Intrusion-Detection Units

UL LLC

UL 639

ULC S306 (Canada)

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

PSTI UK

BSI Assurance UK Limited

Schedule 1


Hood
Hood

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Additional information

Compliance with standards

Learn more

Warranty

24 months
