StarterKit (4G)

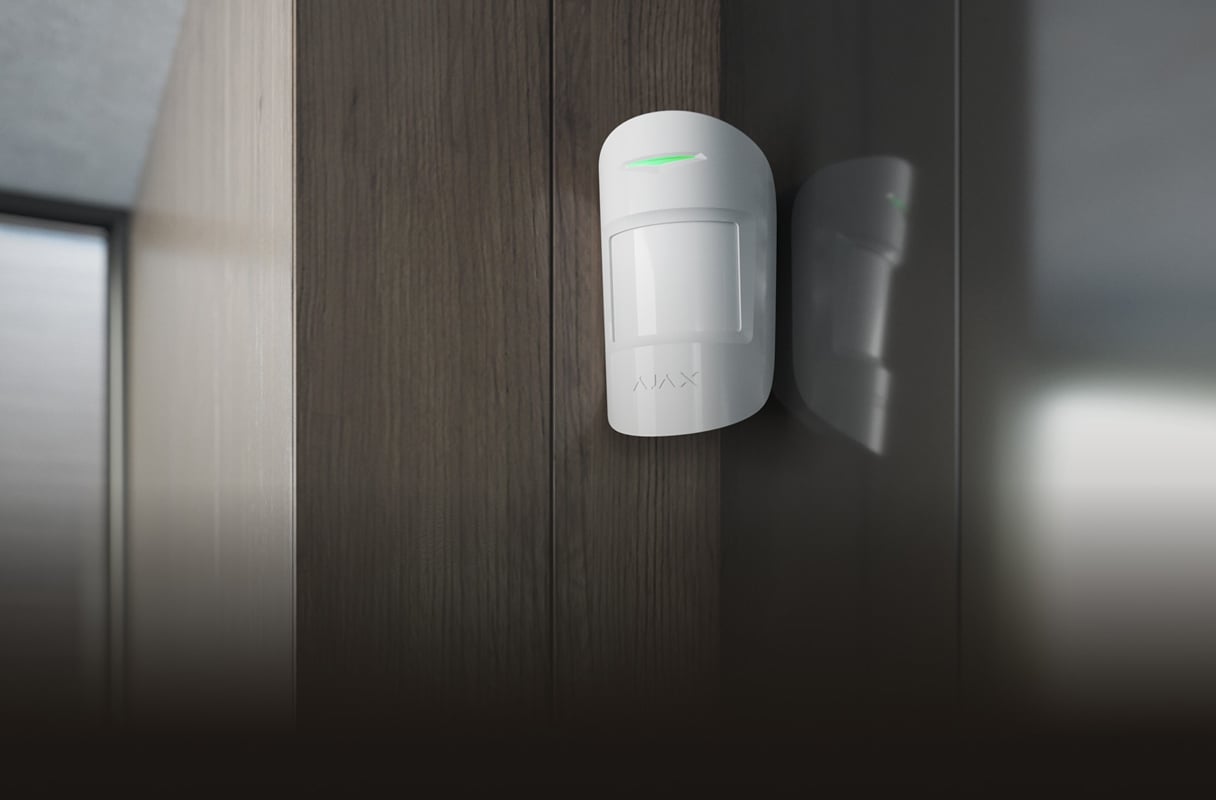

Ajax StarterKit (4G) is designed for protection of homes, flats, offices or commercial premises against intrusion. The kit consists of the Hub 2 (4G) intelligent control panel, MotionProtect motion detector, DoorProtect opening detector and SpaceControl key fob with panic button.
-
![]()
Authentication to prevent forgery -
![]()
Jamming detection and communication channels encryption -
![]()
Tampering alarm
Assists in protecting the entrance from break-ins through windows and doors
Uses Ethernet and two SIM-cards with LTE support to send alarms to the Central Monitoring Station and the system’s users
Is controlled using the mobile app and key fob
Foundation for maximum protection
StarterKit (4G) is the starting point for constructing a comprehensive security system for protection against intrusion. It can be connected to up to 100 various detectors or devices and 25 cameras or DVRs. The kit is scaled to facilities of any size due to additional devices: two-level flat, three-storey mansion, office, shop or cafeteria, storage room.
-
![]()
For home and flat -
![]()
For office -
![]()
For shop and cafeteria
Foundation for maximum protection
StarterKit (4G) is the starting point for constructing a comprehensive security system for protection against intrusion. It can be connected to up to 100 various detectors or devices and 25 cameras or DVRs. The kit is scaled to facilities of any size due to additional devices: two-level flat, three-storey mansion, office, shop or cafeteria, storage room.
-
![]()
For home and flat -
![]()
For office -
![]()
For shop and cafeteria
Instant alarm sending
The communication between connected devices and the hub is provided by the Jeweller wireless communication technology. It ensures placement of devices at a distance of up to 2000 meters. Jeweller eliminates radio signal substitution and interception, encrypts all data, and is capable of detecting jamming. If an incident occurs, the detector transmits an alarm to the hub in 0.15 seconds, and then sends it via one of three communication channels (Ethernet and two SIM-cards with LTE support) to the user’s smartphone and the Central Monitoring Station (CMS).
-
![]()
Connects devices up to 2,000 meters away -
![]()
Transmits alarms from detectors to the hub within 0.15 seconds -
![]()
Encrypts data and detects radio jamming & interference
Instant alarm sending
The communication between connected devices and the hub is provided by the Jeweller wireless communication technology. It ensures placement of devices at a distance of up to 2000 meters. Jeweller eliminates radio signal substitution and interception, encrypts all data, and is capable of detecting jamming. If an incident occurs, the detector transmits an alarm to the hub in 0.15 seconds, and then sends it via one of three communication channels (Ethernet and two SIM-cards with LTE support) to the user’s smartphone and the Central Monitoring Station (CMS).
-
![]()
Connects devices up to 2,000 meters away -
![]()
Transmits alarms from detectors to the hub within 0.15 seconds -
![]()
Encrypts data and detects radio jamming & interference
Easy installation
A professional installation engineer can install StarterKit (4G) in 30 minutes. This requires minimum number of tools and efforts. All devices are ready to operate straight out the box: they come with default settings and pre-installed batteries. An interactive installation wizard in the mobile app will help you connect detectors and test detection zones. If you need expert installation, you can always contact the installers.
Flexible access set up
StarterKit (4G) can be controlled using key fobs and a free app for iOS and Android. Up to 50 persons can arm and disarm the system, invite other users for monitoring, receive notifications and respond to alarms. The system administrator controls the access and may limit rights of each user.
-
![]()
Up to 50 users -
![]()
Flexible access configuration
Flexible access set up
StarterKit (4G) can be controlled using key fobs and a free app for iOS and Android. Up to 50 persons can arm and disarm the system, invite other users for monitoring, receive notifications and respond to alarms. The system administrator controls the access and may limit rights of each user.
-
![]()
Up to 50 users -
![]()
Flexible access configuration
Professional protection
Security companies admit requests for connection of StarterKit (4G) to the monitoring console. In case of an alarm, the rapid response team will arrive at the scene in 3–7 minutes to apprehend the intruder. The security experts will guard your peace around the clock with the service of response on pressing the panic button, which can be ordered optionally.
Tech specs
Complete set
Hub 2 (4G) Jeweller
MotionProtect Jeweller
DoorProtect Jeweller
SpaceControl Jeweller
MotionProtect Jeweller
DoorProtect Jeweller
SpaceControl Jeweller
Maximum number of connected devices
100
Maximum number of users
50
Mobile applications
iOS 13.0 and later
Android 5.0 and later
Android 5.0 and later
Alarm signal delivery time
0.15 s
Jeweller radio technology
Communication range — up to 2,000 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Maximum effective radiated power — ≤ 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Maximum effective radiated power — ≤ 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller
Communication channels
Ethernet
2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8))
LTE (FDD B1/B3/B5/B7/B8/B20)
2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8))
LTE (FDD B1/B3/B5/B7/B8/B20)
SIM card support
Micro SIM
Video surveillance
