Hub 2 Plus Jeweller
Control panel with Jeweller and Wings support (2 × SIM 2G/3G/LTE, Wi-Fi, Ethernet)
Devices compatibility
Capacity
Wireless Ajax devices
up to 200*
Specifically, up to 10 sirens or keypads with a built-in siren and 5 range extender**.
IP cameras or DVRs
up to 100
- Seamless integration with Dahua,
Hikvision, Safire, EZVIZ, IP cameras, and DVRs, - RTSP support.
Users
up to 200
- Any number of admin users within the hub limit.
- PRO accounts for installers.
- PRO accounts for installation and monitoring companies.
- Access management for users.
Automation scenarios
up to 64
- Alarm responses.
- Scheduled actions.
- Security mode changing reactions.
- Temperature changing reactions.
- Humidity changing reactions.
- Reactions to changes in CO₂ concentration.
- Reactions to pressing Button.
Security groups
up to 25
Rooms
up to 50
* — not evaluated by UL
** — UL certification is in progress
** — UL certification is in progress
Wireless communication
Jeweller communication technology
Proprietary wireless communication technology to transmit alarms and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz (UL)
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz (UL)
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 6,500 ft
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device.
Maximum range depends on the connected device.
Polling interval
from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
To prevent radio interference and radio signal interception.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications.
Key features:
- Two-way communication.
- Block encryption featuring a dynamic key.
- Advanced anti-sabotage.
- Package re-uploading in case of transmission errors.
- Photo delivery check.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz (UL)
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz (UL)
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal range
up to 5,500 ft
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device.
Maximum range depends on the connected device.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
To prevent radio interference and radio signal interception.
Recommendations
The device operating voltage is
110–240 V~.
110–240 V~.
Hub is designed for indoor installation only.
Communication channels
Ethernet
1 8P8C socket
Up to 100 Mbps.
Cellular
2 micro-SIM slots
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Wi-Fi
802.11 b/g/n module
up to 600 Mbps.
Automatic switching between communication channels
Instant switching between Ethernet, Wi-Fi and SIM.
Instant switching between 4G (LTE), 3G, and 2G networks of one SIM.
Switching between SIMs takes up to 4 minutes.
Instant switching between 4G (LTE), 3G, and 2G networks of one SIM.
Switching between SIMs takes up to 4 minutes.
Communication channels prioritization
1. Ethernet
2. Wi-Fi
3. Cellular connection
2. Wi-Fi
3. Cellular connection
Communication channels work in parallel to increase the system’s reliability.
Most of the data is transmitted via Ethernet.
Most of the data is transmitted via Ethernet.
Notifications
Supported notification types
- Push
- SMS
- Calls
Event types
- Alarms
- Malfunctions
- Security mode changing
- System events
- Non-security alerts
- Automation devicesʼ events
The notification types are configured individually for each user.
Photo verification
Photo verification types
- Photo by alarm
- Photo by scenario
- Photo on demand
- Photo by schedule
The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo delivery time
up to 9 s
by default.
Photo resolution
up to 640 × 480 pixels
Depends on the detector.
Number of photos in a series
from 1 to 5 pictures
Monitoring
Supported protocols
- SIA (DC-09)
- SurGard (Contact ID)
- ADEMCO 685
- Other proprietary protocols
Event types
- System alarms and events
- Panic button coordinates
- Photo verification
Power supply
Main
110–240 V~, 50/60 Hz
Up to 10 W of mains power consumption.
Backup
Built-in backup battery
Rechargeable Li-ion Polymer Battery XK 953580
3.7 V⎓, 3 Ah
Manufacturer: Lean Power, Dongguan (UL listed)
Rechargeable Li-ion Polymer Battery XK 953580
3.7 V⎓, 3 Ah
Manufacturer: Lean Power, Dongguan (UL listed)
Calculated battery life when using SIM card only is up to 15 hours.
Alternative
6 V⎓
Requires the 6V PSU for Hub 2/Hub 2 Plus/ReX 2 alternative power supply unit*; sold separately.
* — not evaluated by UL
Anti-sabotage
Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
devices’ authentication
Proprietary authentication algorithms make it impossible to spoof the hub or connected devices.
Frequency hopping
The users and the security company receive notifications in case
of jamming or when the hub loses connection with the devices.
of jamming or when the hub loses connection with the devices.
Enclosure

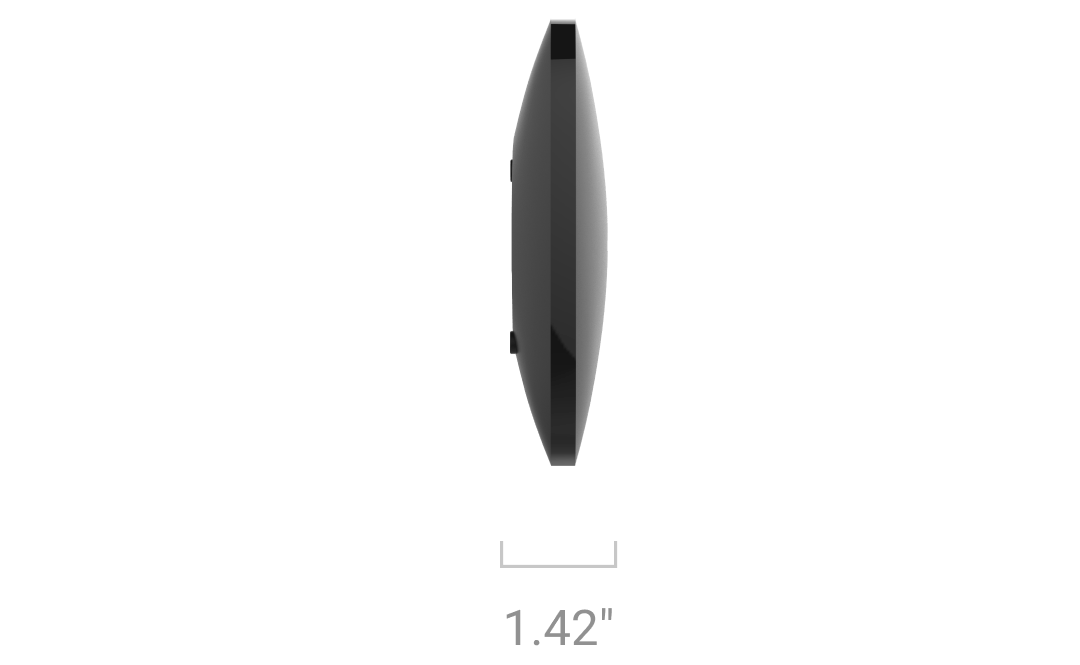

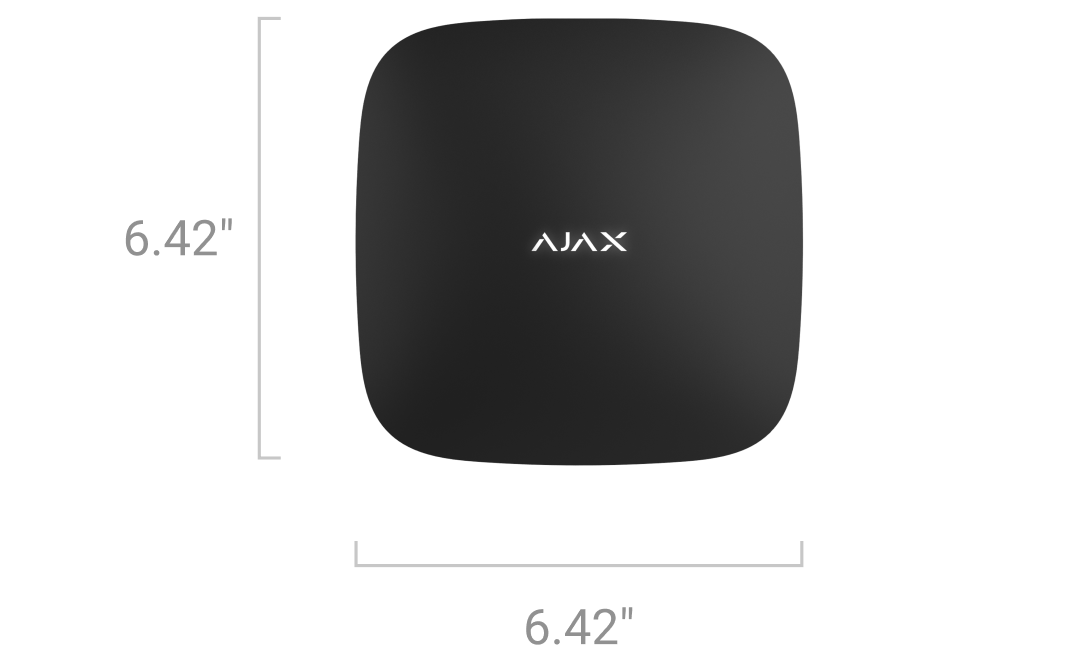

Dimensions
6.42″ × 6.42″ × 1.42″
Weight
12.77 oz
Operating temperature range
from 14°F to 104°F
from 32°F to 120°F (UL)
from 32°F to 120°F (UL)
Operating humidity
up to 75%
up to 93% (ULC)
up to 93% (ULC)
Protection class
IP20
Colours
Black
White
Complete set
Hub 2 Plus Jeweller
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
SIM card (depends on the sales region)
Quick start guide
