Tech specs
Curtain Outdoor Jeweller
Wireless dual technology curtain motion detector for outdoor and indoor use
Devices compatibility
CheckCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 5,550 ft
Between the detector and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology for uploading firmware updates.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Data packages reload in case of transmission errors.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio communication range
up to 5,550 ft
Between the detector and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Detection
Sensitive elements
2 × PIR sensors
1 × K-band microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operation frequency: 24 GHz.
Motion detection distance
up to 26–39 ft
When installed at a height of 3.3–7.9 ft. Adjusted with a slider at the detector enclosure.

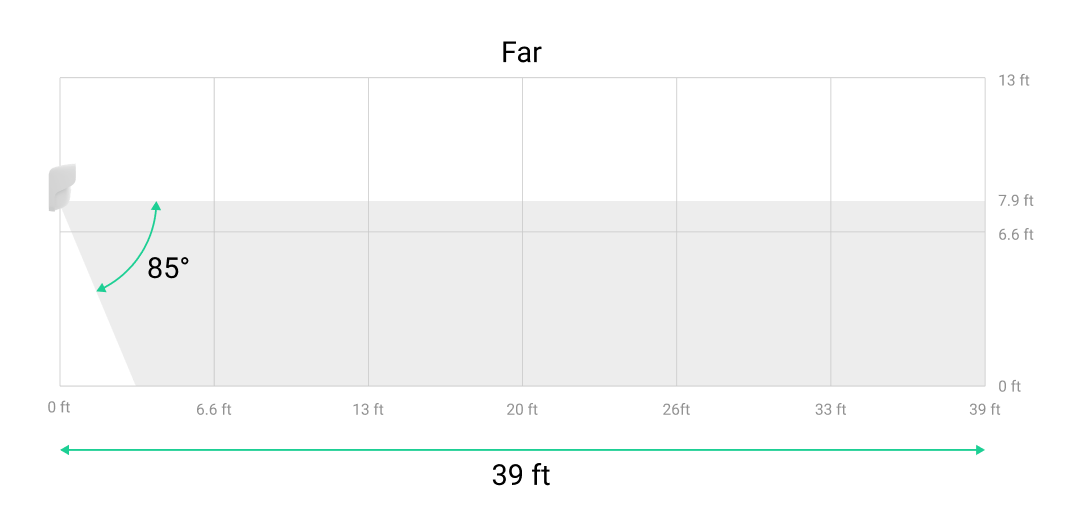

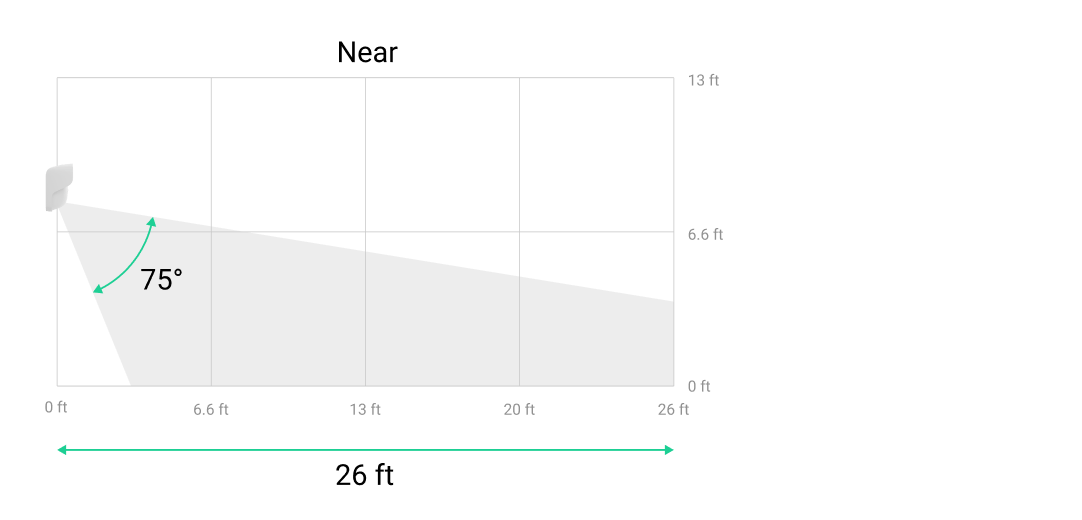

Motion detection angles

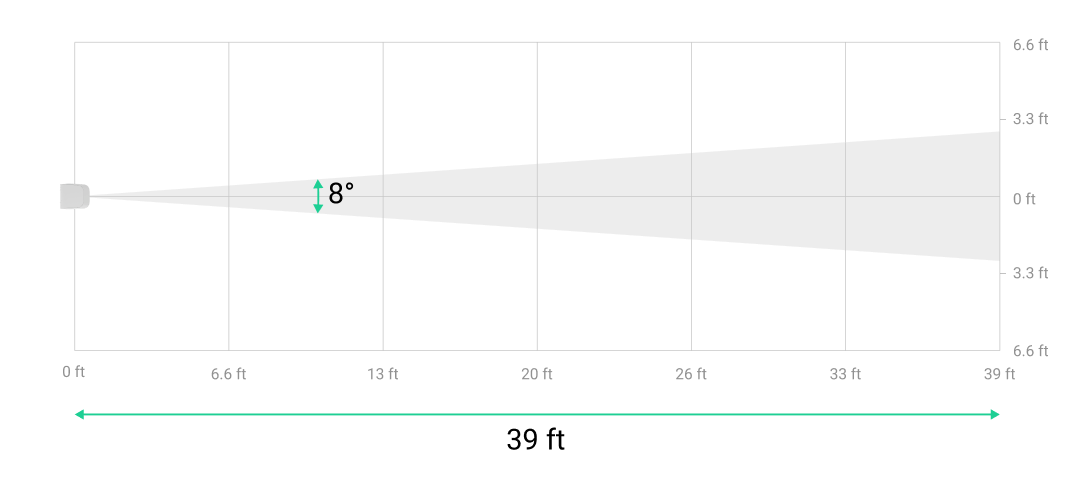

horizontal: 8°
vertical: 85°/15°
Depends on the installation height.
The angle is 85° at 7.9 ft and 15° at 3.3 ft.
Motion detection speed
1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in the Ajax apps.

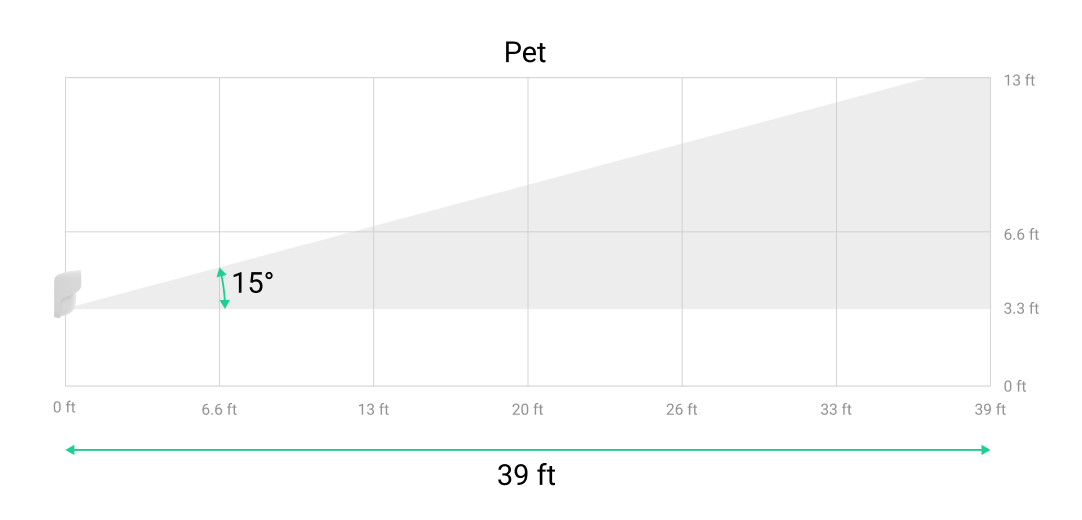

Pet immunity
height: up to 3.3 ft
weight: irrelevant
The detector should be installed at a height of 3.3 feet, and the slider on its enclosure should be set to the Pet position.
False alarm prevention
Dual motion detection technology
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from −13 °F to +140 °F.
Recommendations
It is recommended to install the detector at a height of:
- 7.9 ft;
- 3.3 ft when the Pet immune mode is enabled.
The device is designed for indoor and outdoor use.
Install the hood to protect the detector’s anti-masking system from rain and snow.
Sabotage protection
Tamper alarm
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Accelerometer
alarm when the detector is moved
Must be activated when the detector is installed on third-party brackets.
Holding screw
To secure the detector on SmartBracket or hood.
Communication loss detection
within 36 s
Detection time depends on the Jeweller settings.
Power supply
Battery
2 × CR123A
Pre-installed.
Type
type C
Calculated battery life
up to 3 years
Detector’s operating voltage range
4.1−6.2 V⎓
Detector’s nominal operating voltage
6 V⎓
Quiescent detector’s current consumption at nominal voltage
37 μA
Maximum detector’s current consumption at nominal voltage
600 mA
Full battery capacity
1,600 mAh
Low battery voltage
4.48 V⎓
Low battery recovery voltage
5.14 V⎓
End-of-life battery voltage
4.1 V⎓
Device is switched off.
End-of-life battery capacity
170 mAh
Manufacturer
Huiderui or Panasonic
Enclosure
Dimensions with hood
6.1″ × 3.03″ × 3.35″

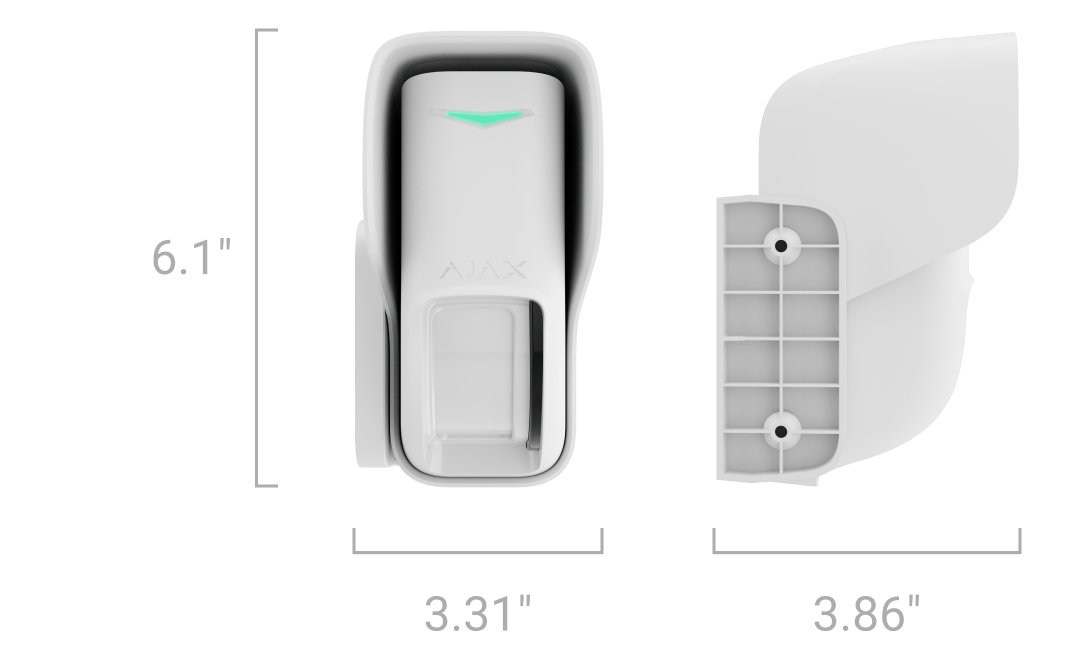

Dimensions with hood and angle mount
6.1″ × 3.31″ × 3.86″

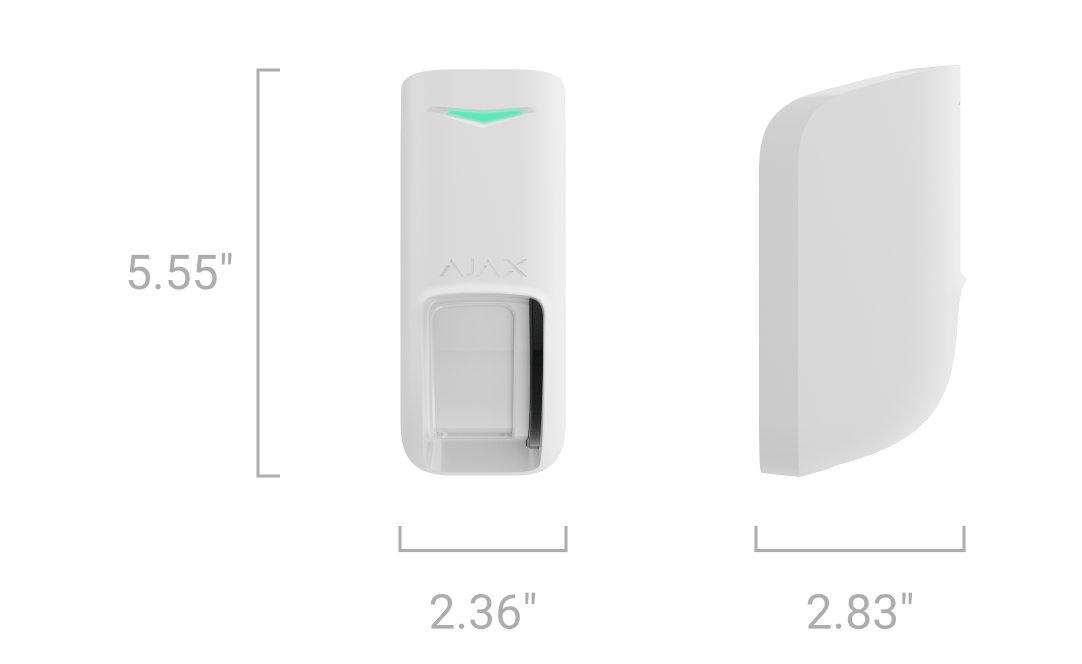

Dimensions without hood
5.55″ × 2.36″ × 2.83″
Dimensions without hood and with angle mount
5.55″ × 2.99″ × 3.31″
Weight with hood
TBC
Weight without hood
7.87 oz
Weight of angle mount
1.2 oz
Operating temperature range
from –13 °F to +140 °F
Operating humidity
up to 95%
Protection class
IP55
Color
White
Complete set
Curtain Outdoor Jeweller
SmartBracket mounting panel
2 × CR123A battery (pre-installed)
Angle mount
Hood
Installation kit
Quick start guide
Certification and compliance with standards
Curtain Outdoor Jeweller
Curtain Outdoor Jeweller
Compliance with the security alarm standards
Certificate issued by TREZOR TEST s.r.o.
EN 50131-1:2006/A1:2009/A2:2017/A3:2020
EN 50131-2-4:2020
EN 50131-5-3:2017
EN 50131-6:2017/A1:2021
PD 6662:2017
Security Grade (SG)
Certificate issued by TREZOR TEST s.r.o.
2
Radio Equipment Directive (RED)
Certificate issued by TIMCO Engineering, Inc.
EN 300 220-1 V3.1.1
EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Low Voltage Directive (LVD)
Certificate issued by TIMCO Engineering, Inc.
EN IEC 62311:2020
EN IEC 62368-1:2020+A11:2020
Electromagnetic Compatibility Directive (EMC)
Certificate issued by TIMCO Engineering, Inc.
EN 301 489-1 V2.2.3
EN 301 489-3 V2.3.2
Environmental class
IV
