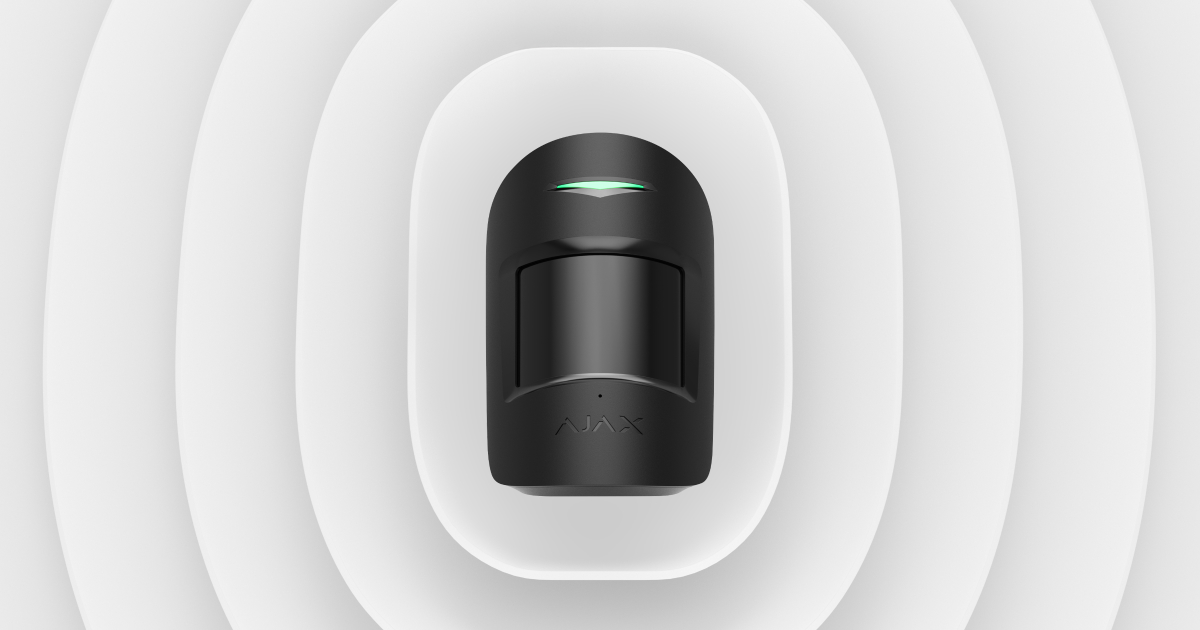

CombiProtect U Jeweller

CombiProtect U Jeweller

Wireless PIR motion and glass break detector with a microphone

Product is not available in your region

Single device. Dual protection.

CombiProtect U Jeweller is a versatile device that combines the functionality of two detectors in one enclosure. Thanks to advanced software algorithms, it effectively minimizes false alarms while providing two essential functions: motion and glass break detection. Users can easily configure sensors, adjust sensitivity, and test performance directly in the app. With its simple installation and intuitive interface, CombiProtect U Jeweller offers a seamless experience for security professionals and end users.

Up to 12 m

of motion detection range

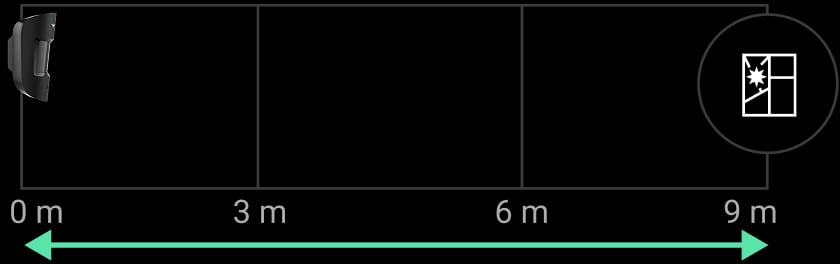

Up to 9 m

of glass break detection range

Glass break detection

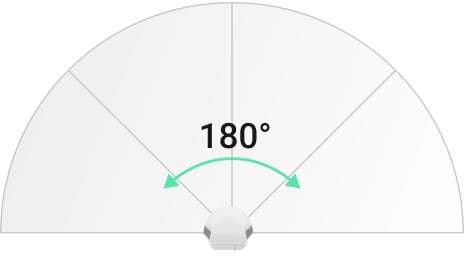

180° glass break detection angle
break-detection

Software algorithm to filter out false alarms

SmartDetect
dual-tone

Digital algorithm to prevent false alarms

Horizontal motion detection angle
horizontal
remote-control
Remote control and configuration
Vertical motion detection angle
Vertical motion detection angle
Up to 5 years

of operation on the pre-installed battery

batteries
Pet immunity1
Pet immunity

Holding screw

to secure the detector on a mounting panel

holding-screw

Up to 1,200 m

of communication range with an Ajax hub or range extender2

Jeweller radio communication

Jeweller radio communication

Power adjustment

Temperature compensation
temperature

for effective detection in heat and cold

Informative push notifications

Ajax logo
10:00

Critical

Ajax

Warehouse: Glass break detected, CombiProtect U Jeweller in Storage area

Ajax logo
10:00

Critical

Ajax

Warehouse: Motion detected, CombiProtect U Jeweller in Storage area

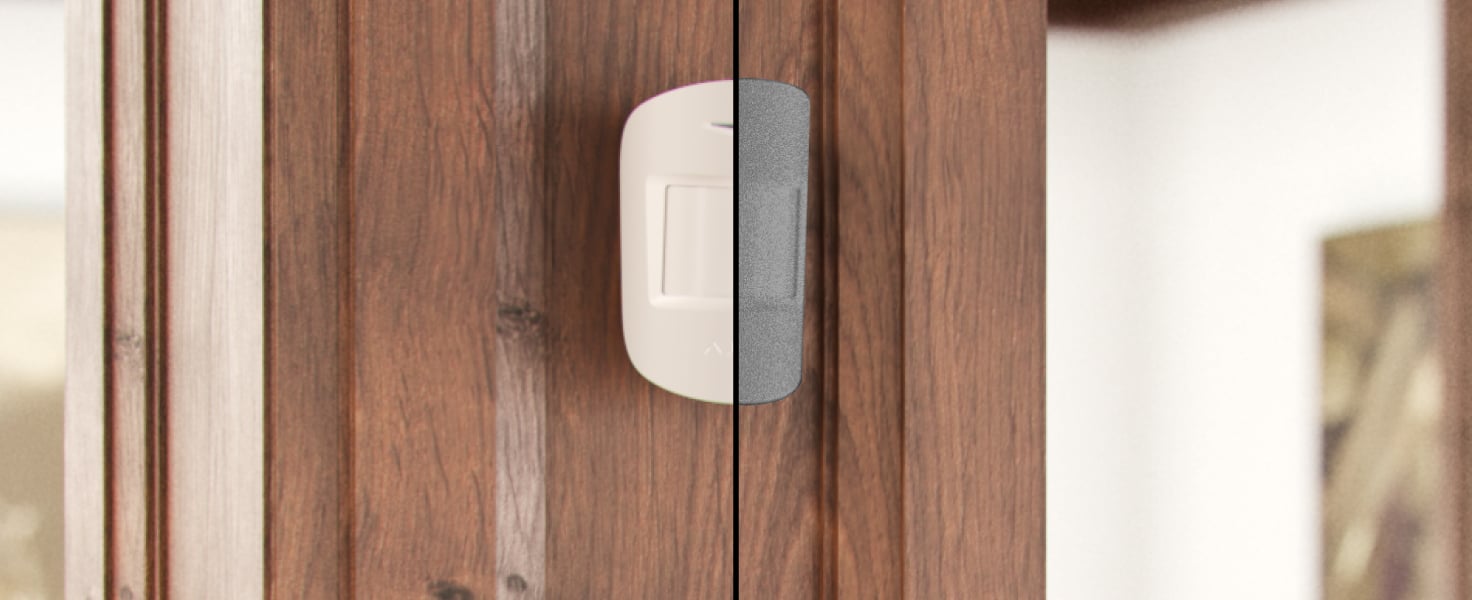

Two colors
two-colors

Hassle-free installation

1

QR code

2

SmartBracket

3

App

Compliance

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

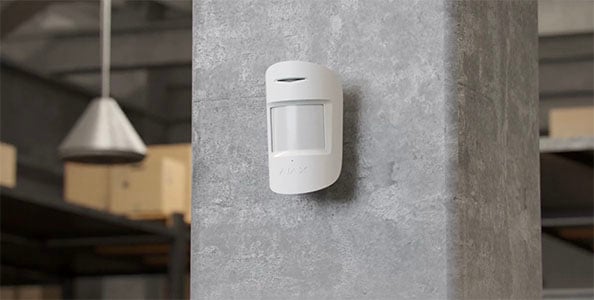

Wherever there is a risk of intrusion

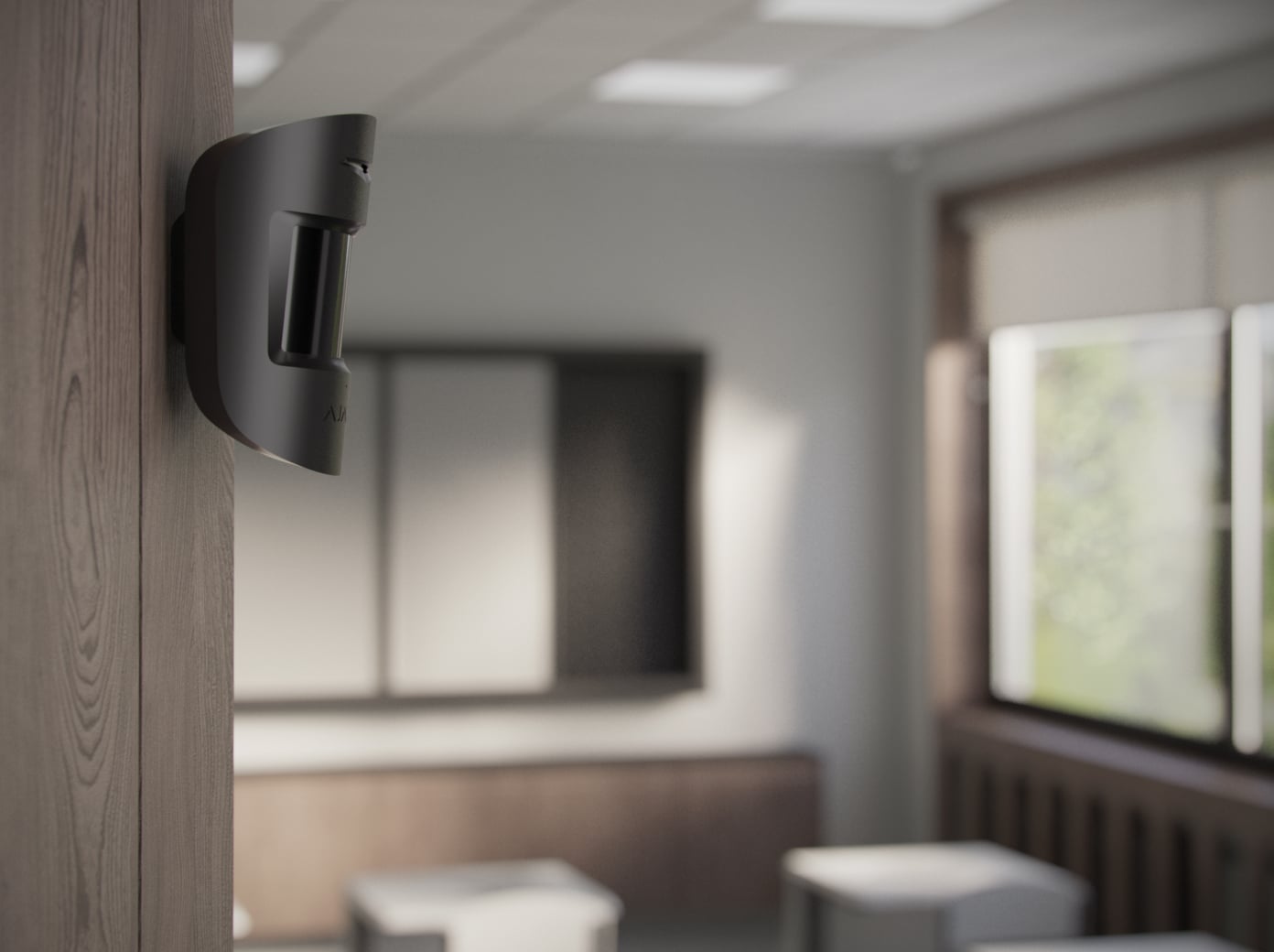

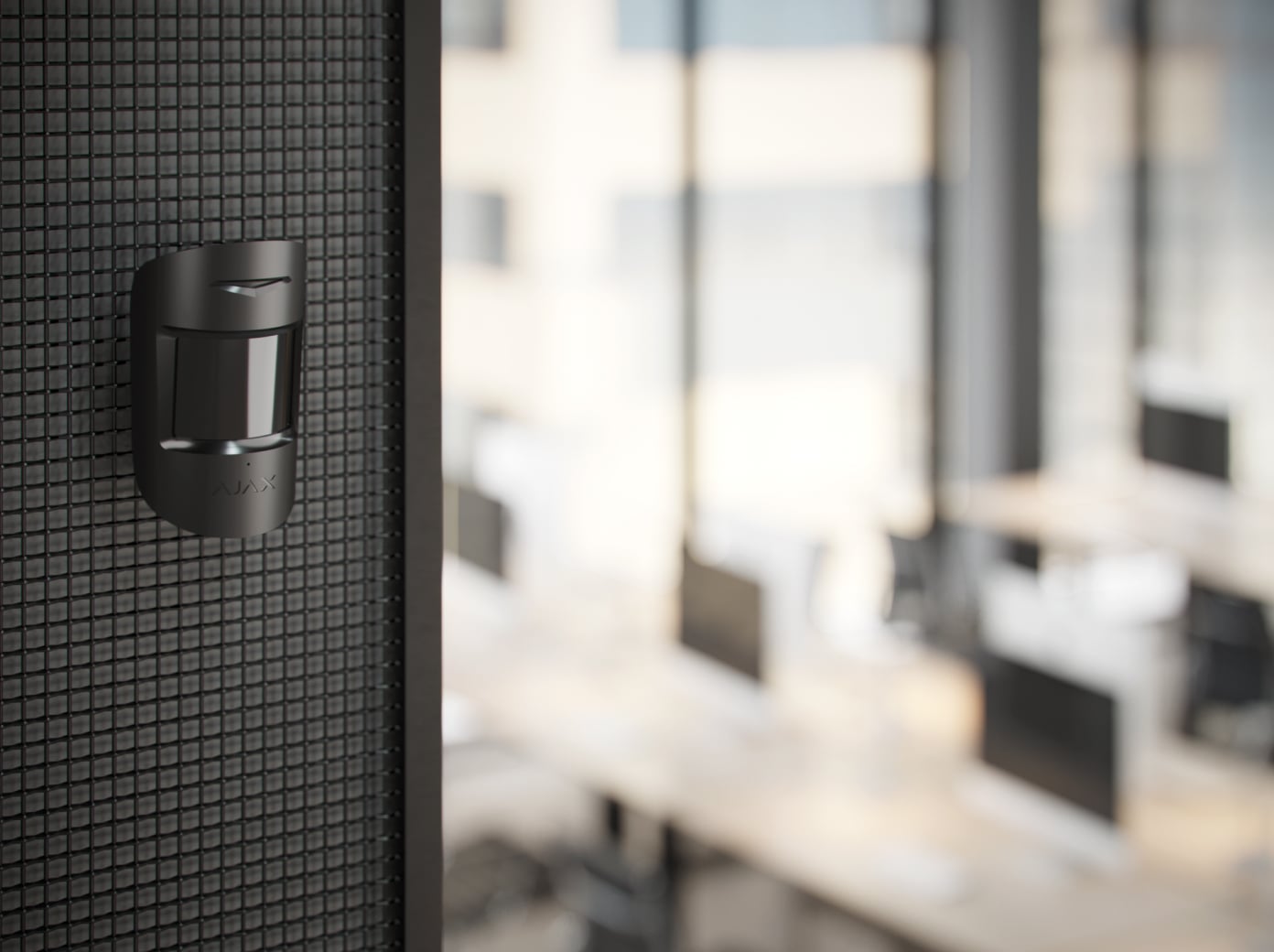

Office

Office

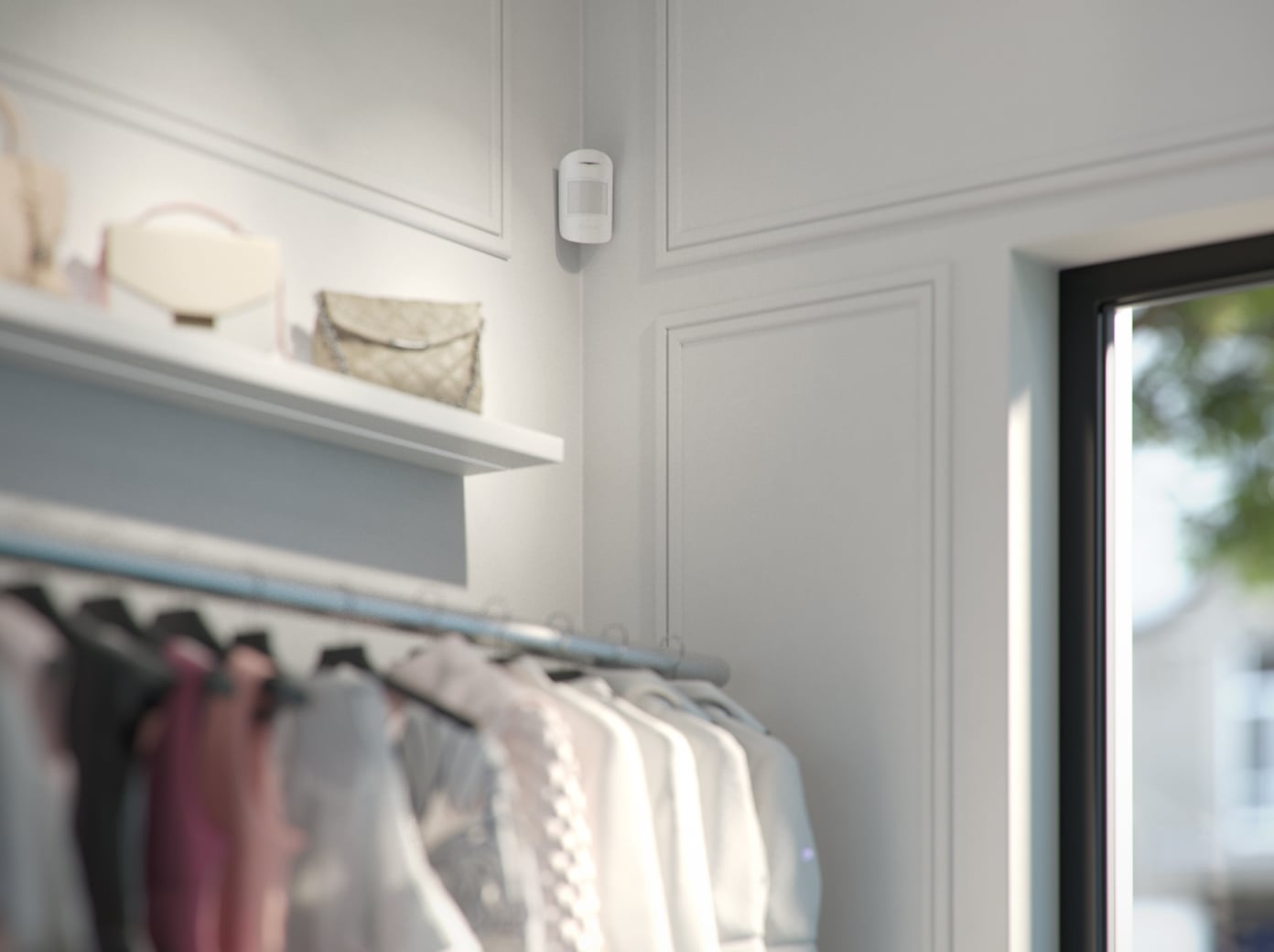

Store

Store

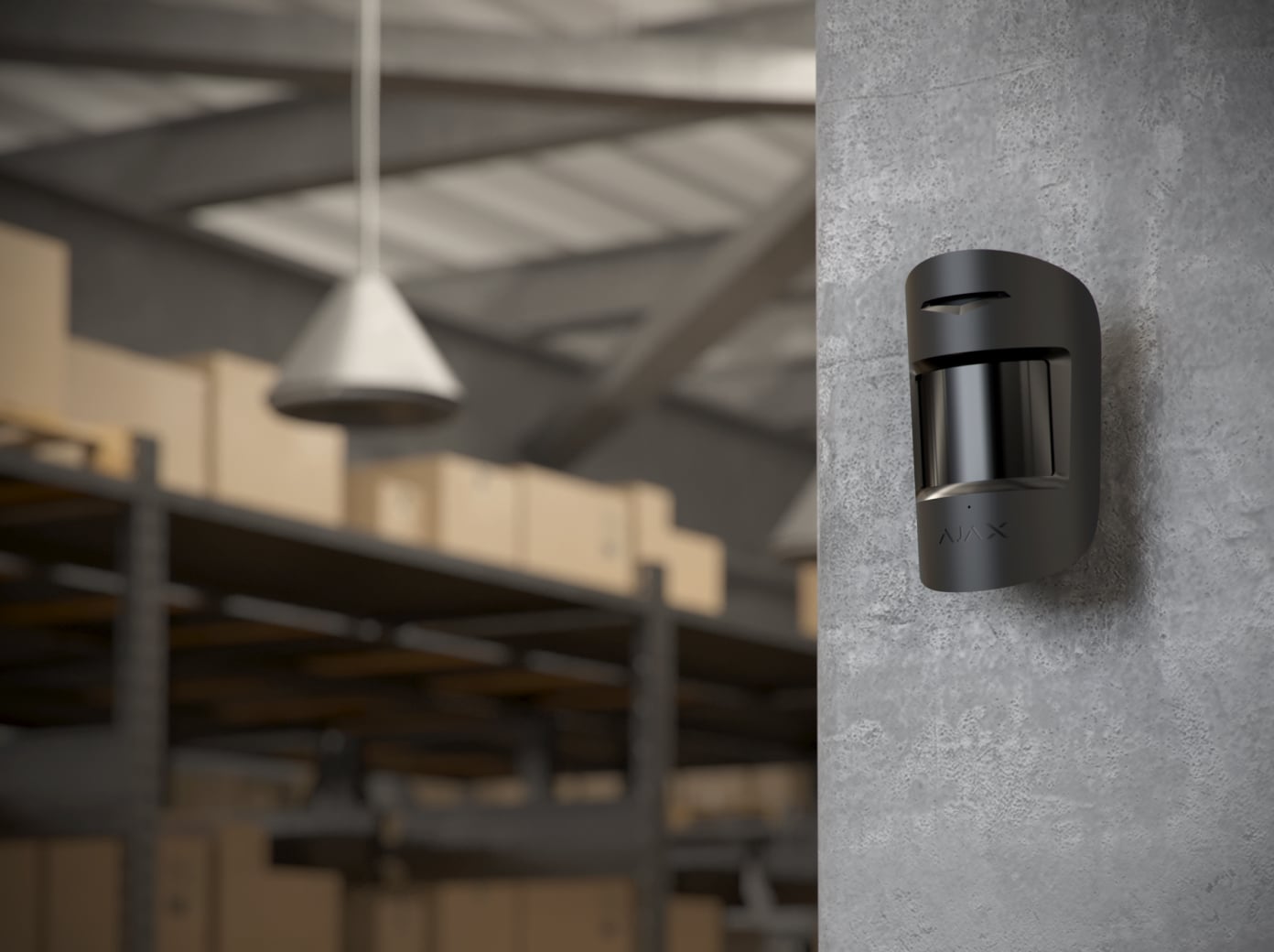

Warehouse

Warehouse

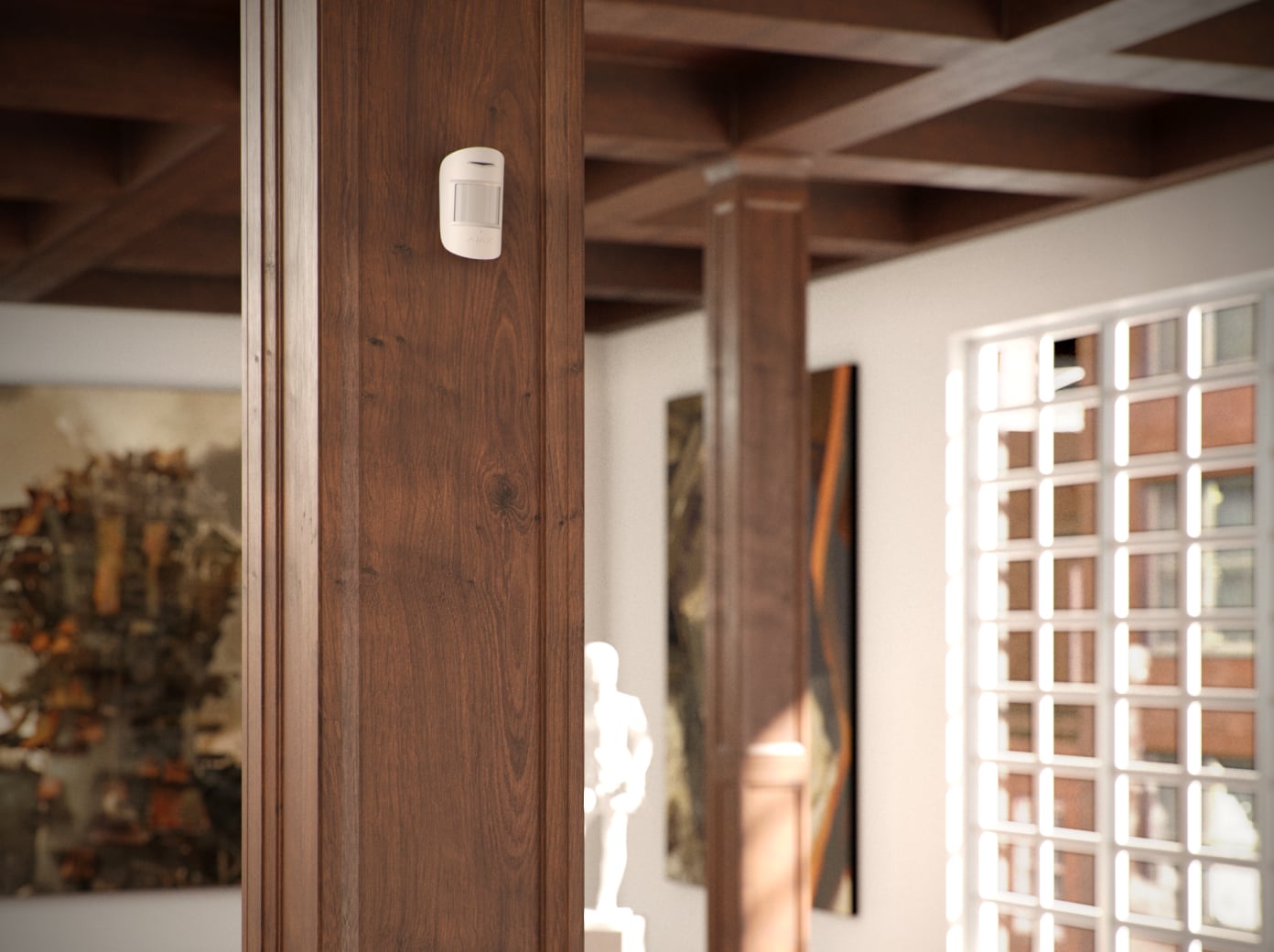

Museum

Museum

School

School

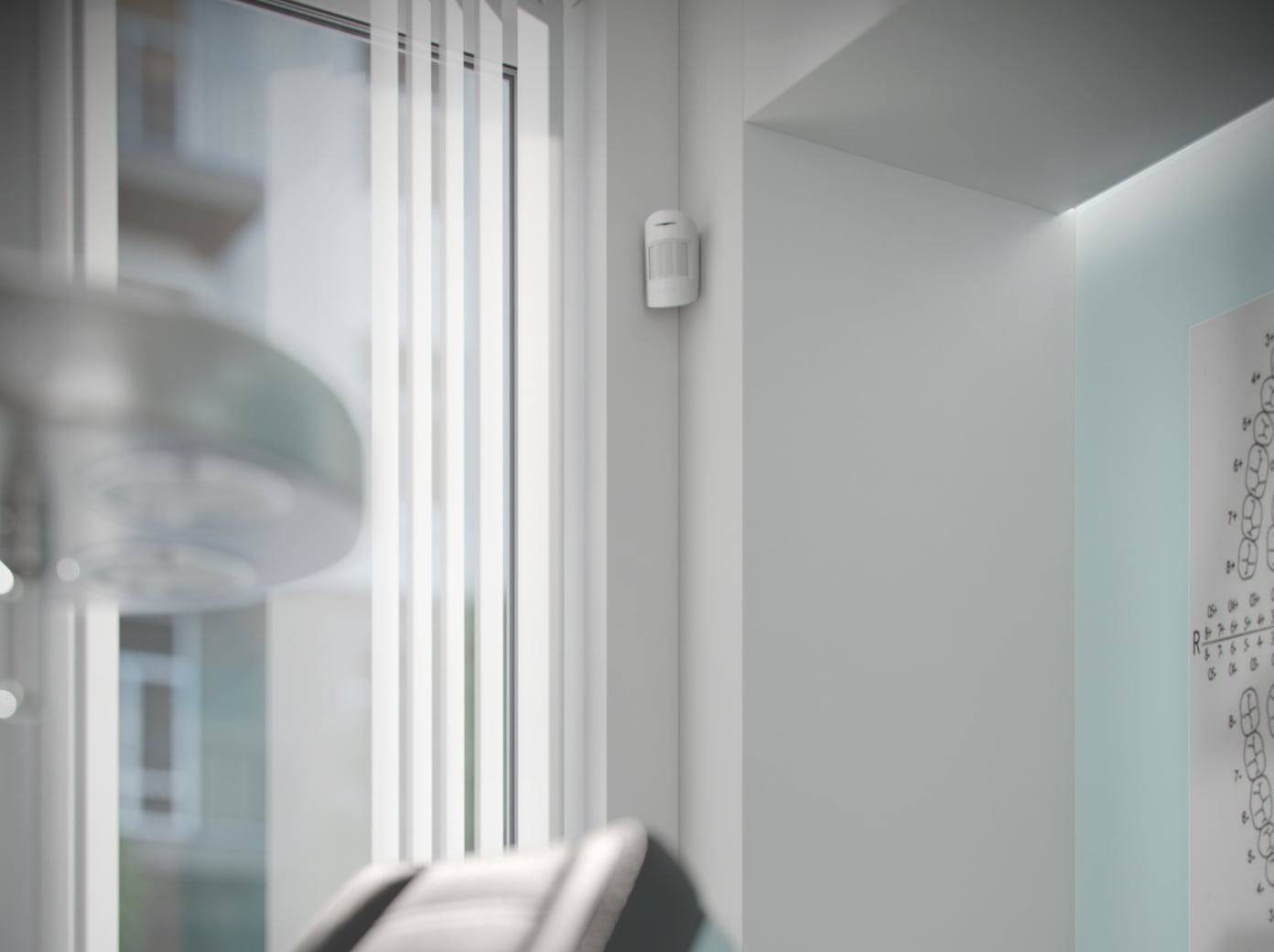

Medical center

Medical center

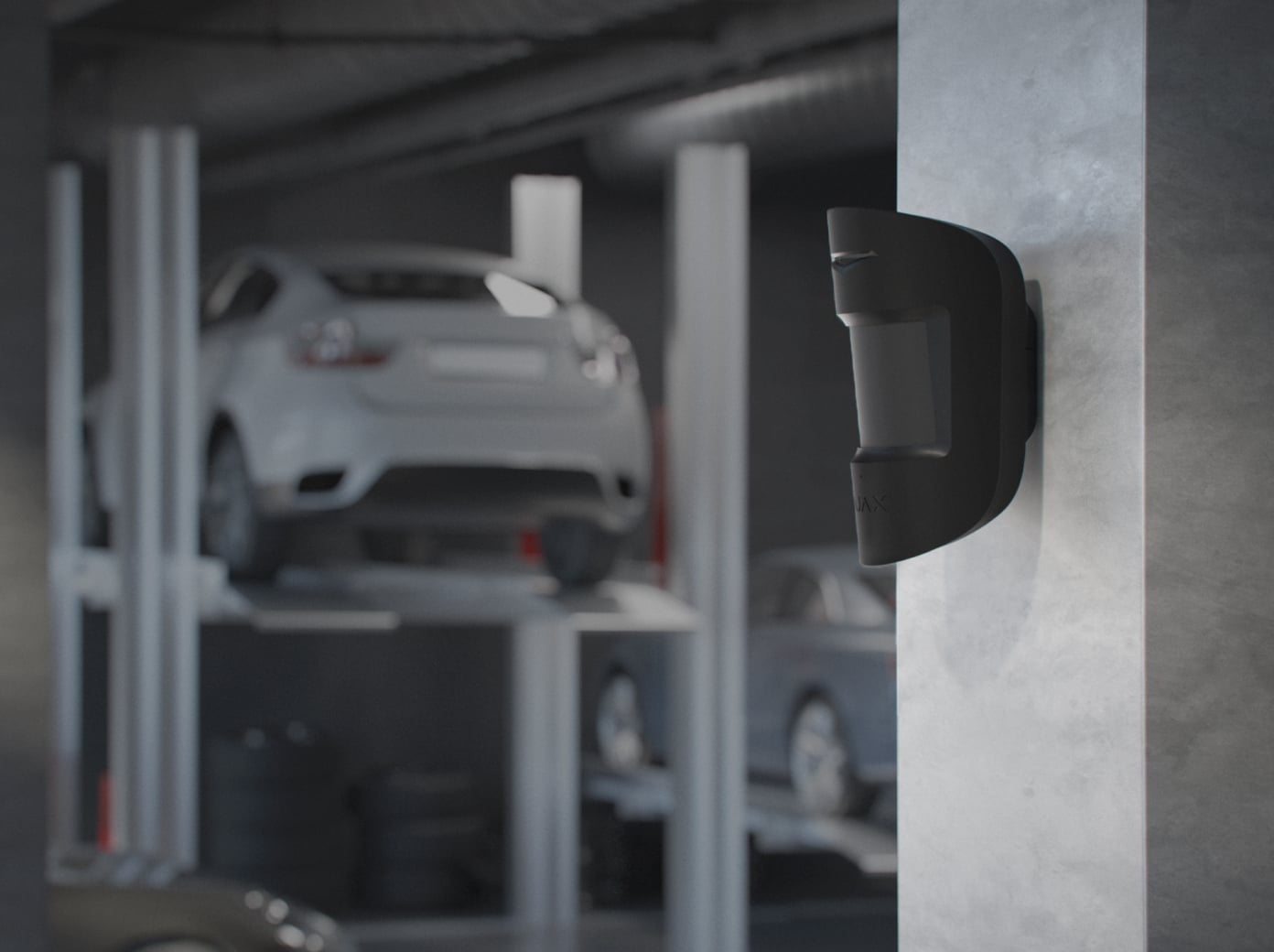

Car service

Car service

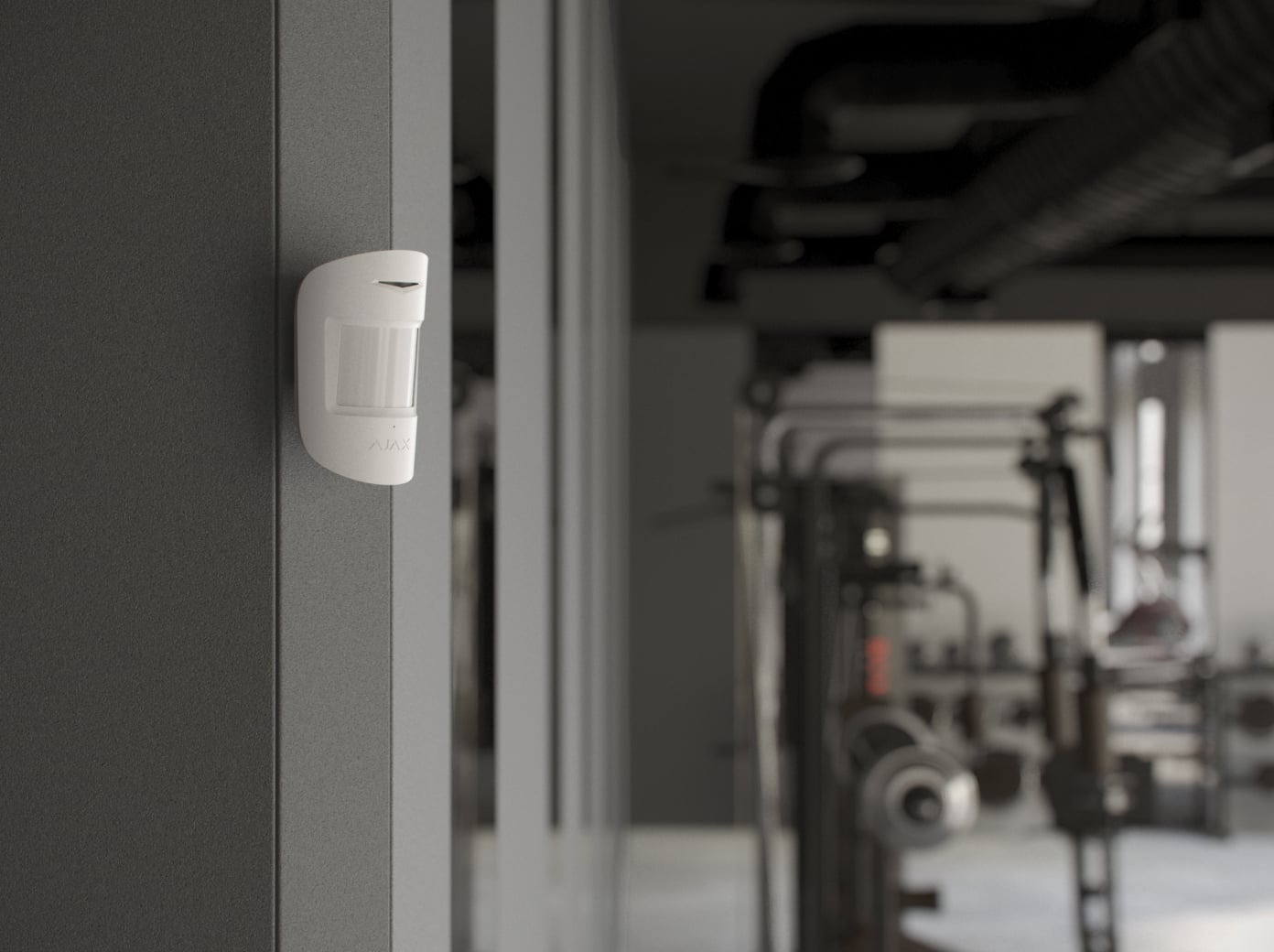

Gym

Gym

Restaurant

Restaurant

Private home

Private home

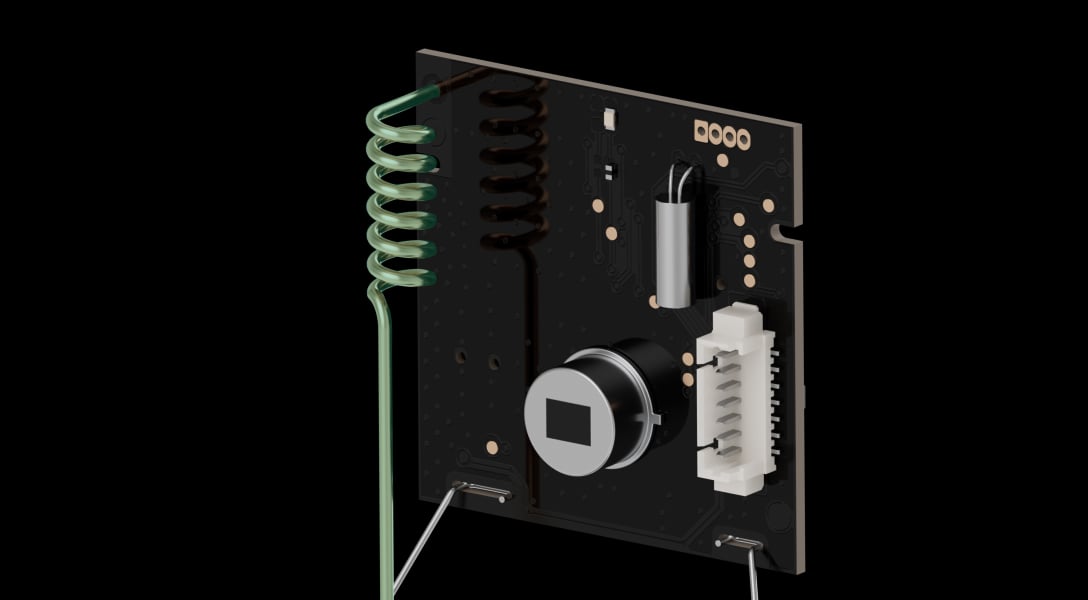

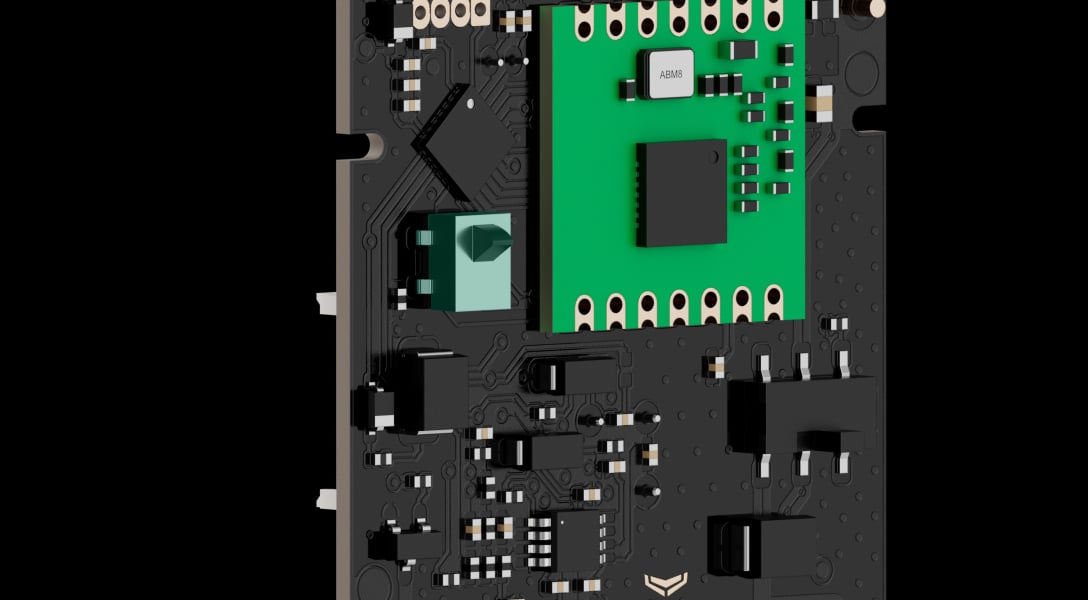

Discover future-proof hardware

Electret microphone

Electret microphone

PIR sensor

PIR sensor

Fresnel lens

Fresnel lens

Battery

Battery

Tamper button

Tamper button

Jeweller antenna

Jeweller antenna

Smartbracket

SmartBracket mounting panel

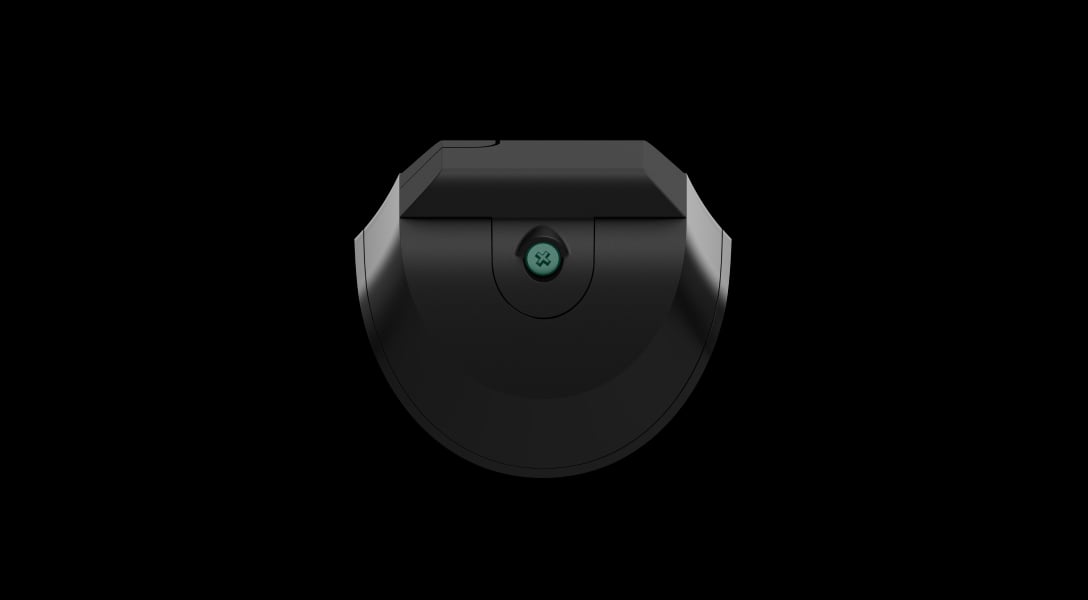

Holding screw

Holding screw to secure the detector on SmartBracket

No intruder goes unnoticed

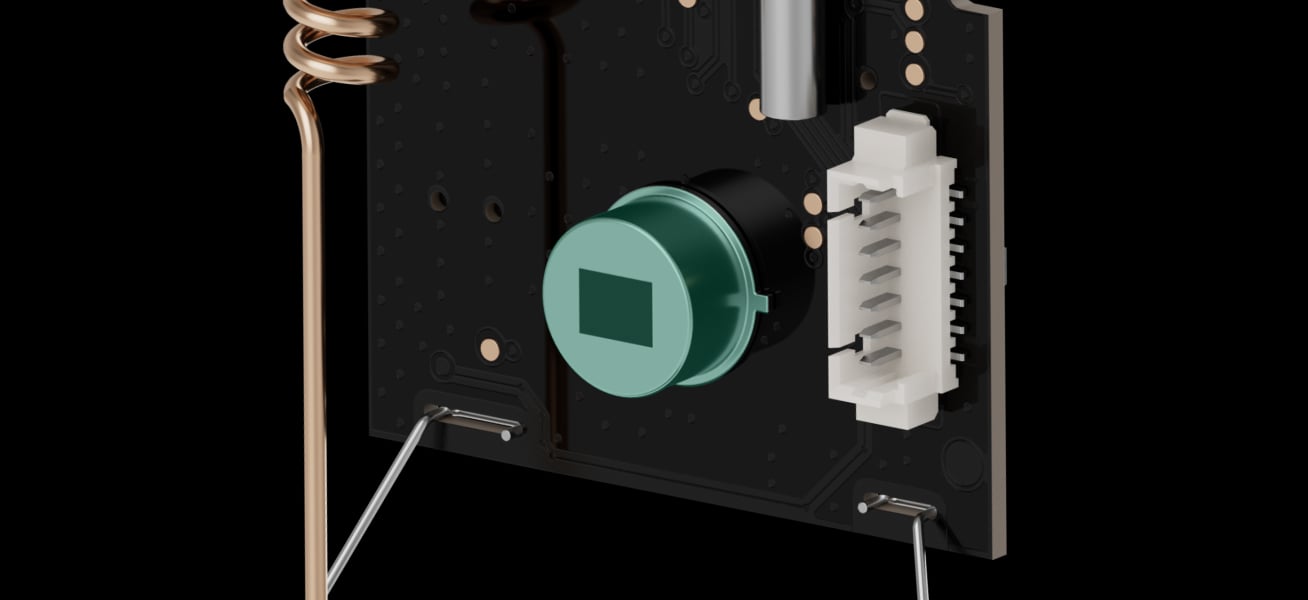

PIR sensor

The detector is equipped with a PIR sensor from Excelitas Technologies, a leading American manufacturer that has specialized in the design and production of optronic components since 1931. Ajax Systems guarantees the superior quality of these sensors by testing 100% of the devices during the detector manufacturing stage. The commitment to quality combined with Ajax technologies delivers the highest accuracy in intrusion detection.

PIR sensor

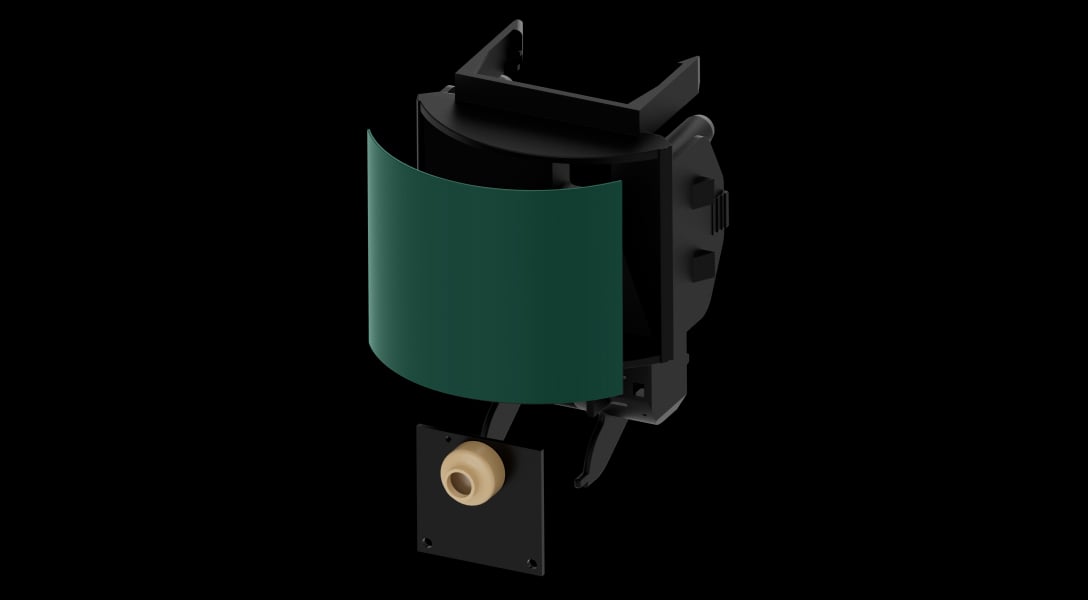

Fresnel lens

The Fresnel lens sections are specially designed to effectively distinguish between the infrared (IR) signatures of humans, pets, and objects that can cause false alarms (e.g., sunlight, HVAC). Larger lens sections are strategically placed to capture radiation at an adult's head and torso level, while smaller sections are responsible for generating a more detailed thermal image. This way, the lens provides the detector with highly accurate information about heat-emitting objects within the detection zone and their movement patterns. This ensures the reliable identification of real threats by interpreting relevant heat signatures.

Special lens

Filtering out false alarms

SmartDetect

The SmartDetect software algorithm is trained on thousands of thermal patterns obtained from humans, pets, and various environmental factors. When an Ajax system is armed, the motion detector continuously analyzes real-time data from its PIR sensor. The algorithm evaluates key parameters such as the intensity of infrared radiation, the size of thermal spots, and the speed and duration of movement within the detection zone. By quickly identifying and filtering out false alarms, SmartDetect ensures highly accurate detection of human movement.

Size
Detection size

False alarm

Real alarm

Speed
Detection speed

False alarm

Real alarm

Intensity
IR radiation intensity

False alarm

Real alarm

Temperature compensation

Temperature compensation is a software feature that ensures clear thermal contrast even when the ambient temperature approaches that of the human body. The detector continuously monitors the ambient temperature and adjusts the PIR sensor readings in real time using a pre-programmed coefficient table stored in its memory. This automatic calibration allows the detector to maintain high sensitivity and reliable performance over the entire operating temperature range, ensuring accurate motion detection in any environment.

Temperature compensation

Sensitivity

The detector adapts to the specific conditions of its installation environment, accounting for potential IR interferences and the presence of pets. By adjusting the sensitivity settings, PRO can modify the set of detection markers the system uses to filter out false alarms. Setting the sensitivity to a lower level reduces the likelihood of the detector responding to active pets1, providing pet-friendly security. Increasing the sensitivity ensures that even the slightest movement within the detection area activates an immediate alarm, delivering maximum security when needed.

Sensitivity level

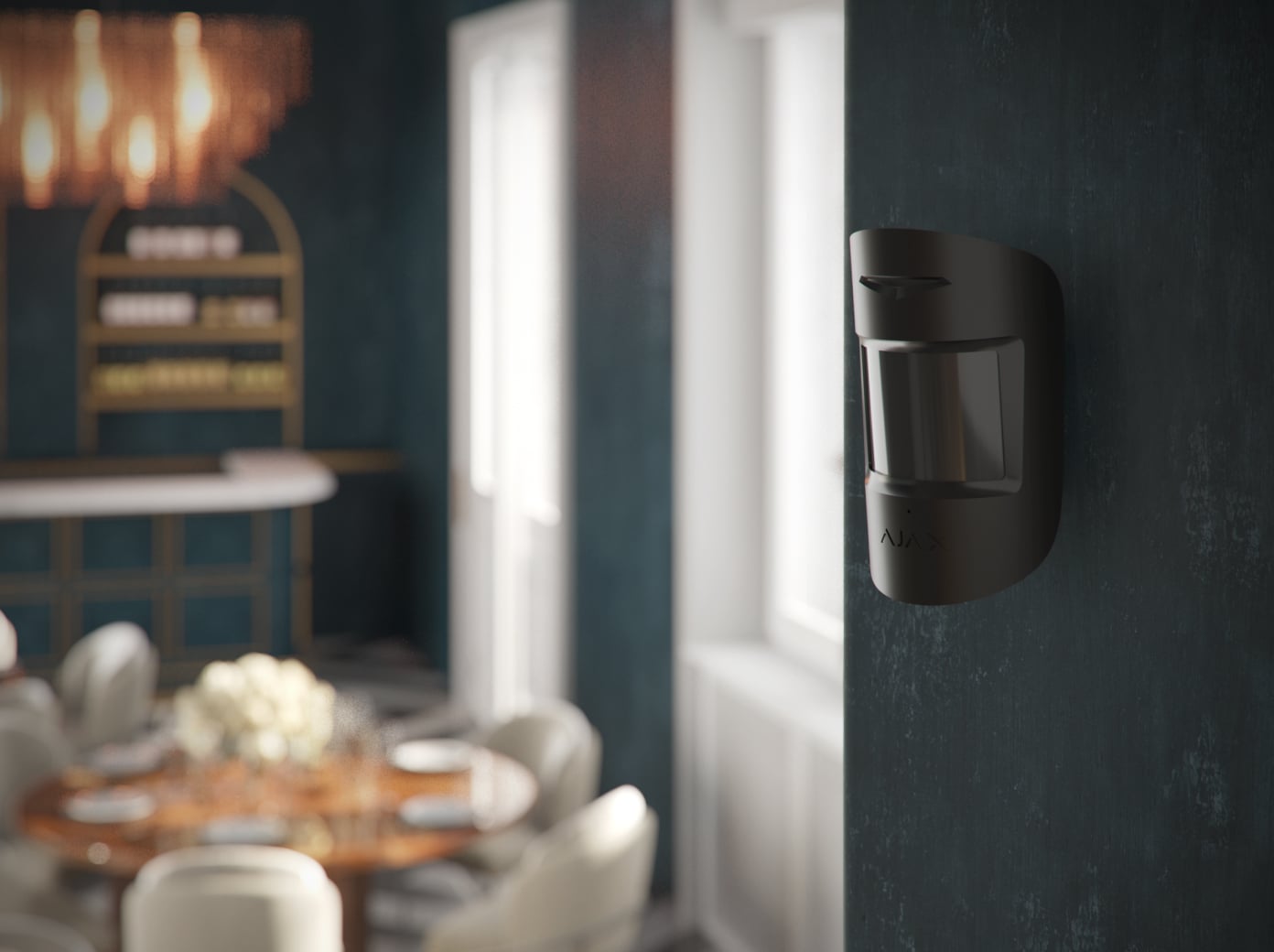

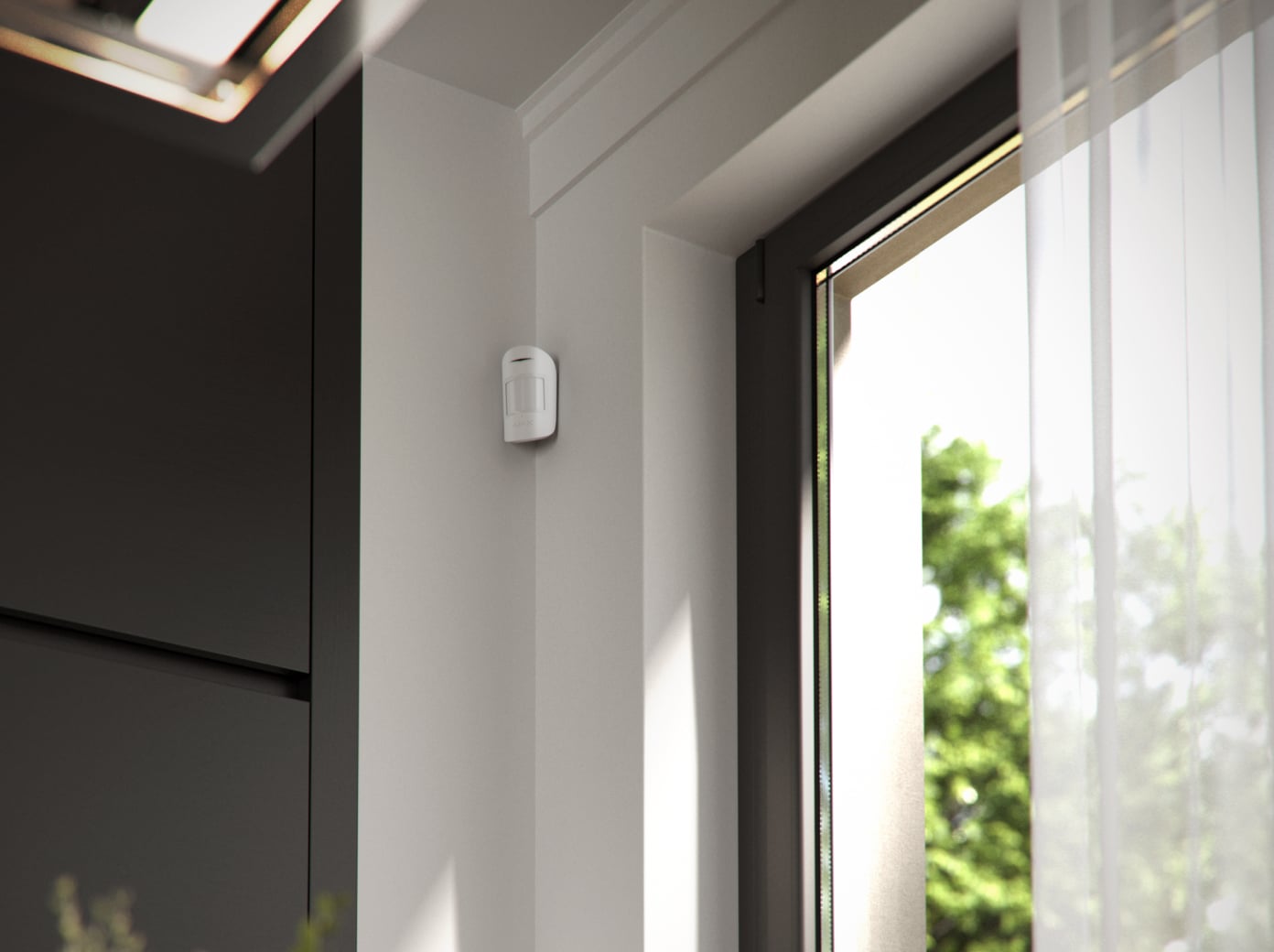

Precise installation

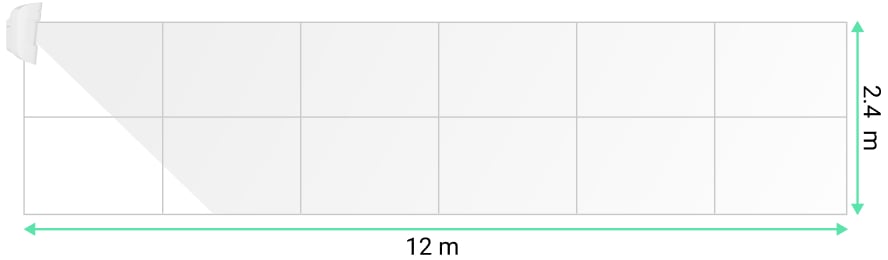

When installed correctly at a height of 2.4 m with the lens positioned perpendicularly to the expected intrusion path, the detector provides a highly accurate thermal diagram and reliable pet immunity. This setup allows the device to instantly identify real threats while reducing false alarms caused by pets weighing up to 20 kg and measuring under 50 cm in height. Proper installation ensures optimal performance, balancing precise detection with no false alarms.

Professional installation

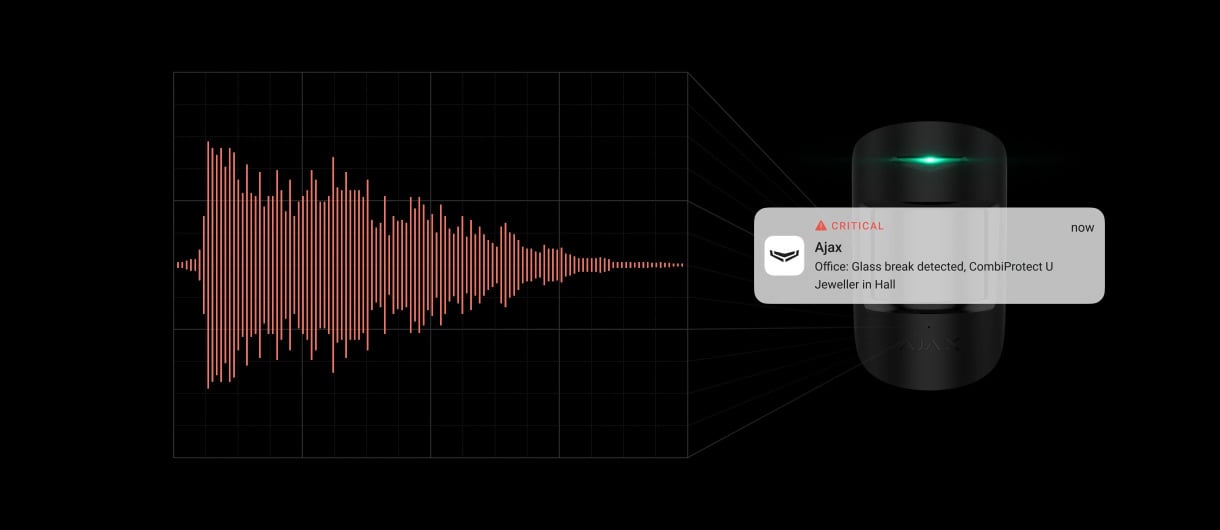

Two-stage glass break detection

A highly sensitive electret microphone combined with the DualTone digital algorithm ensures accurate glass break detection. For the alarm to be raised, the system must detect two consecutive sounds within 1.5 seconds: a dull, low-frequency impact followed by the sharp, high-frequency sound of glass shattering. This two-stage detection process greatly minimizes the risk of false alarms caused by similar sounds. The sensitivity can be easily adjusted via an Ajax app, which offers three levels to perfectly tailor the detector to different environments and security requirements.

sound-analize

Stable performance at any temperature

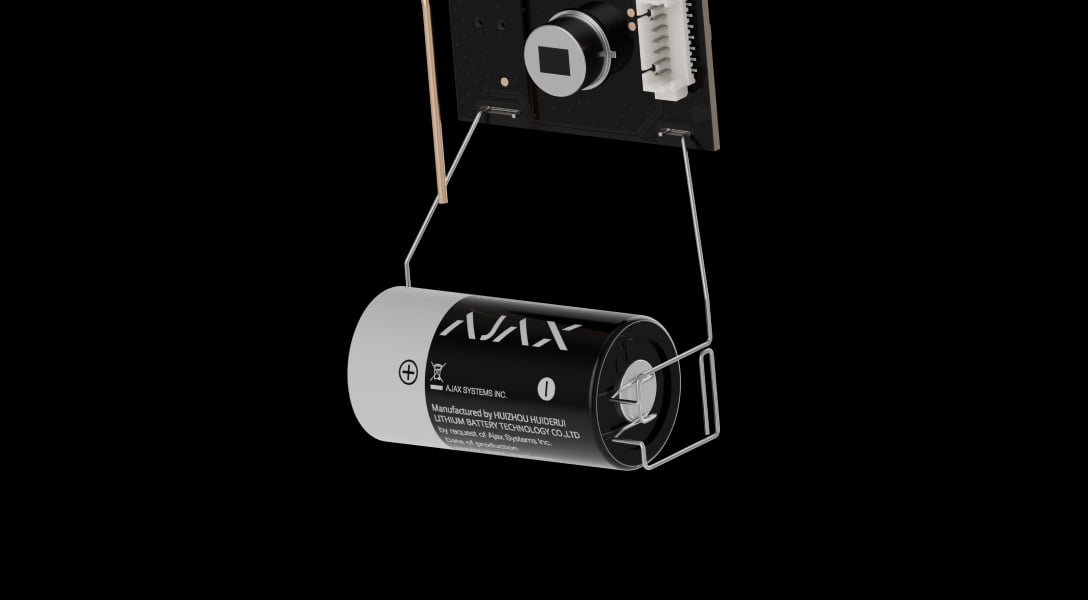

Ajax devices are powered by batteries from trusted manufacturers only. Each battery is tested during production and undergoes additional quality control at Ajax Systems to ensure consistent performance. Even in extreme conditions, the batteries guarantee stable operation, maintaining capacity and reliability in a temperature range from –10 °C to +40 °C.

Minimal impact of threshold temperatures on battery life

High quality proven by regular tests

Up to 5 years of battery life

Batteries
Unique wireless technology

Jeweller

Unique wireless technology

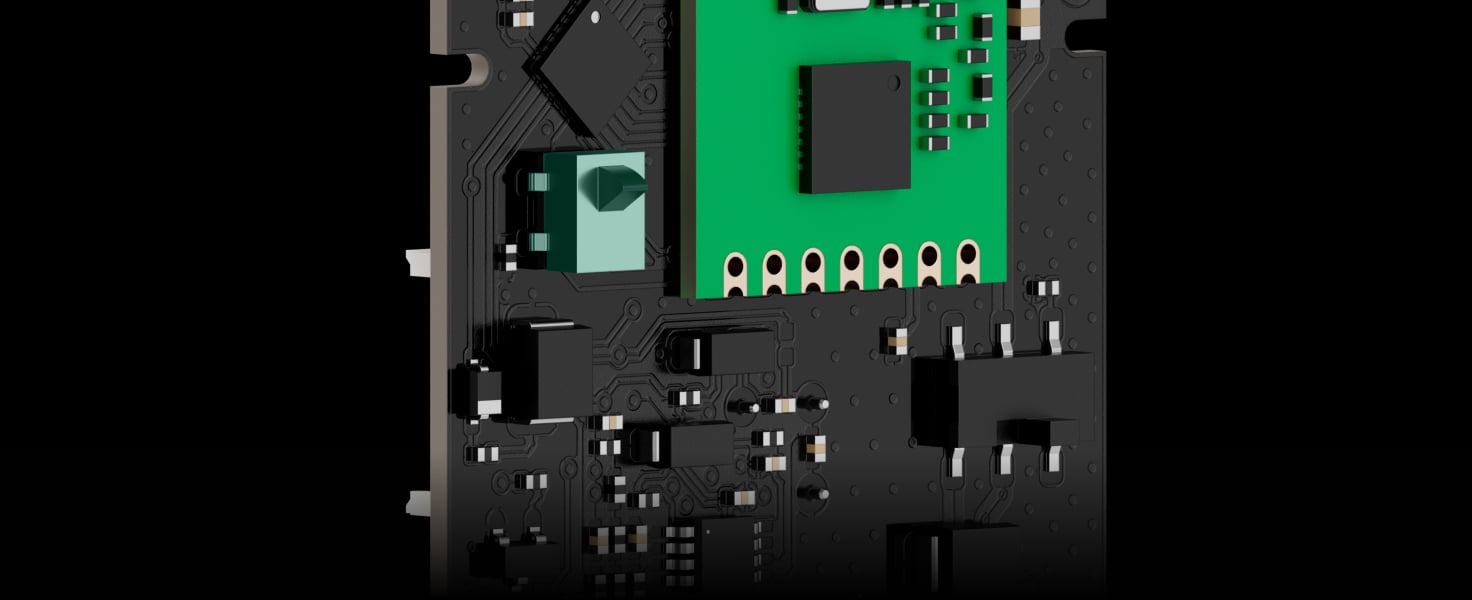

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides block encryption and device authentication during each communication session with an Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Up to 1,200 m of communication range in an open space

Data encryption

Notification of jamming and connection loss

Automatic power adjustment

Communication through steel and concrete

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.

Up to 5 range extenders within one system

Ethernet-equipped model available

System supervision

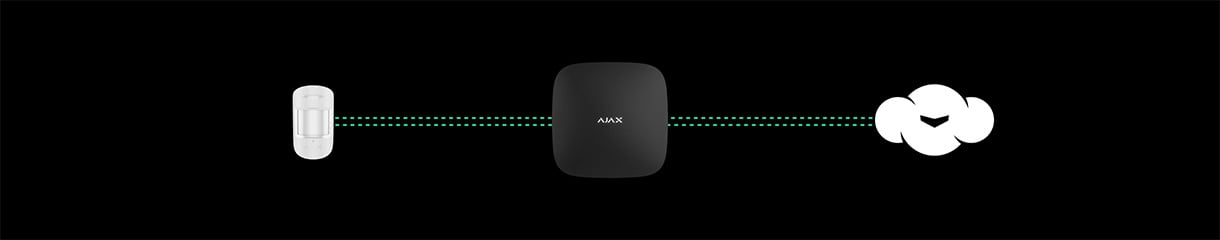

All Ajax devices continuously perform automatic self-diagnosis and transmit information about their state to the hub in real time. The system constantly monitors critical parameters, such as the states of the tamper button, sensors, communication, and power supply, to ensure flawless operation. Ajax Cloud manages the connection between the hub and Ajax apps, guaranteeing instant notifications for users, CMSs, and security companies. If a malfunction or communication loss is detected, an installer will be immediately informed to provide rapid support and maintain uninterrupted security.

Automatic device self-diagnosis with a state report

Regular polling to display the current device state in Ajax apps

Instant maintenance notifications

System supervision

Sabotage protection

Tamper alarm

Tamper alarm

The detector's enclosure has a tamper button that notifies the monitoring company and users once the device is detached from the mounting panel.

Data encryption

Data encryption

All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to reprogram the device and replace or steal the data.

Informative notifications

Informative notifications

An Ajax system instantly notifies about alarms and events. Monitoring companies and users know exactly which device triggered, when, and where it happened.

Regular polling

Regular polling

The device regularly exchanges data with the hub. The system controls each device's state and reports if there is a malfunction or connection loss.

Device authentication against spoofing

Device authentication against spoofing

The hub checks the device's unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores the device commands.

Communication loss detection

Communication loss detection

The device regularly exchanges data with the hub. When the polling interval is set to the minimum (3 data packages once in 12 seconds), it takes only 36 seconds to detect communication loss and notify the monitoring company and users of the incident.

Quick installation and easy setup

CombiProtect U Jeweller comes ready to work right out of the box. Thanks to the SmartBracket mounting panel, installation is quick and requires a minimum of tools, as there is no need to disassemble the enclosure. Adding the device to an Ajax system is also easy: simply scan the QR code in the app. All settings can be adjusted remotely, which makes further configuration fast and effortless. Therefore, no on-site visits are needed.

Adding to the hub via QR code

Connection

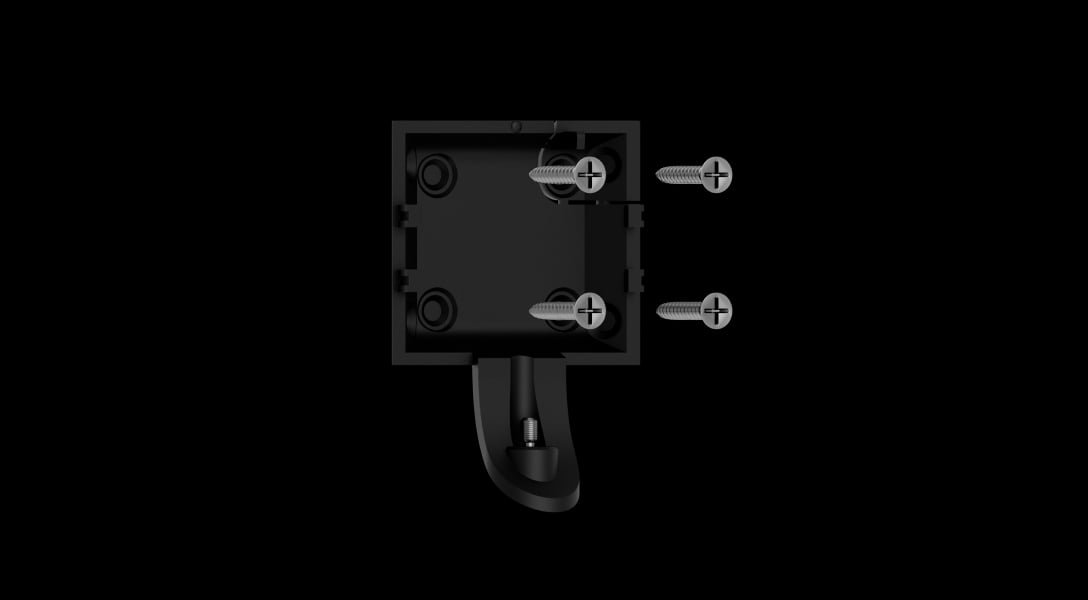

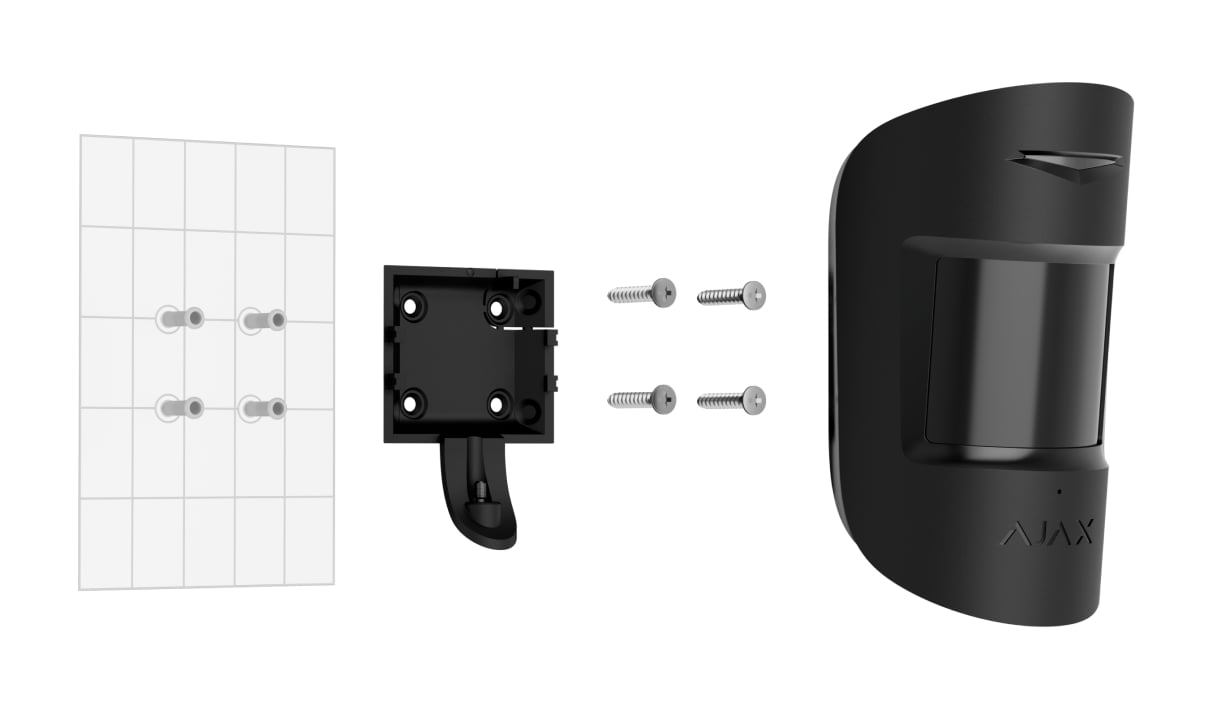

Effortless installation with the SmartBracket mounting panel

Installation

Configuring and testing in Ajax mobile and desktop apps

Setup

Alarm and event monitoring via Ajax PRO Desktop and Ajax Desktop apps for macOS and Windows

Monitoring
1

When the detector is properly installed and configured.

2

In an open space.
