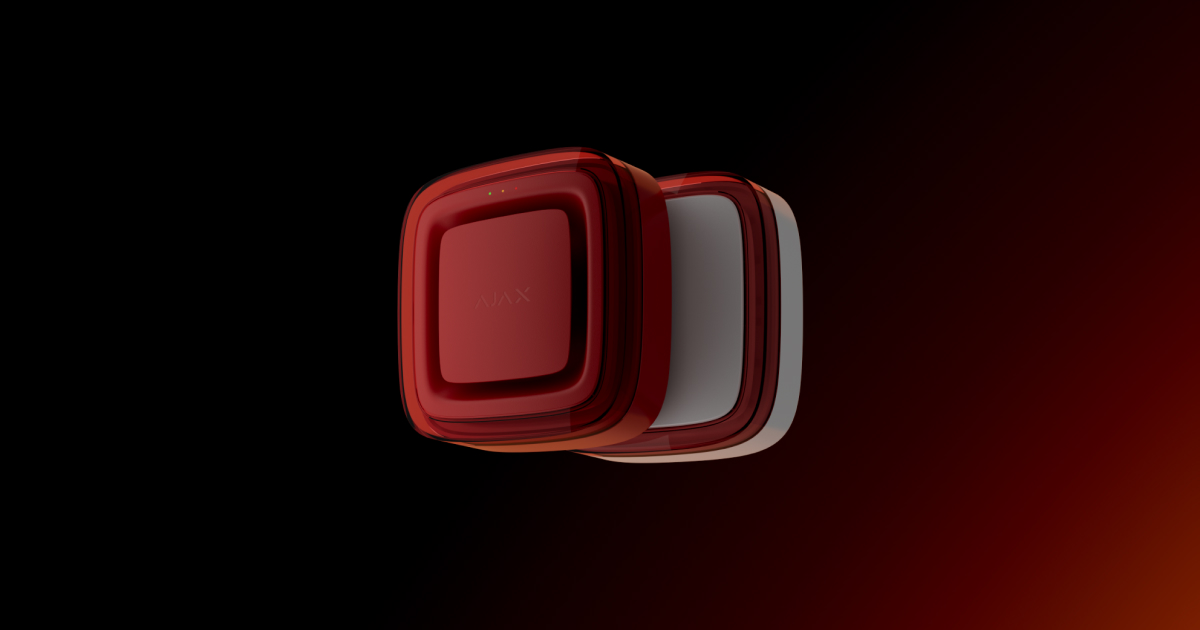

EN54 FireProtect Jeweller sounders and VADs

EN54 FireProtect Jeweller sounders and VADs

Wireless addressable fire alarm sounders and visual alarm devices (VADs)

Product versions

sounder

EN54 FireProtect (Sounder) Jeweller

Wireless addressable fire alarm sounder

EN 54-3, EN 54-25

vad

EN54 FireProtect (VAD) Jeweller

Wireless addressable visual fire alarm device (VAD)

EN 54-23, EN 54-25

sounder-vad

EN54 FireProtect (Sounder/VAD) Jeweller

Wireless addressable fire alarm sounder combined with a visual alarm device (VAD)

EN 54-3, EN 54-23, EN 54-25

Compare product versions

Explore the differences

sounder

EN54 FireProtect (Sounder) Jeweller

EN 54-3
EN 54-25

Audible indication

No visual indication

vad

EN54 FireProtect (VAD) Jeweller

EN 54-23
EN 54-25

No audible indication

Visual indication

sounder-vad

EN54 FireProtect (Sounder/VAD) Jeweller

EN 54-3
EN 54-23
EN 54-25

Audible indication

Visual indication

Rules met. Conventions shattered.

EN54 FireProtect Jeweller sounders and VADs are a fusion of signature Ajax user experience and EN 54-certified reliability. Within three seconds of a fire alarm, they deliver audible, visual, or combined alerts. Regardless of the version, the devices are equally suited for wall or ceiling mounting. Installation itself takes just minutes — no disassembly required, with built-in communicators already in place. Maintenance is just as effortless, thanks to real-time monitoring, early low-battery warnings in Ajax apps, and swift battery swap.

Built to stand out

Versatile installation: wall or ceiling

Built-in radio communicators

Hassle-free setup and remote maintenance

Three versions to cover any need

Key features

en54

Full compliance with standards

Installation on a wall or ceiling

ceiling-mounted
wall-mounted

Installation in minutes

with the bundled SmartBracket mounting panel and in-app setup

install
remote-control.

Configuration and testing in Ajax apps

Built-in Jeweller communication

up to 1,700 m of range with the CIE or range extender1

Audible alarm indication

with a 100 dB buzzer and 32 selectable tones

audio

Tool-free battery replacement

without enclosure disassembly

tool-free

5 years of operation

on pre-installed CR123A batteries

five-years

Sleek and compact design

in white, black, or red

sleek-design
en54

Built for various conditions

with an IP54-rated enclosure and –10 °C to +50 °C operating range

Informative push notifications

Ajax logo
10:00

Ajax

Store: low battery, Sounder/VAD in zone 01, Hall, Entrance

Automatic device health check

with instant fault and service notifications

lock

Dismantling protection

with SmartBracket locking

Tamper button

to detect device dismantling

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

Discover future-proof hardware

compact-enclosure

Compact enclosure

with a sleek design

two-options

Two installation options

on a wall or ceiling

smartbracket

Rotatable SmartBracket mounting panel

for optimal device positioning

battery

Battery compartment

for tool-free battery replacement

lock

Optional lock on SmartBracket

to limit attempts to remove the device

Unmissable alerts that save time — and lives

Choose a device with the alert type that best suits project requirements: sound only, visual only, or a two-in-one solution. Each option is designed to guarantee effective on-site alarm warning in full compliance with EN 54 standards.

Visual indication

Both EN54 FireProtect (VAD) Jeweller and EN54 FireProtect (Sounder/VAD) Jeweller feature a perimeter LED frame. During an alarm, the frame flashes with intense red light, following a compliant temporal pattern. Each visual alarm device can be mounted either on a wall or ceiling. This removes installation constraints and gives engineers the flexibility to achieve optimal visual coverage with fewer devices.

ceiling-mounted
wall-mounted

Sound indication

EN54 FireProtect (Sounder) Jeweller and EN54 FireProtect (Sounder/VAD) Jeweller are equipped with a powerful 100 dB buzzer to ensure alerts are heard even in noisy environments. With 32 selectable tones, installers can choose the sound that meets local regulations and indicates specific types of danger. Configuration is quick and intuitive — just a few clicks in an Ajax app.

100 dB buzzer

32 selectable tones

audio

Installation experience beyond standards

With Ajax, technological excellence is not only about compliance — it is about design that cuts down on installer workload and makes system setup pleasant, intuitive, and error-free. Ajax sounders and VADs deliver wireless installation as it should be — complete in just minutes.

Adding a sounder or VAD to the system is as simple as scanning a QR code and making a few taps in an Ajax app. The installer only needs to set key parameters, including the virtual room, fire zone, and exact device location. Configuration takes just a few toggles — no complex programming or scenario planning required.

add-device

The device is mounted easily onto the SmartBracket panel — no need to disassemble the enclosure. Installers can also fine-tune positioning by rotating the device up to 90 degrees. For added security, the complete set includes an optional lock to help prevent unauthorized removal.

installation

The device automatically tests the Jeweller signal strength and alarm annunciation. Installers can initiate the test with a simple tap, and the results appear in the event log within seconds.

settings
technology-en54

Unique wireless technology

When every second counts, there's no room for delays or dropped connection. That's why Ajax sounders and VADs use the Jeweller two-way radio communication protocol. This proprietary Ajax technology goes beyond the standard and helps activate sounders and VADs in as little as 3 seconds after a fire alarm is triggered.
Devices communicate with the CIE at distances1 of up to 1,700 meters out of the box — no external communicators required. For sites with obstacles, an Ajax range extender can double the coverage or use an Ethernet connection to create a separate radio network.

Up to 1,700 m of radio communication with the CIE or range extender1

Built-in communicators

3-second alarm delivery

Frequency hopping and jamming detection

Jeweller

The Ajax radio protocol guarantees a stable connection and continuous device monitoring. Jeweller is designed to be less vulnerable to signal interference, extend device battery life, and promptly detect connection loss.

Efficient autonomy for years to come

Pre-installed batteries provide up to 5 years of autonomous operation. Real-time battery status is always visible in Ajax apps, so there is no need for unnecessary maintenance visits. Service companies also receive early low-battery notifications for timely replacements. And when it's time to change the batteries, the installer simply removes the battery cover — no tools or enclosure disassembly required.

Up to 5 years of operation on pre-installed batteries

Quick battery replacement without tools and device disassembly

Early low-battery notifications in Ajax apps

autonomy

Wherever there is a risk of fire

hotel
openspace
hotel-hall
public-restroom
office-hall
gas-station
hotel-hall
museum
1

In open space.
