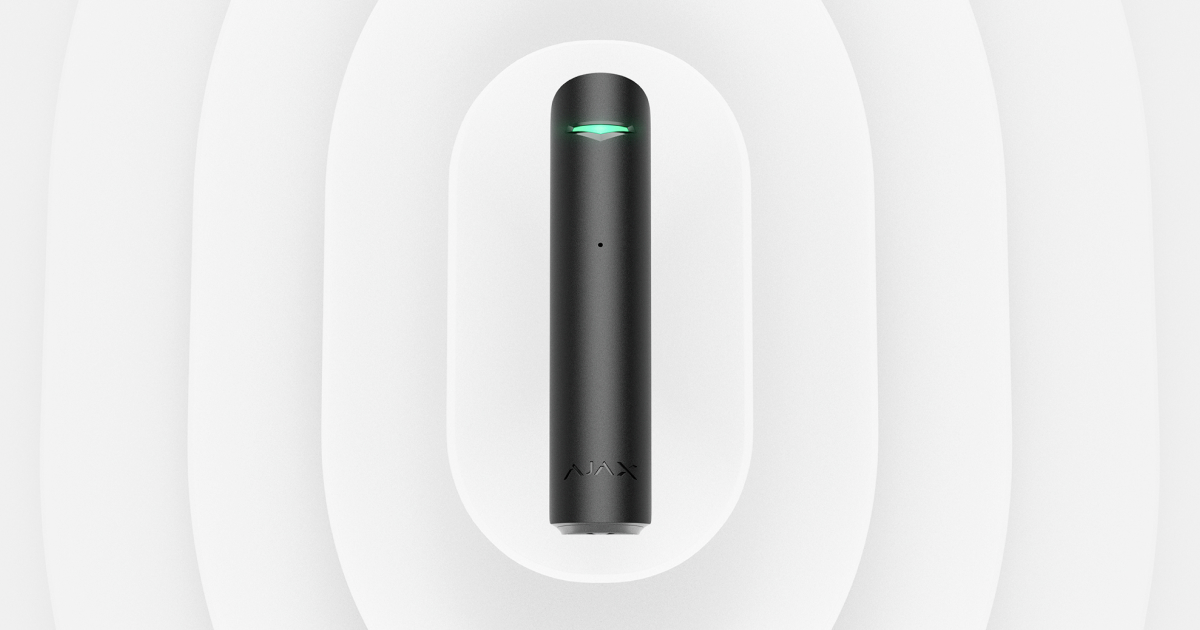

GlassProtect U Jeweller

GlassProtect U Jeweller

Wireless glass break detector with a microphone

Product is not available in your region

Intruders can break the silence, but not the security

GlassProtect U Jeweller is a version of Ajax’s well-known glass break detector, refined to meet strict UK standards. The built-in microphone is fine-tuned to respond only to vibrations characteristic of glass breakage. Thanks to the advanced DualTone digital algorithm, GlassProtect U Jeweller accurately identifies the sound pattern of breaking glass while ignoring common background noise, such as barking dogs, traffic, and water splashing. Three sensitivity levels are available to suit different environments.

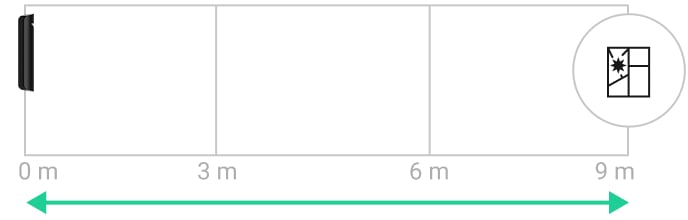

Up to 9 m

of the glass break detection range

Glass break detection distance

180° glass break detection angle

Glass break detection angle

Adaptable to any facility

thanks to 3 sensitivity levels

Adjustable sensitivity
DualTone

digital algorithm to prevent false alarms

Remote control and configuration

Remote control

Up to 7 years

of operation on the pre-installed battery

Battery
Terminals to connect a third-party NC detector

Connector

for a third-party NC detector

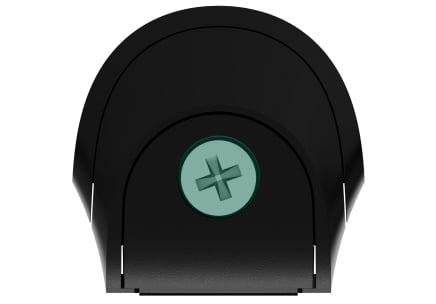

Holding screw

to secure the detector on a mounting panel

screw

Up to 1,000 m

of communication range with an Ajax hub or range extender1

Jeweller radio communication

Jeweller radio communication

Power adjustment

2 colors

Two colours

Informative push notifications

Ajax logo
10:00

Critical

Ajax

Glass break detected, GlassProtect U Jeweller in Hall

Ajax logo
10:00

Ajax

Lid closed, GlassProtect U Jeweller in Office

Hassle free installation

Hassle-free installation

1

QR code

2

SmartBracket

3

App

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

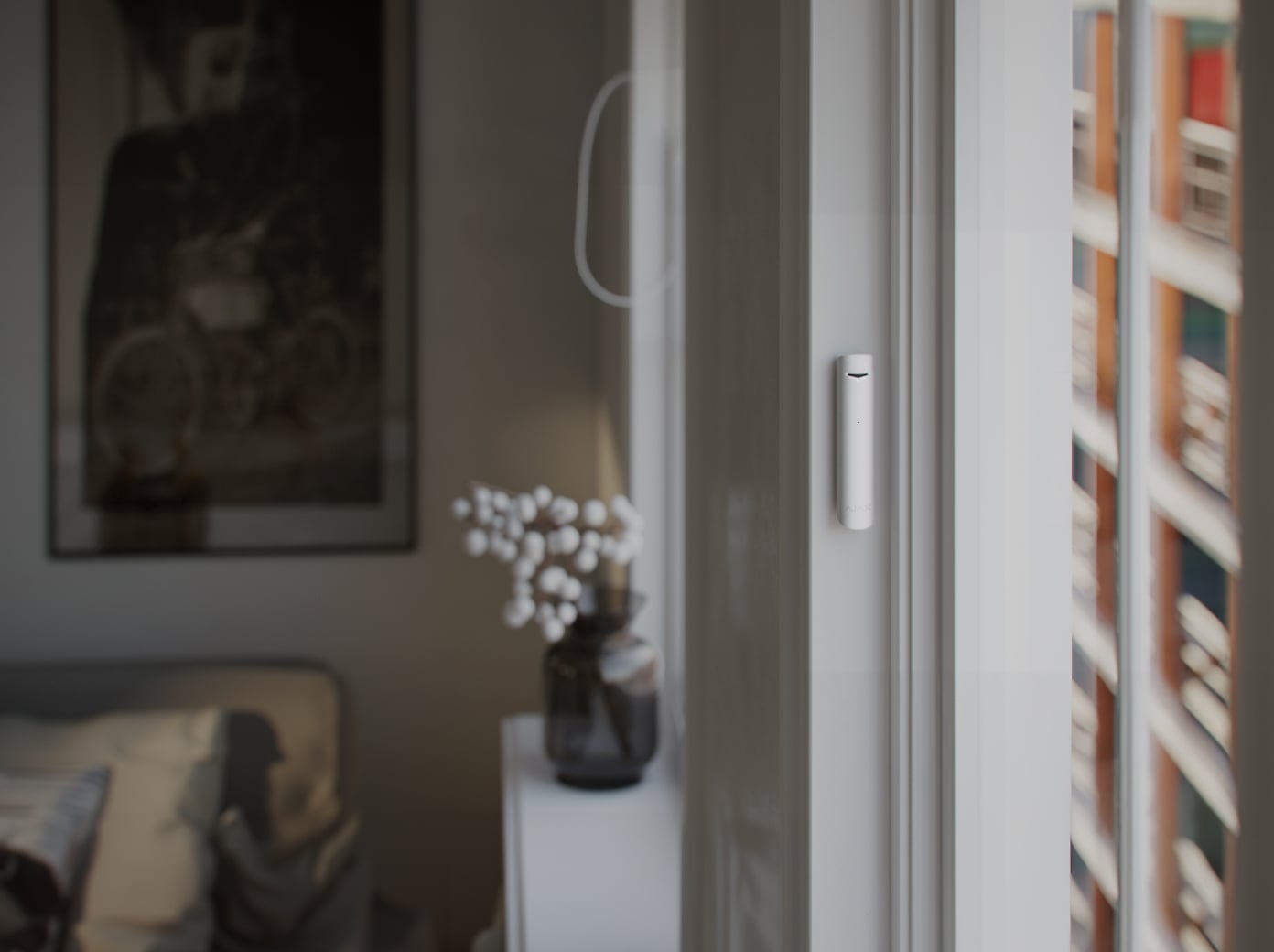

Wherever there is a risk of intrusion

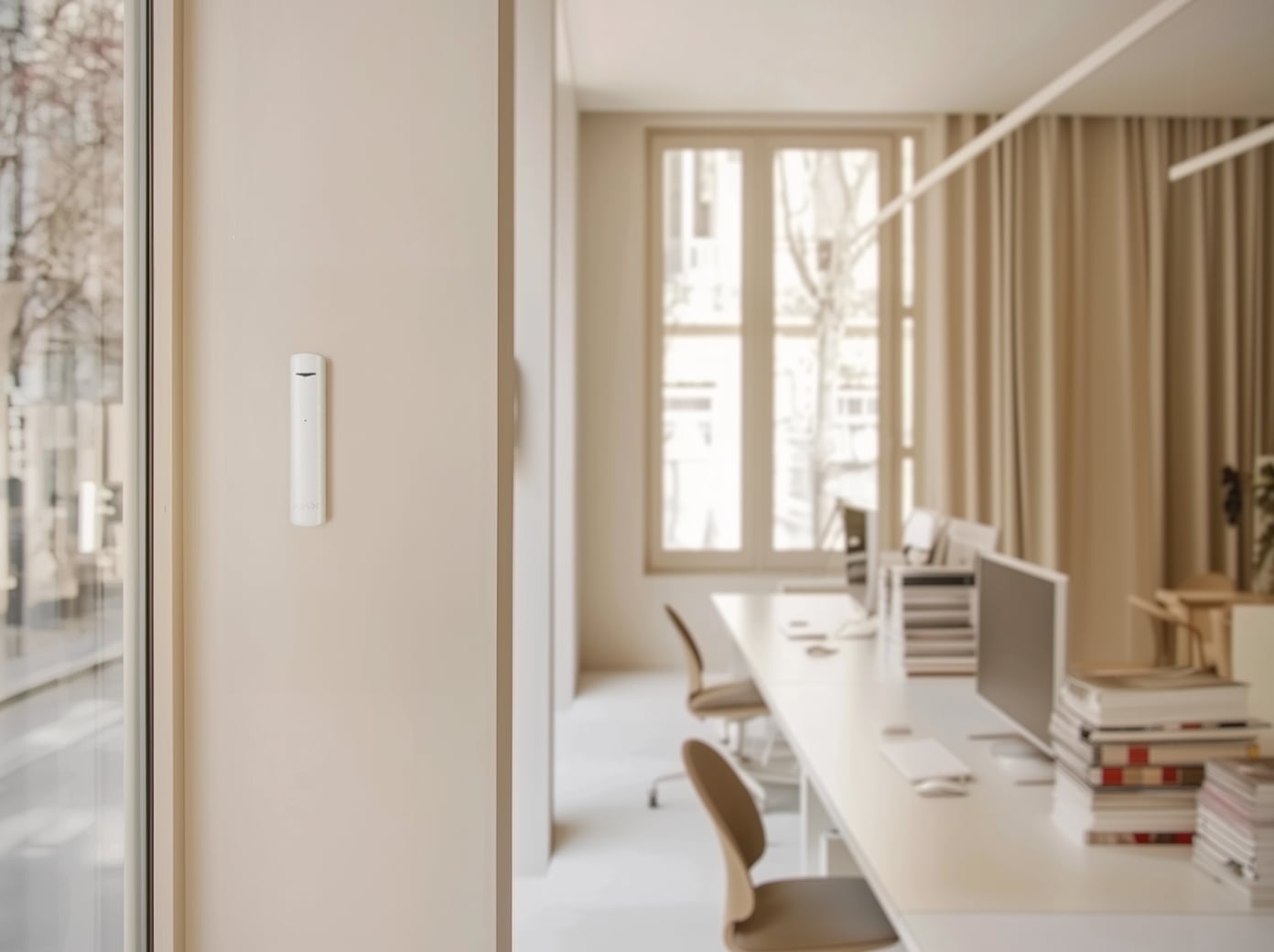

Office

Office

School

School

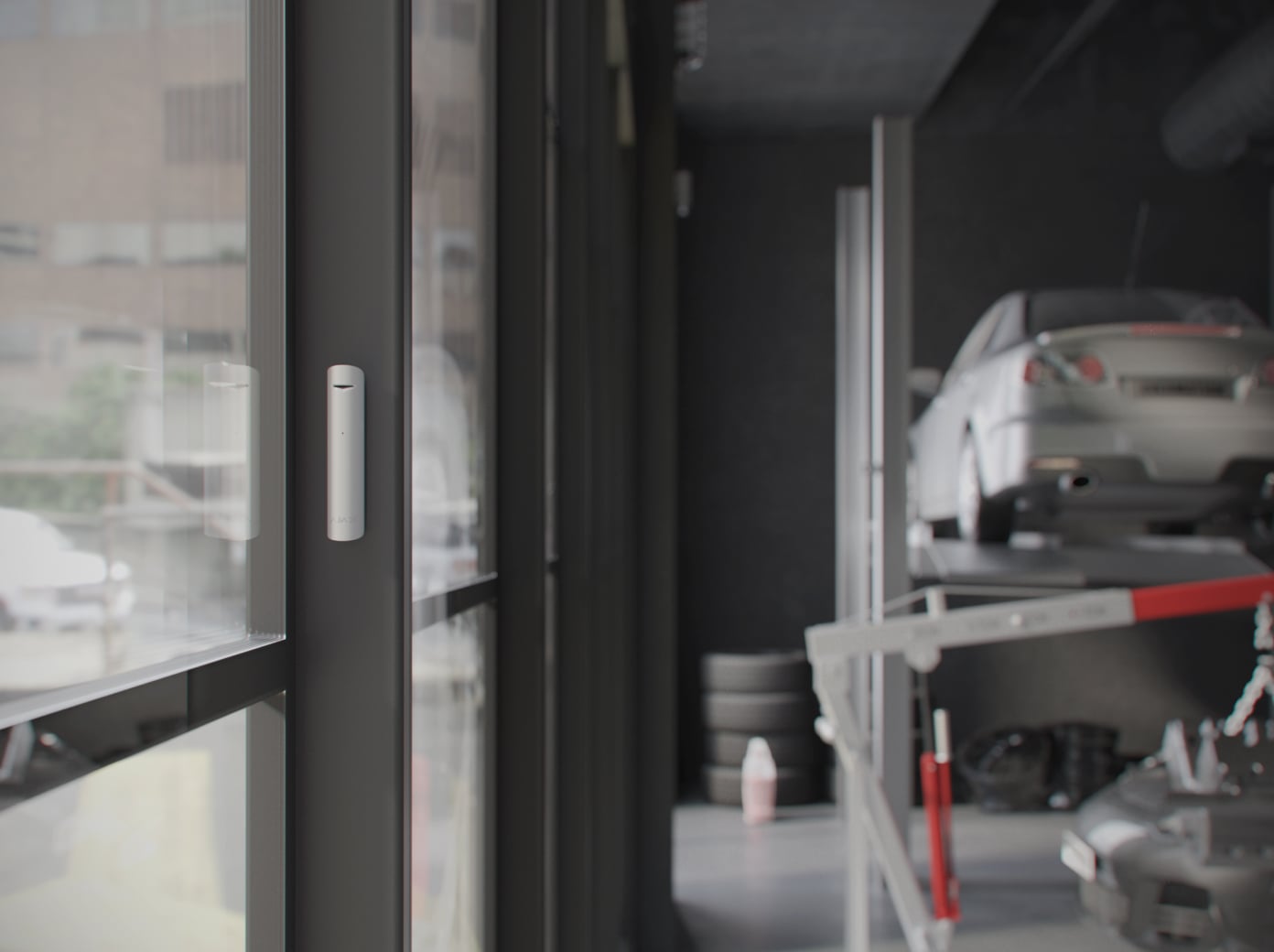

Car service

Car service

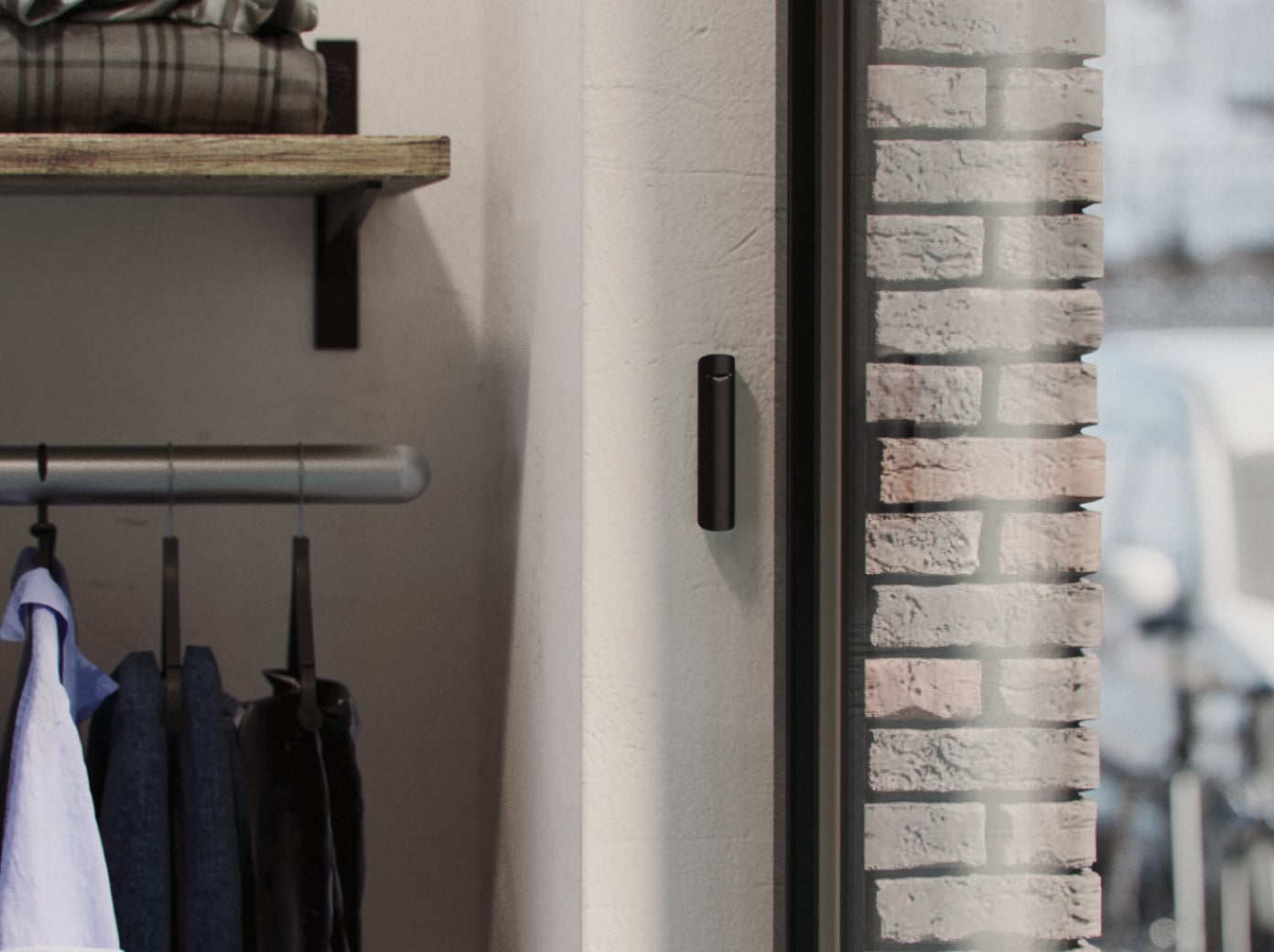

Store

Store

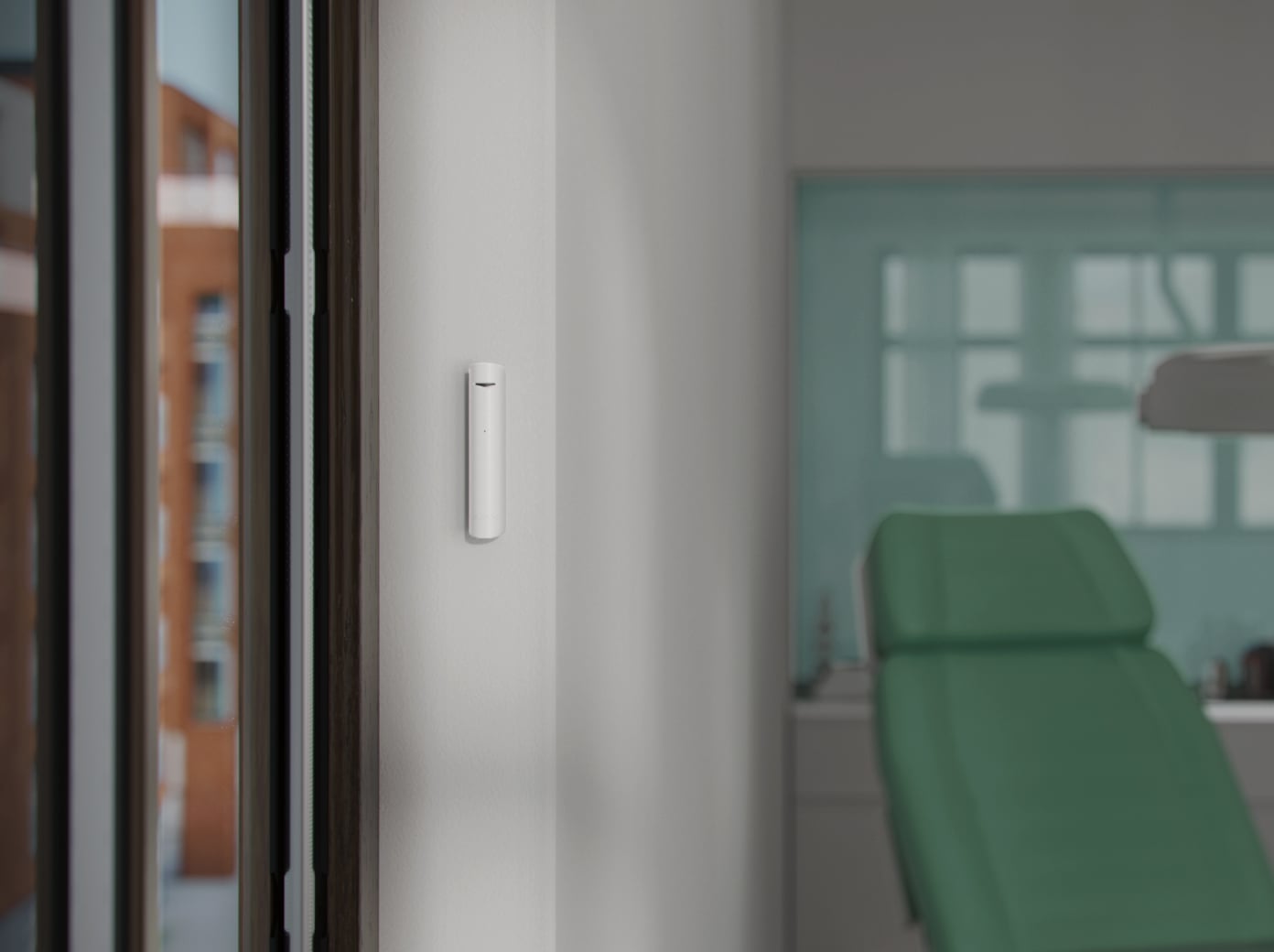

Medical laboratory

Medical laboratory

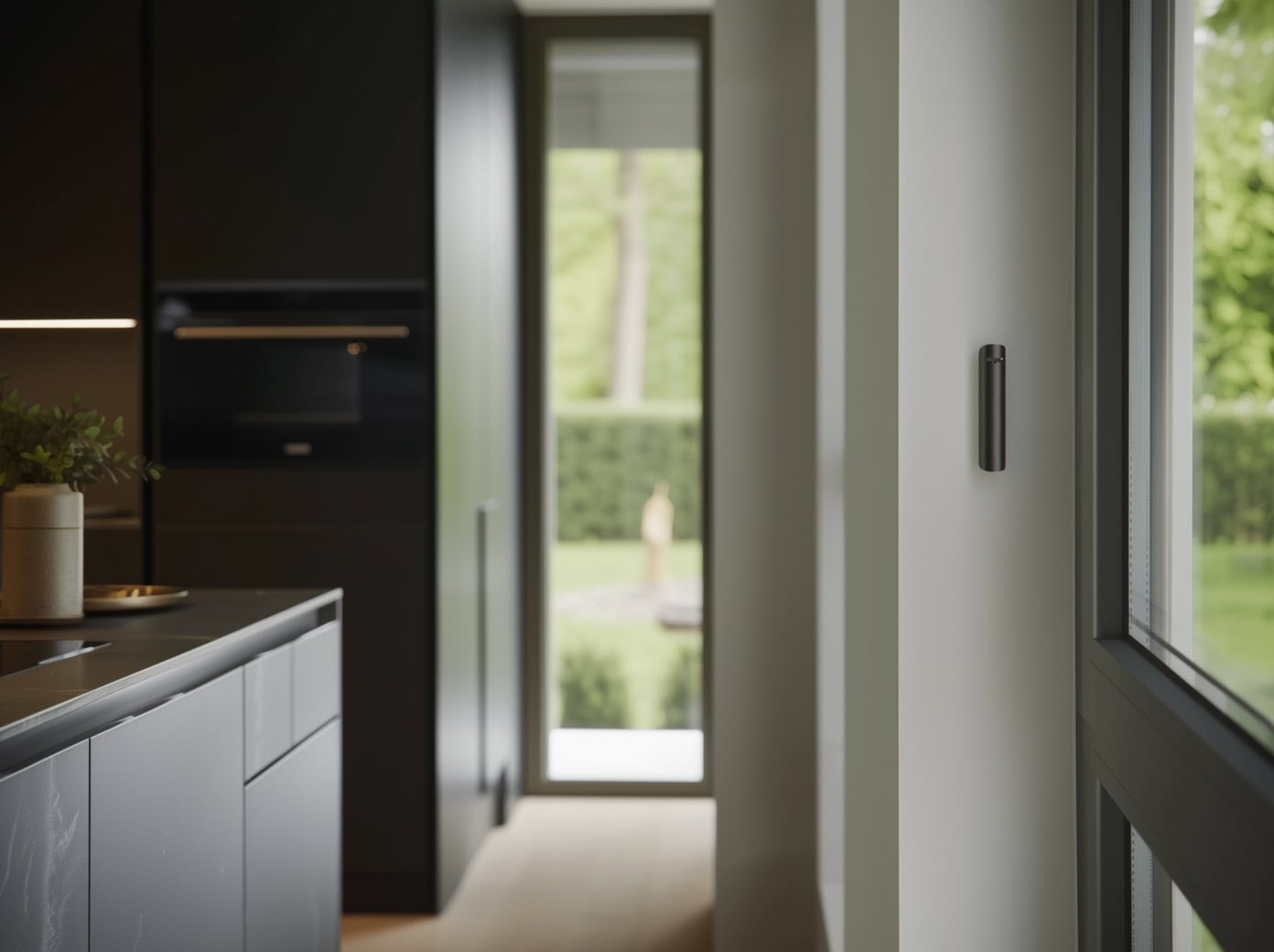

Home

Home

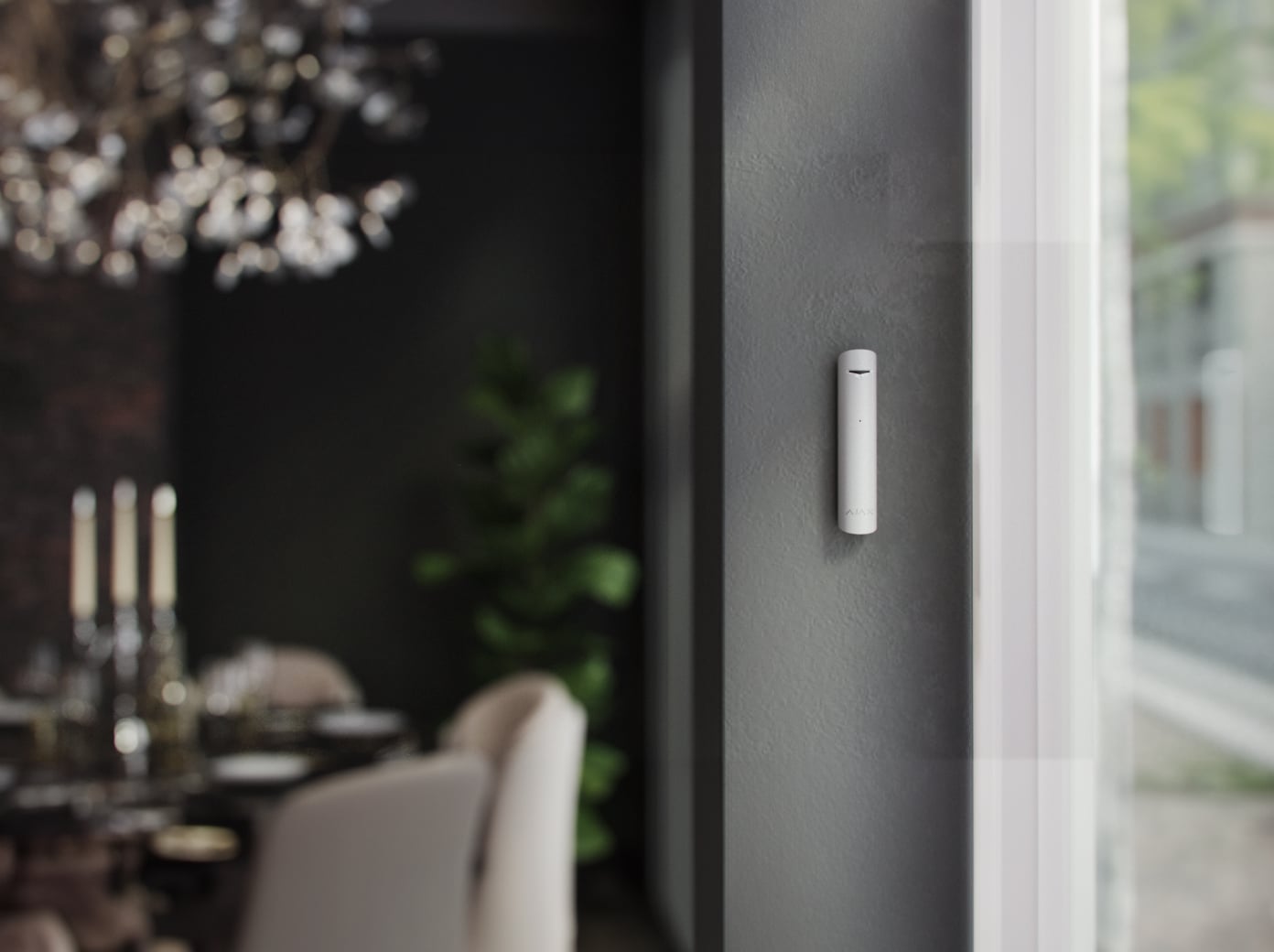

Restaurant

Restaurant

Barbershop

Barbershop

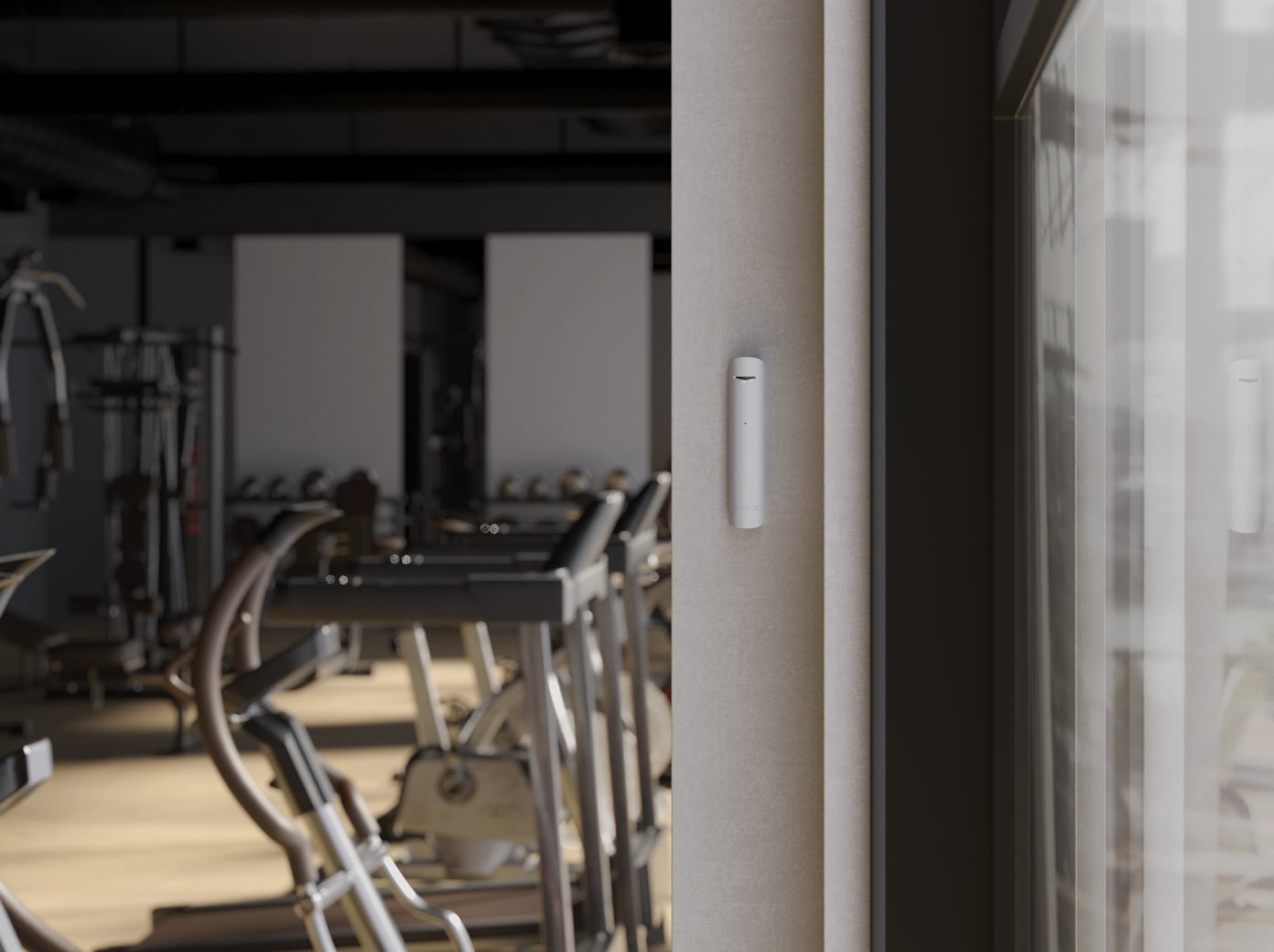

Gym

Gym

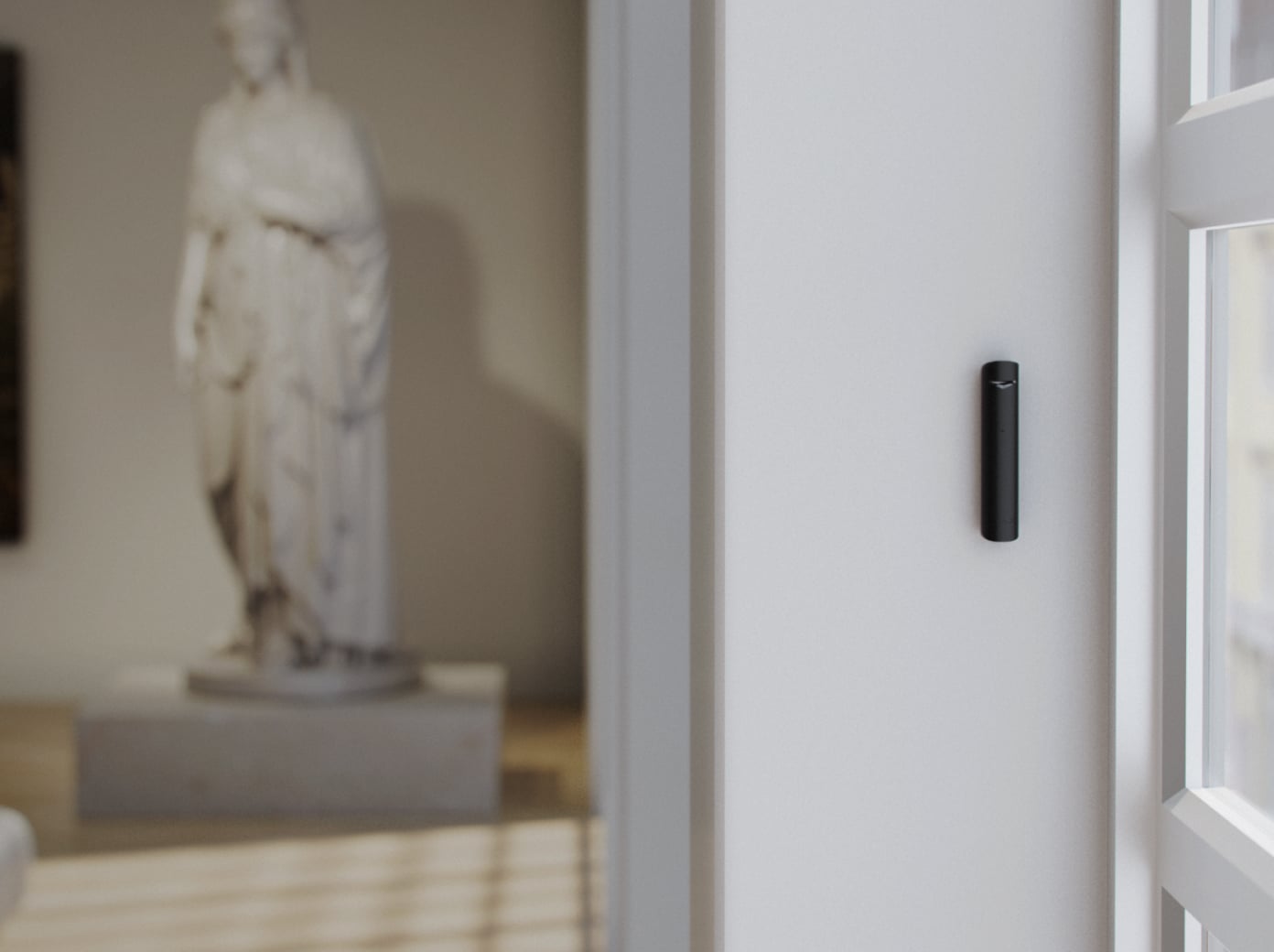

Museum

Museum

Apartment

Apartment

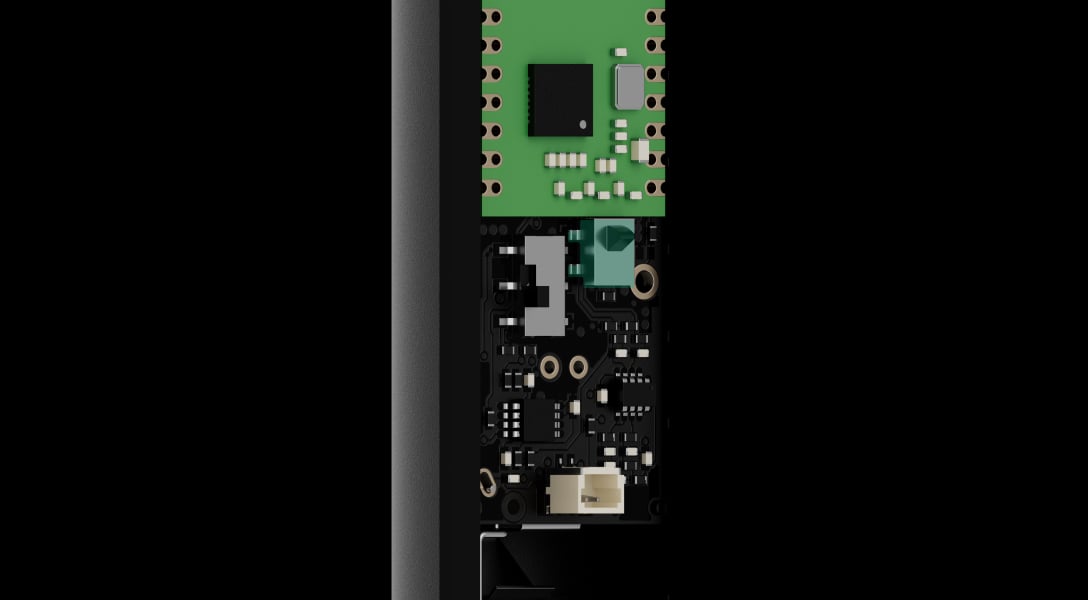

Discover future-proof hardware

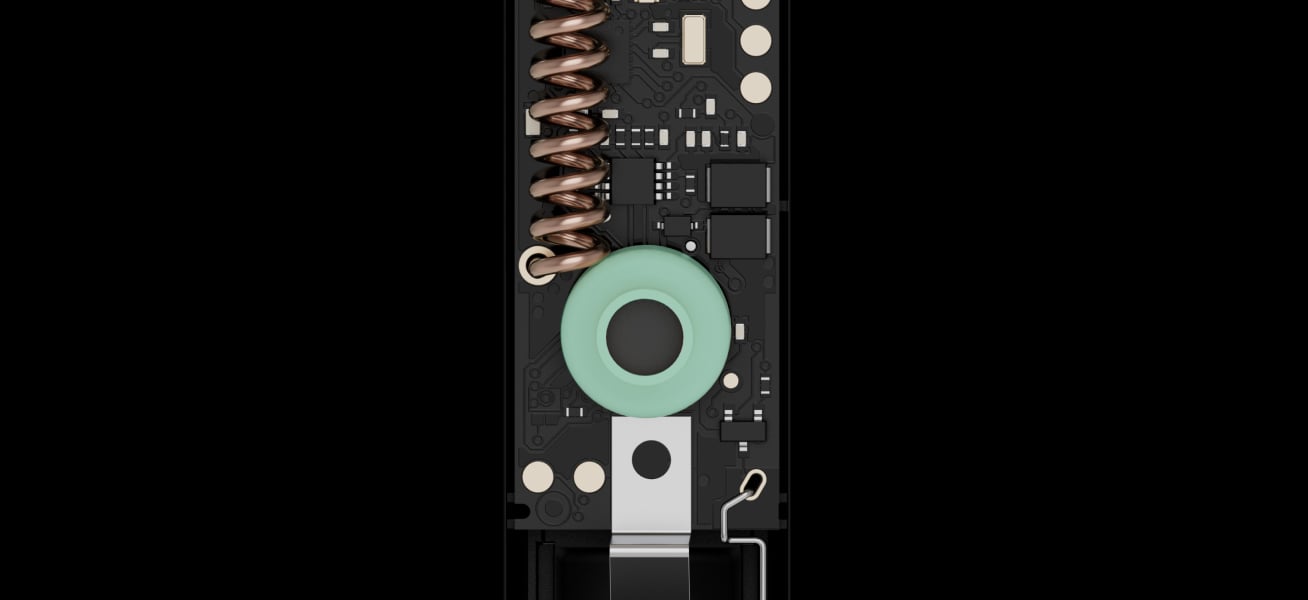

Microphone

Electret microphone

Pre-installed battery

Pre-installed battery

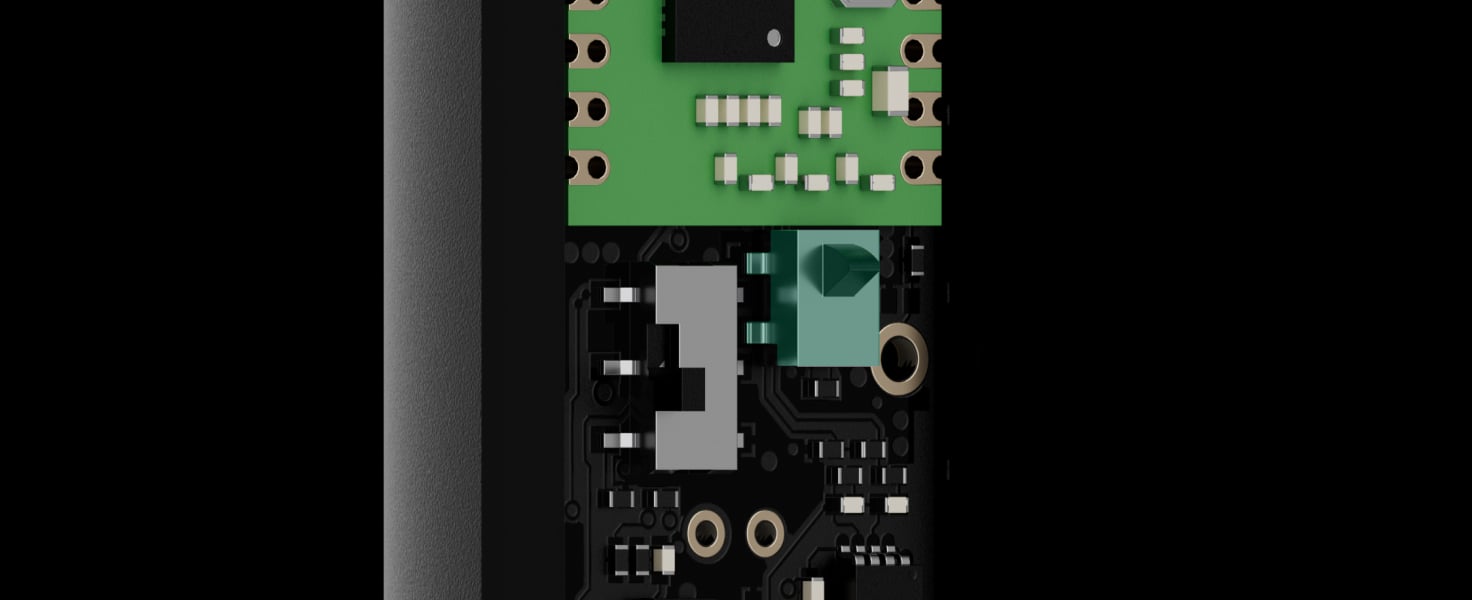

Tamper

Tamper button

Jeweller antenna

Jeweller antenna

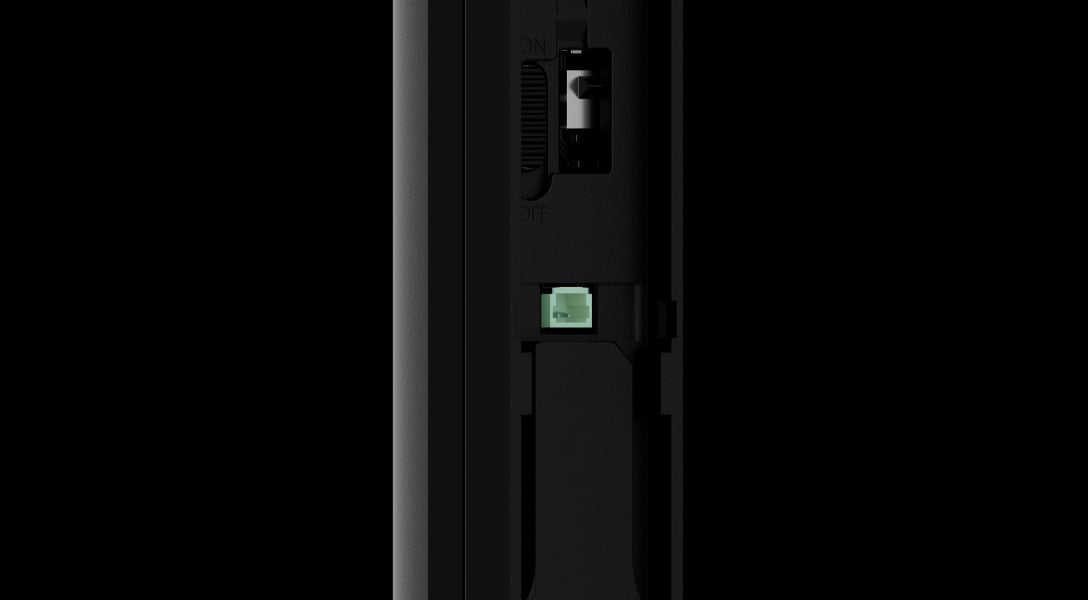

NC detector

Connector for a third-party NC detector

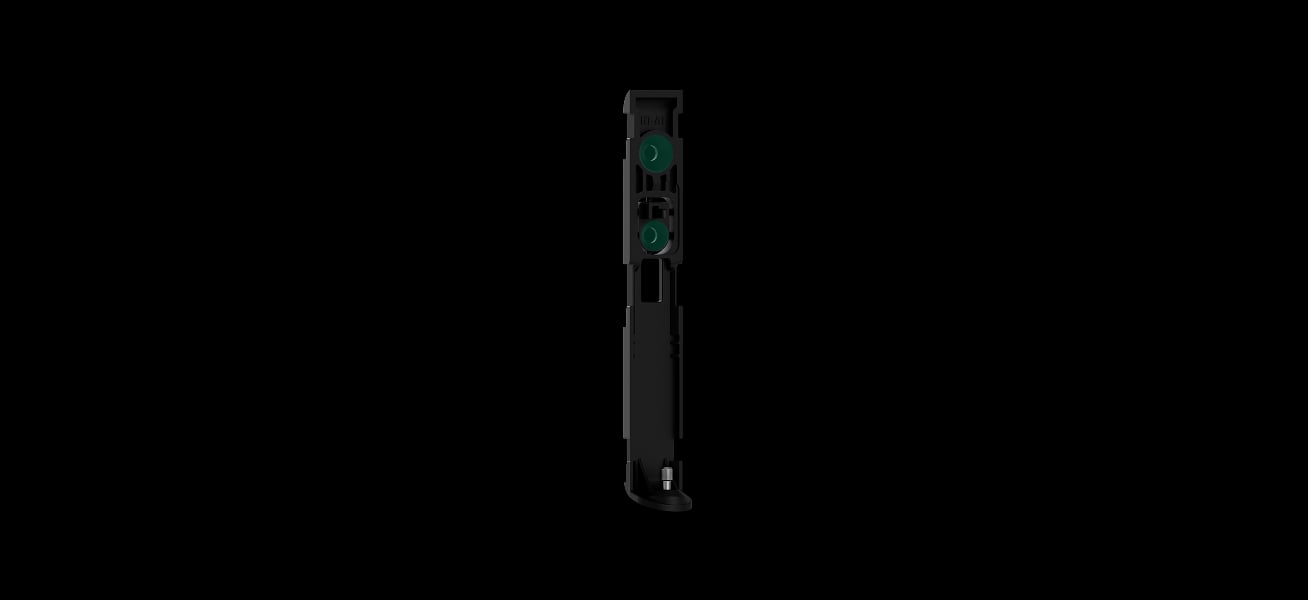

Smartbracket

SmartBracket mounting panel

Microphone

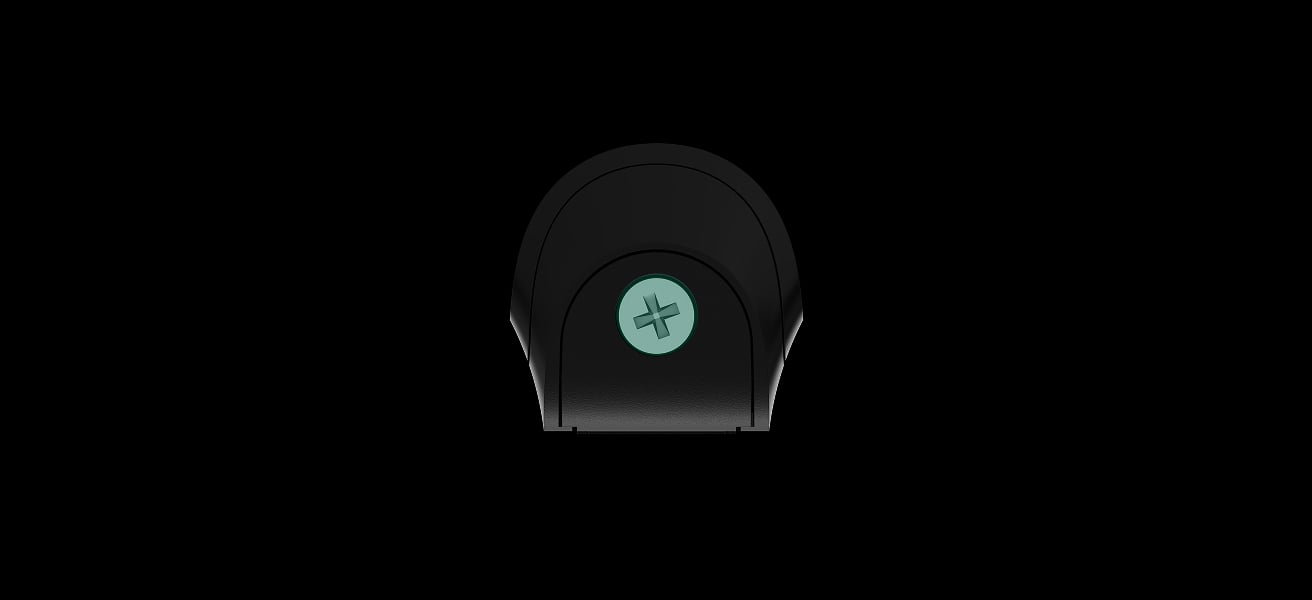

Holding screw for a more reliable fastening

Enhanced glass break detection

GlassProtect U Jeweller detects the sound of breaking glass using a sensitive microphone and the DualTone digital algorithm. The alarm will be raised if the device detects a dull, low-frequency sound of impact and a high-frequency sound of glass shattering within 1.5 seconds. This two-stage detection process significantly reduces the chance of false alarms. The detector’s sensitivity can be adjusted in an Ajax app, and there are three available levels to choose from. These flexible settings make the device suitable for use in any space.

Glass break detection

GlassProtect U Jeweller does not respond to the breaking of glass coated with shockproof, sunscreen, decorative, or any other film. To detect the breaking of such glass, we recommend using detectors featuring shock and tilt sensors.

Easy integration with third-party detectors

GlassProtect U Jeweller has the connector for a third-party2 wired NC detector, such as a motion, opening, or vibration detector, whether newly installed or already in use. For third-party opening detectors, the Chime3 feature can be enabled. It provides a sound signal when the opening detectors are triggered while the system is disarmed.

Opening detector

Vibration detector

Motion detector

Wire-free flexibility and reliable performance

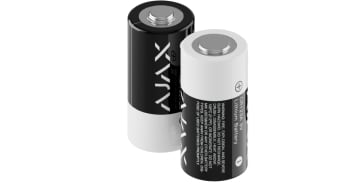

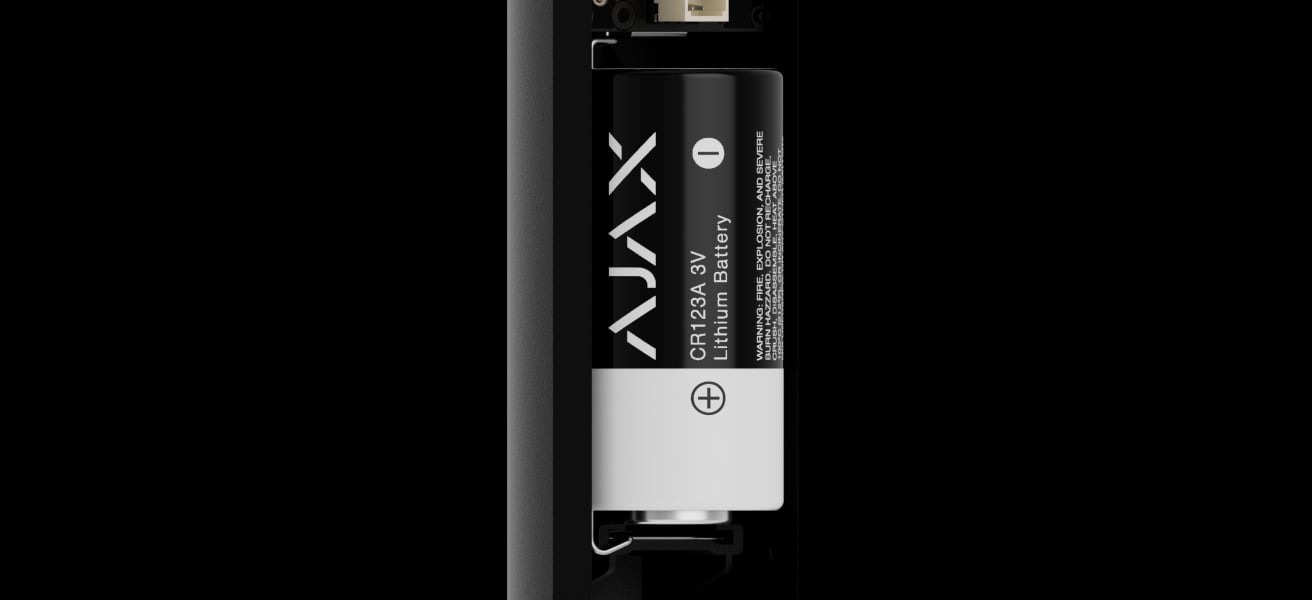

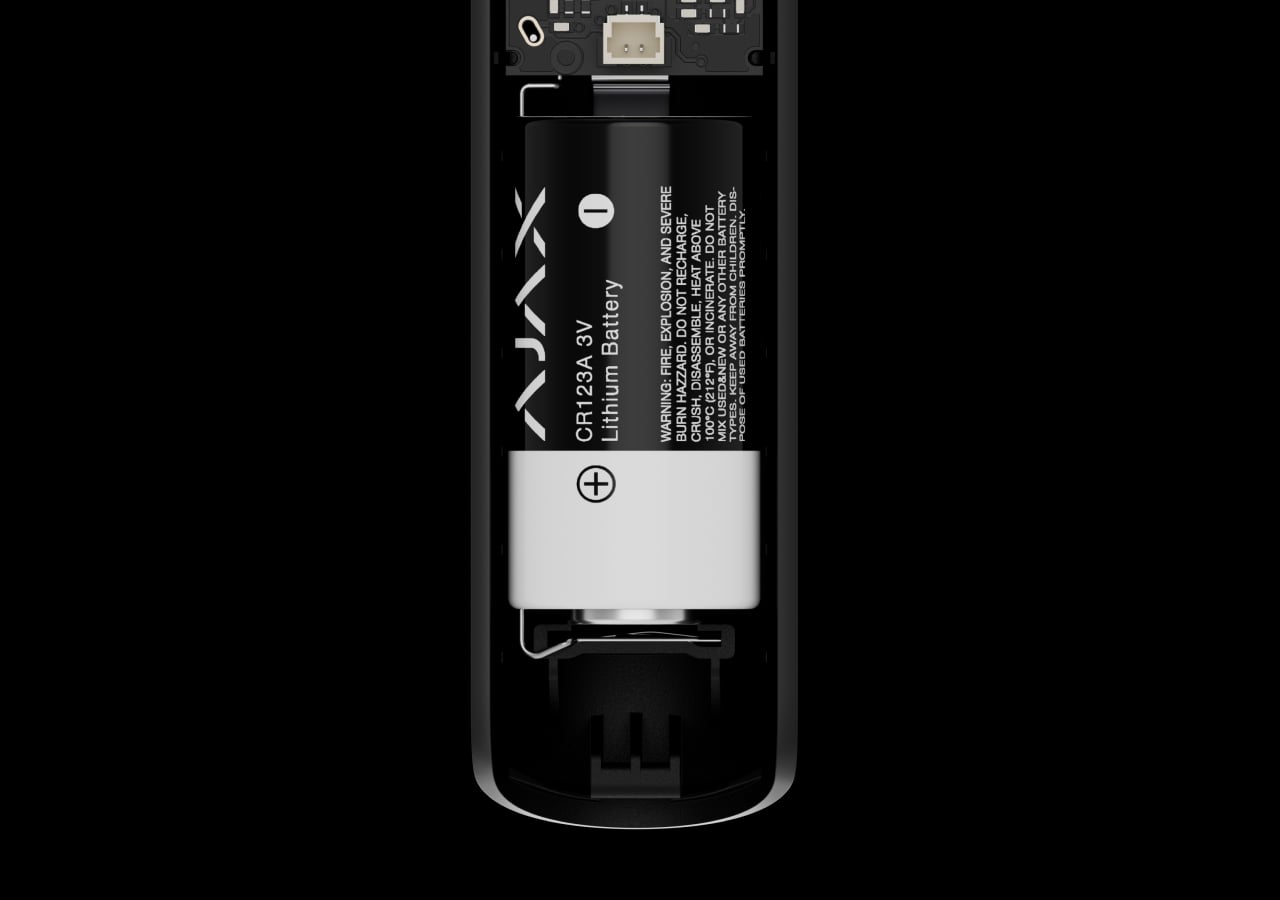

GlassProtect U Jeweller works wirelessly. Each device comes with a pre-installed CR123A battery from a trusted manufacturer, so the detector is ready to operate right out of the box — no extra steps are needed. Each device battery is tested during production, and Ajax Systems checks every unit to ensure reliable performance. The battery lasts about five years and can be easily replaced when needed. Its state is always available in Ajax apps. Users and monitoring companies receive low battery notifications well in advance and have enough time to replace the battery without urgency.

Real-time testing during battery production

Up to 7 years of autonomous operation

Early low battery notifications

Batteries

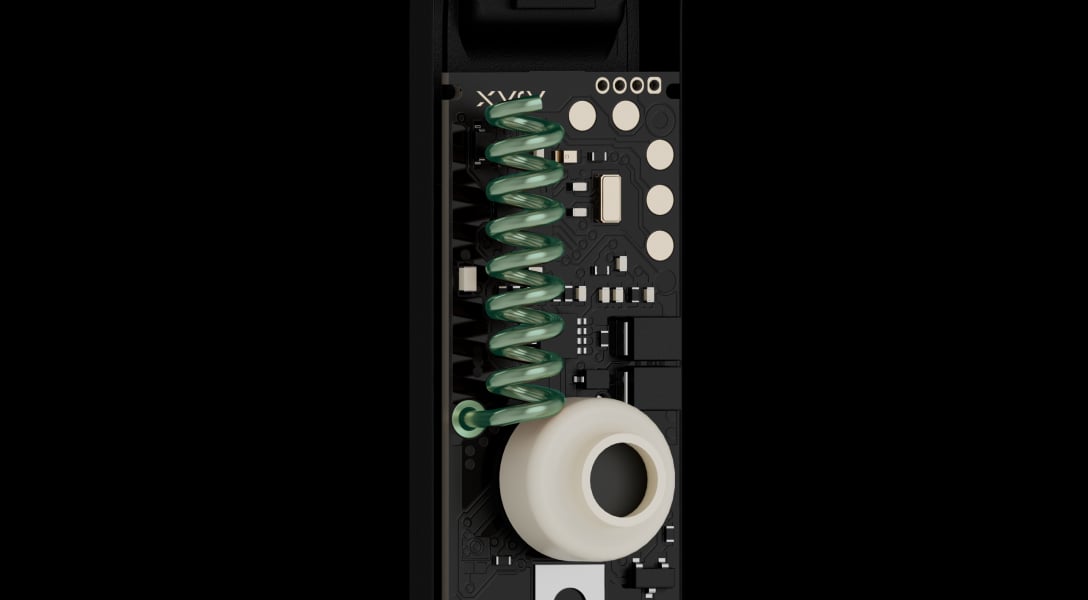

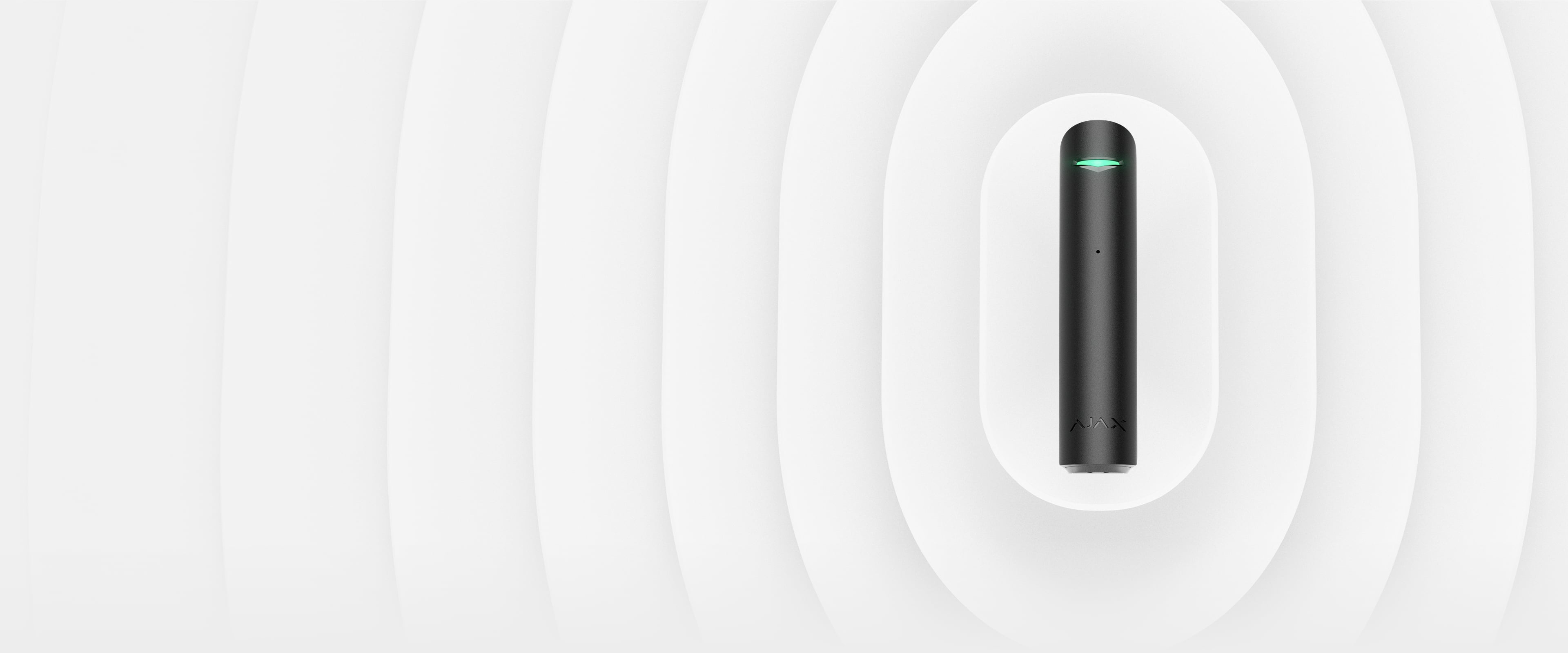

Unique wireless technology

Jeweller

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides block encryption and device authentication during each communication session with an Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Up to 1,000 m of communication range in an open space

Data encryption

Notification of jamming and connection loss

Automatic power adjustment

Communication through steel and concrete

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.

Up to 5 range extenders within one system

Ethernet-equipped model available

System supervision

Ajax devices constantly check their states through automatic self-diagnosis and send this information to the hub. Key parameters such as tamper, communication, power supply, and sensor states are continuously monitored. The Ajax Cloud server manages the connection between the hub and Ajax apps, ensuring alarm notifications are delivered immediately to ARCs and users. If a malfunction or connection loss occurs, an installer is promptly informed to perform the required service.

Automatic device self-diagnosis with a state report

Regular polling to display the current device state in Ajax apps

Instant maintenance notifications

System supervision

Sabotage protection

Tamper alarm

Tamper alarm

The detector’s enclosure has a tamper button that detects if the device is detached from the mounting panel or removed from the surface. If this happens, the system immediately alerts the monitoring company and users to the incident.

Data encryption

Data encryption

The system protects all stored and transmitted data using block encryption featuring a dynamic key. This encryption makes it difficult to reprogram the device, change its settings, or steal the data.

Informative notifications

Informative notifications

An Ajax system sends instant informative notifications of alarms and events. Monitoring companies and users receive precise details about each incident, including time, location, and the triggered device.

Device authentication against spoofing

Device authentication against spoofing

During each communication session, the hub authenticates devices by checking their unique parameters. If any parameter is incorrect or missing, the hub ignores the device’s commands to prevent unauthorized access.

Regular polling

Regular polling

The device regularly exchanges data with the hub. The system monitors each device’s state and immediately reports any malfunction or communication loss.

Communication loss detection

Communication loss detection

When the polling interval is set to the minimum (three data packets every 12 seconds), the system detects communication loss within 36 seconds and immediately notifies the monitoring company and users of the incident.

Effortless installation and setup

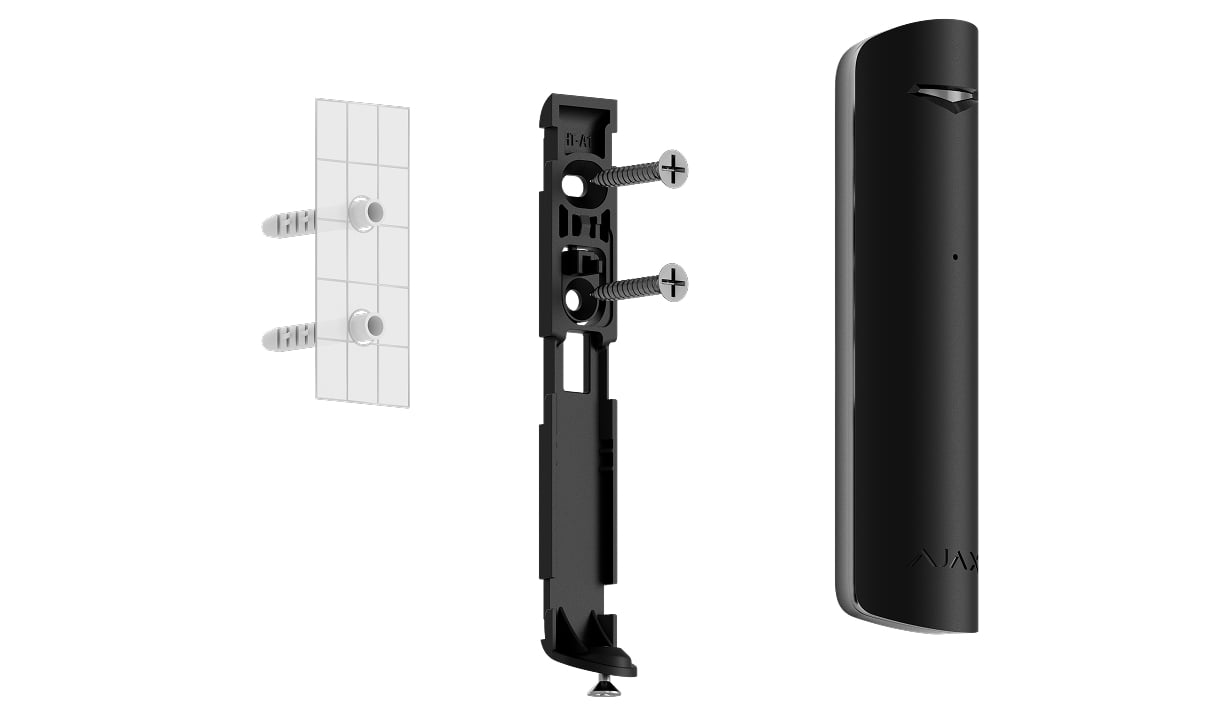

GlassProtect U Jeweller is ready to operate straight out of the box. Using SmartBracket, an installer can effortlessly mount the device, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the detector part of the ecosystem: simply scan the QR code to pair the device with the hub. All settings can be configured remotely, so on-site visits are not needed.

Pairing with the hub via the QR code

Connection

Easy installation with the SmartBracket mounting panel

Installation

Configuring and testing in Ajax mobile and desktop apps

Setup

The Ajax PRO Desktop app for macOS and Windows

Monitoring
1

In an open space.

2

GlassProtect U Jeweller cannot power a third-party detector. The power supply for this detector must be connected separately.

3

The Chime feature requires at least one siren or keypad with a built-in buzzer to be added to the system.
