Tech specs

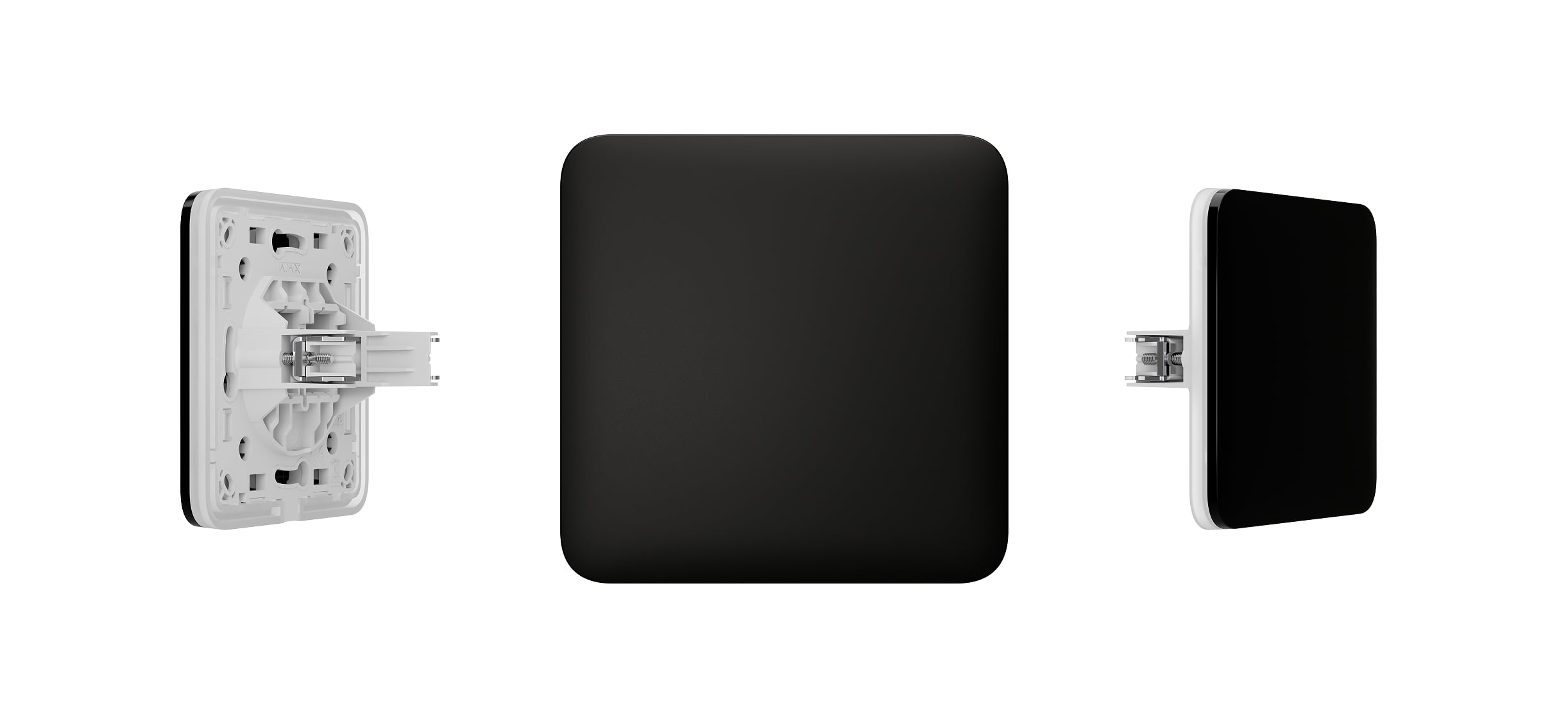

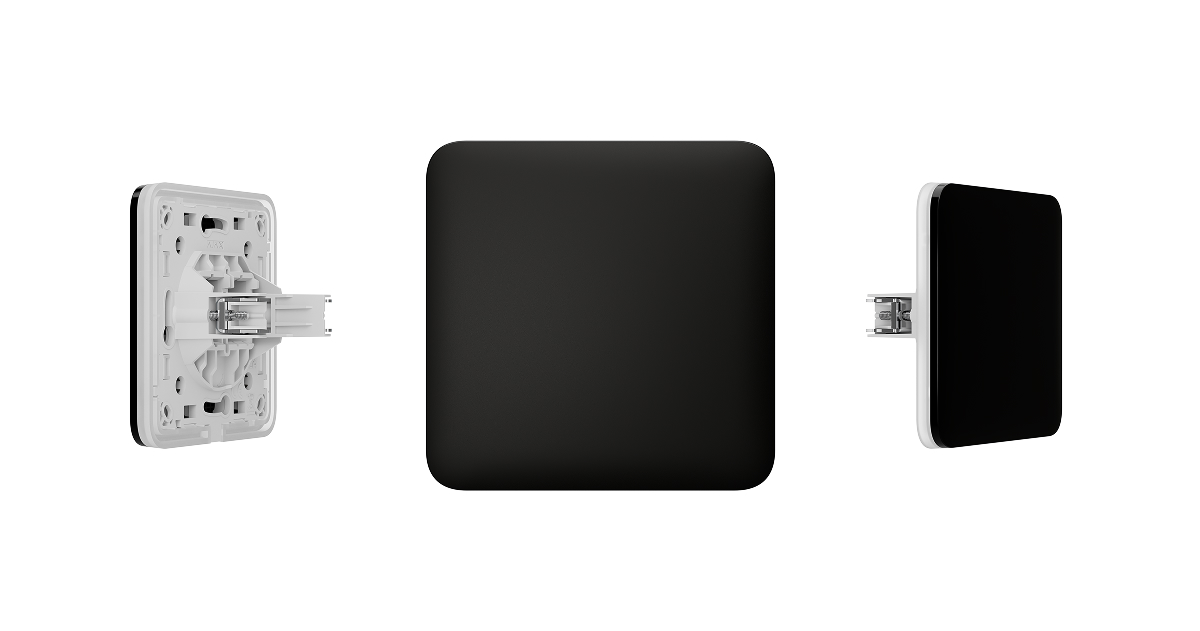

CoverPlate

Mounting box cover

CoverPlate

Components

Holders

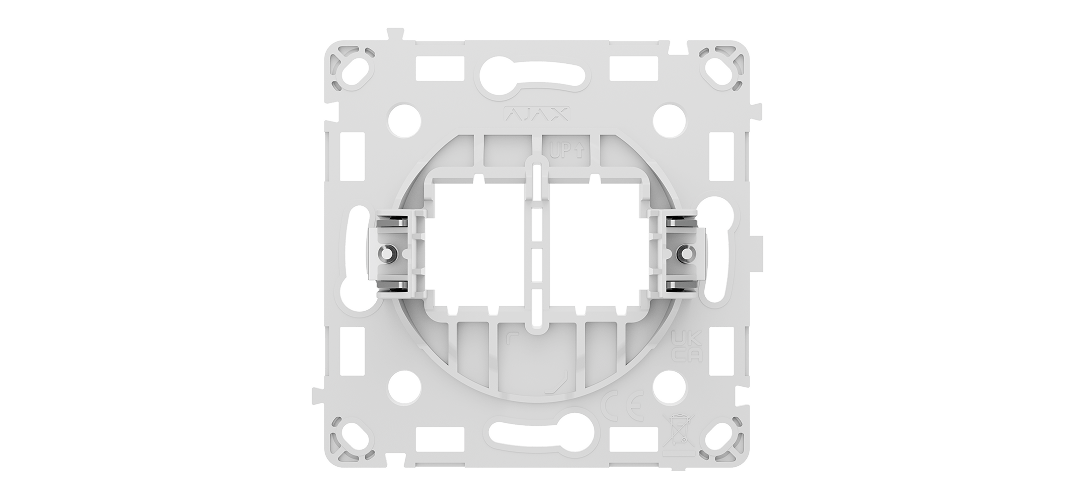

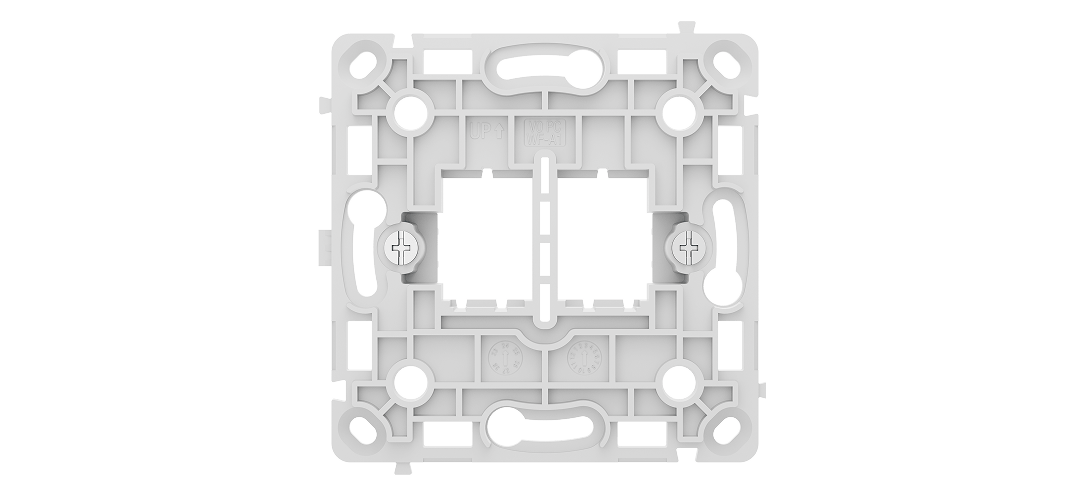

CoverHolder [55]

cp-cover-holder
cp-cover-holder

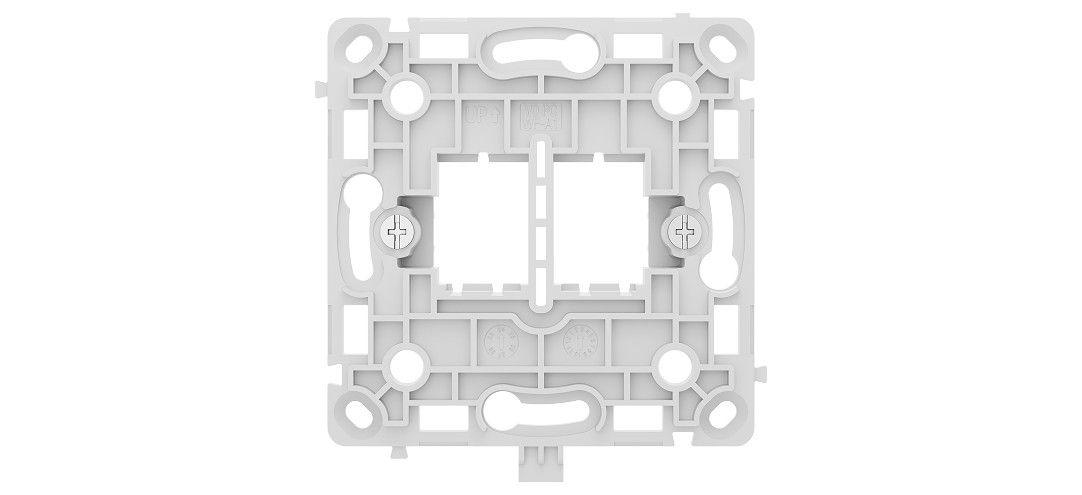

CoverHolder vertical [55]

outlet-lan-core
cp-cover-holder

Caps

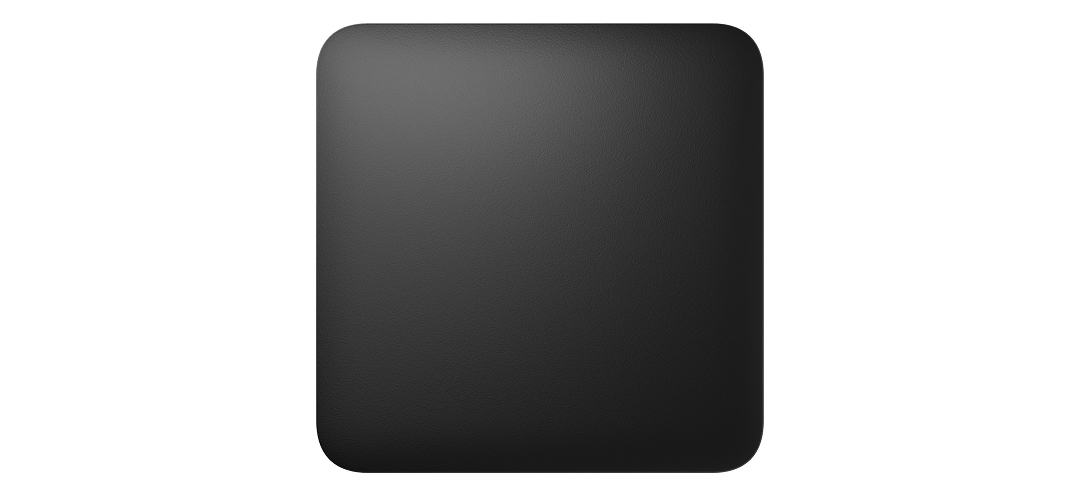

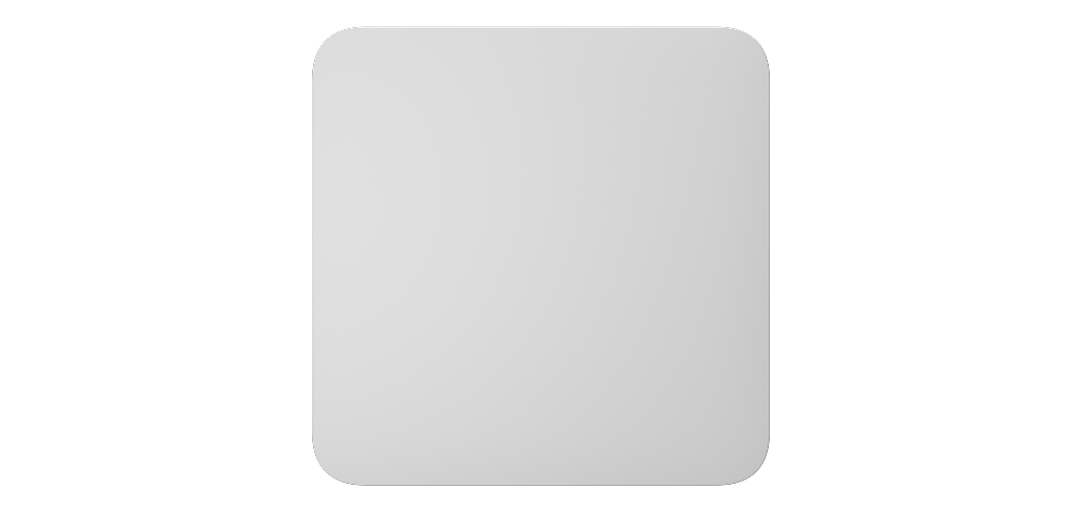

SoloCover (CP)

It is used when the mounting box cover is installed as a separate device.

solocover

SideCover (CP)

It is used when the mounting box cover is installed on the right or left (top or bottom) of the device set.

sidecover

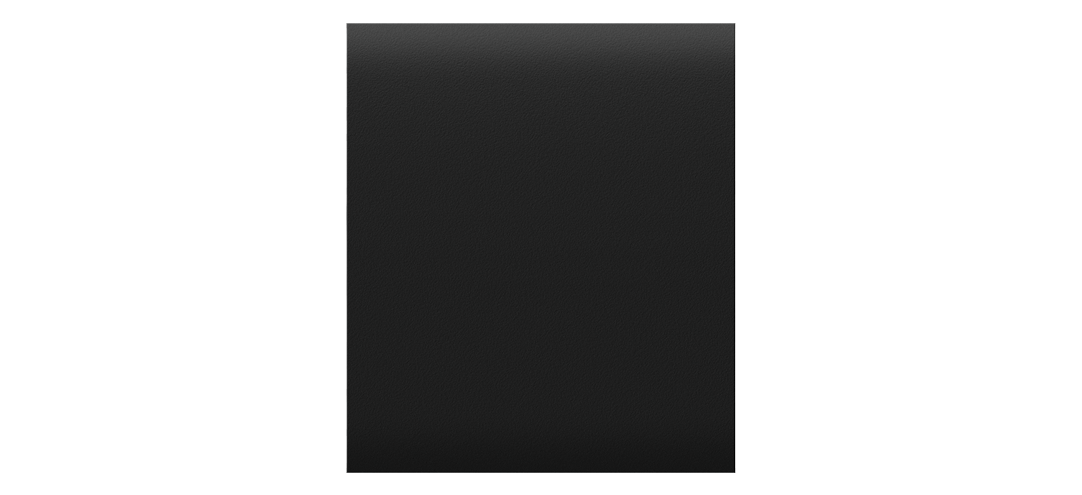

CenterCover (CP)

It is used when the mounting box cover is installed between the device set.

centercover

Frames

Frames for two, three, four, and five Ajax outlets and switches in any combination*.

Frame (2 seats)

frame

Frame (3 seats)

frame

Frame (4 seats)

frame

Frame (5 seats)

frame

Frame (2 seats) vertical

frame

Frame (3 seats) vertical

frame

Frame (4 seats) vertical

frame

Frame (5 seats) vertical

frame

* Combinations with smart outlets are available only in horizontal orientation.

Configuration

Single

CoverPlate is installed as a separate device.

configuration

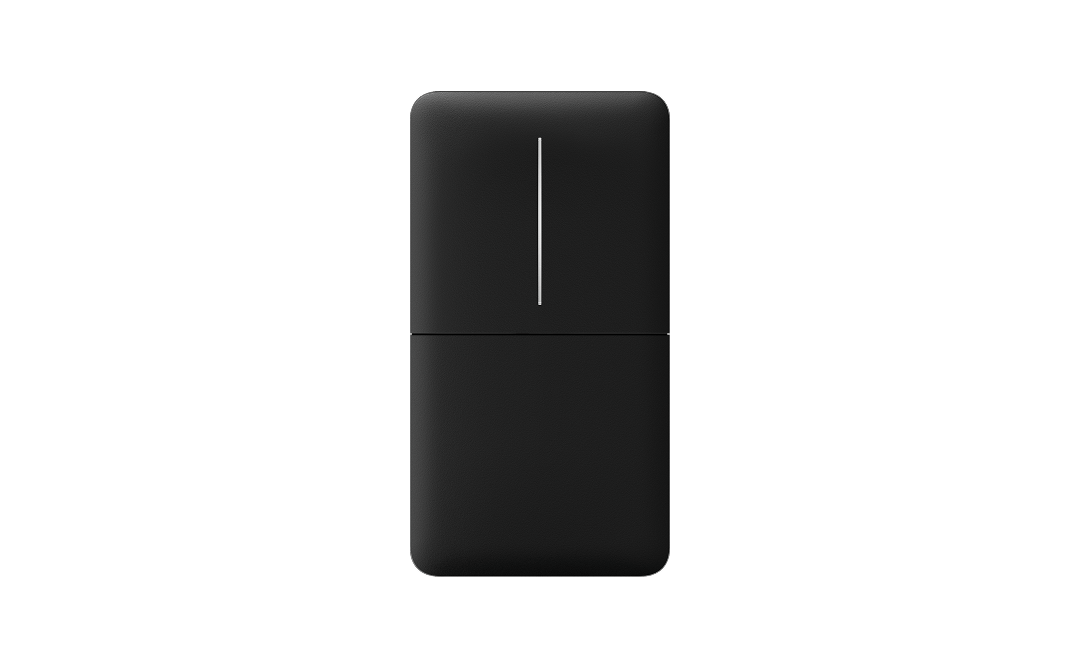

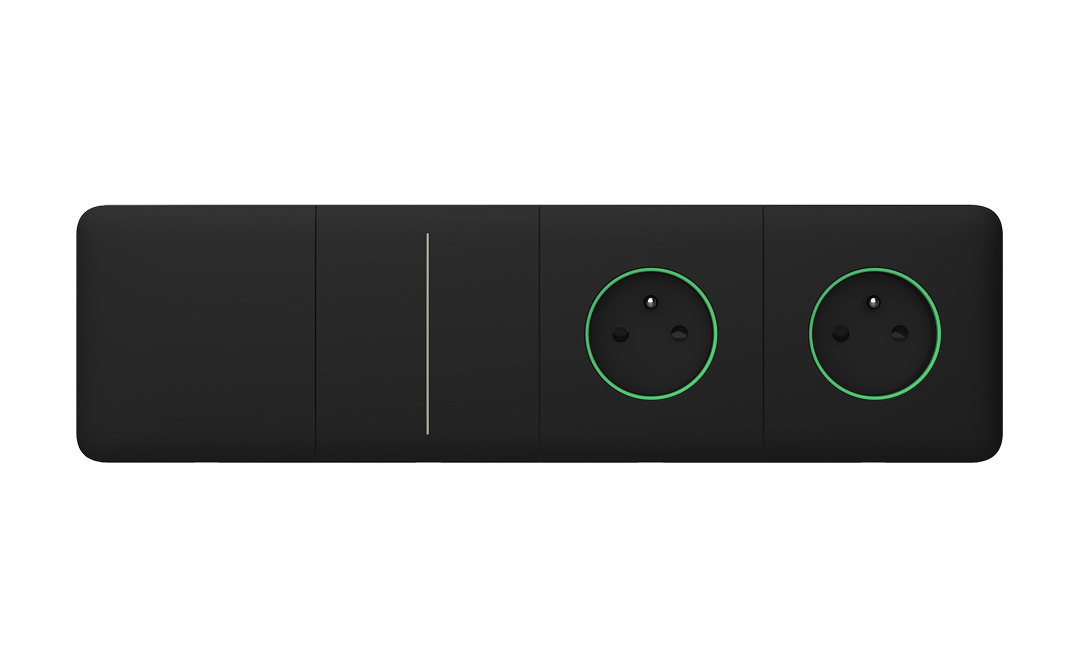

Combined

CoverPlate is combined as a set with Ajax outlets and/or LightSwitch switches and installed into Frame side by side.

configuration
configuration

Cover colors

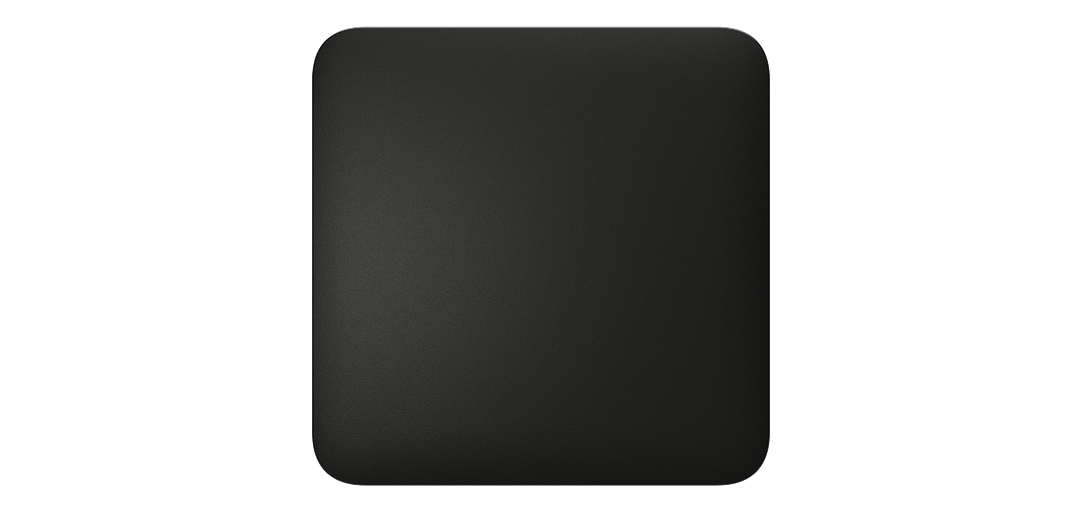

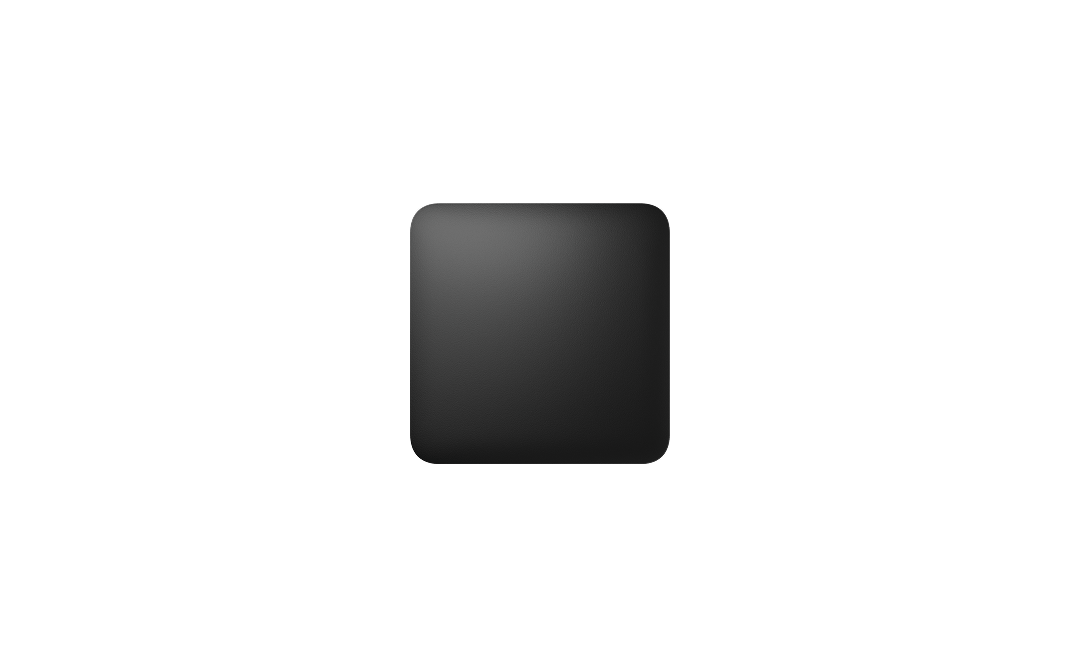

Black

RAL 9005

color

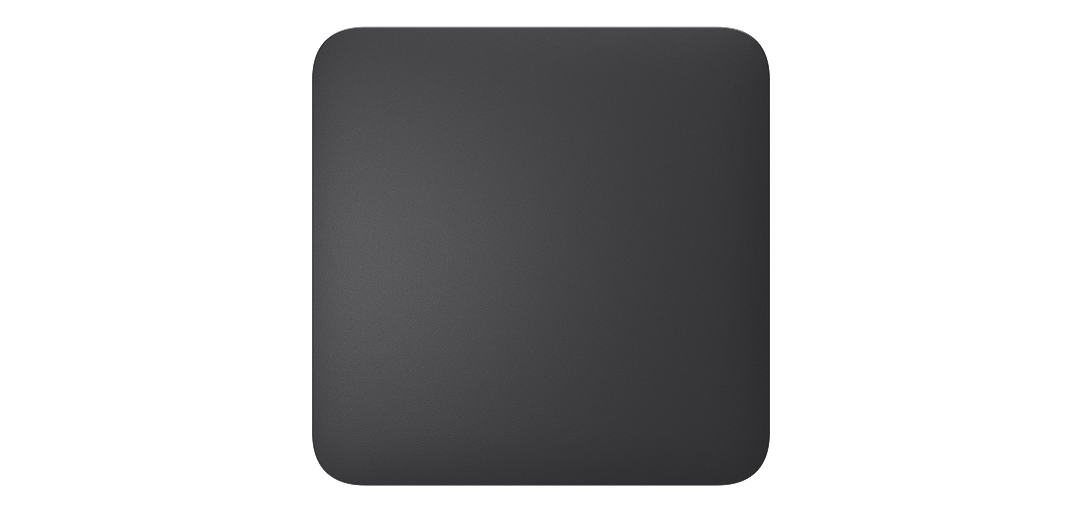

Graphite

RAL 7024

color

White

RAL 9003

color

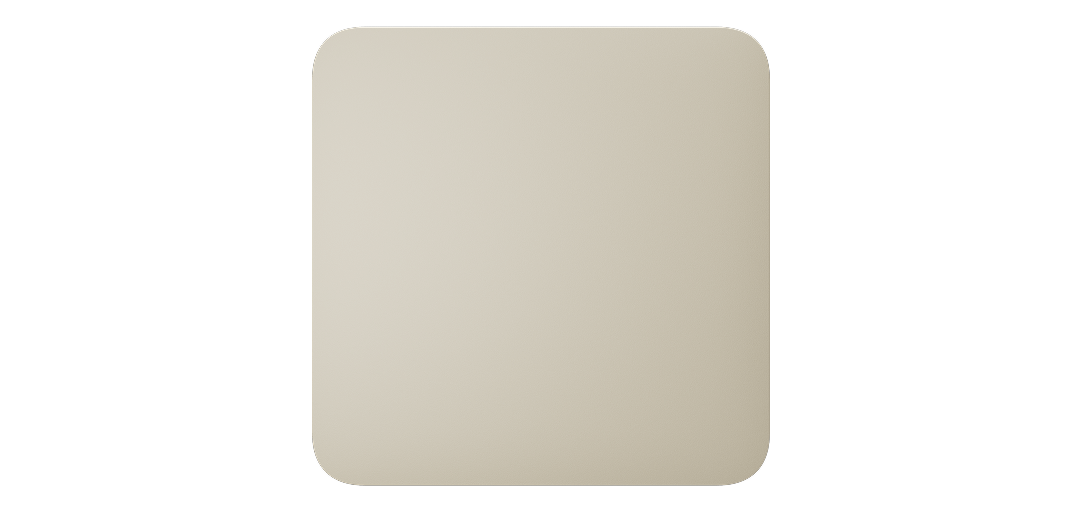

Ivory

RAL 1013

color

Fog

RAL 7047

color

Oyster

RAL 9002

color

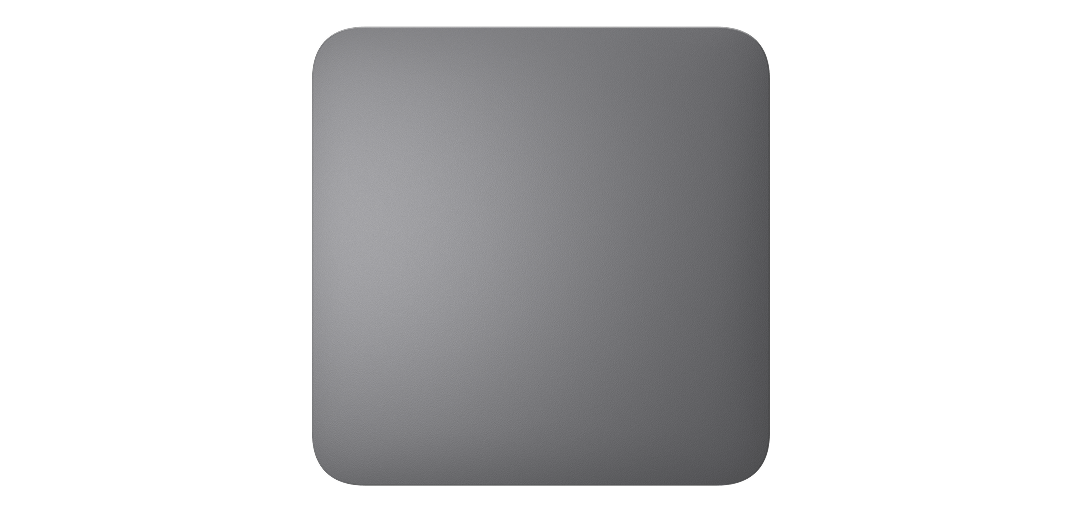

Grey

RAL 7004

color

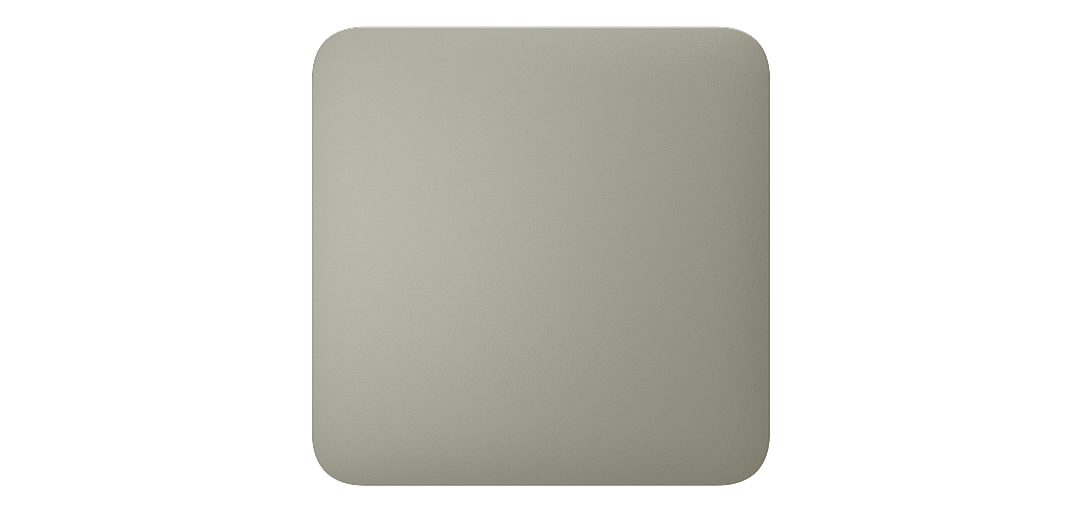

Olive

RAL 7044

color

The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.

Recommendations

The device is designed for indoor use only. A professional electrician should install the device.

Operating parameters

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75% with no condensation

Protection class

IP20

Dimensions

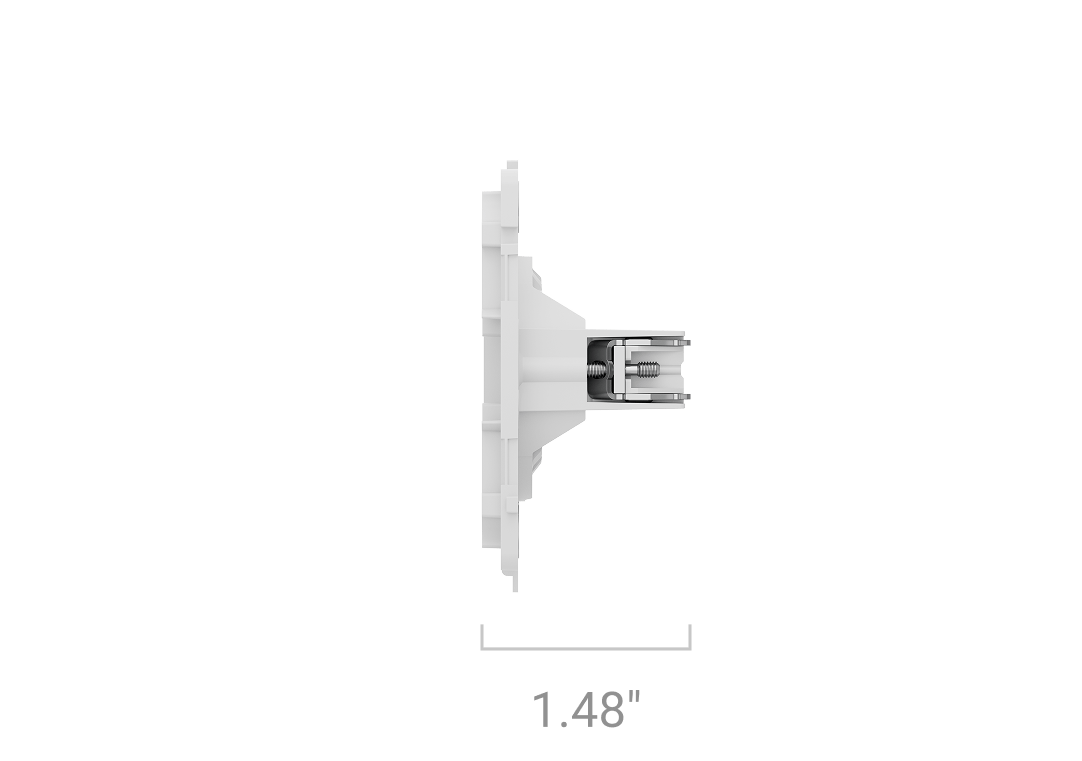

CoverHolder [55]

3.08" × 2.93" × 1.48"

cp-cover-holder
cp-cover-holder

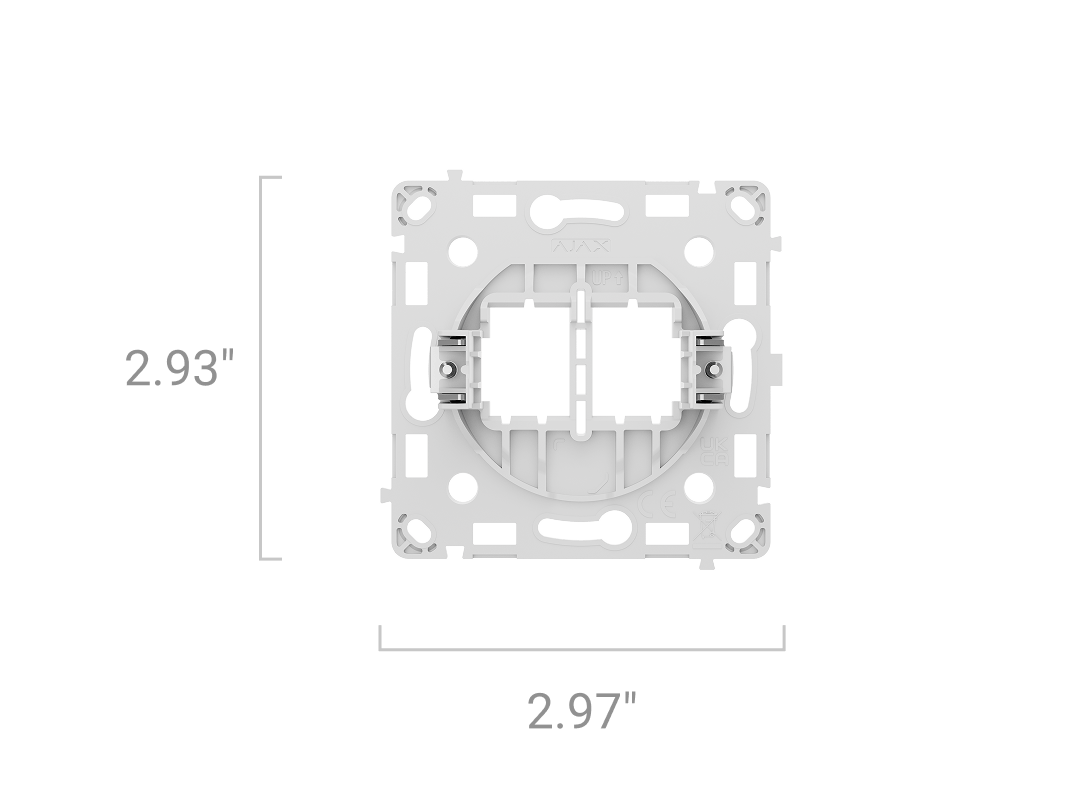

CoverHolder vertical [55]

2.93" × 2.97" × 1.48"

outlet-lan-core
outlet-lan-core

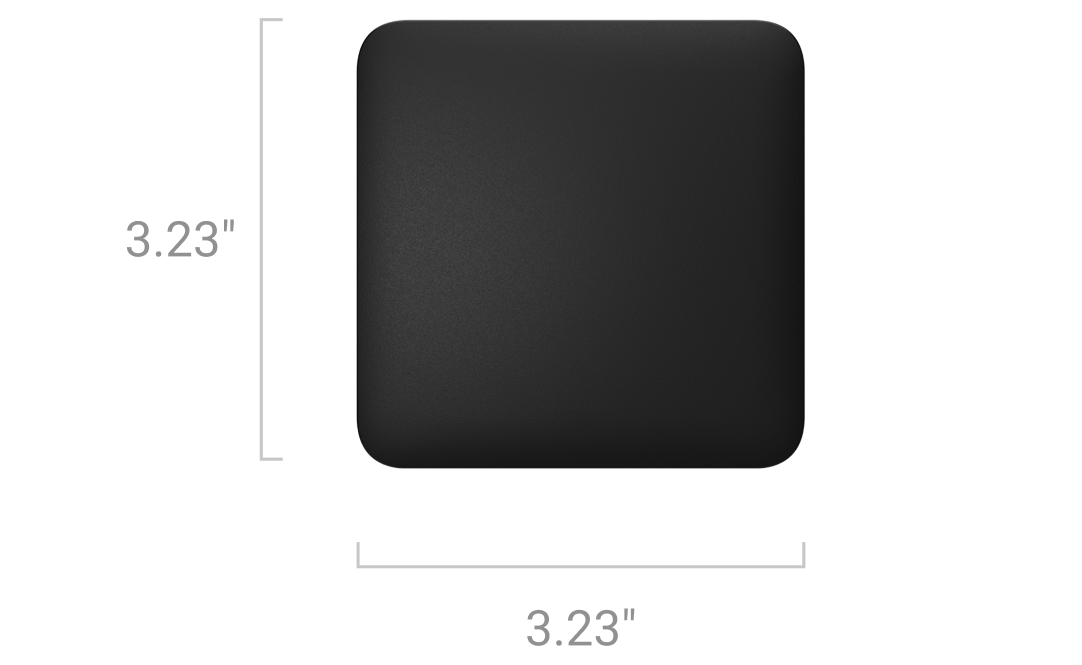

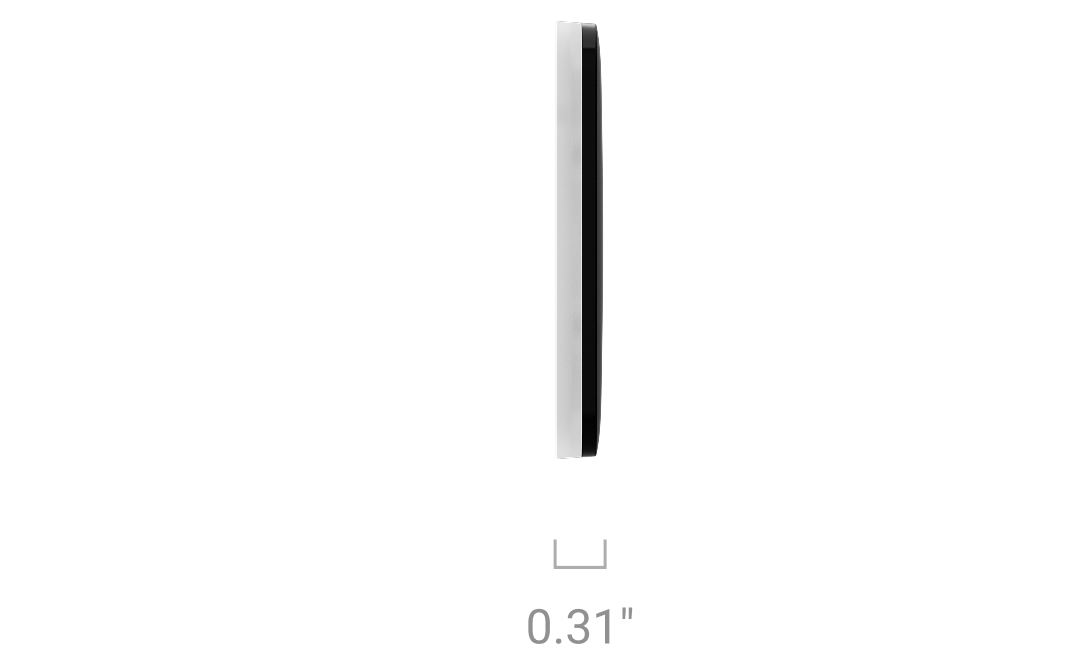

SoloCover (CP)

3.23" × 3.23" × 0.31"

solocover
solocover

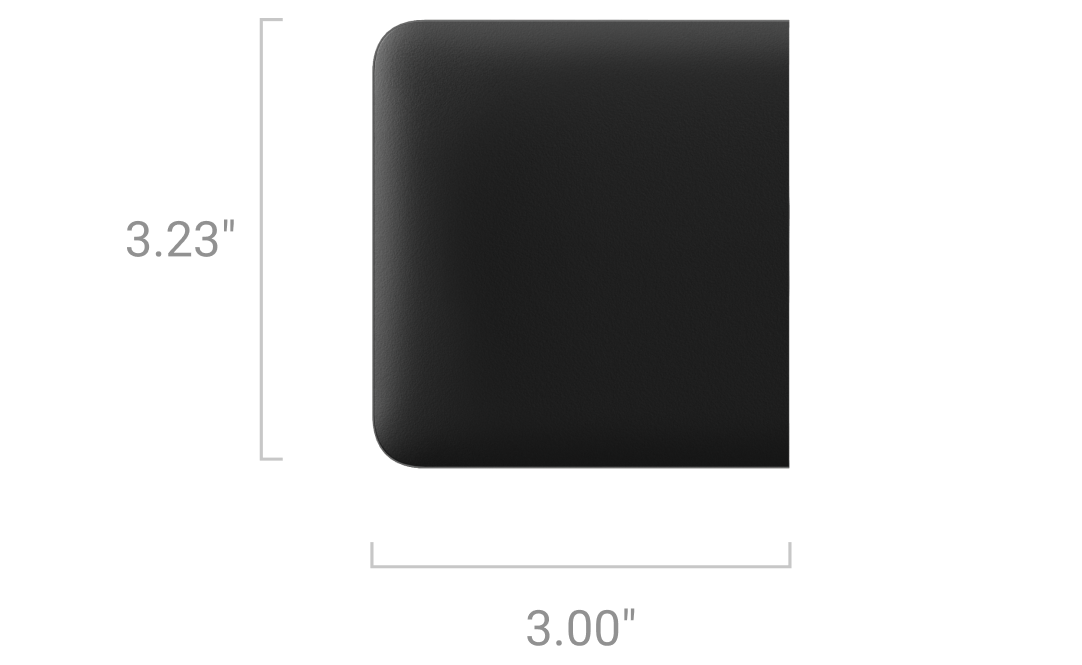

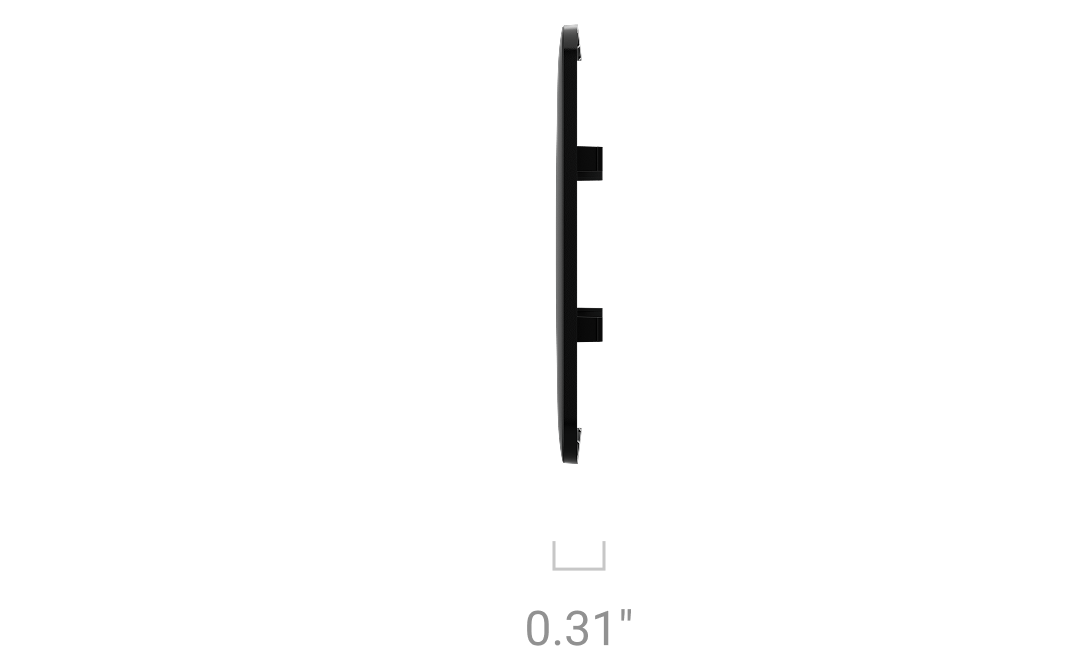

SideCover (CP)

3.23" × 3.00" × 0.31"

sidecover
sidecover

CenterCover (CP)

3.23" × 2.78" × 0.31"

cp-centercover
cp-centercover

Frames

Frame (2 seats) — 3.26" × 6.04" × 0.25"

frame
frame

Frame (3 seats) — 3.26" × 8.84" × 0.25"

frame
frame

Frame (4 seats) — 3.26" × 11.63" × 0.25"

frame
frame

Frame (5 seats) — 3.26" × 14.43" × 0.25"

frame
frame

Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"

frame
frame

Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"

frame
frame

Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"

frame
frame

Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"

frame
frame

Weight

CoverHolder [55]

0.97 oz

CoverHolder vertical [55]

0.97 oz

SoloCover (CP)

0.55 oz

SideCover (CP)

0.47 oz

CenterCover (CP)

0.46 oz

Frames

Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz

Complete set

CoverPlate is a prefabricated device. All parts are purchased separately.

Certification and compliance with standards

CoverPlate

CoverPlate

device
CoverHolder [55]

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
Frame

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
CoverHolder vertical [55]

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
Frame vertical

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
SoloCover (CP)

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
CenterCover (CP)

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
SideCover (CP)

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018


device
SurfaceBox [55]

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Low Voltage Directive (LVD)

Certificate issued by SLG-CPC Testlaboratory Co., Ltd

EN IEC 60670-1:2021+A11:2021

Additional information

Compliance with standards

Learn more

Warranty

24 months

Learn more

User manual
