Curtain Outdoor Mini Jeweller
Wireless dual-technology curtain motion detector for outdoor and indoor use
Device compatibility
CheckCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 5,550 ft
Between the detector and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology for uploading firmware updates.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Data packets reload in case of transmission errors.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio communication range
up to 5,550 ft
Between the detector and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Detection
Sensitive elements
1 × PIR sensor
1 × K-band microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operation frequency: 24 GHz.
Motion detection distance
up to 16.4 ft
When installed at a height of 3.3 ft.

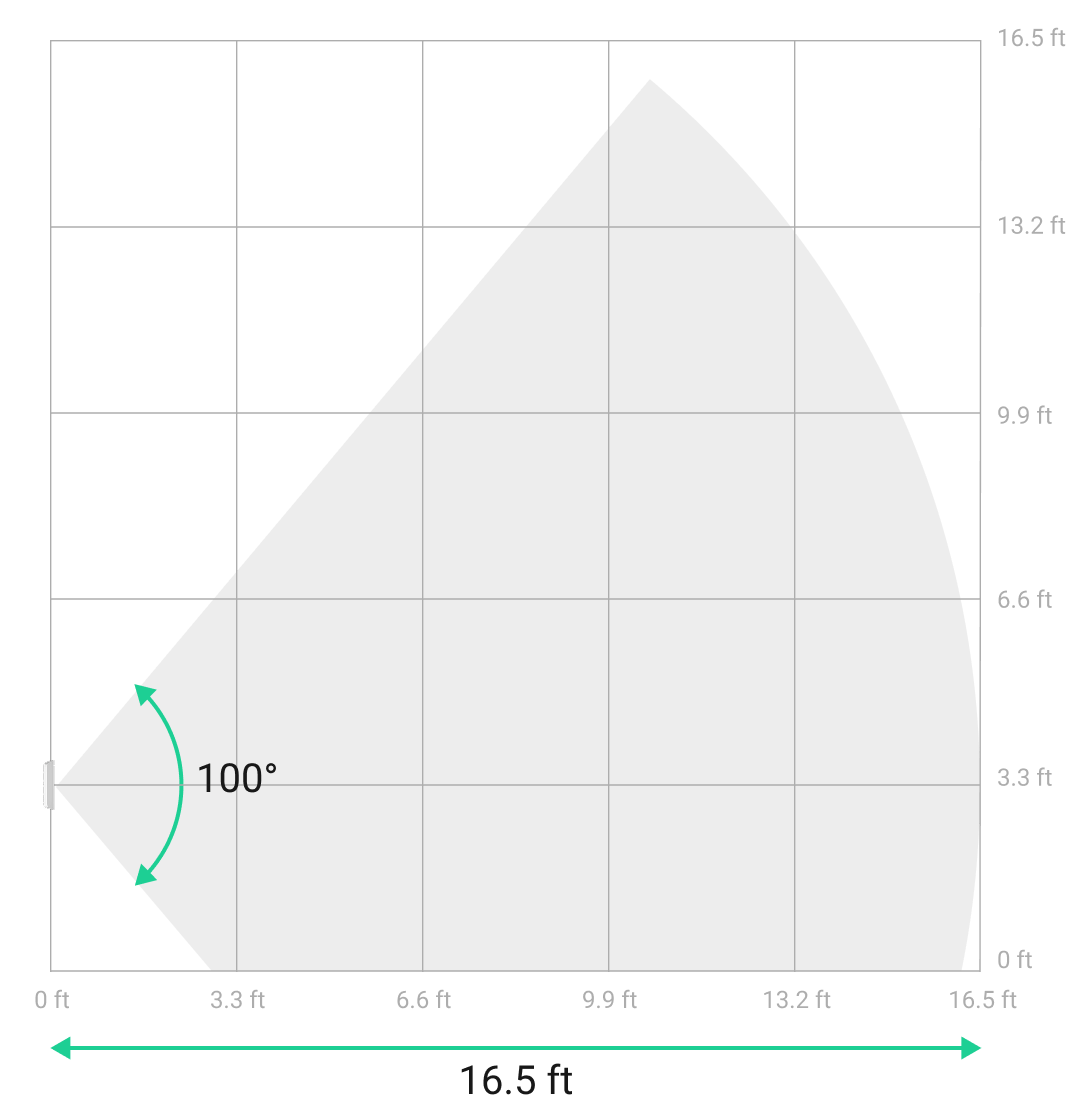

Motion detection angles
horizontal: 15°
vertical: 100°
Motion detection speed
1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in the Ajax apps.

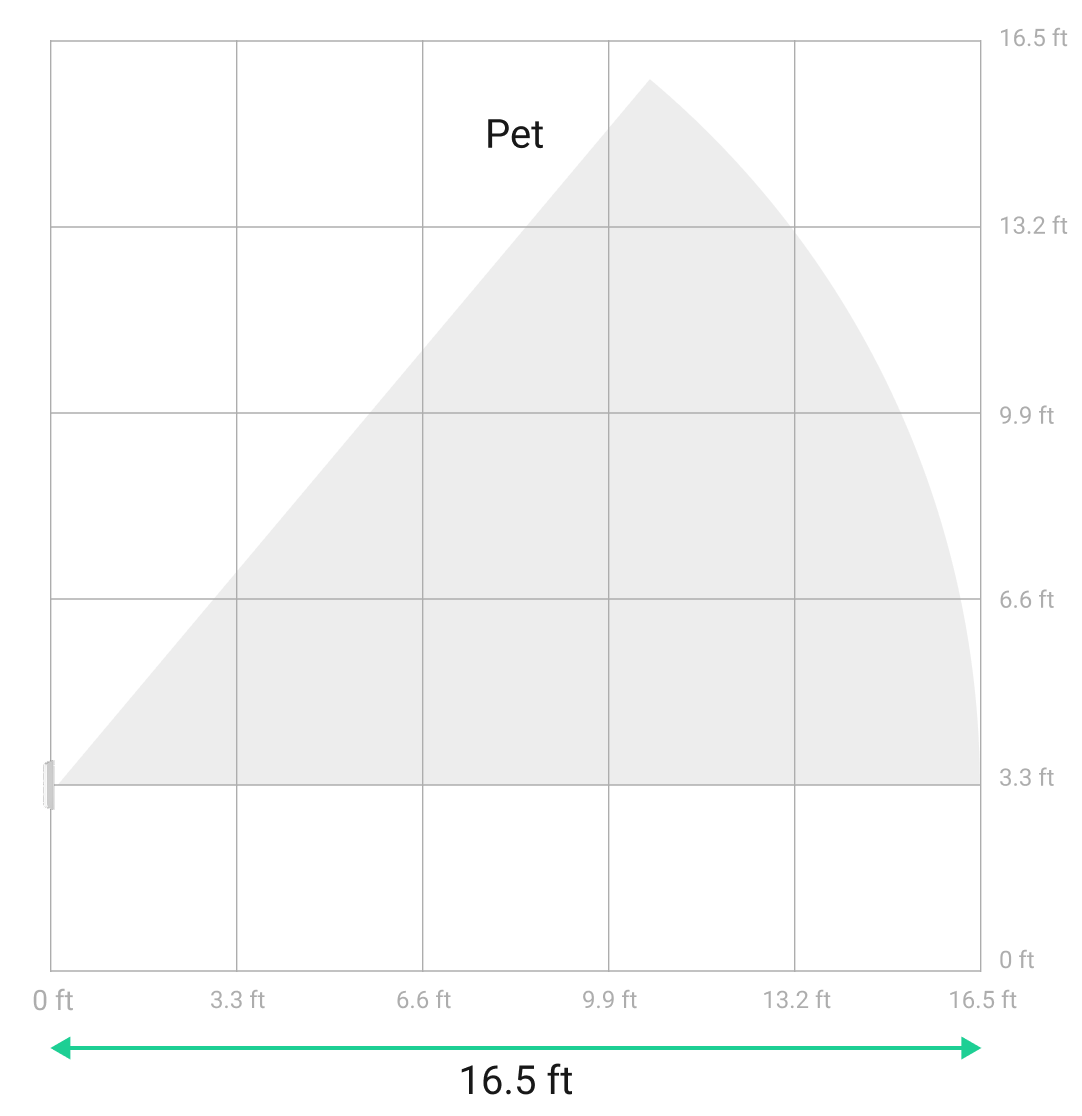

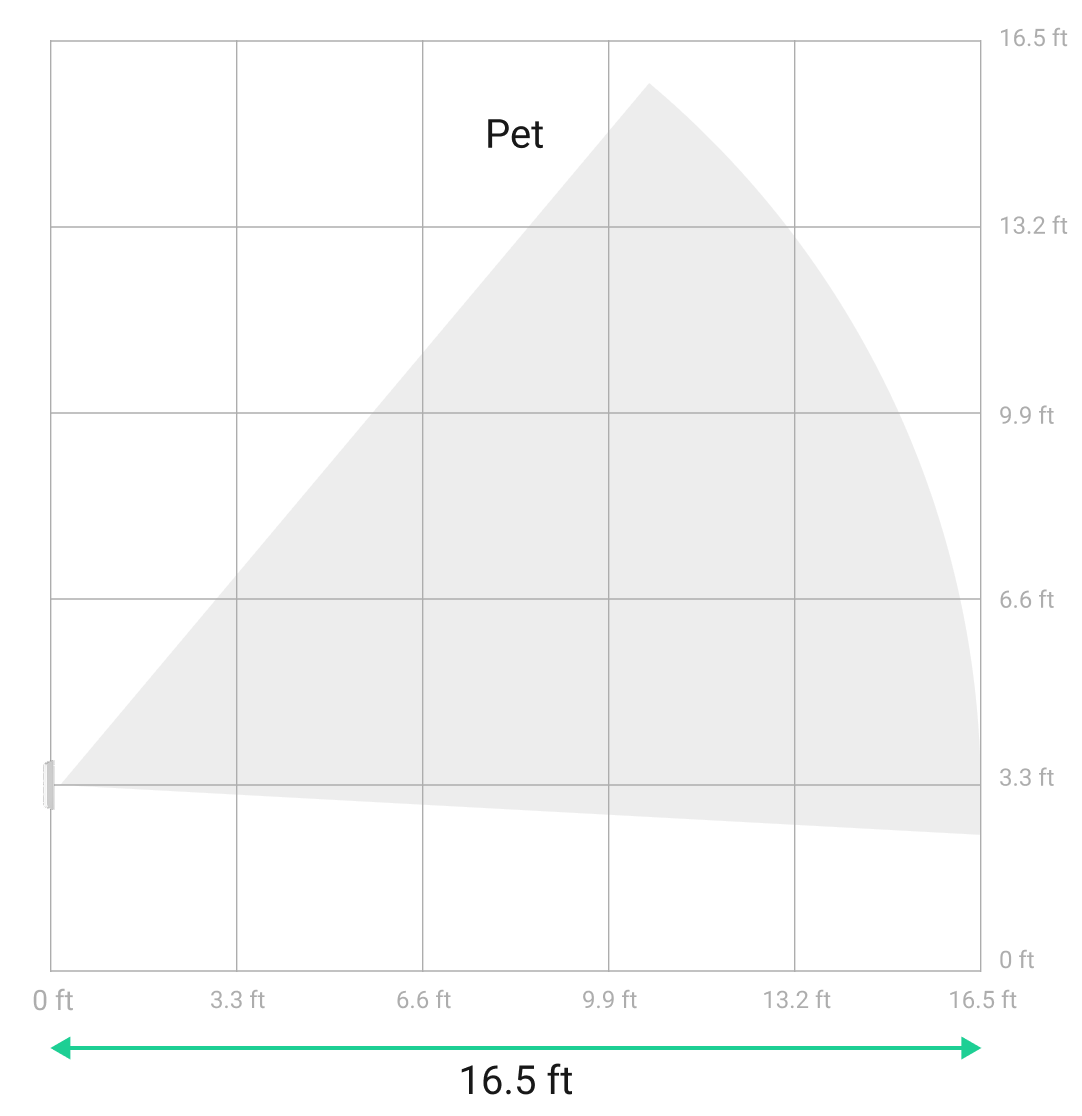

Pet immunity
height: up to 3.3 ft
weight: irrelevant
The detector should be installed at a height of 3.3 feet, and the slider on its enclosure should be set to the Pet position.
False alarm prevention
dual motion detection technology
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from −13 °F to +140 °F
Recommendations

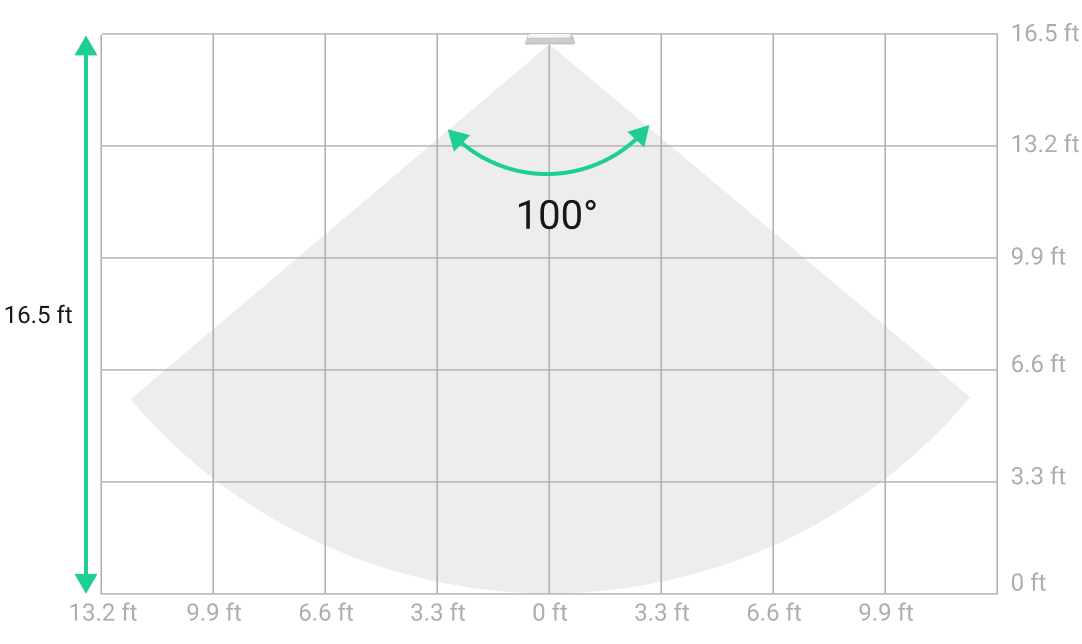

The device's recommended installation height is up to 16.4 ft on the ceiling and 3.3 ft on the side, depending on the protected area size.
The device is designed for indoor and outdoor use.
Sabotage protection
Tamper alarm
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Accelerometer
alarm when the detector is moved
Must be activated when the detector is installed on third-party brackets.
Holding screw
To secure the detector on SmartBracket.
Communication loss detection
after 36 s
Detection time depends on Jeweller or Jeweller/Fibra settings.
Power supply
Battery
2 × CR123A
Pre-installed.
Type
type C
Calculated battery life
up to 3 years
Detector’s operating voltage range
4.1−6.2 V⎓
Detector’s nominal operating voltage
6 V⎓
Quiescent detector’s current consumption at nominal voltage
30 μA
Maximum detector’s current consumption at nominal voltage
600 mA
Full battery capacity
1,600 mAh
Low battery voltage
4.48 V⎓
Low battery recovery voltage
5.14 V⎓
End-of-life battery voltage
4.1 V⎓
Device is switched off.
End-of-life battery capacity
170 mAh
Manufacturer
Huiderui or Panasonic
Enclosure
Dimensions of detector
5.71″ × 1.26″ × 1.69″
Dimensions of detector with angle mount
5.71″ × 1.73″ × 2.13″
Weight of detector
4.59 oz
Weight of angle mount
0.7 oz
Operating temperature range
from –13 °F to +140 °F
Operating humidity
up to 95%
Protection class
IP55
Color
White
Complete set
Curtain Outdoor Mini Jeweller
SmartBracket mounting panel
2 × CR123A battery (pre-installed)
Angle mount
Installation kit
Quick start guide
