EN54 FireProtect (Sounder) Jeweller

Wireless addressable fire alarm sounder

EN54 FireProtect (Sounder) Jeweller

Device compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 5,550 ft

Between the device and control and indicating equipment (CIE) or a range extender in an open space.

Encrypted communication

All stored and transmitted data is protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Alarm annunciation

Alarm type

acoustic

Sound volume

up to 100 dB at a distance of 3.3 ft

Adjusted by a PRO or user with admin rights in an Ajax app.

Sound pattern

32 tones

Sound synchronization

An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE.

Alarm annunciation test

An audible alarm check to ensure the fire alarm is clearly audible on the premises.

Installation recommendations

Follow your local fire safety regulations when selecting the device's installation site.

The device is designed for outdoor and indoor use.

Sabotage protection

Tamper button

Fault notification when an attempt is made to remove the device from the mounting panel.

Lock for SmartBracket

to secure the device on the SmartBracket mounting panel

When locked, the lock secures the device and prevents it from being removed without a special tool.

Lock for SmartBracket

Protection against spoofing

device authentication

Connection loss detection

after 36 s

Detection time depends on Jeweller settings.

Power supply

Battery

4 × CR123A

Pre-installed.

Tool-free battery replacement

To replace the batteries, turn the battery compartment cover counterclockwise.

tool-free-battery-replacement

Reverse polarity protection

Prevents device damage if the batteries are put in incorrectly.

Recommended battery type

Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂

Calculated battery life

up to 5 years

Enclosure

Dimensions

5.71" × 5.71" × 2.00"

Weight

1.162 lb

Operating temperature range

from 14 °F to 122 °F

Operating humidity

up to 80%

Protection class

IP54

Flammability rating

UL 94 V-0

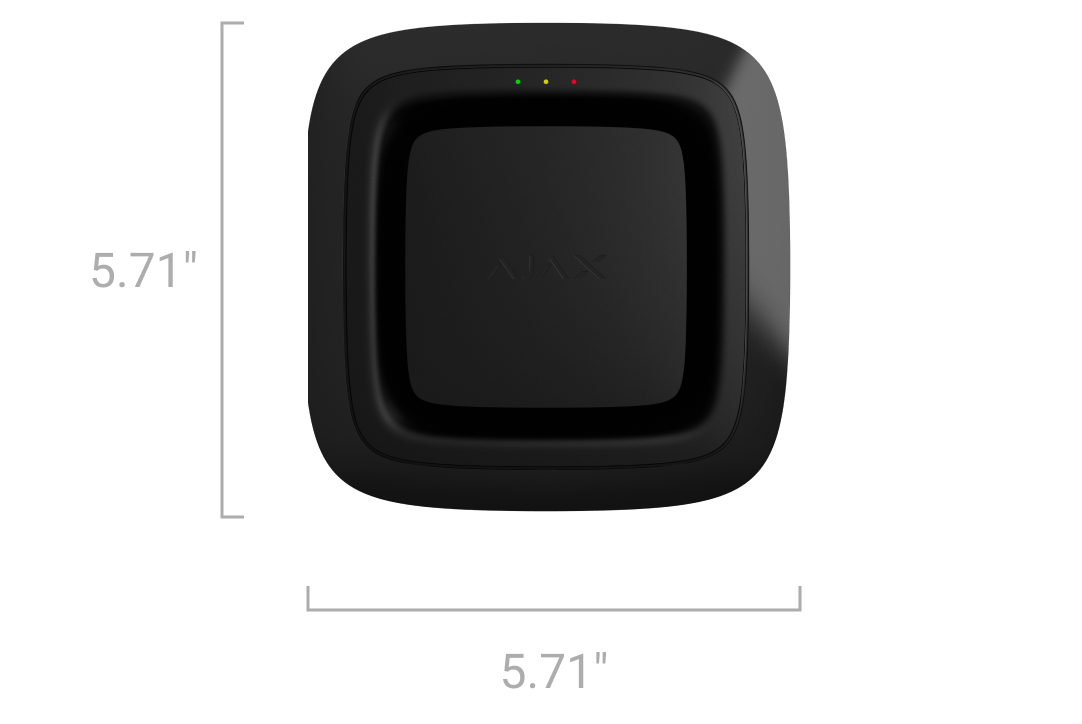

Front

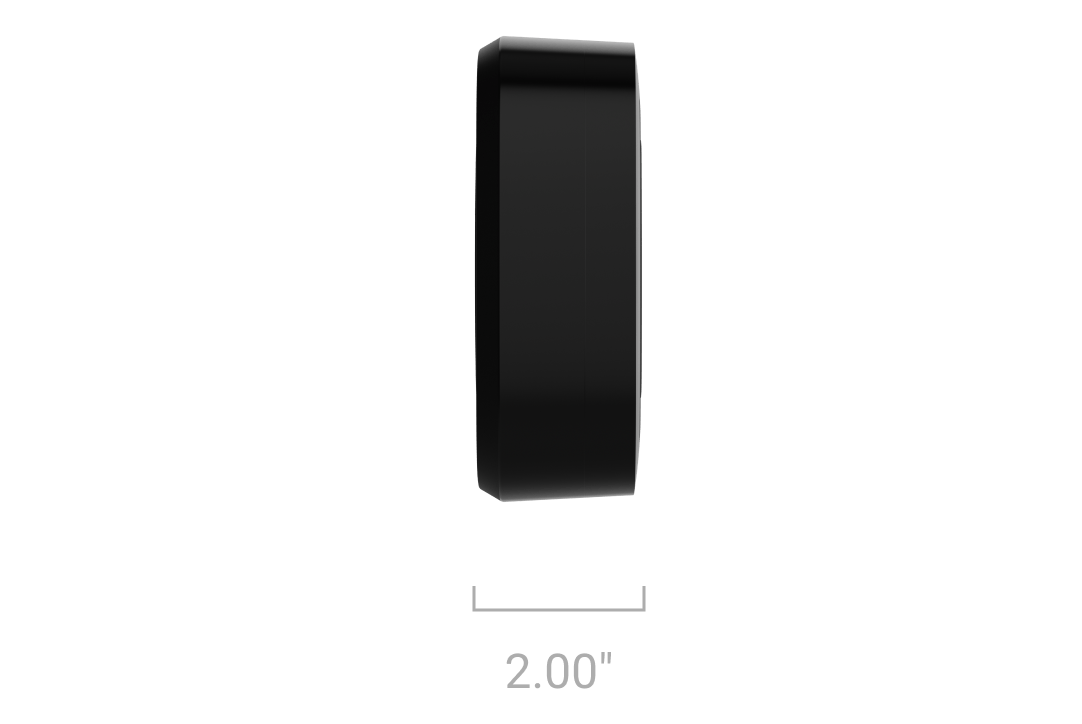

Side

Color

Black

Black

White

White

Red

Red

Complete set

EN54 FireProtect (Sounder) Jeweller

4 × CR123A battery (pre-installed)

SmartBracket mounting panel

Installation kit

Quick start guide

Revision

1

Certification and compliance with standards

EN54 FireProtect (Sounder) Jeweller

EN54 FireProtect (Sounder) Jeweller

Radio Equipment Directive (RED)

Certificate issued by TIMCO Engineering, Inc.

ETSI EN 300 220-1 V3.1.1

ETSI EN 300 220-2 V3.3.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

  • EN IEC 63000:2018

Low Voltage Directive (LVD)

Certificate issued by TIMCO Engineering, Inc.

EN 62479:2010

EN IEC 62368-1:2024+A11:2024

Electromagnetic Compatibility Directive (EMC)

Certificate issued by TIMCO Engineering, Inc.

ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-3 V2.3.2

PSTI UK

  1. Schedule 1

Construction Products Regulation (CPR)

Certificate issued by Dedal Attestation & Certification LTD

EN 54-3:2001

EN 54-3:2001/A1:2002

EN 54-3:2001/A2:2006

EN 54-25:2008

EN 54-25:2008/AC:2012

Additional information

Compliance with standards

Learn more

Warranty

24 months
