EN54 Internal Battery (24h)
Rechargeable Li-ion battery (7.4 V/5 Ah) to install into EN54 Fire Hub Jeweller or EN54 Fire ReX Jeweller
Device compatibility
CheckBattery type
Battery
4 × 18650
Rechargeable Li-ion battery.
Nominal voltage
7.4 V⎓
Capacity
5 Ah
Power supply
Maximum load current
3.2 A
End-of-life battery voltage
6 V⎓
Recommendations
Use the battery with compatible devices only.
The battery is designed for indoor use only.
Enclosure

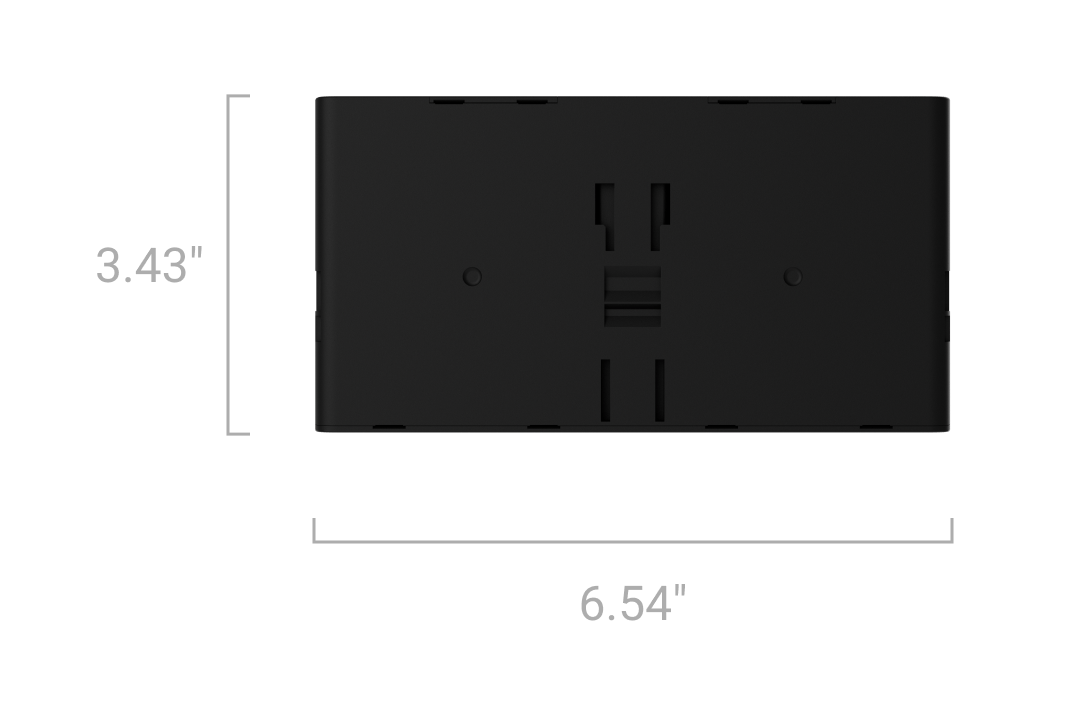

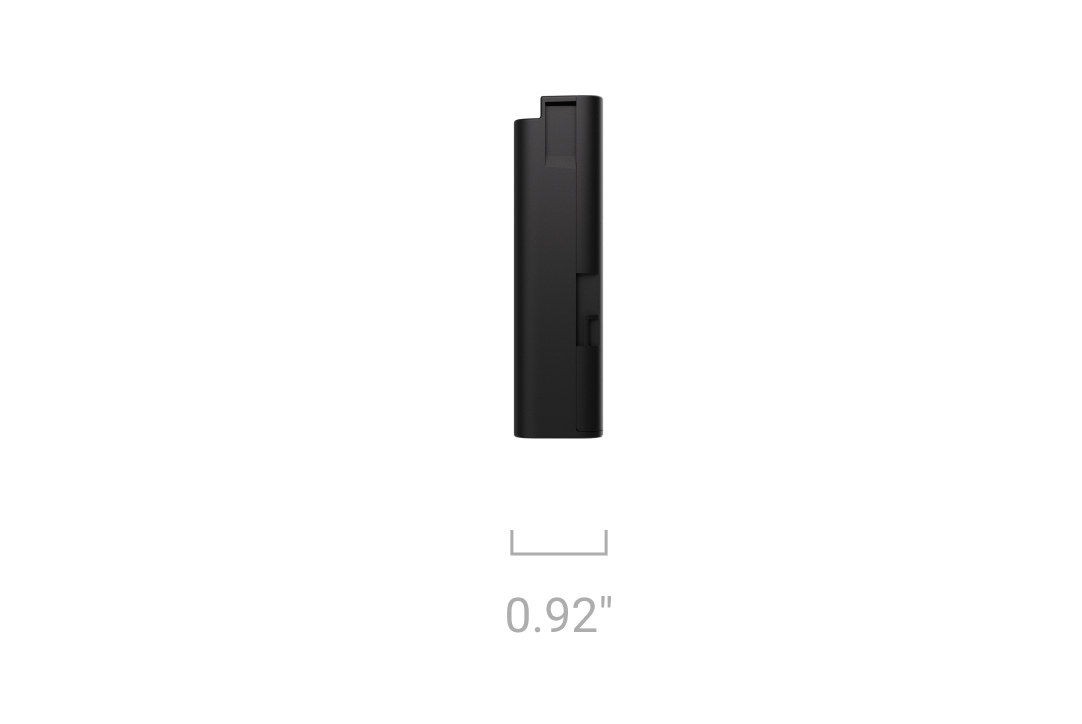

Dimensions
6.54" × 3.43" × 0.92"
Weight
9.52 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% non-condensing
Protection class
IP20
Color
Black
White
Complete set
EN54 Internal Battery (24h)
Revision
1
Certification and compliance with standards
EN54 Internal Battery (24h)
EN54 Internal Battery (24h)
Electromagnetic Compatibility Directive (EMC)
Certificate issued by MiCOM Labs
- EN 55032:2015+A11:2020
- EN IEC 61000-6-3:2021
- EN 55035:2017+A11:2020
- EN IEC 61000-6-1:2019
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Safety requirements for secondary lithium-ion batteries
Test report issued by UkrTEST of SE “Ukrmetrteststandart”
IEC 62133-2:2017
Battery & Waste Compliance
Test report issued by Shenzhen NTEK Testing Technology Co.
Regulation (EU) 2023/1542
Conformity with EU requirements on batteries and waste management
