United StatesTech specs
Internal battery RB (6.4V/36Ah)
Pack of 36 LiFePO4 rechargeable batteries to install into Hub BP Jeweller
Device compatibility
CheckBattery type
Batteries
36 × IFR18650
Rechargeable lithium iron phosphate (LiFePO4) battery cells.
Battery configuration
2S18P
Nominal voltage
6.4 V⎓
Capacity
36 Ah
Power supply
Maximum load current
3,000 mA
End-of-life battery voltage
4.5 V⎓
Charge and discharge conditions
Charge temperature range
from 32 °F to 113 °F
Charge relative humidity
60 ±25%
Discharge temperature range
from −13 °F to 149 °F
Discharge relative humidity
60 ±25%
Storage conditions
Storage temperature range
from −4 °F to 113 °F
Storage humidity
60 ±25%
Transportation and shipment
Shipment voltage
6.0–6.4 V⎓
Transportation requirements
For air transportation, lithium batteries must be charged to no more than 30% of their rated capacity. The shipment voltage complies with this requirement.
For other types of transportation, the battery must be transported in accordance with applicable regulations and carrier requirements.
Cautions
Do not expose the battery to open flames, sparks, or any other ignition source.
Do not short the power terminals.
Do not disassemble or deform the battery.
Avoid excessive mechanical impact or vibration.
Use the battery with compatible devices only.
Hub BP Jeweller does not charge this battery.
The battery must be installed fully charged.
Enclosure

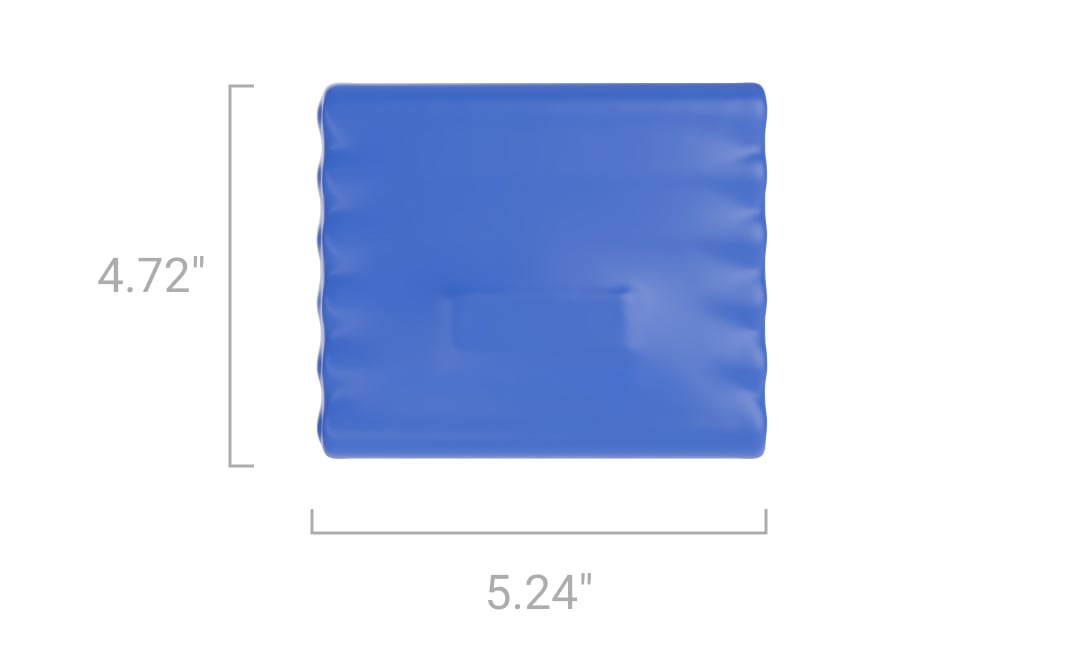

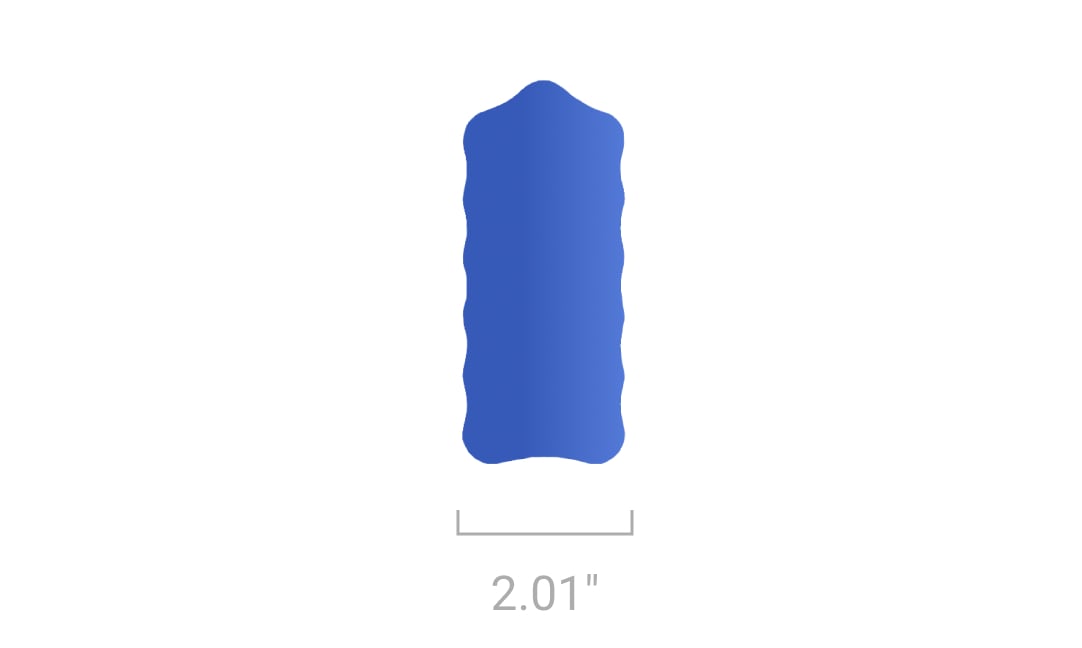

Dimensions
5.24″ × 4.72″ × 2.01″
Weight
3.34 lb
Battery connector type
Molex 2139-2 or similar
Operating temperature range
from −13 °F to 149 °F
Operating relative humidity
from 35% to 85%
Complete set
Internal battery RB (6.4V/36Ah)
Cable adapter for charging the battery
