LightSwitch (2-gang/2-way) Jeweller

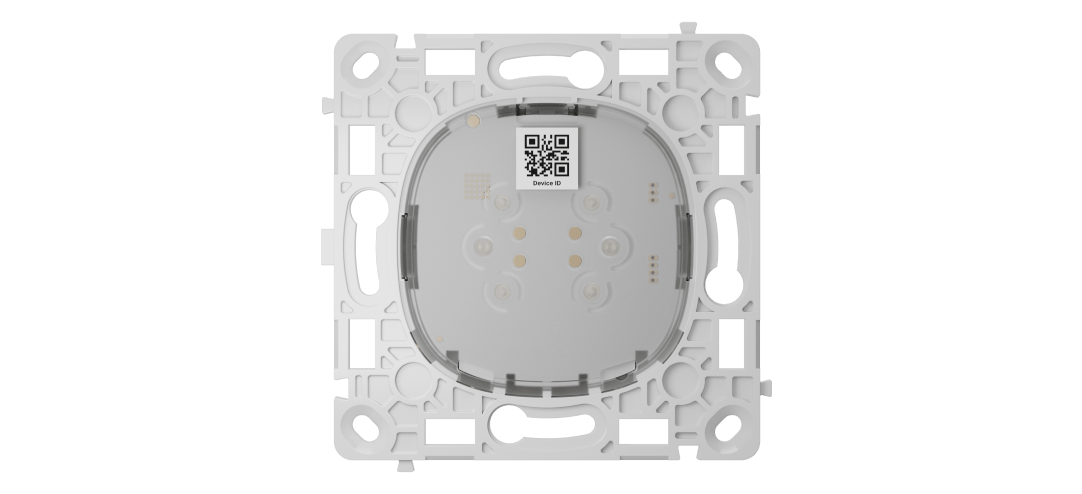

Relay

Controls the power of a lighting device.

LightCore (2-gang/2-way) Jeweller

LightCore (2-gang/2-way) vertical Jeweller

Touch-sensitive panels

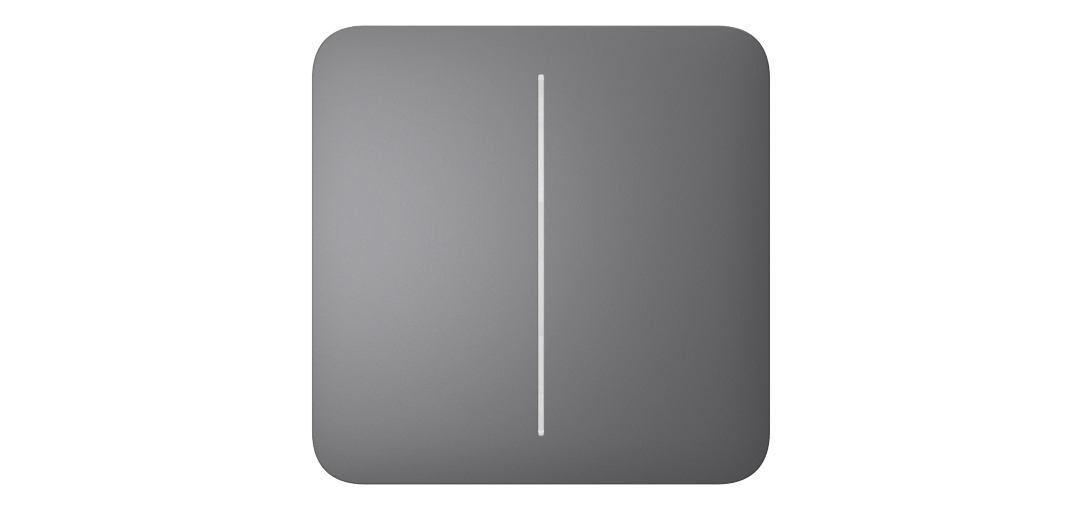

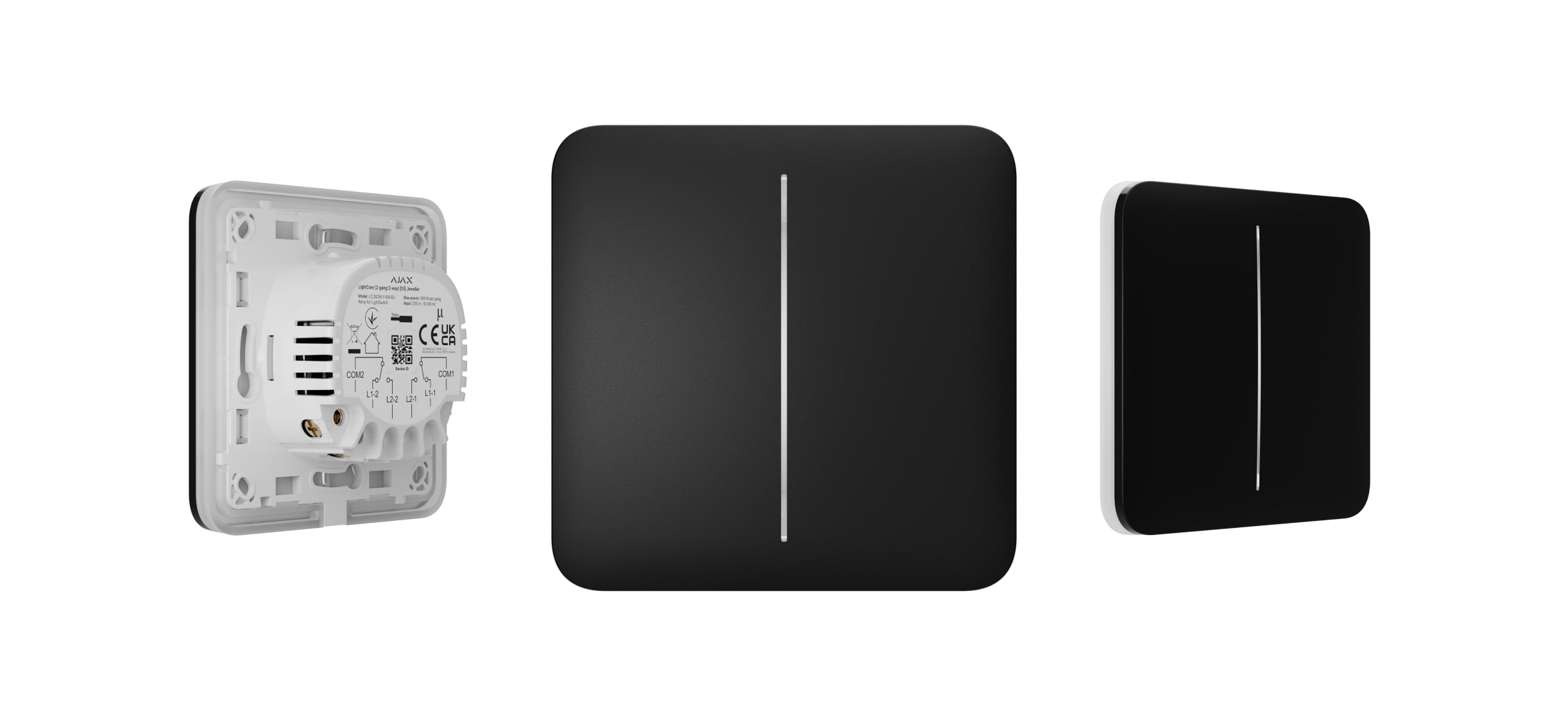

SoloButton (2-gang)

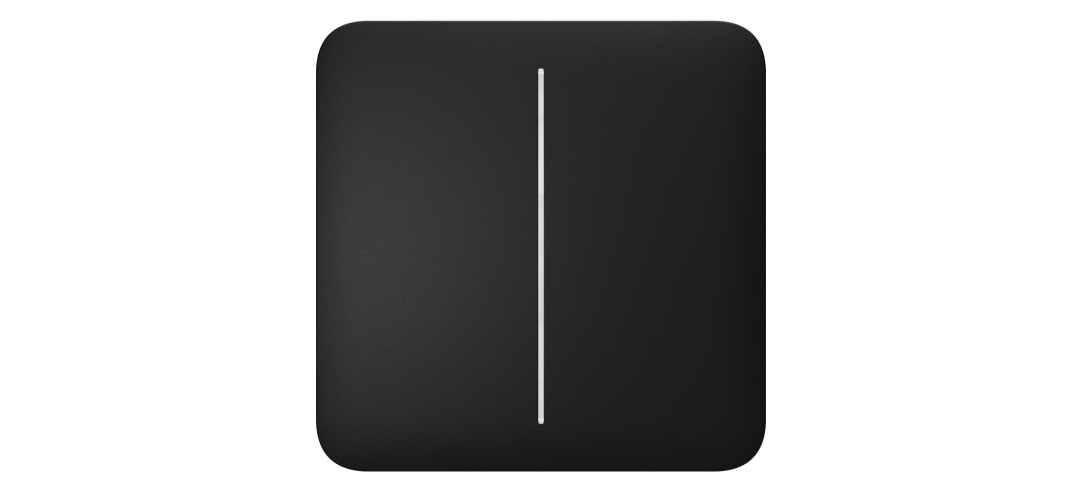

It is used when the switch is installed as a separate device. SoloButton consists of the front panel and the frame, coming as one component.

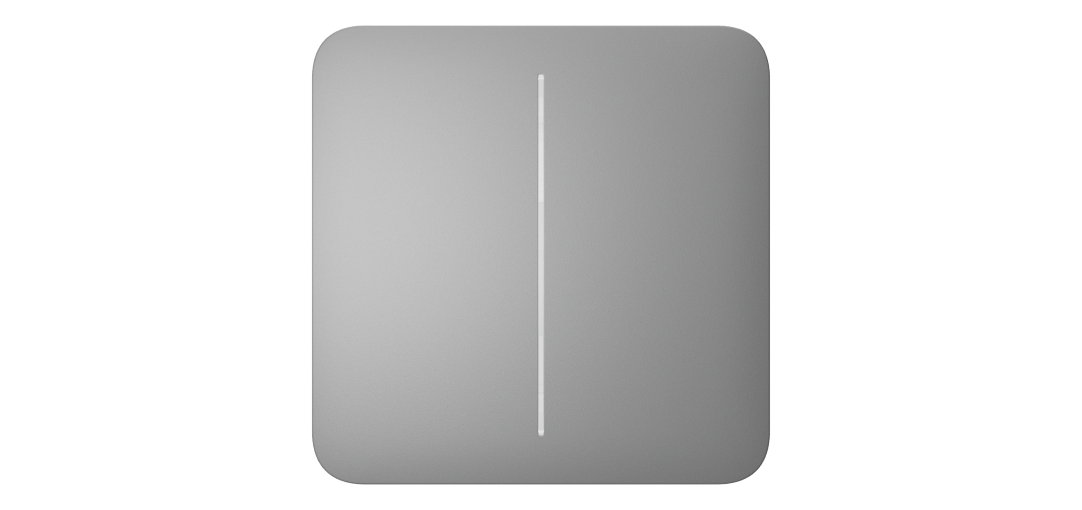

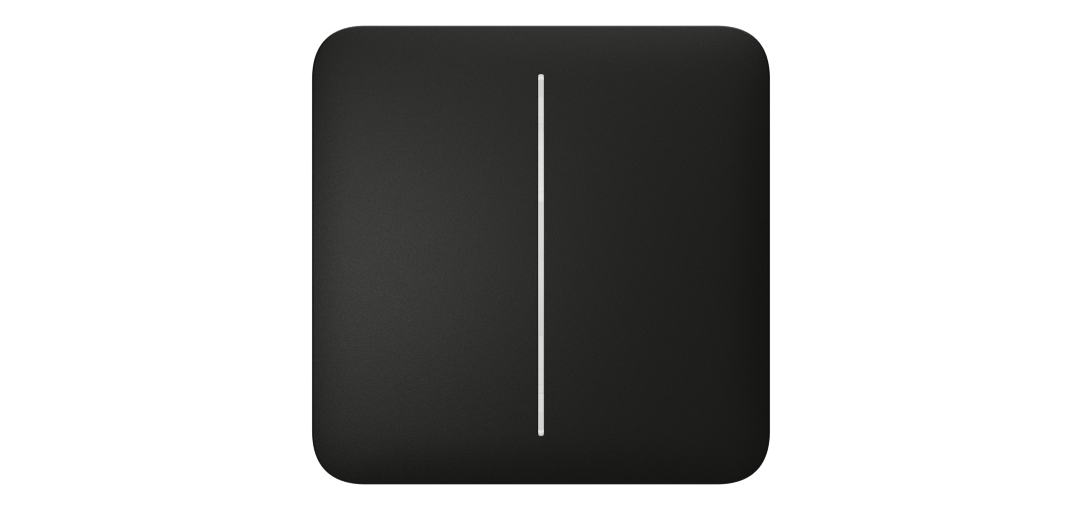

CenterButton (2-gang)

It is used when the switch is installed between the device set.

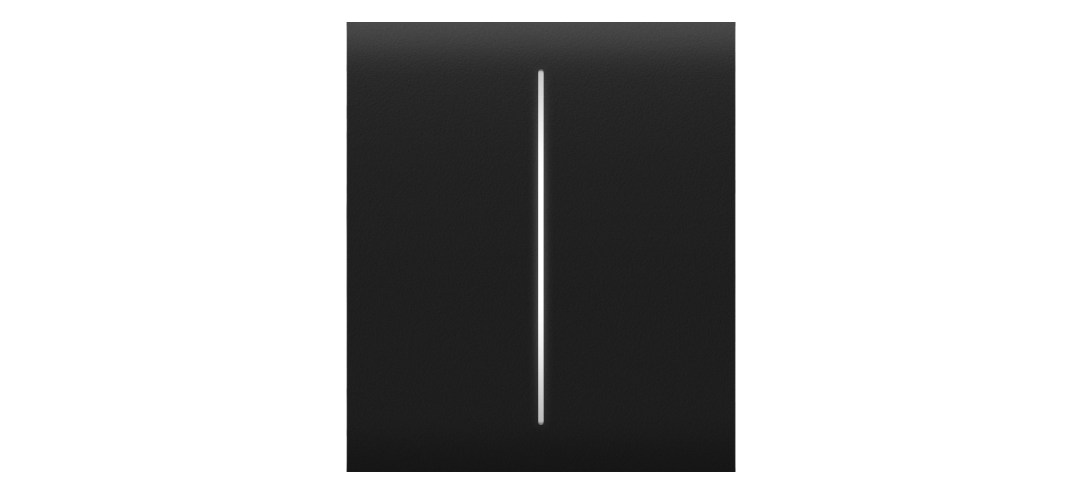

CenterButton (2-gang) vertical

It is used when the vertical switch is installed between the device set.

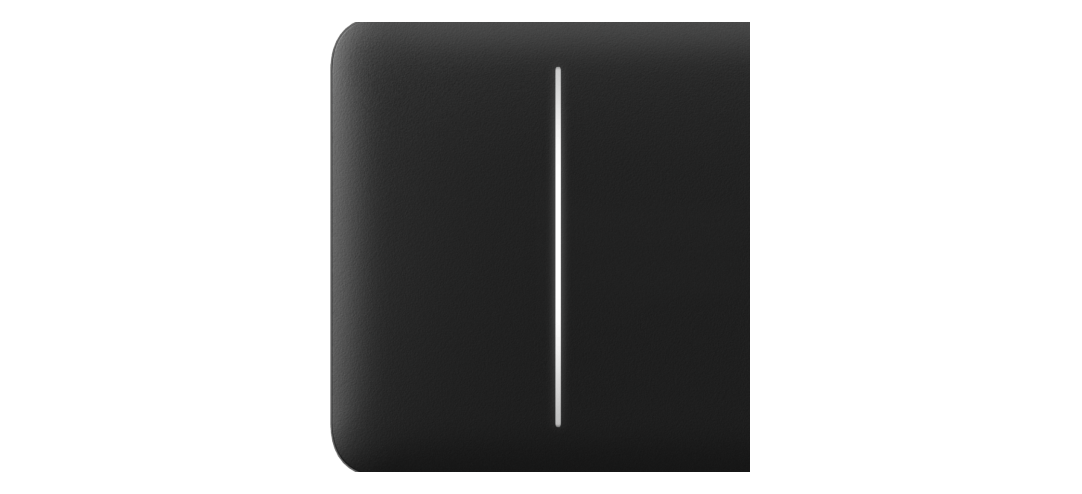

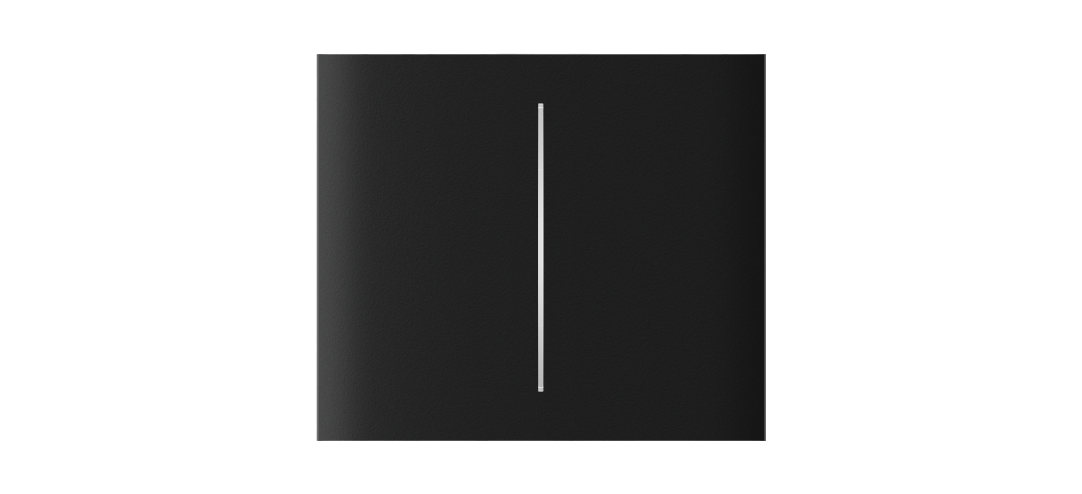

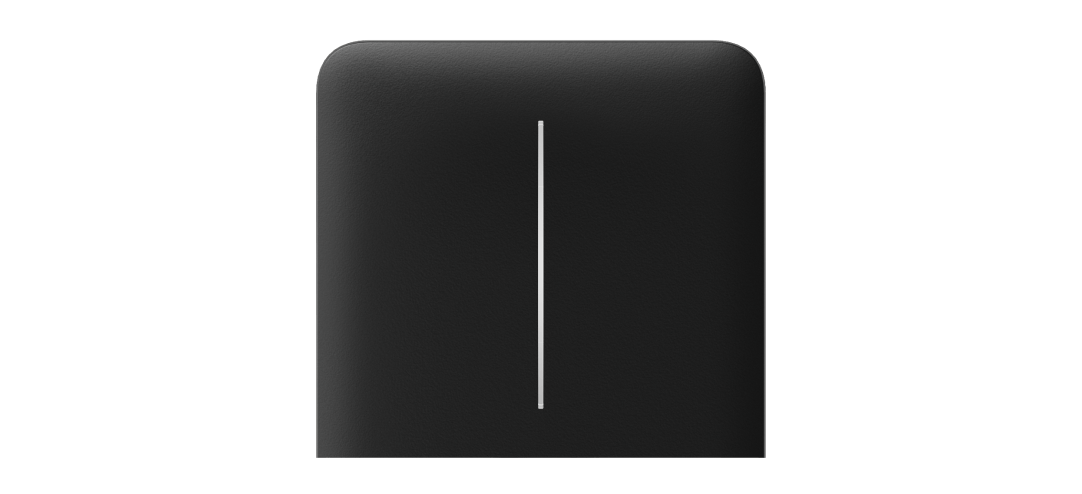

SideButton (2-gang)

It is used when the switch is installed on the right or left of the device set.

SideButton (2-gang) vertical

It is used when the vertical switch is installed on the top or bottom of the device set.

Frames

Frames for two, three, four, and five Ajax switches and outlets in any combination¹.

Frame (2 seats)

Frame (3 seats)

Frame (4 seats)

Frame (5 seats)

Frame (2 seats) vertical

Frame (3 seats) vertical

Frame (4 seats) vertical

Frame (5 seats) vertical

1 — Combinations with smart outlets are available only in horizontal orientation.

Single switch

LightSwitch (2-gang/2-way) Jeweller is installed as a separate device.

Combined switch

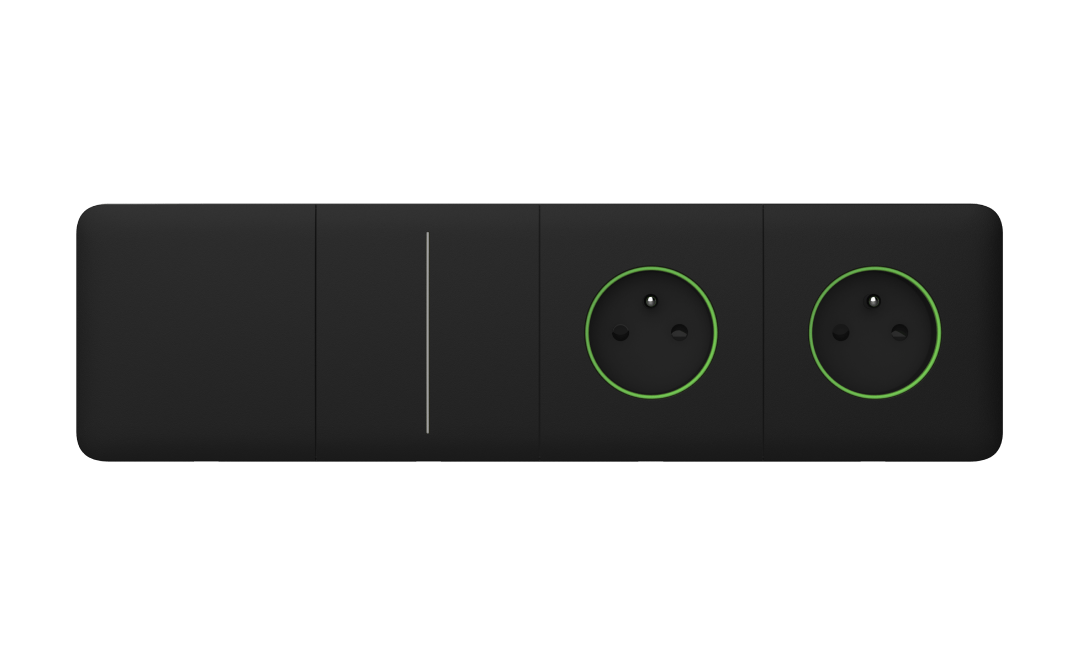

LightSwitch (2-gang/2-way) Jeweller is combined as a set with Ajax smart switches and/or Outlet Jeweller devices and installed into Frame side by side.

Black

RAL 9005

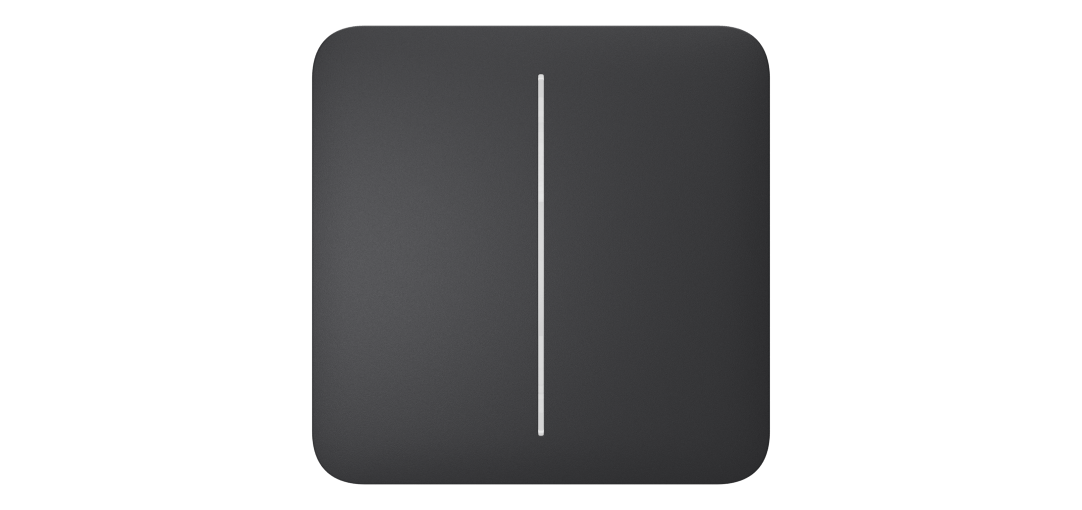

Graphite

RAL 7024

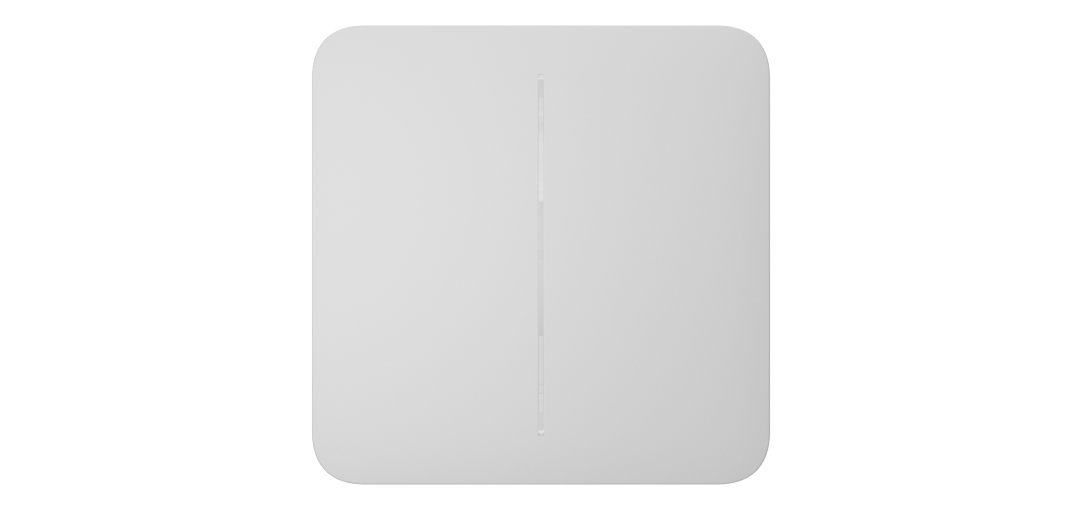

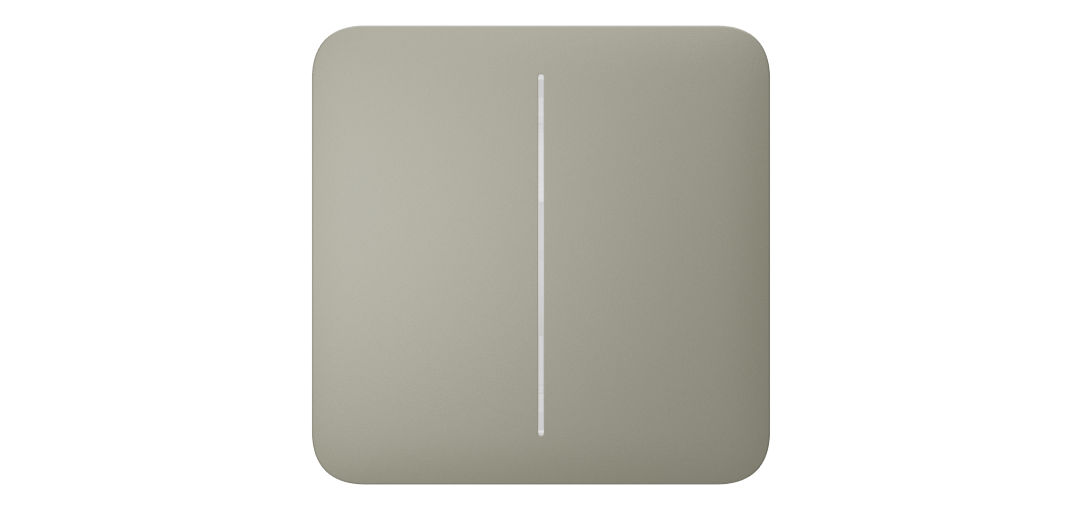

White

RAL 9003

Ivory

RAL 1013

Fog

RAL 7047

Oyster

RAL 9002

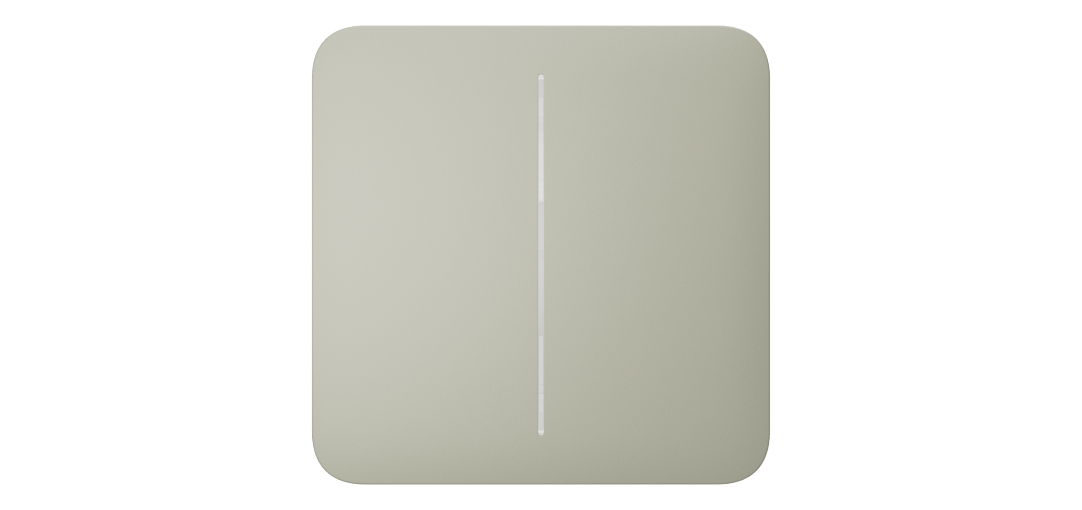

Grey

RAL 7004

Olive

RAL 7044

The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration via Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio communication range

up to 3,600 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted radio communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to update the firmware.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Data packages reload in case of transmission errors.
• Data packages delivery check.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Radio communication range

up to 3,600 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Automation scenarios

• security mode change reactions
• scheduled actions
• alarm reactions
• temperature scenarios
• humidity scenarios²
• CO₂ concentration scenarios²
• by pressing another LightSwitch/Button

2 — Scenarios by humidity and CO₂ concentrations are available when LifeQuality Jeweller is added to the system.

Operation without a neutral wire

LightSwitch only needs a live wire to operate.

Power of switched device

from 5 to 300 W per segment

Contactless touch-sensitive panel

LightSwitch is activated when a hand gets as close as 15 mm from the panel.

Night backlight

Optional, can be turned off in the Ajax app device settings.

Protection against incompatible devices

Triggers if lighting devices have insufficient power (up to 5 W). If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. For low-power lighting devices, the kit includes a capacitor.

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply voltage

230 V~, 50/60 Hz

The device does not need a neutral wire to operate.

Average consumption

up to 200 mW

Maximum power

300 W per segment (600 W in total)

For LightCore (2-gang/2-way) Jeweller and LightCore (2-gang/2-way) vertical Jeweller.

Temperature protection

more than 140 °F

If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps.

Operating temperature range

from 14 °F to 104 °F

Operating humidity

Up to 75% with no condensation

Protection class

IP20

Form factor of the switch

European type (55)

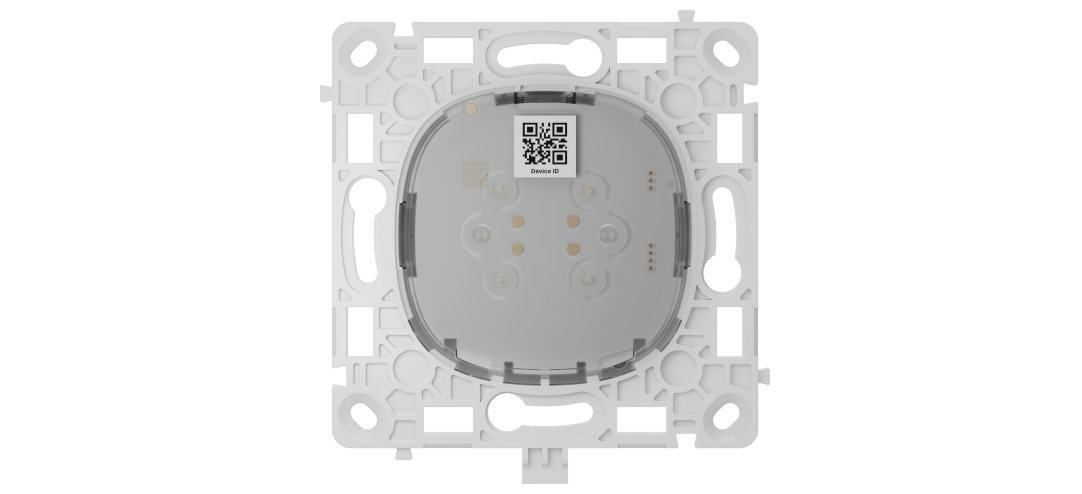

Relay

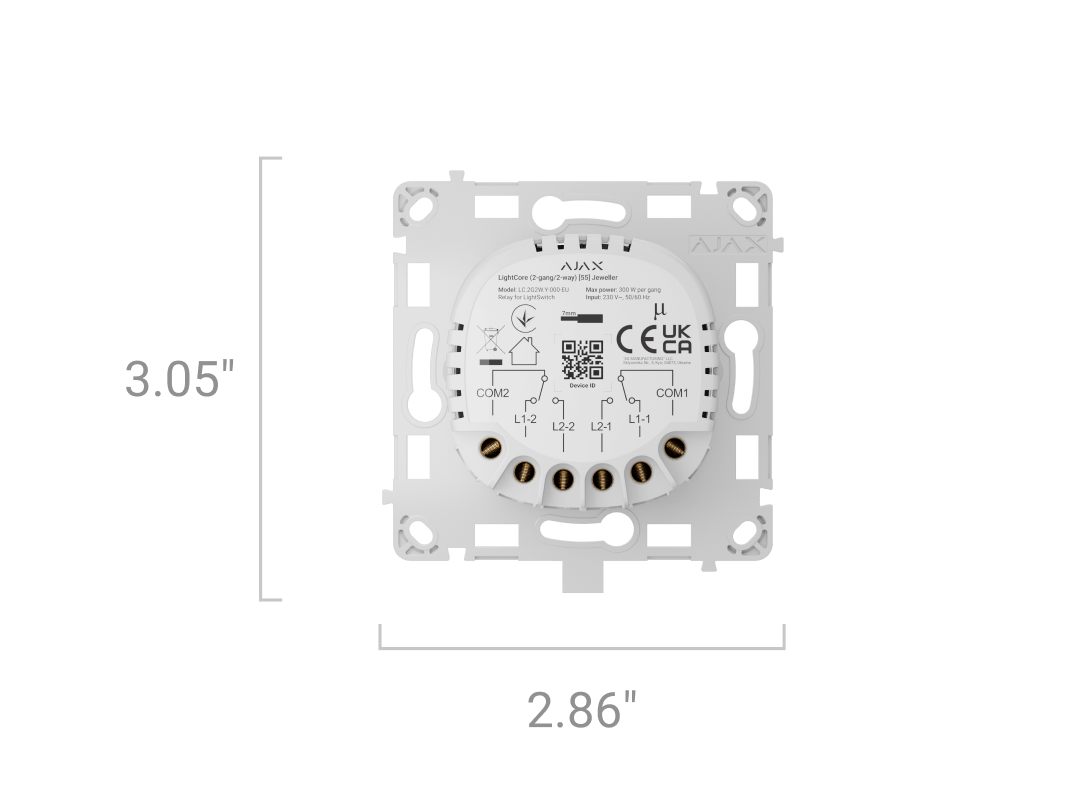

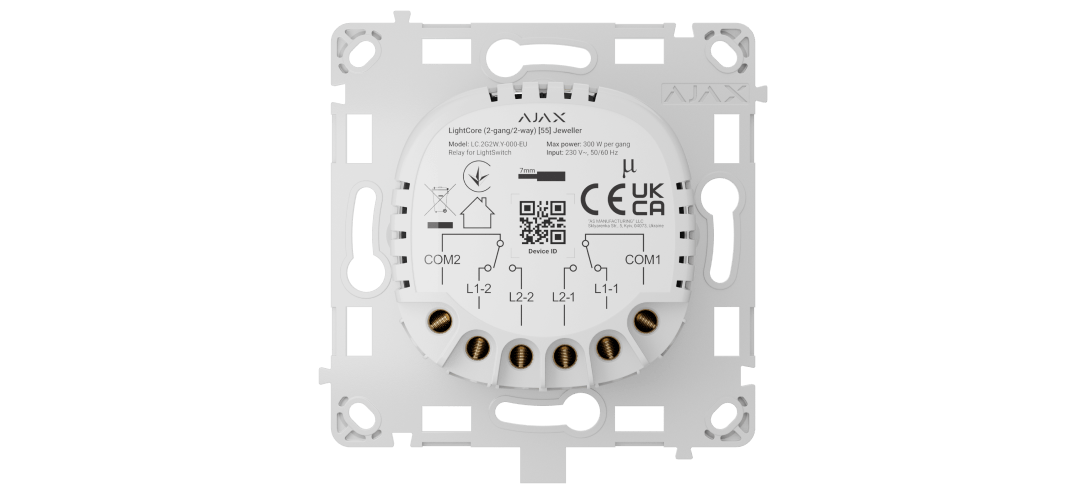

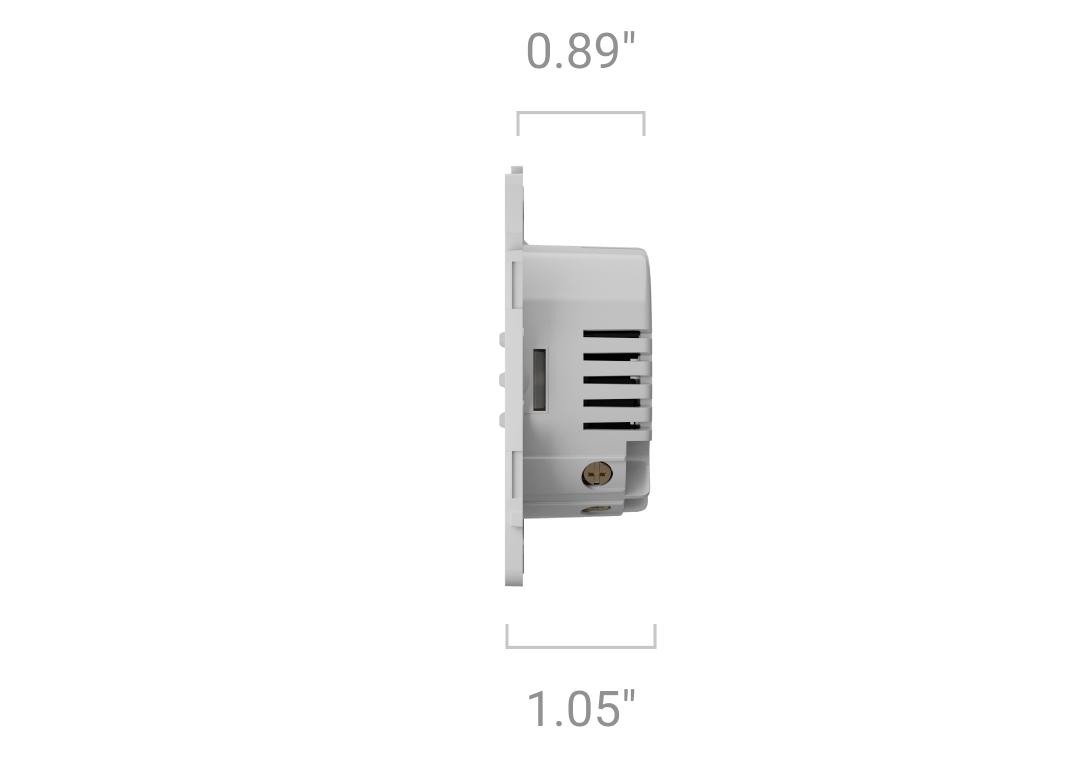

LightCore (2-gang/2-way) Jeweller — 3.05" × 2.86" × 1.05"

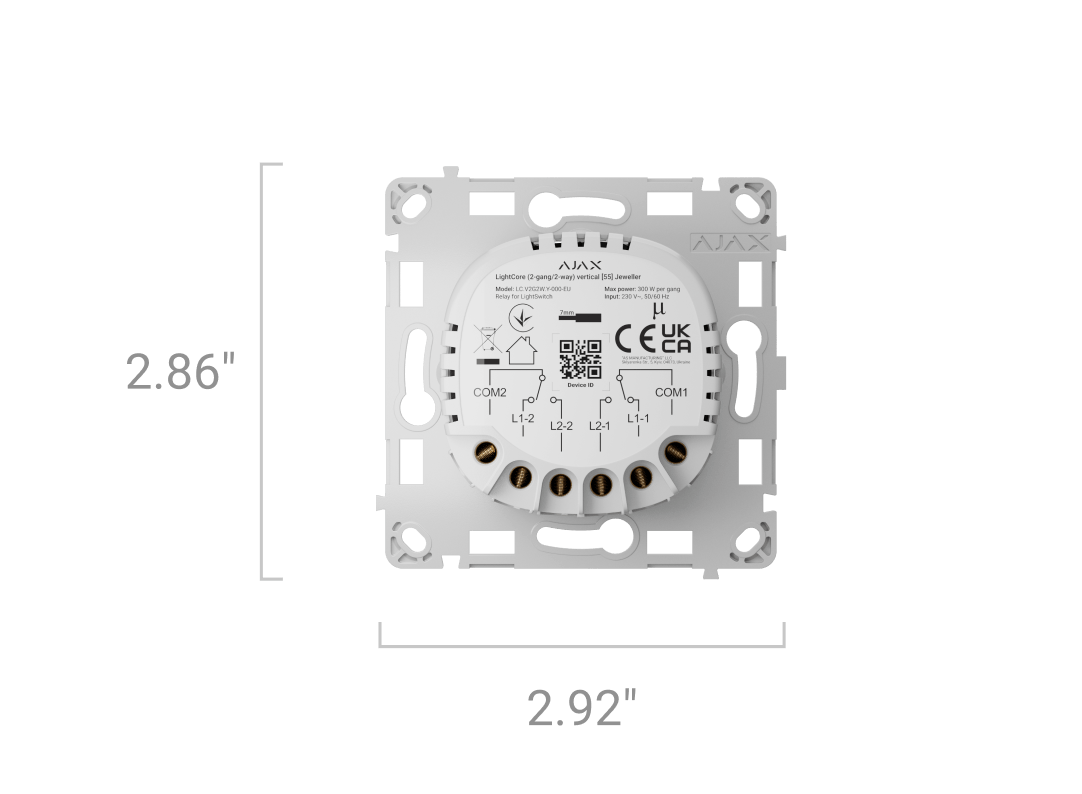

LightCore (2-gang/2-way) vertical Jeweller — 2.86" × 2.92" × 1.05"

Touch-sensitive panels

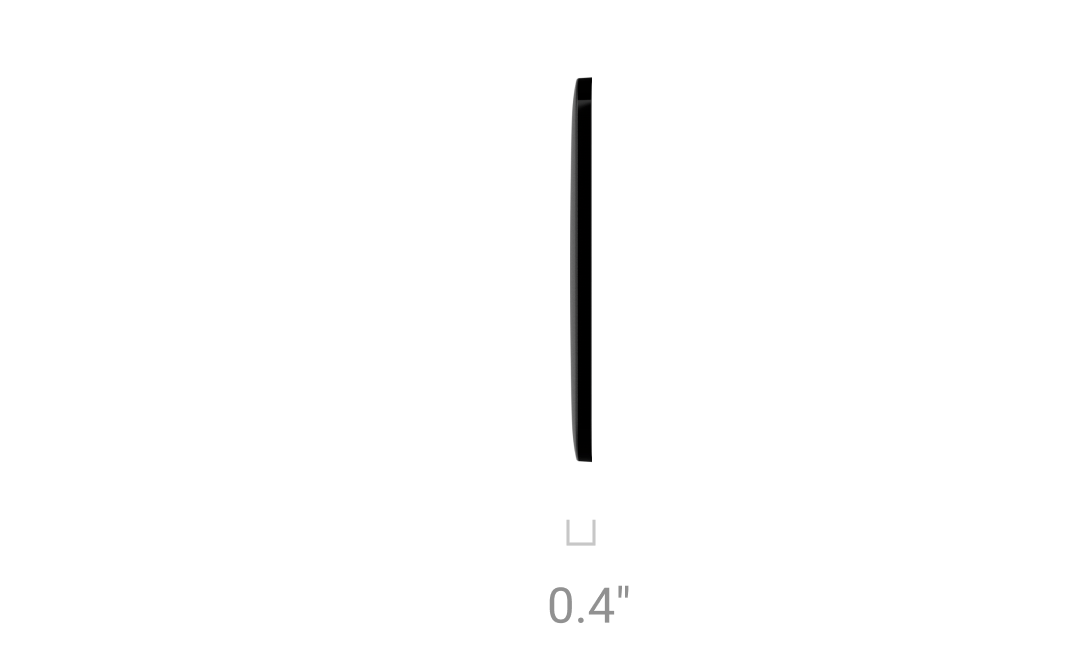

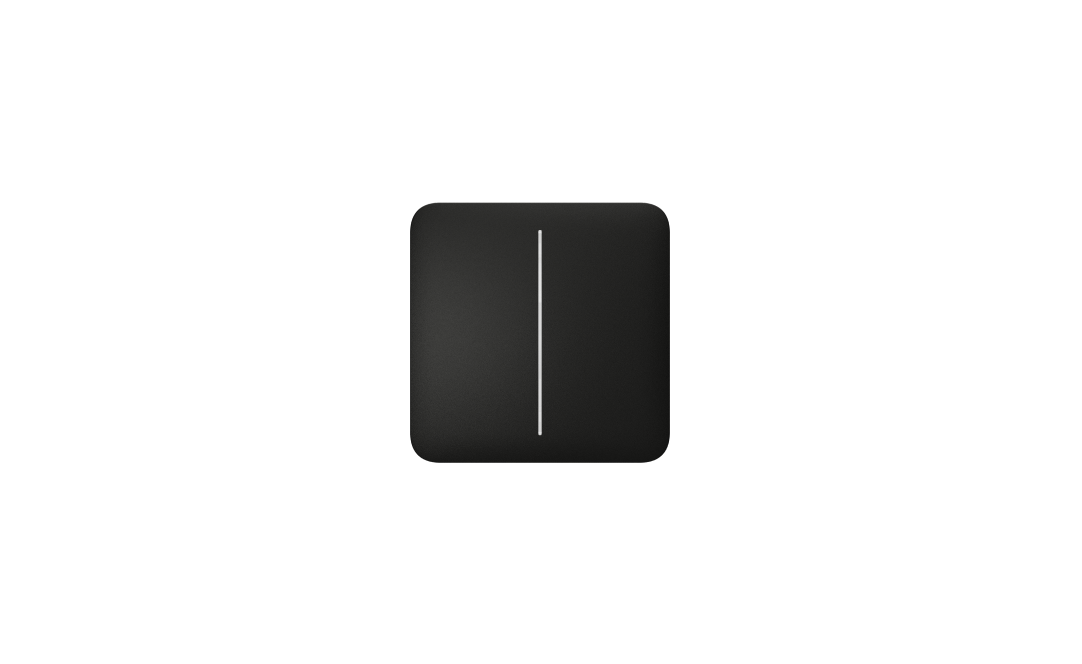

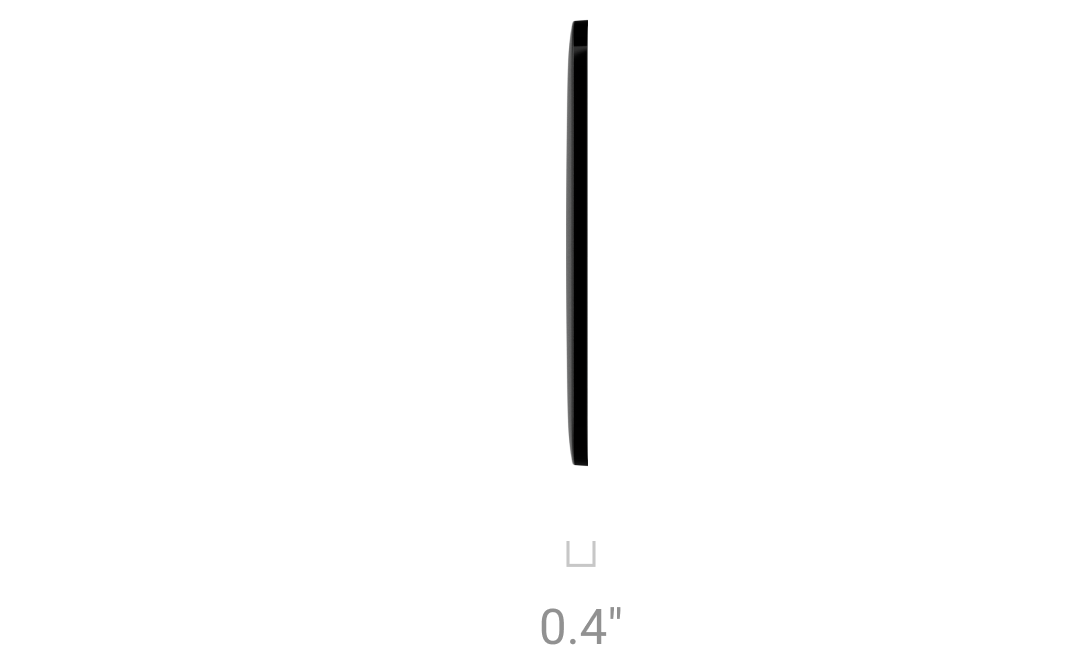

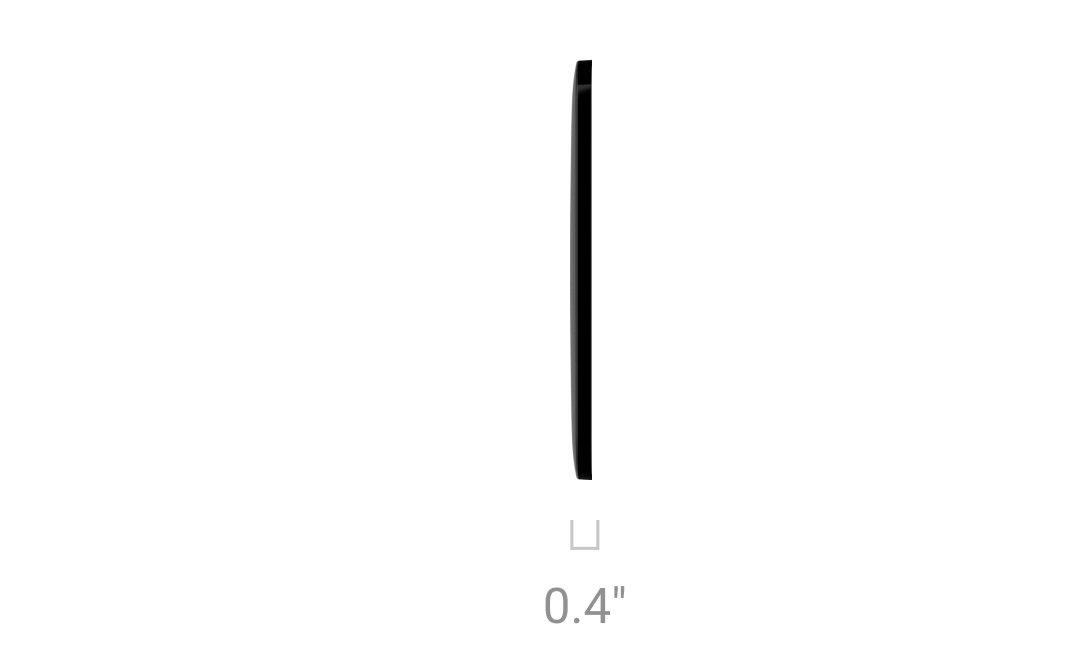

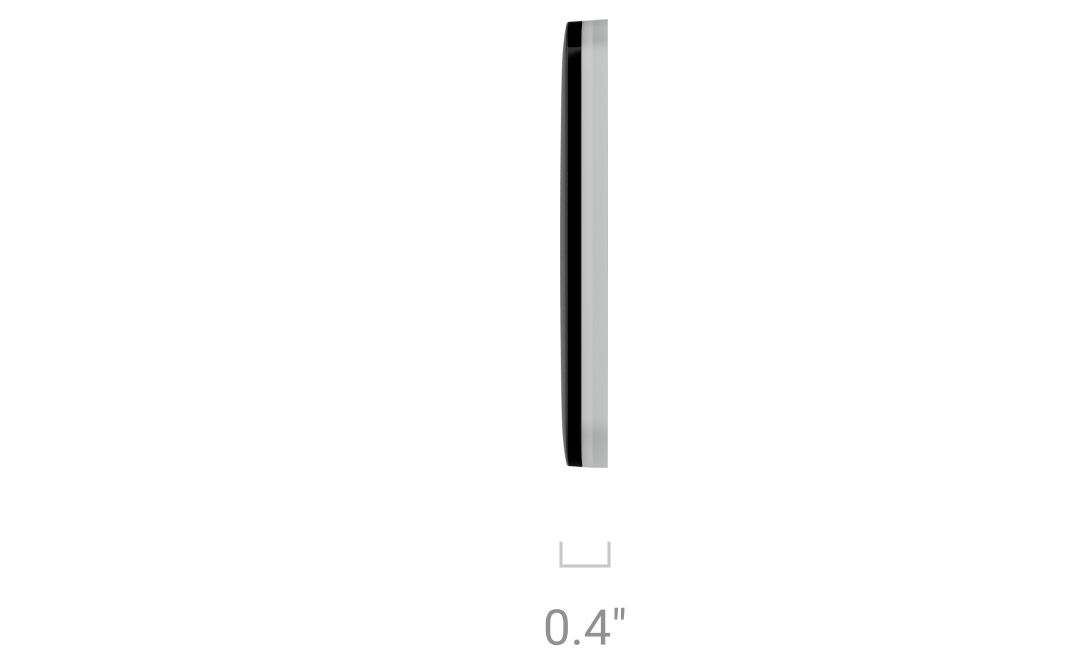

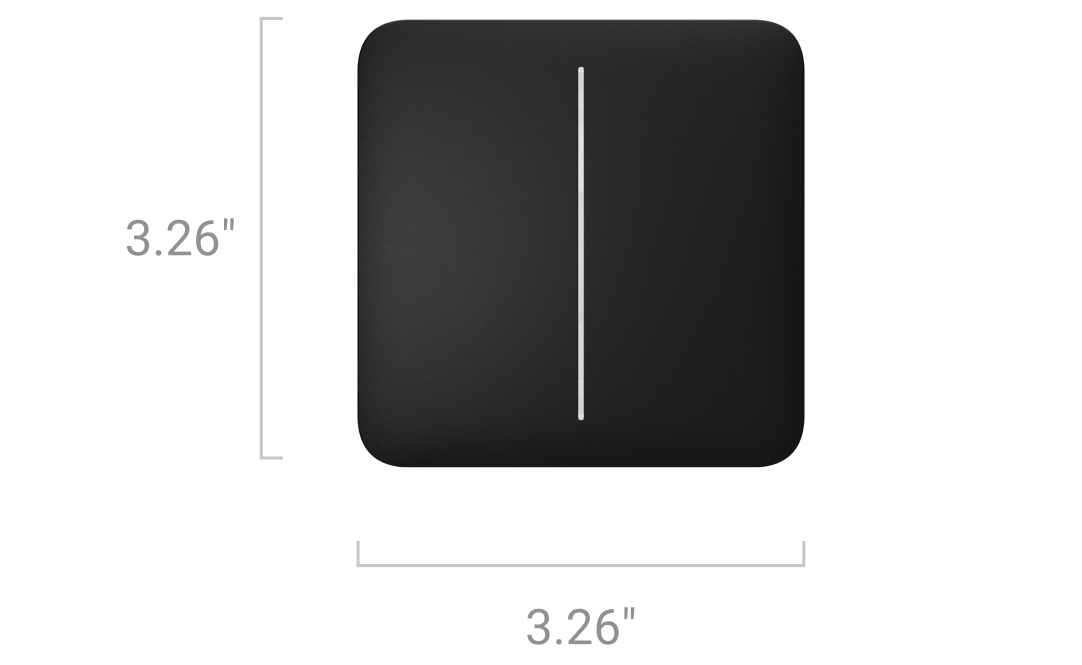

SoloButton (2-gang) — 3.26" × 3.26" × 0.4"

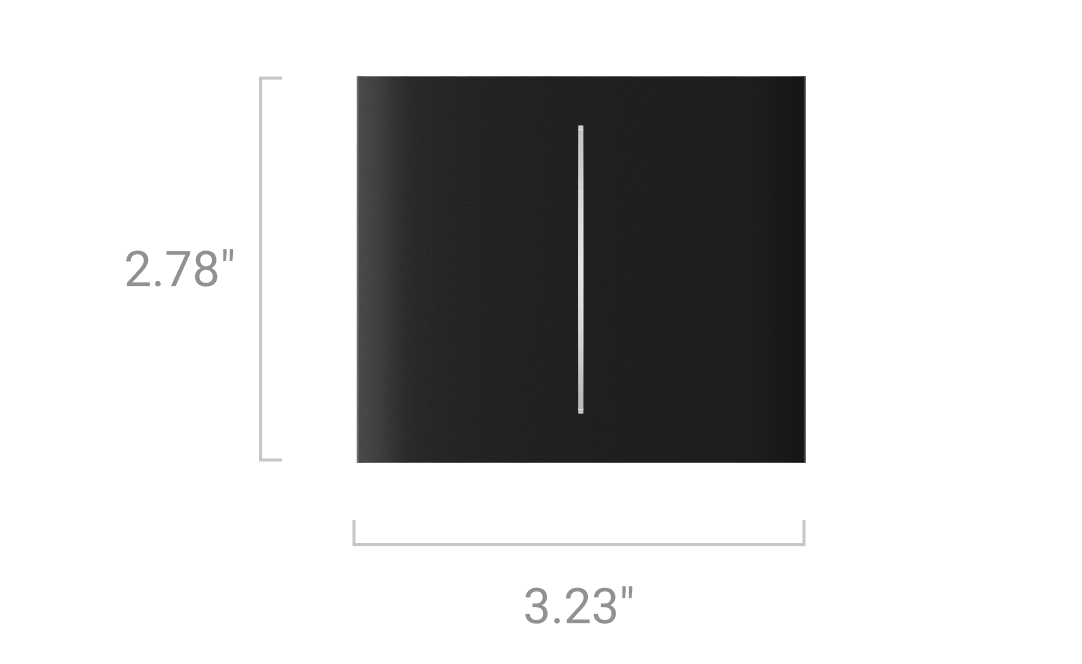

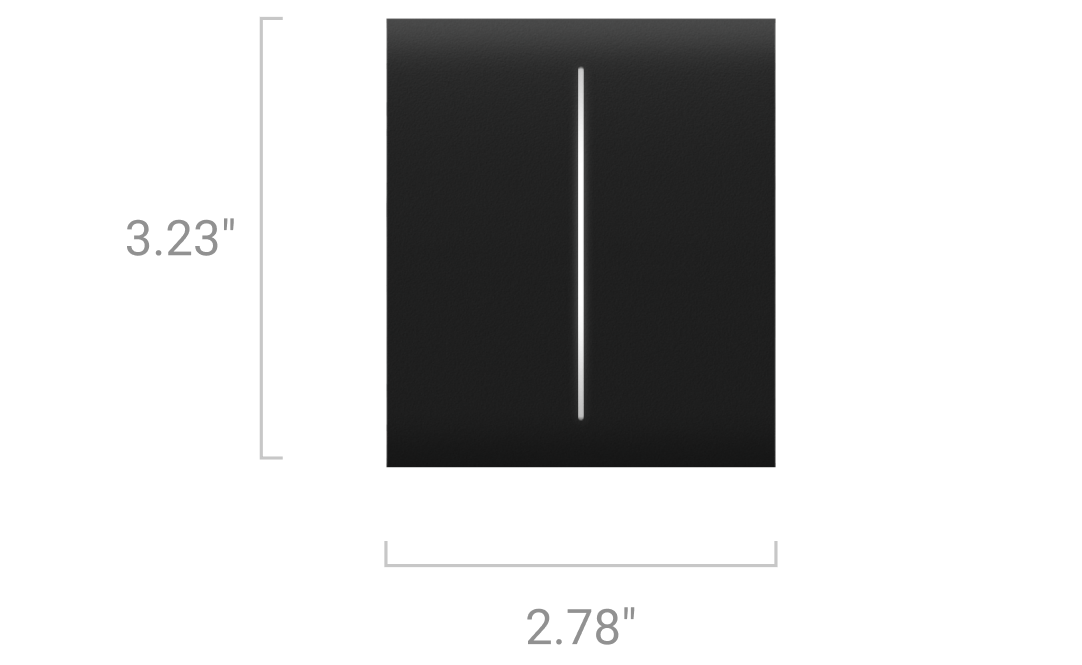

CenterButton (2-gang) — 3.23" × 2.78" × 0.4"

CenterButton (2-gang) vertical — 2.78" × 3.23" × 0.4"

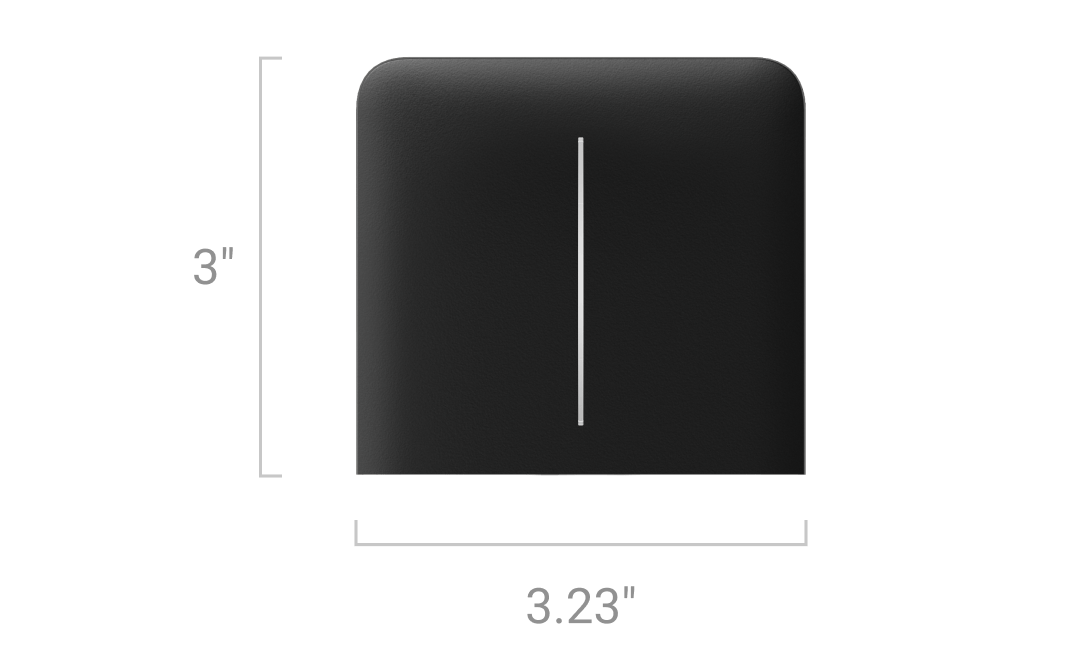

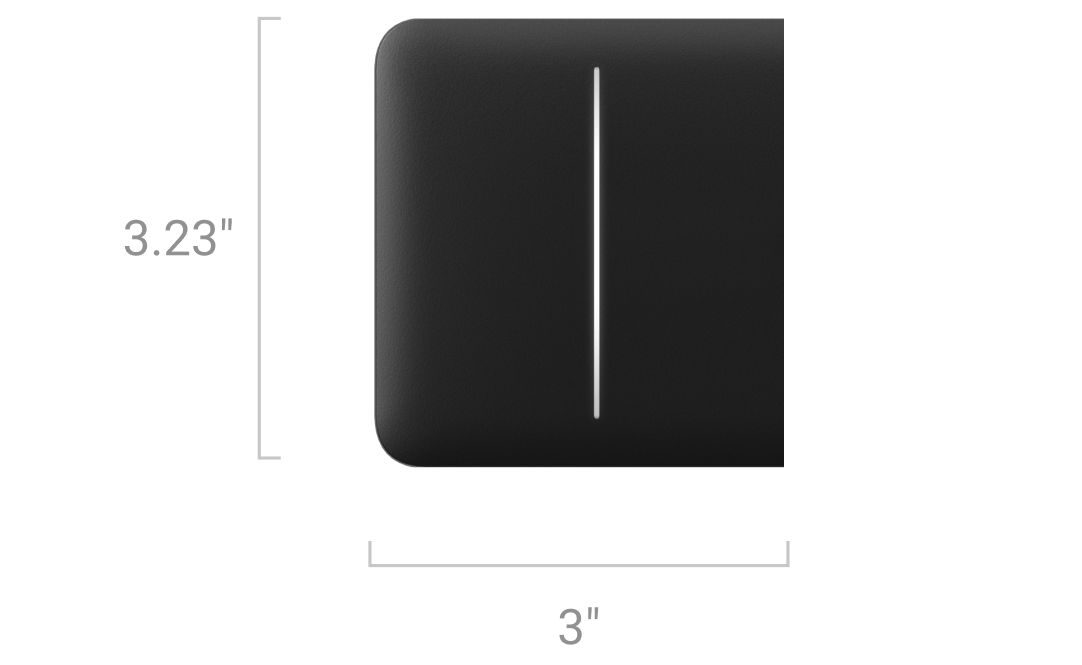

SideButton (2-gang) — 3.23" × 3" × 0.4"

SideButton (2-gang) vertical — 3" × 3.23" × 0.4"

Frames

Frame (2 seats) — 3.26" × 6.04" × 0.25"

Frame (3 seats) — 3.26" × 8.84" × 0.25"

Frame (4 seats) — 3.26" × 11.63" × 0.25"

Frame (5 seats) — 3.26" × 14.43" × 0.25"

Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"

Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"

Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"

Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"

Relay

LightCore (2-gang/2-way) Jeweller — 2.02 oz
LightCore (2-gang/2-way) vertical Jeweller — 2.02 oz

Touch-sensitive panels

SoloButton (2-gang) — 1.62 oz
CenterButton (2-gang) — 1.13 oz
CenterButton (2-gang) vertical — 1.13 oz
SideButton (2-gang) — 1.16 oz
SideButton (2-gang) vertical — 1.16 oz

Frames

Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz

LightSwitch is a prefabricated device, with each component available for separate purchase. Components are easily installed by attaching to each other
