LightSwitch (Crossover) Jeweller
Wireless smart touch crossover light switch
yA5lgs
9td1WlComponents
Relay
Controls the power of a lighting device.
LightCore (Crossover) Jeweller
LightCore (Crossover) vertical Jeweller
Touch-sensitive panels
SoloButton (1-gang)
It is used when the switch is installed as a separate device. SoloButton consists of the front panel and the frame, coming as one component.
CenterButton (1-gang)
It is used when the switch is installed between the device set.
CenterButton (1-gang) vertical
It is used when the vertical switch is installed between the device set.
SideButton (1-gang)
It is used when the switch is installed on the right or left of the device set.
SideButton (1-gang) vertical
It is used when the vertical switch is installed on the top or bottom of the device set.
Frames
Frames for two, three, four, and five Ajax switches and outlets in any combination¹.
Frame (2 seats)
Frame (3 seats)
Frame (4 seats)
Frame (5 seats)
Frame (2 seats) vertical
Frame (3 seats) vertical
Frame (4 seats) vertical
Frame (5 seats) vertical
1 — Combinations with smart outlets are available only in horizontal orientation.
Configuration
Single switch
LightSwitch (Crossover) Jeweller is installed as a separate device.
Combined switch
LightSwitch (Crossover) Jeweller is combined as a set with Ajax smart switches and/or Outlet Jeweller devices and installed into Frame side by side.
Touch-sensitive panel colors
Black
RAL 9005
Graphite
RAL 7024
White
RAL 9003
Ivory
RAL 1013
Fog
RAL 7047
Oyster
RAL 9002
Grey
RAL 7004
Olive
RAL 7044
The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration via Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK
Radio communication range
up to 3,600 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted radio communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology to update the firmware.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Data packages reload in case of transmission errors.
- Data packages delivery check.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio communication range
up to 3,600 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Key features
Automation scenarios
- security mode change reactions
- scheduled actions
- alarm reactions
- temperature scenarios
- humidity scenarios²
- CO₂ concentration scenarios²
- by pressing another LightSwitch/Button
2 — Scenarios by humidity and CO₂ concentrations are available when LifeQuality Jeweller is added to the system.
Operation without a neutral wire
LightSwitch only needs a live wire to operate.
Power of switched device
from 7 to 600 W
Contactless touch-sensitive panel
LightSwitch is activated when a hand gets as close as 15 mm from the panel.
Night backlight
Optional, can be turned off in the Ajax app device settings.
Protection against incompatible devices
Triggers if lighting devices have insufficient power (up to 7 W). If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. For low-power lighting devices, the kit includes a capacitor.
Recommendations
The device is designed for indoor use only. A professional electrician should install the device.
Sabotage protection
Protection against spoofing
device authentication
Communication loss detection
after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Power supply voltage
230 V~, 50/60 Hz
The device does not need a neutral wire to operate.
Average consumption
up to 200 mW
Maximum power
600 W
For LightCore (Crossover) Jeweller and LightCore (Crossover) vertical Jeweller.
Temperature protection
more than 140 °F
If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps.
Operating parameters
Operating temperature range
from 14 °F to 104 °F
Operating humidity
Up to 75% with no condensation
Protection class
IP20
Form factor of the switch
European type (55)
Dimensions
Relay

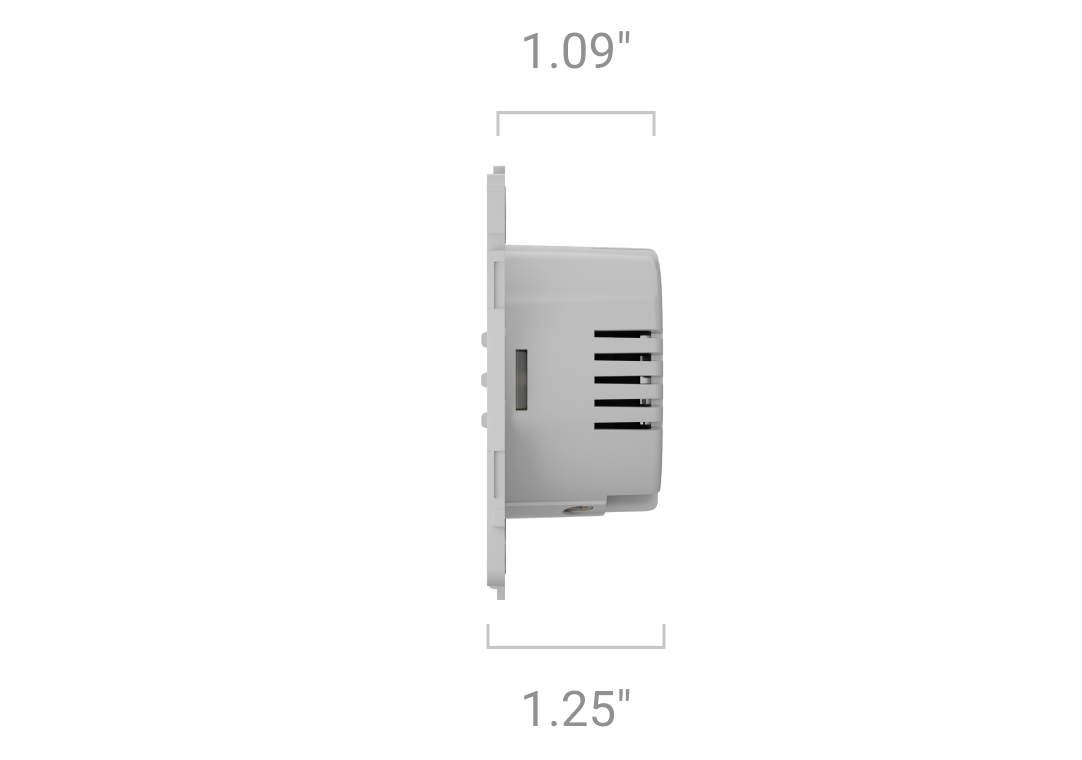

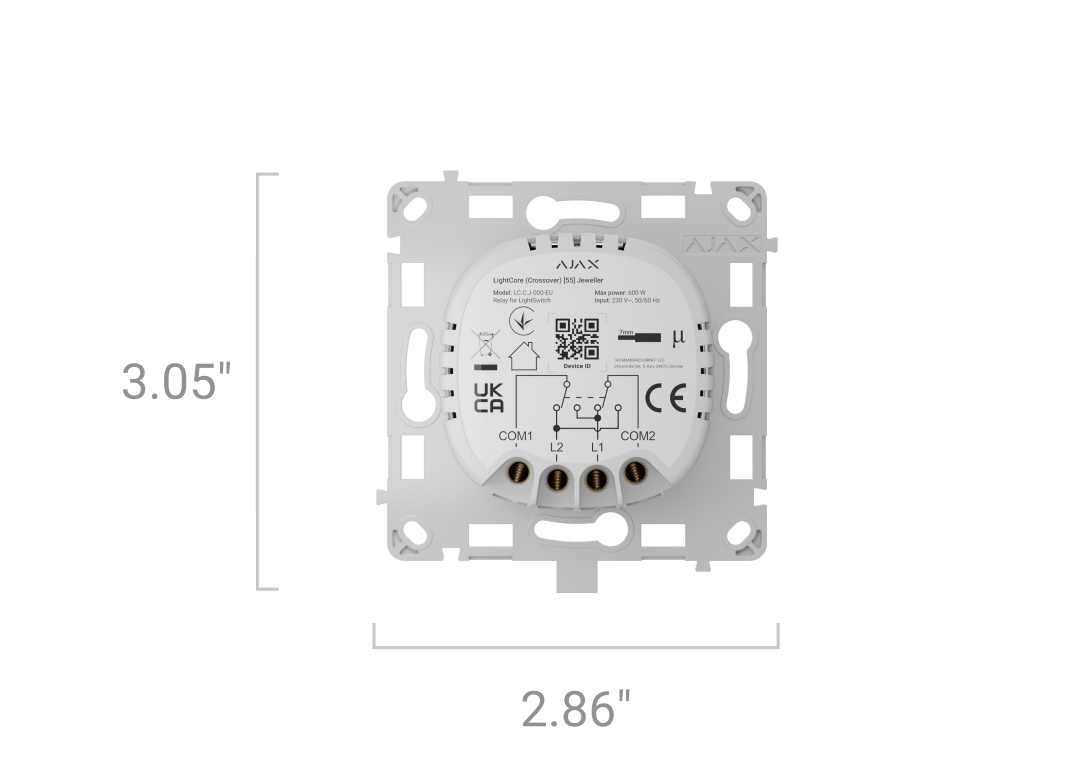

LightCore (Crossover) Jeweller — 3.05" × 2.86" × 1.25"

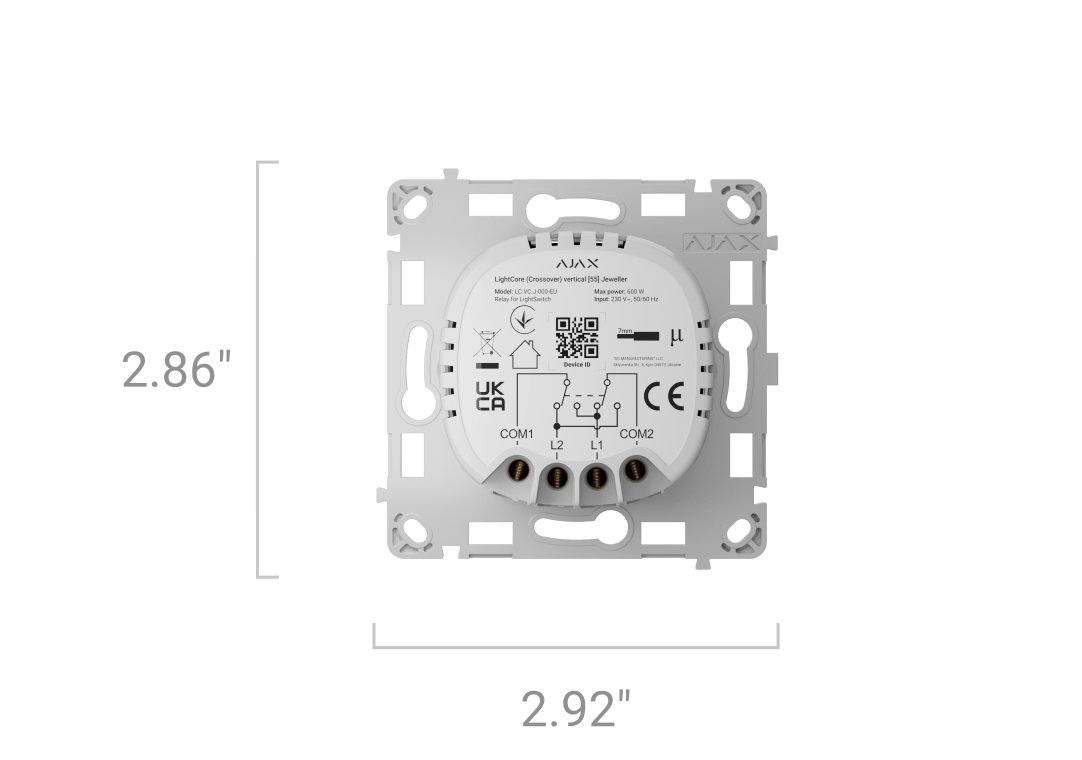

LightCore (Crossover) vertical Jeweller — 2.86" × 2.92" × 1.25"
Touch-sensitive panels

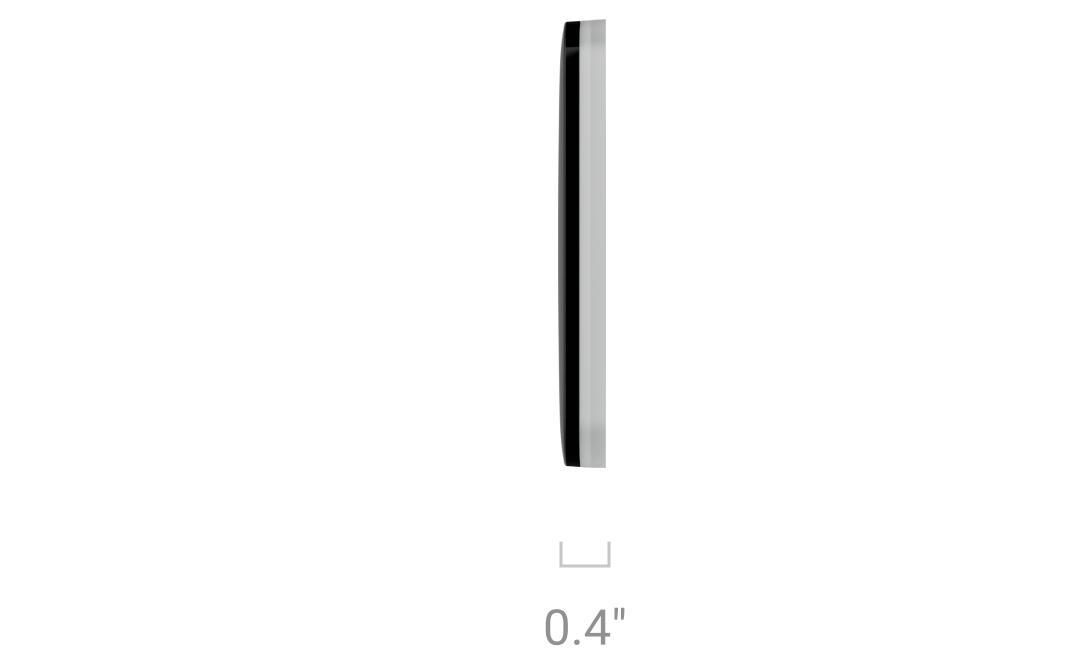

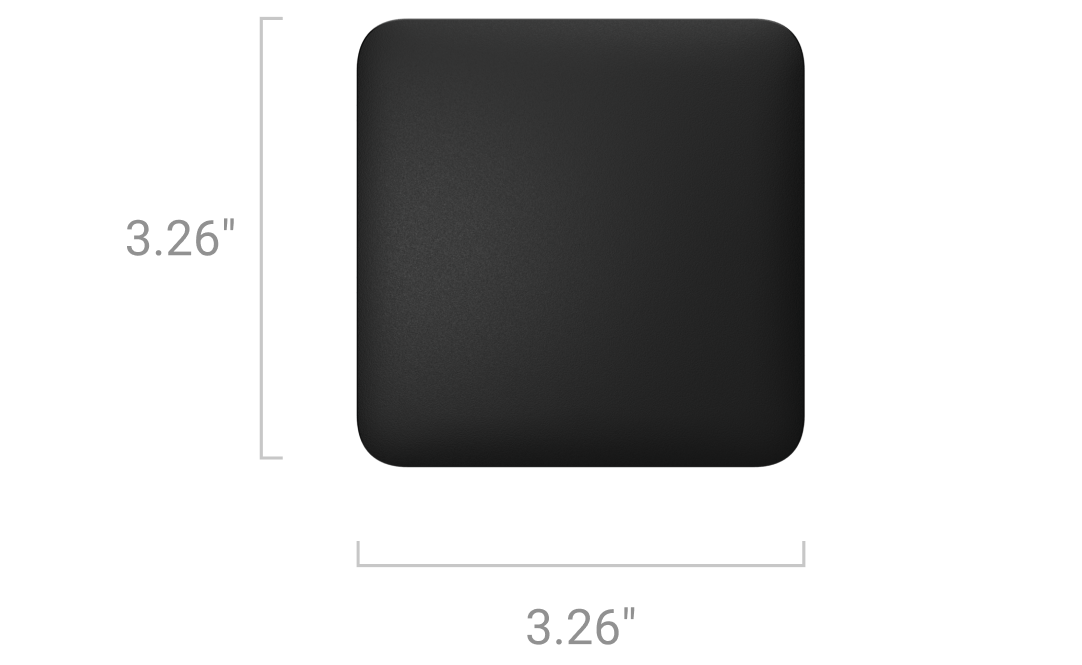

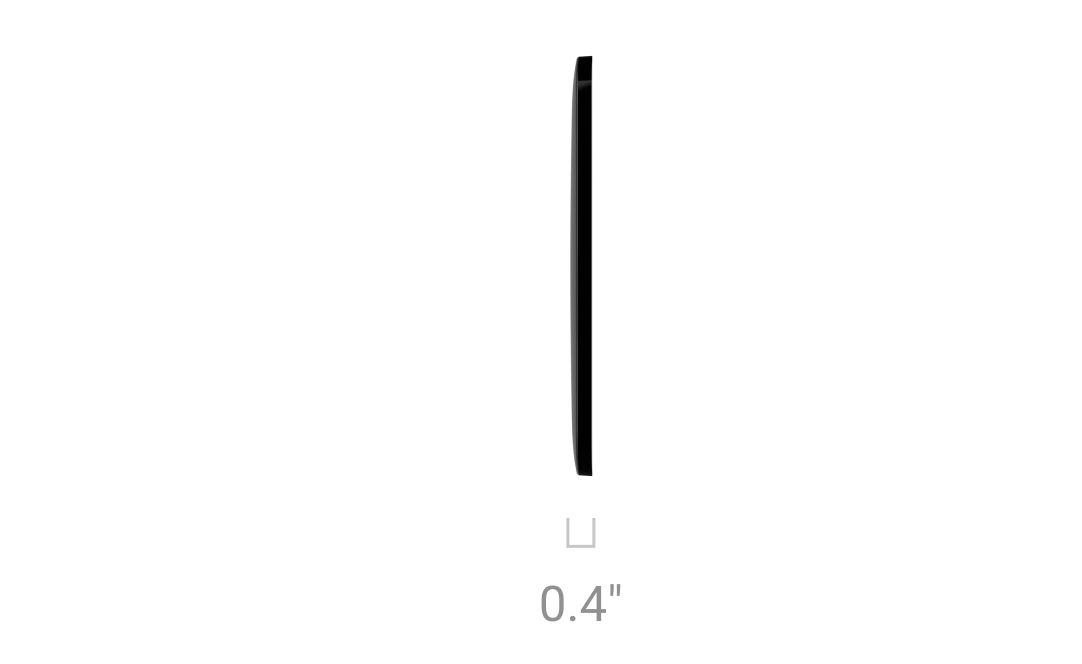

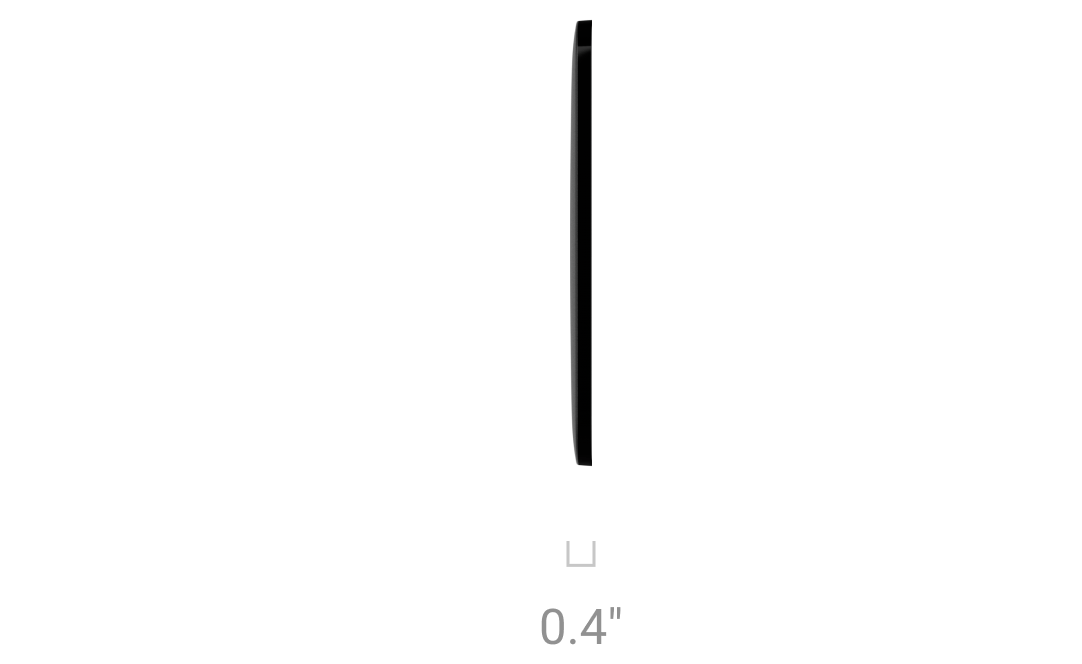

SoloButton (1-gang) — 3.26" × 3.26" × 0.4"

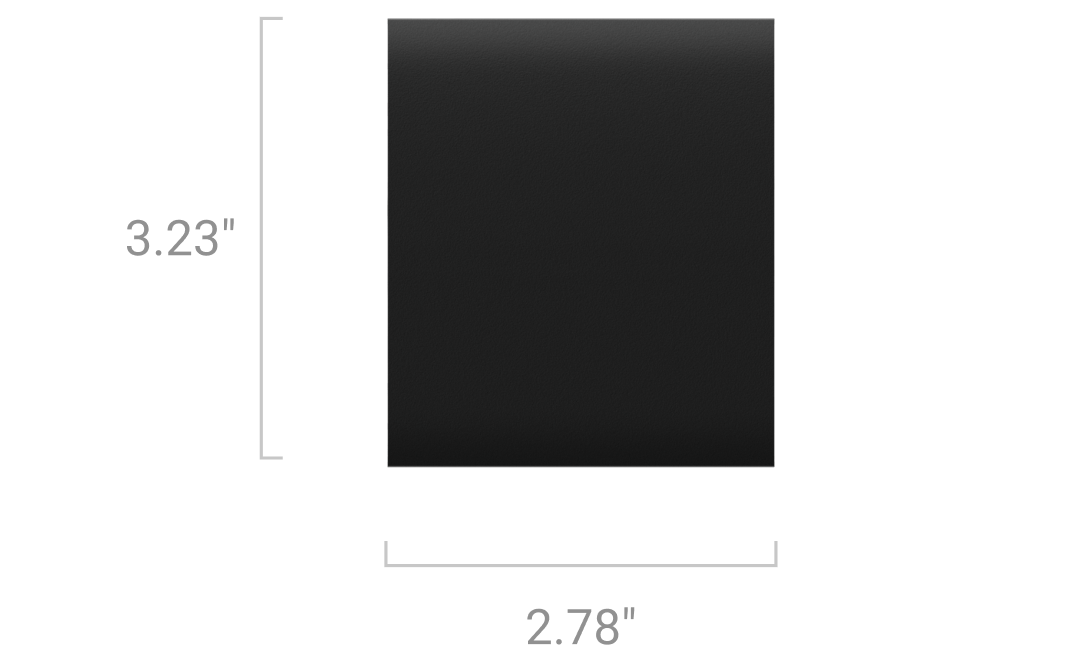

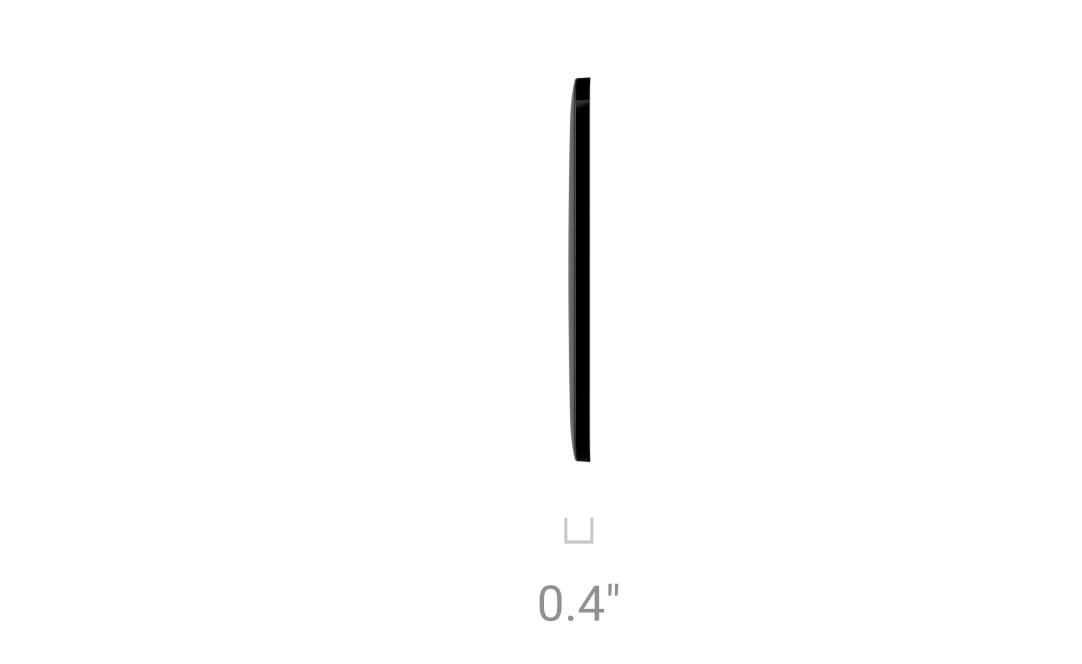

CenterButton (1-gang) — 3.23" × 2.78" × 0.4"

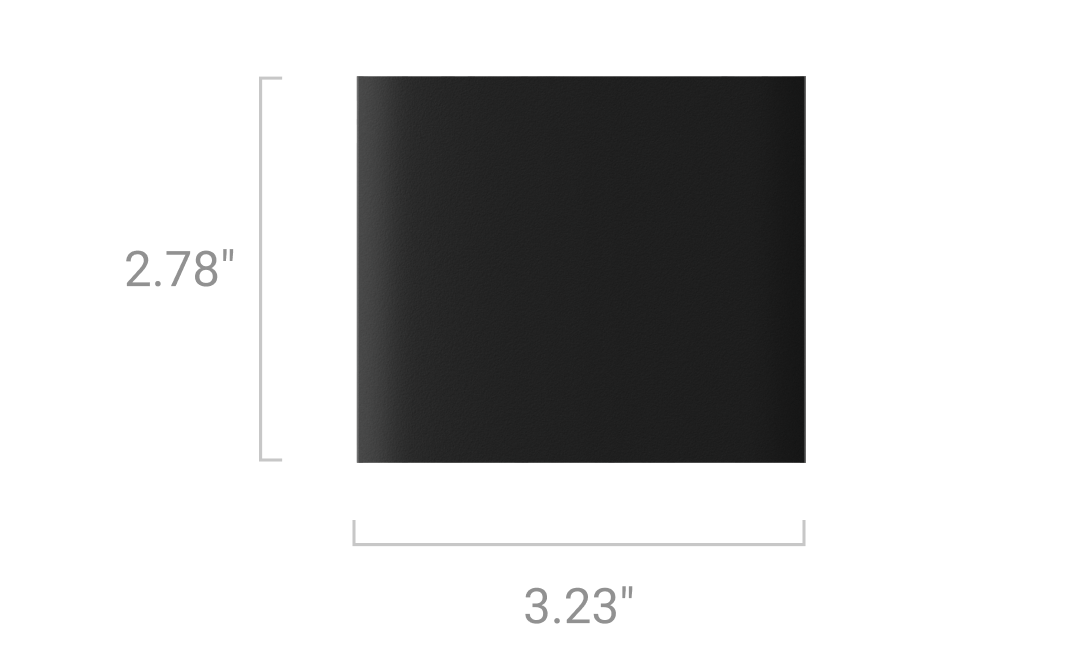

CenterButton (1-gang) vertical — 2.78" × 3.23" × 0.4"

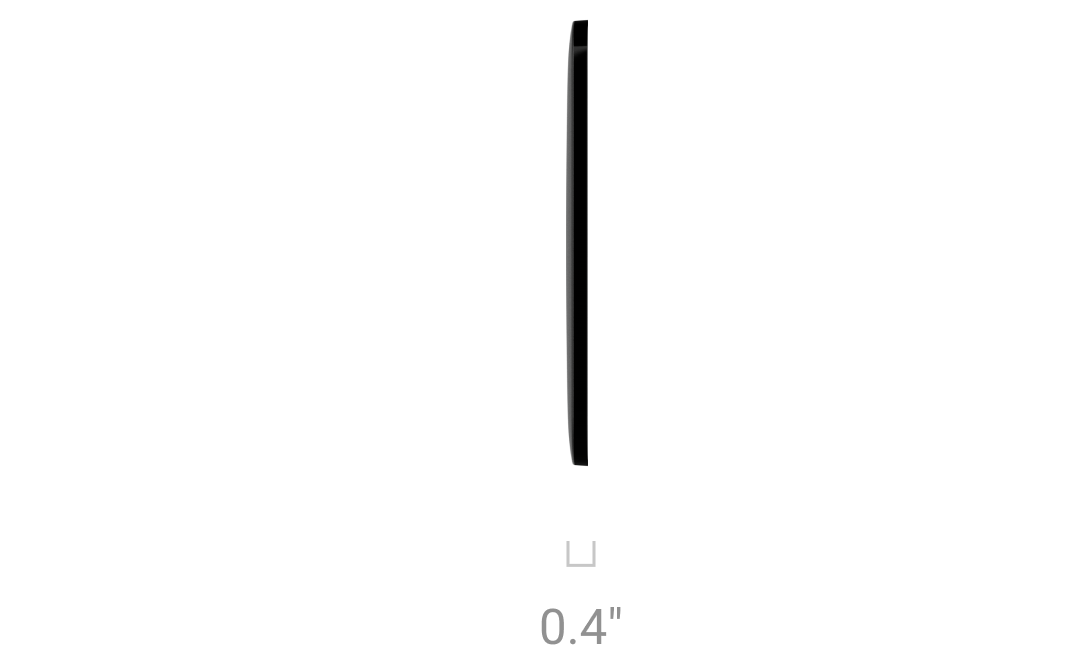

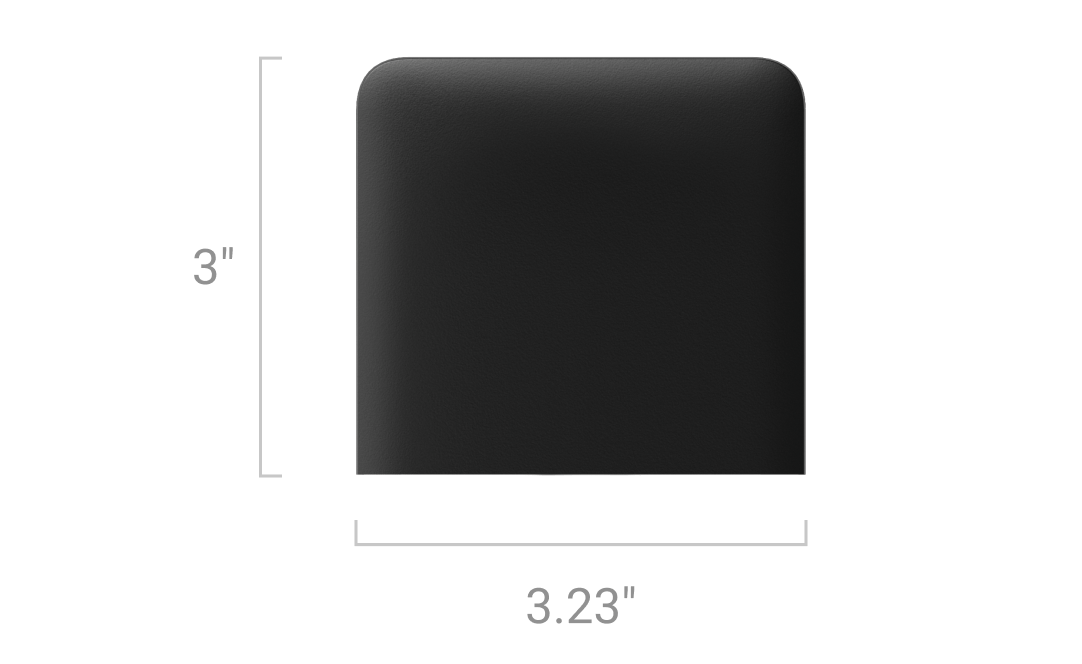

SideButton (1-gang) — 3.23" × 3" × 0.4"

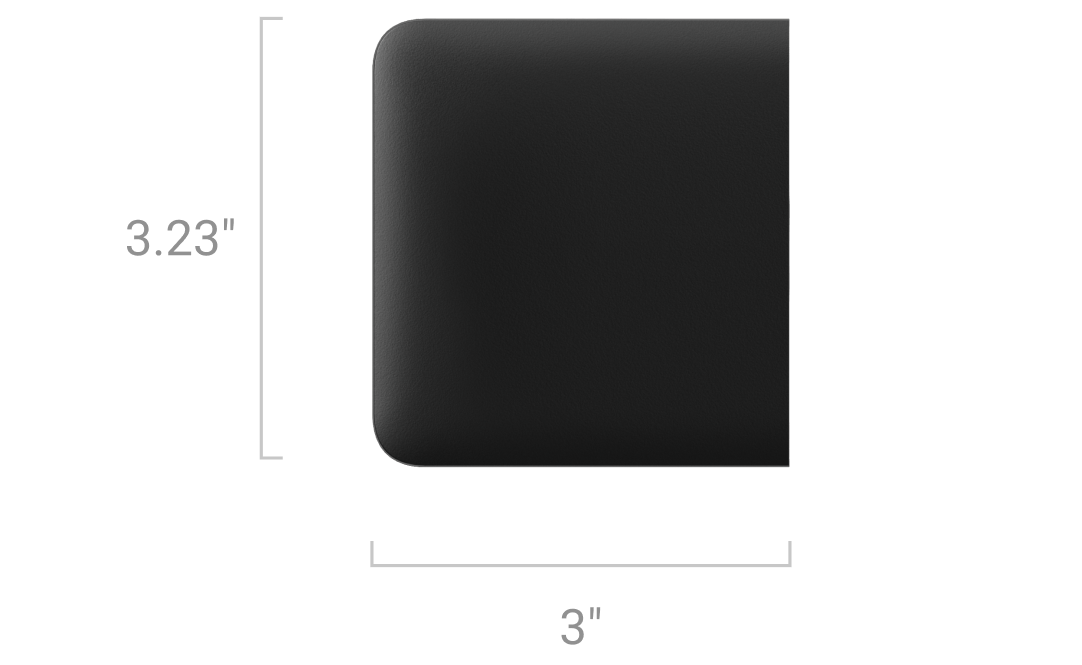

SideButton (1-gang) vertical — 3" × 3.23" × 0.4"
Frames
Frame (2 seats) — 3.26" × 6.04" × 0.25"
Frame (3 seats) — 3.26" × 8.84" × 0.25"
Frame (4 seats) — 3.26" × 11.63" × 0.25"
Frame (5 seats) — 3.26" × 14.43" × 0.25"
Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"
Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"
Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"
Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"
Weight
Relay
LightCore (Crossover) Jeweller — 2.1 oz
LightCore (Crossover) vertical Jeweller — 2.1 oz
Touch-sensitive panels
SoloButton (1-gang) — 1.62 oz
CenterButton (1-gang) — 1.13 oz
CenterButton (1-gang) vertical — 1.13 oz
SideButton (1-gang) — 1.16 oz
SideButton (1-gang) vertical — 1.16 oz
Frames
Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz
Complete set
LightSwitch is a prefabricated device, with each component available for separate purchase. Components are easily installed by attaching to each other
hQt5e6
LightSwitch (Crossover) Jeweller
LightSwitch (Crossover) Jeweller
LightCore (Crossover) [55] Jeweller
Radio Equipment Directive (RED)
Certificate issued by TIMCO Engineering, Inc.
EN 300 220-1 V3.1.1
EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
Certificate issued by TIMCO Engineering, Inc.
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
EN 55032:2015+A1:2020
EN 55035:2017+A11:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021
Low Voltage Directive (LVD)
EN 62479:2010
EN 60669-2-1:2004+AMD1:2009+AMD2:2010
EN 60669-1:2018
Frame
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co
EN IEC 63000:2018
LightCore (Crossover) vertical [55] Jeweller
Radio Equipment Directive (RED)
Certificate issued by TIMCO Engineering, Inc.
EN 300 220-1 V3.1.1
EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
Certificate issued by TIMCO Engineering, Inc.
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
EN 55032:2015+A1:2020
EN 55035:2017+A11:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021
Low Voltage Directive (LVD)
Certificate issued by TIMCO Engineering, Inc.
EN 62479:2010
EN 60669-2-1:2004+AMD1:2009+AMD2:2010
EN 60669-1:2018
Frame vertical
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co
EN IEC 63000:2018
