Tech specs

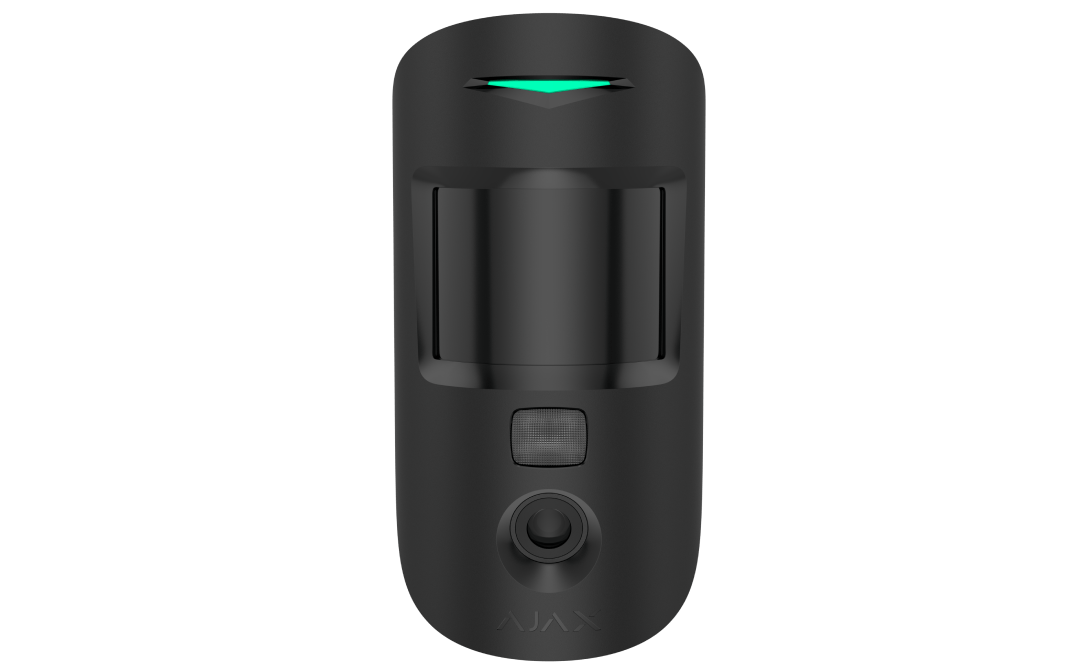

MotionCam U Jeweller

Wireless PIR motion detector that takes photos by alarm

MotionCam U Jeweller

Device compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

868.0–868.6 MHz

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 1,700 m

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data is protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit photo verifications.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Data packages reload in case of transmission errors.
  • Photo delivery confirmation.

Frequency bands

868.0–868.6 MHz

Radio communication range

up to 1,700 m

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data is protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Detection

Sensitive element

PIR sensor

Motion detection distance

up to 12 m

When installed at a height of 2.4 m.

Motion detection angle

horizontal: 88.5°

Motion detection speed

from 0.3 to 2 m/s

The detector lens should be positioned perpendicular to the likely intrusion path into the facility.

Sensitivity

3 levels

Adjusted by PRO or a user with admin rights in an Ajax app.

Pet immunity

weight: up to 20 kg
height: up to 50 cm

False alarm prevention

SmartDetect

Software algorithm.

Temperature compensation

Effective movement detection in temperatures from −10 °C to +40 °C.

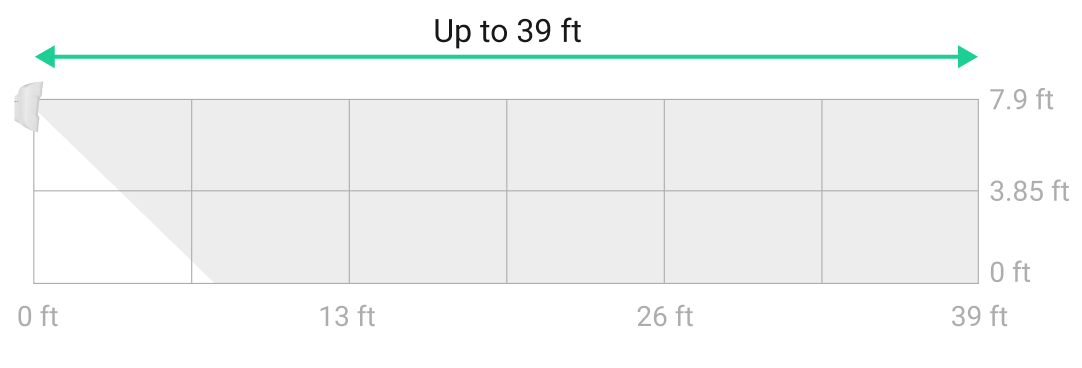

vert

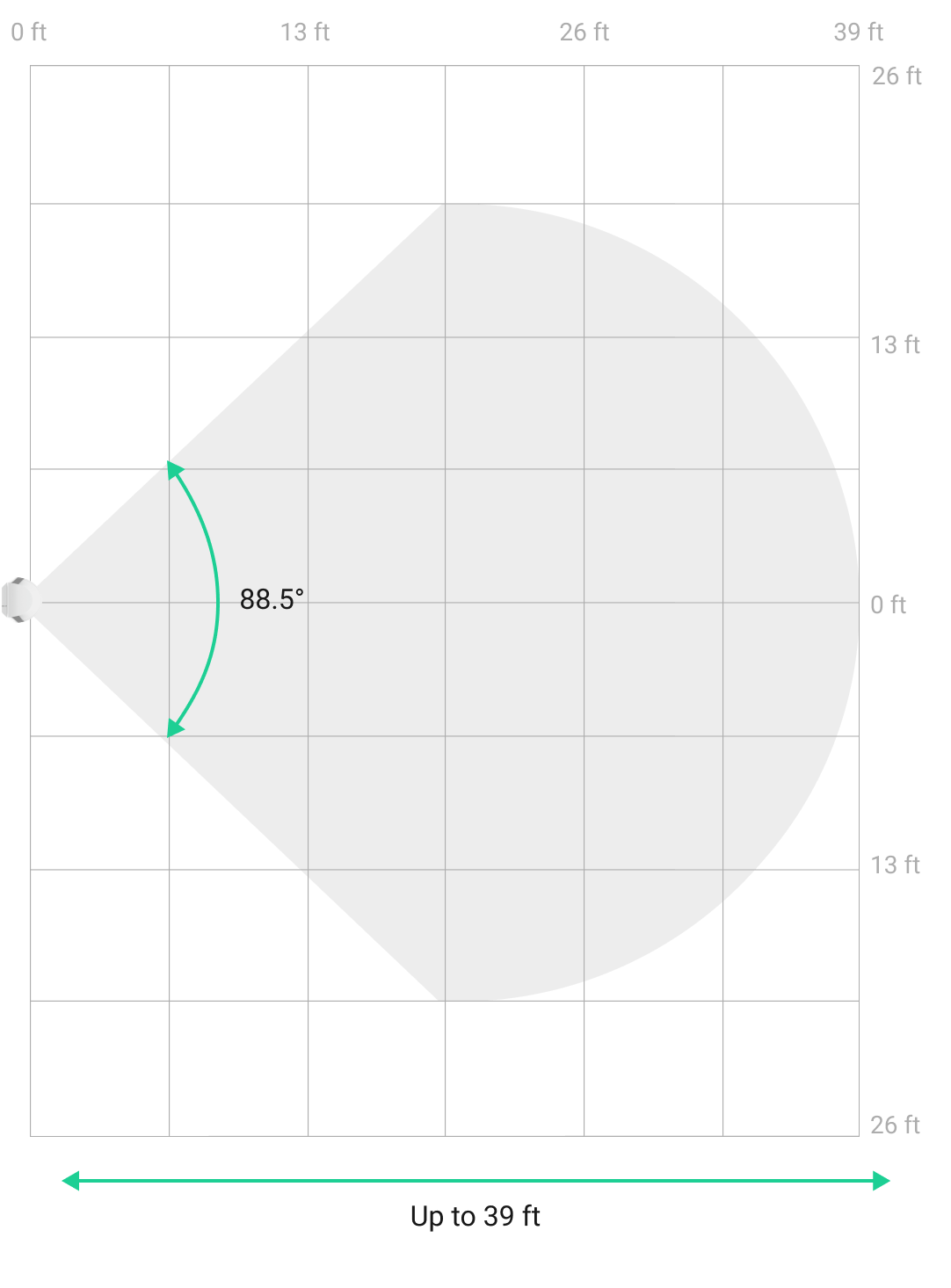

hor

Photo verification

Photo by alarm

The built-in camera is activated if the detector is armed and movement is detected.

Adjustable photo resolution

640 × 480 px
320 × 240 px (by default)
160 × 120 px

Adjusted by PRO or a user with admin rights in an Ajax app.

HDR image

Improves detail accuracy in bright and dark scenes.

IR illumination

For night photography and low-light conditions.

Series of pictures

from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px

from 1 to 3 images with a resolution of 640 × 480 px

Adjusted by PRO or a user with admin rights in an Ajax app.

Photo delivery time

TBC

Photo delivery time depends on the image resolution selected in the device settings.

Recommendations

It is recommended to install the detector at a height of 2.4 m.

The device is designed for indoor use only.

Sabotage protection

Tamper alarm

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Holding screw

to secure the detector on SmartBracket

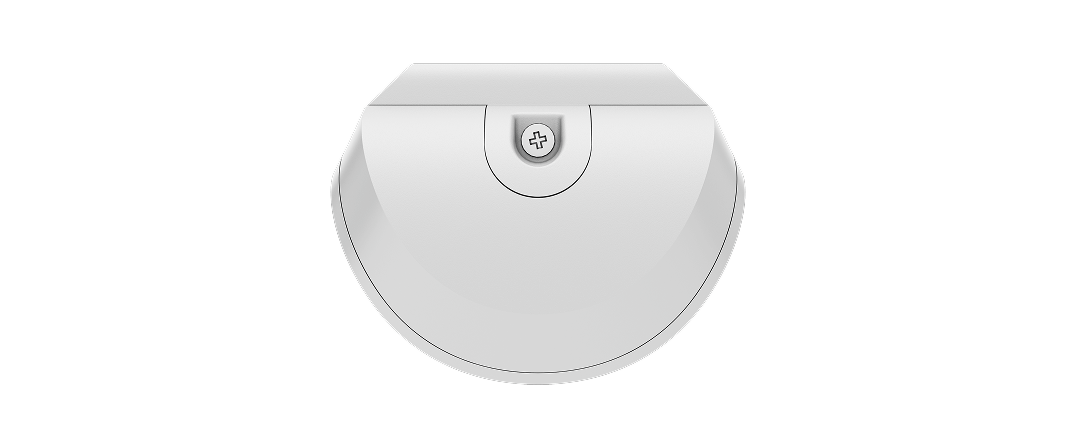

bottom

Protection against spoofing

via device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Batteries

2 × CR123A

Pre-installed.

Type

type C

Calculated battery life

up to 4 years

Operating voltage range

4.2−6.2 V⎓

Nominal operating voltage

6 V⎓

Quiescent current consumption at nominal voltage

0.03 mA

Maximum current consumption at nominal voltage

800 mA

Full battery capacity

1,550 mAh

Low battery voltage

4.71–5.01 V⎓

Low battery recovery voltage

5.06–5.36 V⎓

End-of-life battery voltage

3.8 V⎓

Device is switched off.

End-of-life battery capacity

150 mAh

Enclosure

Dimensions

135 × 70 × 60 mm

Weight of the white device

170 g

Weight of the black device

157 g

Operating temperature range

from −10 °C to +40 °C

Operating humidity

up to 75%

Protection class

IP50, IK04

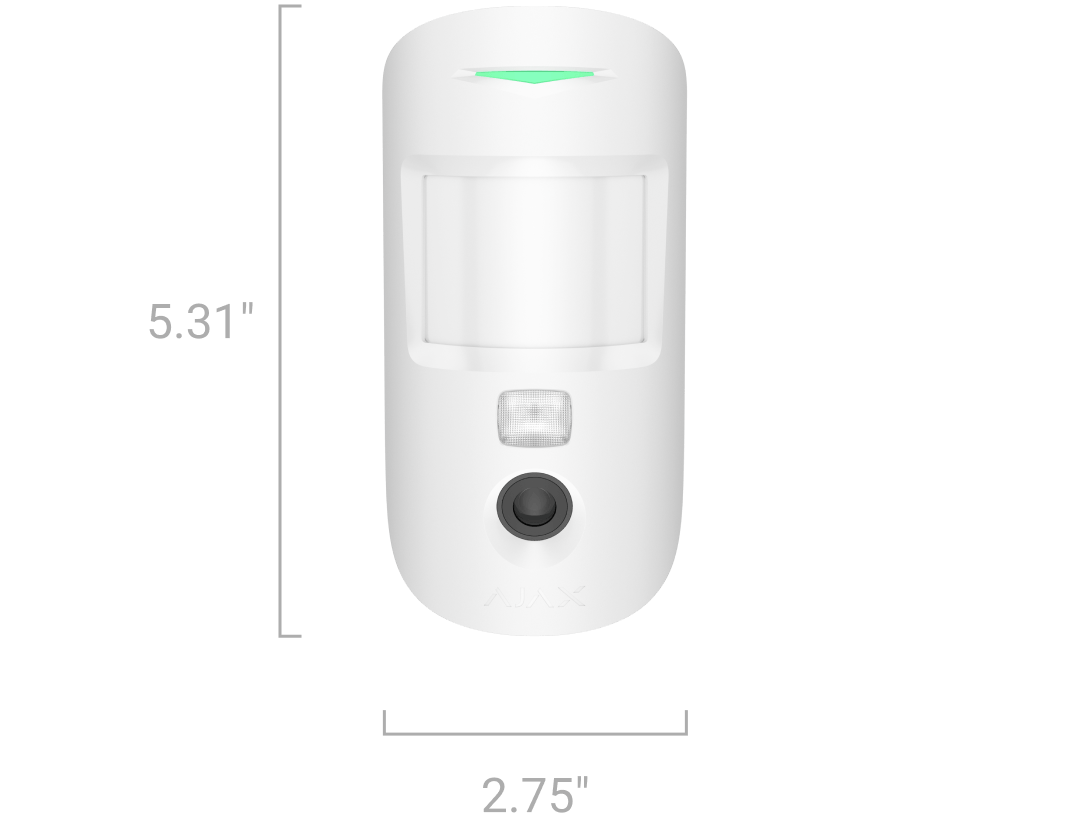

front

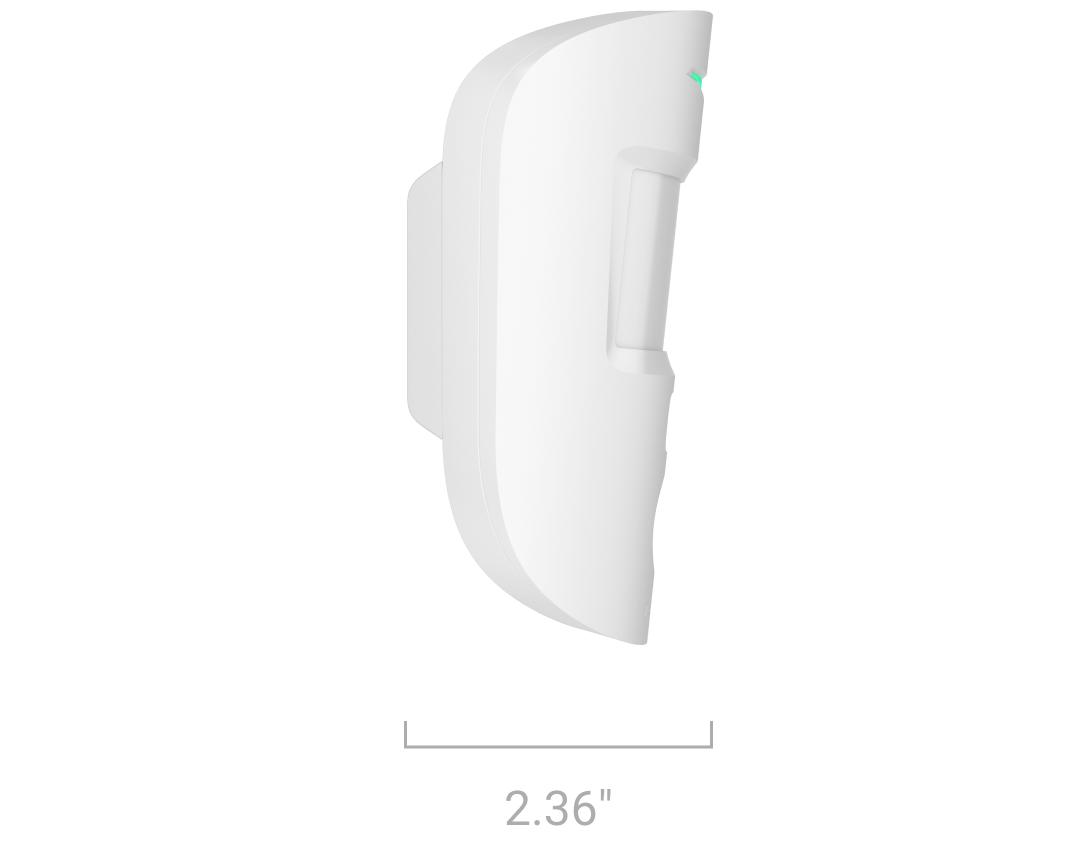

side

Colors

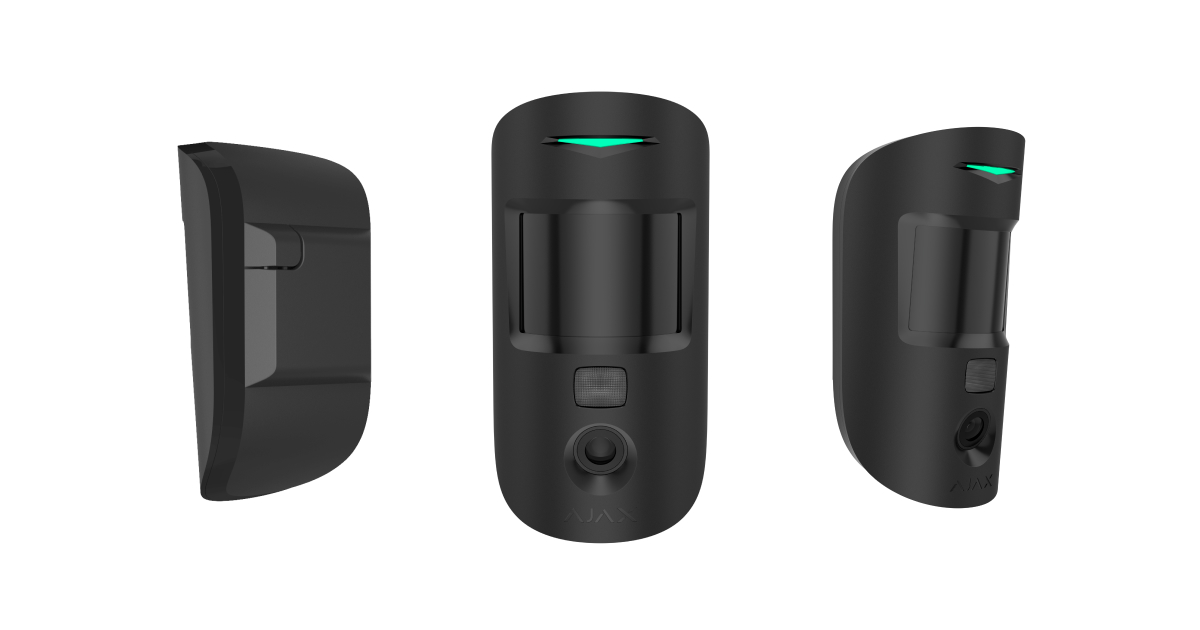

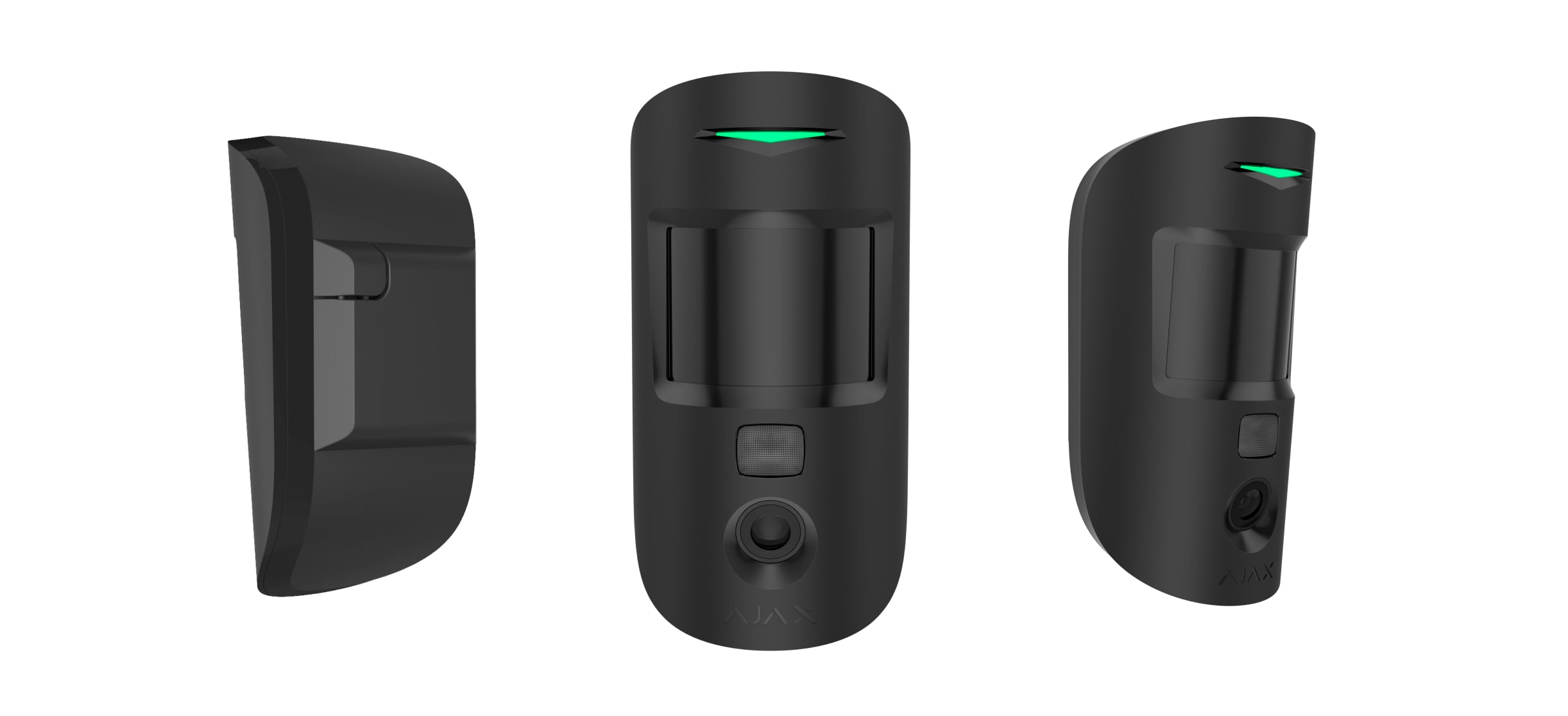

Black

black

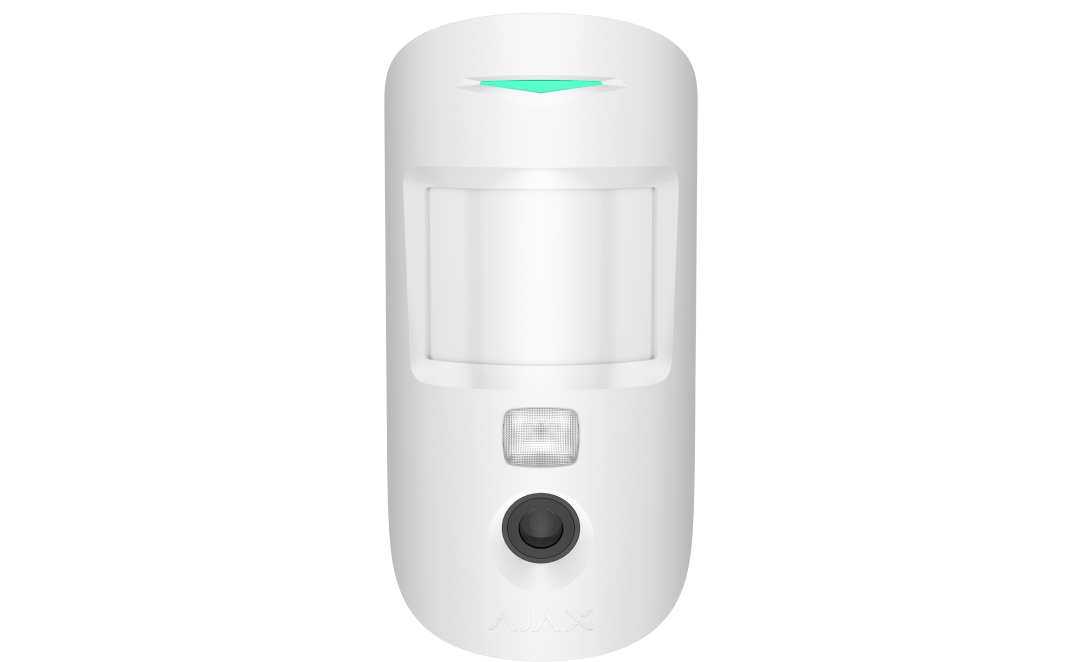

White

white

Complete set

MotionCam U Jeweller

SmartBracket mounting panel with holding screw

2 × CR123A battery (pre-installed)

Installation kit

Quick start guide

Certification and compliance with standards

MotionCam U Jeweller

MotionCam U Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

  1. EN 50131-1:2006/A1:2009/A2:2017/A3:2020
  2. EN 50131-2-2:2021
  3. EN 50131-3:2009
  4. EN 50131-5-3:2017
  5. EN 50131-6:2017/A1:2021**
  6. PD 6662:2017*

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs.

  1. ETSI EN 300 220-1 V3.1.1 (2017-02)
  2. ETSI EN 300 220-2 V3.2.1 (2018-06)

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs.

  1. EN 62479:2010
  2. EN IEC 62368-1:2024+A11:2024

Low Voltage Directive (LVD)

Test report issued by Shenzhen NTEK Testing Technology Co.

  1. ETSI EN 301 489-1 V2.2.3 (2019-11)
  2. ETSI EN 301 489-3 V2.3.2 (2023-01)
  3. EN 55032:2015+A1:2020
  4. EN 55035:2017+A11:2020

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

||

PSTI UK

BSI Assurance UK Limited

Schedule 1

Additional information

Compliance with standards

Learn more

Warranty

24 months
