Outlet (basic) [type E]
Wall outlet with grounding
Components
Core
OutletCore (basic) [type E]
OutletCore (basic) vertical [type E]
Covers
All covers consist of two elements of the same color: the front panel and the receptacle cap.
SoloCover (basic) [type E]
It is used when the outlet is installed as a separate device.
SideCover (basic) [type E]
It is used when the outlet is installed on the right or left (top or bottom) of the device set.
CenterCover (basic) [type E]
It is used when the outlet is installed between the device set.
Frames
Frames for two, three, four, and five Ajax outlets and switches in any combination*.
Frame (2 seats)
Frame (3 seats)
Frame (4 seats)
Frame (5 seats)
Frame (2 seats) vertical
Frame (3 seats) vertical
Frame (4 seats) vertical
Frame (5 seats) vertical
* Combinations with smart outlets are available only in horizontal orientation.
Configuration
Single outlet
Outlet (basic) [ type E ] is installed as a separate device.
Combined outlet
Outlet (basic) [ type E ] is combined as a set with Ajax outlets and/or LightSwitch switches and installed into Frame side by side.
Cover colors
Black
RAL 9005
Graphite
RAL 7024
White
RAL 9003
Ivory
RAL RAL 1013
Fog
RAL 7047
Oyster
RAL 9002
Grey
RAL 7004
Olive
RAL 7044
The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.
Recommendations
The device is designed for indoor use only.
A professional electrician should install the device.
Power supply
Power supply voltage
250 V~, 50/60 Hz
Maximum load current
16 A
Output power
up to 3.6 kW (resistive load at 250 V~)
Electric shock protection class
Class I (with grounding terminal)
Operating parameters
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% with no condensation
Protection class
IP20
Dimensions
OutletCore (basic) [type E]

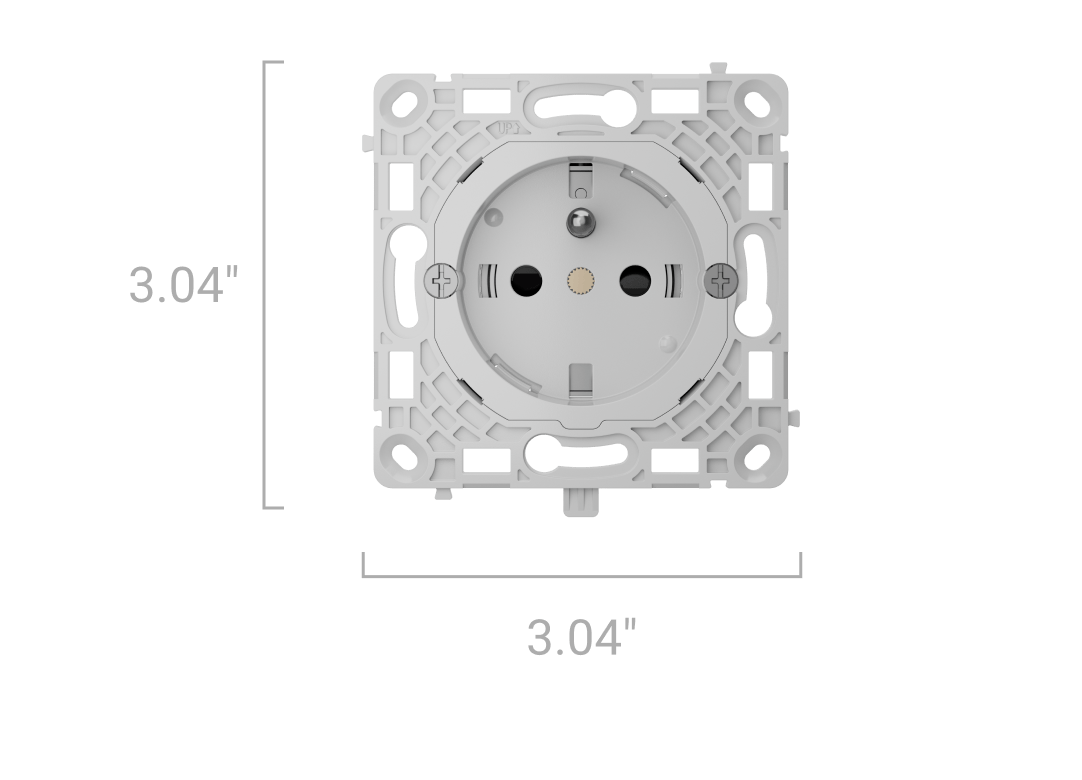

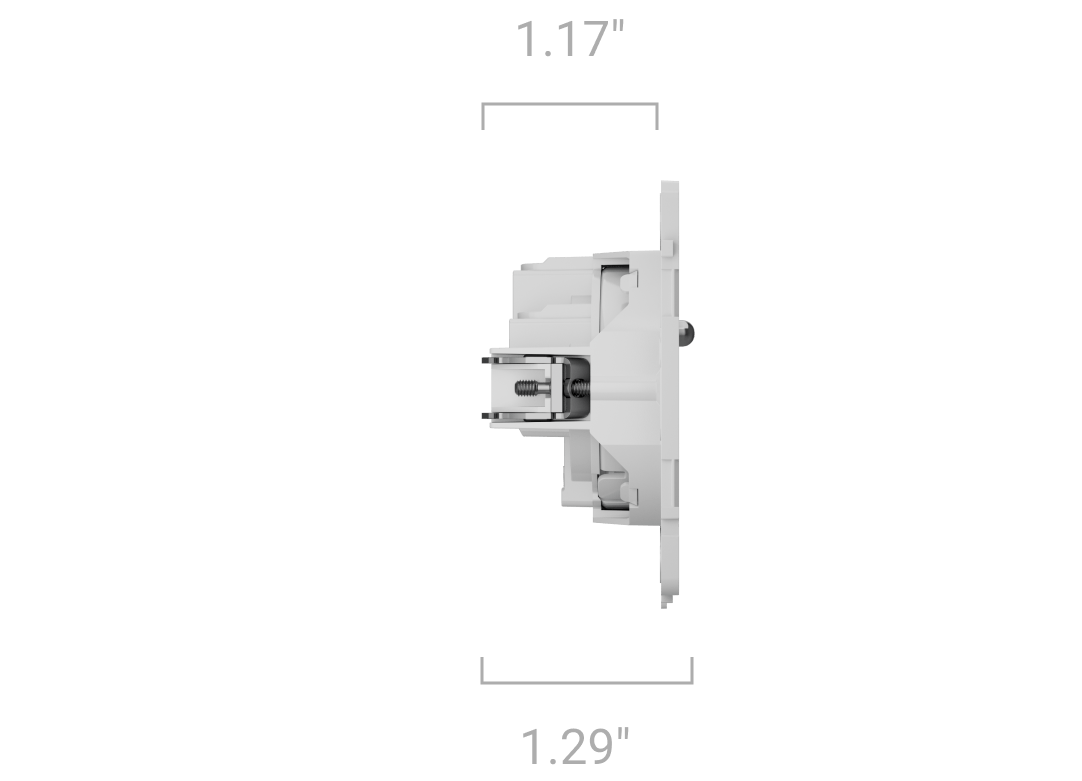

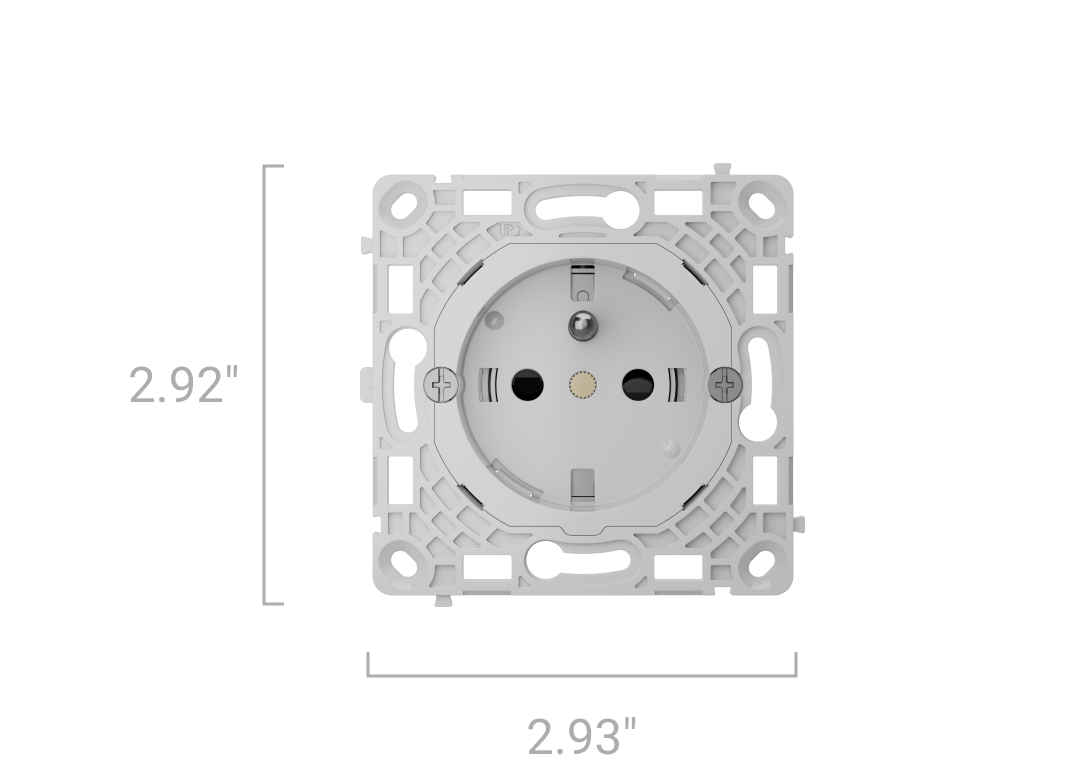

3.04" × 2.92" × 1.29"
OutletCore (basic) vertical [type E]

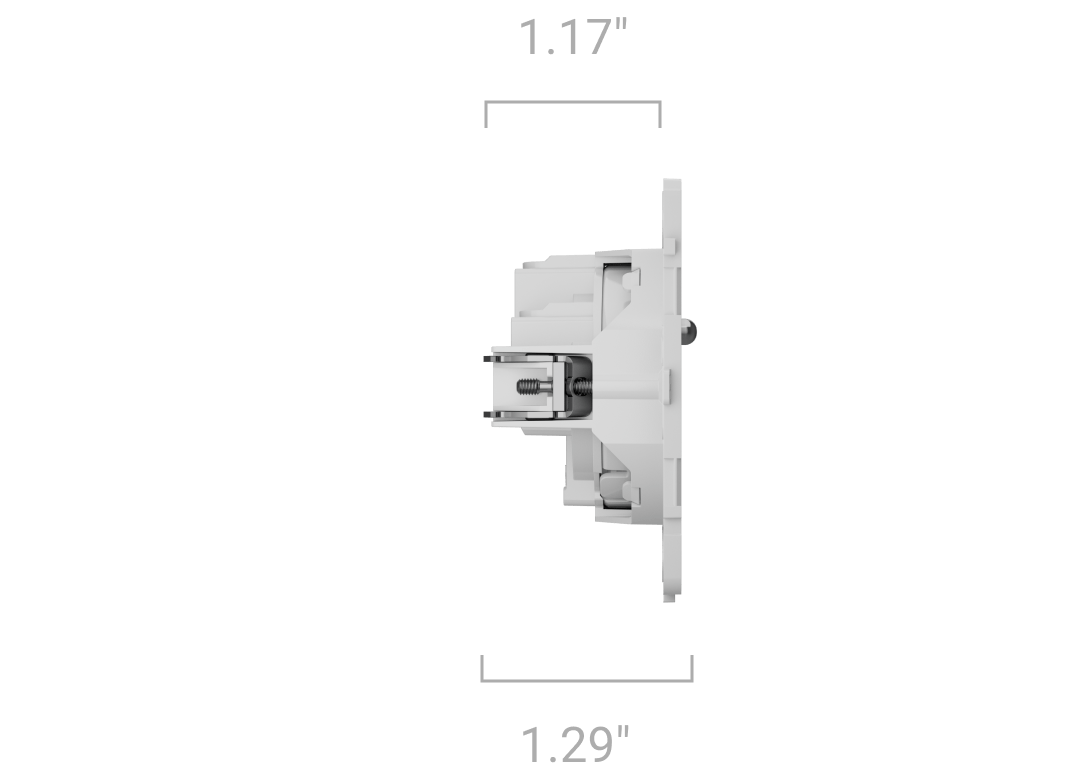

2.92" × 2.93" × 1.29"
SoloCover (basic) [type E]

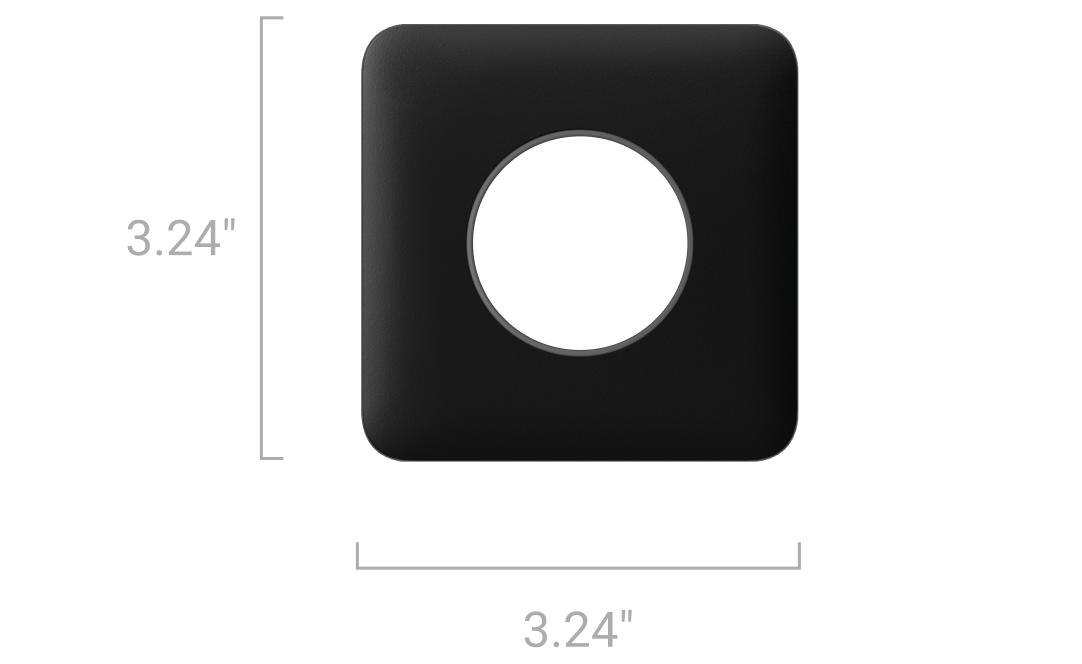

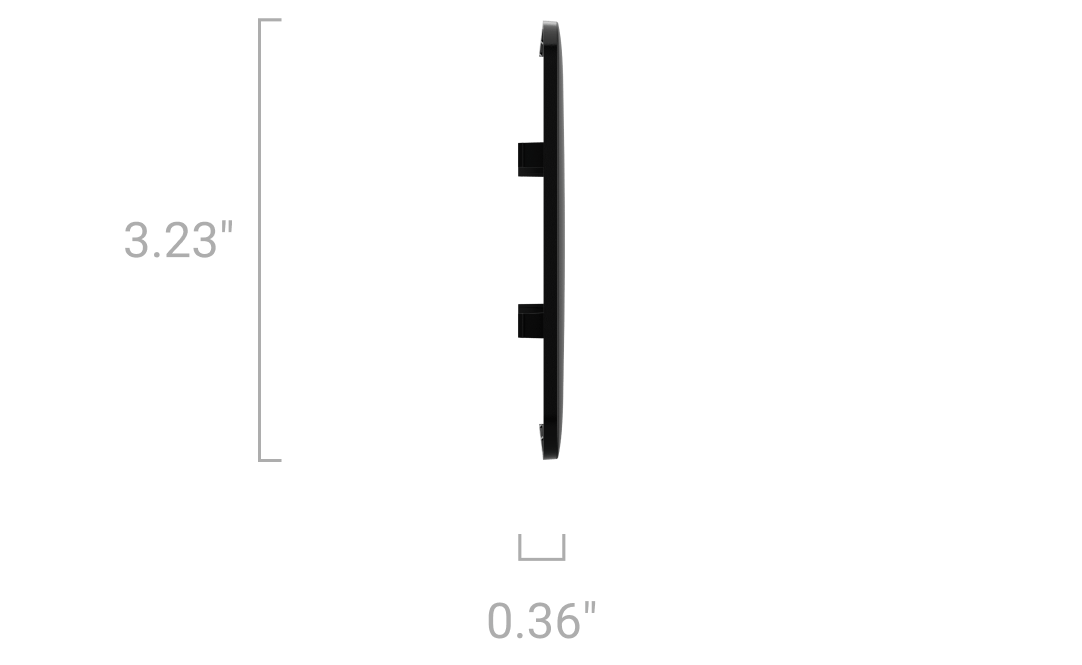

front panel — 3.24" × 3.24" × 0.36"

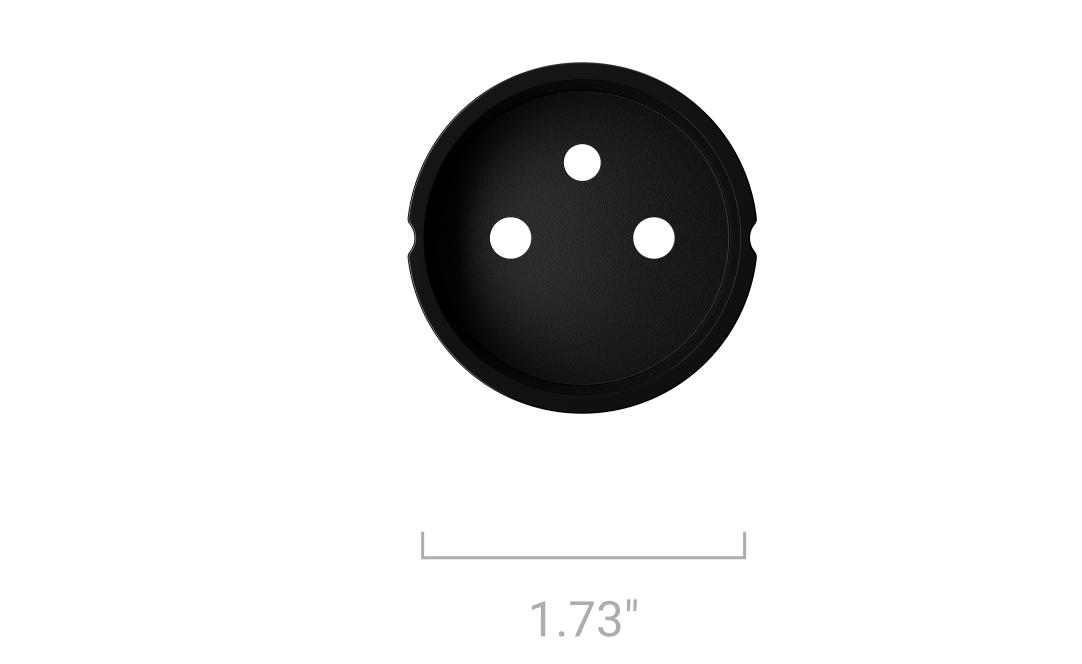

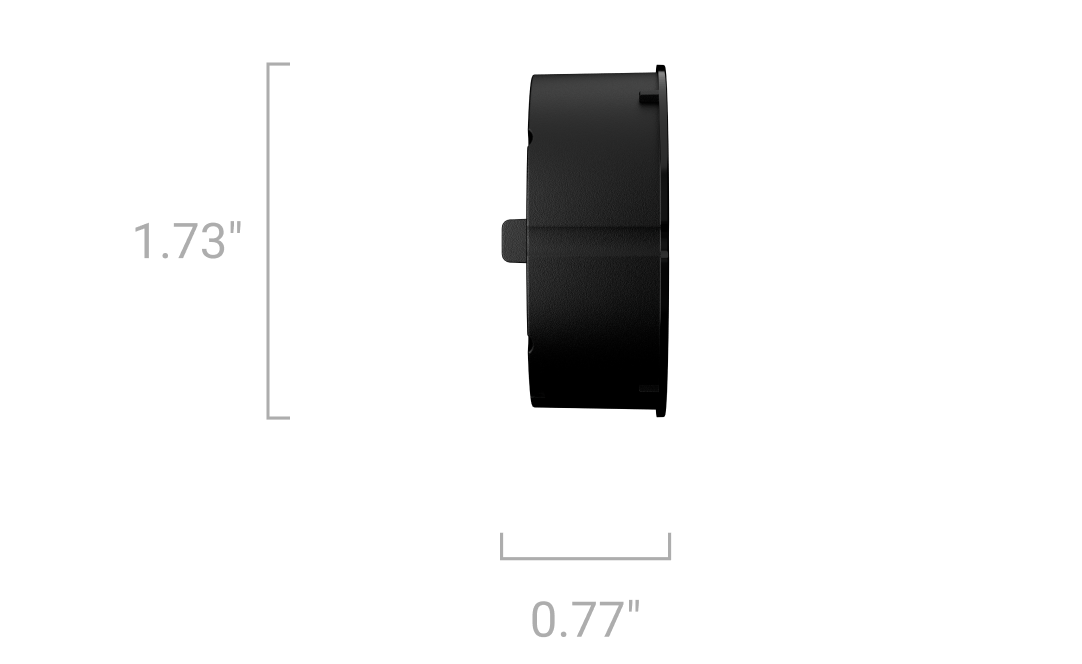

receptacle cap — 1.73 × 0.77"
SideCover (basic) [type E]

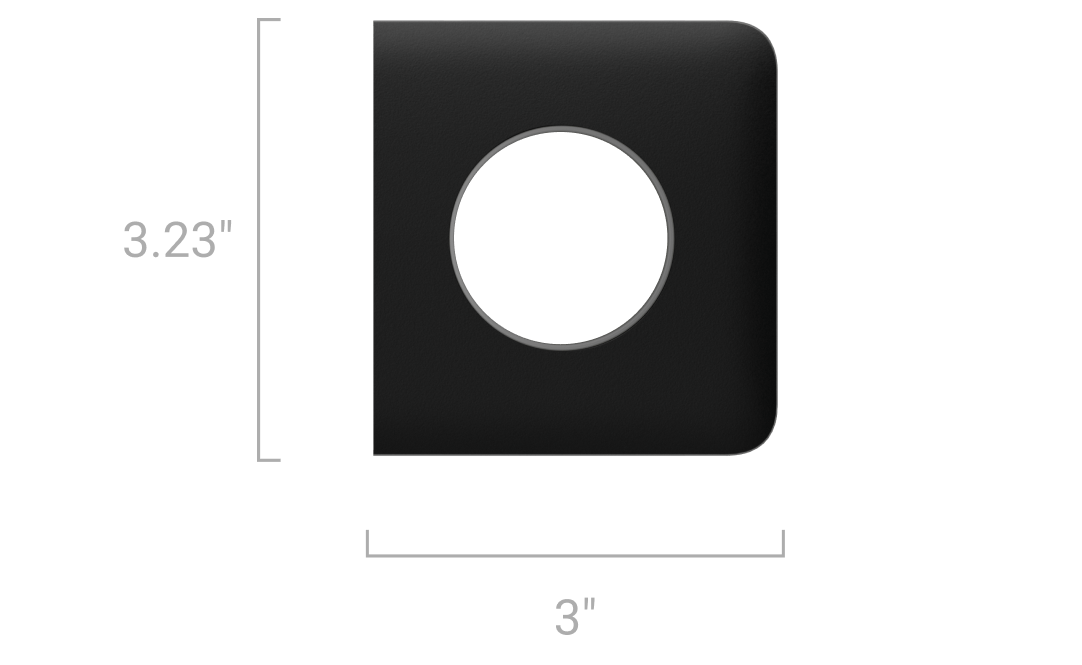

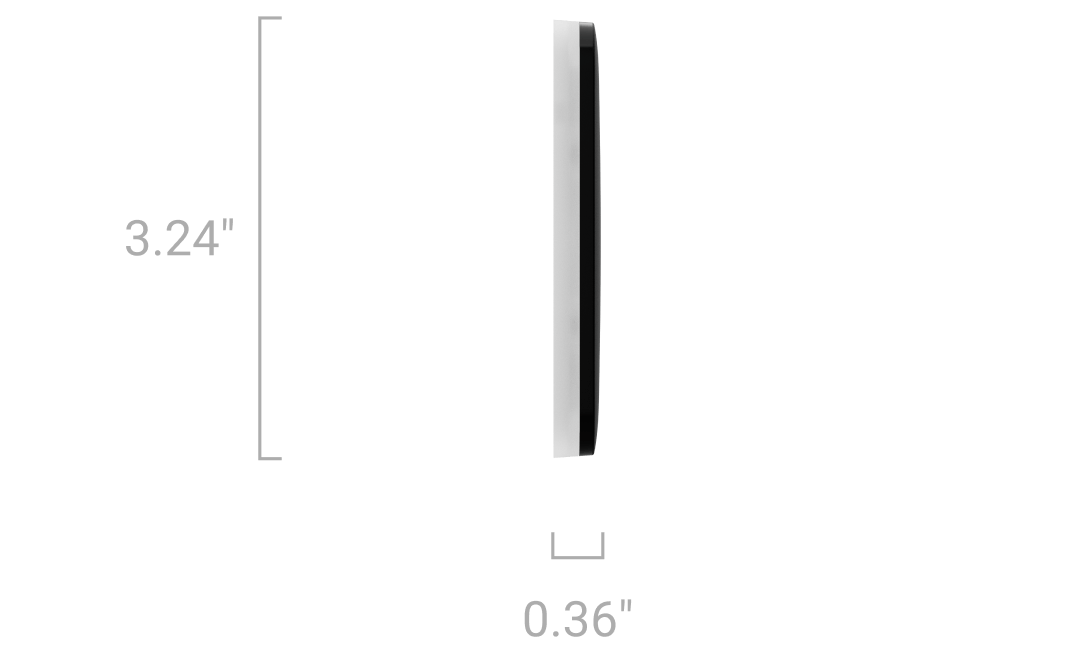

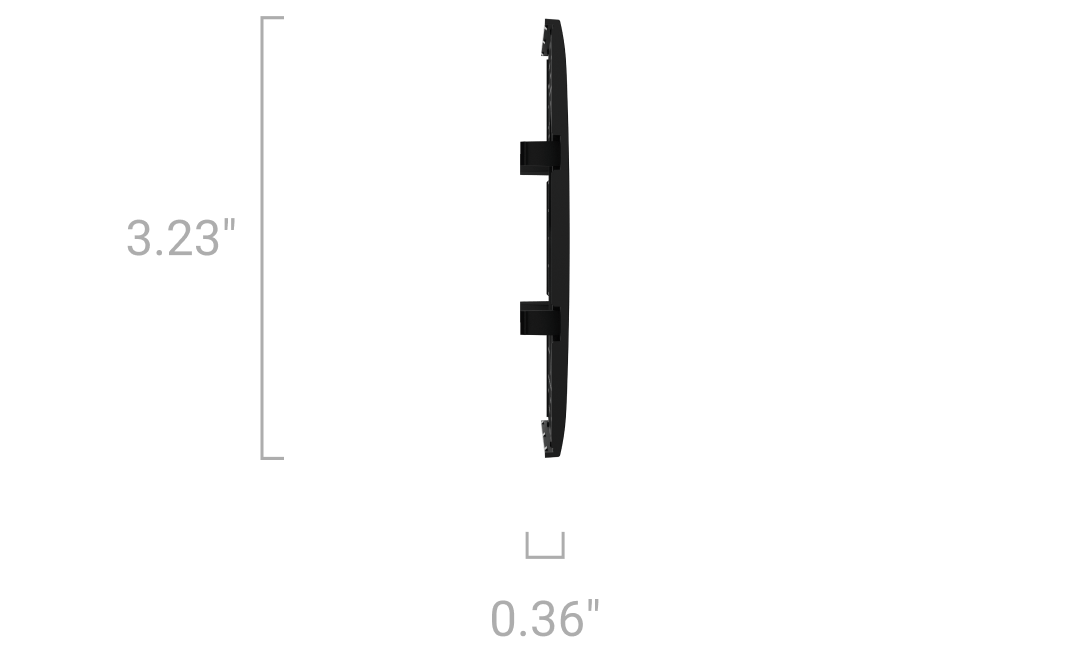

front panel — 3.23" × 3" × 0.36"
receptacle cap — 1.73 × 0.77"
CenterCover (basic) [type E]

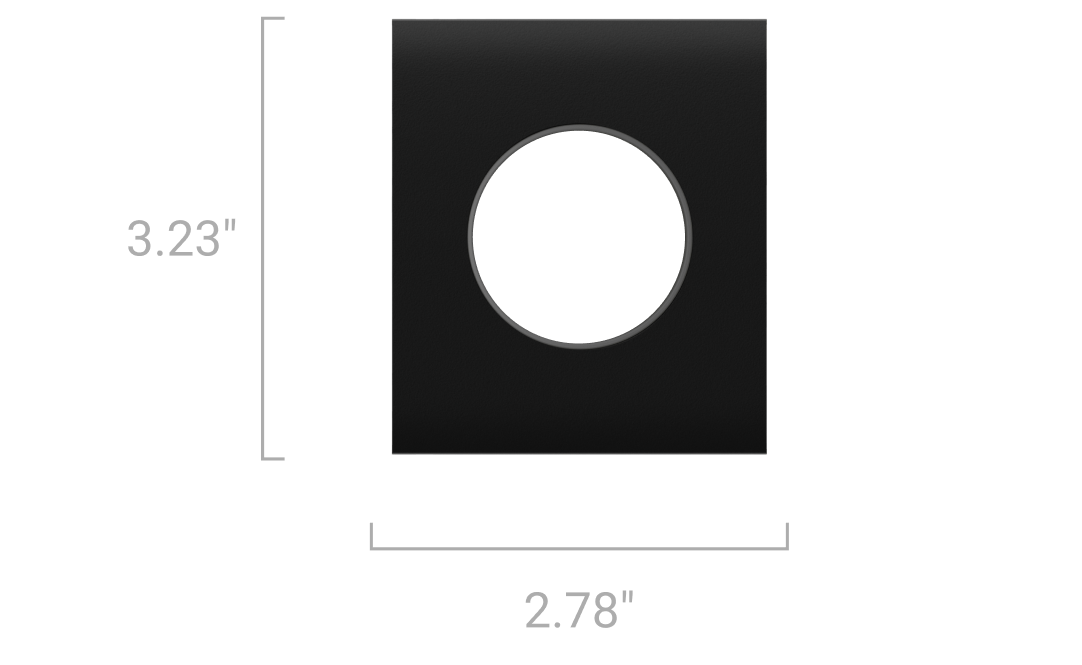

front panel — 3.23" × 2.78" × 0.36"
receptacle cap — 1.73 × 0.77"
Frames
Frame (2 seats) — 3.26" × 6.04" × 0.25"
Frame (3 seats) — 3.26" × 8.84" × 0.25"
Frame (4 seats) — 3.26" × 11.63" × 0.25"
Frame (5 seats) — 3.26" × 14.43" × 0.25"
Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"
Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"
Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"
Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"
Weight
OutletCore (basic) [type E]
1.72 oz
OutletCore (basic) vertical [type E]
1.72 oz
SoloCover (basic) [type E]
front panel — 0.44 oz
receptacle cap — 0.18 oz
SideCover (basic) [type E]
front panel — 0.41 oz
receptacle cap — 0.18 oz
CenterCover (basic) [type E]
front panel — 0.38 oz
receptacle cap — 0.18 oz
Frames
Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz
Complete set
Outlet (basic) [type E] is a prefabricated device. All parts are purchased separately
