Tech specs
Outlet (basic) [type F]
Wall outlet with grounding
![Outlet (basic) [type F]](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_md_a3792fcc62%402.png&1711710435)
Components
Core
OutletCore (basic) [type F]
![](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_front_7d00e806a5%402.png&1711710580)
![](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_back_22234d9419%402.png&1711710580)
OutletCore (basic) vertical [type F]
![](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_front_d60ebc6f1d%402.png&1711710580)
![](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_back_098dfc53e6%402.png&1711710580)
Covers
All covers consist of two elements of the same color: the front panel and the receptacle cap.
SoloCover (basic) [type F]
It is used when the outlet is installed as a separate device.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_solo_663a327e9a%402.png&1711710505)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_9ed622b407%402.png&1711710622)
SideCover (basic) [type F]
It is used when the outlet is installed on the right or left (top or bottom) of the device set.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_side_2a253e0f83%402.png&1711710505)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_9ed622b407%402.png&1711710622)
CenterCover (basic) [type F]
It is used when the outlet is installed between the device set.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_center_509c9d7f5a%402.png&1711710504)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_9ed622b407%402.png&1711710622)
Frames
Frames for two, three, four, and five Ajax outlets and switches in any combination*.
Frame (2 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_2_seats_1605ff0930%402.png&1722327655)
Frame (3 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_3_seats_0355b1ffe9%402.png&1722327654)
Frame (4 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_4_seats_2b4e999dc3%402.png&1722327655)
Frame (5 seats)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_5_seats_f5a5e09937%402.png&1722327654)
Frame (2 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_2_seats_151bb4980b%402.png&1722327701)
Frame (3 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_3_seats_d792a6ec26%402.png&1722327753)
Frame (4 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_4_seats_64e98ce954%402.png&1722327752)
Frame (5 seats) vertical
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_5_seats_a6644dfbdb%402.png&1722327755)
* Combinations with smart outlets are available only in horizontal orientation.
Configuration
Single outlet
Outlet (basic) [ type F ] is installed as a separate device.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_single_27fa551532%402.png&1711710840)
Combined outlet
Outlet (basic) [ type F ] is combined as a set with Ajax outlets and/or LightSwitch switches and installed into Frame side by side.
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_config_2_seats_160cc18e38%402.png&1711710841)
![](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_config_4_seats_5a9101bc43%402.png&1711710840)
Cover colors
Black
RAL 9005
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_black_6087a529d2%402.png&1711710881)
Graphite
RAL 7024
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_graphite_a751030d56%402.png&1711710881)
White
RAL 9003
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_white_9395f91629%402.png&1711710881)
Ivory
RAL 1013
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_ivory_d9cd5f236a%402.png&1711710881)
Fog
RAL 7047
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_ff_fog_a510393d73%402.png&1711710881)
Oyster
RAL 9002
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_oyster_0bedf6efe1%402.png&1711710881)
Grey
RAL 7004
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_grey_31f788e94c%402.png&1711710881)
Olive
RAL 7044
![](/api/cdn-img/?img=%2Fupload%2FOut_basic_f_olive_6abec20bd6%402.png&1711710881)
The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.
Recommendations
The device is designed for indoor use only.
A professional electrician should install the device.
Power supply
Power supply voltage
250 V~, 50/60 Hz
Maximum load current
16 A
Output power
up to 3.6 kW (resistive load at 250 V~)
Electric shock protection class
Class I (with grounding terminal)
Operating parameters
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% with no condensation
Protection class
IP20
Dimensions

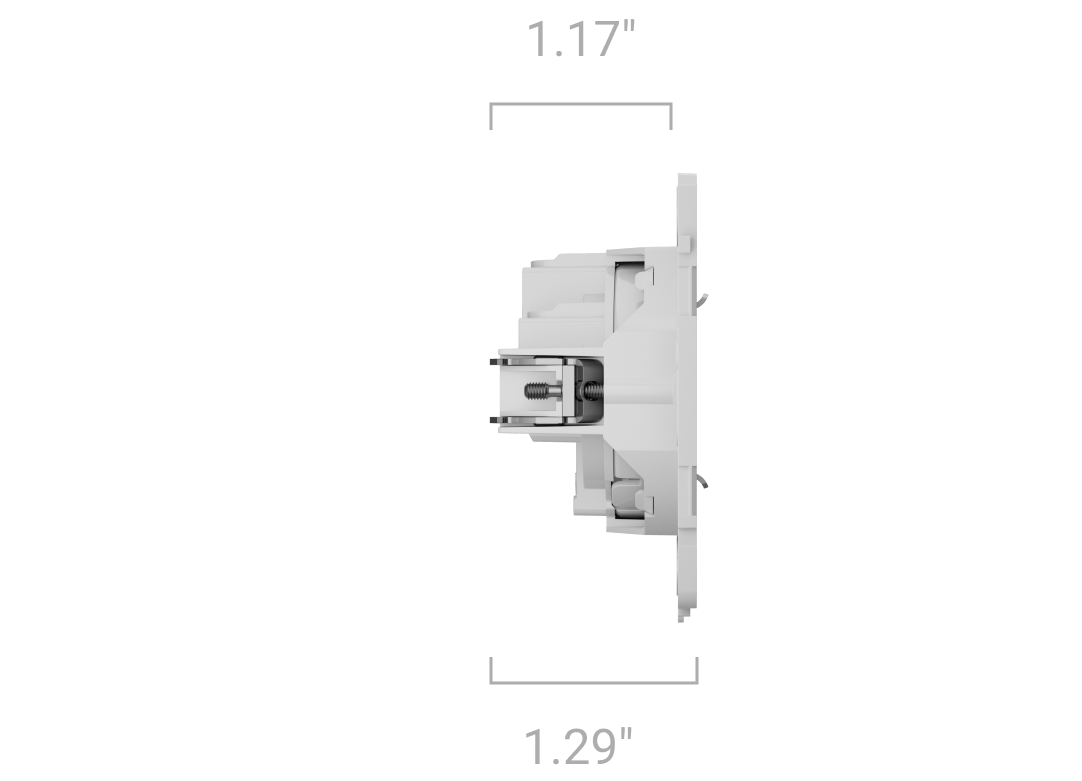

OutletCore (basic) [type F]

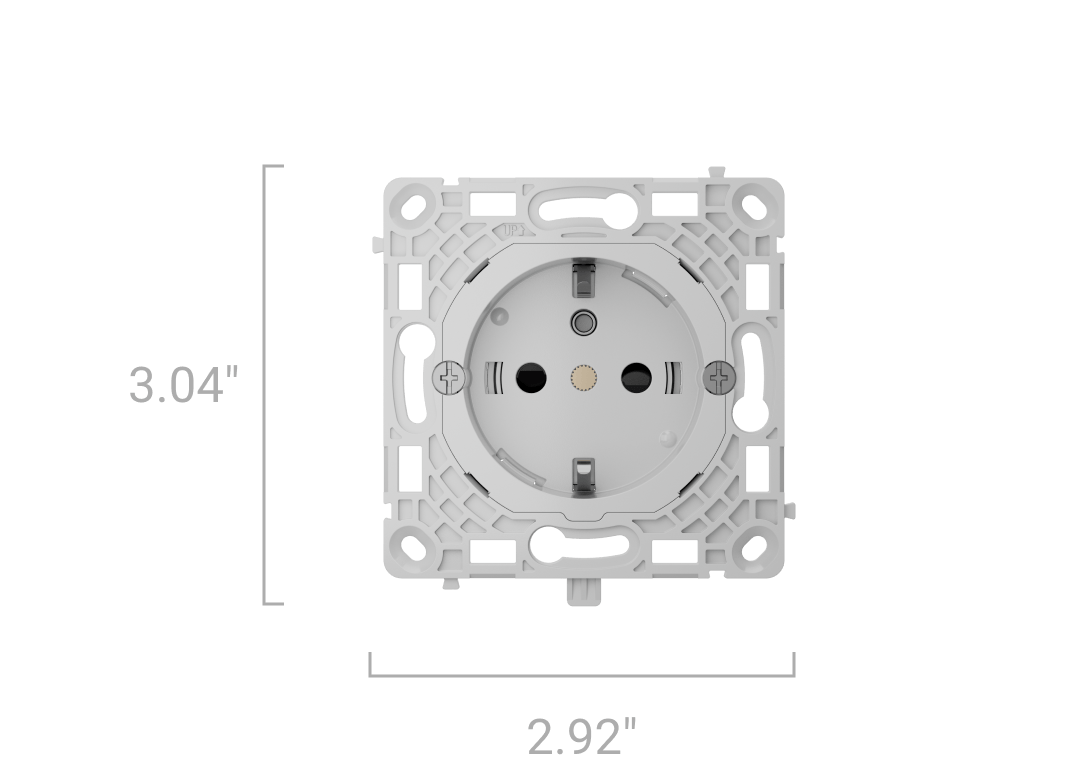

3.04" × 2.92" × 1.29"
![ttx](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_front_US_3a240fc466%402.png&1711719540)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutletcore_basic_f_side_US_e225c999f4%402.png&1711719538)

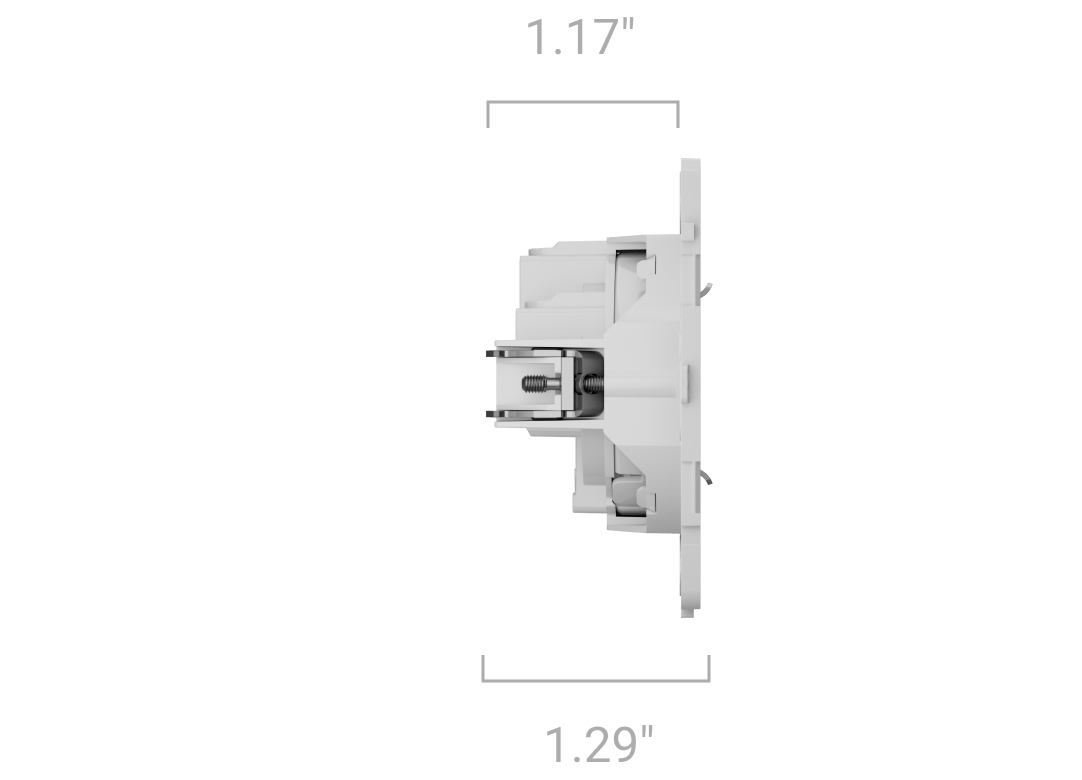

OutletCore (basic) vertical [type F]

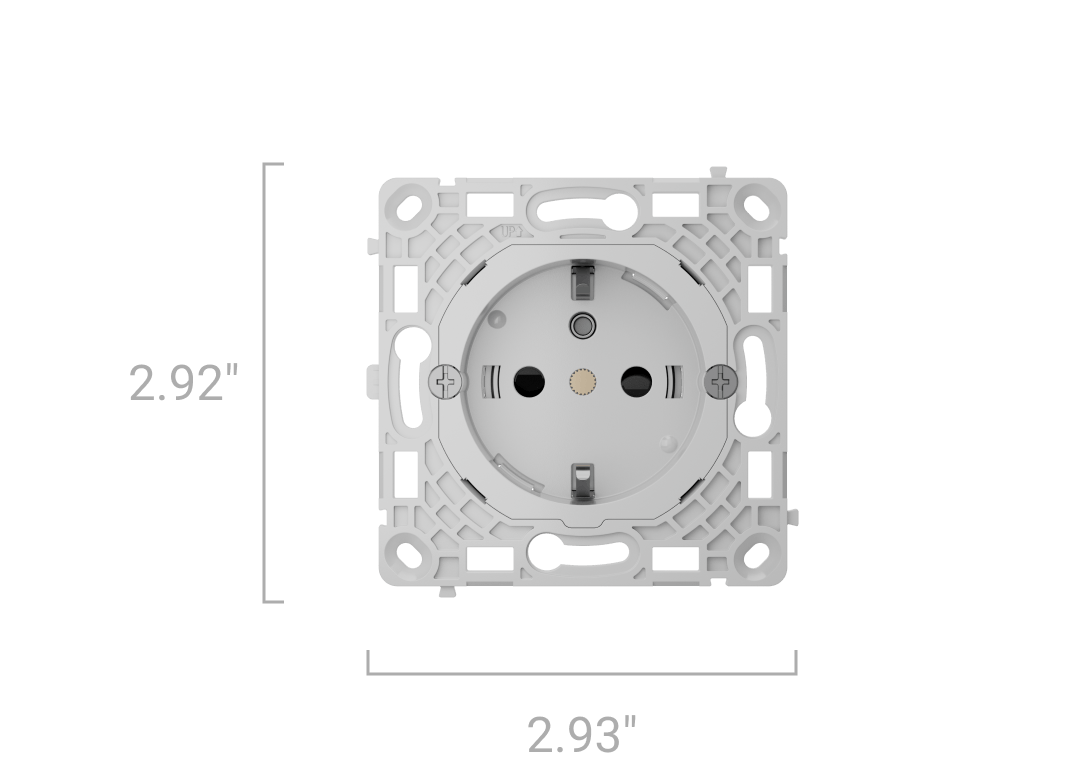

2.92" × 2.93" × 1.29"
![ttx](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_front_US_48a5529f1e%402.png&1711720965)
![ttx](/api/cdn-img/?img=%2Fupload%2Fvertical_outletcore_basic_f_side_US_ad69707f81%402.png&1711715857)
SoloCover (basic) [type F]
front panel — 3.24" × 3.24" × 0.36"

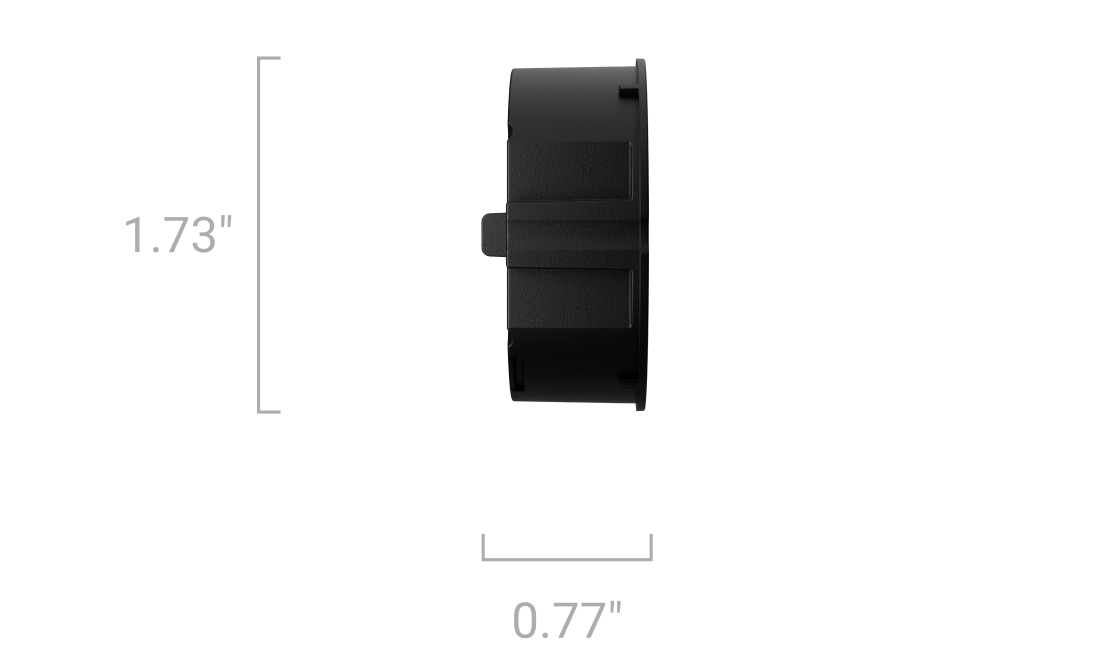

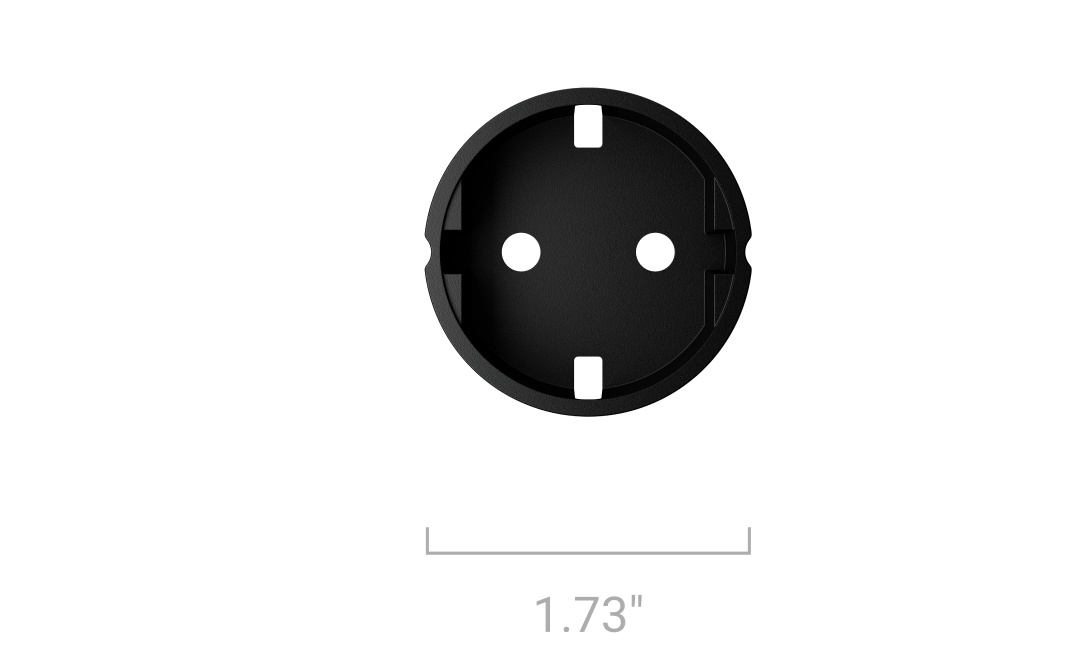

receptacle cap — 1.73 × 0.77"
![ttx](/api/cdn-img/?img=%2Fupload%2Fsolocover_basic_f_front_US_4759c5addd%402.png&1711722401)
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_basic_f_side_US_90f8578f4d%402.png&1711725308)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_US_a5ffaae183%402.png&1712760119)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_side_US_2f65cb2d5b%402.png&1712760120)
SideCover (basic) [type F]
front panel — 3.23" × 3" × 0.36"
receptacle cap — 1.73 × 0.77"
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_basic_f_front_US_1276fdf186%402.png&1711726982)
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_basic_f_side_US_cf51263720%402.png&1711726980)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_US_a5ffaae183%402.png&1712760119)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_side_US_2f65cb2d5b%402.png&1712760120)
CenterCover (basic) [type F]
front panel — 3.23" × 2.78" × 0.36"
receptacle cap — 1.73 × 0.77"
![ttx](/api/cdn-img/?img=%2Fupload%2Fcentercover_basic_f_front_US_457fac941a%402.png&1711727286)
![ttx](/api/cdn-img/?img=%2Fupload%2Fsidecover_f_side_US_82b8eca67c%402.png&1711727514)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_front_US_a5ffaae183%402.png&1712760119)
![ttx](/api/cdn-img/?img=%2Fupload%2Foutlet_basic_f_cap_side_US_2f65cb2d5b%402.png&1712760120)
Frames
Frame (2 seats) — 3.26" × 6.04" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_2_seats_front_US_9cea8c4b8a%402.png&1722327653)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_US_793b8e7f18%402.png&1722327699)
Frame (3 seats) — 3.26" × 8.84" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_3_seats_front_US_814d6d2a0e%402.png&1722327654)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_US_793b8e7f18%402.png&1722327699)
Frame (4 seats) — 3.26" × 11.63" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_4_seats_front_US_b2329a014c%402.png&1722327655)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_US_793b8e7f18%402.png&1722327699)
Frame (5 seats) — 3.26" × 14.43" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_5_seats_front_US_5b9dc78032%402.png&1722327656)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_side_US_793b8e7f18%402.png&1722327699)
Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_2_seats_front_US_b62afea603%402.png&1722327700)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_2_seats_side_US_2e6584417b%402.png&1722327700)
Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_3_seats_front_US_2cfb61a979%402.png&1722327701)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_3_seats_side_US_109a57ba63%402.png&1722327700)
Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_4_seats_front_US_7a02877f8e%402.png&1722327752)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_4_seats_side_US_33d1516b22%402.png&1722327750)
Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_5_seats_front_US_2abadeb2ff%402.png&1722327754)
![frame](/api/cdn-img/?img=%2Fupload%2Fls_frame_vert_5_seats_side_US_ec5a92b092%402.png&1722327753)
Weight
OutletCore (basic) [type F]
1.63 oz
OutletCore (basic) vertical [type F]
1.63 oz
SoloCover (basic) [type F]
front panel — 0.41 oz
receptacle cap — 0.19 oz
SideCover (basic) [type F]
front panel — 0.41 oz
receptacle cap — 0.19 oz
CenterCover (basic) [type F]
front panel — 0.38 oz
receptacle cap — 0.19 oz
Frames
Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz
Complete set
Outlet (basic) [type F] is a prefabricated device. All parts are purchased separately
