Tech specs

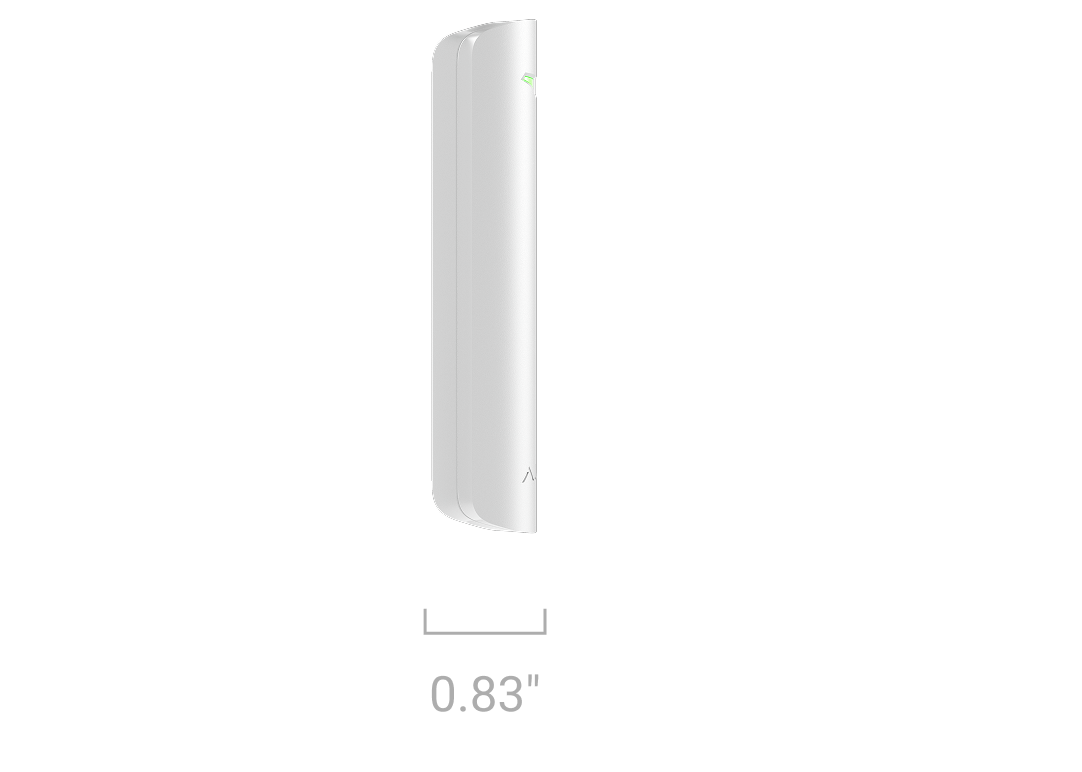

Superior DoorProtect G3 Jeweller

Wireless reed-switch opening detector with shock, tilt, and masking sensors

Device compatibility

Communication

Superior Jeweller data transfer protocol

Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131).

Key features:

Two-way communication.
Advanced sabotage protection.
Enhanced block encryption with a dynamic key.
Instant notifications.
Remote control and configuration in Ajax apps.

Learn more

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 9,800 ft

Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.

Calculate the radio communication range at the facility

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Learn more

Wings communication technology

Proprietary wireless communication technology for uploading firmware updates.

Key features:

Two-way communication.
Advanced sabotage protection.
Block encryption featuring a dynamic key.
Data packet reload in case of transmission errors.
Data packets delivery check.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Radio communication range

up to 6,550 ft

Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.

Calculate the radio communication range at the facility

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Learn more

Detection

Sensitive elements

2 reed switches

1 accelerometer

1 magnetic masking sensor

Protection against reed switch chattering

The detector ignores vibrations lasting up to 0.15 s.

Reed switches

The magnet can be installed on the left or right side of the detector.

Input to connect an additional detector

Wired detector with the normally closed (NC) contact type and additional Roller shutter mode.

Additional detector connection

Shock sensor sensitivity

3 levels

Adjusted by a PRO or a user with admin rights in Ajax apps.

The detection radius depends on the material type:

Framed glass window — 3.9 ft (high sensitivity level), 3.2 ft (low sensitivity level).
Wooden plate — 3.9 ft (high sensitivity level), 3.2 ft (low sensitivity level).
Concrete plate — 2.4 ft (high sensitivity level), 1.6 ft (low sensitivity level).
