United StatesTech specs

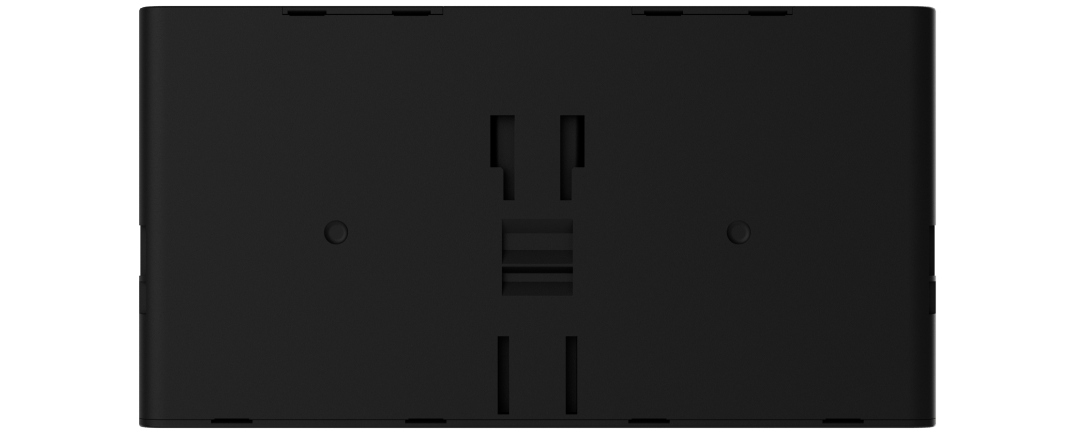

Superior Internal Battery (60h)
Rechargeable Li-ion battery to install into Superior Hub G3 Jeweller or Superior ReX G3 Jeweller. Provides 60 hours of autonomous operation.
Device compatibility
CheckBattery type
Battery
8 × 18650
Rechargeable Li-ion battery.
Nominal voltage
7.4 V⎓
Capacity
10.4 Ah
Power supply
Maximum load current
4 A
End-of-life battery voltage
6 V⎓
Power consumption
Average power consumption with LTE only
61 mAh
Average power consumption with Ethernet only
87 mAh
Average power consumption with Wi-Fi only
33 mAh
Average power consumption with Ethernet and cellular (standby)
116 mAh
Average power consumption with LTE, Wi-Fi, and Ethernet
120 mAh
Recommendations
Use the battery with compatible devices only.
The battery is designed for indoor use only.
Enclosure
Dimensions
6.54" × 3.43" × 0.90"
Weight
15.63 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% without condensation
Protection class
IP20
Color
Black
White
Complete set
Superior Internal Battery (60h)
Special tool (key)
Quick start guide
