Connector for attaching the tamper board. It detects the opening of Case lid and notifies of attempts to detach Case with the integration module installed from the surface.

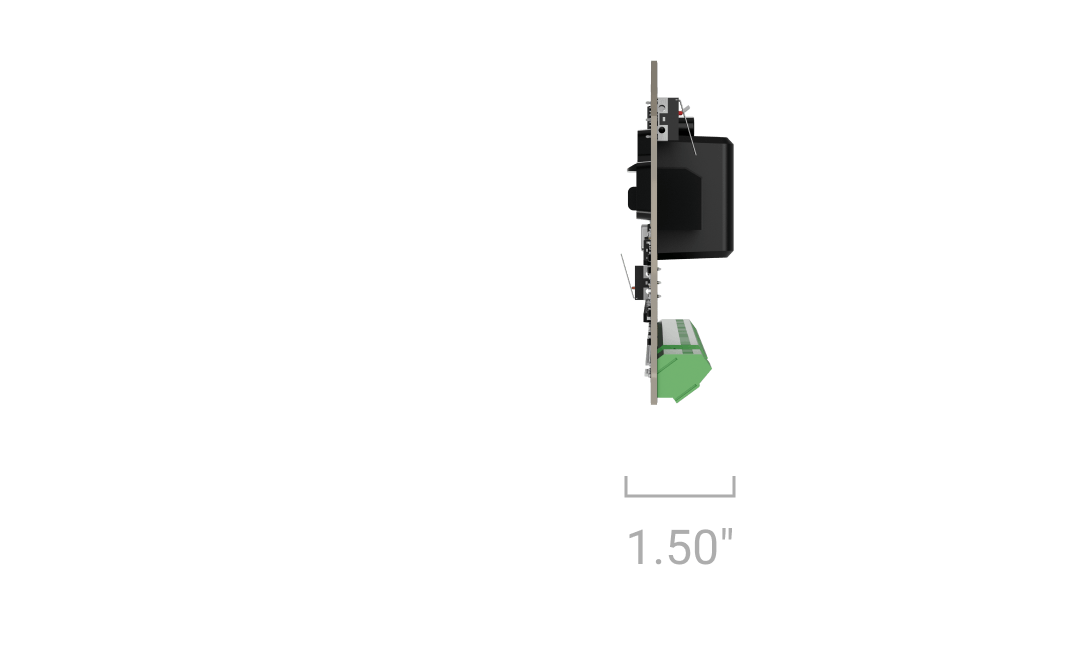

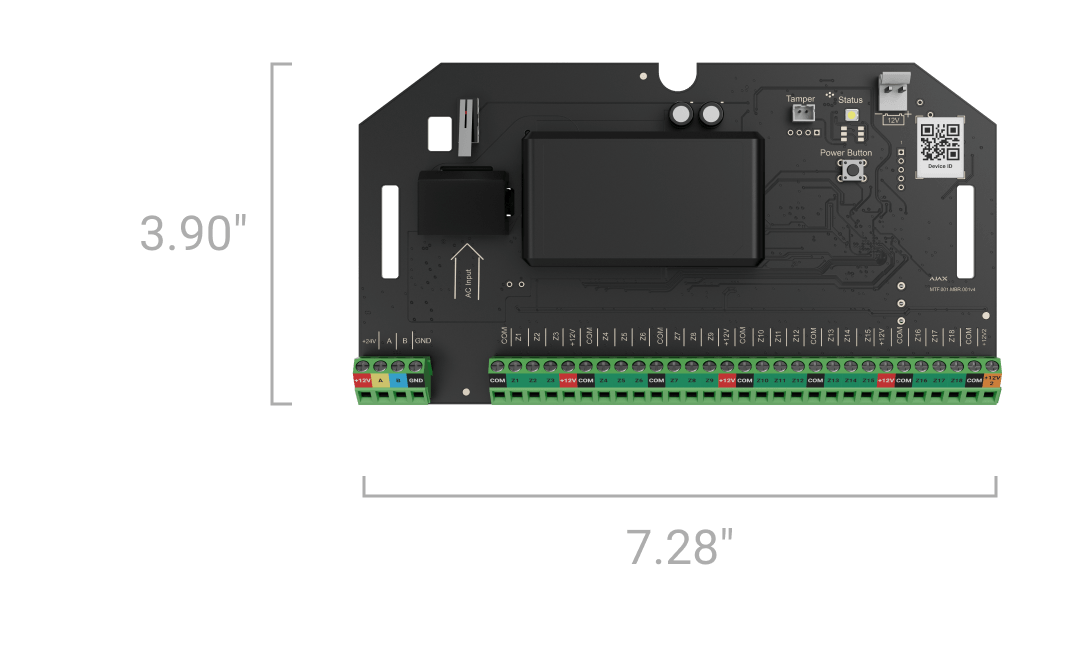

Between hub and Superior MultiTransmitter Fibra (without casing).
Instant detection of wired connection loss, short circuits and malfunctions
when 2EOL/3EOL connection is used
Depends on the connection type.
Power supply
Main
100–240 V~
Backup
12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours
Type
type A
Used inside the protected premises.
Operating AC voltage range
100–240 V~, 50/60 Hz
Main power supply.
Operating DC voltage range
10.5–15 V⎓
Backup power supply.
Quiescent current consumption at nominal voltage
25 mA¹
Maximum current consumption at nominal voltage
30 mA¹
¹ From the backup rechargeable battery after the loss of the main power supply.
Backup rechargeable battery capacity
up to 7 Ah with a full charge cycle of up to 30 hours²
When a 4 Ah rechargeable battery is used, the minimum operating time at a maximum load of 1.7 А is 2 hours. For autonomous operation for 12 or 24 hours, the maximum load should not exceed 0.3 A and 0.15 A, respectively.
When a 7 Ah rechargeable battery is used, the minimum operating time at a maximum load of 1.7 А is 4 hours. For autonomous operation for 12 or 24 hours, the maximum load should not exceed 0.4 A and 0.2 A, respectively.
² It is the maximum time to recharge a 7 Ah battery to 80% of its capacity.
Power supply of connected wired devices
10.5–15 V⎓, up to 1 A (total maximum current consumption)
Three power supply lines from Superior MultiTransmitter Fibra (without casing).
Power supply of connected fire detectors
10.5–15 V⎓, up to 0.4 A
One power supply line from Superior MultiTransmitter Fibra (without casing).
Low battery voltage
11.6 V⎓
Low battery recovery voltage
12.9 V⎓
End-of-life battery voltage
11 V⎓
Maximum output peak-to-peak ripple battery voltage
200 mV⎓
Minimum backup rechargeable battery energy level in the charged state
