Superior SeismoProtect G3 Fibra
Wired seismic detector with an additional shock sensor
Devices compatibility
CheckCommunication
Fibra communication technology
Proprietary wired communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Line connection
4-core cable
Connection
to any point of the Fibra line
The device can be installed behind the hub, detector, keypad, or siren.
Fibra line length
up to 6,550 ft
When using the U/UTP cat.5 twisted pair cable.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Detection
Sensitive elements
piezoelectric sensor
accelerometer
digital temperature sensor
Threats that can be detected
explosions
vibrations from drilling or cutting
blast waves
physical force such as bending, pressing, or pushing
Operating radius
Concrete — 13.1 ft
Steel — 6.5 ft
The operating radius may vary significantly depending on the structure integrity.
Tilt sensor activation threshold
from 5° to 25°
Adjusted by a PRO or user with admin rights in Ajax apps.
Key features
Sensitivity
3 levels
Adjusted by a PRO or user with admin rights in Ajax apps.
Option to ignore single shock
Adjusted by a PRO or user with admin rights in Ajax apps.
Self-test of sensitive elements
The device checks its sensors’ state with a self-test device and notifies if any malfunction is detected. Self-testing can be automatic or manual.
Recommendations
The device is designed for indoor use only. Only professionals should install the device. The list of authorized Ajax partners is available here.
Sabotage protection
Tamper alarm
2 tampers
Notifications on attempts to detach the detector from the surface or open the front lid.
Alarm in case of high temperature
at temperatures above 158 °F
To detect the impact of the thermal tool on the device.
Alarm in case of rapid temperature rise
when the temperature rises more than 9 °F in 5 seconds or less
To detect the impact of the thermal tool on the device.
Enclosure drilling detection
to detect the enclosure damage
Communication loss detection
after 36 s
Detection time depends on the Jeweller/Fibra settings.
Power supply
Operating voltage range
5−30 V⎓
The hub powers the detector via the Fibra line.
Nominal operating voltage
24 V⎓
Quiescent current consumption at nominal voltage
0.3 mA
Maximum current consumption at nominal voltage
2.6 mA
Enclosure

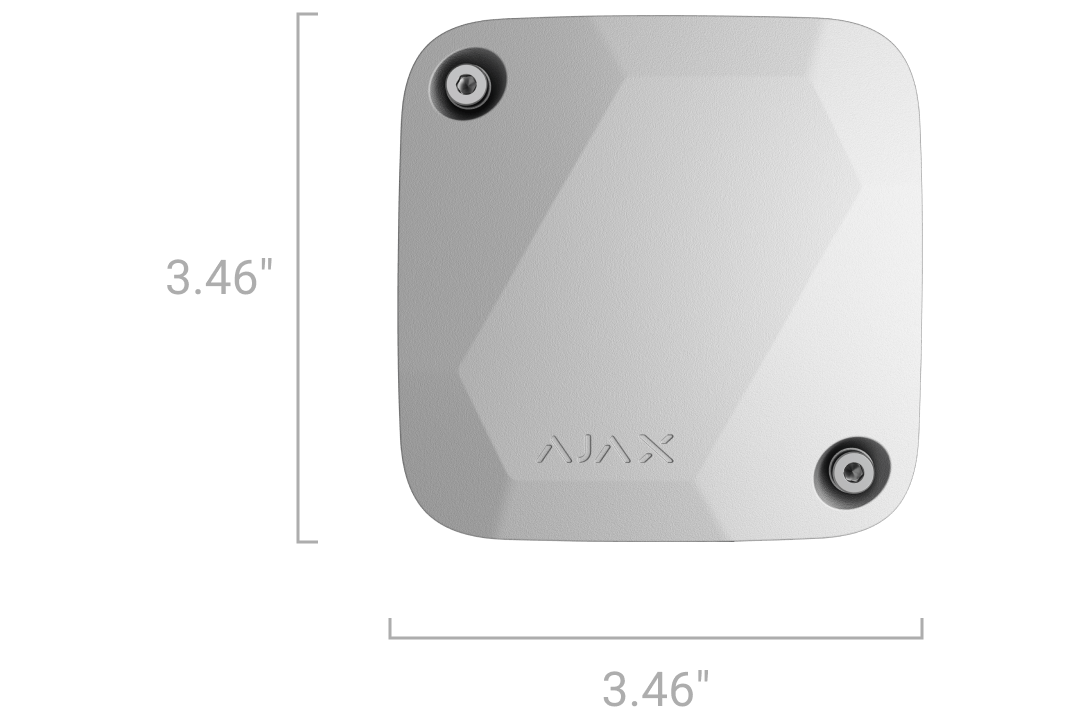

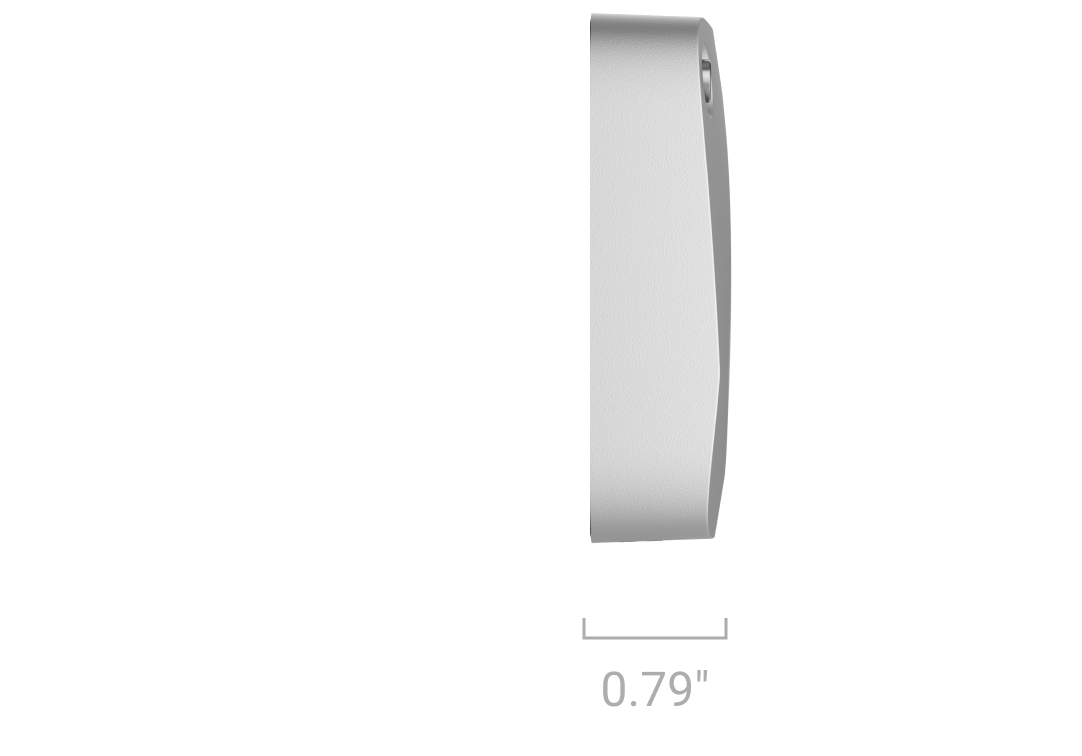

Detector dimensions
3.46″ × 3.46″ × 0.79″
The mounting plate adds 0.2″ to the height above the protected surface.
Detector weight
6 oz
Mounting plate weight
7.9 oz
Armored cable weight
4.59 oz
Armored cable length
4.9 ft
Operating temperature range
from −13 °F to 158 °F
Operating humidity
up to 95%
Protection class
IP43
Colors
Black
White
Complete set
Superior SeismoProtect G3 Fibra
Mounting plate
Self-test device
Armored 4-core signal cable
Installation kit
Quick start guide
