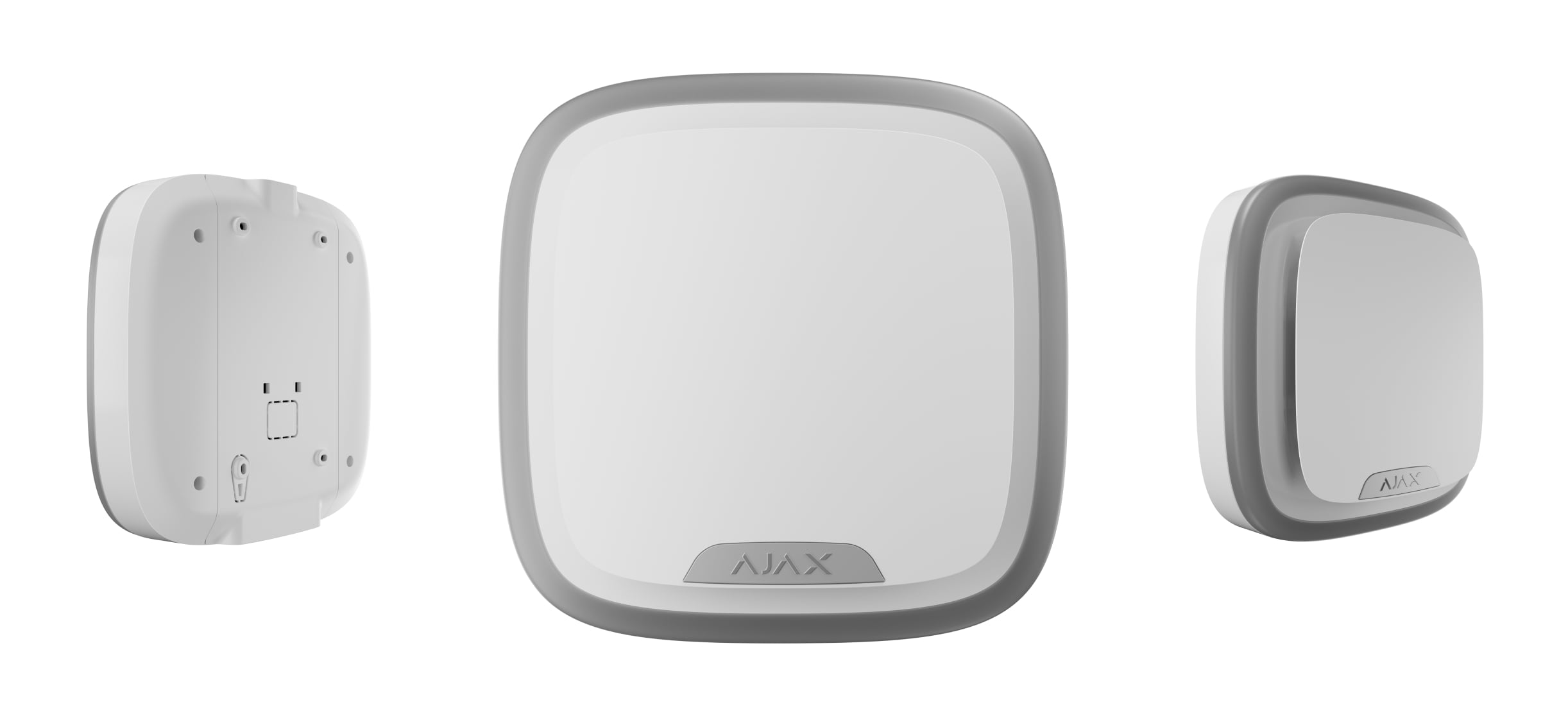

Superior StreetSiren Plus G3 Jeweller

Superior Jeweller data transfer protocol

Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131).

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Enhanced block encryption with a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio communication range

up to 11,450 ft

Between the siren and a hub (or a range extender) in an open space. The maximum range depends on the hub model.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology for uploading firmware updates.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Data packet reload in case of transmission errors.
• Data packets delivery check.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Radio communication range

up to 6,550 ft

Between the siren and a hub (or a range extender) in an open space. The maximum range depends on the hub model.

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Alarm type

acoustic and light

A speaker and LED frame.

Type of warning device

type X

External, self-powered, remote power source with EN 50131-6 compliant power supply.

Alarm volume

from 85 to 107 dB at a distance of 3.3 ft

Adjusted by a PRO or user with admin rights in the Ajax app.

Alarm duration

from 3 s to 3 min

Adjusted by a PRO or user with admin rights in the Ajax app.

Alarm sound

2 types

NFA2P-compliant and Regular.

LED indication

2 types

If the siren has an external power supply, the user can choose between the Corner backlight and Full-frame backlight features. If the siren is powered by a battery, only the Corner backlight feature is available.

Alarm LED indication in NFA2P-compliant mode

flashlight color — red

flashlight frequency — 1 flash per second

Siren sound frequency

• 1,400−1,600 Hz in NFA2P-compliant mode
• 1,400−1,600 Hz in Regular mode

Device self-test

Allows you to check whether the battery is sufficiently charged for normal operation.

Events indication

• Alarms.
• Delays when entering/leaving.
• Security mode.
• Security mode changing.
• After-alarm indication.

Chime

The siren makes a special sound to notify that the opening detectors are triggered when the facility is disarmed.

Tamper alarm

Notifications on attempts to open the siren’s enclosure, detach the siren from the surface, or remove the siren from the mounting panel.

Protection against spoofing

device authentication

Jamming detection

The siren detects jamming and alarms about it.

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Battery

8 × CR123A 3 V⎓ lithium battery

Pre-installed.

Type

Type C.

Calculated battery life

up to 10 years in standby mode

up to 4.2 years with one 90-second alarm per day

Operating voltage range

3.65−6.2 V⎓

Nominal operating voltage

3 V⎓ in standby mode

6 V⎓ when the siren sounds

Quiescent current consumption at nominal voltage

84 µA

Maximum current consumption at nominal voltage

640 mA

When the siren sounds at the Very Loud volume level.

Peak current consumption at nominal voltage

960 mА

When the siren sounds at the Very Loud volume level.

Average current consumption at nominal voltage

125 mA

When the siren sounds at the default volume level. Regardless of the arming mode.

Full battery capacity

12,800 mAh

Capacity of each battery is 1600 mAh.

Low battery voltage

4.69 V⎓

End-of-life battery voltage

4 V⎓

Manufacturer

Huiderui

Electric shock protection class

Class III

Remote power supply’s operating voltage

9.6−14.4 V⎓

Remote power supply’s nominal voltage

12 V⎓

Superior StreetSiren Plus G3 Jeweller

SmartBracket mounting panel

Installation kit

Quick start guide
