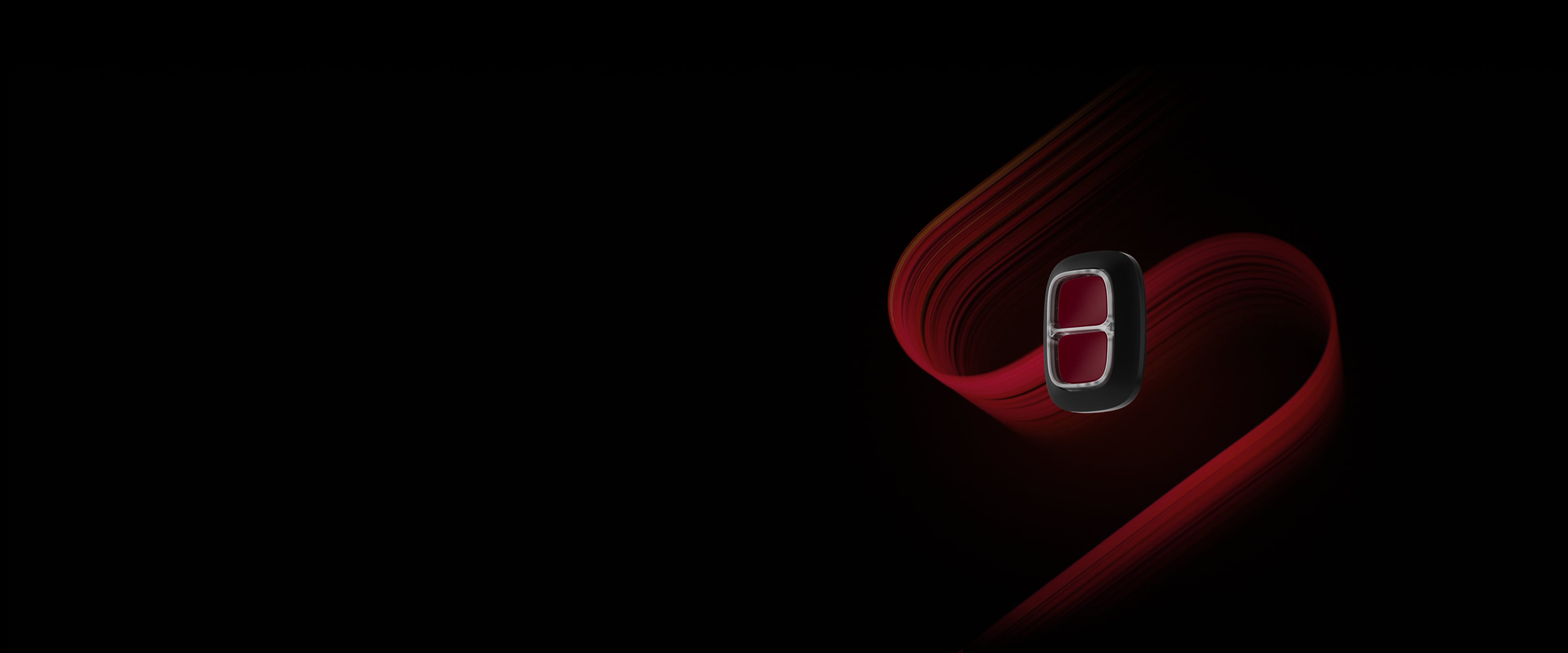

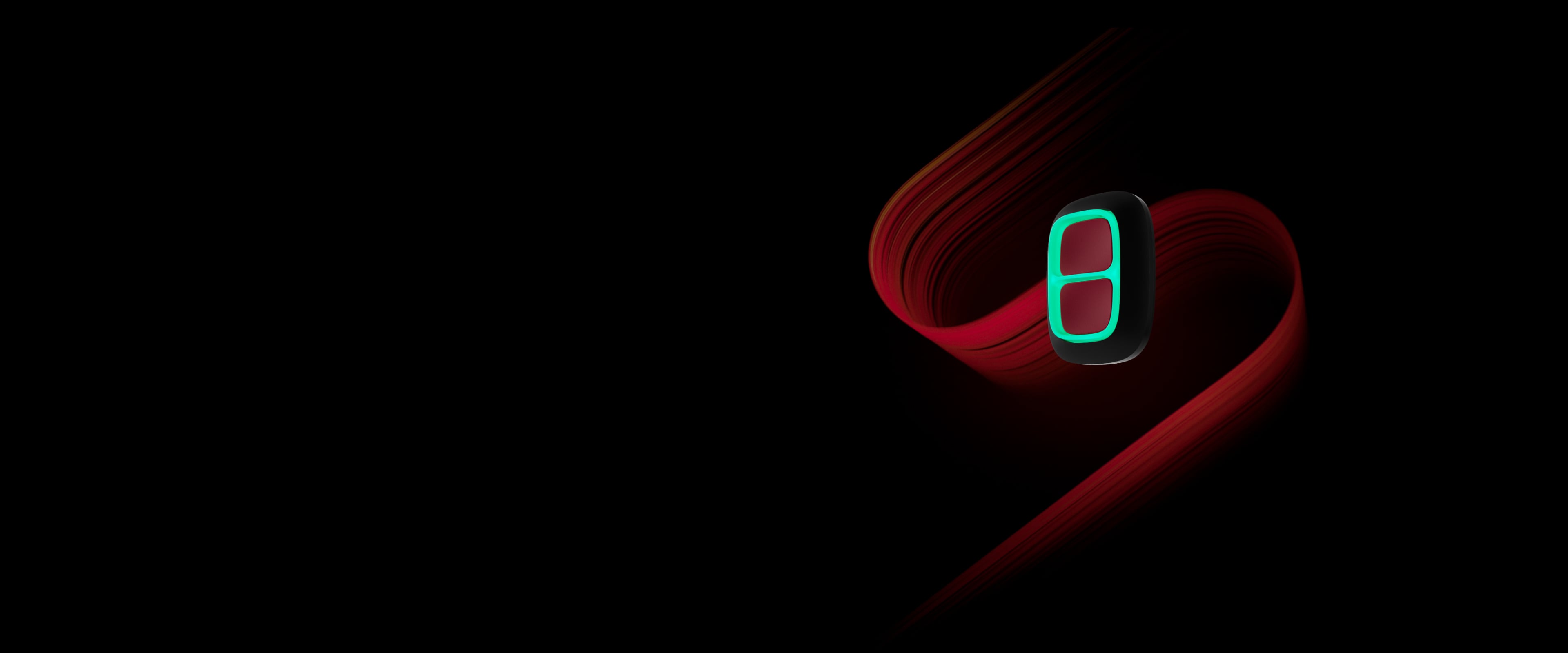

Superior DoubleButton G3 Jeweller
Wireless hold-up device for high-risk facilities
Engineered for high stakes. Protected against mistakes.
Superior DoubleButton G3 Jeweller іs the first wireless Grade 3 hold-up device. It is designed with maximum protection against false alarms: both buttons must be pressed simultaneously to trigger an alarm, and a plastic divider prevents accidental activation. Confirmed alarm mode can also be enabled, allowing a predefined alarm activation algorithm. The device communicates with a hub at a distance1 of up to 11,450 ft. It can be mounted on a flat surface with a Holder fastener2 or carried around as a portable device. A durable, IP55-rated enclosure withstands almost any environment, while an enhanced battery powers the device for up to six years. All settings and updates can be managed remotely via Ajax apps.
Built to stand out
Protection against accidental alarm activation
Compliance with Grade 3 requirements
Fully wireless device with up to six years of battery life
Installation and setup within a few minutes
Superior wireless Grade 3 solution
Discover the world's first fully wireless Grade 3 security system.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
Triple-level protection against false alarms
To activate an alarm, both buttons must be pressed simultaneously. They are stiff and parted by a plastic divider.
An alarm is triggered either by a long press on both buttons simultaneously or by two brief presses.
An alarm can be confirmed by pressing one DoubleButton device twice or two different DoubleButton devices in sequence.
Automation scenarios can be activated by an alarm or a confirmed alarm.
Mounted or portable — reliable in any environment
Carrying options: on the wrist, around the neck, or on a key ring
Holder2 for securing the device on a flat surface
IP55-rated enclosure for outdoor and indoor use
Operating temperature: from 14 °F to 104 °F
Holder
Fastener to fix a button on a surface
Enhanced wireless technology
Superior Jeweller is a next-generation Ajax radio protocol developed for wireless devices of the Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.
Up to 11,450 ft of communication range in open space1
Two-way radio communication with enhanced encryption
Instant alarm and malfunction notifications
No wires are required
Long-lasting performance
- Up to six years of autonomous operation
- High-performance battery from proven manufacturers
- Pre-installation battery testing for reliability
- Minimal impact of threshold temperatures on battery life
- Early low-battery warnings
- Battery charge auto-check once a day
Sabotage resistance
Communication loss detection3 within 36 seconds
Frequency hopping for radio interference and jamming protection
IP55 and IK06 protection
Automatic device self-diagnosis with status report
Data encryption
Anti-sabotage features are compliant with Grade 3 requirements.
Hassle-free installation and setup
- Ready to operate straight out of the box
- Up to six years of operation on a pre-installed battery
- Effortless and secure mounting on a surface2 or carrying around
- Adding to the system via QR code
- Setup in minutes in an Ajax app — no programming required
- Configuration and testing remotely or on-site
- Automation scenario configuration remotely or on-site
- Battery charge auto-check once a day
- Real-time maintenance notifications
Convenient solution for any facility
Factory
Store
Office
Warehouse
Museum
House
Communication range depends on the hub model.
Holder for Superior DoubleButton G3 Jeweller is sold separately.
If the polling interval is set to send three data packets as often as every 12 seconds.
Technical information
Superior DoubleButton G3 Jeweller
