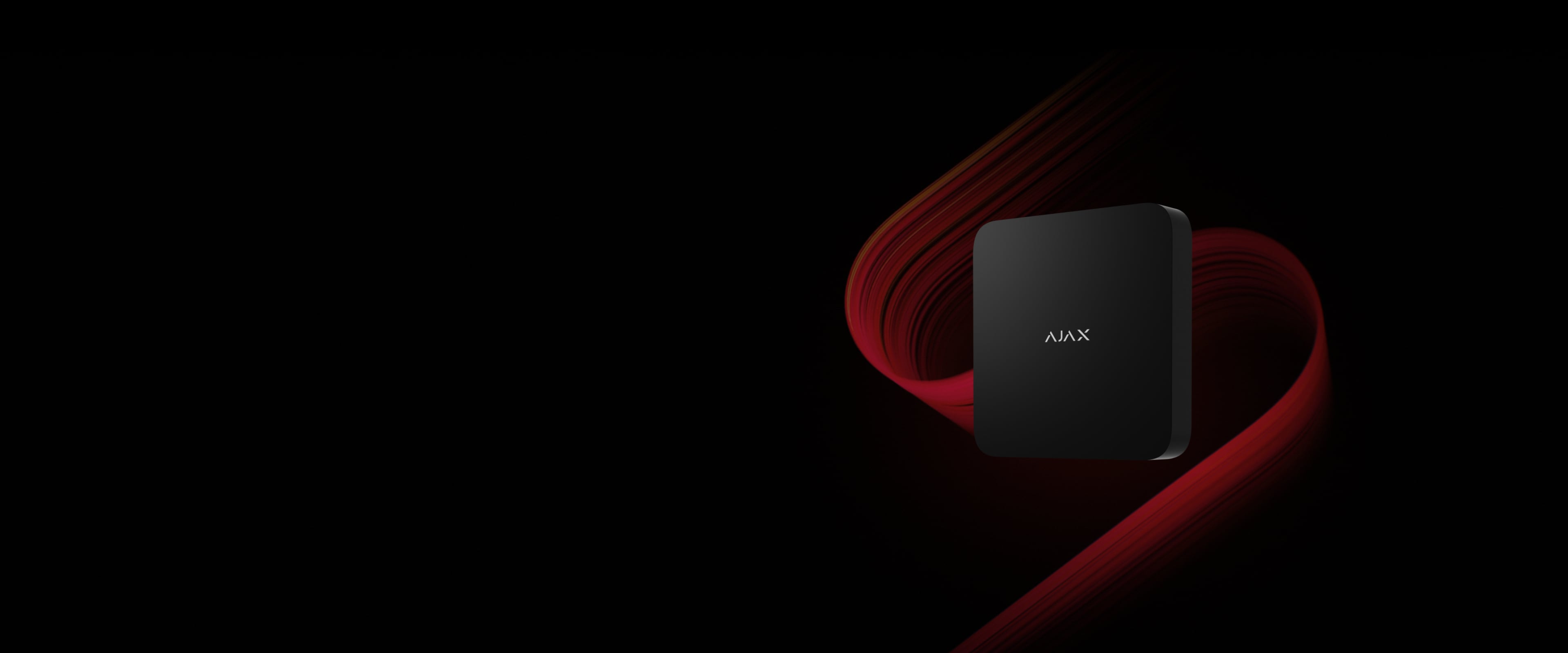

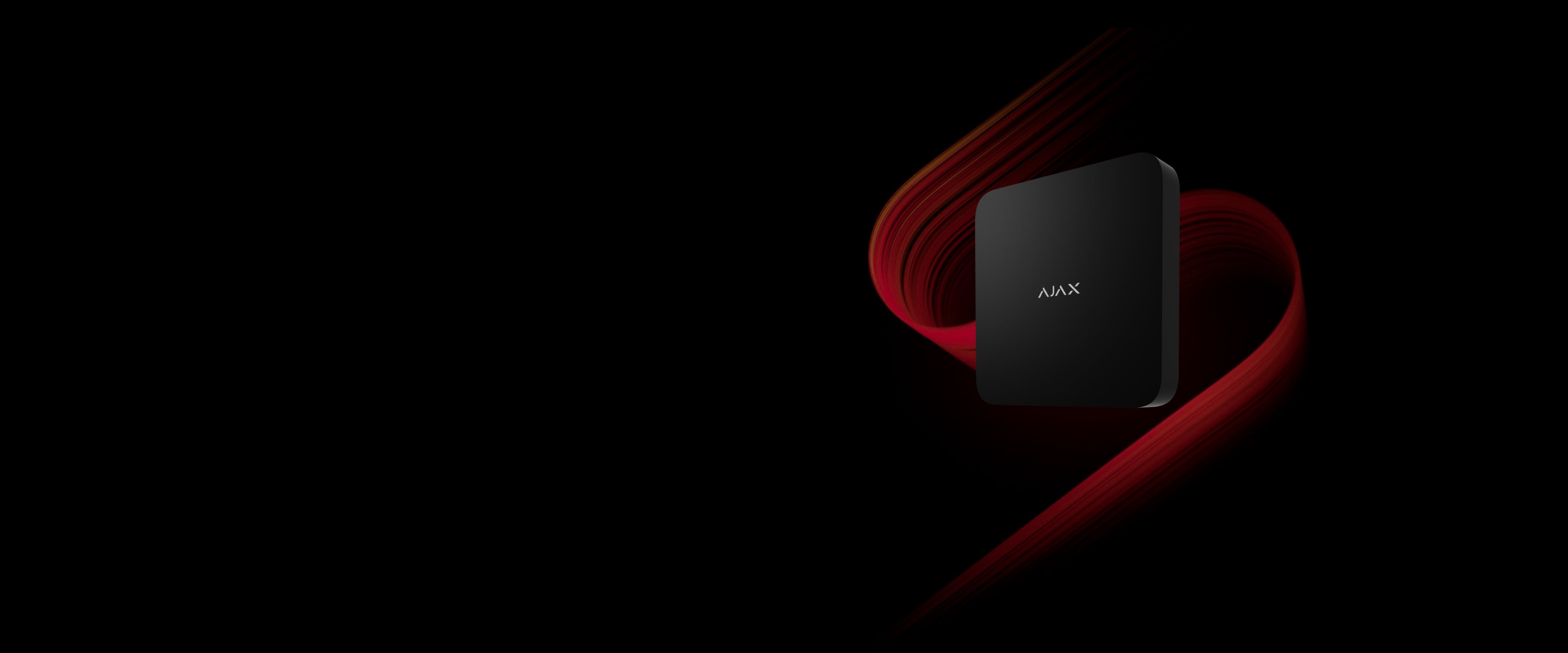

Superior Hub G3 Jeweller
Wireless control panel with support for photo verification. Connectable via Ethernet, Wi-Fi, and two SIM cards (2G/LTE).
High security for high stakes. Now wireless.
Superior Hub G3 Jeweller is the heart of the world's first wireless Grade 3 security system. The hub communicates with Ajax devices using Superior Jeweller and TurboWings protocols. With a range of up to 11,450 ft (TBC), the wireless connection stays stable even through thick walls and on large sites. The hub maintains internet connectivity through four independent channels — Ethernet, Wi-Fi, and two SIM cards — with automatic switching to always stay online. And with backup1 power, the system can operate for up to 16 or 60 hours during an outage. All this creates solid ground for the unified Ajax ecosystem — combining intrusion protection, fire and life safety, video surveillance, and comfort and automation.
Built to stand out
One system for every need: fire safety, intrusion protection, video surveillance, and comfort and automation
Mobile and desktop Ajax apps for end users and security professionals for all-in-one system control
Hassle-free installation and setup with all communicators and a power supply unit built in — no enclosure disassembly or additional hardware required
Industry-leading sabotage protection, tested by independent laboratories for compliance with international and local security standards
Superior wireless Grade 3 solution
Discover the world's first fully wireless Grade 3 security system.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
Grade 3 protection for small and medium-sized sites
Bank
Office
Warehouse
Jewelry store
Up to 250
devices
Up to 200
users
Up to 25
security groups
Up to 5
range extenders
Up to 528
video devices2
Up to 64
automation scenarios
Reliable communication out of the box
Superior Jeweller and Jeweller protocols for secure wireless communication with connected devices
TurboWings and Wings protocols for photo transmission and over-the-air updates
VoRF protocol for full-duplex audio communication between site and monitoring station
Ethernet, Wi-Fi, and two 2G/4G (LTE) SIM cards to access the internet
Instant automatic switch between channels in case of interruptions
Support for up to four providers simultaneously
Notification of communication loss via any available channel
Over ten supported protocols, including SIA and SurGard
Signaling levels up to DP4 supported
Three communication options: direct connection, via Ajax Cloud, or via both channels
Adjustable polling intervals for connection to monitoring companies starting from 10 seconds
Hassle-free connection to third-party monitoring software within minutes
The hub can use ExternalAntenna3 to improve signal strength in Superior Jeweller, Jeweller, TurboWings, Wings, and cellular channels.
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller4 delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. TurboWings5 complements it by transmitting photo verification data from motion detectors and ensuring connected devices always have the latest firmware through regular updates.
Up to 11,450 ft of communication range in open space1
Two-way radio communication with enhanced encryption
Instant alarm and malfunction notifications
Photo alarm verification and over-the-air updates6 for connected devices
Sabotage resistance
Tamper button to detect dismantling or detachment
Authentication of the hub and connected devices to prevent spoofing
Detection of communication loss7 with Ajax devices
Detection of communication loss with Ajax Cloud
Detection of communication loss with the monitoring station
Frequency hopping to prevent radio interference and jamming
Jamming detection and notification
Backup power1 for uninterrupted system operation
Anti-sabotage features are compliant with Grade 3 requirements.
Stable performance even during outages
Main power supply
Superior Hub G3 Jeweller uses a 110–240 V, 50/60 Hz mains supply as its primary power source.
Backup battery
The hub can house a hot-swappable battery1 that provides up to 16 or 60 hours of autonomous operation in case of a power outage.
Complete ecosystem of Ajax apps for users and security professionals
For PRO users
Ajax PRO Desktop
For installation and monitoring companies
Maintain Ajax systems, monitor alarms, and confirm them using the visual verification feature
For end users
Ajax Desktop
For facility managers or owners
Monitor the entire site and stay informed with instant alarms and maintenance notifications
Immune to lags, freezes, and viruses with OS Malevich
The hub runs on OS Malevich, a real-time operating system developed by Ajax Systems. It is resistant to viruses and cyberattacks and delivers exceptional reliability. Automatic updates arrive within minutes, enhancing performance and adding new features — keeping the system up-to-date for years.
Hassle-free installation and setup
- Installation without enclosure disassembly
- All communicators and a power supply unit built in
- Built-in bubble level
- Perforated parts for installer-friendly cable management
- Battery1 hot swapping
- Adding to a space via QR code
- Setup in minutes in an Ajax app — no programming required
- Remote control and configuration of parameters and permissions in mobile and desktop apps
- Instant notifications of alarms and events
- Real-time notifications when maintenance is required
Enhance system performance with Ajax Services
Ajax SIM
Pre-installed SIM card for reliable cellular communication right out of the box
Ajax Ultra DP
Presets for streamlined configuration of compliant dual-path alarm transmission (DP2, DP3, or DP4)
Backup Ajax batteries are sold separately. Only compatible batteries can be used: Superior Internal Battery (16h) or Superior Internal Battery (60h).
The hub supports up to 36 Ajax NVRs and up to 224 cameras connected via NVRs or 492 as standalone devices.
ExternalAntenna is sold separately.
The Superior Jeweller protocol is used only when all connected devices support it. Otherwise, the system operates via Jeweller.
The TurboWings protocol is used for devices that support it. Otherwise, the system communicates with those devices via Wings.
The hub delivers over-the-air updates only to connected devices that support this feature.
The system detects communication loss between the hub and Ajax devices within 36 seconds if the polling interval is set to send three data packets as often as every 12 seconds.
Technical information
Superior Hub G3 Jeweller
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
