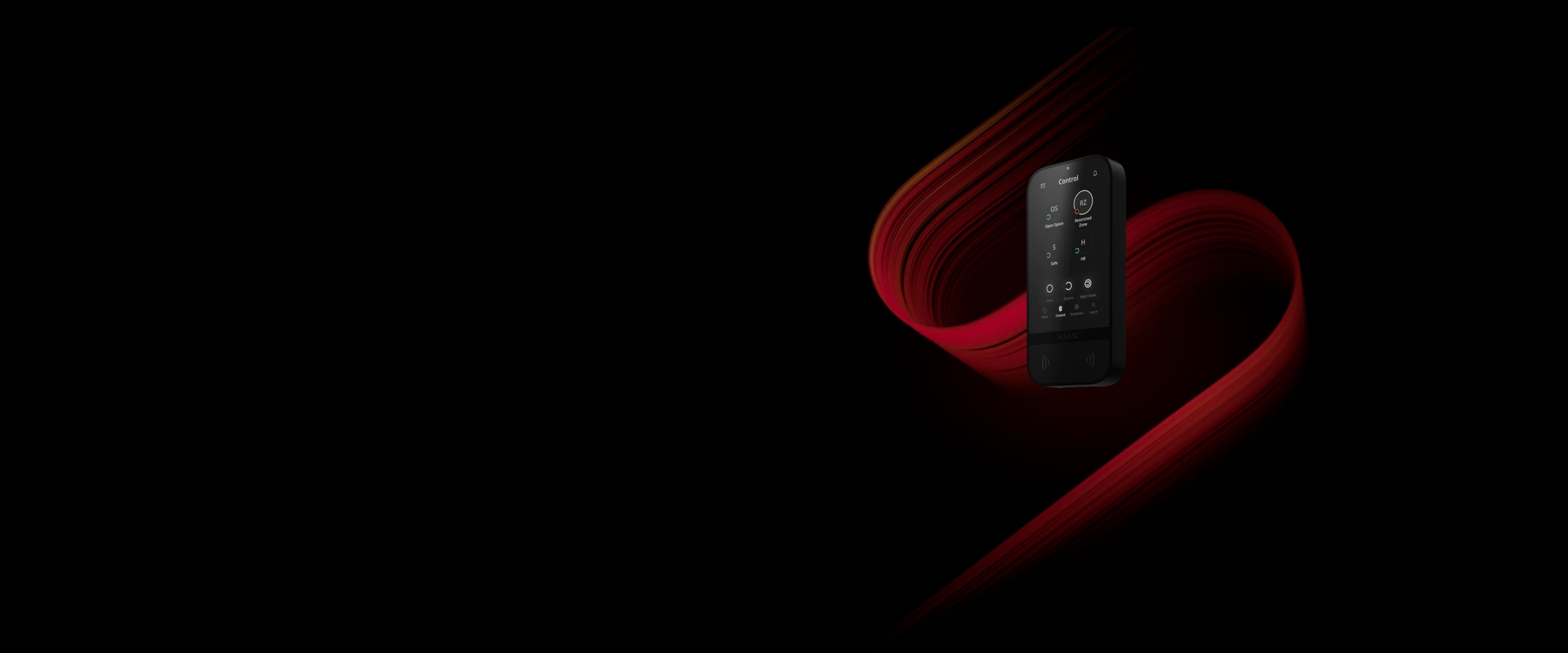

Superior KeyPad TouchScreen G3 Jeweller
Wireless keypad with a touch screen, supporting authentication via Pass, Tag, smartphones, and codes
Convenient system control for high-security sites. Now wireless
Superior KeyPad TouchScreen G3 Jeweller combines effortless security and automation device management with professional-grade protection for high-risk facilities. Its intuitive interface resembles an Ajax app and supports multiple languages. A large display, DESFire® and BLE technologies, and various code options ensure both a convenient and secure experience. Users can view the latest alarms and events directly on the keypad screen, staying informed about all activity in the system. The keypad communicates with a hub at a distance1 of up to 11,450 ft. All settings and updates can be managed remotely via Ajax apps.
Built to stand out
Security and automation control: state of each group and automation scenario shown on a large display
Panic button, duress codes, protection against code guessing, card or key fob copying, and the use of unauthorized access devices
Support for authentication via smartphones, Pass and Tag contactless access devices, and codes
Full system awareness — recent events on screen, overall system states, and sound and LED indication
Up to 1.5 years (TBC) of operation on enhanced pre-installed batteries
Superior wireless Grade 3 solution
Discover the world's first fully wireless Grade 3 security system.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
One device, three missions
Easy group management
Security mode of each group on the screen
Night mode and security mode control of the entire system
Separate tab for user convenience
Up to six devices or device groups on one screen
Automation device state visible on the screen2
Latest alarms and events on the screen
On-screen notification specifying the cause of a malfunction when arming the system
Sound and LED notifications about alarms and events
Instant malfunction notifications
Authentication methods
Contactless Pass cards and Tag key fobs
- Support for DESFire® technology
- Remote configuration of access devices
- Protection against authentication via unauthorized access devices
Smartphones
- BLE reader for authentication via smartphone
- Protection against authentication via unauthorized access devices
- Remote configuration of access devices
Codes
- Four types of codes: for registered users, for unregistered users, a keypad code, and an RRU code
- Auto lock in case of an attempt to guess the code
- Duress codes to simulate system disarming while sending a silent alarm to the monitoring station
- Remote management: codes can be created, changed, or removed via Ajax apps
Contactless access devices
Both Pass cards and Tag key fobs feature original DESFire® chips and provide identical functionality in different form factors. A single access device can control up to 13 security systems. Pass and Tag devices are sold separately in batches of three, 10, or 100 units.
Pass
Tag
Exceptional touch screen experience
Activation by hand proximity
Automatic brightness adjustment depending on the lighting in the room
5-inch screen with a resolution of
480 × 854 px
32 interface languages
Black and white themes
Screen protection against scrapes, scratches, etc.
Complex protection in an emergency
The user activates an emergency alert
The system transmits the alarm
The monitoring station dispatches a rapid response unit
Three panic buttons to notify about alarm, fire, or auxiliary event
Duress codes
Fire alarm mute feature
Automation scenarios for the panic button
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring devices always have the latest firmware through regular updates.
Up to 11,450 ft of communication range in open space1
Two-way radio communication with enhanced encryption
Instant alarm and malfunction notifications
Over-the-air updates3
Long-lasting performance
- Up to 1.5 (TBC) years of autonomous operation
- Enhanced batteries from proven manufacturers
- Pre-installation battery testing for reliability
- Possibility to connect an external 12 V⎓ power supply
- Early low battery notifications
- Automatic brightness adjustment for battery saving
Sabotage resistance
Tamper button to detect dismantling or detachment
Holding screw to secure the keypad to the SmartBracket mounting panel
Regular polling to control the keypad states
Communication failure detection4 in 36 s
Protection against code guessing, card/tag copying, and the use of unauthorized devices
Frequency hopping to prevent radio interference and jamming
Keypad authentication against spoofing
Encryption for data exchange between the keypad and access devices
Anti-sabotage features are compliant with Grade 3 requirements.
Hassle-free installation and setup
- Quick installation without enclosure disassembly
- Channel raceway that provides a secure 12 V⎓ cable fit
- Markings on the mounting panel for even installation
- Up to 1.5 years (TBC) of operation on pre-installed batteries
- All necessary fasteners included in the complete set
- Adding to a hub via QR code
- Fast setup via an Ajax app — no programming required
- Access device connection within two minutes
- Code creation in less than two minutes
- Over-the-air updates3
- Configuration and testing remotely or on-site
- Remote management of codes, user access rights, and access devices
- Instant notifications about alarms and events
- Real-time maintenance notifications
Wherever there is a risk of intrusion
Museum
Car service
Office
Store
Bank
Warehouse
Medical laboratory
School
Studio
Apartment
Communication range depends on the hub model.
Automation device state (on or off) is visible only if the device operates in a bistable mode.
When an external power source is available.
If the polling interval is set to send three data packets as often as 12 seconds.
