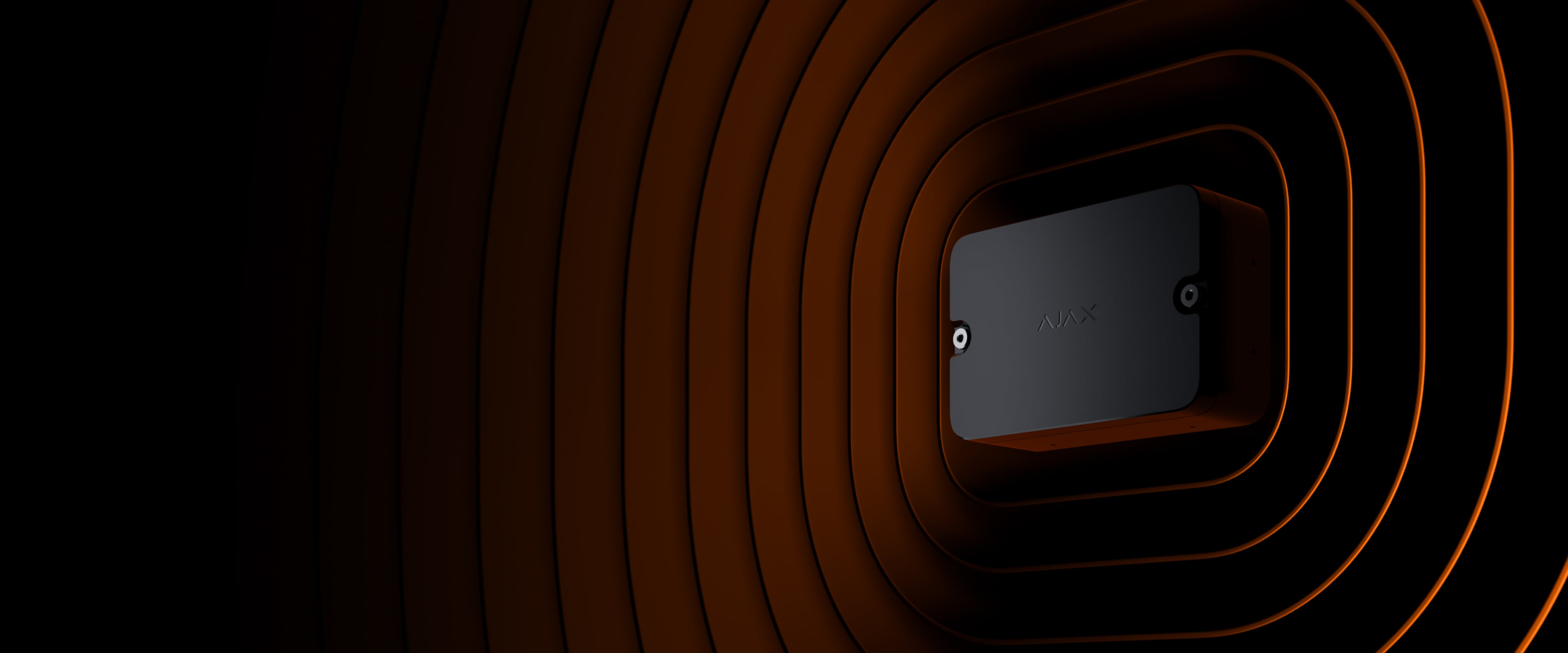

Type4 I/O Module (2X2) Jeweller
Wireless Type 4 addressable module with two inputs and two outputs for a fire alarm central unit
Smart Type 4 integration made simple
Type4 I/O Module (2X2) Jeweller blurs the limits for use cases and compatibility in Type 4 setups. The integration module automates emergency responses by connecting third-party sounders through the module outputs. The inputs allow adding manual call points and other alerting devices to trigger the system at the first sign of danger. Designed to deliver an Ajax-level experience, the module offers out-of-the-box communication with the hub, intuitive configuration via Ajax apps, and zero-hassle maintenance.
Type4 Line webinar series
Learn about the Ajax solution for Type 4 sites in a dedicated webinar for the French market. During the session, Ajax Systems experts will showcase the key features of Type4 Line products, which combine innovation, performance, and full compliance with local standards.
Key features
Compliance with standards
Configuration and testing in Ajax apps
on-site or remotely
2 galvanically isolated outputs
each supporting AC or DC
2 inputs
supporting NC, NO, EOL, 2EOL, and 3EOL connection types
5 years of operation
with pre-installed CR123A batteries and no external power supply
Built-in Jeweller communication
up to 1,700 m of wireless communication range with the hub or range extender1
IP21C-rated casing
Thoughtful design
for cable routing from the back, sides, top, or bottom
Damage prevention
with a protective housing for the module board
Automatic device health check
with instant fault and service notifications
Compact size
2 tamper buttons
to detect device dismantling
Type 4 certified fire alarm solution
Discover Type4 Line — a fully wireless system that delivers unmatched reliability for commercial and municipal sites. This solution is quick to deploy, even in large-scale projects. Each product is rigorously tested and certified to local French standards.
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Discover future-proof hardware
Protective housing
to prevent board damage during installation
Terminal block
with labeled input and output terminals
Two tamper buttons
to detect lid opening or device detachment
Recesses and perforations
to route cables from any side
Smart integration of third-party devices
Type4 I/O Module (2X2) Jeweller expands the capabilities of a Type 4 fire alarm system. It features two inputs supporting the most common connection types, including 3EOL. The module uses them to integrate third-party manual call points and other alerting devices that instantly trigger system response. And with two outputs, the setup allows adding sounders, beacons, or status indicators to enhance on-site awareness. This combined solution ensures coordination across the entire fire alarm system, saving valuable seconds for safe evacuation.
Installation experience beyond standards
With Ajax, technological excellence is not only about compliance — it is about design that cuts down on the installer workload and makes system setup pleasant, intuitive, and error-free. Type4 I/O Module (2X2) Jeweller offers installation as it should be — complete in just minutes.
Adding Type4 I/O Module (2X2) Jeweller to the system is as simple as scanning a QR code and making a few taps in an Ajax app. An installer only needs to set key parameters, including the virtual room, fire zone, and exact device location. The same settings can be specified for the integrated third-party devices.
Type4 I/O Module (2X2) Jeweller is mounted easily onto the SmartBracket panel — no need to disassemble the casing. It's nearly impossible to damage the board during installation thanks to its protective housing. The module is designed for maximum flexibility: recesses and perforations allow cable routing from any side of the casing. Connecting third-party devices is just as straightforward: all terminals are labeled, and EOL resistors come included in the complete set.
Configuration takes just a few steps — no complicated programming or manual scenario planning required. Installers can run a Jeweller signal strength test with a single tap, and the results appear in the event log in seconds. Within the same Ajax app interface, installers can easily set input and output parameters — including operating mode, default state, and event type — and configure automation scenarios as needed.
Unique wireless technology
When every second counts, there's no room for delays or a dropped connection. That's why Type4 I/O Module (2X2) Jeweller uses the onboard Jeweller two-way radio communication protocol. The device maintains a stable connection to the hub at distances1 of up to 1,700 m out of the box — no external communicators required. For sites with obstacles, an Ajax range extender can double the coverage or use an Ethernet connection to create a separate radio network.
Up to 1,700 m of radio communication with the hub or range extender1
Built-in communicators
Frequency hopping and jamming detection
Jeweller
The Ajax radio protocol guarantees a stable connection and continuous device monitoring. Jeweller is designed to be less vulnerable to signal interference, extend device battery life, and promptly detect connection loss.
Efficient autonomy for years to come
Pre-installed batteries provide up to 5 years of autonomous operation. Real-time battery status is always visible in Ajax apps, so there is no need for unnecessary maintenance visits. Service companies also receive early low battery notifications for timely replacements. When it's time to change the batteries, the process is fast and straightforward: an installer simply removes the module's front lid.
Up to 5 years of operation on pre-installed batteries
Quick battery replacement
Early low battery notifications in Ajax apps
Type4 I/O Module (2X2) Jeweller does not require an external power supply and cannot provide power to connected devices.
In open space.
