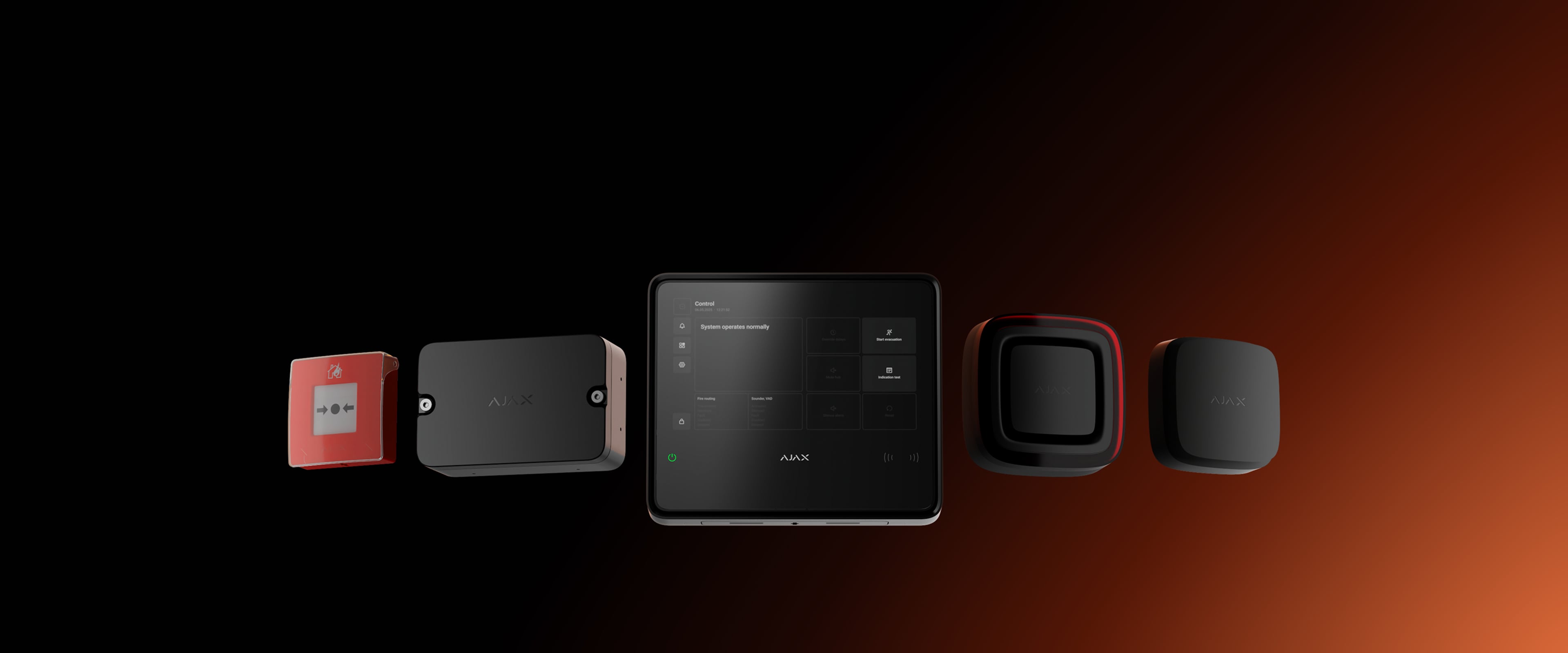

EN 54 certified fire and life safety solution
Fully wireless fire detection and alarm system for commercial and municipal buildings
Certifications proven by tests
Rules met. Conventions shattered.
Fast deployment with no wires attached
Ajax EN54 Line redefines speed and simplicity. The fully wireless system is installed in hours — not days — with minimum disruption for business. It is configured through intuitive apps without programming. Maintenance is remote, fast, and efficient. No cabling, no downtime — just top-tier performance from the start.
One ecosystem for seamless operation
From hardware to software, Ajax delivers an end-to-end solution designed to work in perfect sync. Built-in communicators, native apps, and cloud integration ensure everything runs smoothly within a single system. No need for external modules or complex configurations.
Instant response. Unmatched detection.
Powered by industry-leading technologies, the system instantly identifies real threats while ignoring false triggers — even in harsh environments. Thanks to a time-tested proprietary Jeweller radio protocol, alarms reach the monitoring station and users in under three seconds. The result is a system that reacts faster than regulations require, with precision that saves lives.
More than just fire detection
Ajax CIE is more than a fire safety control panel — it's full-scale security in one solution. The CIE, certified to EN 54 and EN 50131 (Grade 2) standards, manages not only fire safety but also supports intrusion protection, video surveillance, and automation devices. Each alarm can be supported by visual verification and pre-programmed scenario actions to facilitate responding to the emergency.

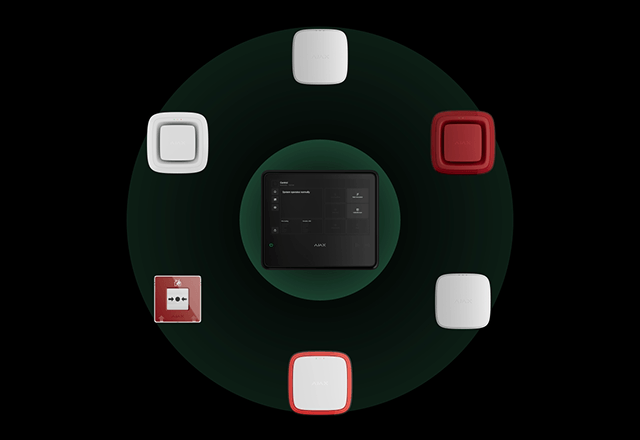

EN 54-13 approved performance
Ajax EN54 Line devices are EN 54-13 certified, ensuring all components function as one reliable, fault-tolerant system. This certification confirms the system's integrity, communication reliability, and fault response, giving professionals full confidence in performance.
Full compatibility of components
All devices tested to work flawlessly together as a single system
Stable communication between devices
Reliable and secure data exchange between all system components is guaranteed
Testing in real-world conditions
The certification process tests the entire system as it operates in real conditions, not just its individual parts
Automatic fault reporting
The system detects and notifies about any faults immediately, whether it's a sensor malfunction or a power supply issue

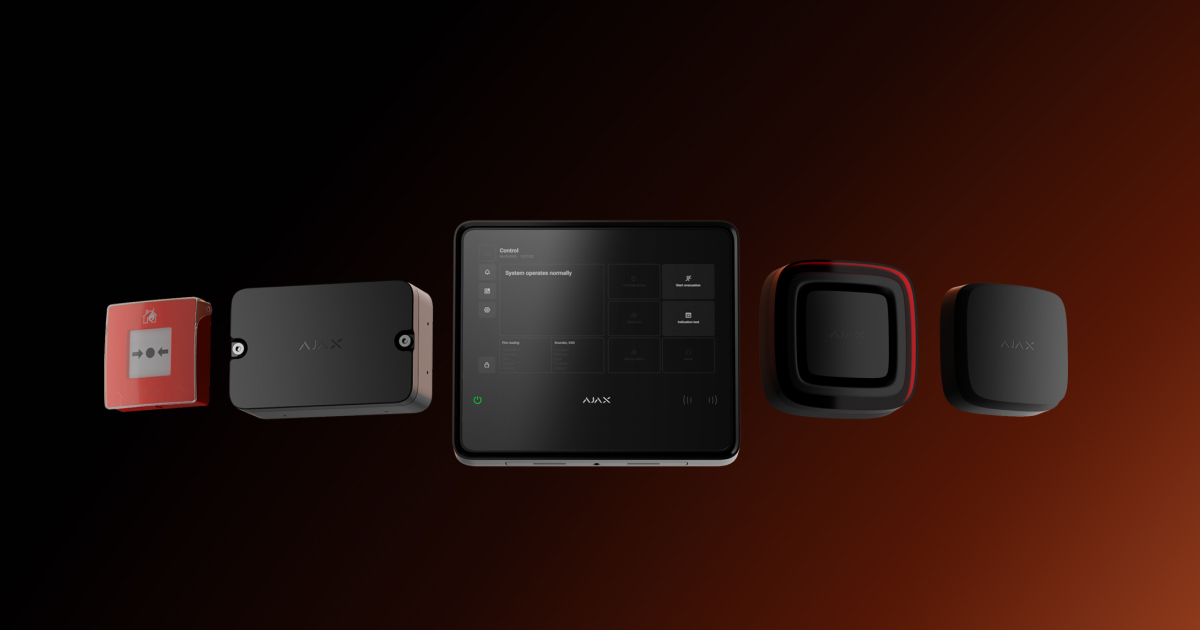

Explore the complete product portfolio

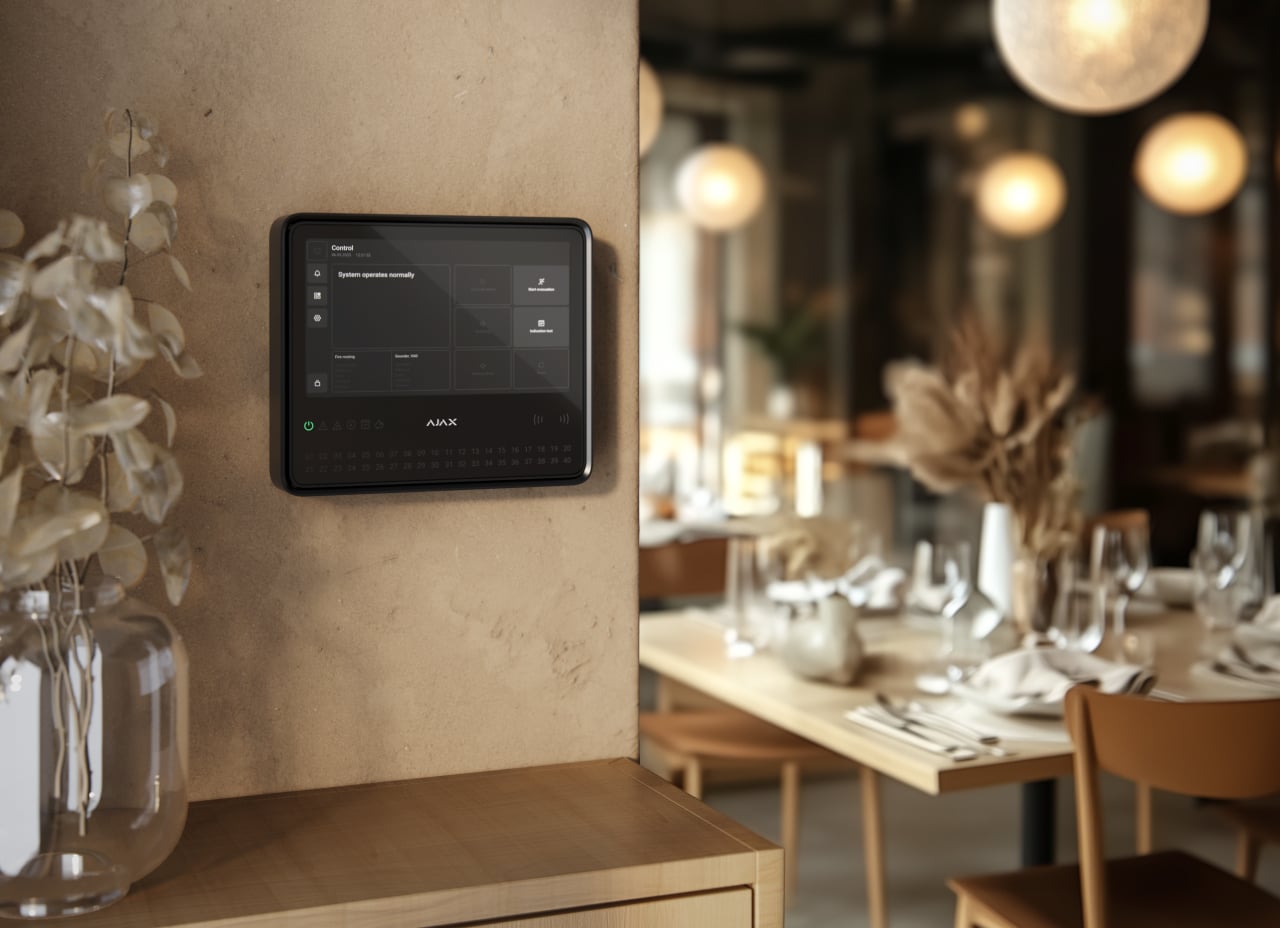

Control and indicating equipment
EN54 Fire Hub Jeweller
EN 54-2, EN 54-4, EN 54-13, EN 54-21, EN 54-25, EN 50131 (Grade 2)
EN54 Fire Hub Jeweller is a touchscreen CIE designed for all-around management of a fire safety system. It's easy to install, simple to use, and doesn't require much upkeep. Built-in communicators and a fully wireless device connection allow the system to be quickly deployed and connected to monitoring stations through Ajax apps. With its large touch screen and intuitive interface, the CIE provides detailed system status and alarm notifications, ensuring that staff are immediately aware of any situation. The CIE also supports EN 50131 (Grade 2) intrusion protection, video surveillance, and automation devices, making it a unified solution for commercial and municipal sites.
Fire detectors
EN54 FireProtect (Heat) Jeweller
EN54 FireProtect (Heat/Sounder) Jeweller
EN54 FireProtect (Smoke) Jeweller
EN54 FireProtect (Smoke/Sounder) Jeweller
EN 54-3, EN 54-5, EN 54-7, EN 54-25
EN54 FireProtect Jeweller wireless detectors combine certified reliability with effortless installation. This series includes addressable point smoke and heat detectors, some combined with built-in fire alarm sounders. Each device provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable radio communication, the devices are ready for different-scale projects. No need to disassemble the enclosure or run cables — installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.

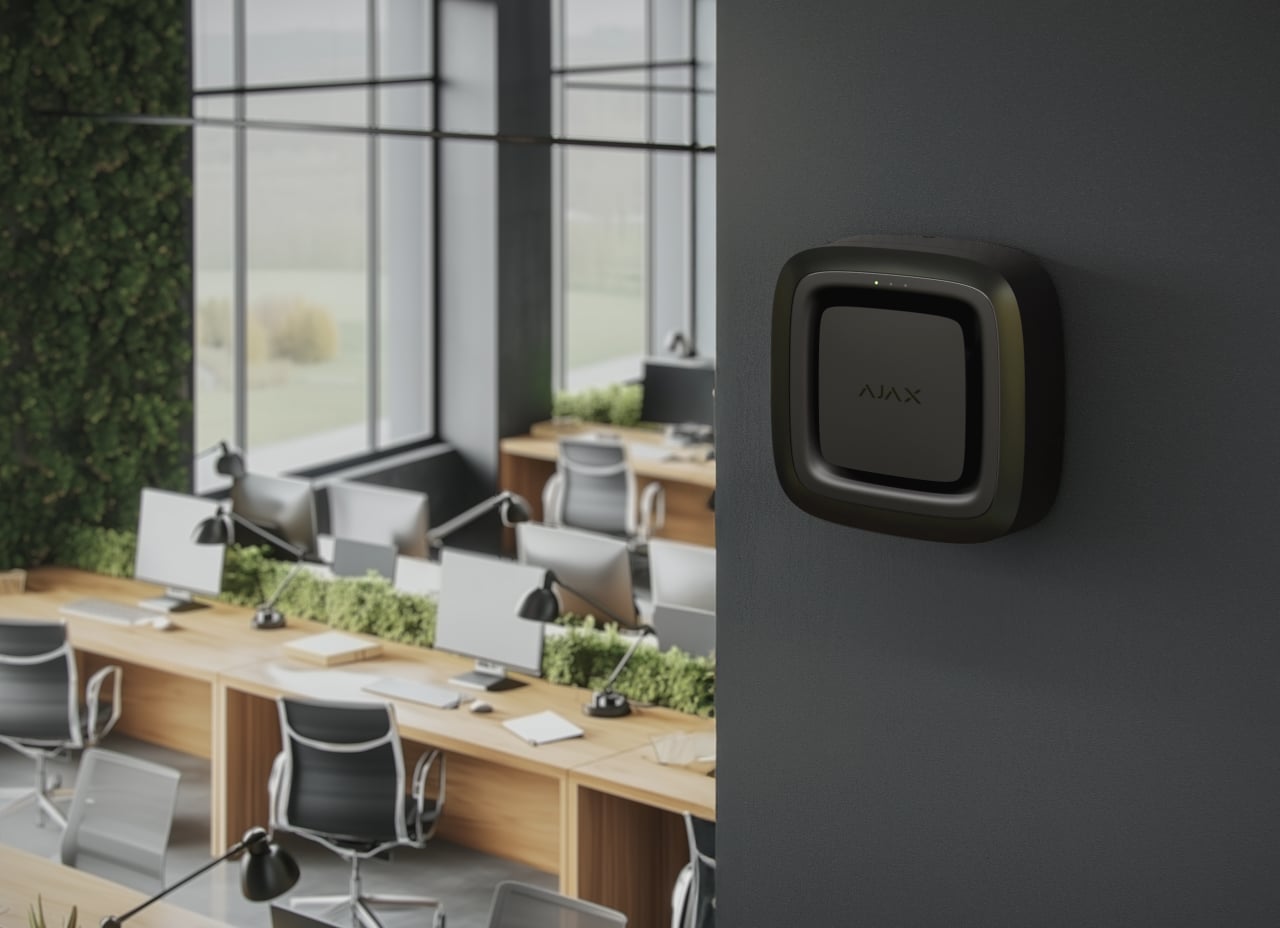

Sounders and VADs
EN54 FireProtect (Sounder) Jeweller
EN54 FireProtect (VAD) Jeweller
EN54 FireProtect (Sounder/VAD) Jeweller
EN 54-3, EN 54-23, EN 54-25
EN54 FireProtect Jeweller sounders and VADs are a fusion of signature Ajax user experience and EN 54 certified reliability. Within three seconds of a fire alarm, they deliver audible, visual, or combined alerts. Regardless of the version, the devices are equally suited for wall or ceiling mounting. Installation takes just minutes — no disassembly required, with built-in communicators already in place. Maintenance is just as effortless, thanks to real-time monitoring, early low-battery warnings in Ajax apps, and swift battery swap.

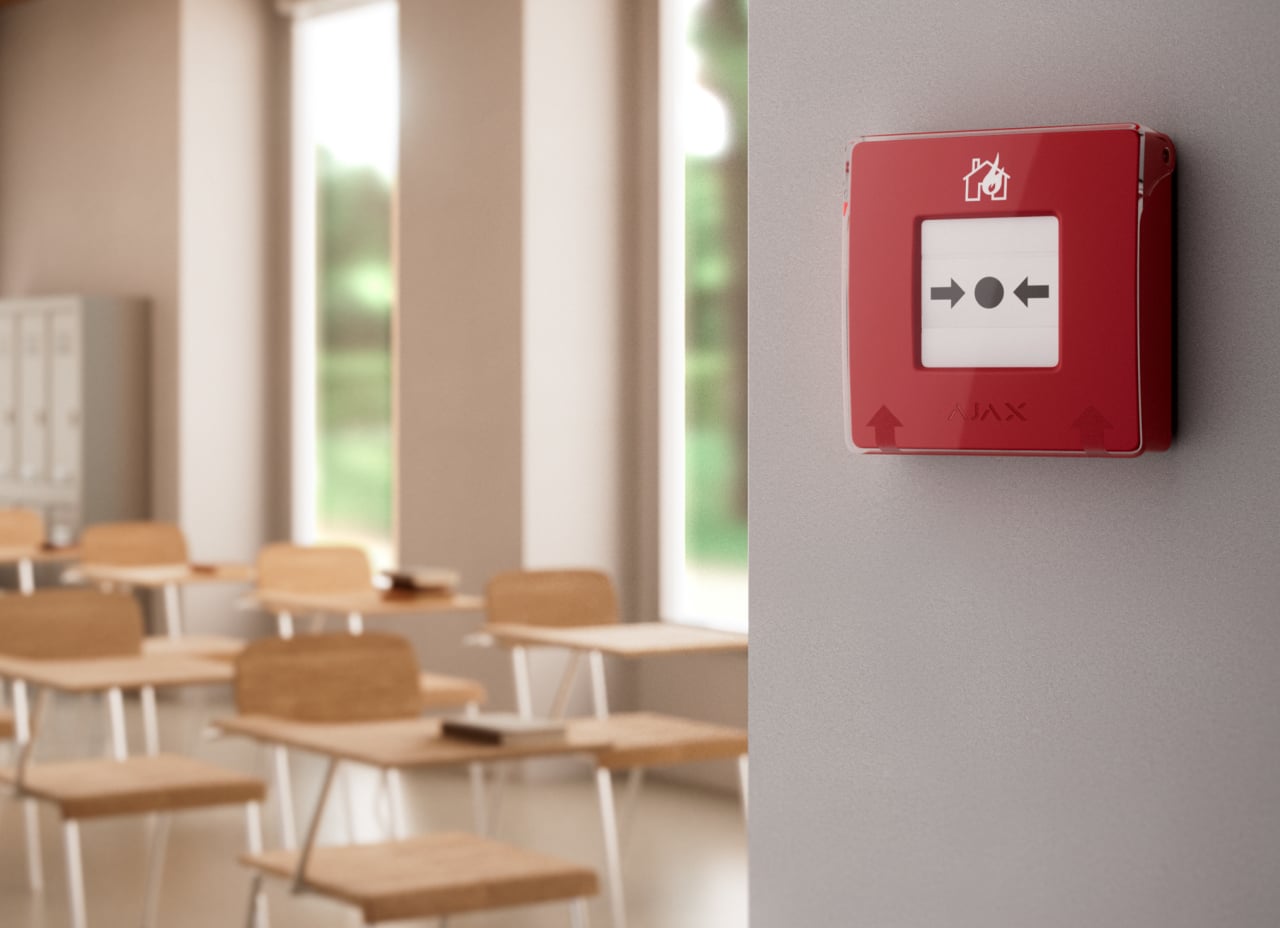

Manual call points
ManualCallPoint (Red) Jeweller
ManualCallPoint (Blue) Jeweller
ManualCallPoint (Green) Jeweller
ManualCallPoint (Yellow) Jeweller
ManualCallPoint (White) Jeweller
EN 54-11, EN 54-251
In a life-threatening situation, Ajax manual call points save precious time. The button triggers a fire alarm and automation scenarios, and the system immediately follows the commands. A single press activates intrusion sirens, VADs, and sounders in the system, informing users to evacuate. Scenarios de-energize the facility, unlock exits, or turn on ventilation or emergency lights to assist in evacuation. All the data is instantly available in Ajax apps and the monitoring software, including which button was pressed, when, and where it happened. Once the danger has passed, ManualCallPoint Jeweller is reset using a special key tool included in the complete set.
1 Only the red version of the ManualCallPoint is certified according to EN 54-25.

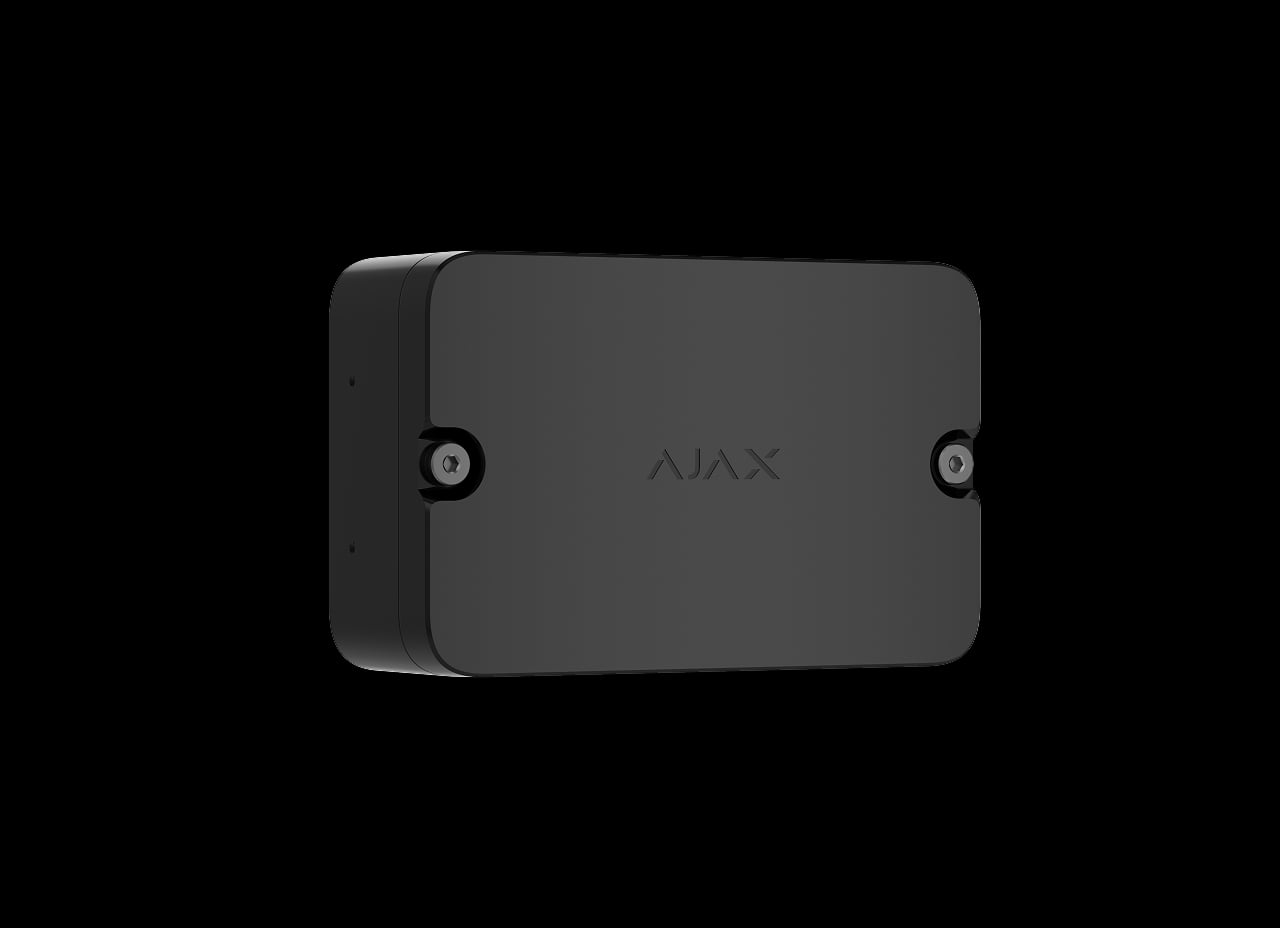

Integration modules
EN54 I/O Module (2X2) Jeweller
EN 54-18, EN 54-25
EN54 I/O Module (2X2) Jeweller blurs the limits for use cases and compatibility in EN 54-certified Ajax setups. It automates responses to emergencies by integrating gates, door locks, lighting, or alert systems through the module outputs. Its inputs allow complementing the setup with beam smoke detectors, elevator control panels, HVAC systems, or other wired third-party devices to address any fire or life safety scenario. Designed to deliver an Ajax-level experience, the module offers out-of-the-box communication with the CIE, intuitive configuration via Ajax apps, and zero-hassle maintenance.

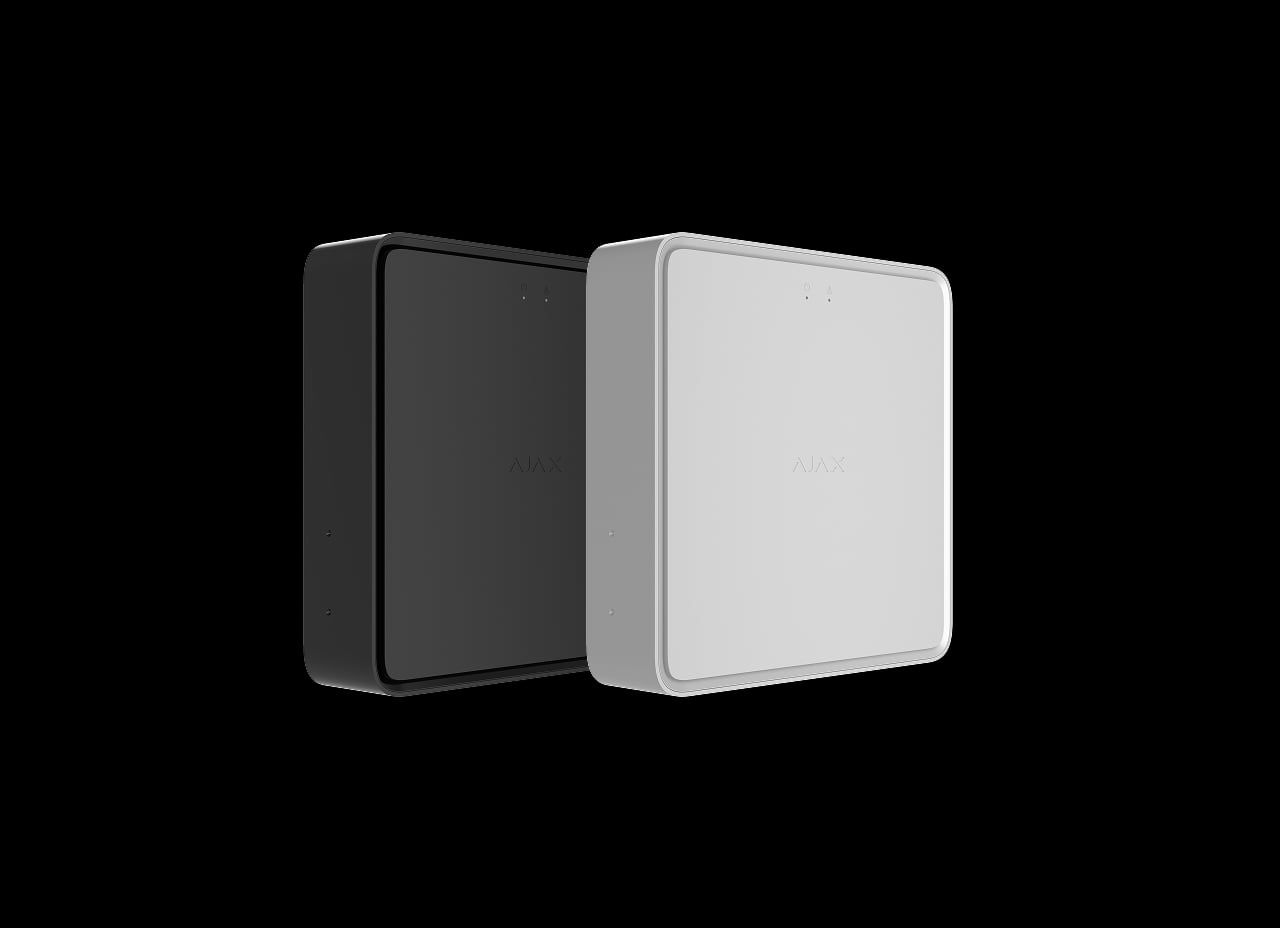

Range extenders
EN54 Fire ReX Jeweller
EN 54-4, EN 54-18, EN 54-25, EN 50131 Grade 2
EN54 Fire ReX Jeweller expands the range of a wireless network and delivers a stable connection for EN54 Line devices across a large or complex facility. The range extender connects to the control and indicating equipment (CIE) wirelessly or via Ethernet, delivering reliable communication through steel and concrete.
Up to five range extenders can operate within one Ajax system, and each supports any combination of devices for fire safety, automation, and intrusion protection. Mix devices within the CIE's limit to leverage the benefits of the integrated system, including visual verification of alarms.
Choose the professional-grade fire safety solution
Find your trusted fire safety provider and get the Ajax EN54 Line products.
All communicators built-in
EN54 Fire Hub Jeweller comes fully equipped with all EN 54-25 certified communicators built in — no extra modules, no added complexity. It ensures instant, reliable communication between the CIE and all system devices: detectors, sounders, VADs, I/O modules, and manual call points.
When the manual call point is pressed, the alarm is spread to sounders and VADs in just three seconds. Compliant with EN 54-21, the CIE simultaneously transmits events to the monitoring station via Wi-Fi, Ethernet, or LTE.
Communication between the CIE and system devices
Jeweller communication protocol
Transmits the real-time device statuses, alarms, events, and all measured readings to the Ajax apps.
Wings and TurboWings communication protocols
Transfer visual verifications and large data packets for individual settings such as interface languages and firmware updates.
- Wireless range of up to 1,800 m
- Encrypted two-way radio communication
- Notifications of jamming and connection loss
- Data packet reload in case of transmission errors
Communication with Ajax server and apps
The CIE can be connected to four internet providers simultaneously. It uses an Ethernet/Wi-Fi connection as the primary channel and has two SIM cards that support 2G/4G (LTE) as backups. If the primary channel is lost, the CIE automatically switches to the SIM card with the strongest signal. Switching between channels takes seconds.
Ethernet
Wi-Fi
Cellular: 2 × SIM 2G/4G (LTE)
Event transmission to the monitoring station
SurGard (Contact ID) protocol
The protocol is commonly used by older versions of monitoring software. Ajax CIE sends events to a SurGard receiver over PSTN or IP. Each event is coded to a 4-digit message in a Contact ID format.
SIA DC-09 protocol (IP-based)
The more modern, secure IP-based protocol developed by the Security Industry Association (SIA). All CIE events are sent as encrypted messages over TCP/IP. Each message includes details like event type, time, and CIE ID in an XML or text format.
Intuitive system management via touch screen and apps
Big screen. Even bigger control.
All mandatory controls a fire safety officer needs are just a tap away. The CIE's large, ultra-responsive touch screen is designed for effortless navigation and control of the entire fire alarm system. On-screen event log shows exactly which device and zone need attention, so nothing gets missed.
Built-in LED indicators and a buzzer provide instant alerts for alarms and faults. Moreover, the CIE interface speaks your language — just choose the preferred one in settings.
Fire alarm control
Zone management
LED and sound indication
Event log
Breaking old ways with powerful apps
The EN54 Line devices work in synergy with free mobile and desktop Ajax apps that seamlessly integrate into security professionals' workflow. Ajax apps allow for managing all devices across the system: fire alarm, intrusion protection, video surveillance, and automation. No programming, no outdated configuration tools — just an intuitive interface for faster installations, easier facility management, and efficient remote service.
Ajax PRO: Tool for Engineers
For installers
Connect, configure, and test devices remotely and on-site
Ajax Security System
For fire officers
Stay informed with instant fire alarms and maintenance notifications
For facility owners
Get instant fire and intrusion alarms wherever you are
Detection without compromise
EN54 FireProtect Jeweller detectors meet EN 54 standards and combine the best available technologies to achieve unmatched accuracy, avoiding possible false alarms.

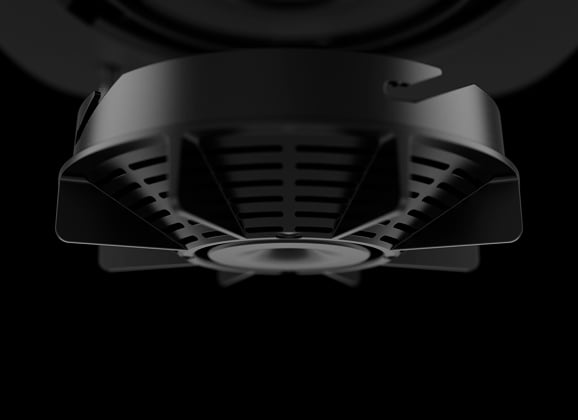

Smoke detection
The unique smoke chamber, dual-spectrum optical sensor, and proprietary HazeFlow 2 software algorithm guarantee the speed and accuracy of fire detection.
The smoke chamber is hardwired with a dual-spectrum optical sensor that has blue and infrared LEDs with different wavelengths. It measures the microparticle concentration in the air to determine the size of the volatile particles inside the chamber and responds only to smoke.
The HazeFlow 2 algorithm analyzes and compares data from the dual-spectrum optical sensor to a specified pattern to define smoke from vapor or steam. The detector instantly raises the alarm when pattern dynamics indicate a real case of fire.

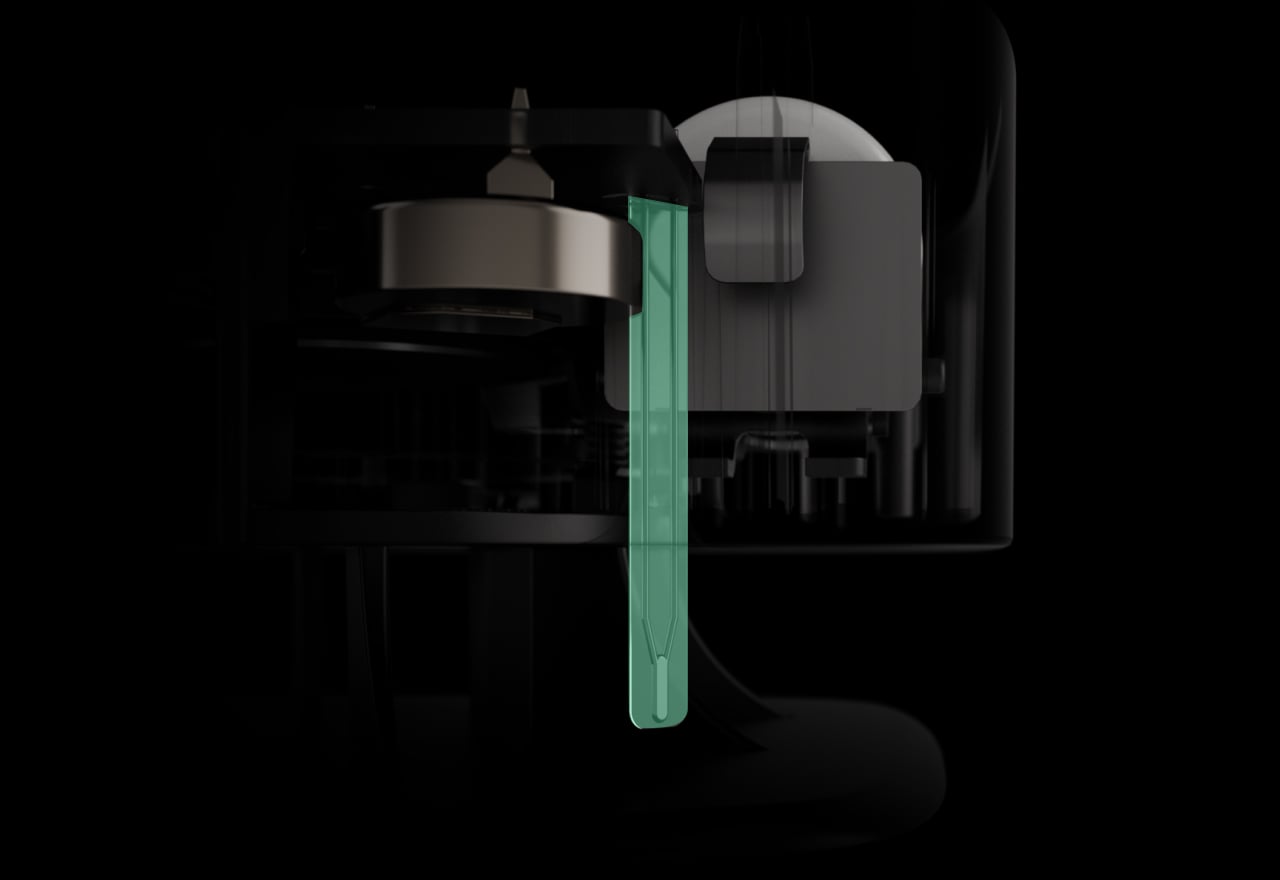

Heat detection
Two built-in thermistors detect a rapid temperature rise or threshold exceedance. They trigger an alarm when a rapid temperature increase or static temperature is detected. Heat detector modes — A1R, A1S, BR, BS, CS, or fixed temperature — can be selected in an Ajax app.
This approach ensures fast and accurate detection of flaming fires or heat build-up caused by smoldering, which is critical for timely response.
Unmissable alerts that save time — and lives
Choose a device with the alert type that best suits project requirements: sound only, visual only, or a two-in-one solution. Each option is designed to guarantee effective on-site alarm warning in full compliance with EN 54 standards.
Visual indication

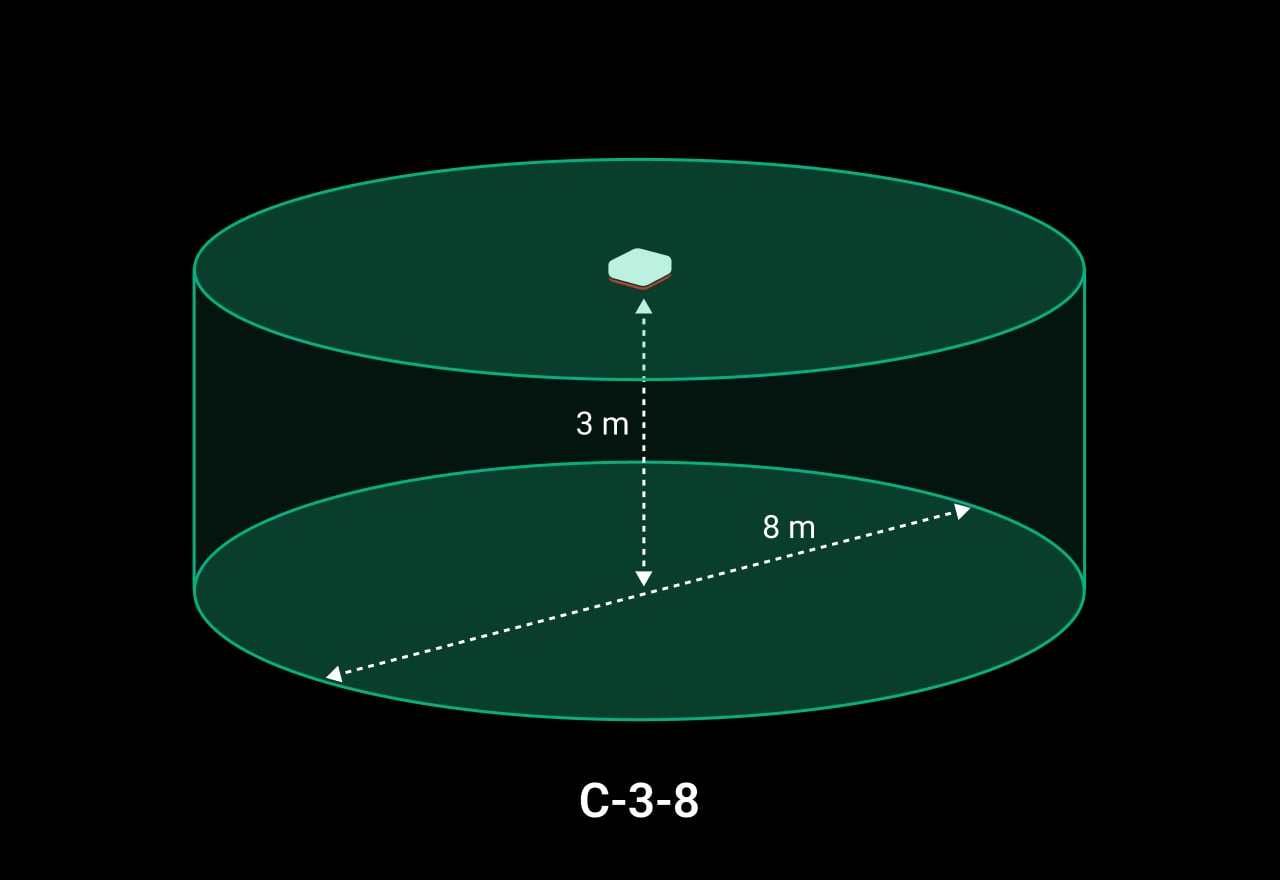

Both EN54 FireProtect (VAD) Jeweller and EN54 FireProtect (Sounder/VAD) Jeweller feature a perimeter LED frame. During an alarm, the frame flashes with intense red light, following a compliant temporal pattern. Each visual alarm device can be mounted on a wall or ceiling. This removes installation constraints and gives engineers the flexibility to achieve optimal visual coverage with fewer devices.
Sound indication
EN54 FireProtect (Sounder) Jeweller and EN54 FireProtect (Sounder/VAD) Jeweller are equipped with a powerful 100 dB buzzer to ensure alerts are heard even in noisy environments. With 32 selectable tones, installers can choose the sound that meets local regulations and indicates specific types of danger. Configuration is quick and intuitive — just a few clicks in an Ajax app.
100 dB buzzer
32 selectable tones
Installation experience beyond standards
With Ajax, technological excellence is not only about compliance — it is about design that cuts down on installer workload and makes system setup pleasant, intuitive, and error-free. All EN54 Line devices deliver wireless installation as it should be — complete in just minutes.
Ajax Systems redefines how easy and fast a fire alarm can be installed in an industry known for its complexity. All system devices can be added and configured through the Ajax mobile or desktop apps, so getting started is as efficient as it gets. There's no need to program complex logic manually — configure the system using human-readable text through an intuitive, self-explanatory interface.

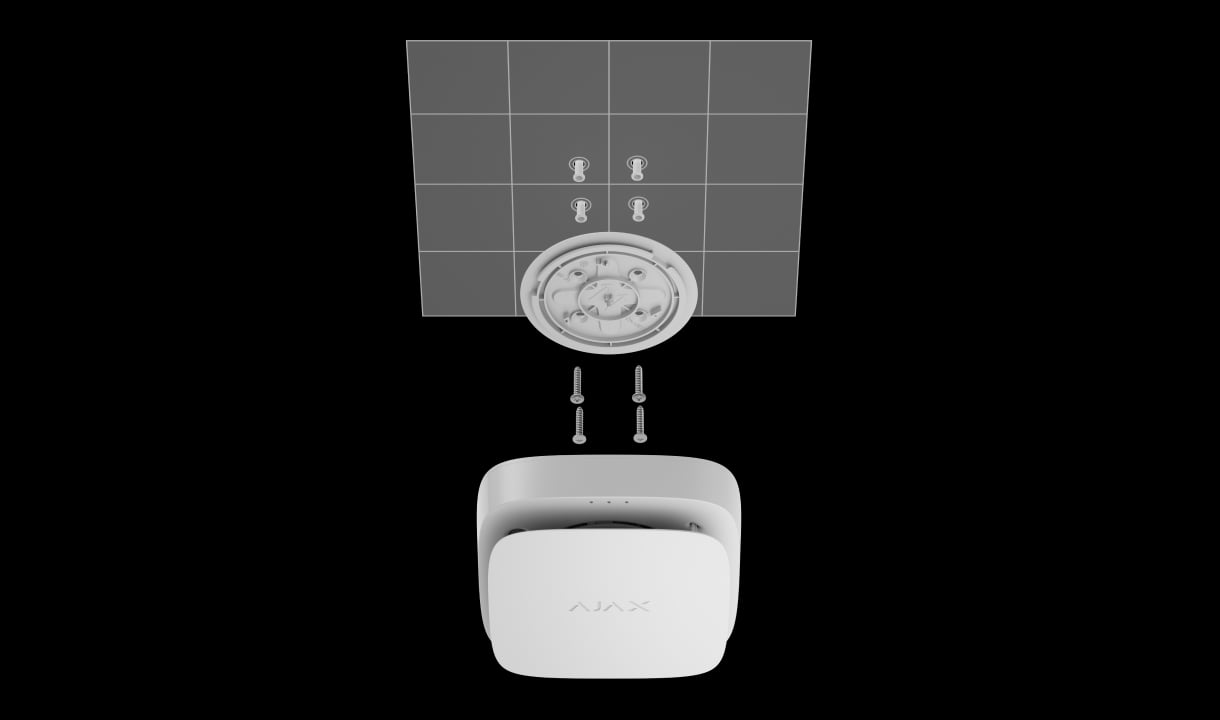

There is no need to disassemble the enclosure: all devices are easily mounted on the SmartBracket panel. The installation kit includes all the necessary fasteners so an installer can effortlessly mount the device on the wall or ceiling.
Installation without enclosure disassembling
All the necessary fasteners are included in the complete set

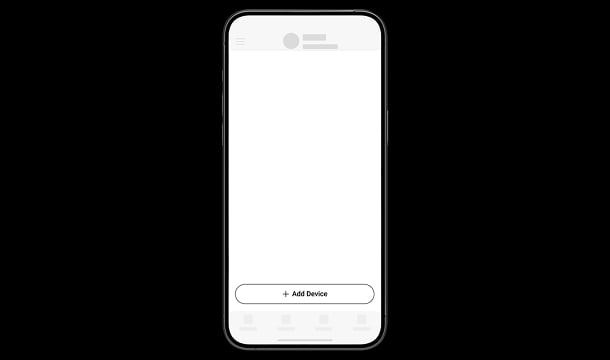

To add the CIE to a system, connect it to a power source (mains and internal battery) and the internet. The CIE is then added to a system by scanning the QR code or entering its ID manually. Once added, the CIE receives a default name and settings suitable for most cases.
Adding to the system by scanning a QR code
No programming required
Optimal default settings to cover major requests

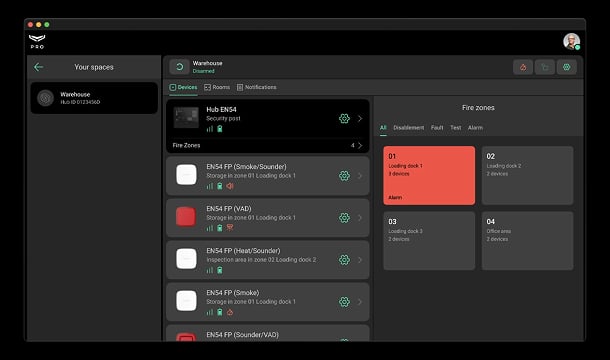

Ajax apps help quickly make the device a part of the ecosystem: just scan the QR code, assign a room and a zone, and specify the device location for easier maintenance and identification. The parameters from a device profile are always up-to-date and instantly available via Ajax apps. All settings are configured via toggles in an intuitive interface, eliminating the risk of human error.
Adding to the system by scanning a QR code
All settings are configured via Ajax apps
Intuitive Ajax apps provide easy maintenance and commissioning from anywhere the internet is available, on a smartphone or PC. Remote access gives installers the same level of awareness and control as if they were physically on site.
Configuration and testing remotely or on-site
iOS, Android, macOS, and Windows apps
Accounts for companies, installers, and fire officers
Monitoring without hassle
An Ajax system transmits alarms to the Ajax PRO Desktop monitoring app or any third-party monitoring software in less than a second. Notifications include all the necessary information: the device name, location, and time of the event. The monitoring company also receives photo or video verification, capturing the reason for the alarm.
Full addressability of connected devices
Instant push notifications
Alarm monitoring through Ajax PRO Desktop or third-party monitoring software
Event transmission via SurGard (Contact ID) and SIA DC-09 protocols
Built for fire safety. Ready for much more.
EN54 Fire Hub Jeweller isn't just a fire alarm CIE — it's a flexible solution for building comprehensive security. It can operate as a standalone fire alarm or as part of an integrated system that combines fire safety, intrusion protection, automation, and even video surveillance.
Fully compliant with EN 54
Reliable detection of smoke and rapid temperature rise
Audible and visual indications that meet strict regulatory requirements
Automated control of fire protection and evacuation equipment during fire alarms
System management via the CIE large touch screen or Ajax apps
The CIE and range extender compliant with EN 54 and EN 50131 Grade 2
Instant detection of intrusion, door opening, glass break, and motion
Tamper-resistant devices with encrypted two-way communication
Visual alarm verification for faster threat identification and response
System control via keypads, key fobs, or the Ajax app
NDAA
Secure video streaming with encrypted data transmission
Live view and archive access via Ajax apps
Night vision with IR and white LED hybrid illumination
ONVIF compatibility for third-party NVR and VMS support
Water leak detection and managing water supply
Air quality monitoring
Automation scenarios to take over routines and reinforce on-site security
Light and third-party appliances' power management
Intuitive in-app control
More Ajax superpowers
Features that can benefit your fire detection and alarm system
Visual verification of alarms
The CIE supports photo and video alarm verification via Ajax MotionCam detectors and security cameras. Integrated in one powerful system, this device combination does the trick. It helps quickly assess the situation, saving users from concerns and monitoring companies from unnecessary patrol dispatches.
Automation for greater safety
EN54 Fire Hub Jeweller supports up to 64 automation scenarios, offering the flexibility to tailor safety to each site's specific needs. With EN54 I/O Module (2X2) Jeweller, the system can control fire protection equipment, such as triggering PAVA & VACIE voice evacuation systems, opening electric locks, switching on LED emergency signage, or blocking elevator access. All automated actions will be executed even if the CIE is offline.
When intrusion devices are connected, automation can go further. The CIE can shut off water during a leak or turn on ventilation if the CO₂ level rises. Users can also automate lighting, roller shutters, and garage doors based on arming/disarming, schedules, button presses, or detector alarms.
Immunity to lags, freezing, and viruses
Ajax's CIE and range extenders run on OS Malevich, a real-time operating system developed by Ajax Systems. The system is immune to viruses, resistant to cyberattacks, and extremely reliable. Loading and executing actions takes less than a second from tapping on a smartphone. Each automation scenario is executed within the same rapid timeframe.
Both the CIE and range extenders feature auto-updates via the internet. They can also transmit updates to connected devices using the Wings communication protocol. Each update enhances the overall system performance and adds new features, so Ajax devices evolve and remain relevant for years.
