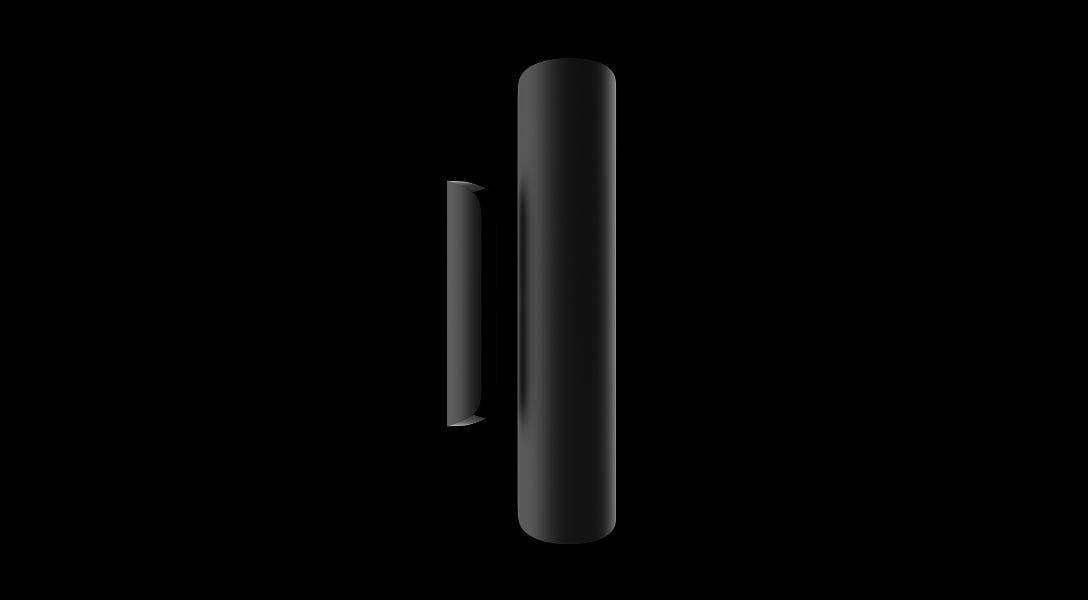

 DoorProtect Plus U Jeweller

DoorProtect Plus U Jeweller

Wireless reed-switch opening detector with shock and tilt sensors

Product is not available in your region

Guardian for doors, windows, and valuables

DoorProtect Plus U Jeweller is a version of Ajax’s well-known opening detector, refined to meet strict UK standards. It secures the entry points most often targeted by intruders — including doors, windows, skylights, cabinets, and vaults. The device uses reed switch technology to detect opening, while a built-in accelerometer catches attempts to knock out, break, or tilt the door or window. With two magnet options and two reed switches, the detector can be installed on doors and windows of various designs.

Reed switches

2 reed switches

the magnet can be placed on the left or right side of the detector

Protection against contact chatter

to prevent false alarms

Adjustable sensitivity

of a shock sensor

Adjustable sensitivity

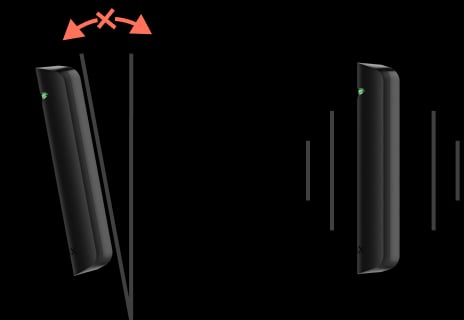

Shock and tilt detection

with the built-in accelerometer

Shock and tilt detection

More installation options

with two magnets included

Installation options
Chime feature

Chime feature

when operating with Ajax sirens or keypads with a built-in buzzer

Adjustable tilt angle and tilt alarm delay

Pre-installed battery

Up to 5 years of operation

on the pre-installed battery

Remote control

Remote control and configuration

NC detector

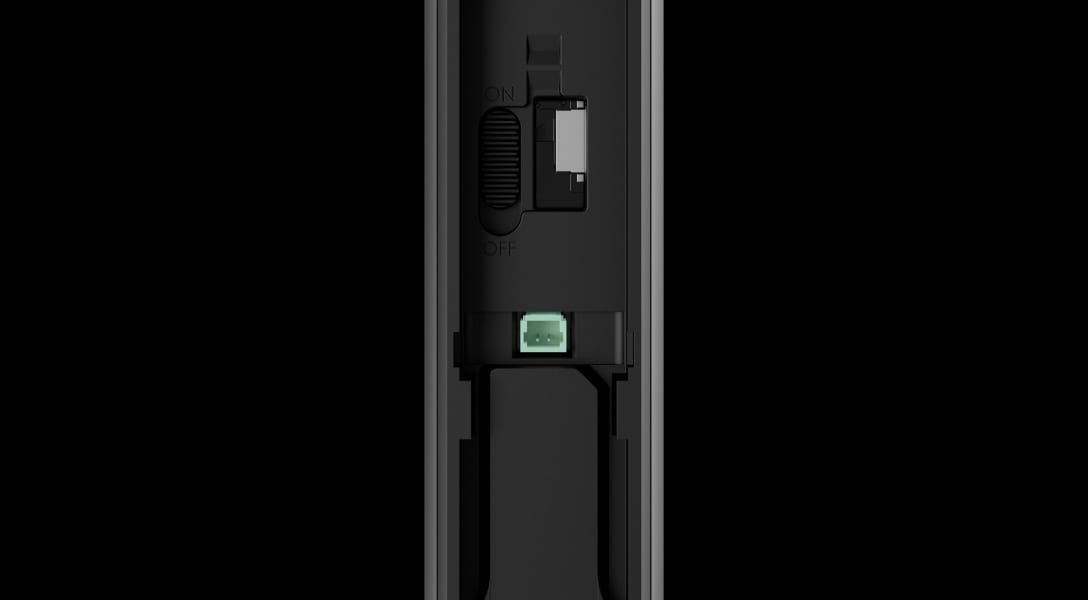

Connector

for a third-party NC detector

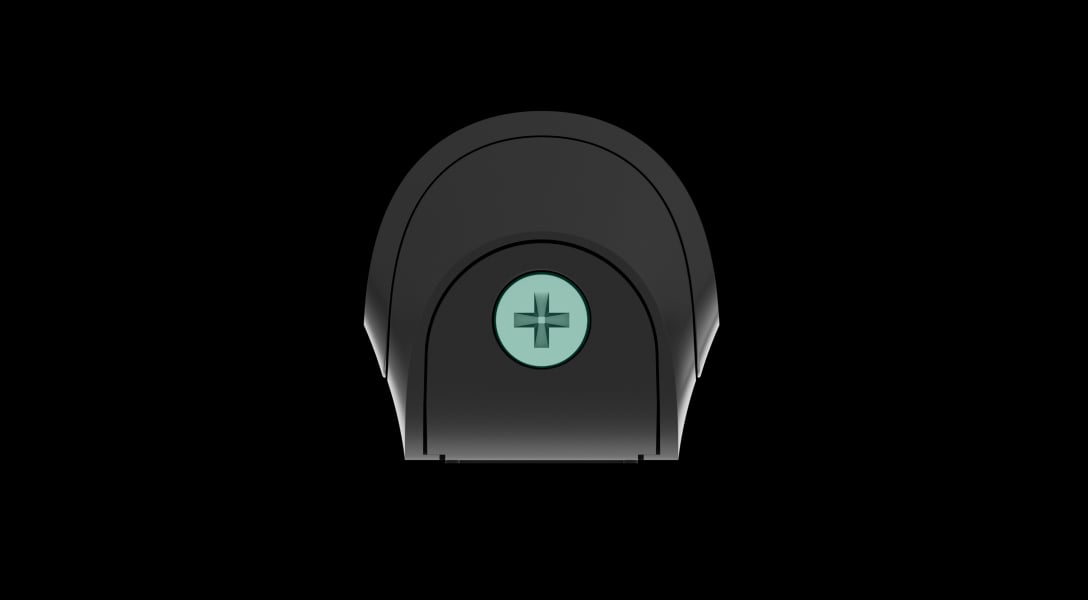

Holding screw

to secure the device on a mounting panel

screw

Informative push notifications

Ajax logo
10:00

Critical

Ajax

Office: Opening detected, DoorProtect Plus U Jeweller in Hall No. 1

Ajax logo
10:00

Ajax

Store: Shock detected by DoorProtect Plus U Jeweller in Entrance No. 1

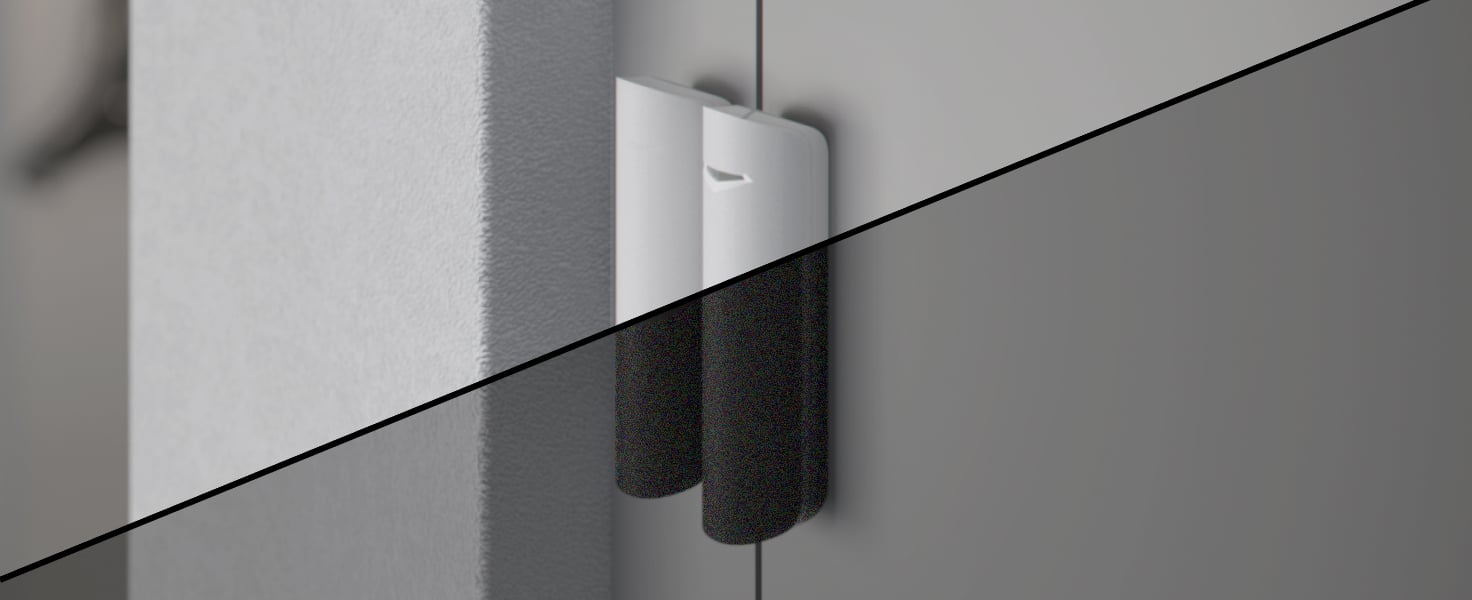

2 colors

Two colours

Up to 1,200 m

of communication range with an Ajax hub or range extender1

Jeweller radio communication

Jeweller and Wings radio communication

Power adjustment

Hassle-free installation

1

QR code

2

SmartBracket

3

App

Compliance

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

Wherever there is a risk of intrusion

Office

Office

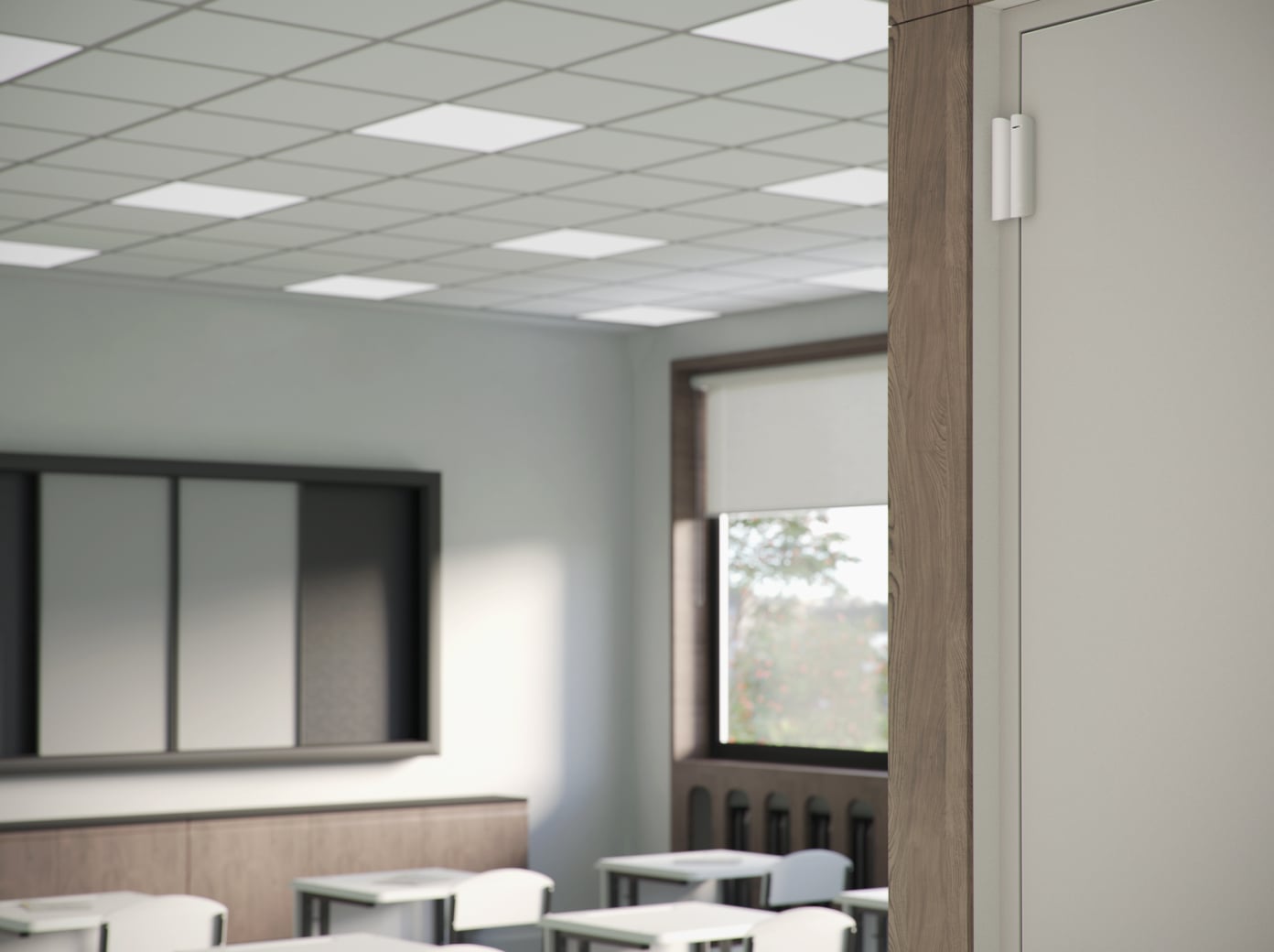

School

School

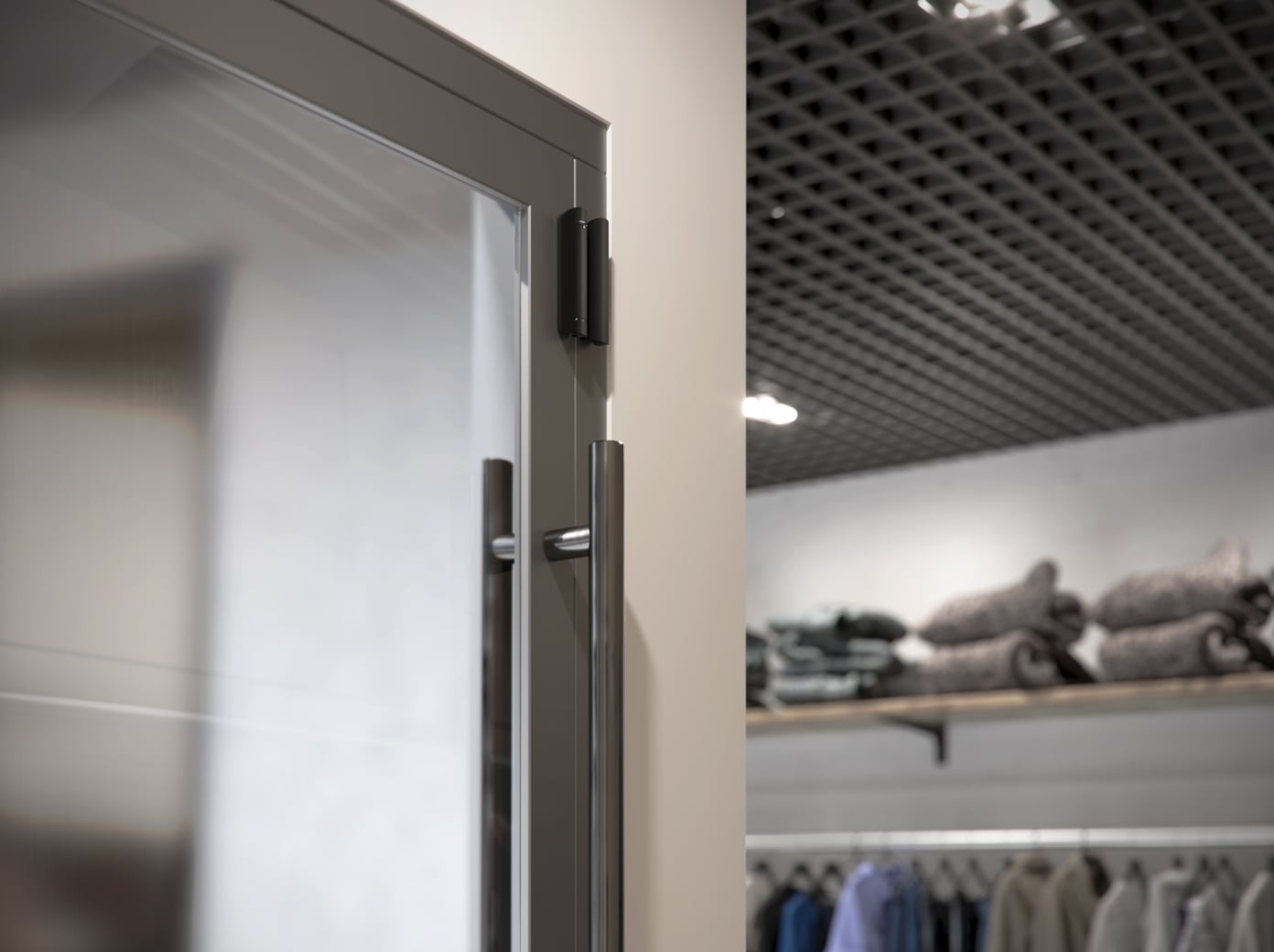

Store

Store

Private clinic

Private clinic

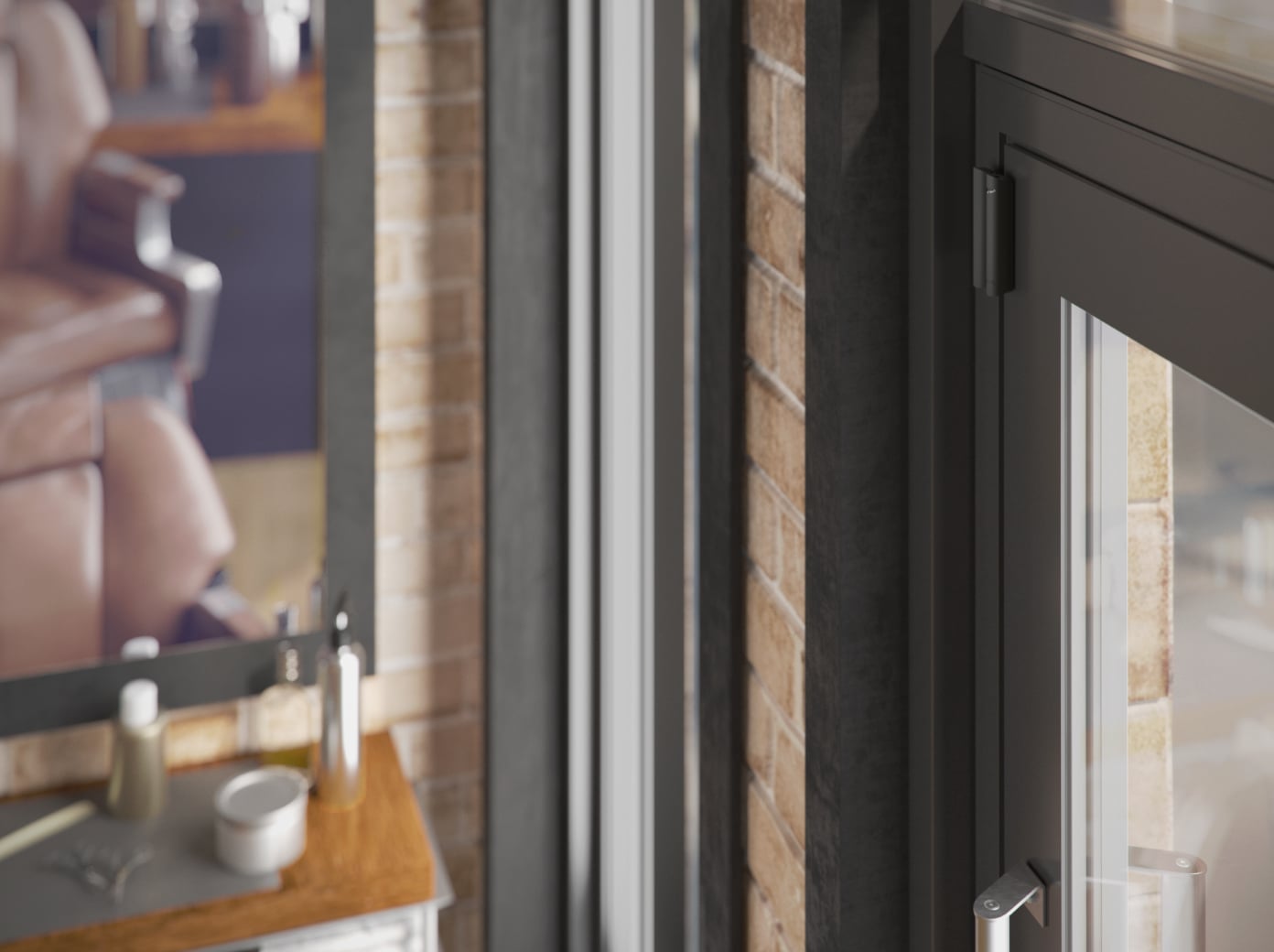

Barbershop

Barbershop

Museum

Museum

Discover future-proof hardware

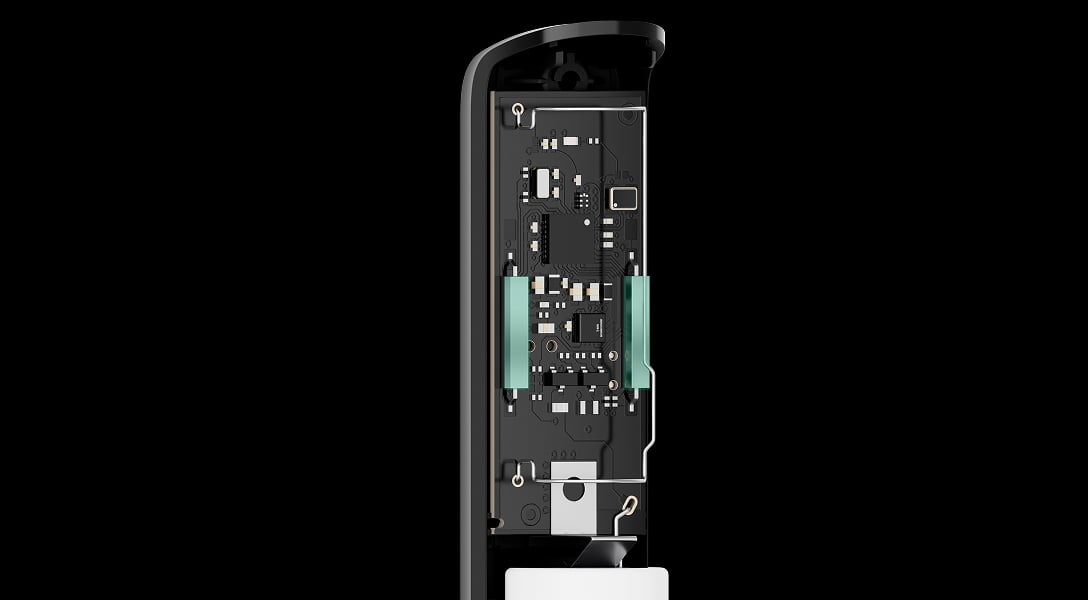

Two reed switches

Two reed switches

Accelerometer

Accelerometer

Pre-installed battery

Pre-installed battery

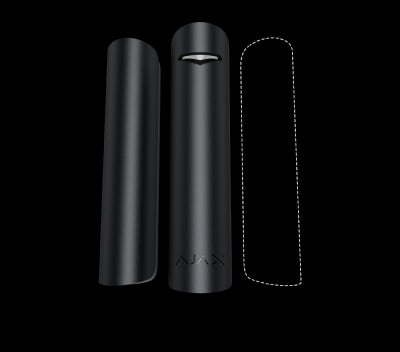

Two magnets of different sizes

Two magnets of different sizes

Tamper button to detect device dismantling

Tamper button to detect device dismantling

Jeweller antenna

Jeweller antenna

Connector for a third-party NC detector

Connector for a third-party NC detector

SmartBracket mounting panel

SmartBracket mounting panel

Holding screw for a more reliable fastening

Holding screw for a more reliable fastening

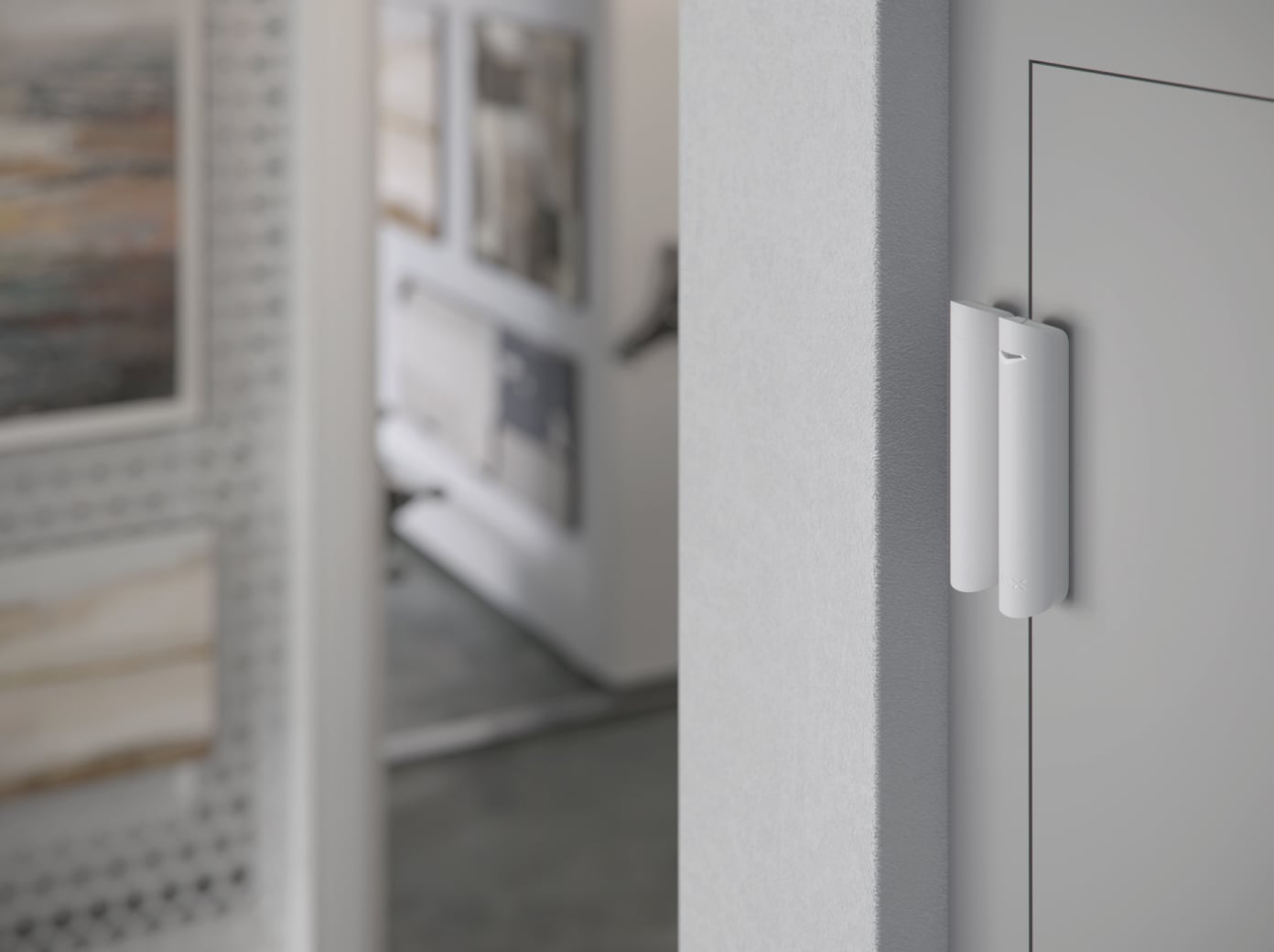

No intruder goes unnoticed

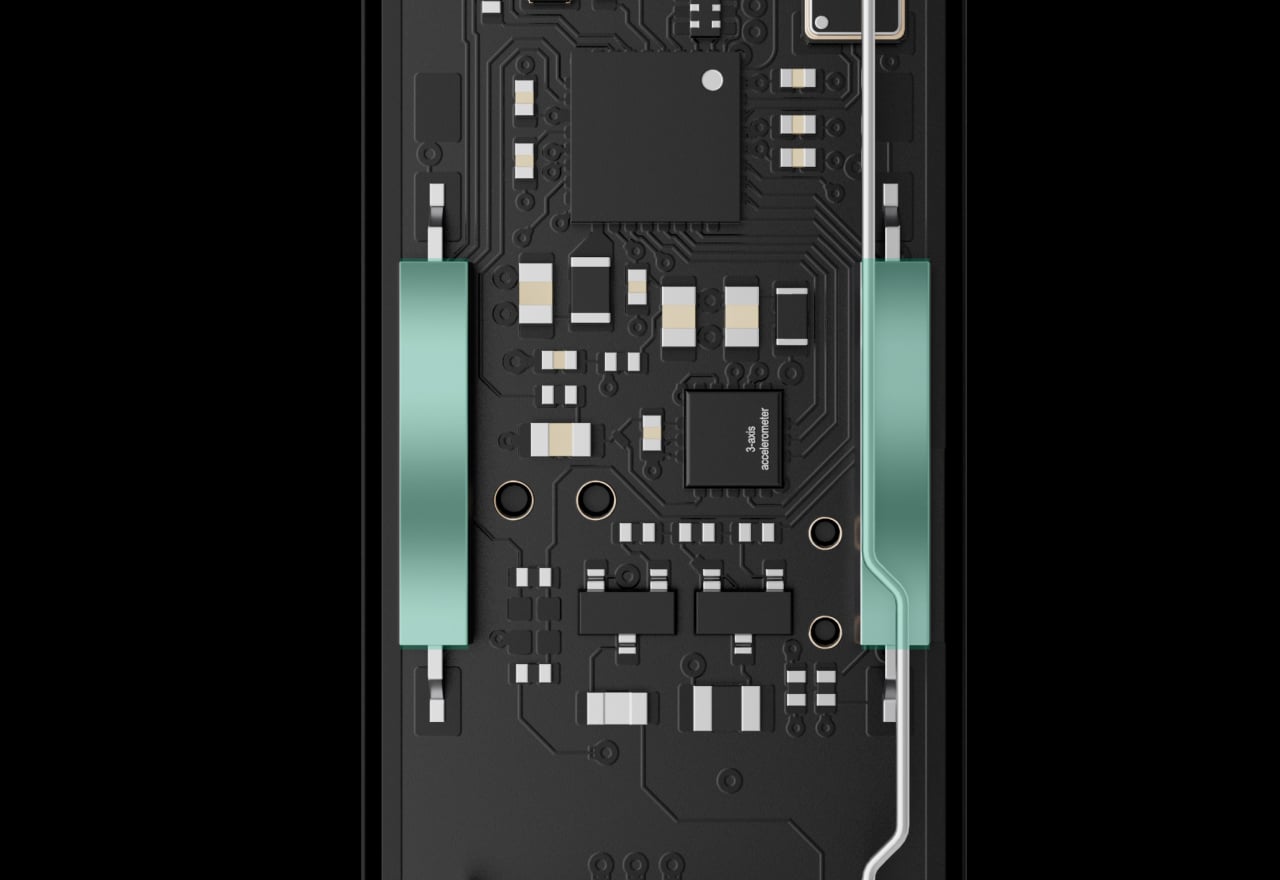

Reliable opening detection

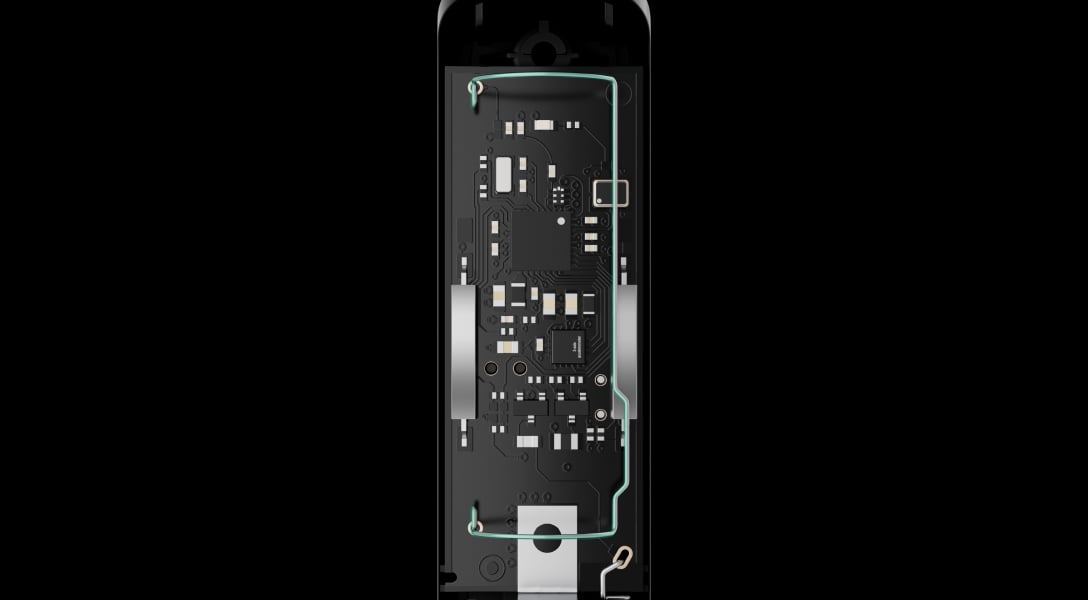

At the heart of DoorProtect Plus U Jeweller is robust reed switch technology. The reed switch changes its state when the detector’s magnet moves closer or farther away. Users and the monitoring company instantly receive a notification in Ajax apps when the door or window is opened or closed. The device features two reed switch contacts. Thus, the magnet can be installed on either the right or left side, providing greater flexibility during installation. This ensures accurate and efficient detection, no matter where the device is mounted.

Flexible installation with two reed switches and two magnets of different sizes

Plastic reed switches: more durable than the glass ones

Protection against contact chatter

Reed switches

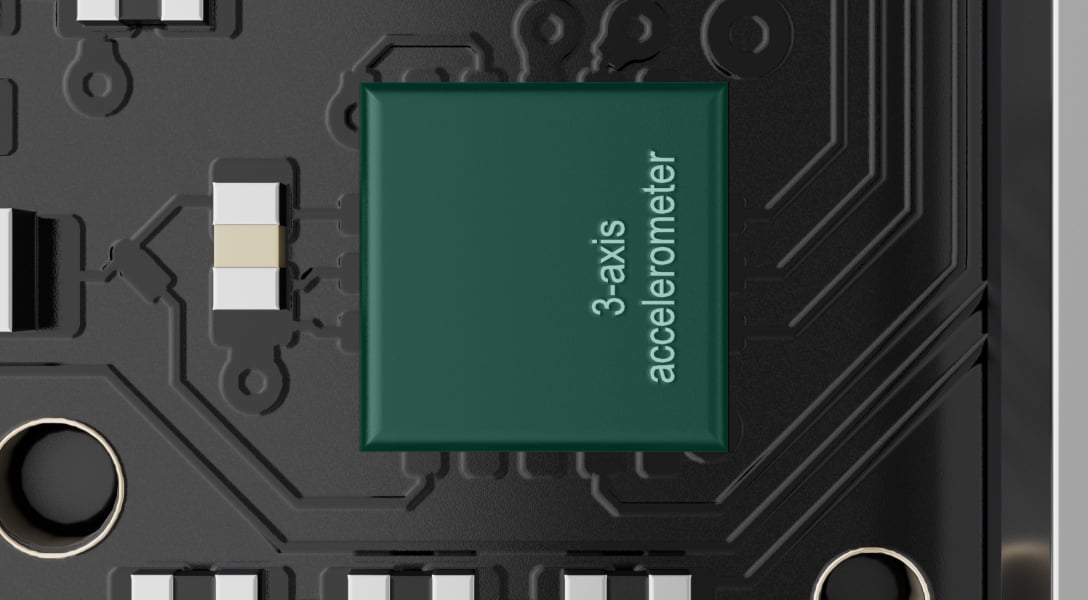

Smart shock detection

Thanks to its built-in accelerometer, DoorProtect Plus U Jeweller detects shocks and vibration, instantly alerting users and the monitoring company when someone tries to force a door or break a window. Installers can adjust the accelerometer’s sensitivity in an Ajax app and even set it to ignore a single impact. This helps prevent false alarms caused by external factors, such as nearby railways, busy streets, or overhanging tree branches.

Early threat detection with a shock sensor

Three sensitivity levels

The option to ignore a single impact

Threats detection

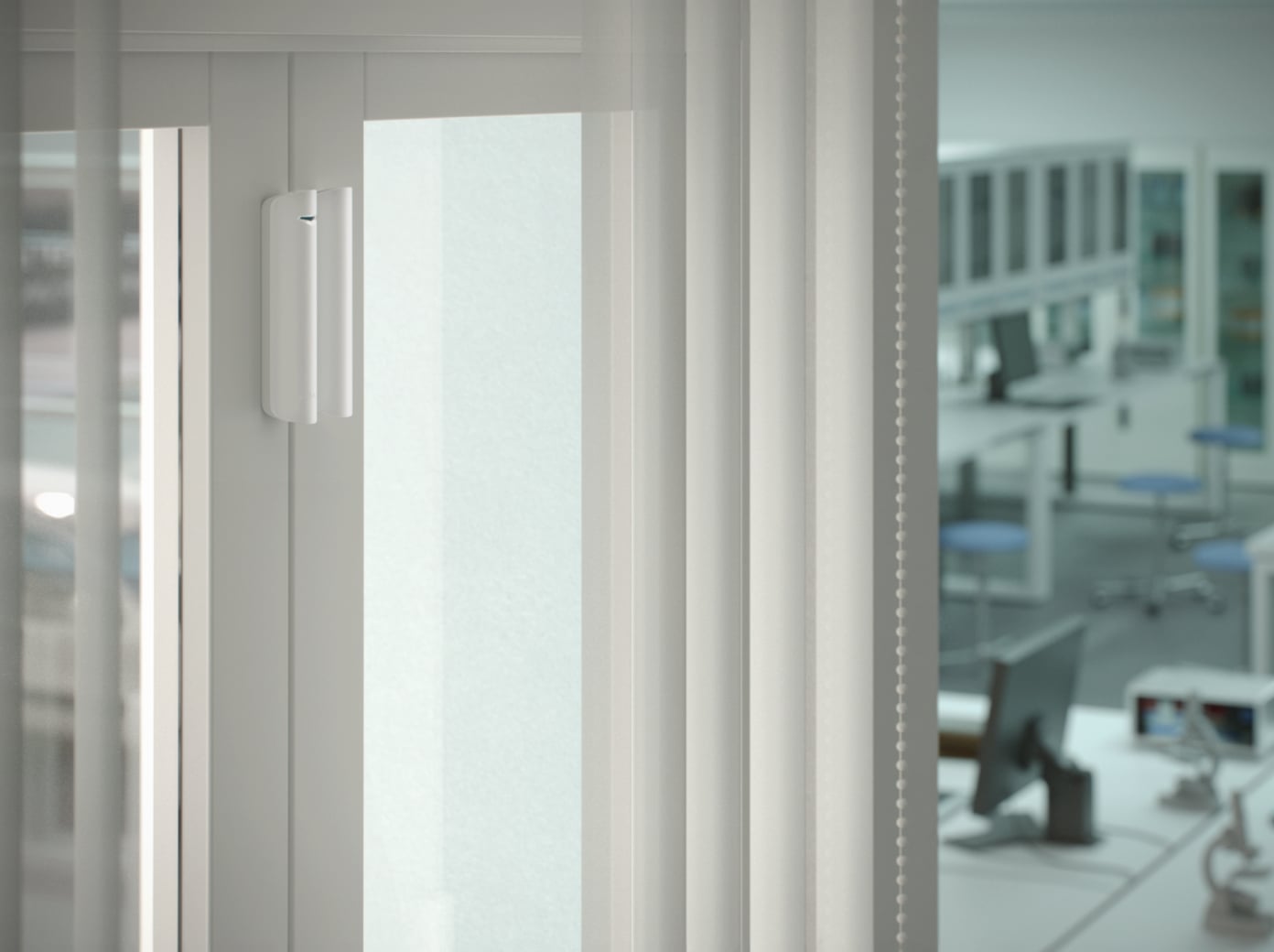

Error-proof tilt detection

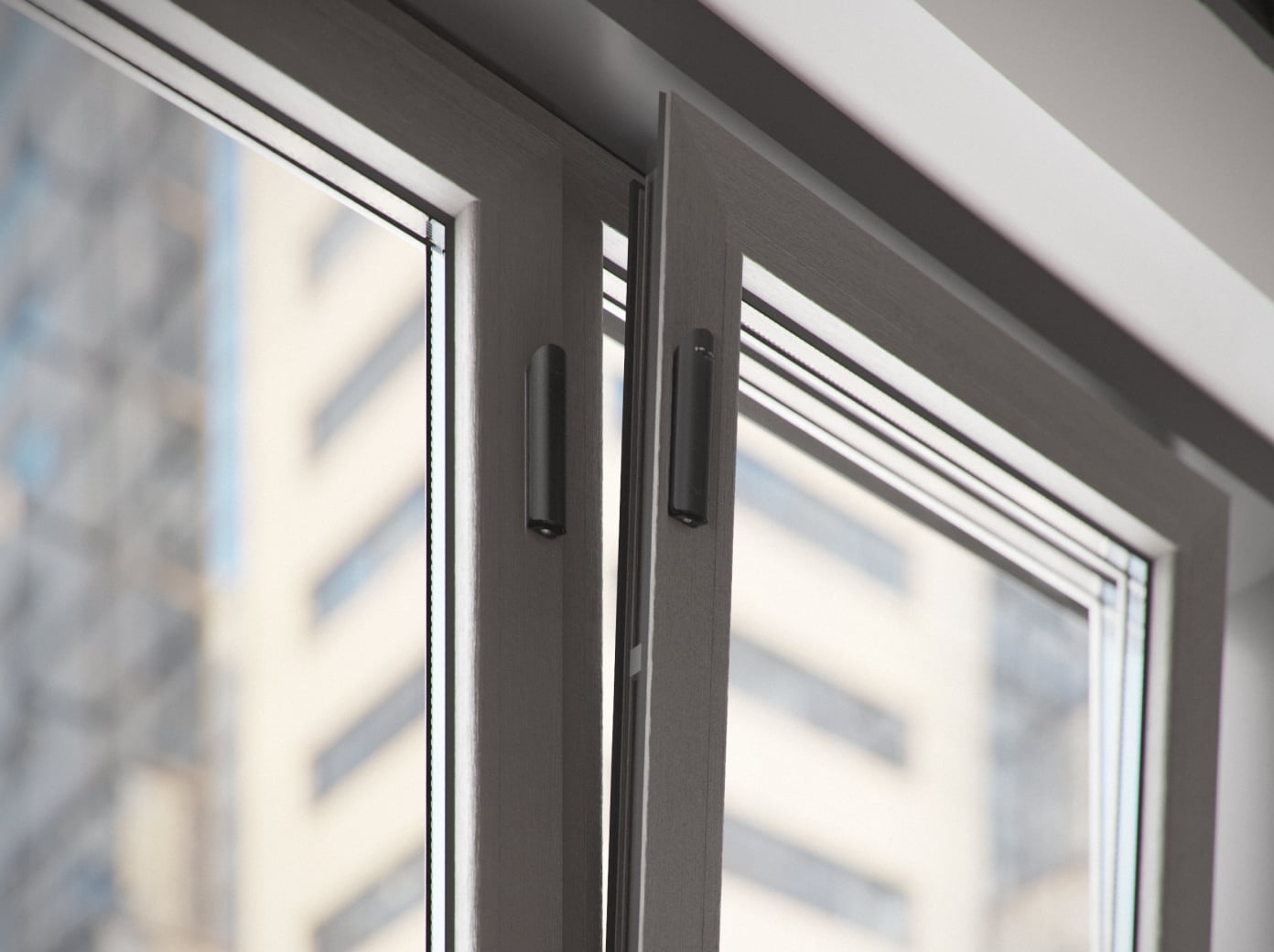

DoorProtect Plus U Jeweller keeps doors and windows secured even if intruders try to shift them slightly and bypass traditional reed switch detection. With an adjustable tilt angle, the detector can protect windows in ventilation mode, raising an alarm only if the tilt exceeds the set threshold. The adjustable tilt alarm delay helps avoid false alarms caused by brief or accidental tilt, such as momentary gusts of wind.

Instant detection of tilt angle changes

Adjustable tilt sensor activation angle from 5° to 25°

Configurable tilt alarm delay

Windows protection

Enhanced security with additional detectors

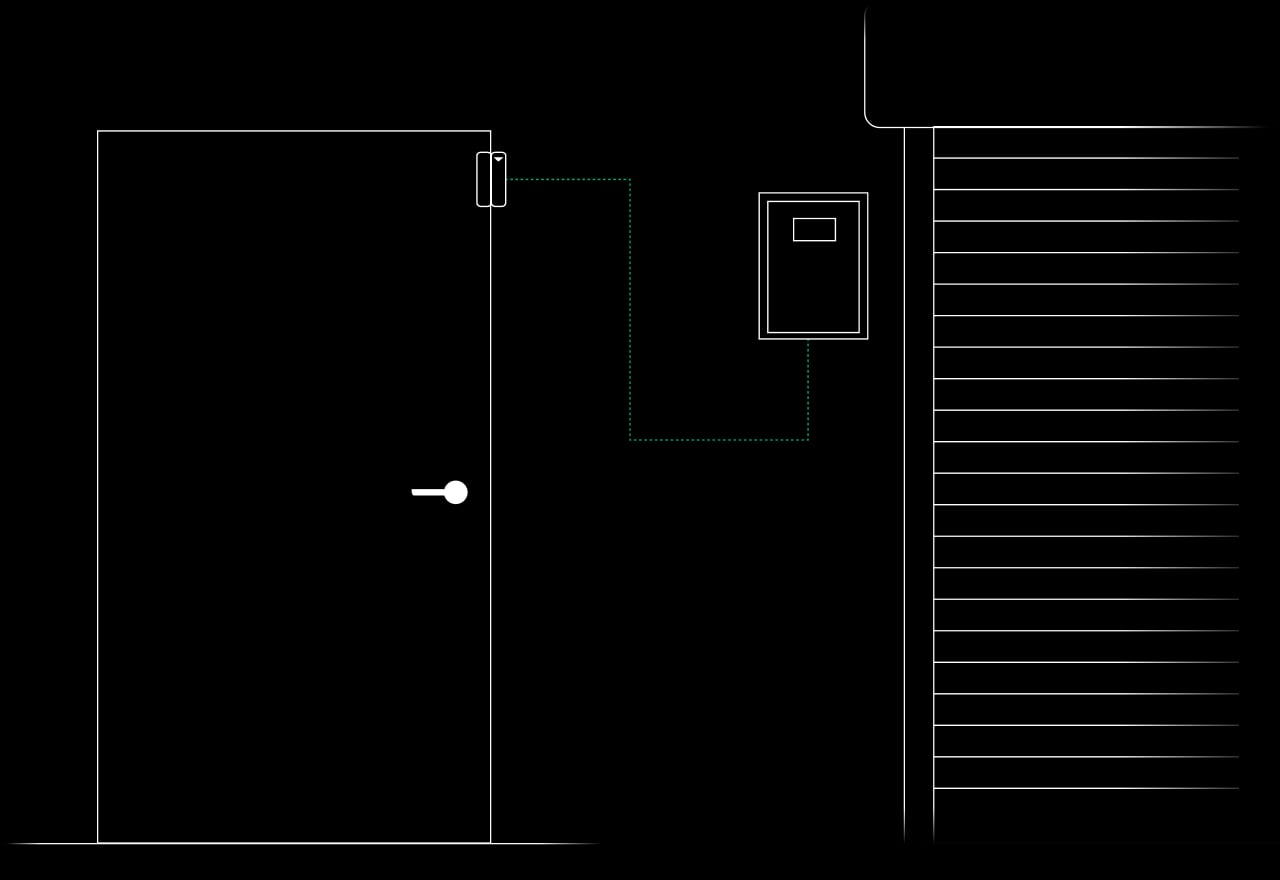

DoorProtect Plus U Jeweller can expand the entry point setup by integrating2 third-party detectors. With a connector for a third-party device, the detector can add an existing or new wired opening, motion, or vibration detector with an NC contact to an Ajax system. This can extend the coverage area, incorporate already installed devices, and manage them seamlessly in a single Ajax app — all within one unified security ecosystem.

Enhanced security with additional detectors

More than just a detector

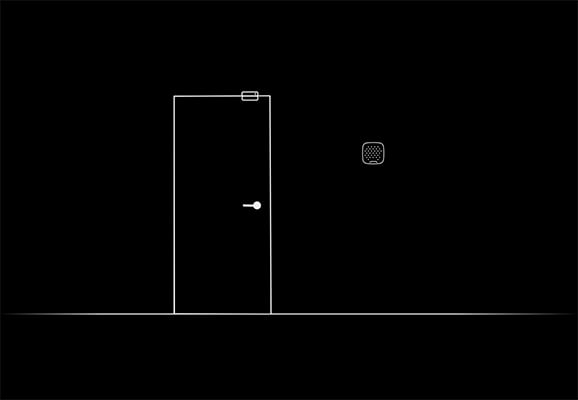

When paired with an Ajax siren or keypad with a built-in buzzer, DoorProtect Plus U Jeweller can function as a shopkeeper’s bell, signaling a visitor’s arrival. Installers can assign one of four available sound patterns to different entrances. This way, it will be easy to tell whether someone opened the main door or a back entrance. All settings are configured remotely with a few clicks in an Ajax app.

Chimes

Sound signals for doors or windows being opened

Signal customization for different security groups

Customizable signals for each entrance

For the Chime feature, the system requires a siren or a keypad with a built-in buzzer. Choose from a wide selection of indoor and outdoor sirens to unlock this feature and enhance on-site security.

Chime feature

Wire-free flexibility and reliable performance

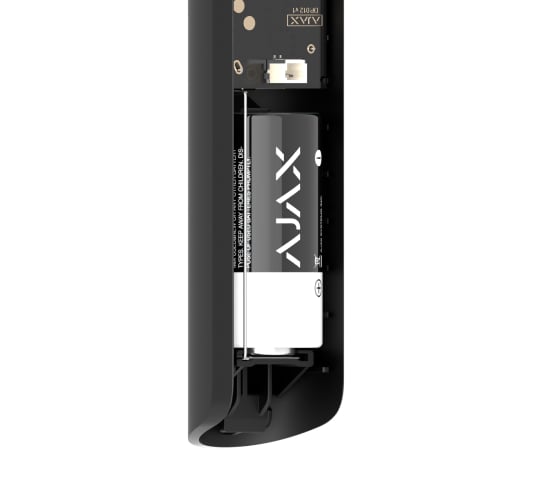

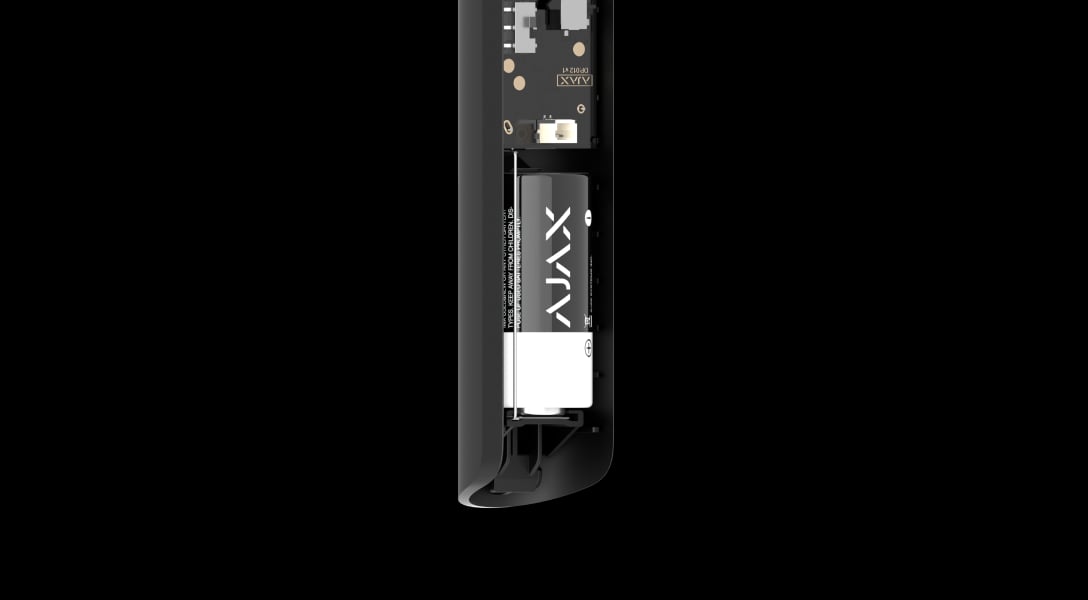

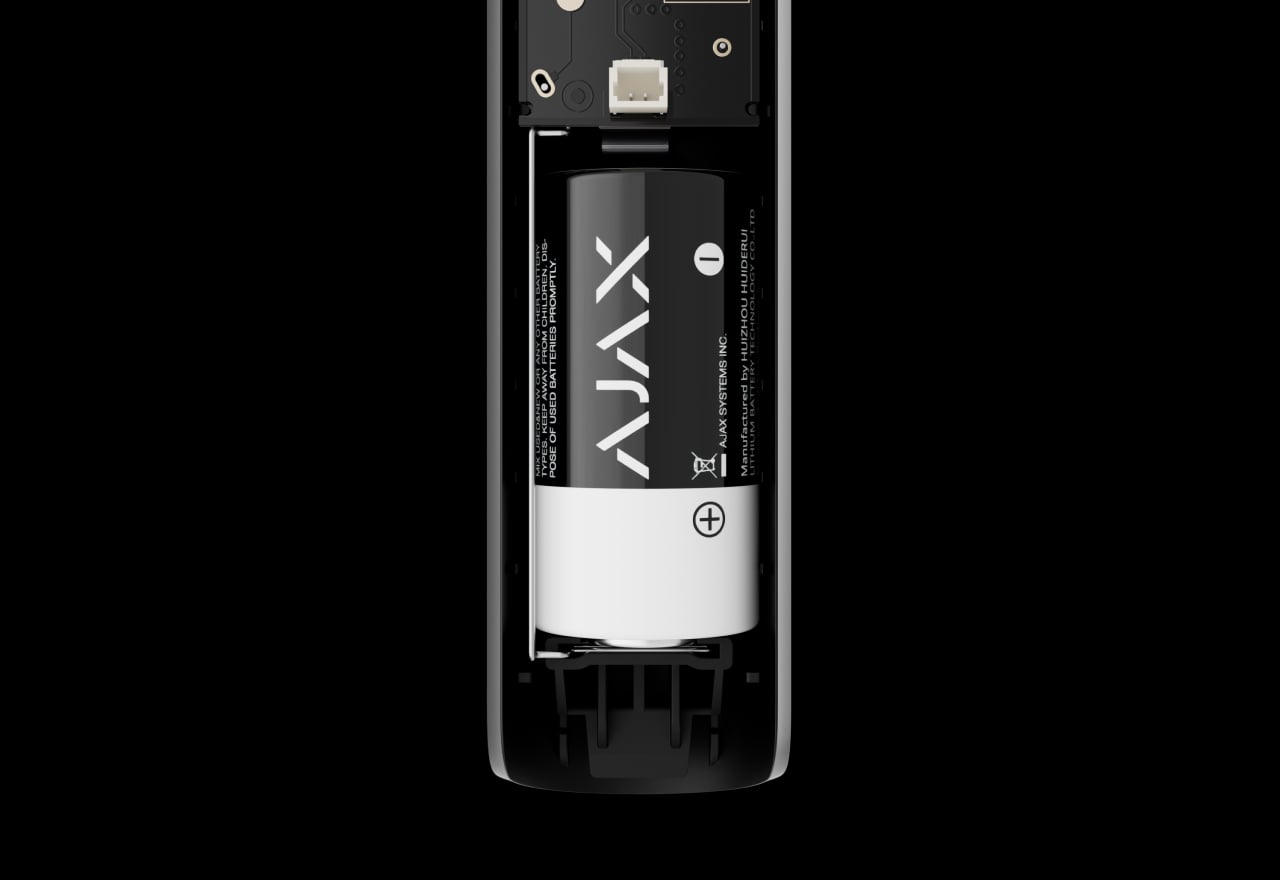

The wireless design of DoorProtect Plus U Jeweller provides maximum installation flexibility — with a hassle-free setup and no extra steps for the device to begin operating. Each device battery is thoroughly tested during production, and Ajax Systems inspects every unit to guarantee reliable performance. After up to five years of autonomous operation, the battery can be easily replaced. Its status is always visible in Ajax apps. Users and monitoring companies receive low battery notifications months in advance, so the replacement is always well-timed.

Real-time testing during battery production

Up to 5 years of autonomous operation

Early low battery notifications

Batteries
Unique wireless technology

Jeweller

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides block encryption and device authentication during each communication session with an Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Up to 1,200 m of communication range in an open space

Data encryption

Notification of jamming and connection loss

Automatic power adjustment

Communication through steel and concrete

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.

Up to 5 range extenders within one system

Ethernet-equipped model available

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor states, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Automatic device self-diagnosis with a state report

Regular polling to display the current device state in Ajax apps

Instant maintenance notifications

Advanced system supervision

Sabotage protection

Tamper alarm

Tamper alarm

DoorProtect Plus U Jeweller has a tamper button that detects dismantling. The system instantly alerts the monitoring company and users if the device is detached from the mounting panel or removed from the surface.

Data encryption

Data encryption

All data stored and transmitted in the system is protected by block encryption with a dynamic key. This encryption makes reprogramming the device and replacing or stealing the data extremely difficult.

Informative notifications

Informative notifications

An Ajax system instantly delivers informative notifications of alarms and events. Monitoring companies and users receive precise details about each incident, including time, location, and the triggered device.

Device authentication against spoofing

Device authentication against spoofing

During each communication session, the hub checks the detector’s unique parameters to authenticate DoorProtect Plus U Jeweller. If any parameter fails the check, the hub ignores the device commands.

Regular polling

Regular polling

The detector regularly exchanges data with the hub. The system controls the device’s state and reports any malfunction or communication loss.

Communication loss detection

Communication loss detection

With a minimal polling interval (3 data packages in 12 seconds), it takes 36 seconds to detect communication loss and notify the monitoring company and users of the incident.

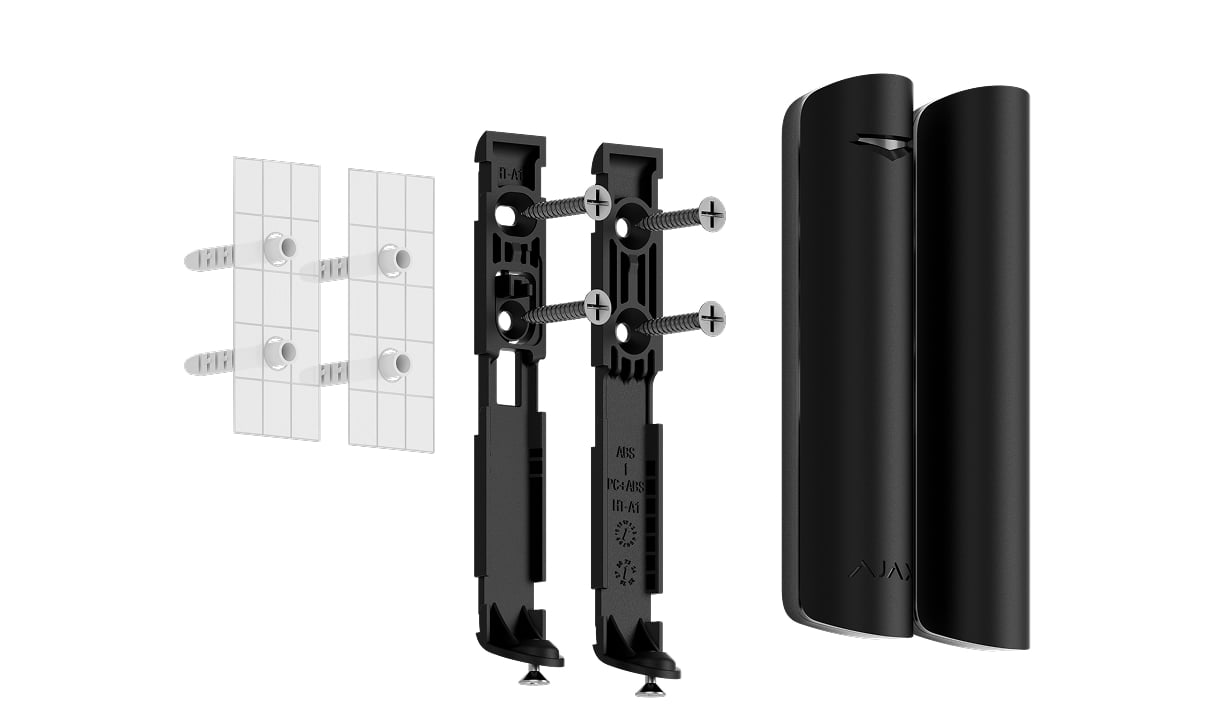

Effortless installation and setup

DoorProtect Plus U Jeweller is ready to operate straight out of the box. With the SmartBracket mounting panel, installation is a breeze — it does not require disassembling the enclosure. Adding the detector to an Ajax system is just as simple: scan the QR code in an Ajax app to pair the device with the hub. All settings can be adjusted remotely at any time, eliminating the need for on-site visits.

Pairing with the security system via a QR code

Connection

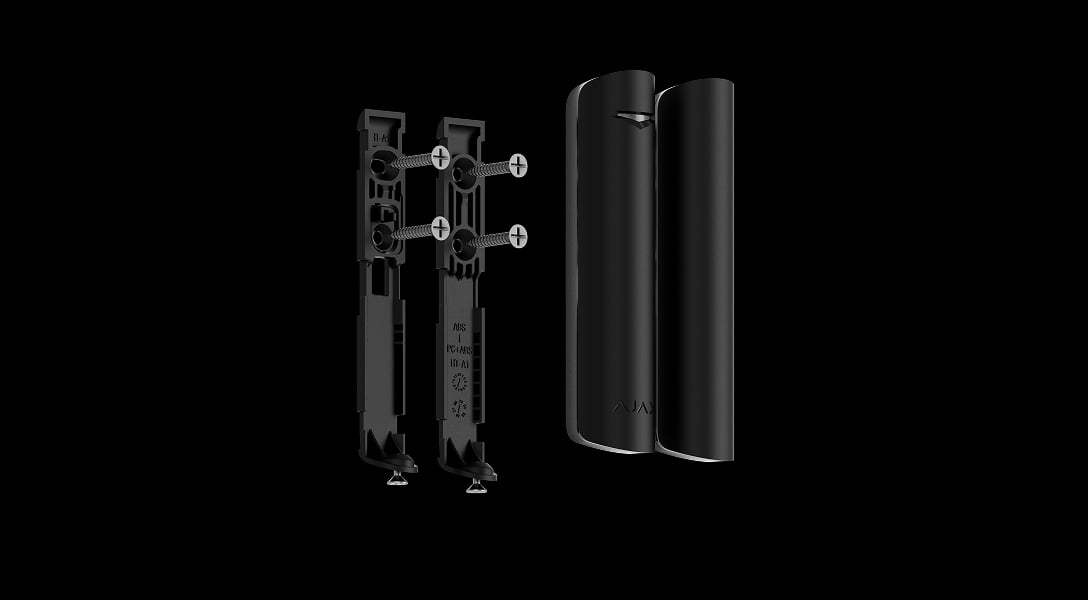

Effortless and secure installation with the SmartBracket mounting panel

Installation

Configuring and testing in Ajax mobile and desktop apps

Setup

The Ajax PRO Desktop app for macOS and Windows

Monitoring
1

In an open space.

2

DoorProtect Plus U Jeweller cannot power a third-party detector. The power supply for this detector should be connected separately.
