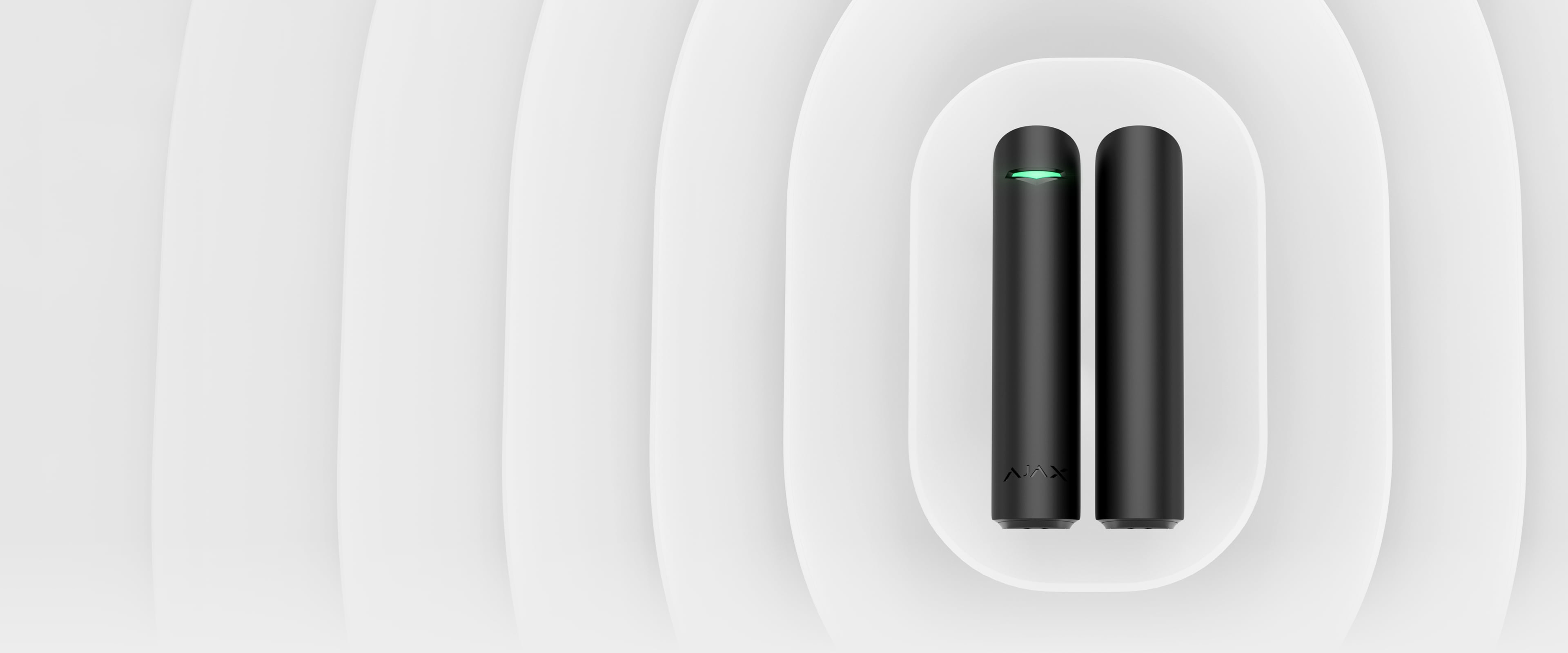

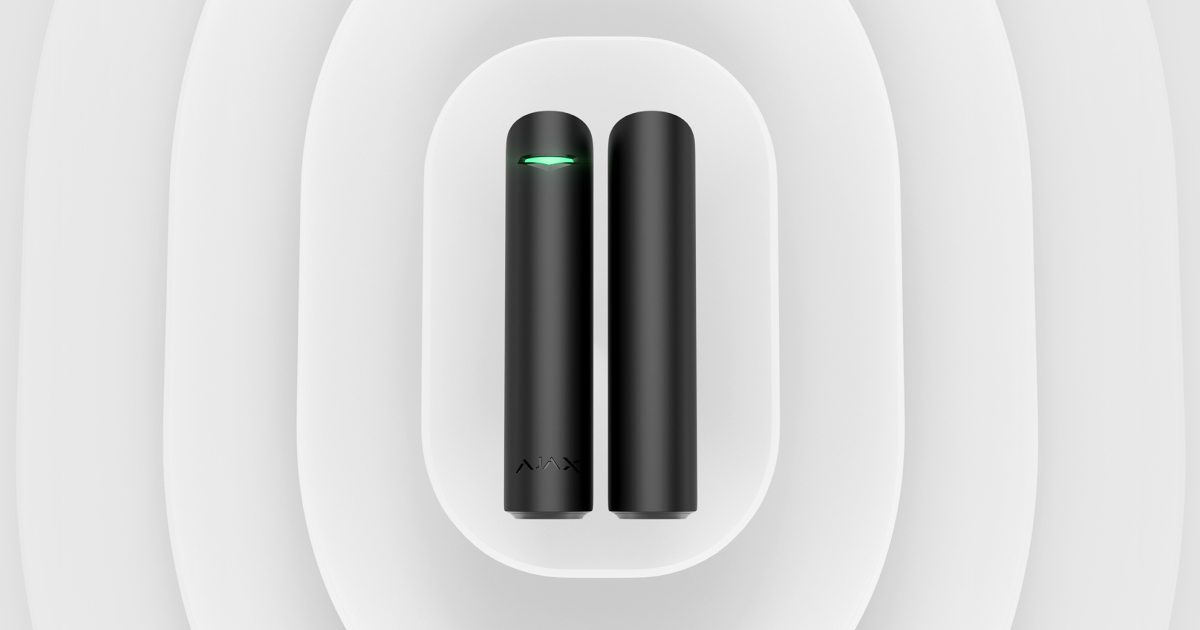

DoorProtect U Jeweller

DoorProtect U Jeweller

Wireless reed-switch opening detector

Product is not available in your region

Guardian for doors, windows, and valuables

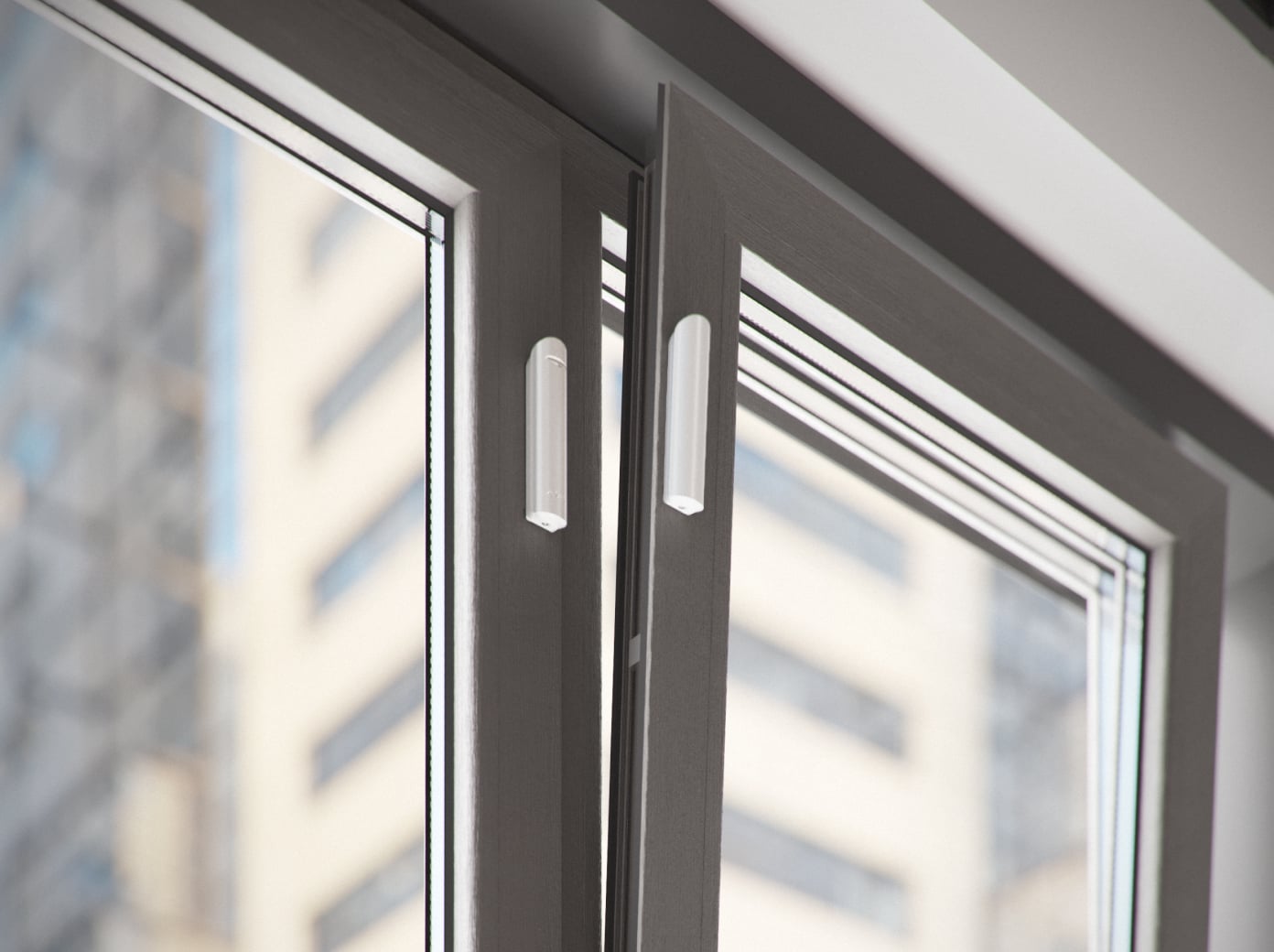

DoorProtect U Jeweller is a version of Ajax’s well-known opening detector, refined to meet the strict UK standards. It delivers reliable protection wherever break-ins may occur — whether it’s doors, windows, or safes holding valuables. Its dual reed switches ensure accurate detection of unauthorized openings, while the anti-chatter technology minimizes false alarms. Two magnets of different sizes allow for adapting the detector installation to various door and window designs.

Reed switches

2 reed switches

the magnet can be placed on the left or right side of the detector

Protection against contact chatter

to prevent false alarms

More installation options

with two magnets included

Installation options

Chime feature

when operating with Ajax sirens

Chime feature
Pre-installed battery

Up to 7 years of operation

with the pre-installed battery

Remote control

Remote control and configuration

NC detector

Connector

for a third-party NC detector

Holding screw

to secure the detector on a mounting panel

screw

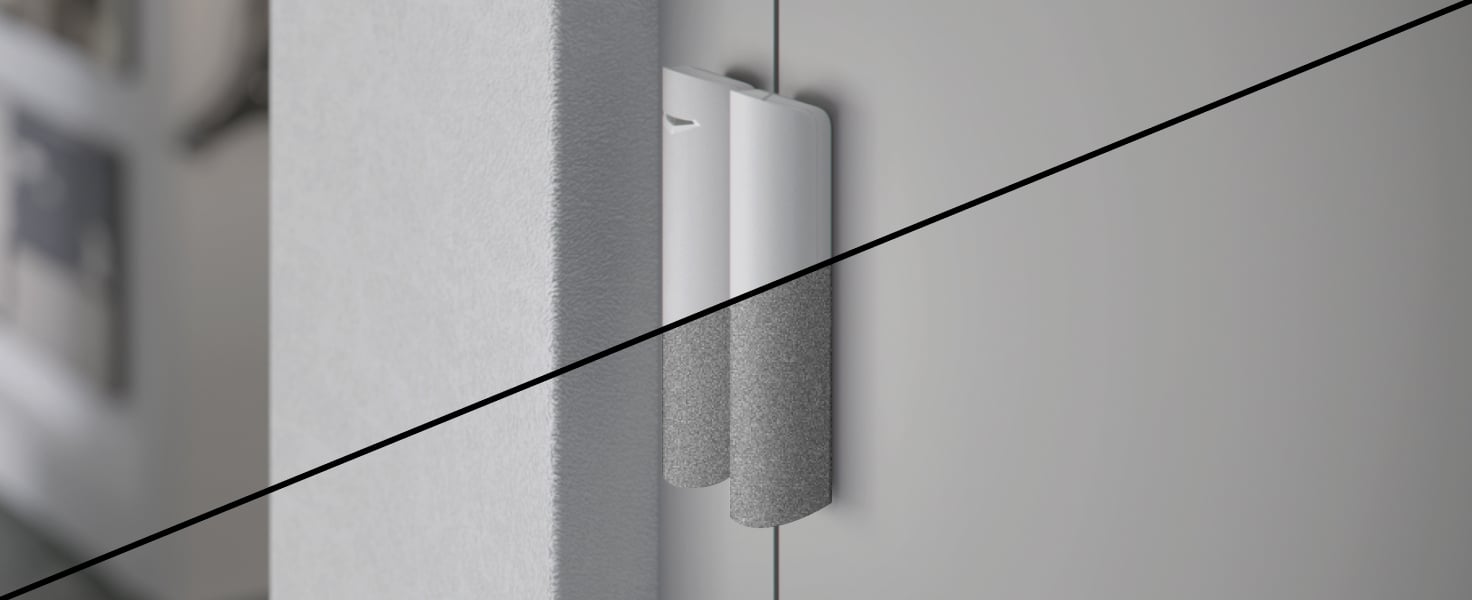

2 colors

of matte enclosure

Two colours

Informative push notifications

Ajax logo
10:00

Critical

Ajax

Office: Opening detected, DoorProtect U Jeweller in Hall No. 1

Ajax logo
10:00

Ajax

Production: device is detached from surface, DoorProtect U Jeweller in Warehouse.

Up to 1,200 m

communication range with an Ajax hub or range extender1

Jeweller radio communication

Jeweller and Wings radio communication

Power adjustment

Hassle-free installation

1

QR code

2

SmartBracket

3

App

Compliance

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

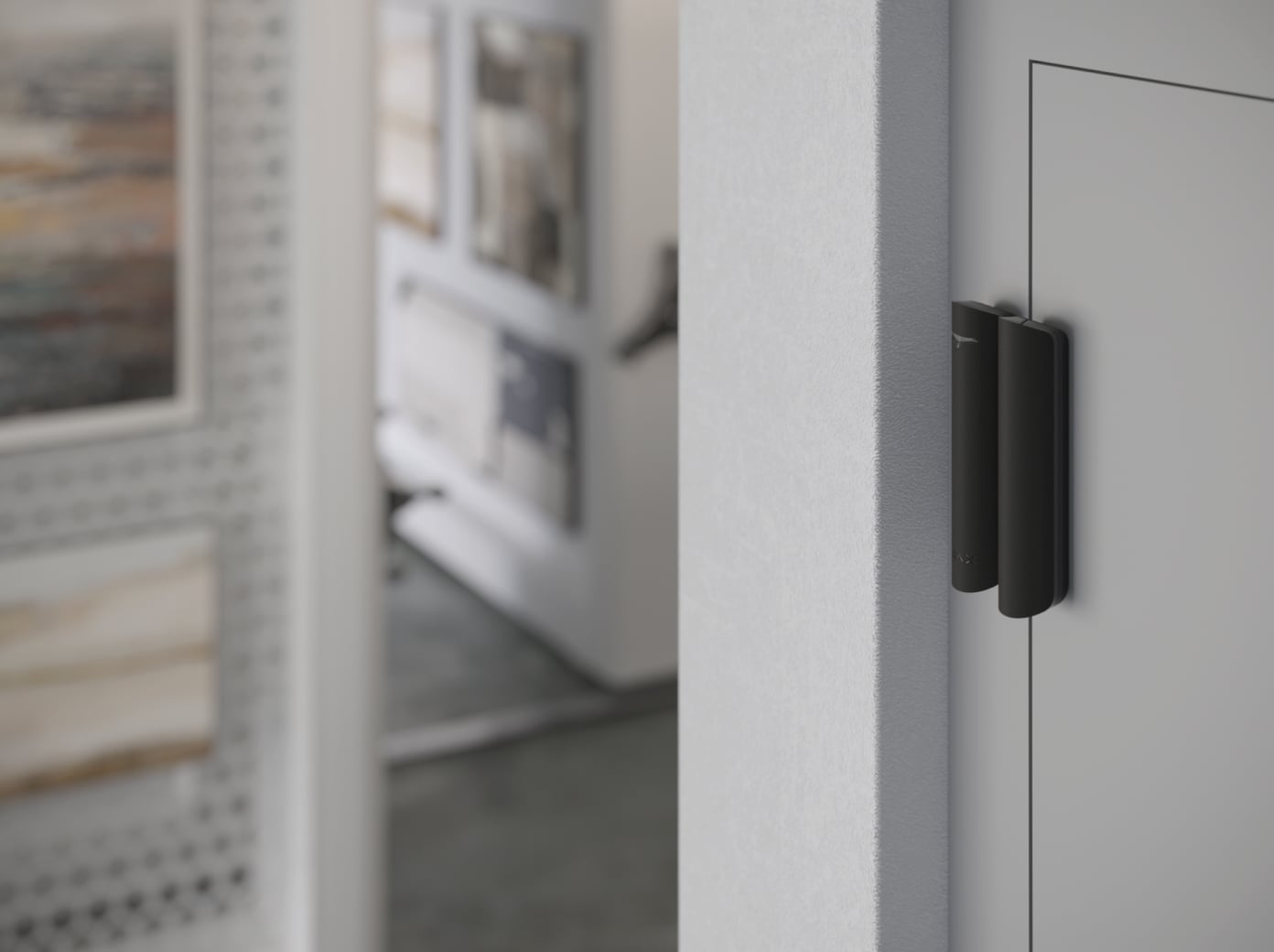

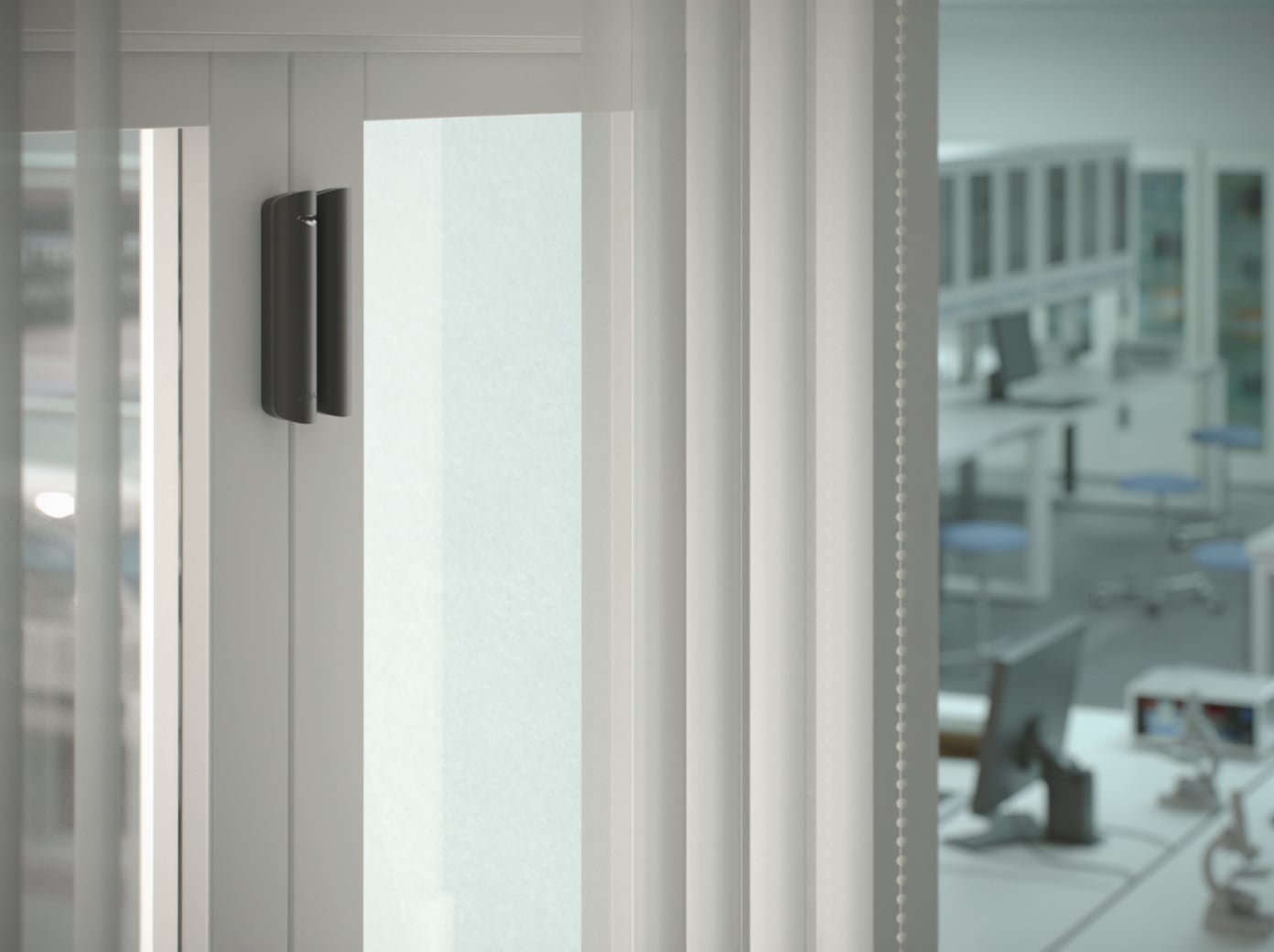

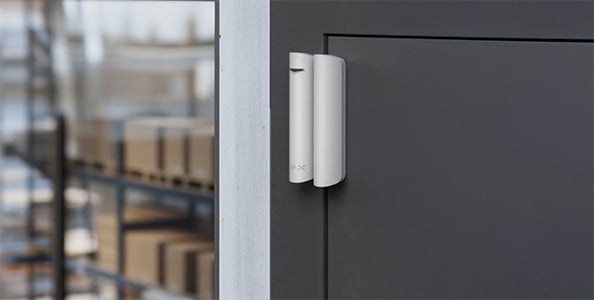

Wherever there is a risk of intrusion

Office

Office

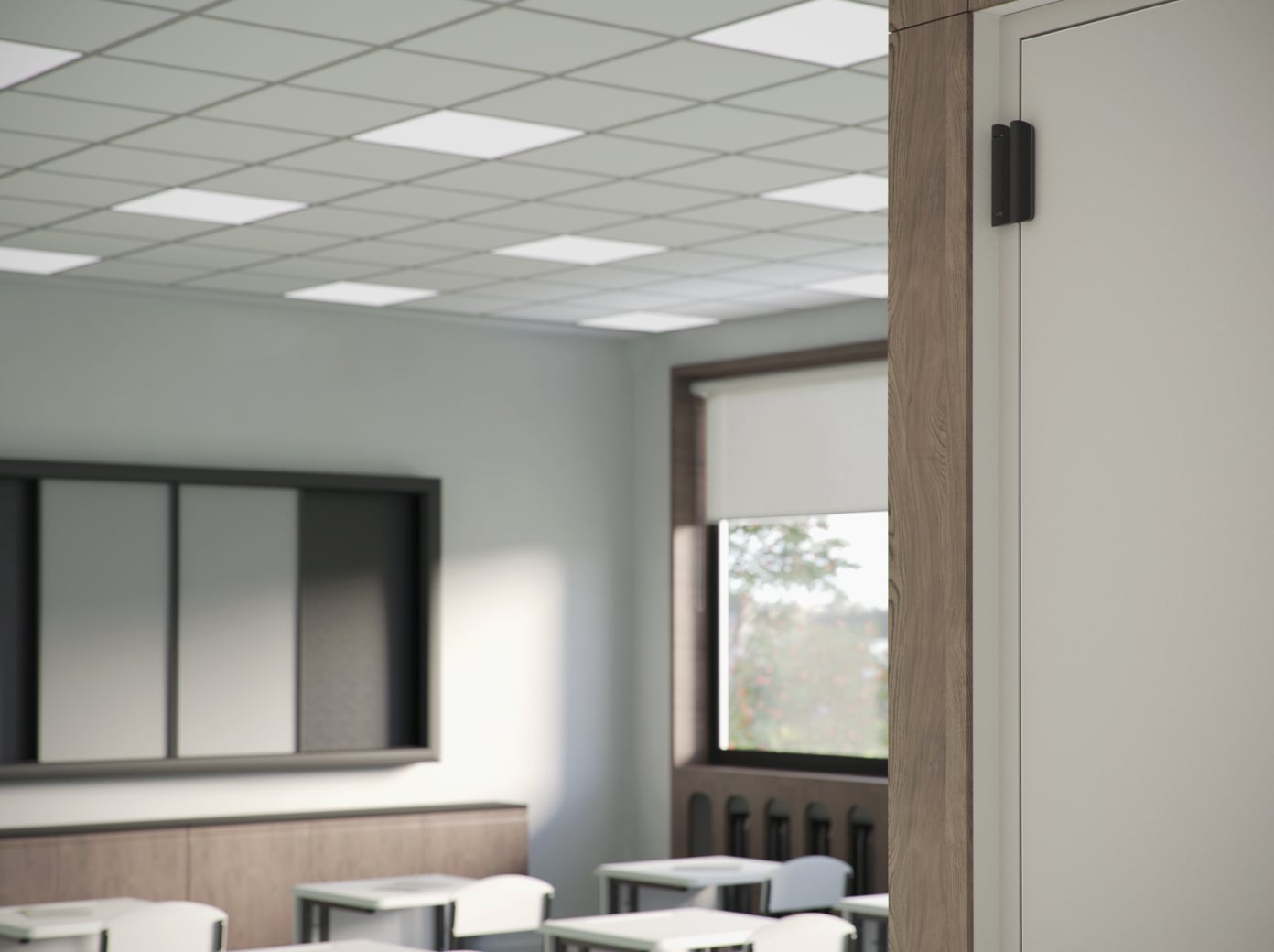

School

School

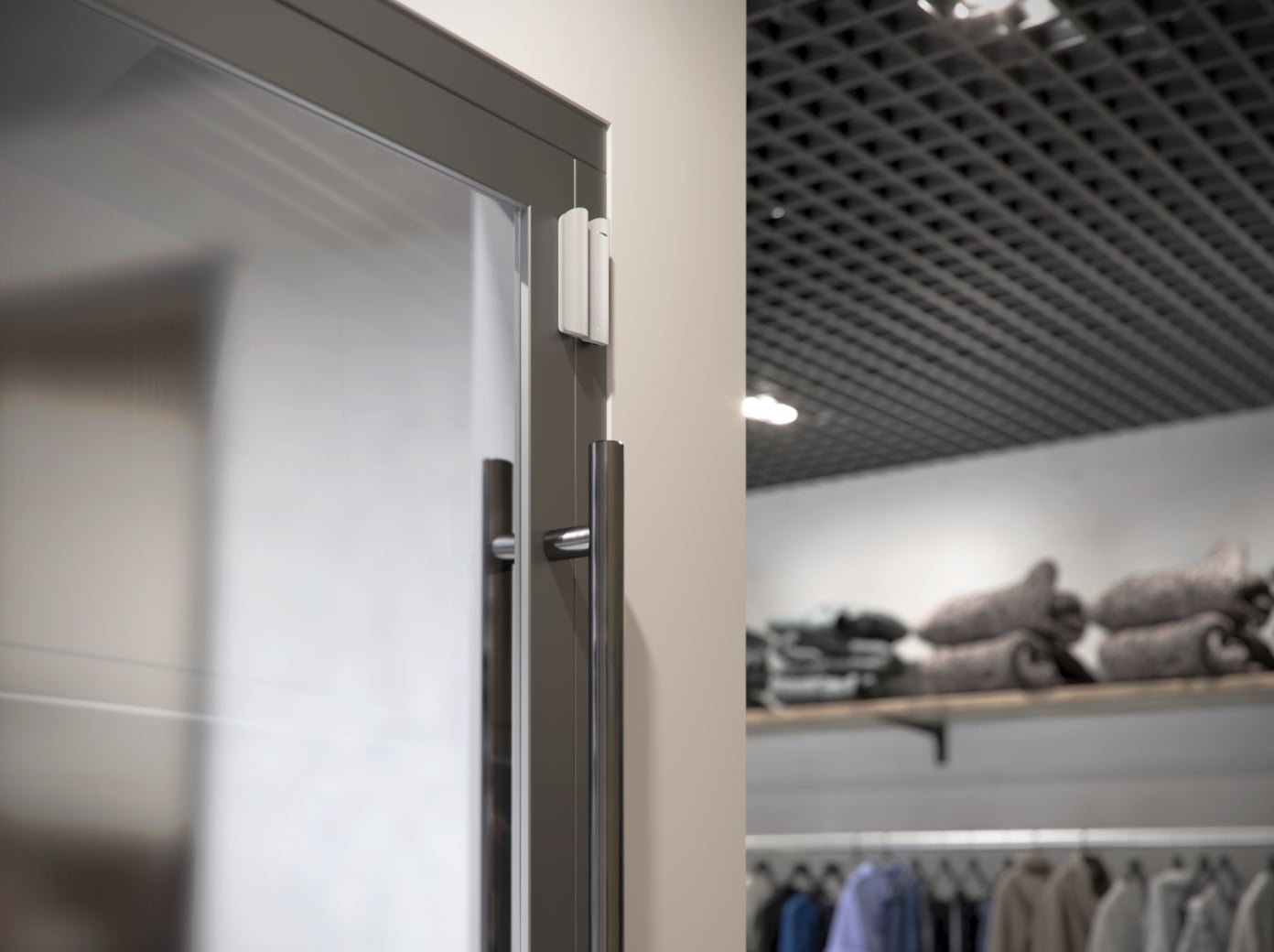

Store

Store

Private clinic

Private clinic

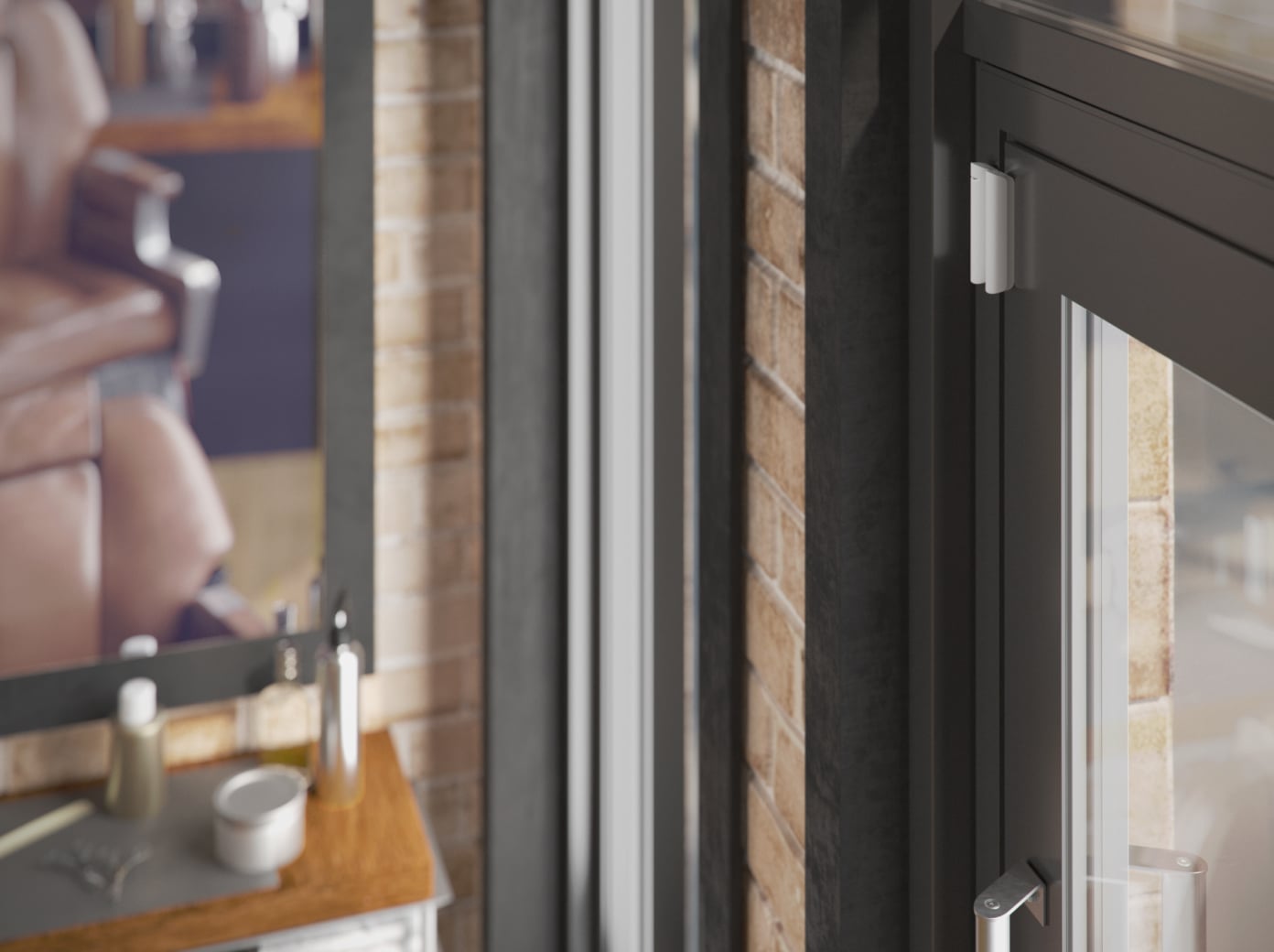

Barbershop

Barbershop

Museum

Museum

Discover future-proof hardware

Two reed switches

Two reed switches

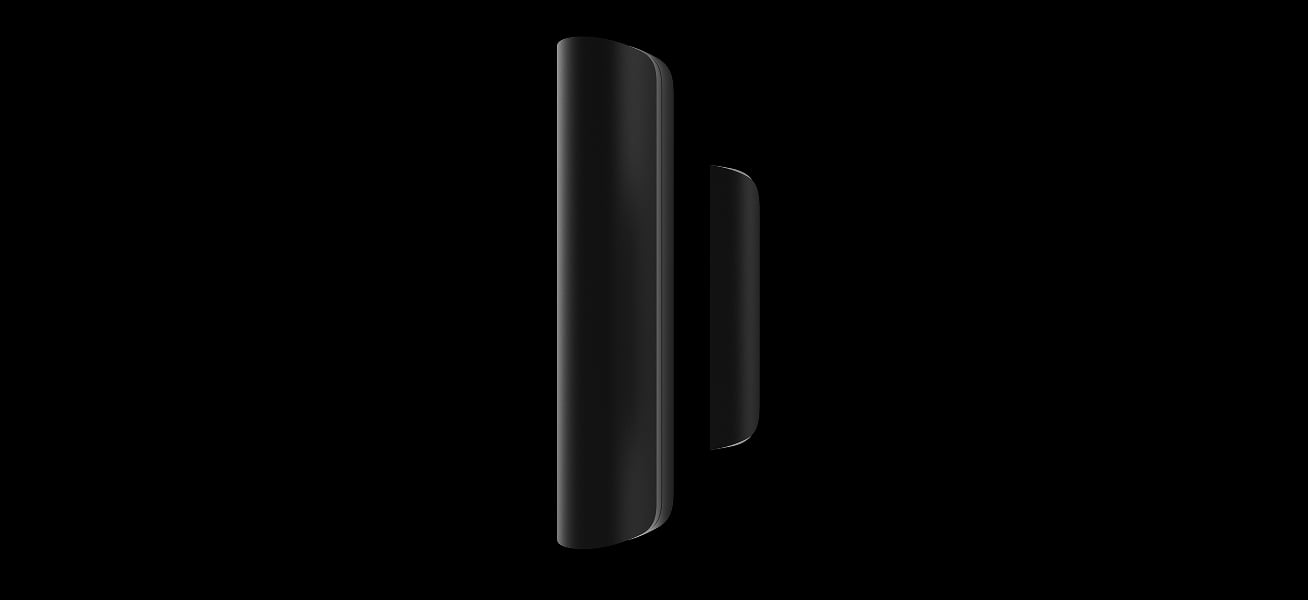

Two magnets of different sizes

Two magnets of different sizes

Pre-installed battery

Pre-installed battery

Tamper to notify if a detector is dismantled

Tamper to notify if a detector is dismantled

Jeweller antenna

Jeweller antenna

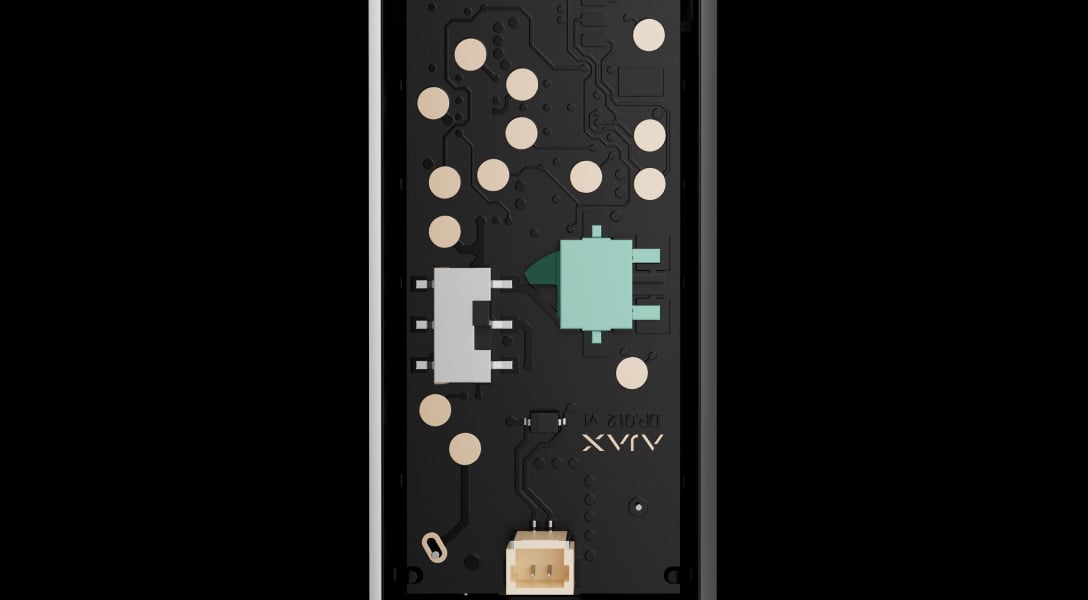

Connector for a third-party NC detector

Connector for a third-party NC detector

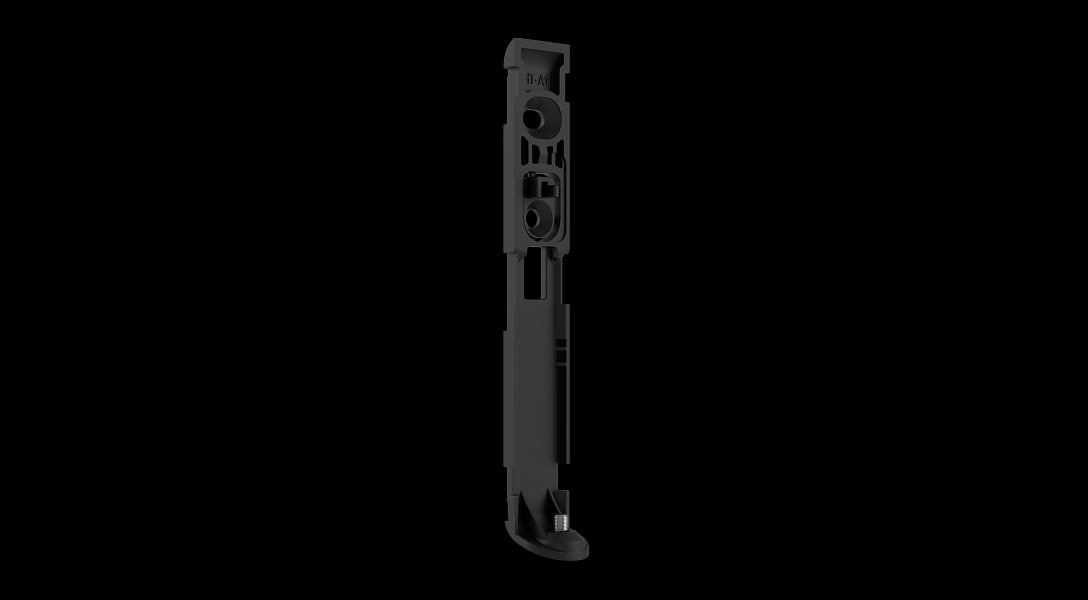

SmartBracket mounting panel

SmartBracket mounting panel

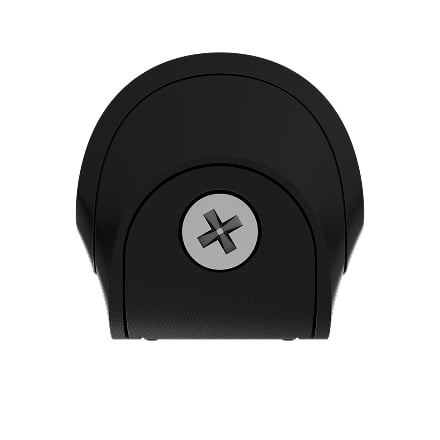

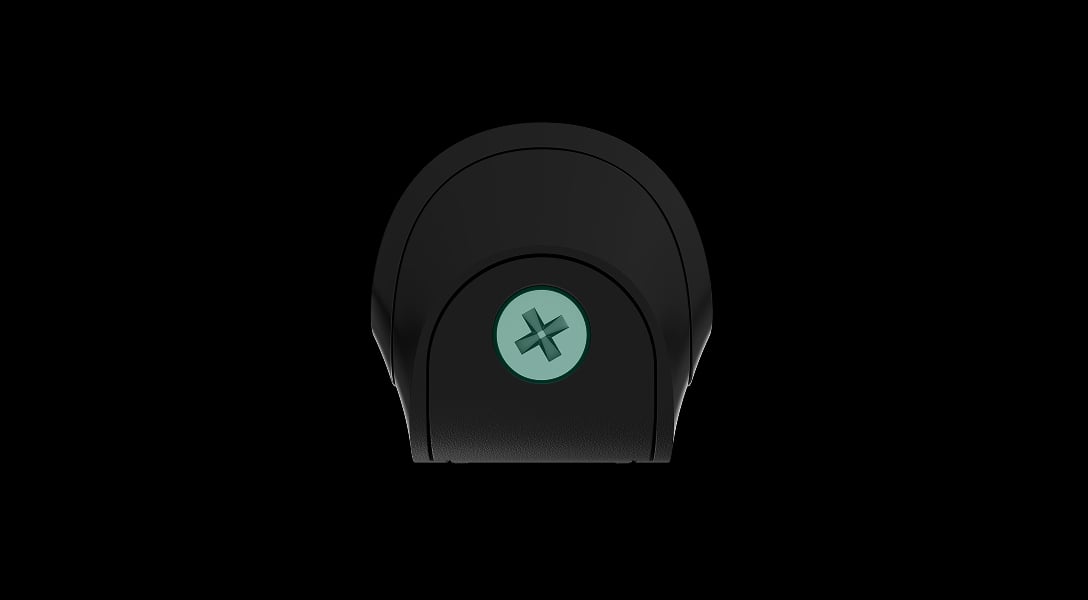

Holding screw for a more reliable fastening

Holding screw for a more reliable fastening

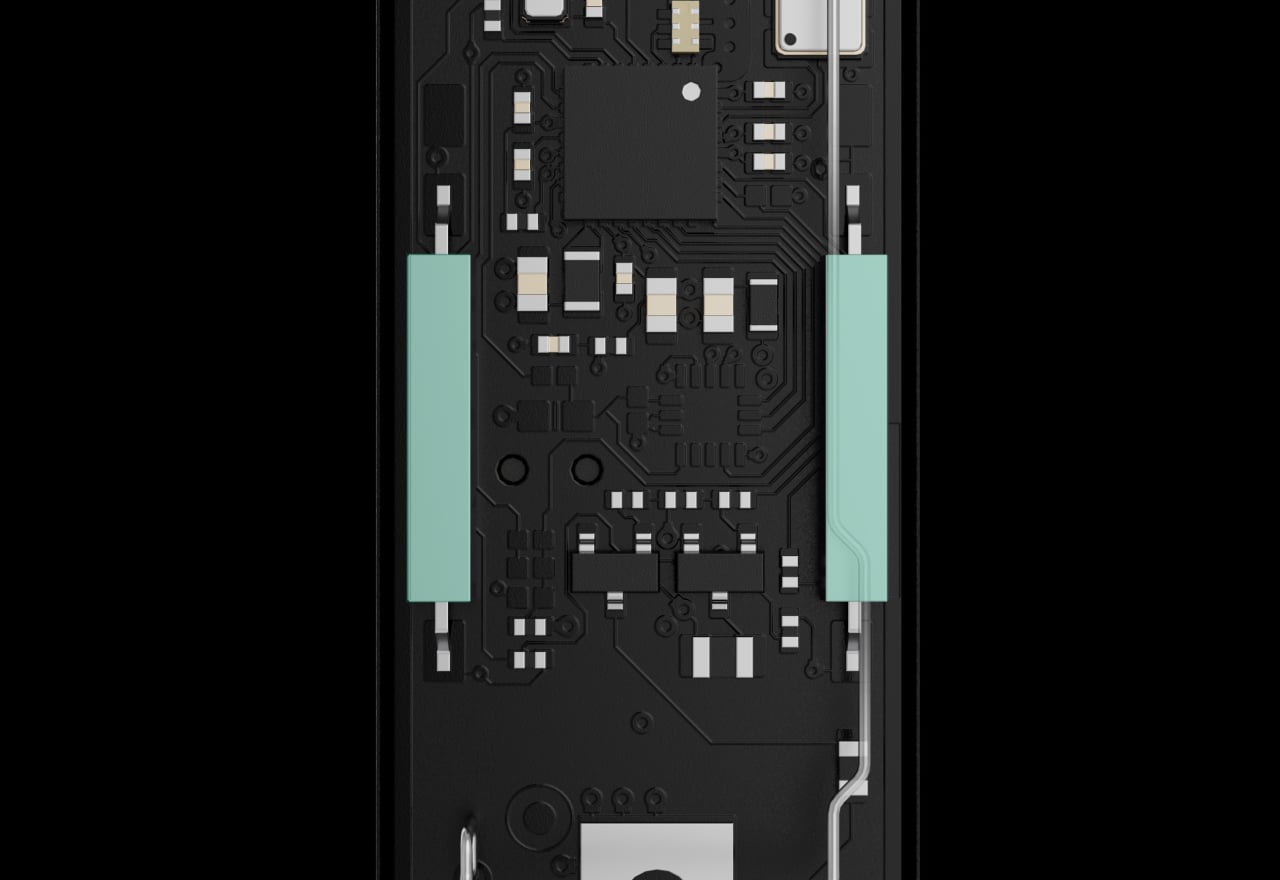

Flexible mounting with two reed switches

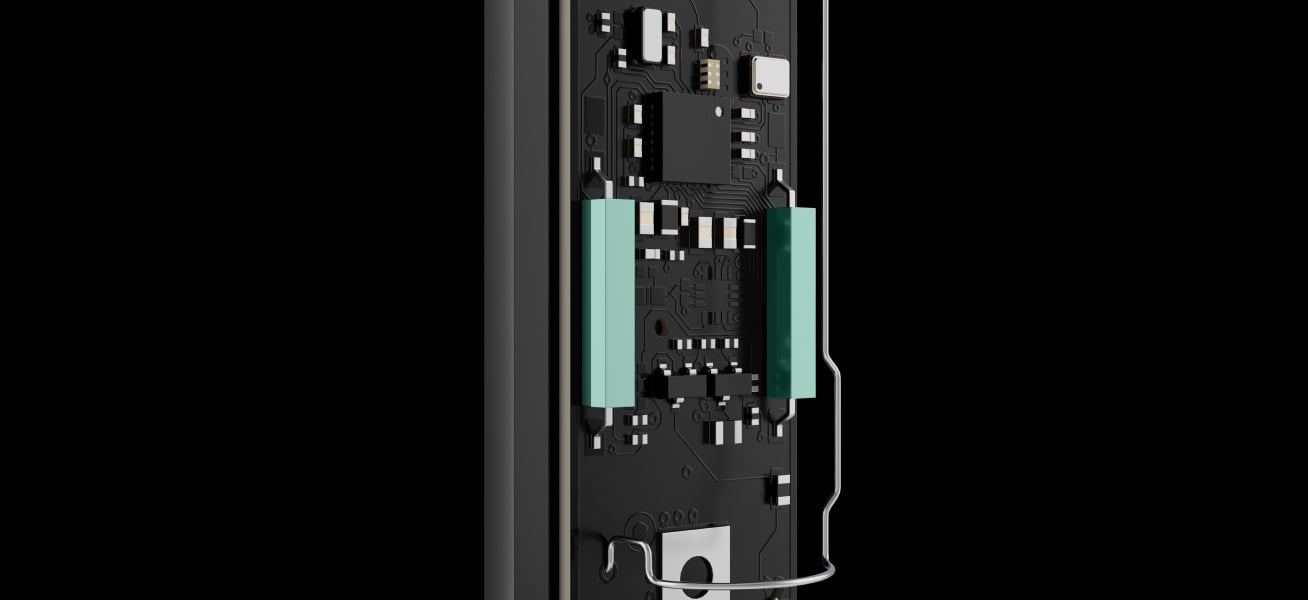

DoorProtect U Jeweller uses two reed switches for trouble-free opening detection. This design offers more versatile mounting for different installation needs: the magnet can be positioned on either the left or right side of the detector. The reed switches are housed in durable plastic capsules, which ensures their integrity during transportation or accidental drops. For the optimal setup, installers can choose between a larger or a smaller magnet, both included in the kit.

Durable capsules for secure transportation

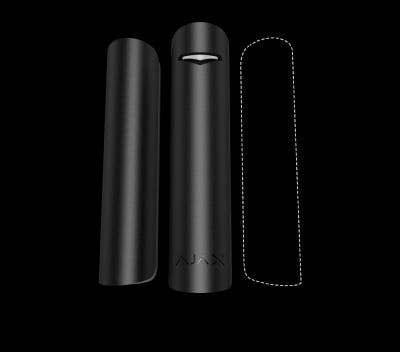

Two magnets of different sizes included

Left-side or right-side magnet placement

Additional detectors

Enhanced security with additional detectors

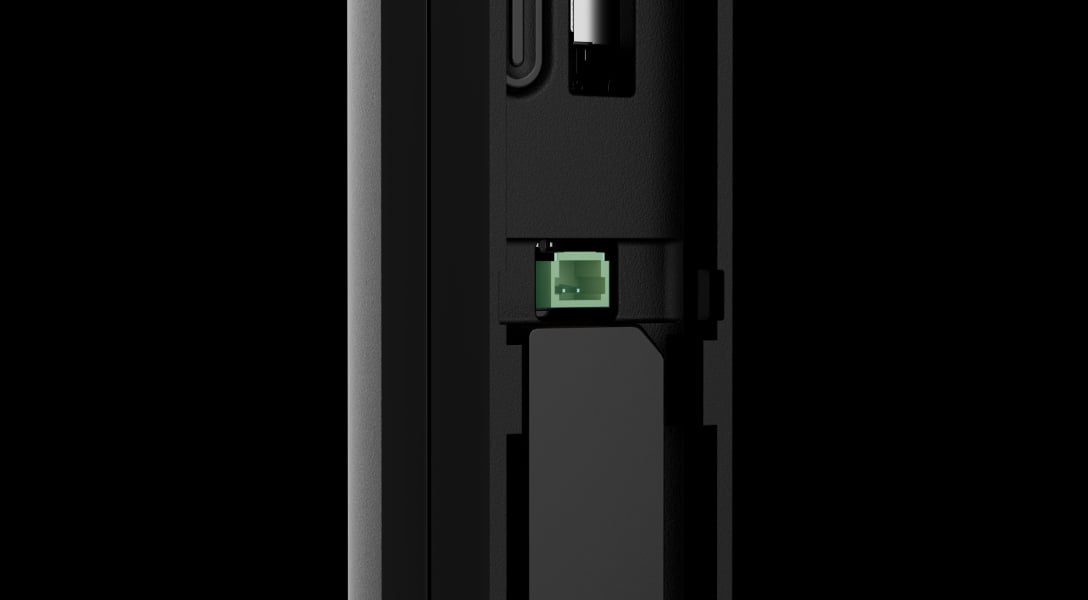

DoorProtect U Jeweller features a connector for a third-party device2 with an NC contact. Installers can use it to add an existing or a new wired opening, motion, or vibration detector to an Ajax system. This integration streamlines monitoring over the both detectors within a single Ajax app interface.

Opening detector

Motion detector

Vibration detector

More than just a detector

If the system has sirens, DoorProtect U Jeweller can double as a shopkeeper’s bell. Once the door is opened, the siren signals it with one of four available sound patterns. Different signals can be assigned to separate entrances, ensuring that people on-site always know when someone enters through the main door or a back entrance. Configuring these settings takes just a few clicks in the Ajax app.

Detector as a doorbell

Sound signals for doors being opened

Signal customization for different security groups

Customizable signals for each entrance

For the Chime feature, the system requires a siren. Choose from a wide selection of indoor and outdoor sirens to unlock this feature and enhance on-site security.

Chime feature

Wire-free flexibility and reliable performance

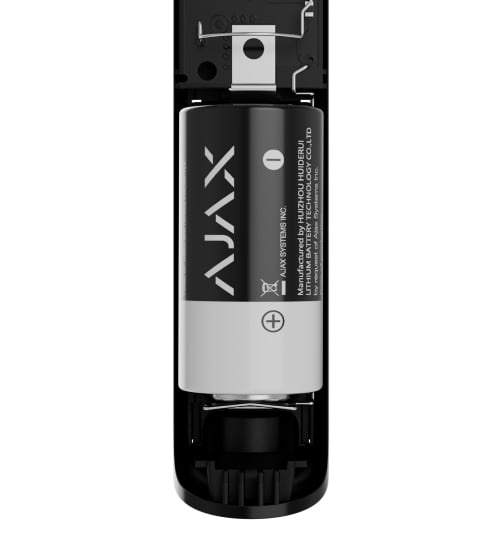

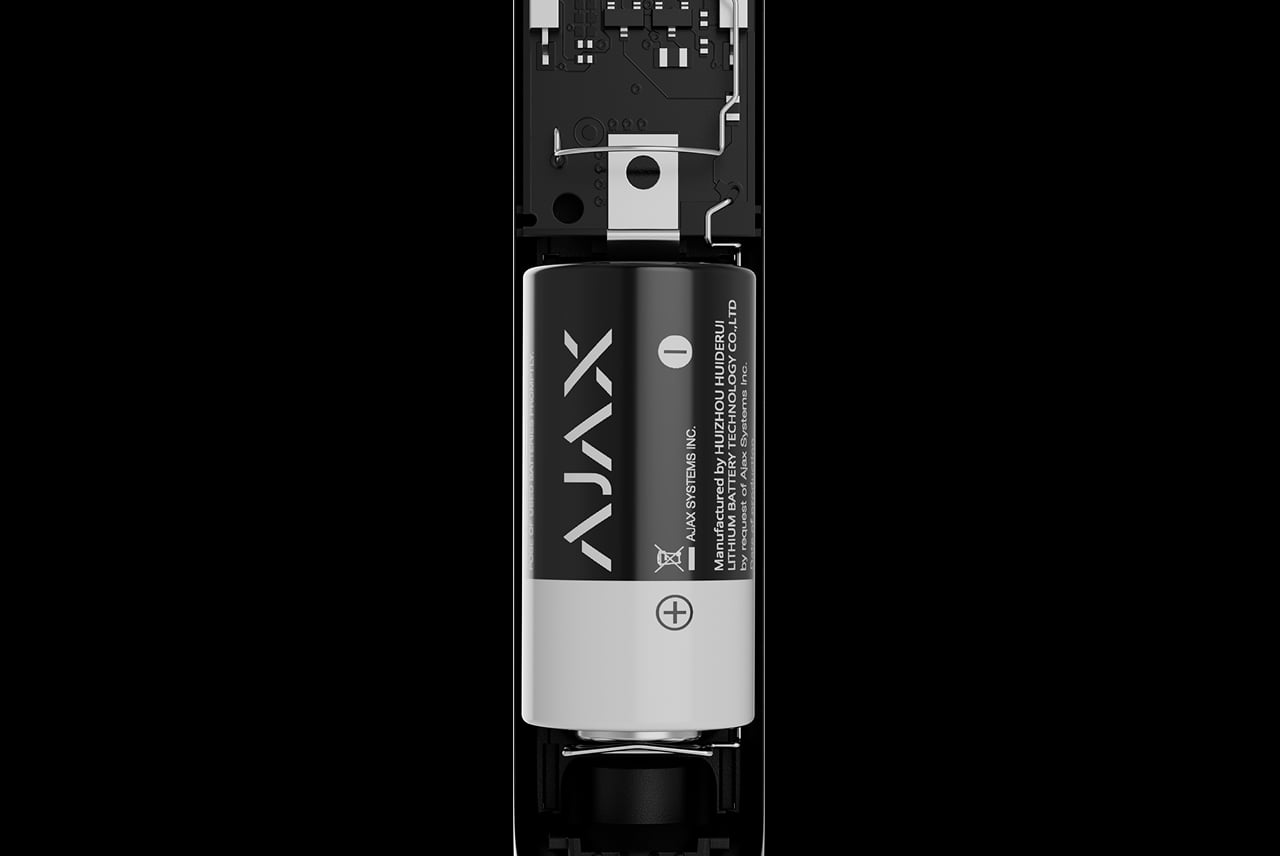

DoorProtect U Jeweller operates wirelessly, providing maximum flexibility during installation. The pre-installed battery from trusted manufacturers ensures a hassle-free setup, requiring no extra steps for the device to begin operation. Each battery is thoroughly tested during production, and Ajax Systems inspects every unit to guarantee reliable performance. The battery can be easily replaced after approximately seven years of autonomous operation. Its status is always visible in Ajax apps. Users and security companies receive low battery notifications months in advance, so the replacement is always well-timed.

Real-time testing during battery production

Up to 7 years of autonomous operation

Early low battery notifications

Batteries
Unique wireless technology

Jeweller

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides a block encryption and device authentication during each communication session with Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Up to 1,200 m of communication range in an open space

Data encryption

Notification of jamming and connection loss

Automatic power adjustment

Communication through steel and concrete

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.

Up to 5 range extenders within one system

Ethernet-equipped model available

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Automatic device self-diagnosis with a state report

Regular polling to display the current device state in Ajax apps

Instant maintenance notifications

Advanced system supervision

Sabotage protection

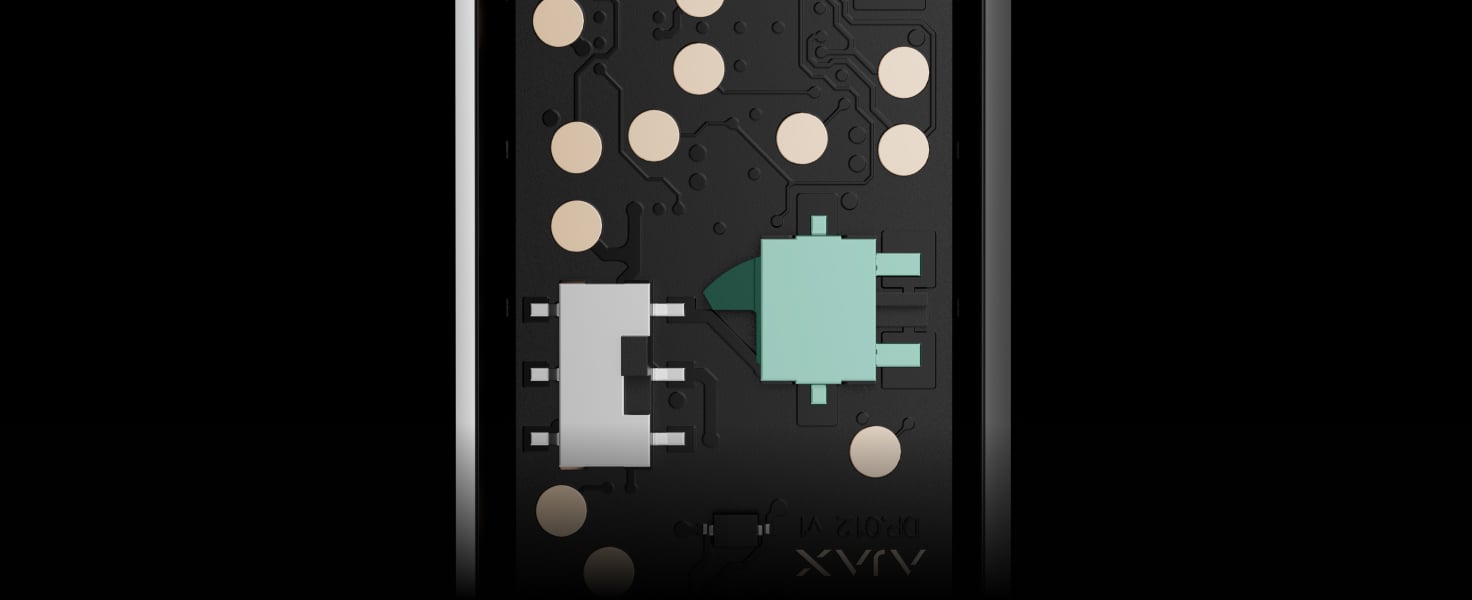

Tamper alarm

Tamper alarm

The bundled holding screw ensures a more reliable fastening and complicates unauthorized device dismantling. The tamper button alerts the monitoring company and users if the device is detached from the mounting panel or removed from the surface.

Data encryption

Data encryption

All stored and transmitted data in the system is protected by block encryption with a dynamic key. Encryption makes it extremely difficult to reprogram the device and replace or steal the data.

Informative notifications

Informative notifications

An Ajax system instantly delivers informative notifications of alarms and events. Security companies and users receive precise details about each incident, including time, location, and the triggered device.

Device authentication against spoofing

Device authentication against spoofing

During each communication session, the hub authenticates the device by checking the module’s unique parameters. If any parameter fails the check, the hub ignores the device commands.

Regular polling

Regular polling

The device regularly exchanges data with the hub. The system controls each device’s state and reports any malfunction or communication loss.

Communication loss detection

Communication loss detection

With minimal polling interval settings (3 data packages in 12 seconds), it takes 36 seconds to detect communication loss and notify the security company and users about the incident.

Effortless installation and setup

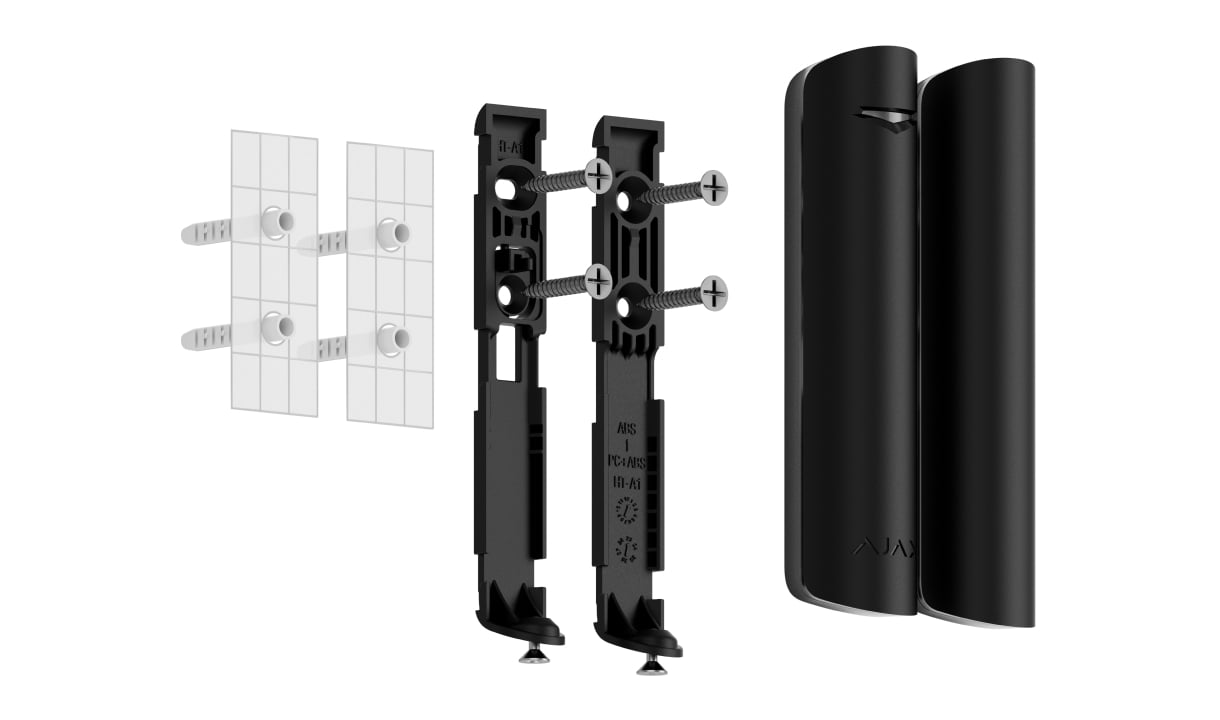

DoorProtect U Jeweller is ready to operate straight out of the box. It is easy to install with the SmartBracket mounting panel — no need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Pairing with the security system via a QR code

Connection

Effortless and secure installation with a SmartBracket mounting panel

Installation

Configuring and testing in the mobile Ajax PRO app

Setup

PRO Desktop app for macOS and Windows

Monitoring
1

In an open space.

2

DoorProtect U Jeweller cannot power a third-party detector. The power supply for this detector should be connected separately.
