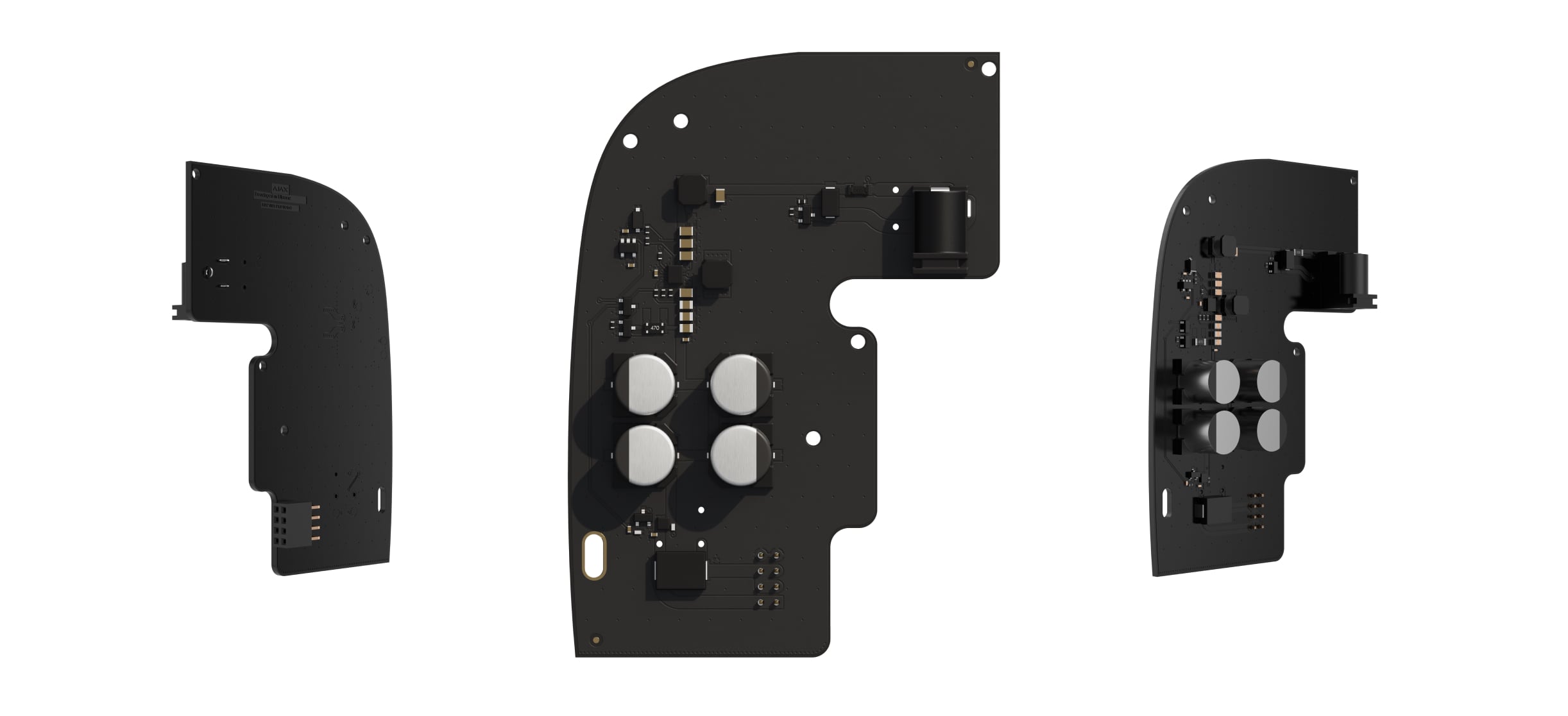

6V PSU (type A)
Power supply unit for operation of the device from portable battery
Devices compatibility
CheckRecommended batteries
Zinc-air alkaline batteries with 4.2–10 V⎓ operating voltage
Input
Voltage
4.2–10 V⎓
Current
2.2 А at 4.2 V⎓
0.8 А at 10 V⎓
Switch-on voltage
4.2 V⎓ ± 0.5%
Switch-off voltage
3–3.4 V⎓
Depends on the load.
Output
Voltage
4.8 V⎓ ± 3%
Current
up to 1.5 А
Installation
Installation method
into the hub or range extender enclosure
Operating temperature range
from 14 ℉ to 104 ℉
Operating humidity
up to 75%
Connection to the power supply network
Connector slot
0.26″ × 0.079″
Power jack (female)
Plug
0.23″ × 0.083″
Power jack (male)
Board
Color
N/A
Dimensions
3.9″ × 2.8″ × 0.67″
Weight
0.917 oz
Complete set
6V PSU (type A)
Terminal adapter
Quick start guide
Certification and compliance with standards
6V PSU (type A)
6V PSU (type A)
Restriction of Hazardous Substances (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
Certificate issued by MiCOM Labs
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
Low Voltage Directive (LVD)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN 62368-1:2014/A11:2017
NIST
FIPS 197
PSTI UK
Schedule 1
