Tech specs

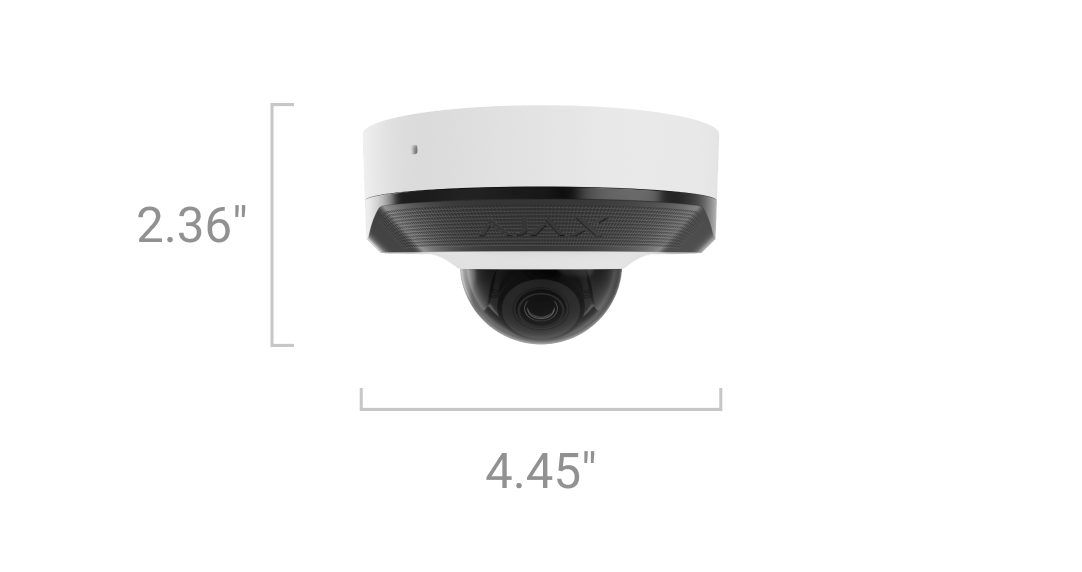

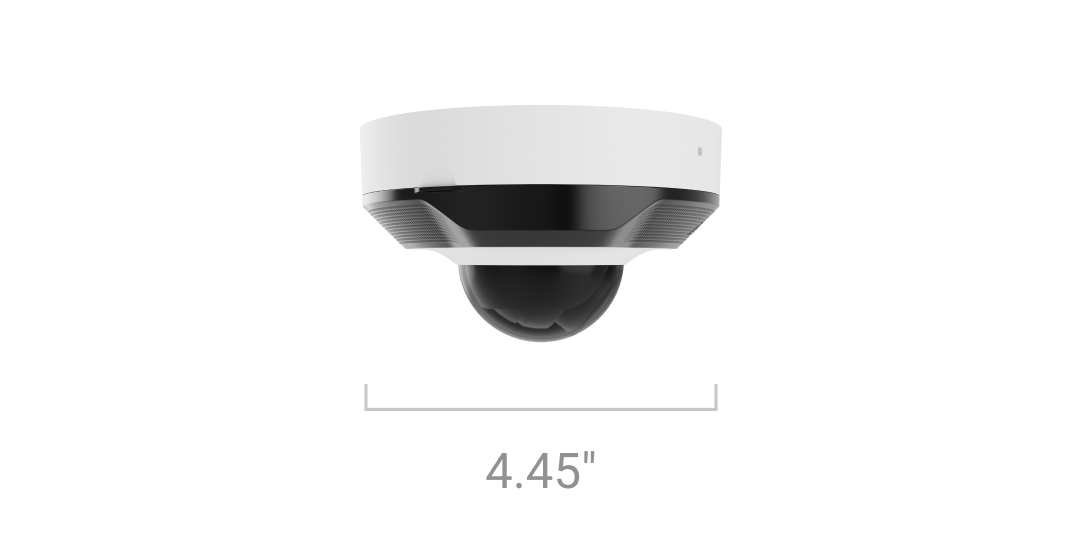

DomeCam Mini (8 Mp/2.8 mm)

Wired AI-powered security IP camera with an 110° viewing angle, IR, TrueWDR, microphone, and PoE/12 V. For outdoor and indoor use.

Devices compatibility

Check

Models

5 Mp/2.8 mm

Resolution up to 2880 × 1620 px
Frame rate up to 25 FPS
Viewing angle from 100° to 110°

5 Mp/4 mm

Resolution up to 2880 × 1620 px
Frame rate up to 25 FPS
Viewing angle from 75° to 85°

8 Mp/2.8 mm

Resolution up to 3840 × 2160 px
Frame rate up to 20 FPS
Viewing angle from 100° to 110°

8 Mp/4 mm

Resolution up to 3840 × 2160 px
Frame rate up to 20 FPS
Viewing angle from 75° to 85°

Videostream

Video protocol

JetSparrow

Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.

Storage

NVR

Hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size). Memory storage device not included.

microSD

Up to 256 GB. The memory card should be Class 30 or faster. Memory storage device not included.

Video codecs

H.265
H.264

Dynamic range

HDR
WDR

Communication channel

Ethernet

up to 100 Mbps

Key features

Motion detection

The camera has software to detect motion in the frame.

Object detection

using AI

Humans.
Pets.
Vehicles.

Smart IR illumination

up to 15 m

Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low light conditions.

Visual verification of Ajax alarms

The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app.

Learn more
