HomeSiren Jeweller

Wireless siren

HomeSiren Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 6,500 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Key features

Alarm type

acoustic and LED indication

Buzzer and LED.

Warning device type

type W

Internal and self-powered.

Alarm volume

from 80 to 100 dB at a distance of 3.3 ft

Adjusted by a PRO or a user with admin rights in the Ajax app.

93 dB at a distance of 3.3 ft

Default settings.

Alarm duration

from 3 s to 3 min

Alarm duration up to 15 minutes is available only for sirens with firmware version NA 5.60.4.14 or higher.

Adjusted by a PRO or a user with admin rights in the Ajax app.

Siren sound frequency

3.4 ± 0.5 kHz

Ability to connect an additional LED

3 V⎓

An additional LED works in parallel with the built-in LED of the siren and fully replicates its indication.

Events indication

  • Alarms.
  • Delays when entering/leaving.
  • Security mode.
  • Security mode changing.
  • After-alarm indication.

Chime

The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.

Recommendations

The siren is designed for indoor use only.
Recommended installation height is 8.2 ft or higher.

Sabotage protection

Tamper alarm

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

2 × CR123A

Pre-installed.

Calculated battery life

up to 5 years

Siren’s operating voltage range

1.9−3.3 V⎓

Siren’s nominal operating voltage

3 V⎓

Quiescent siren’s current consumption at nominal voltage

68 µA

Peak siren’s current consumption at nominal voltage

1.1 A

When the siren sounds at the Very Loud volume level.

Average siren’s current consumption at nominal voltage

50 mA

When the siren sounds at the default volume level. Regardless of the arming mode.

Full battery capacity

3,200 mAh

Capacity of each battery is 1,600 mAh.

Low battery voltage

2.1 V⎓

End-of-life battery voltage

1.9 V⎓

Device is switched off.

End-of-life battery capacity

366 mAh

Manufacturer

Huiderui

UL listed.

Enclosure

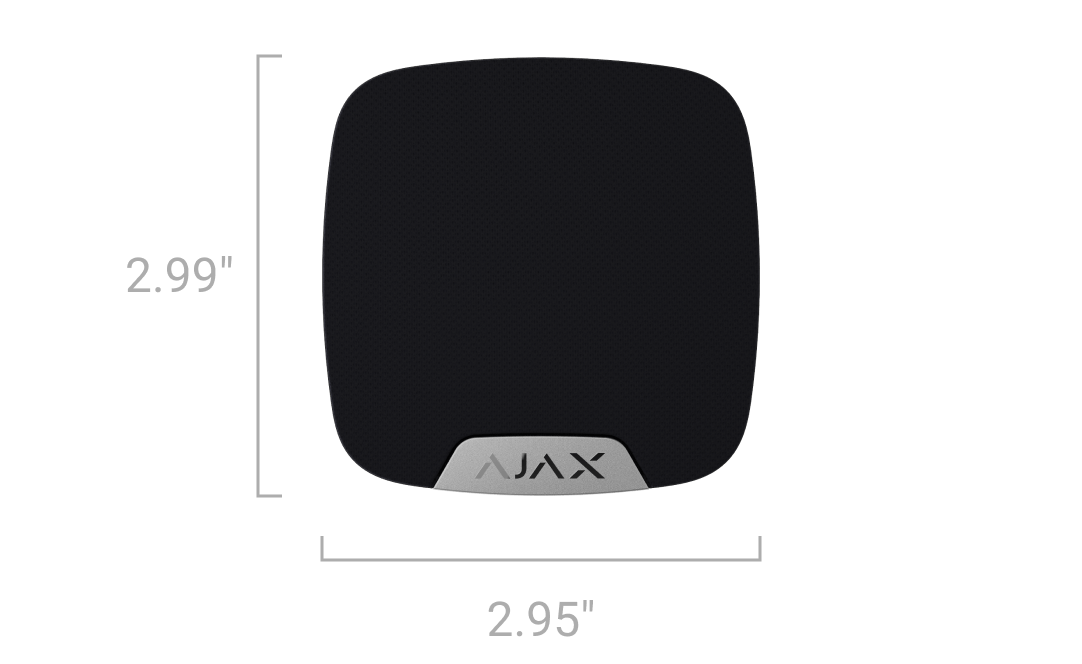

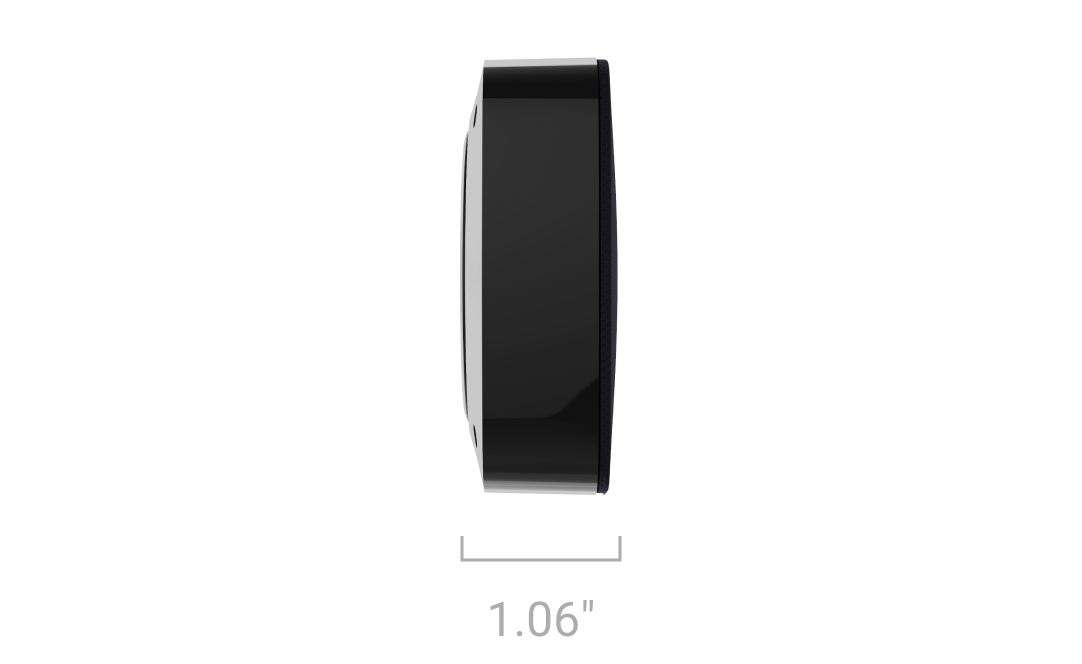

Dimensions

2.95″ × 2.99″ × 1.06″

Weight

3.42 oz

Operating temperature range

from 14°F to 104°F

Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.

Operating humidity

up to 75%

Humidity of up to 93% is certified according to UL/ULC standards.

Protection class

IP50

Not evaluated by UL.

ttx
ttx

Colors

Black

White

Complete set

HomeSiren Jeweller

SmartBracket mounting panel

2 × CR123A battery (pre-installed)

Connector for an LED indicator

Installation kit

Quick start guide

Certification and compliance with standards

HomeSiren Jeweller

HomeSiren Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-4:2019

EN 50131-5-3:2017

PD 6662:2017*

ANSI/SIA CP-01-2019

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

||

FCC ID

Certificate issued by MiCOM Labs

2AX5VHOMESI-NA

IC ID

Certificate issued by MiCOM Labs

26860-HOMESINA1

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

Household Fire Warning System Units

UL LLC

UL 985

Residential Fire Warning Alarm Systems Control Units

UL LLC

ULC 545

PSTI UK

Schedule 1

Additional information

Compliance with standards

Learn more

Warranty

24 months
