Tech specs

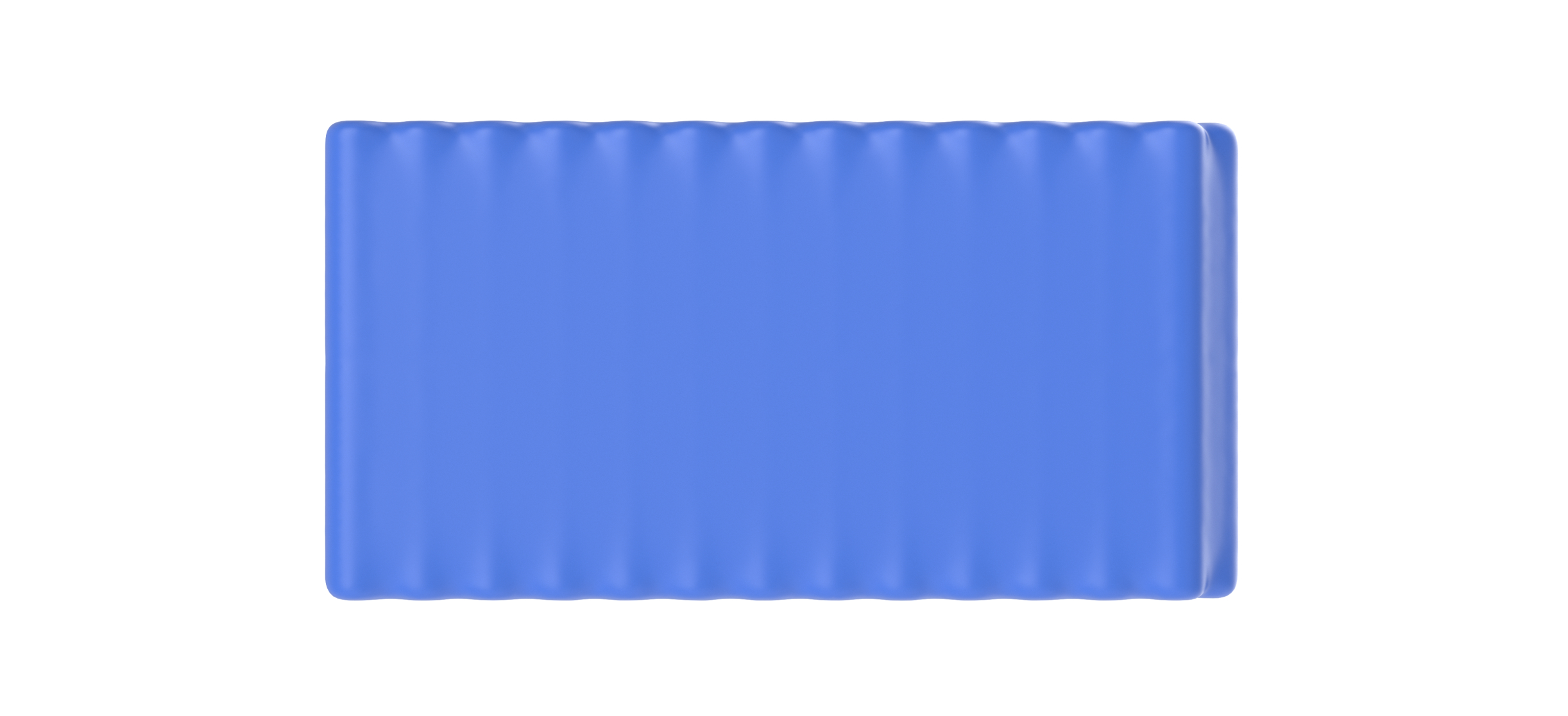

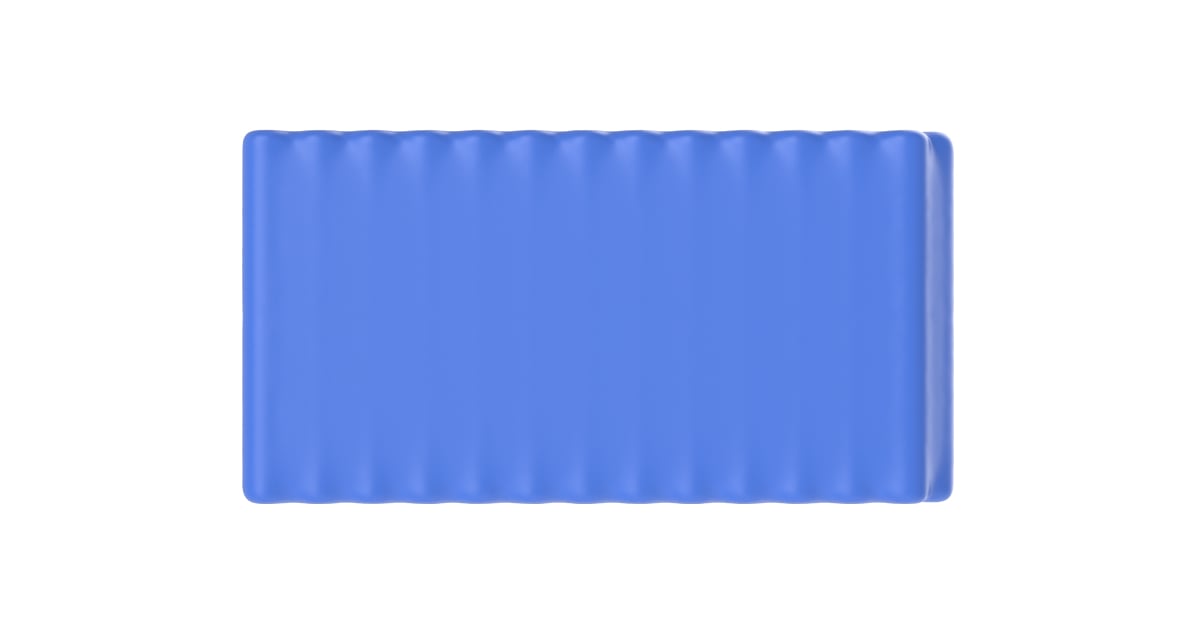

Internal battery RB (6.4V/78Ah)

Pack of 78 rechargeable LiFePO4 batteries to install in a compatible Ajax casing

Device compatibility

Check

Battery type

Battery

78 × IFR18650

Rechargeable lithium iron phosphate (LiFePO₄) battery cells.

Battery configuration

2S39P

Nominal voltage

6.4 V⎓

Nominal сapacity

78 Ah

Maximum charge current

15 A

Via the battery charging connector.

TVC (Terminal Voltage Control)

7.2 V⎓ (3.6 V⎓ per cell)

Maximum discharge current

2 A

Via the connector for attaching the battery to the hub.

Discharge cut-off voltage

4.5 V⎓

Charging and discharging parameters

Charging temperature range

from 32 °F to 113 °F

Charging relative humidity

60 ± 25%

Discharging temperature range

from −13 °F to 149 °F

Discharging relative humidity

60 ± 25%

Storage conditions

Storage temperature range

from −4 °F to 113 °F

Storage humidity

60 ± 25%

Transportation and shipping

Shipping voltage

6.0–6.4 V⎓

Transportation requirements

For air transportation, lithium batteries must be charged to no more than 30% of their rated capacity. The shipping voltage complies with this requirement.

For other types of transportation, the battery must be handled in accordance with applicable regulations and carrier requirements.

Cautions

Do not expose the battery to open flames, sparks, or any other ignition source.

Do not short the power terminals.

Do not disassemble or deform the battery.

Avoid excessive mechanical impact or vibration.

Use the battery only with compatible devices.

The hub does not charge this battery. Charge the battery using a dedicated external charger. Recharge the battery every six months during storage.

Secure the battery in the casing using the hook-and-loop fastener (included in the Case D (430) and Case E (395) complete sets).
