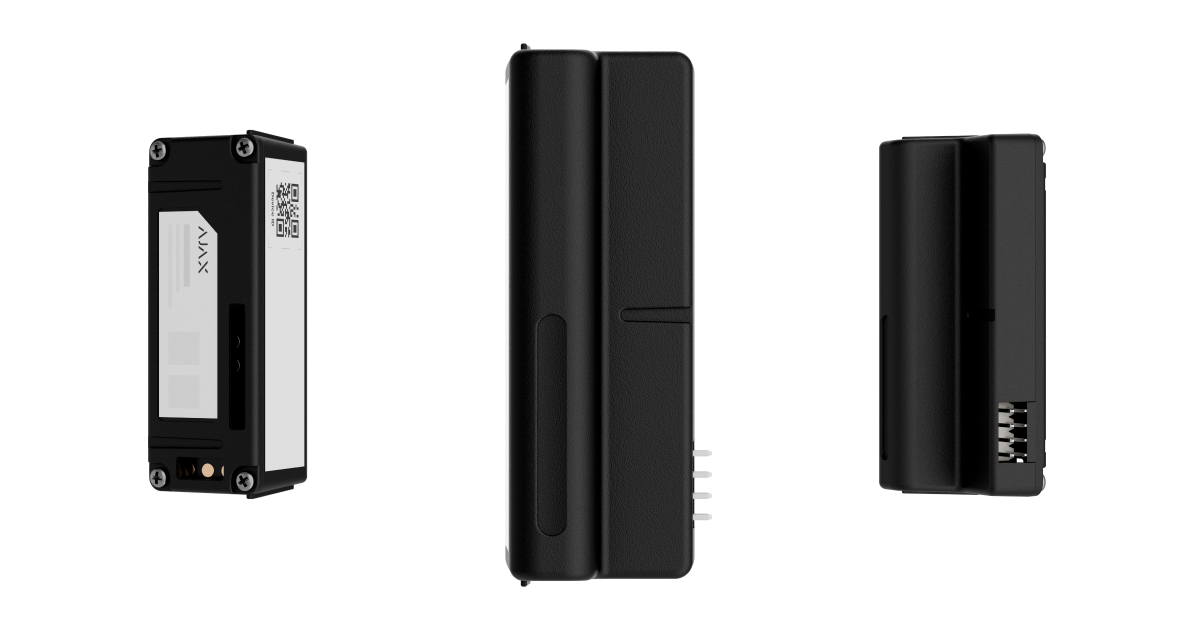

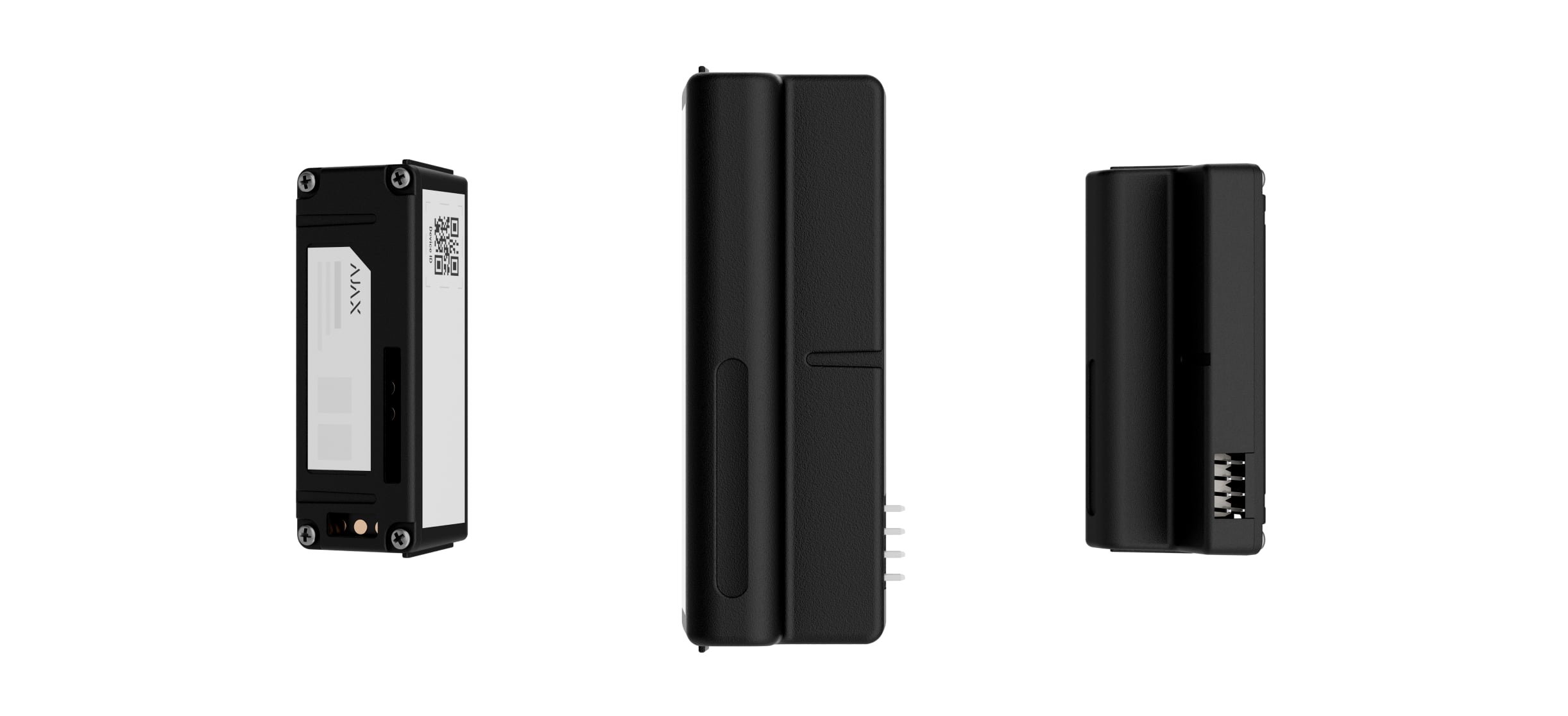

LockBridge (D) Jeweller
Wireless module to integrate compatible Yale Doorman electronic locks (V2N/Classic and L3/L3S) into an Ajax system
Device compatibility
CheckCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 4,550 ft
Between the device and a hub (or a range extender) in open space.
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology for uploading firmware updates.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Data packages reload in case of transmission errors.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
Depends on the sales region.
Radio communication range
up to 4,550 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Key features
Compatible smart locks
Yale Doorman L3/L3S
Yale Doorman V2N / Yale Doorman Classic
Before installing the integration module, read the user manual of the corresponding Yale smart lock model. LockBridge (D) Jeweller is not compatible with Yale Linus locks.
Remote lock state management
via Ajax apps
You can control the lock via the Devices and Control tabs.
Access rights management
Access to the lock can be configured for each system user in the space settings.
Notifications
when door open/closed
when locked/unlocked
when scenario executed
Notification types can be enabled or disabled in an Ajax app.
Automation scenarios
by arming/disarming
The smart lock can be automatically locked or unlocked when the security system state changes.
by device actuation
The smart lock triggers actions on other automation devices (coming soon) or security state changes.
by alarm (coming soon)
The smart lock is triggered by an alarm.
by alarm confirmation (coming soon)
The smart lock is triggered by alarm confirmation in the zone.
by schedule (coming soon)
The smart lock is triggered by a schedule.
Recommendations
LockBridge (D) Jeweller must be installed inside the Yale Doorman smart lock.
Remove the lock batteries before removing or inserting the integration module.
Sabotage protection
Protection against spoofing
integration module authentication
Detection of communication loss with the integration module
after 36 s
Between the hub and LockBridge (D) Jeweller. The value can be changed in the hub settings.
Power supply
Powered directly by the Yale Doorman lock batteries. No additional power source required.
Board
Dimensions

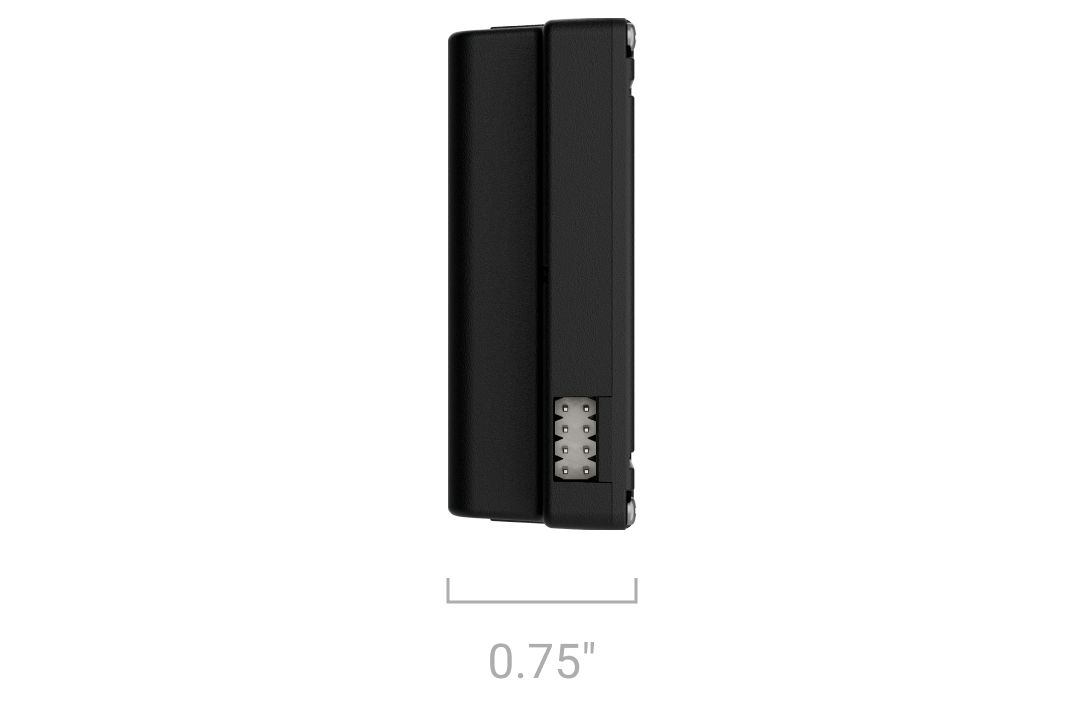

2.01″ × 0.83″ × 0.75″
Weight
0.28 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75%
Electric shock protection
Class II
Complete set
LockBridge (D) Jeweller
Quick start guide
