ManualCallPoint (White) Jeweller
Wireless resettable button featuring programmable scenarios. White-colored version.
Devices compatibility
CheckCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the region of sale.
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 5,500 ft
Between button and hub (or range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Key features

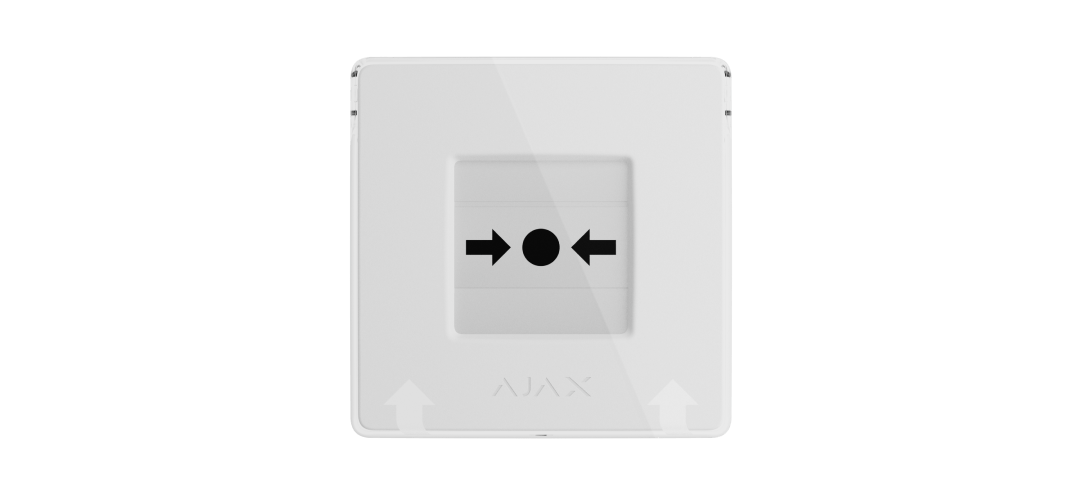

Resettable frangible element
activates the button

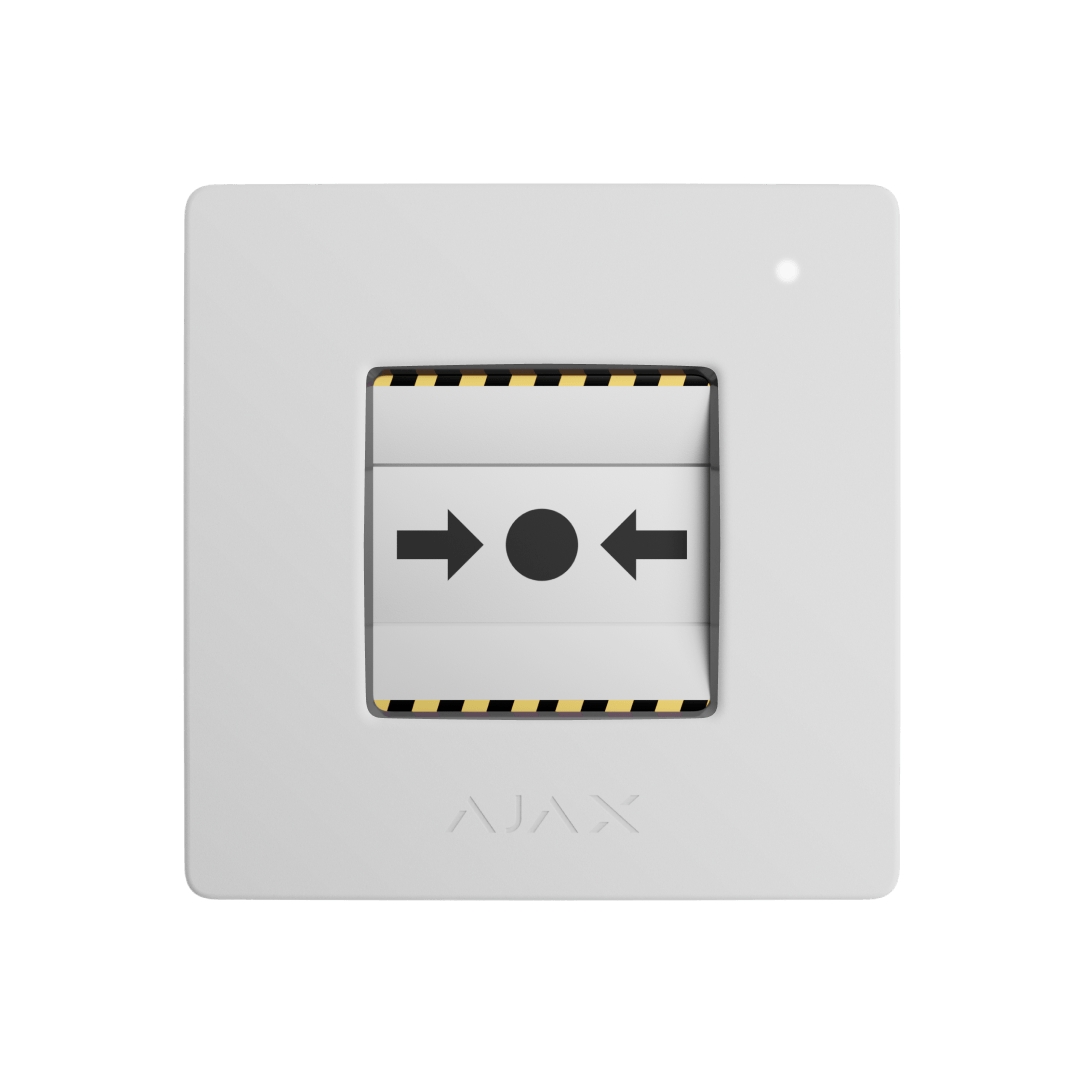

When the central part (frangible element) is pressed, the button depresses inward, initiating a scenario or triggering an alarm. Two yellow stripes appear at the top and bottom, indicating the device's state.
Operating modes
scenario trigger
fire alarm
With appropriate settings, it controls Ajax automation devices or activates an alarm.
LED status indication
The LED indicator on the device enclosure lights up when the button is activated, or malfunctions are detected.
Interconnected fire detectors alarms
by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens.
Critical alerts
The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.
Protection against accidental presses
Lift the transparent lid to access the frangible element. The lid protects against false button presses.
Alarm transmission to CMS
disabled by default
Recommendations
The ManualCallPoint button is available in several versions.
Special tool (key)
Button reset
after pressing

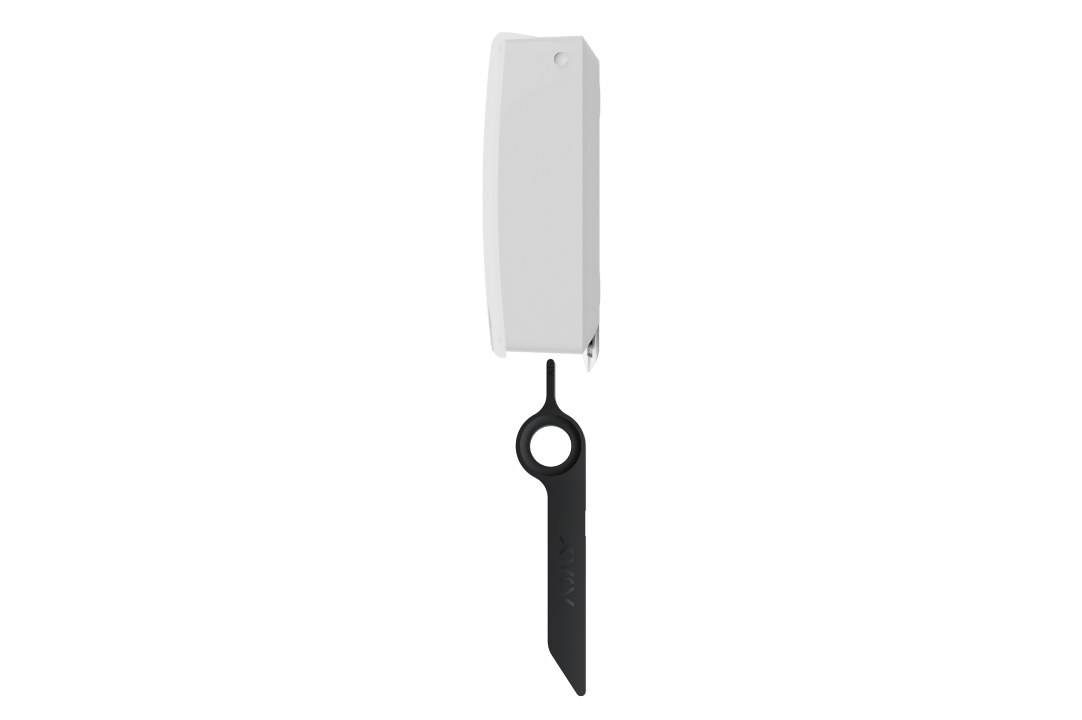

To reset the button, insert the special tool into the corresponding hole.
Hole in the enclosure
to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain.
Convenient dismantling

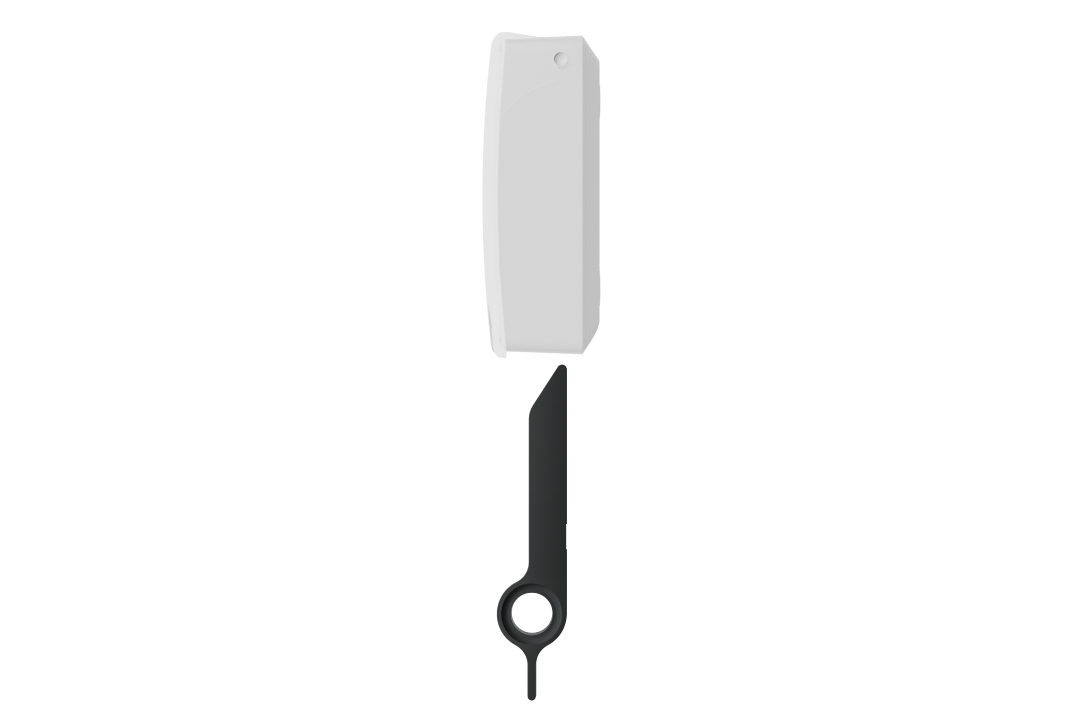

The special tool opens the lock to dismantle the device from SmartBracket mounting panel.
Recommendations
It is recommended to install the button in easily accessible places at a height of 1.4 m.
The device is designed for indoor installation only.
Sabotage protection
Tamper alarm
Notifies on attempts to detach the button from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Communication loss detection
after 36 s
The detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Batteries
2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.
Enclosure

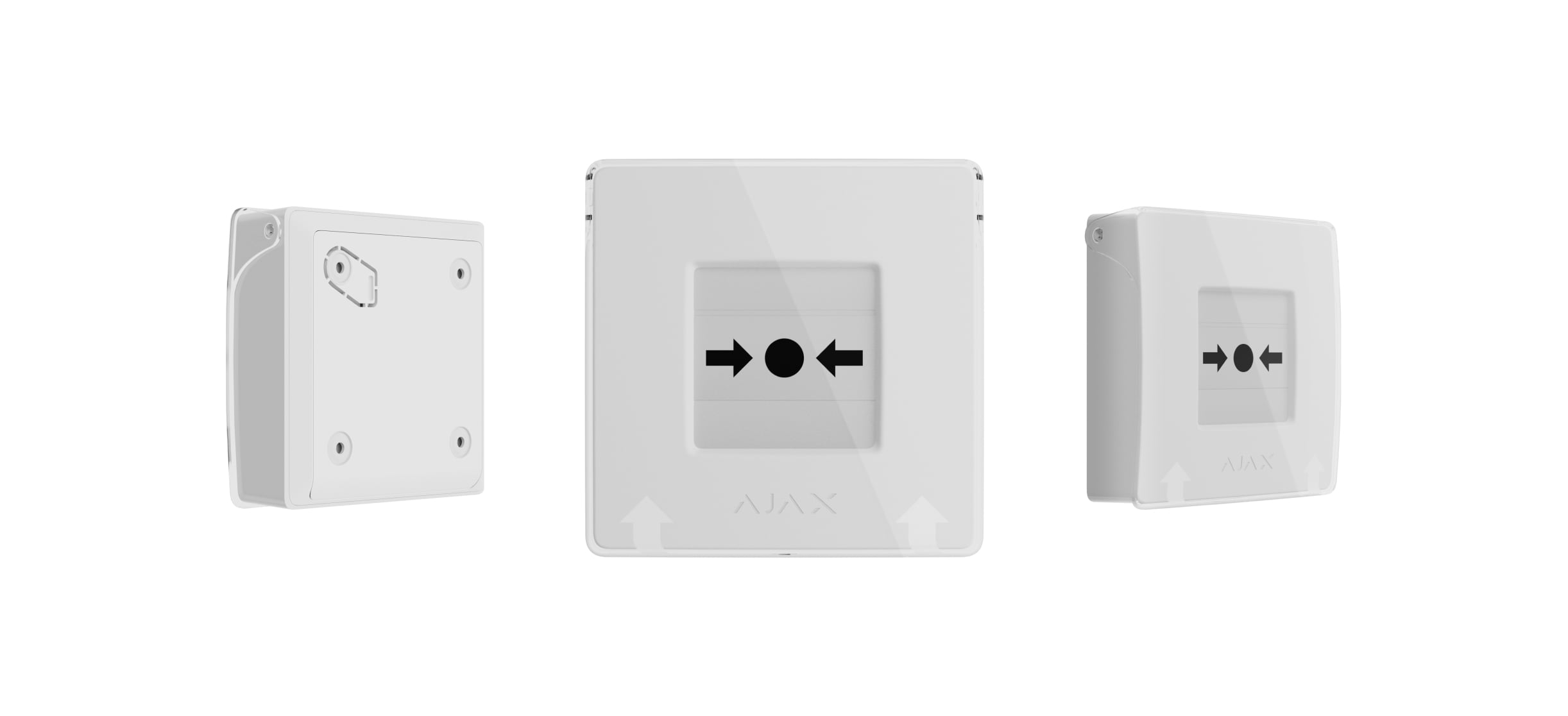

Dimensions

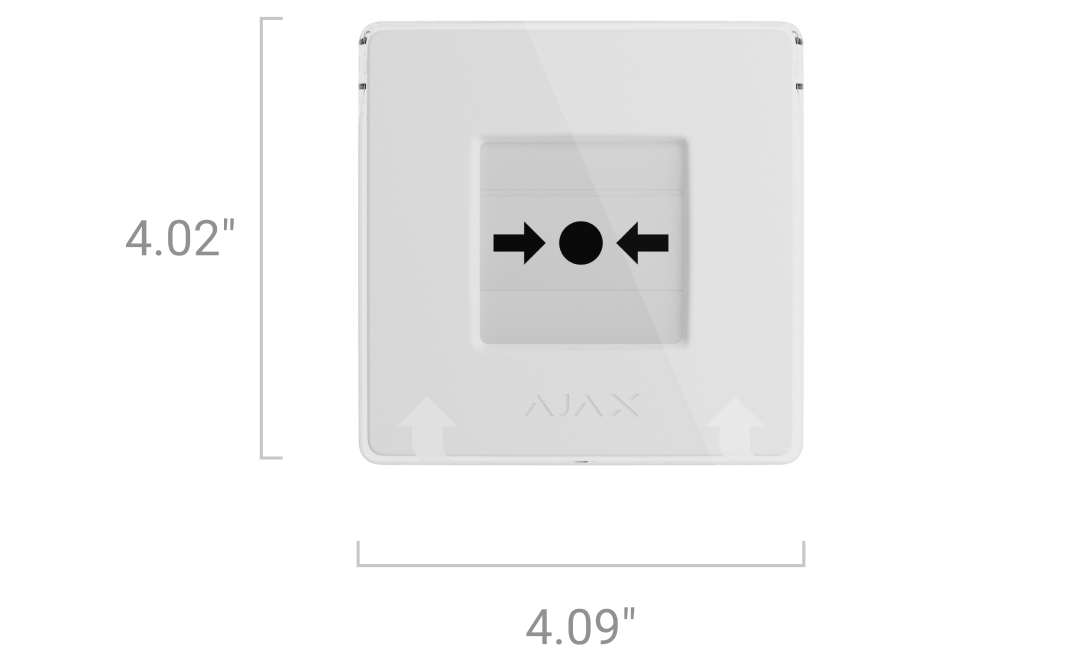

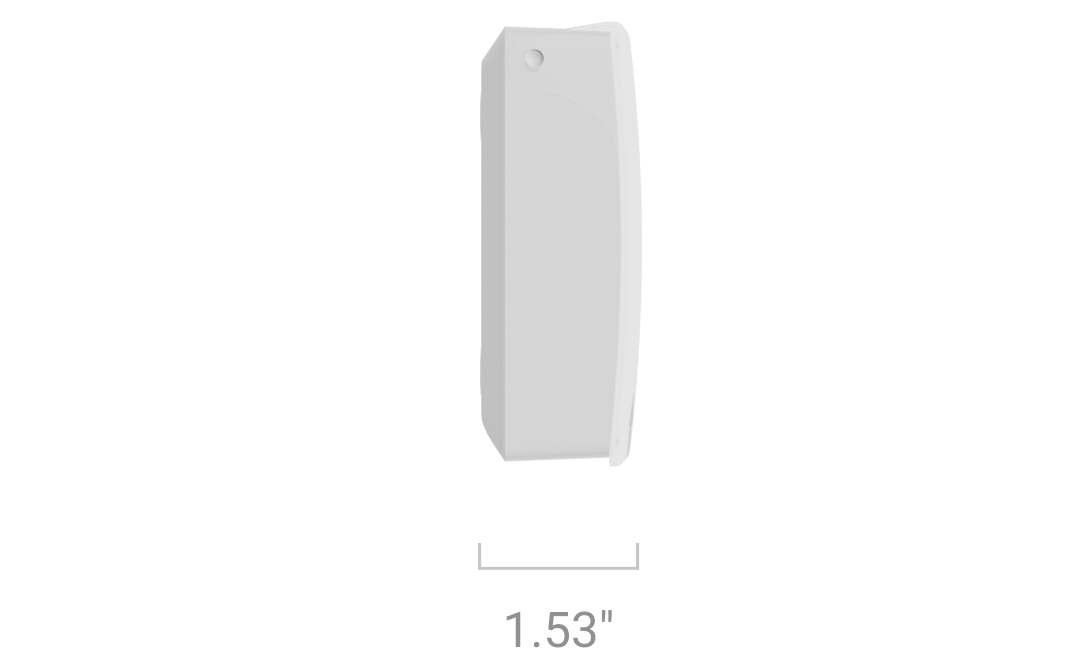

4.02″ × 4.09″ × 1.53″
Weight
7.55 oz
Operating temperature range
from 32 °F to 122 °F
Operating humidity
up to 80%
Complete set
ManualCallPoint (White) Jeweller
SmartBracket mounting panel
Special tool (key)
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide
Certification and compliance with standards
ManualCallPoint (White) Jeweller
ManualCallPoint (White) Jeweller
Radio Equipment Directive (RED)
Certificate issued by MiCOM Labs
- EN 300 220-1 V3.1.1
- EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
Certificate issued by MiCOM Labs
- EN 301 489-1 V2.2.3
- EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
Certificate issued by MiCOM Labs
- EN IEC 62311:2020
- EN IEC 62368-1:2020+A11:2020
FCC ID
Certificate issued by MiCOM Labs
2AX5VMCPRNA1
PSTI UK
Schedule 1
