Tech specs

Superior MotionCam G3 (PhOD) Jeweller

Wireless PIR motion detector with extended photo verification possibilities. Supports HD resolution.

Device compatibility

Communication

Superior Jeweller data transfer protocol

Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131).

Key features:

Two-way communication.
Advanced sabotage protection.
Enhanced block encryption with a dynamic key.
Instant notifications.
Remote control and configuration in Ajax apps.

Learn more

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 11,450 ft

Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.

Calculate the radio communication range at the facility

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Learn more

TurboWings communication technology

Proprietary wireless communication technology for uploading firmware updates.

Key features:

Two-way communication.
Advanced sabotage protection.
Block encryption featuring a dynamic key.
Data packet reload in case of transmission errors.
Data packets delivery check.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Radio communication range

up to 11,450 ft

Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.

Calculate the radio communication range at the facility

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Learn more

Detection

Sensitive element

1 PIR sensor

Motion detection distance

up to 49 ft

When installed at a height of 8 ft.

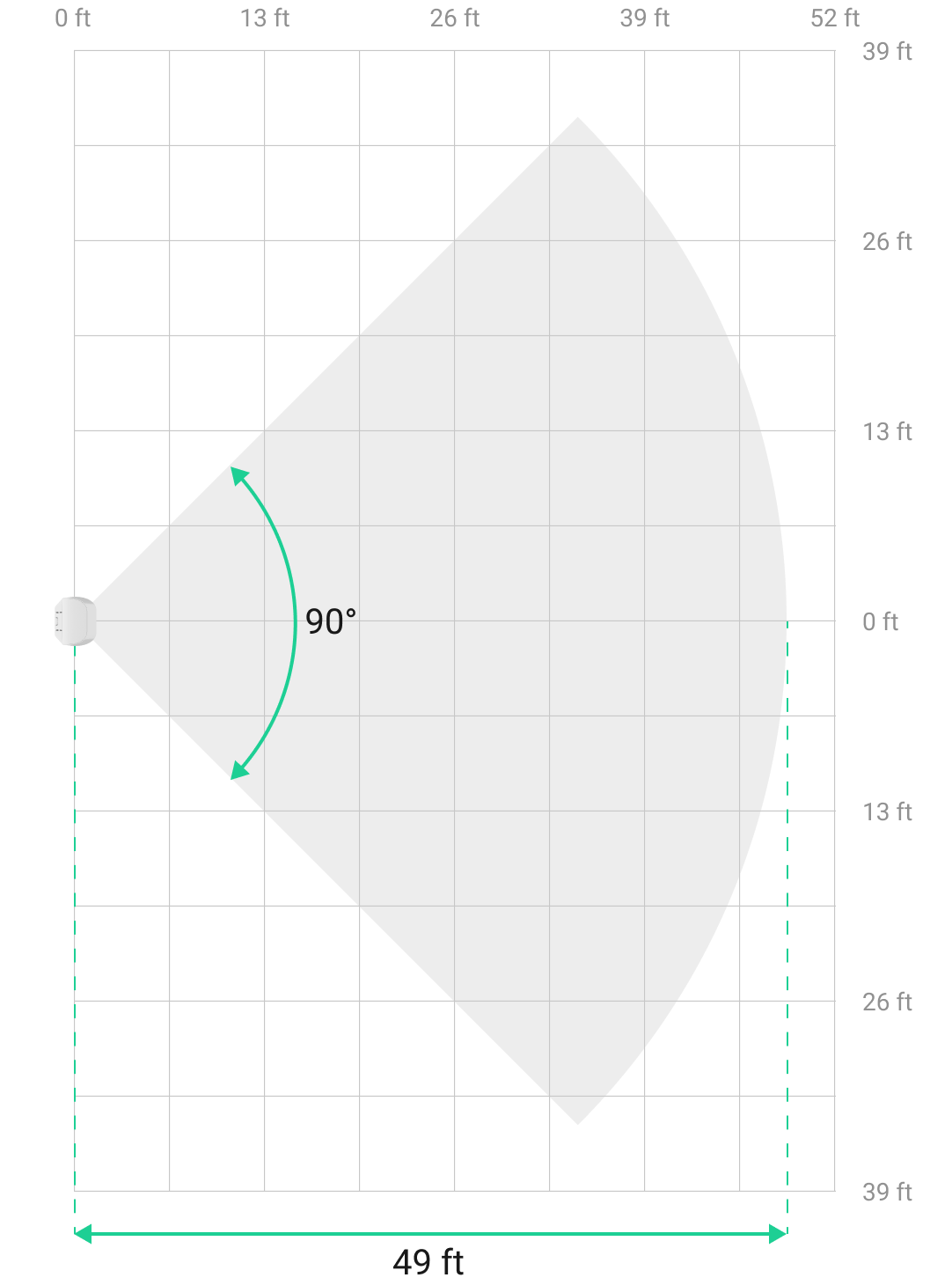

Motion detection angles

horizontal: 90°

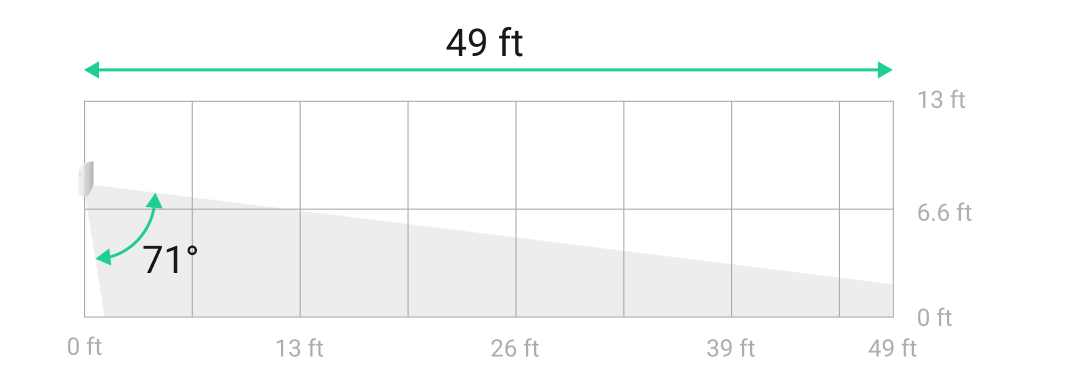

vertical: 71°

Motion detection speed

from 0.3 to 13.1 ft/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by PRO or user with admin rights in the Ajax app.

False alarm prevention

SmartDetect

Software algorithm.

Temperature compensation

Effective motion detection at temperatures from 14 °F to 104 °F.

Photo verification

Photo by alarm

A built-in camera is activated if the detector is armed and motion is detected.

Learn more

Photo on demand

User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.

Learn more

Photo by scenario

A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.

Learn more

Photo by schedule

The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.

Learn more

Photo by masking or tamper alarm

The detector automatically takes photos when masking is detected or when the tamper is triggered. The feature is disabled by default.

Photo by arming/disarming

The detector automatically takes photos when the security state is changed.

Learn more

Photo resolution

HD (864 × 720 pixels)

VGA (576 × 480 pixels)

QVGA (288 × 240 pixels)

QQVGA (160 × 128 pixels)

Adjusted by PRO or user with admin rights in the Ajax app.

HDR image

Improves the accuracy of detail in bright and dark scenes.

IR backlight

For night photography and low light conditions.

Pictures in a series

from 1 to 5 images with a resolution of 288 × 240 px or 160 × 128 px

from 1 to 3 images with a resolution of 576 × 480 px or 864 × 720 px

Adjusted by PRO or user with admin rights in the Ajax app.

Photo delivery time

up to 3 s — 160 × 128 px resolution

up to 4.5 s — 288 × 240 px resolution

up to 11 s — 576 × 480 px resolution

up to 15.5 s — 864 × 720 px resolution

When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.
