Tech specs

TurretCam (5 Mp/4 mm)

Wired security IP camera with up to 2880 × 1620 px resolution and 75°–85° viewing angle

Models

5 Mp/2.8 mm

  • Resolution up to 2880 × 1620 px
  • Frame rate 25 FPS
  • Viewing angle from 100° to 110°

5 Mp/4 mm

  • Resolution up to 2880 × 1620 px
  • Frame rate 25 FPS
  • Viewing angle from 75° to 85°

5 Mp/2.8 mm

  • Resolution up to 3840 × 2160 px
  • Frame rate 20 FPS
  • Viewing angle from 100° to 110°

8 Mp/4 mm

  • Resolution up to 3840 × 2160 px
  • Frame rate 20 FPS
  • Viewing angle from 75° to 85°

Videostream

Video protocol

JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.

Storage

NVR
microSD
Memory storage device not included.

Codecs

H.265
H.264

Dynamic ranges

HDR
WDR

Communication channel

Ethernet

up to 100 Mbps

Key features

Motion detection

The camera has software to detect motion in the frame.

Object detection

using AI
  • Humans.
  • Pets.
  • Vehicles.

Smart IR illumination

up to 35 m
Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low light conditions.

Active zone

The camera focuses on certain areas of its view where the device will detect motion.

Visual verification of Ajax alarms

The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app.

Microphone

With the corresponding settings, the camera records sound at the object.

Power supply

Power supply unit

12 V⎓ ± 20%, 1 А
Up to 7.5 W of mains power consumption.

Ethernet port

PoE Standard 802.3at

Sabotage protection

mTLS

Encrypted connection for data protection.

Authentication

via Cloud
Without local access rights.

Secure Boot

Protection against firmware spoofing.

OTA signature verification

Secure automatic firmware update.

Privacy

Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.

Enclosure

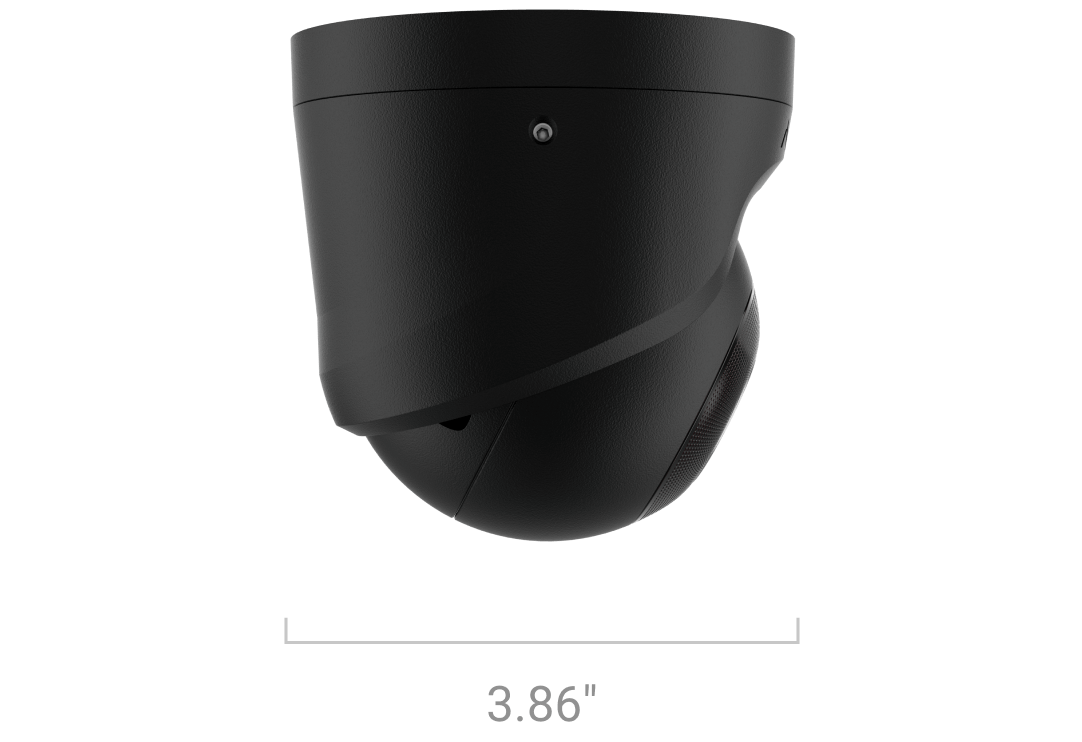

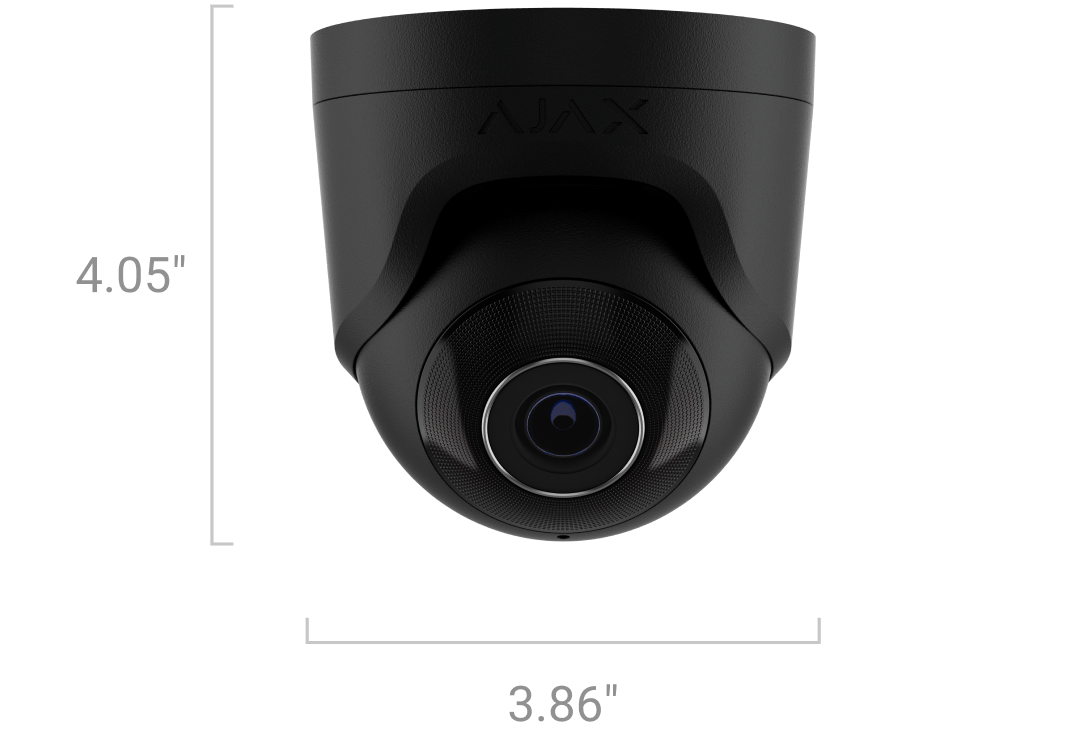

Dimensions

4.05″ × 3.86″ × 3.86″

Weight

17.50 oz

Operating temperature range

from −13 °F to 104 °F

Operating humidity

up to 90%

Protection class

IP65, IK08

Colours

Black
White

Complete set

TurretCam (5 Mp/4 mm)
Installation template
Installation kit
Quick start guide

Additional information

Compliance with standards

Warranty

24 months

User manual
